Heirloom Bridging, Ribbon Embroidery, and Machine Felting: The Old-School Looks You Can Actually Produce on Modern Machines

If you love the nuanced look of late-1800s heirloom garments but lack the late-1800s abundant free time, this guide is your specific solution. It demonstrates how to simulate intricate "handwork" convincingly using modern machine mechanics—without turning your sewing room into a frustration factory.

We will deconstruct three specific techniques: (1) Heirloom Bridging (Faggoting) on a collar using a wash-away sticky stabilizer framework, (2) Ribbon Embroidery utilizing the "floating" technique for zero puckering, and (3) Mixed-Media Felting combining embroidery outlines with wool roving.

Don’t Panic—Heirloom Bridging (Faggoting) Looks Hard, but It’s Mostly Prep and Pace

Heirloom bridging has a reputation for being "fiddly." That reputation is fair because while the feather stitch itself is mechanically simple, the alignment is unforgiving. If your spacing drifts by even 2mm, the illusion breaks.

The breakthrough in this method is shifting the burden from your hands to the chemistry. We use wash-away sticky stabilizer as an adhesive positioning system. This means you aren’t fighting pins, shifting layers, or distorted bias curves. You are stitching on a stable "map" that simply washes away later.

The core engineering concept: We create a controlled, sticky gap between a finished collar edge and a finished bias tube. Then, we use a machine feather stitch to swing back and forth, catching both sides like a suspension bridge.

The “Hidden” Prep That Makes Bridging Behave: Collar Turning, Trimming, and a Wash-Away Sticky Stabilizer Map

Before you touch the fancy stitch settings, you must build a collar edge that is geometrically smooth. If the edge ripples, the bridge fails.

The Foundational Steps (Do not skip):

1. Sew & Trim: Sew the two collar pieces together. Trim the seam allowance down aggressively to about 1/8 inch. This reduces bulk that pushes the seam outward.
2. Turn & Press: Turn the collar right side out. Press it thoroughly. It should feel crisp, like cardstock.
3. The Point Turner: Use a specific point turner tool to glide inside the collar seams. Do not just use your fingers; fingers compress the seam allowance (wadding), whereas a point turner irons it flat from the inside out.

Creating the "Map":

1. Place your pressed collar onto the shiny/smooth side (backing) of a sheet of wash-away sticky stabilizer. (Do not peel it yet).
2. The goal is to trace the shape. However, to see it better, stick the stabilizer sheet (backing on) onto a light box or window if needed, or simply place the collar on the stabilizer side temporarily.
3. The Critical Guideline: Draw a line exactly 1/4 inch away from the collar edge on the stabilizer backing (or directly on the stabilizer if using a water-soluble pen). This line is the track for your bias tubing.

This principle—using a sticky substrate to hold fabric for precision without clamping—is the exact same engineering logic behind magnetic embroidery hoops. In both cases, we realize that "clamping" often distorts fabric, while "sticking" or "magnetizing" flat holds the geometry true.

Prep Checklist (Bridging)

• Collar sewn, turned, and pressed flat (check for "bumpy" edges).
• Seam allowance trimmed to 1/8 inch to prevent bulk.
• Point turner used to smooth corners/curves from the inside.
• Wash-away sticky stabilizer ready.
• 1/4 inch guideline drawn clearly on the stabilizer/backing to guide the tubing.
• Bias tubing cut and ready (ensure it is finished/folded on both sides).
• Hidden Consumable Check: Do you have fresh 90/14 Topstitch needles? (Heavier thread requires a larger needle eye to prevent shredding).

Warning (Safety): Keep fingers clear of the needle swing when sewing a feather stitch. Because you are guiding a curve visually, your hands naturally want to "steer" very close to the presser foot. Slow the machine down to 50% speed. Never reach under the needle area while the motor is engaged.

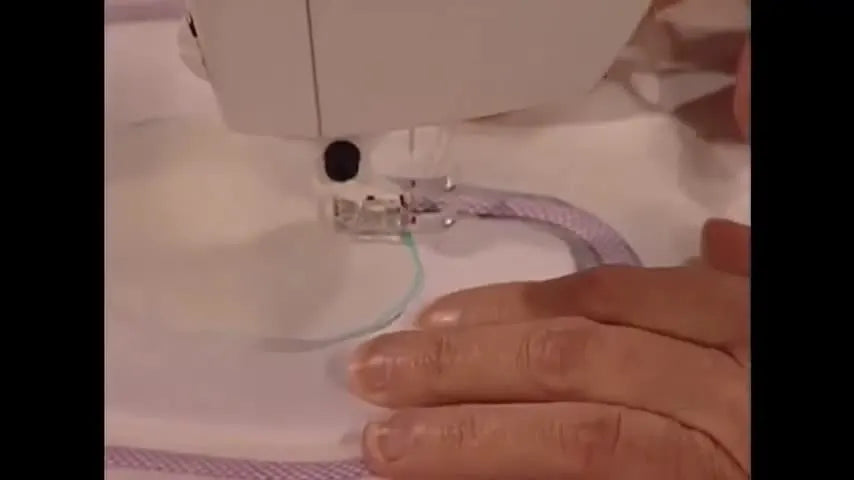

Bias Tubing Placement on Sticky Stabilizer: The No-Slip Trick That Saves Your Sanity

Friction is the enemy of smooth curves. If your hand drags on the sticky stabilizer, you will jerk the collar out of alignment.

The "Hand Shield" Protocol:

1. Peel & Stick: Peel back the protective paper to expose the sticky surface. Stick your bias tubing directly onto the adhesive, carefully following that drawn 1/4 inch guideline.
2. The Underrated Trick: Take the non-sticky backing paper you just peeled off. Cut the center out of it, creating a "window frame."
3. Apply the Shield: Lay this paper frame back on top of the sticky stabilizer, surrounding your work area.

Why this matters: Your hands can now glide on the smooth paper backing while you sew, rather than sticking to the exposed adhesive. This reduces drag friction by roughly 90%, allowing for fluid, musical steering of the fabric.

Feather Stitch Bridging on a Sewing Machine: The Slow-Pivot Rhythm That Prevents Missed Tubing

This is not a race. It is a waltz. The stitch used is a feather stitch.

Machine Setup & Physics:

• Thread Weight: Use 12 wt thread (much thicker than standard 40wt). This ensures the "bridge" looks like structural handwork, not a mistake.
• Needle: Use a Topstitch 90/14 or 100/16. The larger groove protects the thick thread from friction breakage.
• Needle Stop Setting: Disable "Needle Stop Down" (Set to Pivot/Hover if available, or Needle Up).
  • The "Why": When steering a feather stitch between two suspended fabrics, you need to pivot constantly. If the needle stops down in the empty air gap, it locks the stabilizer but doesn't help you steer. You often need the needle up to micro-adjust the angle of the curve before the next swing.

The Sensory Rhythm: Listen to the machine. You want a consistent thump-thump-swing rhythm. If the sound speeds up, your hands can't keep up with the curve adjustments. Watch the needle swing: Left (catch the collar), Right (catch the tube).

Practice Drill: Draw two parallel curved lines 1/4 inch apart on paper. Sew the feather stitch between them (unthreaded) to build muscle memory for the "arc" required to steer the work.

Setup Checklist (Bridging Stitch)

• Feather stitch selected.
• 12 wt thread installed (Bobbin can be regular 60wt or 40wt).
• Needle Stop Down turned OFF (or set to pivot function).
• Paper "hand shield" frame placed over sticky stabilizer.
• Test stitching done on scrap to verify the stitch width actually spans the 1/4 inch gap (adjust width to ~7mm if needed).

When You Miss the Bias Tube: The No-Ripping Rule (and the Hand Fix That Works)

Here is a secret from professional restoration: Do not rip out bridging stitches.

Ripping out heavy 12wt thread from a delicate wash-away stabilizer will destroy the stabilizer's integrity and leave ugly holes in your bias tube.

The Professional Recovery: If you miss the tube on a sharp curve:

1. Keep sewing. Ensure the continuous line remains intact.
2. Finish the machine pass.
3. Take a hand needle with the same thread.
4. Whip stitch the missed floating loop to the bias tube manually.
5. Once washed, the thread swells slightly, and this manual fix becomes invisible.

Operation Checklist (Bridging)

• Stitch swings are consistently catching roughly 1-2mm of fabric on both sides.
• Speed is reduced on curves (listen for a slow, steady motor hum).
• Missed catches are noted mentally but not ripped out.
• Stabilizer is washed away only after all stitching and fixing is complete.


Embroidering on Ribbon Without Puckering: Hoop the Stabilizer First, Then Float the Ribbon

Narrow ribbon (under 2 inches) is notorious. It shifts, tunnels, and can be pushed down into the needle plate throat.

The "Floating" Workflow:

1. Hoop the Stabilizer Only: Hoop a firm tear-away or wash-away stabilizer tight as a drum skin. Do not hoop the ribbon.
2. The Placement Line: Run a basting stitch (digital file) on the stabilizer to mark exactly where the ribbon goes.
3. Adhesive Anchor: Spray the back of the ribbon lightly with temporary adhesive (like KK100 or 505 Spray) OR spray the stabilizer target area.
4. Float & Stick: Press the ribbon onto the stabilizer, aligned with your basting box.
5. Fixation: Run a basting box around the ribbon or use the "Fix" function on your machine to tack it down.
6. Embroider.

This mimics the stability provided by an embroidery hooping station. In a commercial setting, we use stations to ensure the ribbon lands in the exact same spot on the stabilizer every time. For home use, the "measure-mark-spray" method is your alternative.

The Vinyl Pocket Photo Pillow: Clean Vinyl Sewing with Tiger Tape and a Teflon Foot

Vinyl is sticky. Plastic-on-metal creates high friction, causing the foot to drag the top layer while the feed dogs pull the bottom layer. The result? Warped pockets.

The Low-Friction Kit:

• The Tape: Use Tiger Claw tape (or similar varying-width guide tapes).
  • Why: Unlike standard masking tape, it doesn't leave gummy residue on vinyl that attracts lint.
• The Foot: Install a Teflon (Non-Stick) Foot.
  • The Sensory Check: When you rub your thumb on the bottom of the foot, it should feel slick, like a greased pan. If it feels like smooth metal, it will stick to vinyl.

Pro Tip: If you don't have a Teflon foot, place a piece of matte scotch tape on the bottom of your standard metal foot. It works in a pinch.

A Practical Stabilizer Decision Tree: Match Fabric + Technique Before You Stitch

Choosing the wrong stabilizer is the #1 cause of puckering. Use this logic gate for the projects discussed:

Decision Tree:

• Scenario A: Heirloom Bridging (Air Gaps)
  • Requirement: Must hold fabric rigid but disappear completely.
  • Choice: Wash-Away Sticky Stabilizer (Fibrous or film type, provided it is sticky).
• Scenario B: Narrow Ribbon Embroidery
  • Requirement: Stiffness to prevent tunneling; easy removal.
  • Choice: Firm Tear-Away (Hooped) + Temporary Spray Adhesive. Use Cut-away only if the ribbon is very flimsy satin.
• Scenario C: Felting/Embroidery on Knitwear (Sweaters)
  • Requirement: Permanent support for the fibers.
  • Choice: No-Show Mesh (Cut-away) or heavy Water-Soluble if transparency is needed. Note: Felting destroys stabilizer, so water-soluble is often preferred if felting directly through it.

In professional shops, we treat this as a "Support vs. Removal" equation. If the back touches skin, we minimize scratchy stabilizers.

Quilt Label Lettering That Doesn’t Look Childish: The Small-Letter Trick with Open Fly Stitch

Small lettering (under 10mm) often turns into a thread blob on domestic machines.

Refining the Micro-Text:

• Stitch Selection: Sandy suggests an Open Fly Stitch (resembling an open lazy daisy).
• Why it works: Unlike a satin stitch which jams many needle penetrations into a small space (cutting the fabric), the open fly stitch uses air and geometry to define the letter shape without bulk.
• Thread: Use 60wt thread (thinner) + Size 70/10 needle for text under 0.5 inches.


Machine Felting + Embroidery with Wool Roving: The Safe Workflow When You Move a Hooped Project Between Machines

This technique requires moving a project from an embroidery machine (for the outline) to a felting machine (to fill it), and maybe back again.

The Golden Rule: NEVER UNHOOP.

The Workflow:

1. Embroidery Phase 1: Hooped stabilizer + fabric. Stitch the outline of the shape.
2. Transfer: Remove the hoop from the embroidery module. Walk it to your felting machine. Do not loosen the screw.
3. Felting: Place wool roving (fluffy unspun wool) inside the stitched outline. The felting machine's barbed needles punch the fiber into the base fabric.
4. Embroidery Phase 2 (Optional): If you need topstitching over the felt, return the hoop to the embroidery machine.

Because repeatability is critical here, many users invest in hooping stations early in their journey. However, a station only helps you hoop initially. The ability to move the hoop between machines relies on the hoop's grip.

Warning (Equipment Safety): Felting machines use clusters of barbed needles. They are extremely brittle. If you strike the plastic edge of your hoop, they will shatter.
* Safety Radius: Keep felting action at least 1 inch away from the hoop edge.
* Eye Protection: Always wear glasses when felting; needle shards fly at high velocity.

Hand Felting Option: When You Don’t Own a Felting Machine (and Still Want the Texture)

If you lack a specialized machine:

• Tool: Multi-needle hand felting tool (spring loaded).
• Base: High-density foam block (placed under the hoop—be careful not to stretch the fabric).
• Technique: Punch vertically. Do not pry sideways, or needles will snap.


Troubleshooting the Three Most Common “Why Is This Fighting Me?” Moments

Recognize these symptoms before they ruin the project.

1) Symptom: You keep missing the bias tube during bridging / "Air stitching"

• Likely Cause: You are watching the needle, not the guide. Or, you are sewing too fast (over 400 SPM).
• The Fix: Focus your eyes 1 inch ahead of the needle. It drives like a car; look where you want to go. Slow down.

2) Symptom: Sticky stabilizer grabs your wrists / Dragging

• Likely Cause: Exposed adhesive outside the work area.
• The Fix: Use the "Paper Frame" trick described in the Prep section. Covering the sticky zones creates a friction-free gliding surface.

3) Symptom: Vinyl pockets look crooked or warped

• Likely Cause: Hand pressure. You are pushing down on the vinyl, increasing drag against the machine bed.
• The Fix: Use a Teflon foot and keep hands flat and light. Let the feed dogs do the work.




The Upgrade Path I’d Recommend After You Nail the Technique Once (Because Repeating It Is Where Time Disappears)

Once you master the technique, the frustration shifts to repetition. Setup time kills creativity. Here is how to diagnose if you need a tool upgrade:

Scenario 1: You are making 50+ ribbon favors for a wedding.

If you are doing volume, manual measuring for every single ribbon is unsustainable. A hoop master embroidery hooping station solves this by creating a mechanical jig. You set it once, and every subsequent ribbon loads in 5 seconds, hitting the exact same coordinate.

Scenario 2: You struggle with "Hoop Burn" or Hand Pain.

Traditional screw-tightening hoops require grip strength and can crush delicate fabrics (like velvet or napped wool used in felting). This is the primary trigger to investigate a magnetic hooping station and magnetic frames. The magnets self-adjust to fabric thickness, eliminating the "crush ring."

Scenario 3: Precision Alignment on Specific Machines.

If you own a specific ecosystem, like Husqvarna, generic tools may slip. Look for a dedicated magnetic hoop for husqvarna viking. These are calibrated to the attachment arm of your specific machine, ensuring that your multi-stage felting projects line up perfectly when you click the hoop back in.

Scenario 4: You want to turn a hobby into a business.

If you are spending more time changing thread colors than designing, you have outgrown the single-needle machine. The transition to a SEWTECH-style multi-needle machine is about buying back your time. The ability to set up 10 colors and walk away is the difference between a hobbyist and a producer.

A Final Reality Check: Vintage Results Come from Modern Consistency

The beauty of these techniques is not in a secret hand-stitch. It is in controlled handling.

• Sticky stabilizer turns "bridging" into a paint-by-numbers system.
• Floated ribbons eliminate the physics of puckering.
• Hoop discipline allows you to mix felting and stitching without losing registration.

Treat your prep work like an engineer, and you will produce art like an artisan.

FAQ

• Q: Why does a sewing machine feather stitch for heirloom bridging (faggoting) keep missing the bias tubing on tight curves?
  A: Slow down and aim your eyes ahead of the needle so each swing catches 1–2 mm of fabric on both sides—this is common and mostly a pacing issue.
  • Reduce speed on curves and keep a steady “waltz” rhythm instead of rushing.
  • Look about 1 inch in front of the needle swing (steer by the guideline, not the needle).
  • Adjust stitch width so the feather stitch actually spans the 1/4 inch gap (many setups land around ~7 mm, then fine-tune).
  • Success check: Each left/right swing visibly bites a small, consistent margin of collar edge and tubing with no “air swings” across the gap.
  • If it still fails, verify the bias tubing is stuck precisely to the drawn 1/4 inch guideline before stitching.
• Q: How do I stop wash-away sticky stabilizer from grabbing my wrists and dragging the collar during heirloom bridging (faggoting)?
  A: Cover the exposed adhesive with a “paper frame” so your hands glide on paper, not sticky film.
  • Peel the backing paper to expose adhesive only where needed and stick the bias tubing to the guideline first.
  • Cut the center out of the removed backing paper to make a window-frame “hand shield.”
  • Lay the paper frame back over the stabilizer, surrounding the work area.
  • Success check: Hands slide smoothly with minimal resistance and the collar stops jerking out of alignment mid-curve.
  • If it still fails, reduce the exposed sticky area further and re-position the paper frame closer to the stitching path.
• Q: Which needle and thread setup prevents shredding when sewing heirloom bridging (faggoting) with 12 wt thread on a domestic sewing machine?
  A: Use a Topstitch 90/14 (or 100/16) needle with 12 wt top thread so the larger eye and groove protect the thick thread.
  • Install 12 wt thread on top; keep bobbin thread regular 40 wt or 60 wt.
  • Replace the needle with a fresh Topstitch needle before starting (dull needles often shred thicker thread).
  • Test on scrap to confirm smooth feeding and clean stitch formation.
  • Success check: The machine runs without fraying, fuzzing, or snapping, and the “bridge” looks bold rather than thin or broken.
  • If it still fails, re-thread the top path carefully and try a new needle again (needle wear shows up fast with heavier thread).
• Q: What sewing machine “Needle Stop Down” setting should be used for feather-stitch heirloom bridging (faggoting) across an air gap?
  A: Turn Needle Stop Down OFF (use Needle Up or a hover/pivot mode) so you can micro-adjust the curve between swings without locking the work in the gap.
  • Disable Needle Stop Down before starting the bridging run.
  • Pivot frequently to stay on the curve while keeping the swing catching both sides.
  • Practice the steering motion on paper with two curved lines 1/4 inch apart (unthreaded) to build rhythm.
  • Success check: Pivots feel easy and controlled, and the stitch path stays centered without sudden angle jumps.
  • If it still fails, slow the machine further and focus on consistent pivot timing rather than continuous speed.
• Q: How do I fix missed catches in heirloom bridging (faggoting) without ripping out 12 wt thread from wash-away sticky stabilizer?
  A: Do not rip out the bridging—finish the pass, then hand-whip the missed loop to the bias tube using the same thread.
  • Keep sewing to maintain a continuous, clean bridging line.
  • After the machine pass, thread a hand needle with the same 12 wt thread.
  • Whip stitch the floating loop down to the bias tube only where it missed.
  • Success check: The repaired area sits flush, and after washing away the stabilizer the hand fix blends in with the machine stitching.
  • If it still fails, check that the stabilizer has not been weakened by prior unpicking and restart on a fresh stabilizer map if needed.
• Q: How do I embroider on narrow ribbon (under 2 inches) without puckering by using the “float the ribbon” method in an embroidery hoop?
  A: Hoop the stabilizer tight, float (do not hoop) the ribbon on top with a light adhesive anchor, then tack it down before embroidering.
  • Hoop firm tear-away (or wash-away) stabilizer “tight as a drum skin.”
  • Stitch a placement/basting line on the stabilizer to mark ribbon location.
  • Lightly spray temporary adhesive on the ribbon back or the stabilizer target area, then press ribbon into place.
  • Run a basting box around the ribbon (or use a machine “Fix” function) before stitching the design.
  • Success check: Ribbon stays flat with no tunneling, shifting, or being pushed toward the needle plate opening during stitching.
  • If it still fails, increase stabilization (often firmer hooped tear-away) and re-check that the ribbon was never clamped inside the hoop.
• Q: What safety rules prevent needle breakage and injury when moving a hooped project between an embroidery machine and a felting machine with wool roving?
  A: Never unhoop the project, and keep felting at least 1 inch away from the hoop edge because barbed felting needles can shatter if they strike the hoop.
  • Keep the hoop screw tight during transfer; remove and carry the hoop as a unit.
  • Place wool roving inside the stitched outline and felt only within the safe area away from the hoop rim.
  • Wear eye protection whenever felting.
  • Success check: No needle strikes on the hoop edge, no snapped needles, and the felt fills the outline without shifting registration.
  • If it still fails, stop immediately and re-position the hoop so the felting zone stays outside the 1-inch safety radius.
