Brother Luminaire XP1 My Design Center: Pencil Tools, Line Properties, and the “Don’t-Ruin-Your-Stitchout” Settings Pros Actually Use

If you’ve ever stared at the Brother Luminaire screen thinking, “I know this can digitize on-board… but I don’t want to waste stabilizer and thread finding out the hard way,” you’re in the right place.

Drawing on the screen is easy; getting the physics of thread and fabric to obey that drawing is the hard part. In my 20 years of embroidery education, I’ve seen more projects ruined by "perfect designs" on "badly prepped fabric" than software errors.

In this tutorial-style walkthrough, we’re staying inside My Design Center on the Brother Innov-is Luminaire XP1. We will do exactly what the video demonstrates—choosing line stitches, drawing with pencil tools, and converting drawings—but we will also add the physical safeguards capable of turning a digital sketch into a production-grade embroidered reality.

Calm the Panic: My Design Center on the Brother Innov-is Luminaire XP1 Is Forgiving (If You Know the Two “Undo” Habits)

The first thing I tell new Luminaire owners is this: you’re not “messing up the machine” when you experiment in My Design Center—you’re just building objects on a virtual canvas. The machine does not know about your $50 hoodie until you hit "Stitch."

From the workflow, you can always return to the Home screen and re-enter My Design Center. And inside the canvas, you have Undo / Redo and an All Clear option to wipe the screen clean.

That matters because on-screen digitizing feels high-stakes the first time you do it. It isn’t—as long as you build the habit of testing, undoing, and re-testing before you ever commit to stitching. Treat the screen like a sketchbook, not a contract.

The “Hidden” Prep Pros Do First: Stylus Choice, Screen Cleanliness, and a Hooping Plan Before You Draw

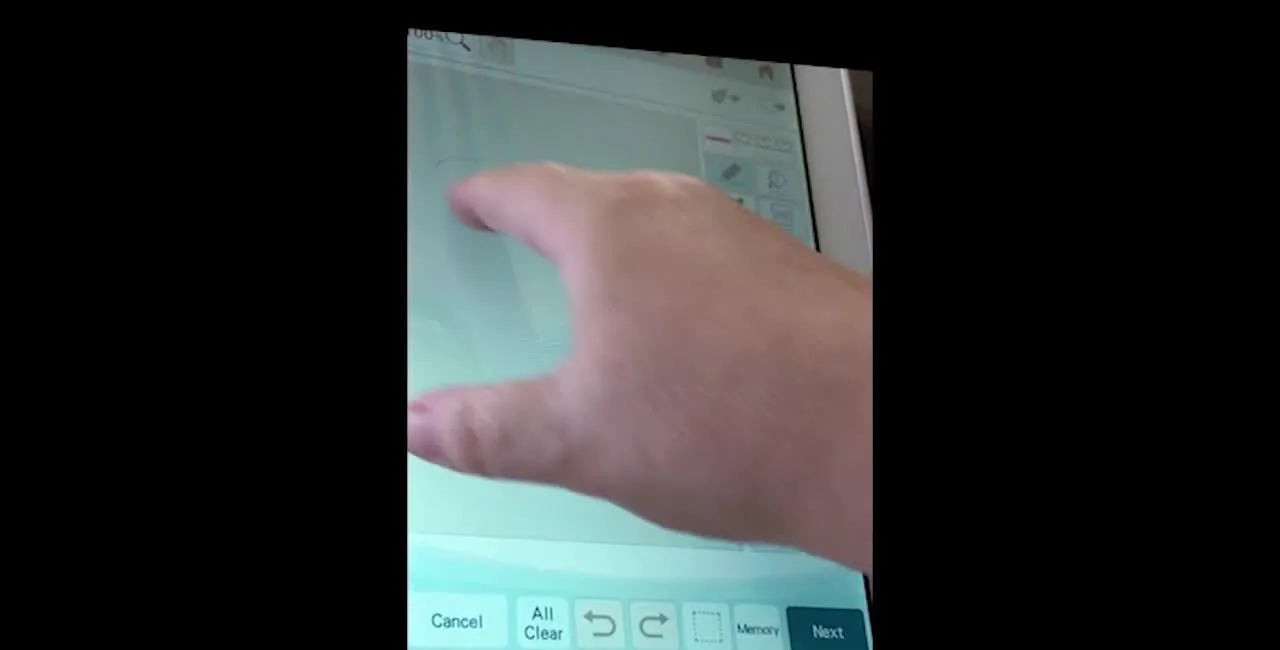

The video shows you can draw with your finger or a capacitive stylus. Both work—but your results (especially on small lettering) depend on how steady and consistent your input is.

However, the "invisible" step that kills quality is friction. Oils on the touchscreen can make your “line” wobble because your finger drags inconsistently.

Here’s the prep I recommend before you even touch the pencil tools:

• Clean the screen: Use a microfiber cloth. A smooth glide equals a smooth stitch line.
• Pick your input tool: Finger is fine for big shapes; a stylus is mandatory for clean corners.
• Think about hooping now, not later: This is the most critical step. If you draw a perfectly straight line, but your fabric is hooped crookedly or loosely, the line will stitch out wavy. If you are doing a lot of re-hooping, traditional screw-hoops can cause hand fatigue and "hoop burn" (the shiny ring left on fabric). This is where hooping for embroidery machine technique becomes the real bottleneck—not the drawing. Use a magnetic hoop if you need to hoop fast and avoid fabric crush marks.
• Decide your end use: Is this a quick label on a towel (high pile requiring topping), or a name on a flat shirt?

Warning: Mechanical Safety Hazard. Keep fingers, hair, loose sleeves, and stylus tools away from the needle area when you move from screen work to stitching. Do not try to "smooth" the fabric while the machine is running. A quick “just checking” moment is how people get poked—or snap a 90/14 needle sending shards flying.

Prep Checklist (do this before you start drawing)

• Press Home and confirm you can re-enter My Design Center quickly
• Wipe the touchscreen with a microfiber cloth so your stylus glides smoothly
• Check Consumables: Do you have the right needle (e.g., 75/11 for wovens) and bobbin fill?
• Hooping Strategy: Decide if you are using a standard hoop or a magnetic frame for delicate items.
• Select finger vs. capacitive stylus based on the precision required.


Make Line Properties Work for You: Satin, Candlewicking, Chain, Blanket, and Decorative Lines in the Line Property Menu

On the My Design Center canvas, the Line Property area controls what your drawn outlines will become when converted to stitches. This is not just "decoration"—it represents physical pull on your fabric.

In the video, the presenter opens the Line Property menu and looks at multiple stitch types:

• Satin stitch: (High pull force) Needs strong stabilizer.
• Single/Triple stitch: (Low pull force) Good for detail.
• Candlewicking: (High texture) Requires perfect hooping stability.
• Chain/Blanket stitch: (Decorative) Great for appliqué edges.

The key workflow is simple:

1. Open the Line Property menu.
2. Choose the stitch type (e.g., Heart decorative line).
3. Choose a color (red helps visibility on screen).

Expert Reality Check: "Decorative lines" like hearts or candlewicking are unforgiving. Because they repeat a pattern, any fabric shift becomes obvious. If your fabric slips in the hoop, the hearts won't line up. This is why professionals often upgrade to magnetic hoops—they clamp the fabric evenly all the way around, preventing the "flagging" (bouncing) that distorts these decorative lines.

One subtle tool: the “No Stitch” icon. Use it when you want to define a shape area but don’t want an outline to stitch—perfect for creating fill zones without a hard border.

Turn Handwriting into Stitches with the Open Shape Pencil Tool (and Avoid the Two Most Common Lettering Mistakes)

The video demonstrates the Open Shape pencil tool by handwriting “Susan” directly on the screen.

Here’s the exact flow:

1. Select the Open Shape pencil.
2. Draw freehand with your finger (or stylus).
3. Move to the next screen to let the machine digitize the artwork.
4. My Design Center “catches up” and converts your drawn line into the selected line stitch.


What you should expect (so you know you’re on track)

• Visual: Artwork turns into blocks of stitches.
• Auditory: You will hear the machine computing; this is normal.

Two lettering mistakes that cause ugly stitchouts later

1. Drawing too small too soon: If you write small (under 0.5 inches), standard thread (40wt) and standard needles (75/11) physically cannot make the turns. The result is a illegible blob. Rule of thumb: If you can't read it clearly from 3 feet away on screen, it won't stitch well.
2. Inconsistent stroke speed: Fast scribbles create jagged vectors. Draw slowly and deliberately.

If you are planning to stitch names repeatedly (team gifts, craft fairs), manual drawing is slow. Combine this skill with a stable hooping method. A magnetic hoop allows you to slide garments in and out continuously without unscrewing the outer ring, which saves about 2 minutes per shirt.

Fine-Tune the Look: Editing Decorative Stitch Size (0.520"), Spacing (0.100"), and Flip Before You Hit Set

On the editing screen, you enter the "Physics Adjustment" phase. The default settings are often too dense for average fabrics.

In the Heart line example, the presenter changes:

• Design Size to 0.520 inches
• Spacing to 0.100 inches

The machine redraws the line after each change.

The video also demonstrates Flip, which changes the orientation of the motif.

Why these settings matter (The "Why" that prevents wasted stitchouts)

• Size: Larger motifs usually stitch cleaner because the needle penetrations are further apart.
• Spacing: This is your safety valve. If stitches are too close (under 1mm), you risk cutting the fabric. Increasing spacing to 0.100" or more reduces the "perforation effect."
• Flip: A layout tool for borders.

Pro Tip: Always make edits before hitting Set. Once you hit Set, the design is converted to embroidery data, and you lose the ability to easily change the "properties" (like spacing) without undoing.

Selective Editing Without Re-Drawing: Paint Bucket Changes Only Touching Segments (So You Don’t Ruin the Whole Word)

This is one of the most useful “production” tricks in the video. The presenter changes the Line Property to a blue satin stitch, then uses the Paint Bucket tool to tap only the “S”.

The machine logic is strict: only lines that are touching will change.

Expert Tip: The "Micro-Gap" Technique

If hitting the "S" changes the "u" as well, it means your handwriting connected them.

• Diagnosis: Zoom in to 800%. You will likely see a single pixel connection.
• Prevention: When drawing cursive for Embroidery Machine Digitizing, intentionally leave a microscopic gap between letters if you plan to color them differently. You can bridge it later with a single stitch if needed.

The Closed Shape Pencil Tool: The One Tap That Prevents Fill from Flooding the Entire Background

The video demonstrates the Closed Shape pencil tool by drawing a loose circle. When the finger is lifted, the machine sends a straight line to snap the start and end points together.

This is a safety rail. In standard digitizing software, if you leave a shape 99% closed, the fill bucket spills out (like water) and fills the whole screen.

• Symptom: You tap "Fill" and the whole background turns red.
• Likely Cause: A 0.1mm gap in your outline.
• Fix: Use Closed Shape. It forces the geometry to be watertight.

Candlewicking on a Straight Line: Dialing Size (0.188") and Spacing (0.084") for the Look You Actually Want

The video switches to a straight line example using candlewicking. Candlewicking is a colonial knot simulation—it's a heavy, tall stitch.

On the editing screen, the presenter adjusts:

• Candlewicking Size to 0.188 inches
• Candlewicking Spacing to 0.084 inches

Expert insight: Candlewicking is a “Stability Test”

Candlewicking places a heavy knot of thread in one spot. Standard adhesive stabilizer often isn't enough; the weight of the knot can pull the fabric.

• The Auditory Check: Listen to the machine. A "thump-thump-thump" sound is normal for knots. A grinding sound means tension is too tight.
• The Physical Solution: If your knots look distorted, check your hooping. If the fabric is "drum tight" but springing back, it's perfect. If it's loose, the knots will sink. This is a classic scenario where magnetic hoops shine—they hold thick fabrics (like towels where candlewicking is common) without the struggle of jamming an inner ring into a thick pile.

Build Clean Geometry Fast: The Polygon Tool for Crisp Shapes (and How to Close It Correctly)

The video demonstrates the Polygon tool. Instead of drawing, you tap points (vertices).

This creates mathematically perfect straight lines. To close it, you must tap the very first point you created.

What to expect

• Visual: Crisp, sharp lines perfect for badges or patch borders.
• Tactile: Unlike drawing, you are tapping. Use a stylus for precision.


Change Stitch Type After Drawing: Switching a Polygon to Chain Stitch and Making It Thinner (x2)

A very practical moment: after drawing the polygon, the presenter changes the stitch type to chain stitch and adjusts Chain Stitch Thickness to x2 (Thinner).

Why “Edit After Drawing” is a Production Superpower

It allows you to focus on the shape first, and the texture second.

• Scenario: You start with a Satin stitch border. You realize the fabric is a thin silk that will pucker under satin.
• Pivot: precise change to a Running or Chain stitch reduces the pull on the fabric without redrawing the shape.

If you are doing this for items that need consistent placement (like left-chest logos), combining this geometric tool with a machine embroidery hooping station ensures that your perfectly drawn square lands perfectly straight on the shirt. If clamping is slowing you down, magnetic hoops for brother luminaire are often chosen specifically to reduce hooping time and hoop marks.

Warning: Magnetic Safety. Unlike standard hoops, magnetic frames are powerful industrial tools. Pinch Hazard: Keep fingers clear when the magnets snap together. Medical: Keep away from pacemakers. Data: Keep away from credit cards and phone screens. Treat them with respect.

Zoom to 400% or 800% Without Getting Lost: Using the Hand Tool to Pan Like a Pro

The video shows zooming in (400% or 800%) and using the Hand tool to pan.

Setup Checklist (Before you commit to stitching)

• Visual Scan: Zoom to 400% and inspect all "joins" and corners.
• Safety Check: Ensure no fill has flooded the background.
• Physical Check: Is the embroidery arm clear? Is the hoop locked in?
• Paint Bucket Verify: Note if any colors bled into unintended segments.
• Final Edit: Confirm Size/Spacing settings (e.g., 0.520" / 0.100").

Blanket Stitch on Scanned Shapes: The Appliqué Edge Trick Viewers Keep Wanting to Try

One viewer comment in the video notes that blanket stitch can be used as a finishing stitch around a scanned shape—giving an appliqué-style edge.

How to think about it (So it stitches cleanly)

This is an "Open Edge" technique. The blanket stitch has a "bite" that goes into the fabric and a line that sits on the edge.

• Critical Success Factor: The fabric inside the shape must be fused down perfectly. Use double-sided fusible web (like Steam-A-Seam).
• Hooping: If the fabric shifts, the "bite" will miss the edge. If you are doing appliqué work repeatedly, your time is usually lost in hooping and re-hooping. Tools like the brother luminaire magnetic hoop (or compatible magnetic frames) prevent the fabric from shifting during the multiple stops and starts of appliqué work.

Decision Tree: Choose a Stabilizer Strategy Before You Stitch Anything You Drew On-Screen

The software is ready. Is the fabric? Use this decision logic:

1) Is the fabric stretchy (T-shirt/Jersey)?

• YES: You must use Cut-Away stabilizer. No exceptions. Sticky stabilizer helps prevent stretch during hooping.
• NO: Go to #2.

2) Is the fabric a stable woven (Denim/Canvas)?

• YES: Tear-Away is usually sufficient.
• NO: Go to #3.

3) Does the fabric have a pile/nap (Towel/Velvet)?

• YES: Use Water Soluble Topping on top (to stop stitches sinking) + Magnetic Hoop (to avoid crushing the pile).
• NO: Standard backing is fine.

The Fixes People Ask for After Their First Try: Flooded Fills, Unwanted Paint Bucket Changes, and “Why Does It Look Different When Stitched?”

Here are the most common pain points that show up right after someone follows this exact video workflow—plus the cleanest fixes.

1) “My fill flooded the entire background.”

• Likely cause: Your outline wasn’t fully closed (micro-gap).
• Fix: Use the Closed Shape tool or zoom to 800% to close the gap manually.

2) “Paint Bucket changed more than one letter/segment.”

• Likely cause: Handwriting strokes are touching.
• Fix: Undo. Erase the connection or redraw with intentional gaps.

3) “My on-screen line looks great, but the stitchout looks wobbly.”

• Likely cause: "Flagging" (fabric bouncing up and down with the needle).
• Fix: Upgrade your hooping. Use a magnetic hoop to clamp the material firmly to the machine bed. Ensure your stabilizer is drum-tight.

The Upgrade Path That Actually Saves Time: When Better Hooping Beats More Screen Editing

Once you can draw, convert, and edit inside My Design Center, the next bottleneck is rarely the software—it’s the physical workflow.

Here’s the practical “upgrade ladder” I recommend, based on what usually slows Luminaire owners down:

1. Level 1: Stability Upgrade (The "Hobbyist" Fix). Switch to high-quality specific stabilizers (Cut-away for knits, tear-away for wovens) and fresh needles (75/11).
2. Level 2: Workflow Upgrade (The "Pro-sumer" Fix). If you are fighting hoop burn or hate the screw mechanism, Magnetic Hoops are the industry standard for speed. Users often search for terms like dime snap hoop for brother luminaire to solve this, but we recommend checking our SEWTECH Magnetic Series for robust holding power and industrial-grade magnets that fit your Luminaire perfectly.
3. Level 3: Production Upgrade (The "Business" Fix). If you are stitching 50+ items a week, a single-needle machine—even a Luminaire—is too slow due to thread changes. This is where SEWTECH Multi-Needle Machines enter the picture, allowing you to set 15 colors at once and run production while you design the next job on your Luminaire.

Operation Checklist (Right before you stitch)

• Preview: Confirm design preview matches intent.
• Bobbin: Is there enough bobbin thread? (Look for the "low bobbin" sensor, or check manually).
• Needle Path: Ensure the embroidery foot won't hit the hoop frame (Trace function).
• Hoop Check: If using a magnetic hoop, ensure the magnets are fully seated and not obstructing the arm.
• Start: Press "Go" and watch the first 100 stitches closely.

If you follow the video’s flow—Line Properties → Pencil Tool → Next Screen → Edit → Selective Paint Bucket—you’ll get high-quality data. But remember: the software only creates the map; your hooping and stabilization create the terrain. Master both, and you master the craft.

FAQ

• Q: How do Brother Innov-is Luminaire XP1 owners undo mistakes inside My Design Center without wasting stabilizer and thread?
  A: Use Undo/Redo for edits and use All Clear to wipe the canvas before pressing Stitch—My Design Center changes do not affect fabric until stitching starts.
  • Tap Undo/Redo while still on the canvas to step backward/forward through drawing changes.
  • Use All Clear when you want a clean reset instead of “fixing” messy lines.
  • Exit to Home and re-enter My Design Center if the screen feels stuck or you want to restart calmly.
  • Success check: The canvas returns to the previous clean state (or blank) and no stitch data has been sent to embroidery.
  • If it still fails: Restart the workflow from Home and re-create the object before hitting Set/Stitch.
• Q: What prep steps should Brother Innov-is Luminaire XP1 users do before drawing in My Design Center to prevent wobbly lines and bad stitchouts?
  A: Clean the touchscreen, choose the right input tool, and decide hooping/stabilizer before drawing—most “software issues” are actually fabric prep issues.
  • Wipe the screen with a microfiber cloth so the stylus/finger glides smoothly.
  • Use a capacitive stylus for clean corners and small details; use a finger only for larger shapes.
  • Plan the hooping method first (standard hoop vs magnetic frame) so the stitched line won’t turn wavy from crooked/loose hooping.
  • Success check: Drawn lines look smooth and controlled on-screen (no drag-induced wobble), and the fabric plan is decided before stitching.
  • If it still fails: Re-check hoop tightness and stabilizer choice before changing any stitch settings.
• Q: How can Brother Innov-is Luminaire XP1 users prevent tiny handwritten names in My Design Center (like “Susan”) from stitching as an unreadable blob?
  A: Do not draw lettering too small and do not scribble fast—small turns and jagged strokes convert into ugly stitches.
  • Write larger first (avoid very small lettering under about 0.5 inches) and refine after you confirm it reads clearly.
  • Draw slowly and deliberately to avoid jagged vectors from inconsistent stroke speed.
  • Use a stylus for tighter curves and cleaner corners when handwriting.
  • Success check: The word is clearly readable on the screen from about 3 feet away before stitching.
  • If it still fails: Increase the lettering size and switch to a lower-pull line style (like a single/triple line) instead of dense decorative lines.
• Q: Why does Brother Innov-is Luminaire XP1 My Design Center Fill sometimes flood the entire background, and how do you stop it?
  A: The outline has a micro-gap—use the Closed Shape pencil tool or zoom in and close the gap before applying Fill.
  • Re-draw the boundary using Closed Shape so the start/end points snap shut automatically.
  • Zoom to 800% and inspect the outline for tiny openings at joins and corners.
  • Close the gap manually, then apply Fill again.
  • Success check: Only the intended area fills; the background stays unchanged.
  • If it still fails: Rebuild the shape with Closed Shape from the start instead of trying to patch multiple tiny gaps.
• Q: How do Brother Innov-is Luminaire XP1 users stop My Design Center Paint Bucket from changing multiple letters when only one segment should change?
  A: Paint Bucket changes only touching lines—separate letters with a tiny intentional gap so color/stitch changes don’t spread.
  • Zoom in (up to 800%) and look for a single-pixel connection between letters or segments.
  • Undo, then erase the connector or redraw with a micro-gap where you want separate control.
  • Reapply Paint Bucket only after confirming the segments are not touching.
  • Success check: Tapping one letter (like the “S”) changes only that letter and nothing connected.
  • If it still fails: Redraw the problem area slower and with clearer separation between strokes.
• Q: What causes Brother Innov-is Luminaire XP1 on-screen lines to stitch out wobbly, especially with decorative lines like hearts or candlewicking?
  A: Fabric shift and “flagging” are the usual causes—upgrade hoop stability and confirm the fabric is held firmly before chasing screen edits.
  • Re-hoop so the fabric is held evenly and firmly; unstable hooping makes repeating motifs look misaligned fast.
  • Use the correct stabilizer for the fabric (for example, knits need cut-away) before blaming the design.
  • Consider a magnetic hoop/frame when hoop burn, hand fatigue, or fabric slip keeps happening with screw hoops.
  • Success check: The fabric feels drum-tight and does not bounce; decorative repeats (hearts/knots) align consistently during stitching.
  • If it still fails: Reduce pull by switching to a lighter line type (running/chain) and re-check stabilization.
• Q: What needle-area safety rules should Brother Innov-is Luminaire XP1 users follow when moving from My Design Center screen work to stitching?
  A: Keep hands, hair, sleeves, and tools away from the needle area—never “just smooth the fabric” while the machine is running.
  • Stop the machine fully before touching fabric near the needle or embroidery foot.
  • Keep stylus tools away from the needle area during stitching to avoid sudden contact.
  • Use built-in checks like tracing/clearance checks before starting so the hoop/frame won’t be struck.
  • Success check: The first stitches run without interference and nothing enters the needle path.
  • If it still fails: Stop immediately, re-check hoop lock-in and clearance, and restart while watching the first 100 stitches.
• Q: What magnetic hoop safety precautions should Brother Innov-is Luminaire XP1 users follow when using magnetic frames for faster hooping?
  A: Treat magnetic frames as powerful tools—avoid pinch injuries and keep magnets away from pacemakers, credit cards, and phone screens.
  • Keep fingers clear when magnets snap together (pinch hazard).
  • Keep magnetic frames away from pacemakers and similar medical devices.
  • Keep magnets away from credit cards and phone screens to reduce risk of damage.
  • Success check: The magnetic frame seats fully and evenly without forcing, and the fabric stays clamped without slipping.
  • If it still fails: Re-seat the magnets carefully and verify nothing is obstructing the hoop/frame or the embroidery arm.
