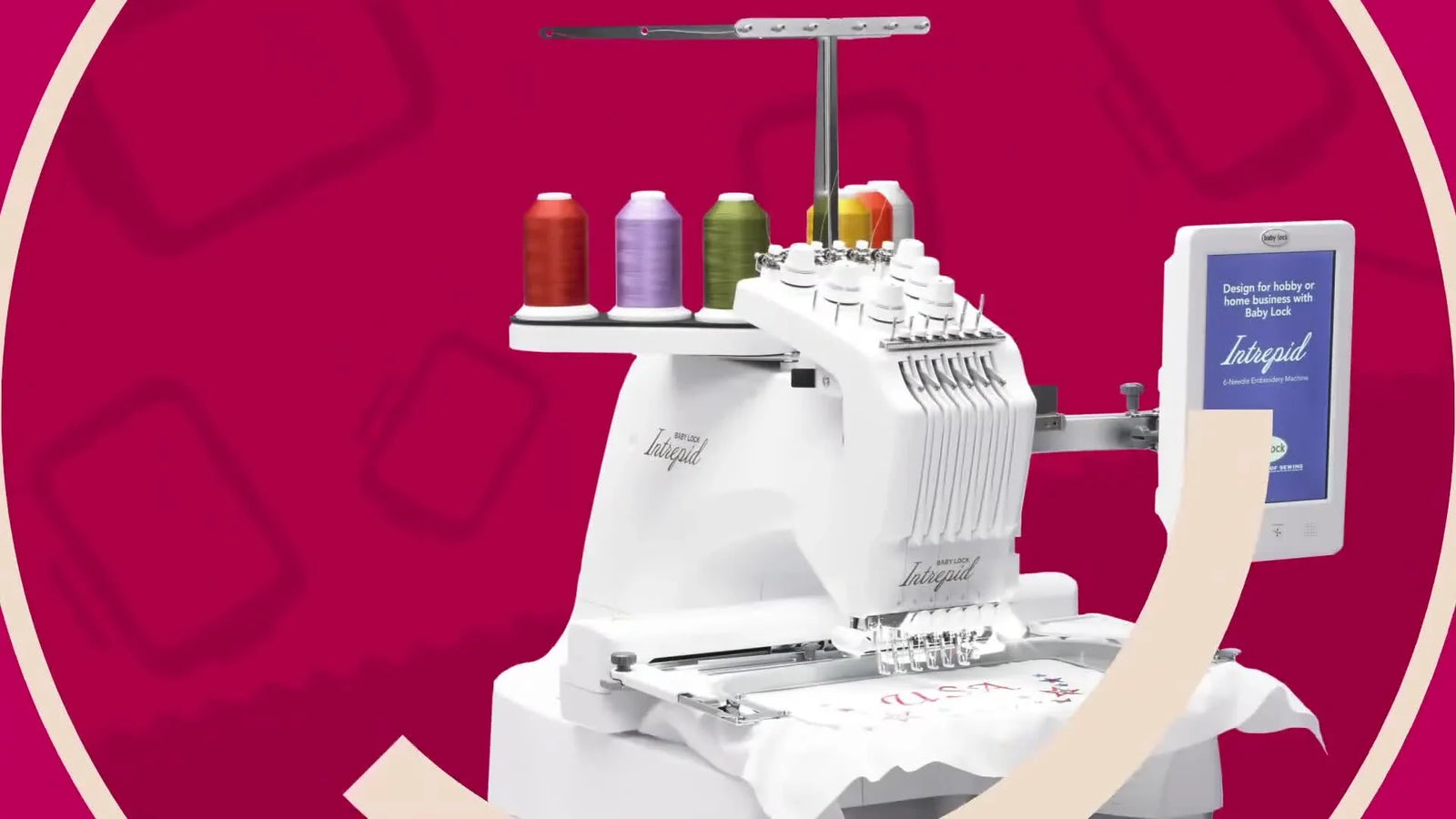

Baby Lock Intrepid 6-Needle Demo, Decoded: Faster Color Changes, Smarter On-Screen Editing, and Laser Placement You Can Trust

If you’ve ever watched a multi-needle demo and thought, “Okay… but what do I actually do on my first real order?”—you’re in the right place.

The Baby Lock Intrepid is marketed as an efficiency-first 6-needle embroidery machine. It promises fewer stops for color changes, better handling of tubular items (like tote bags and onesies), and powerful on-screen editing. But as anyone who has ruined a $40 jacket knows, the machine is only as good as the operator's workflow.

I am going to rebuild the standard demo into a field-tested production protocol. We will cover the buttons you press, but more importantly, we will cover the "invisible" tactile checks—the sound of the thread, the feel of the hoop, and the specific setups—that prevent the two most expensive mistakes in our industry: bad hooping and bad placement.

Why a 6-Needle Machine Changes Your "Embroidery Physics"

The presenter’s first point is the one that matters most for your bottom line: multiple needles mean you aren't babysitting the machine for every color change. But there is a deeper mechanical advantage here.

In the demo, the Intrepid is described with a maximum stitch speed of 1000 stitches per minute (SPM) and a generous embroidery field of 11.8" x 7.9". It includes four hoop sizes: 11.8" x 7.9", 5" x 7", 4" x 4", and 1.5" x 2.375".

The "Sweet Spot" Reality Check: While the machine can hit 1000 SPM, velocity creates vibration, and vibration kills registration (alignment).

• Expert Advice: For your first 50 hours, cap your speed at 700-800 SPM. At this speed, thread breaks are rare, and the stitch quality is pristine. You will actually finish faster because you aren't stopping to re-thread broken needles. Listen for a rhythmic thump-thump, not a frantic whir.


The Free-Arm Advantage (Why "Tubular" Matters)

The demo highlights the free-arm structure. Unlike a flatbed single-needle machine, there is open space under the needle plate. This allows you to slide a tote bag or a finished onesie onto the arm without unpicking seams.

Pro Tip from the Shop Floor: Tubular embroidery is less forgiving. Gravity pulls the rest of the garment down, which can twist your hooping area.

• The 10-Second Gravity Check: Before you attach the hoop, slide the garment onto the arm. If the heavy part of the jacket pulls the hoop left, the design will stitch crooked. You must support the excess fabric (use a table or hold it) to ensure the hoop "floats" freely.

The "Hidden" Prep: Thread Plans, Stabilizer Science, and Hoop Reality

The demo jumps to hooping, but 90% of failures happen before the hoop touches the machine. If you are coming from a single-needle background, you must adopt a Multi-Needle Mindset: We do not fix problems while stitching; we engineer them out before we start.

The Stabilizer Decision Tree (Your Safety Net)

New embroiderers often guess here. Let's stop guessing. Use this logic flow:

1. Is the fabric stretchy? (T-shirts, hoodies, knits)
   • NO: Go to step 2.
   • YES: You MUST use Cutaway stabilizer. No exceptions. Tearaway will allow the knit to stretch as the needle pounds it, leading to gaps in the design.
2. Is the fabric unstable/textured? (Pique polo, towel)
   • YES: Add a Water Soluble Topper (Solvy) to keep stitches from sinking into the pile.
3. Is the design dense? ( >15,000 stitches)
   • YES: Use two layers of stabilizer or a heavy-weight Cutaway.

The Tactile Hooping Check

When you hoop fabric in standard plastic hoops:

• Don't pull it tight like a bongo drum. This stretches the fibers; when you un-hoop, the fabric shrinks back and the design puckers.
• Do aim for "skin-tight." It should feel taut but neutral, like the skin on the back of your hand.
• The Sound Test: Tap the fabric. A high-pitched ping means it's too tight. A dull thud means it's too loose. You want a firm, crisp snap.

Warning: Mechanical Safety. Keep fingers, scissors, and seam rippers at least 4 inches away from the needle area when the machine is moving for positioning checks. The carriage moves with high torque and no hesitation. A "quick trim" near a moving hoop is the #1 cause of emergency room visits for embroiderers.

Production Workflow: Solving the "Hoop Burn" Pain Point

Standard plastic hoops work, but they require significant hand strength and can leave "hoop burn" (shiny rings) on delicate fabrics like velvet or performance wear.

The Commercial Upgrade Path: If you find yourself struggling to hoop thick items or your wrists hurt after a session, this is your trigger to look at tools, not just technique.

• Level 1 (Skill): Use "floating" techniques with adhesive spray instructions to avoid vigorous clamping.
• Level 2 (Tool Upgrade): Many professionals switch to magnetic hoops. These clamp automatically using magnets, eliminating the need to force an inner ring into an outer ring. If you are researching a baby lock magnetic embroidery hoop, look for systems that reduce hoop burn and allow for faster re-hooping.
• Level 3 (System): For total consistency, a hooping station for embroidery machine ensures every chest logo lands in the exact same spot, regardless of the hoop type.

Importing Designs: The USB vs. Library Workflow

The video notes the Intrepid has 84 built-in designs and 37 fonts, plus a USB port for imports.

The "Clean File" Rule: When importing from a USB:

1. Ensure your USB drive is formatted to FAT32 (standard for most machines).
2. Do not overload the root folder with 5,000 files. Create folders (e.g., "Floral," "Logos," "Holiday"). The machine's processor loads faster when it doesn't have to index thousands of files at once.
3. Always check the file format. The machine reads .PES native files best.

Resizing Without Ruining: The Density Physics

In the demo, the presenter resizes a design up to 200% and down to 60%, noting the machine recalculates stitches.

The "Stitch Recalculation" Reality

Most machines just spread stitches apart (scaling) which ruins the look. The Intrepid is smarter—it adds or removes stitches to maintain density. However, there is a physical limit.

• The 20% Safe Zone: For guaranteed quality, try to stay within +/- 20% of the original size.
• The Risk of 60%: Scaling a design down to 60% creates tiny details. A satin column that was 2mm wide becomes 1.2mm. This can cause needle breaks or thread shredding.
• The Sensory Check: After resizing down, look at the preview. If lines look like solid blobs, your needle will hammer that spot into a bullet hole. Don't stitch it.

If you are new to a 6 needle babylock embroidery machine, run a test stitch on scrap fabric whenever you resize more than 20%.

Precision Protocol: Rotation & Orientation

The demo effectively shows the 10-degree, 1-degree, and 0.1-degree rotation buttons.

Why 0.1 Degrees Exists

You might think 1 degree is fine. It isn't. When trying to align text parallel to a plaid stripe or a pocket edge, 1 degree of error is visible to the naked eye across a 4-inch design.

• Visual Check: Use the 0.1-degree rotation while looking at the needle bar relative to the fabric line.
• The "One Eye Open" Trick: Close one eye and line up the needle shaft with the fabric thread or pattern line to verify perfect parallel alignment.

Color Visualizer: The "Cheap Insurance"

The demo shows swapping colors on screen (orange to purple).

The Workflow Habit: Don't just use this for aesthetics. Use it to match your actual thread cone placement.

1. Load your physical thread cones on the machine (e.g., Needle 1 = Red, Needle 2 = Blue).
2. Update the screen to match.
3. Why? If the screen says "Blue" but the machine thinks Needle 1 is "Green," you won't know until it stitches the wrong color. Aligning the virtual and physical reality is a critical pre-flight check.

Text & Names: The "Return Key" Logic

The demo shows typing "David," hitting Return, and typing "Smith."

The Hidden Risk of Lettering: Built-in fonts allow you to move text blocks or individual lines.

• Kerning Check: Sometimes the automatic spacing between letters (kerning) looks off, especially between 'A' and 'V' or 'T' and 'o'.
• Action: Select the individual letter edit tool to manually nudge letters closer for a professional, custom-digitized look.

Laser Positioning: The Ultimate Fail-Safe

The demo highlights the laser positioning feature. This is your best friend.

The "Four Corner Trace" Routine

Never press start without this ritual:

1. Activate Laser.
2. Press the Trace/Box button.
3. Watch the laser dot travel the extreme perimeter of the design.
4. The Safety Gap: Ensure the laser stays at least 0.5 inches away from the hard plastic edge of the hoop. If the laser hits the hoop, the needle will hit the hoop. That is a $200 repair bill.

Setup Checklist (The "Pilot's Pre-Flight")

Copy this and tape it near your machine.

• Hoop Check: Fabric is taut (skin-tight), inner ring protrudes slightly at the bottom (prevents popping).
• Obstruction Check: Fabric from the rest of the garment is cleared away from under the hoop (don't sew the sleeve to the chest!).
• Needle Check: Are the needles straight? (Roll them on a flat surface to check). Are they sharp? (Change every 8-10 hours of running time).
• Bobbin Check: Is the bobbin case clean of lint? Is there enough thread for the whole job?
• Design Boundaries: Did you run the Laser Trace? Does it clear the hoop edge?
• Speed: Is machine speed set to a safe 700-800 SPM?

Warning: Magnet Safety. If you upgrade to Strong Magnetic Hoops (like those from SEWTECH or Mighty Hoop), be aware they carry a severe pinch hazard. They can snap together with over 30 lbs of force. Keep fingers clear of the edges. Also, keeps these magnets away from pacemakers and computerized machine screens.

The "No-Computer" Editing Reality

The ability to edit on-screen is fantastic for small tweaks. However, do not rely on it for complex "fixes." If a design is digitized poorly (wrong stitch angles, poor underlay), rotating it won't fix the physics.

Hidden Consumables You need:

• Appliqué Scissors: (Duckbill scissors) for trimming close threads.
• Tweezers: For grabbing thread tails.
• Oil Pen: Multi-needles need oiling more often than home machines.
• Air Duster/Brush: To clean the bobbin area daily.

Upgrading Your Toolkit: When to Move Beyond the Basics

The Intrepid comes with standard hoops. They work, but they are the "manual transmission" of the embroidery world.

Scenario: You have an order for 50 tote bags. The Pain: Hooping thick canvas into a plastic frame 50 times will physically exhaust you and likely cause "pop-outs" where the fabric slips. The Diagnosis: This is a tool limitation, not a skill limitation. The Solution:

1. Stability: Investigate mighty hoop tubular support arms or tables to support the weight of heavy bags.
2. Hooping: Specialized magnetic frames allow you to clamp thick materials instantly without force.
3. Scale: If you find 6 needles isn't enough, or the machine is running 10 hours a day, look at industrial solutions. Brands like SEWTECH provide high-capacity multi-needle machines designed for this exact continuous throughput, often bridging the gap between pro-sumer and full industrial.

Many users also search for specific baby lock magnetic hoops to solve the "hoop burn" issue on delicate items. This is a valid and highly recommended upgrade that pays for itself by saving ruined garments.

Clarifying "Carriage Movement" & Legacy Models

To address common confusion:

"How do I move the carriage?" You don't push it with your hands. You use the on-screen arrows in the layout screen. Forcing the carriage by hand can strip the stepper motor gears.

"Is this the BMP9?" No. The Intrepid is generations ahead. Key differences include the processor speed (loading files), the laser precision, and the screen resolution.

Final Operation Checklist (The last 30 seconds)

1. Placement: Seam alignment verified with 0.1-degree rotation?
2. Thread Path: No threads distinctively crossed or caught on the thread tree?
3. Basting Box: (Optional) Did you add a basting stitch to tack down unstable fabric?
4. GO: Press the start button and watch the first 100 stitches. Never walk away immediately.

Conclusion

The Baby Lock Intrepid is a powerhouse, but it is a precision instrument. By respecting the "invisible" steps—stabilizer choices, tactile hooping standards, and laser verification—you transform from a hobbyist making guesses to a professional ensuring results.

Start with the standard hoops to learn the physics. But when you feel the friction of volume production—when your wrists ache or your placement drifts—remember that the industry has solved these problems with magnetic frames, hooping stations, and dedicated multi-needle platforms like SEWTECH.

Master the prep, and the stitching will take care of itself.

FAQ

• Q: What stitch speed should Baby Lock Intrepid beginners use to prevent thread breaks and mis-registration at 1000 SPM?
  A: Set the Baby Lock Intrepid to a safe 700–800 SPM for the first ~50 hours to reduce vibration and stop-and-rethread downtime.
  • Lower speed before pressing Start, especially on first-time garments and resized designs.
  • Listen for a steady “thump-thump” rhythm instead of a frantic “whir.”
  • Success check: stitch lines stay aligned (no shifting) and thread breaks become rare over the first few thousand stitches.
  • If it still fails: re-check hooping tension and stabilizer choice before increasing speed.
• Q: How can Baby Lock Intrepid users check embroidery hoop tension to prevent puckering when using standard plastic hoops?
  A: Hoop to “skin-tight,” not “bongo-drum tight,” because overstretching fabric in plastic hoops often rebounds into puckers after unhooping.
  • Tap-test the hooped fabric: avoid a high-pitched “ping” (too tight) and avoid a dull “thud” (too loose).
  • Aim for taut-but-neutral fabric feel, like the skin on the back of a hand.
  • Success check: the fabric looks flat with no ripples before stitching and the finished design stays smooth after removing the hoop.
  • If it still fails: switch to cutaway on stretchy fabrics and consider a topper for textured surfaces.
• Q: What stabilizer should Baby Lock Intrepid users choose for knits, piqué polos, towels, and dense designs over 15,000 stitches?
  A: Use a simple decision rule: knits require cutaway, textured fabrics may need water-soluble topper, and dense designs may need extra stabilizer.
  • Choose cutaway stabilizer for stretchy fabrics (T-shirts/hoodies/knits); avoid tearaway for knits.
  • Add water-soluble topper on textured/unstable fabrics (piqué polo, towels) to prevent stitch sinking.
  • Double up stabilizer or use heavy cutaway for dense designs over ~15,000 stitches.
  • Success check: letters and satin columns sit on top of the fabric (not sinking), with minimal distortion around the design.
  • If it still fails: reduce speed and add a basting box to control shifting.
• Q: How should Baby Lock Intrepid users safely use Laser Trace/Box to prevent the needle striking the hoop and causing repairs?
  A: Always run the Baby Lock Intrepid laser Trace/Box and confirm the design perimeter stays at least 0.5 inches inside the hoop edge before starting.
  • Turn on Laser, then press Trace/Box and watch the full perimeter travel.
  • Reposition or resize if the trace approaches the hard plastic hoop boundary.
  • Success check: the laser dot never crosses onto the hoop edge and maintains a visible safety margin all the way around.
  • If it still fails: rotate in smaller increments (down to 0.1°) and re-run Trace/Box until clearance is consistent.
• Q: What mechanical safety rules should Baby Lock Intrepid users follow during positioning checks to avoid hand injuries from the moving carriage?
  A: Keep hands and tools at least 4 inches away from the needle area during any movement because the Baby Lock Intrepid carriage moves with high torque and no hesitation.
  • Stop the machine fully before trimming; do not do “quick trims” near a moving hoop.
  • Use on-screen arrows for carriage movement; never push the carriage by hand.
  • Success check: all positioning and trimming is done with the machine stopped, with zero contact near the needle path during motion.
  • If it still fails: slow down the workflow—finish placement, then trim, then re-check boundaries.
• Q: How can Baby Lock Intrepid users prevent crooked embroidery on tote bags and onesies when using the free-arm tubular setup?
  A: Support the garment weight so the hooped area “floats” and does not twist from gravity on Baby Lock Intrepid tubular embroidery.
  • Slide the item onto the free arm first, then observe whether heavy fabric pulls the hooping zone left/right.
  • Hold or table-support the excess garment so it hangs without torque on the hoop.
  • Success check: before stitching, the hooped area stays square and stable when you let go—no drifting or twisting.
  • If it still fails: re-hoop with better support and re-run Laser Trace/Box to confirm alignment.
• Q: How can Baby Lock Intrepid users reduce hoop burn and wrist strain on thick or delicate fabrics, and when should they upgrade to magnetic hoops or a hooping station?
  A: Treat hoop burn and repeated pop-outs as a tooling limit: optimize technique first, then consider magnetic hoops, then consider a hooping station for repeat placement.
  • Level 1 (Technique): use careful floating methods (with adhesive spray steps as appropriate) to avoid over-clamping delicate fabrics.
  • Level 2 (Tool): switch to magnetic hoops to reduce force, speed up re-hooping, and minimize shiny rings on sensitive materials.
  • Level 3 (System): use a hooping station when consistent placement (like chest logos) must repeat across volume runs.
  • Success check: hoop marks reduce, re-hooping becomes faster, and fabric stops slipping during long runs.
  • If it still fails: slow to 700–800 SPM and verify stabilizer selection matches fabric and stitch density.
• Q: What magnet safety precautions should users follow when upgrading Baby Lock Intrepid workflows to strong magnetic embroidery hoops?
  A: Treat strong magnetic hoops as a pinch hazard—keep fingers clear, and keep magnets away from pacemakers and computerized screens.
  • Separate and join magnetic frames with controlled hand placement, staying away from the edges where they snap shut.
  • Keep magnetic hoops away from anyone with a pacemaker and avoid placing them near sensitive electronics.
  • Success check: fingers never enter the closing gap, and hoop assembly feels controlled rather than “snapping” unexpectedly.
  • If it still fails: pause and reset the handling method—do not force magnets together when alignment is off.
