Elna eXpressive 830L in Real Life: The Calm, Repeatable Workflow for Large-Hoop Garment Embroidery (Without the Panic)

If you just unboxed an Elna eXpressive 830L and your brain is doing that thing—“What if I ruin my fabric, break a needle, or the hoop slams into the wall?”—take a breath. You are experiencing "New Machine Paralysis," and it is completely normal.

This machine is beginner-friendly, but the project featured here (a large floral design on delicate blouse fabric) is an advanced application. It requires an understanding of physics, not just button-pushing.

In the video, the creator runs a massive design (186×344mm) in the RE36b hoop (200×360mm). That’s 39,599 stitches, 8 color changes, and 71 minutes of run time. That isn’t just a hobby project; that is a garment-manufacturing stress test.

The “Embroidery-Only” Mindset Shift on the Elna eXpressive 830L—Why It Feels Weird (and Why That’s Normal)

If you are transitioning from a standard sewing machine to an embroidery-only unit, you need to recalibrate your senses. The video highlights three shifts, but let's look at them through an operator’s lens:

1. No Foot Pedal: Your hands are free. Use them to guard the emergency stop button, not to guide fabric (unless you are doing manual float techniques).
2. Autonomy: The machine follows coordinates. Your job shifts from "driver" to "navigator."
3. The Soundscape: This is the biggest source of anxiety.
   • Normal Sewing: A continuous low hum.
   • Embroidery: Irregular rhythms, sudden speed changes, and the "x-y axis" motors whining as they move the hoop.

Sensory Anchor (Auditory): You want to hear a rhythmic "chug-chug-chug" that sounds solid.

• Good Sound: A smooth, consistent hum punctuated by the movement of the hoop.
• Bad Sound: A sharp metal-on-metal "clack," a grinding noise, or a "thump" that vibrates the table. If you hear these, Stop immediately. It usually means a needle is hitting the needle plate or the hoop has hit an obstruction.


Hoop Sizes on the Elna 830L: Pick the Frame Like a Pro, Not Like a Shopper

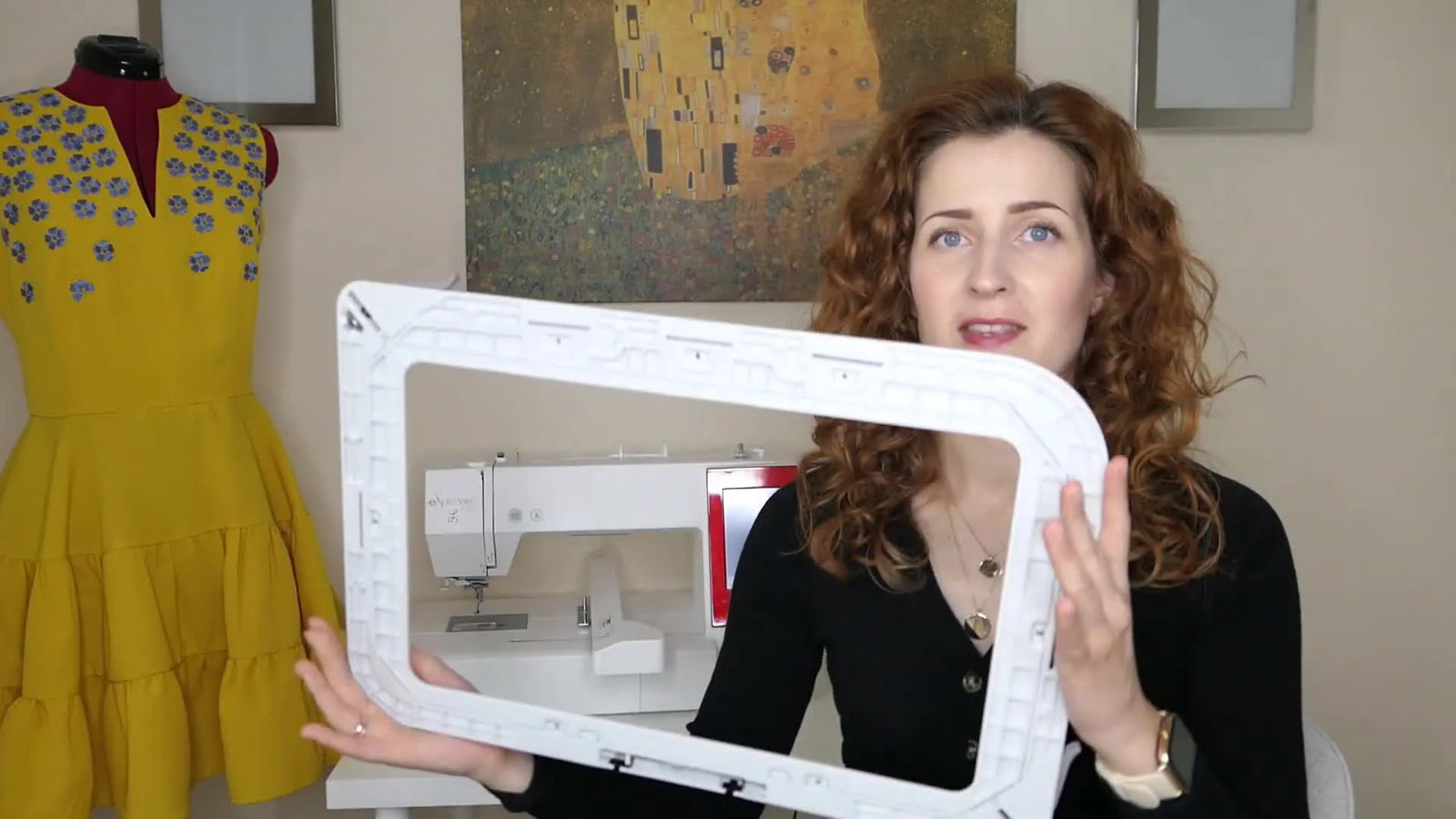

The video identifies the standard hoops, specifically the RE36b (200×360mm). But here is the engineering reality: just because a hoop is big doesn't mean it's right for everything.

• RE36b (200×360mm): Great for jacket backs, but requires serious stabilization to prevent the middle from bouncing.
• SQ20b (200×200mm): The "Production Sweet Spot" for quilt blocks and large logos.
• SQ14b (140×140mm): Best for Left Chest logos.
• RE20b (140×200mm): Versatile for rectangular text.

The "Hoop Availability" Trap: Manufacturers hard-code hoop limits into the machine's brain. If the Elna 830L firmware doesn't know a specific hoop size exists, you cannot force it to sew there even if you buy an aftermarket frame physically.

Pro Tip: Always check your machine's screen for the "Hoop Select" menu. If the icon isn't there, the hoop won't work. If you need specialty sizes (like for caps) and can't find them, this is where third-party industrial solutions or magnetic frames compatible with your machine's mount become essential solvers for holding difficult items.

The “Hidden” Prep Before You Touch the Start Button: Fabric, Stabilizer, and Hoop Physics That Prevent Puckers

The video shows a pink blouse fabric. This is a "High Risk" material. Why? Because 39,599 stitches will inject mass into the fabric, pushing the fibers apart. If the fabric isn't locked down, it will shift, leading to puckering (ripples) or poor registration (gaps between outlines and fills).

The Physics of Stabilization: You are not just putting paper behind cloth. You are creating a "composite material."

• Tearaway: Good for stable fabrics (towels, denim). It offers temporary support.
• Cutaway: Essential for knits and delicate wovens (like this blouse). It remains maximizing stability forever.

If you are researching hooping for embroidery machine best practices, remember the golden rule: Tight as a drum, not stretched like a rubber band.

• Tactile Check: Tap the hooped fabric. It should sound like a dull drum. If you pull the fabric and the grid lines distort, you have over-stretched it.

Prep Checklist (Do this before loading the design)

• Consumables Check: Do you have temporary spray adhesive (like 505) to bond the fabric to the stabilizer? (Critical for large designs to prevent shifting).
• Needle Hygiene: Is the needle fresh? A dull needle on a blouse equals holes. Use a 75/11 Sharp or Ballpoint depending on the weave.
• Clearance Zone: Is there 2 feet of empty space behind the machine?
• Hoop Selection: Select the smallest hoop that fits the design to maximize tension.
• Bobbin: Is the bobbin case free of lint? (Blow it out).
• Thread: Use 40wt Polyester embroidery thread for strength and sheen.


Hoop Attachment + Wall Clearance on the Elna Carriage: The 10-Second Check That Saves Needles

In the video, the RE36b hoop is locked in. This hoop extends far behind the machine.

The Crash Scenario: If your machine is pushed against a wall, the hoop carriage will travel backward, hit the wall, and the motors will lose their "steps" (positioning). The machine continues stitching, but now the design is shifted 2 inches to the left, ruining the garment and potentially snapping the needle bar.

Warning: Mechanical Safety
Keep fingers, scissors, and loose tools away from the moving carriage arm. The RE36b hoop moves fast and covers a wide radius. A "hoop slap" can bruise fingers or knock over coffee mugs placed too close. Pausing the machine before reaching in is a non-negotiable safety habit.

Loading a USB Design on the Elna eXpressive 830L: The Clean, Repeatable Tap Path

The simplified workflow in the video is accurate, but here is the technical nuance. The machine is a computer; it needs clean data.

1. Format Matters: The machine reads JEF, JEF+, JPX, and DST.
   • Note: DST files (industry standard) do not carry color information. The screen colours might look weird. This is normal.
2. The "Folder Trap": Do not bury your designs in "My Computer/Embroidery/2025/Holiday/Gifts/Mom". Keep the file path short.

SOP (Standard Operating Procedure) for Loading:

1. Insert USB (wait 5 seconds for recognition).
2. Tap USB Icon -> Tap Folder -> Tap Design.
3. Crucial Step: Check the orientation on screen. Is it upside down? Rotate it now, not after you hoop.

If you are comparing an elna embroidery machine to others, note that its ability to read multiple formats directly makes it versatile for downloading designs from the internet without complex conversion software.

Read the Elna LCD Like a Production Stitcher: Time, Stitch Count, and the Color Sequence You Must Follow

The screen data is not trivia; it is your Risk Assessment.

• 186×344mm: This is near the limit of the 200x360 field. You have very little margin for error on placement.
• 39,599 Stitches: This generates significant friction and heat.
  • Risk: Thread breakage is higher. Frequent pauses may be needed to let the needle cool if you are running at max speed.
  • Mitigation: Do not run this at 1000 SPM (Stitches Per Minute) if you are a beginner. Dial it down to 600-700 SPM for the "Beginner Sweet Spot." The quality will be better, and errors are less catastrophic.
• 8 Colors: This means 8 stops. Each stop is a chance to nudge the hoop or forget to lower the presser foot.

Veteran Tip: The color list on the right is your roadmap. If you are using DST files, the colors may say "Color 1," "Color 2" instead of "Red," "Blue." You must have your printed production sheet handy to map the thread cones to the machine steps.

Starting the Design on the Elna Start/Stop Button: What “Ready” Really Means

Green light means "Go," but are you ready?

The most common failure in embroidery isn't the machine; it's the "start-up nest." This happens when the top thread isn't held during the first 3 stitches, getting sucked down into the bobbin area.

Setup Checklist (Right before you hit Start)

• Hoop Lock: Is the hoop knob tightened? (Tactile check: wiggle it).
• Table Support: Is the extra-wide table attached? (Critical for the RE36b hoop to prevent gravity drag).
• Presser Foot: Is it down? (Some machines warn you, some just beep).
• Thread Tail: Hold the top thread tail gently for the first 3-5 stitches to prevent nesting.
• Trajectory Check: Trace the design (if the machine has a trace feature) to ensure the needle won't hit the hoop frame.


Watching the First Minutes: Contour Stitches, Fill Stitches, and What the Crosshair Is Telling You

The video shows contour lines (outlines) followed by fills.

The "120-Second Rule": Do not walk away for the first 2 minutes. This is when disaster strikes.

• Watch the Fabric: Look for "tunneling" (fabric pulling up in a wave between stitches). If you see this, your stabilizer is too weak or hoop is too loose. Stop instantly. You cannot fix this while running.
• Watch the Thread: Does the top thread look loose or loopy? Your tension might be too low.
• Watch the Crosshair: It shows live progress.

If the first layer lays down flat, you have established a "foundation," and you can likely step away for a coffee.

Auto Thread Cutting on the Elna 830L: Why It Helps (and When It Can Hide a Problem)

Auto-cut is a luxury feature that snips jump stitches.

The Hidden Downside: If your design has tiny lettering (e.g., small text 4mm high), the auto-cutter might activate between every letter. This creates a "bird's nest" of chopped tails on the back.

• Settings Tip: In the machine settings, you can often set the "Jump Thread Trimming Length." Set it to 3mm or higher. This tells the machine: "If the jump is shorter than 3mm, just stitch over it; don't cut." This makes the back cleaner and the machine run faster.


The Bobbin-Low Alert + Independent Bobbin Winder: The Feature That Saves Your Rhythm Mid-Project

The machine warns: “Bobbin thread may not be sufficient.” The Elna 830L features an independent bobbin winding motor. This is a huge commercial advantage.

• Scenario: You are 45 minutes into the blouse. Bobbin dies.
• Old Way: Unthread top needle. Thread bobbin winder. Wind. Re-thread needle. (Huge time loss).
• Elna Way: Keep the needle threaded. Put a spool on the side pin. Wind the bobbin while the machine sits idle (or even while stitching on some industrial models, though usually idle on home machines).

Sensory Check: When engaging the bobbin winder, listen for a crisp "Click" to know the winder is engaged. A loose winder creates a spongy bobbin, which ruins tension.

Thread Color Changes on a Single-Needle Embroidery Machine: How to Re-Thread Without Losing Your Place

A single-needle machine requires you to be the "Color Changer."

• Machine stops.
• Trim top thread.
• Tie on new color (or re-thread fully).

The "Dental Floss" Tension Check: When you thread the new color, before threading the needle eye, pull the thread down near the needle.

• Feel: It should offer resistance, similar to pulling dental floss between teeth.
• Why: If it flows freely with zero drag, you missed the tension discs. The machine will instantly create a effortless bird's nest.


Decision Tree: Choosing Stabilizer + Hooping Strategy for Garment Panels

Blouse fabric is notoriously difficult. Use this logic flow to make the right choice.

START: What is the fabric type?

1. Stable Woven (Denim, Canvas, Heavy Cotton)
   • Stabilizer: Tearaway (Medium Weight).
   • Hooping: Hoop the fabric directly.
2. Unstable Woven (Blouse, Silk, Rayon)
   • Stabilizer: Cutaway (Light Mesh) or Fusible Poly-Mesh.
   • Why: Keeps the fabric shape permanently.
   • Hooping: Hoop with care to avoid "hoop burn" (crushed fibers).
3. Stretchy Knit (T-Shirt, Jersey)
   • Stabilizer: Cutaway (No-show Mesh) + Temporary Spray Adhesive.
   • Hooping: Do not stretch the fabric!

Is text clarity poor or outline shifting?

• YES: Add a water-soluble topping (Solvy) to keep stitches on top of the pile.

Are you seeing "Hoop Burn" (shiny rings) on the fabric?

• YES: This is caused by the friction of traditional inner/outer rings.
• Solution Level 1: Wrap the inner hoop with medical gauze/tape (old school trick).
• Solution Level 2: Upgrade to Magnetic Hoops. (See Upgrade Section).


Troubleshooting the Most Common “New Elna 830L” Problems

Here is your structured guide to fixing panic moments. Follow the order: Low Cost -> High Cost.

The Upgrade Path That Actually Matters: Faster Hooping, Cleaner Garments, and a Realistic Jump Toward Selling

The Elna 830L is a fantastic creative station. But if you start taking orders for 50 shirts, you will hit a wall. That wall is Time and Hooping Fatigue.

Here is the commercial reality of how to scale without losing your mind.

1. The Hooping Solution: Magnetic Frames

Pain Point: Traditional hoops require forceful pressing. This hurts your wrists (Carpal Tunnel risk) and leaves "hoop burn" marks on delicate items like the blouse in the video.

The Upgrade: Magnetic Embroidery Hoops.

• For Home Machines (Elna/Brother/etc.): We offer magnetic frames that snap onto your single-needle machine. They hold fabric firmly without the "crush," eliminating hoop burn and making hooping 40% faster.
• For Industrial Machines: If you upgrade to a multi-needle, industrial magnetic hoops are the industry standard for efficiency.

Warning: Magnet Safety
Magnetic hoops use powerful Neodymium magnets.
1. Pinch Hazard: They snap together instantly; keep fingers clear.
2. Medical Device: Keep away from pacemakers.
3. Tech Safety: Keep away from phones and credit cards.

Comparing hoopmaster systems vs. simple magnetic hoops: A hooping station for machine embroidery (like the hoopmaster hooping station) is excellent for consistent logo placement on left chests. However, simply switching to magnetic hoops is the most cost-effective first step to reduce fabric damage.

2. The Thread Change Solution: SEWTECH Multi-Needle Machines

Pain Point: In the video, the user changes thread 8 times. For one shirt, that's fine. For 20 shirts, that is 160 thread changes—hours of lost production time.

The Upgrade: SEWTECH Multi-Needle Machines.

• The Difference: You load 10+ colors at once. The machine automatically switches colors. You press start and walk away for 45 minutes.
• The Profit Logic: While the multi-needle runs, you hoop the next garment. This is how you double your output without working harder.

If you are an elna embroidery only machine user who loves the craft but hates the manual labor of thread changing, this is your natural next step.

The “Finish Like a Pro” Habit: Don’t Let a Great Stitch-Out Die at the Hoop

The video ends with the reveal. To ensure your 71 minutes of stitching looks high-end:

1. Remove Gently: Don't pop the hoop open violently. Release the tension and lift the fabric.
2. Trim Tails: Even with auto-cut, snip the tiny "jump tails" on the back manually.
3. Tear/Cut Stabilizer:
   • Tearaway: Support the stitches with your thumb while tearing to avoid distorting the outline.
   • Cutaway: Trim roughly 1cm away from the cushion. Do not cut flush to the stitches (you might snip the knot).
4. Pressing: Never iron directly on embroidery thread (it will melt or flatten). Turn the garment inside out and iron from the back, using a pressing cloth.

Operation Checklist (End-of-Run QC)

• Gap Check: Are there white gaps between the outline and the fill? (Sign of shifting).
• Loop Check: Are there loops on top? (Tension issue).
• Stabilizer: Has excess stabilizer been removed cleanly?
• Maintenance: After a 40k stitch design, add one drop of oil to the hook race (if your manual permits) and brush out lint.

The Elna 830L is a powerful tool. By adding rigorous prep, sensory monitoring, and the right aftermarket tools (like magnetic hoops), you turn a scary machine into a reliable production partner. Keep stitching, and stay safe.

FAQ

• Q: What is the correct stabilizer choice and hooping method for delicate blouse fabric on the Elna eXpressive 830L to prevent puckering on a 40,000-stitch design?
  A: Use a cutaway (light mesh) or fusible poly-mesh and hoop “tight as a drum,” not stretched.
  • Bond fabric to stabilizer with temporary spray adhesive (e.g., 505) before hooping to reduce shifting on large designs.
  • Select the smallest Elna-compatible hoop that fits the design to maximize tension and minimize bounce.
  • Avoid over-stretching: stop pulling as soon as the fabric is flat and stable.
  • Success check: tap the hooped fabric— it should sound like a dull drum, and any fabric grid/weave should not look distorted.
  • If it still fails… upgrade stabilizer strength (or add fusible support) and consider reducing stitch density in the design if available.
• Q: How do Elna eXpressive 830L operators prevent bobbin birdnesting (“start-up nest”) when pressing the Elna Start/Stop button?
  A: Hold the top thread tail for the first 3–5 stitches and confirm presser-foot/hoop lock before starting.
  • Lower the presser foot and do a quick “hoop lock” wiggle test to ensure the hoop is tightened and seated.
  • Hold the top thread tail gently (do not yank) while the first stitches form.
  • Use the machine trace feature (if available) to confirm the needle path will not contact the hoop frame.
  • Success check: the first few stitches lay flat with no thread being sucked down into the bobbin area.
  • If it still fails… re-thread the Elna eXpressive 830L carefully and perform the “dental floss” resistance check to confirm the thread is in the tension discs.
• Q: What is a safe beginner speed setting on the Elna eXpressive 830L for a high-stitch-count design, and what sounds indicate a mechanical problem?
  A: A safe starting point is 600–700 SPM, and any sharp metal “clack,” grinding, or table-thumping vibration means stop immediately.
  • Dial speed down before running large designs near the hoop limit to reduce heat and thread breaks.
  • Listen for a solid rhythmic “chug-chug” with smooth hoop movement as the normal sound profile.
  • Stop instantly if a sharp clack/grind/thump appears—inspect for needle plate contact, hoop obstruction, or clearance issues.
  • Success check: consistent stitch formation with stable sound and no table vibration while the carriage changes direction.
  • If it still fails… check needle condition/type and inspect for burrs on the needle plate opening.
• Q: How much wall clearance is required behind an Elna eXpressive 830L when using the Elna RE36b 200×360mm hoop to prevent hoop crashes and design shifting?
  A: Keep about 2 feet of empty space behind the machine before running the RE36b hoop.
  • Pull the machine forward so the hoop can travel fully backward without contacting a wall or objects.
  • Remove cups, tools, and scissors from the hoop’s swing radius before pressing Start.
  • Pause the machine before reaching near the moving carriage—treat the wide travel as a pinch/impact hazard.
  • Success check: the hoop completes full back-and-forth travel without touching anything and the design stays registered (no sudden left/right shift).
  • If it still fails… run a trace/outline check again and verify the hoop is correctly latched to the carriage.
• Q: Why will an Elna eXpressive 830L not recognize an aftermarket hoop size, even if the hoop physically fits the machine?
  A: The Elna eXpressive 830L can only stitch within hoop sizes the firmware recognizes in the Hoop Select menu.
  • Open the Hoop Select menu and confirm the exact hoop icon/size is available before buying or mounting a frame.
  • Use only the hoop sizes the machine lists to avoid stitch-field limits and placement errors.
  • If a specialty application is needed (e.g., difficult items), look for frames that match the machine’s mount and are supported by the machine’s selectable hoops.
  • Success check: the desired hoop size appears on-screen and the design boundary matches the selected hoop field.
  • If it still fails… simplify by switching to a supported hoop size or consult the machine documentation for supported frames.
• Q: What USB design-loading steps prevent “design won’t load” problems on the Elna eXpressive 830L, and which file formats are supported?
  A: Use a short folder path on the USB drive and load supported formats (JEF, JEF+, JPX, DST) directly from a simple directory.
  • Insert the USB and wait ~5 seconds for recognition before tapping the USB icon and selecting the design.
  • Keep designs near the root of the USB drive (avoid deep nested folders).
  • Verify orientation on the Elna screen and rotate before hooping, not after.
  • Success check: the design thumbnail/preview appears quickly and the machine shows the correct design size and stitch data.
  • If it still fails… confirm the file extension is one of the supported types and reformat/retry a different USB stick if needed.
• Q: When should Elna eXpressive 830L users upgrade from traditional hoops to magnetic embroidery hoops, and when is upgrading to a SEWTECH multi-needle machine the next step?
  A: Upgrade to magnetic hoops when hoop burn or hooping fatigue slows work; upgrade to a SEWTECH multi-needle machine when thread changes become the production bottleneck.
  • Level 1 (technique): wrap the inner hoop with gauze/tape to reduce hoop burn on delicate fabrics.
  • Level 2 (tool): switch to magnetic hoops to reduce crushed fibers and speed hooping (often noticeably faster and easier on wrists).
  • Level 3 (capacity): move to a multi-needle machine when frequent single-needle color changes (e.g., 8+ per item) consume hours across batches.
  • Success check: fewer shiny hoop rings on garments and more consistent placement with less operator strain or re-hooping.
  • If it still fails… reassess stabilizer/adhesive use and confirm the design size is appropriate for the selected hoop field before scaling production.
