Are you fighting thread breaks, puckering, or ragged outlines? The fastest fix often isn’t your design or tension—it’s the needle. This guide decodes the label on your embroidery needles and turns that knowledge into reliable, repeatable stitch quality.
What you’ll learn
- How to read an embroidery needle label—system, point type, blade type, and size.
- When to choose Light Ball Point (SES), Extra Slim Ball Point (ESB), or Sharp.
- How blade size (10/70, 11/75, 12/80) affects deflection and stitch integrity.
- Why the needle’s groove must match your thread.
- Practical tests to validate your choice before you run a big job.
Primer: What Needle Selection Actually Controls The needle determines how thread travels and how fibers are displaced or cut. Pick the right tip and blade, and your stitches seat cleanly with minimal risk of breaks or puckers. Pick wrong, and you’ll see deflection, burrs, and fabric damage—especially on heavy seams and tightly woven synthetics. Whether you hoop with a standard ring or a modern frame, needle choice is the lever that stabilizes quality at the stitch level. embroidery hoops magnetic
Pro tip: Think of the needle as the final “toolpath” shaper. It manages the handshake between thread thickness, fabric structure, and machine speed.
Quick check
- Knits: Prefer ballpoint (SES/ESB) to spread yarns.
- Wovens: Prefer sharp for clean penetration (especially tight weaves).
- Heavy fabric or crossing seams: Bump blade size to resist deflection.
Prep: Tools, Labels, and Fabric Clues Before you choose a needle, gather:
- Needle packs that specify system, point type, blade type, and size.
- Fabric swatches—both knit and woven if your day includes variety.
- Project threads in the weights you plan to run.
- A note card (or spreadsheet) to record what works with which fabrics.
Fabric clues to note
- Knit vs. woven: Are you seeing loops (knit) or interlaced threads (woven)?
- Tightness/density: Tightly woven synthetics demand sharper tips.
- Bulk zones: Any seams or thick overlays in the design path?
Decision point
- If your fabric is a knit, start with a ballpoint (SES for general, ESB for lighter knits).
- If it’s a woven—particularly dense—start with a sharp.
Context insight: Even on familiar machines, needle behavior varies more with fabric than with frame choice. That’s why a simple label read can outperform hardware tweaks on the hooping side. hoop master embroidery hooping station
Prep checklist
- Confirm fabric type (knit vs. woven) and density.
- Identify any seams your design will cross.
- Pull two needle sizes (e.g., 11/75 and 12/80) and both point types if unsure.
- Match thread weight you’ll actually run.

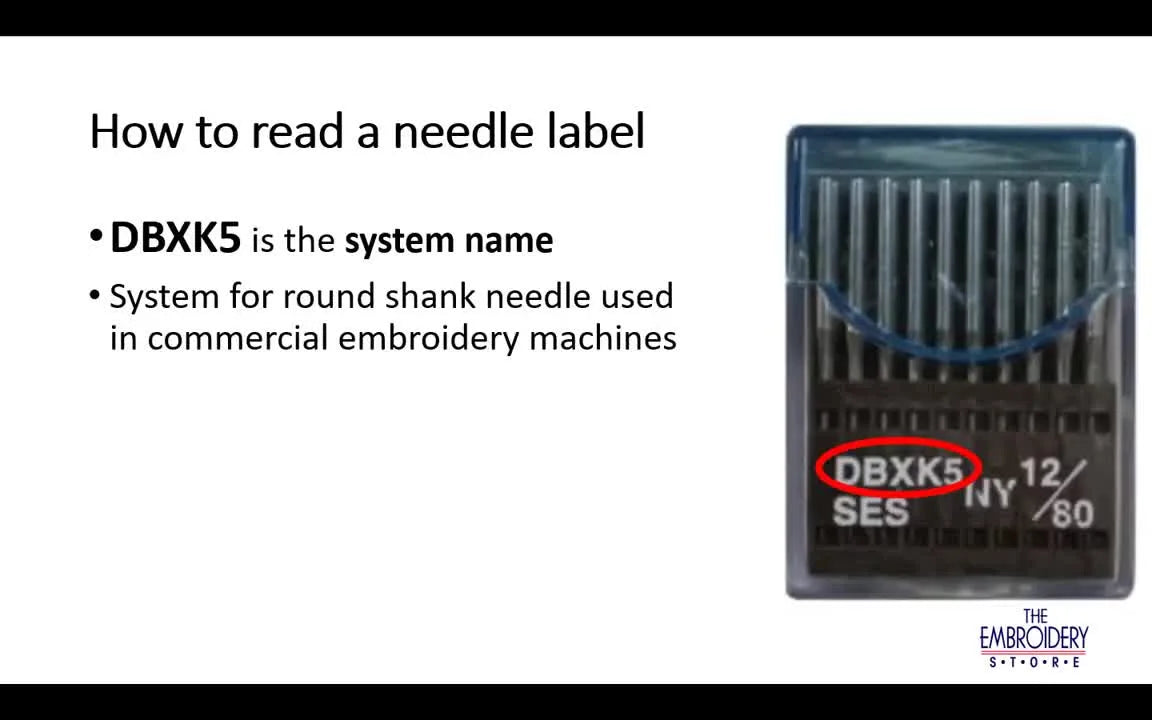

Setup: Decode the Needle Label with Confidence 1) System name (DBXK5) Look for DBXK5 on commercial embroidery needle packs. DBXK5 denotes a round-shank system widely used in commercial machines.
Watch out: Using a needle outside your system can cause improper seating or timing issues. Stick to DBXK5 when that’s what your machine requires.
2) Point type (SES, ESB, or Sharp)
- SES = Light Ball Point
- ESB = Extra Slim Ball Point
- No designation on the rib pack = Sharp point
Confirm the letters—or their absence—on the label.
Pro tip: ESB is your nimble pick for lighter knits; SES is the generalist ballpoint most embroiderers rely on for everyday knit jobs.
3) Blade type (NY = tapered) NY indicates a tapered blade: as strong as a standard blade but thinner. That profile is favored for high-speed embroidery because it penetrates efficiently without sacrificing strength.
4) Size (dual US/European numbers) You’ll see size as US/European, like 10/70, 11/75, or 12/80. Bigger number = bigger blade.
Setup checklist
- Verify system: DBXK5.
- Identify point type: SES, ESB, or Sharp.
- Check for NY if you need a tapered blade.
- Choose two sizes to test (one baseline, one heavier).
Operation: Choose Point Type, Blade Type, and Size Step 1 — Match point type to fabric structure - Knits → Ballpoint (SES or ESB) so the tip spreads—but doesn’t cut—yarns.
- Avoid sharps on knits: they can cut loops and lead to unraveling.
- Wovens → Sharp. On tight weaves, a sharp gives clean penetration and reduces surface distortion.
Outcome expectation: On knits with ballpoint, stitches nest without snags or runs. On wovens with sharp, outlines look smooth and crisp.
Step 2 — Select blade size to resist deflection Heavy fabric or crossing seams can push a light blade sideways. That deflection can slam the needle into the hook point, causing burrs and thread breaks. If you’ll cross bulk, bump to 12/80 to add column strength.
Quick check: If you hear hard impacts when crossing seams or see sudden breaks right after a bulky area, your blade may be too light.
Step 3 — Align thread weight to needle groove The groove on the needle shank guides thread to the eye. Heavier thread needs a wider groove to stay protected; fine thread needs a narrower groove for control. This match reduces friction, guarding against frays or snags.
Pro tip: When in doubt, test two sizes with your chosen thread. The best fit will run quieter, with smoother tension and fewer micro-frays.
Step 4 — Confirm blade type for speed Running fast? Tapered (NY) blades are thin yet strong, built to handle speed with cleaner penetrations. If your machine and fabric cooperate at higher RPMs, NY can improve consistency.
Decision point
- If your fabric is lightweight knit → ESB; if midweight knit → SES; if woven (especially tight) → Sharp.
- If design crosses seams or fabric is heavy → choose 12/80 to resist deflection.
- If you plan high-speed embroidery → look for NY.
Context reminder: The right needle choice shields quality no matter which frame you use, from standard ring hoops to modern magnetic frames. magnetic hoops for embroidery
Operation checklist
- Point type matches structure (ballpoint for knits, sharp for wovens).
- Blade size covers expected bulk (upsize for seams/heavy fabric).
- Groove aligns to thread weight.
- Blade type (NY) if you’re pushing speed.
Quality Checks: Validate Before You Stitch Big On a test scrap of the same fabric:
- Run a small satin column and a short fill.
- Cross a mock seam or a folded edge if your design does.
- Inspect immediately under good light.
What “good” looks like
- Knits with ballpoint: loops intact, no runs, clean needle holes.
- Wovens with sharp: minimal distortion, no puckers, crisp edges.
- Over seams with adequate blade size: no sudden breaks post-impact.
- Thread path: no fuzzing; stitches lay without scuffed sheen.
Watch out: Puckering on tightly woven synthetic with a ballpoint is a red flag. Switch to sharp and retest.
Pro tip: Listen for the sound of consistent penetration. An overly light blade hitting bulk often sounds “hard” and is quickly followed by breaks.
Results & Handoff: Record What Works and Why Consistency scales when you document settings that work.
- Record fabric type, point type, blade size, thread, and speed notes.
- Save a labeled swatch with the chosen needle.
- Keep a range of point types and sizes on hand so you can adapt quickly.
From test to production When your test passes all quality checks, load the production hoop, confirm the same needle, and run. If your design crosses a seam, consider starting with a fresh needle for maximum reliability. Whatever your frame preference, the needle remains the common denominator of stitch quality. tajima hoop
Troubleshooting & Recovery: Symptoms → Causes → Fixes Symptom: Thread breaks when crossing seams
- Likely cause: Blade too light; deflects into hook, creating burrs.
- Fix: Move up to 12/80. Inspect needle for burr; replace if damaged.
Symptom: Puckering on a woven, especially synthetics
- Likely cause: Using a ballpoint on a tightly woven fabric.
- Fix: Switch to sharp; retest.
Symptom: Fraying or fuzzy thread surface
- Likely cause: Groove too narrow for thread weight; excessive rubbing.
- Fix: Increase needle size so the groove accommodates the thread.
Symptom: Runs or ladders in knit fabric
- Likely cause: Sharp point cutting knit yarns.
- Fix: Switch to ballpoint (SES/ESB).
Symptom: Noisy penetration at higher speeds
- Likely cause: Standard blade struggling at speed.
- Fix: Try tapered blade (NY) for cleaner, strong entry.
Quick Reference: Checklists and Decision Paths Decoding the label (order matters) 1) System: DBXK5 2) Point type: SES / ESB / (none) → Sharp 3) Blade type: NY (tapered) if needed for speed 4) Size: 10/70, 11/75, 12/80 (larger number = thicker blade)
Fabric-to-point map
- Knit → Ballpoint (SES general; ESB for lighter knits)
- Woven → Sharp (especially tightly woven)
Blade size logic
- Light/medium fabric → 10/70 or 11/75
- Heavy fabric or crossing seams → 12/80
Thread-to-groove alignment
- Heavier thread → wider groove (bigger needle)
- Finer thread → narrower groove (smaller needle)
Production-ready final check
- Test on same fabric and thread
- Cross any seams you’ll encounter
- Inspect for cuts (knits), puckers (wovens), and breaks (bulk zones)
Why this framework works It reflects how fabrics behave under a moving needle: knits need spreading, wovens need cutting, heavier materials push back (so resist with thicker blades), and thread must ride protected in the groove. These principles hold true across machines and hoop styles—including standard rings and modern frames—so your settings scale from samples to full runs without chasing tension ghosts. brother embroidery machine
Practical scenarios - Lightweight performance tee (knit): Start ESB 11/75; if slightly beefier thread, bump to 12/80 only if necessary to maintain groove coverage without cutting.
- Fishing shirt (dense woven synthetic): Sharp 11/75 test; if any seam crossings, step up to 12/80 for stability. Expect the pucker to vanish when shifting from ballpoint to sharp.
- Logo over a placket seam: Begin with 12/80 in your correct point type; confirm deflection-free passes on a test fold before production.
Scaling the workflow If you regularly switch between knits and wovens, keep labeled trays for SES, ESB, and Sharp in sizes 10/70–12/80. A simple tray system paired with quick swatch tests lets you pivot within minutes when jobs change. This needle-first approach works regardless of how you mount garments—traditional hoops or modern magnetized frames. magnetic hoop for brother
Micro-validations to speed confidence
- After 50–100 test stitches, pause and check the reverse side: it should show balanced penetration without snagged loops.
- Run a short satin on the bias of the fabric grain—excess distortion reveals a point-type mismatch.
- Gently rub stitches with your fingertip: roughness can signal groove mismatch or emerging burrs.
Tooling note High-speed runs benefit from tapered (NY) blades because they maintain strength while presenting a thinner profile. Use that efficiency to extend your quality envelope when timelines demand speed.
Sustaining best practices
- Replace needles proactively after heavy seam work.
- Document every win: fabric, point, size, thread, and speed.
- Keep a test ladder in your routine—20 seconds that can save a garment.
A word on frames and stability Hoop stability matters, but even a perfectly secured fabric will underperform with the wrong needle. If you’ve upgraded to modern magnetic frames or dedicated stations for repeatability, pair that stability with the correct point and size to lock in results end-to-end. hooping station for embroidery
From label to production: a sample workflow 1) Identify fabric as knit or woven; gauge density by touch and light. 2) Pick point type accordingly (ballpoint for knit; sharp for woven). 3) Choose size for bulk (12/80 for seams/heavy; otherwise 10/70 or 11/75). 4) If running fast, select NY (tapered) blade variant. 5) Align needle groove to thread weight. 6) Test a satin column, a fill, and a seam crossing on scrap. 7) Inspect front and back; adjust point or size if issues appear. 8) Record settings; run production.
Smart stocking strategy Keep a compact assortment—SES 10/70–12/80, ESB 10/70–11/75, Sharp 10/70–12/80—plus a few NY variants for high-speed projects. Stocking options is the simplest way to solve quality issues in minutes rather than hours of troubleshooting.
Closing thought Embroidery quality is engineered at the needle: choose the right point for your fabric, the right size for your bulk, the right groove for your thread, and the right blade profile for your speed. Do that, and your designs will run cleaner, faster, and with fewer surprises.
