Video reference: “Embroidering a Heavy Work Jacket with Mighty Hoops & Freestyle Station!” by Kayla's Corner
Thick, high-visibility work jackets can fight you at every turn—bulk, uneven surfaces, and tight margins. Here’s a crisp, repeatable method to hoop from the side on a Freestyle Mighty Hoop station, rotate and trace with confidence, and stitch a perfectly placed left-chest logo on a Ricoma EM1010.
What you’ll learn
- A side-entry hooping technique that slashes bulk in the machine throat and boosts accuracy.
- Fast, visual placement using a printed template—and how to align when the pocket isn’t quite straight.
- On-machine rotation, trace, and contour-trace for worry-free clearances.
- Practical load-in tricks for a heavy jacket (stool support, thread choices) and a clean finish.
Mastering Embroidery on Challenging Work Jackets
Why heavy jackets pose an embroidery challenge Heavy outerwear stacks the deck against clean placement: thick fabric, interior pockets, seams, and straps leave you very little margin for error on a small left-chest area. The trick is controlling bulk and seeing your clearances before the first stitch.
The magic of magnetic hoops for thick fabrics A Mighty Hoop holds thick layers without over-compressing the jacket. Paired with a Freestyle station, you can hoop only the area you need—so nothing bunches up in the back of the machine. This method preserves alignment and reduces handling errors. magnetic hoop embroidery
Introducing the Mighty Hoop Freestyle Station
Setup and benefits for bulky garments Unzip the jacket and bring just the design area to the station. Hooping from the side means the hood, shoulders, and most of the body stay clear of the machine’s throat. That translates into better alignment and fewer surprises once you load the hoop.
Pro tip If you’re often tackling bulky garments, consider standardizing your workflow around a side-entry hooping station to keep the embroidery field isolated and flat. hooping stations

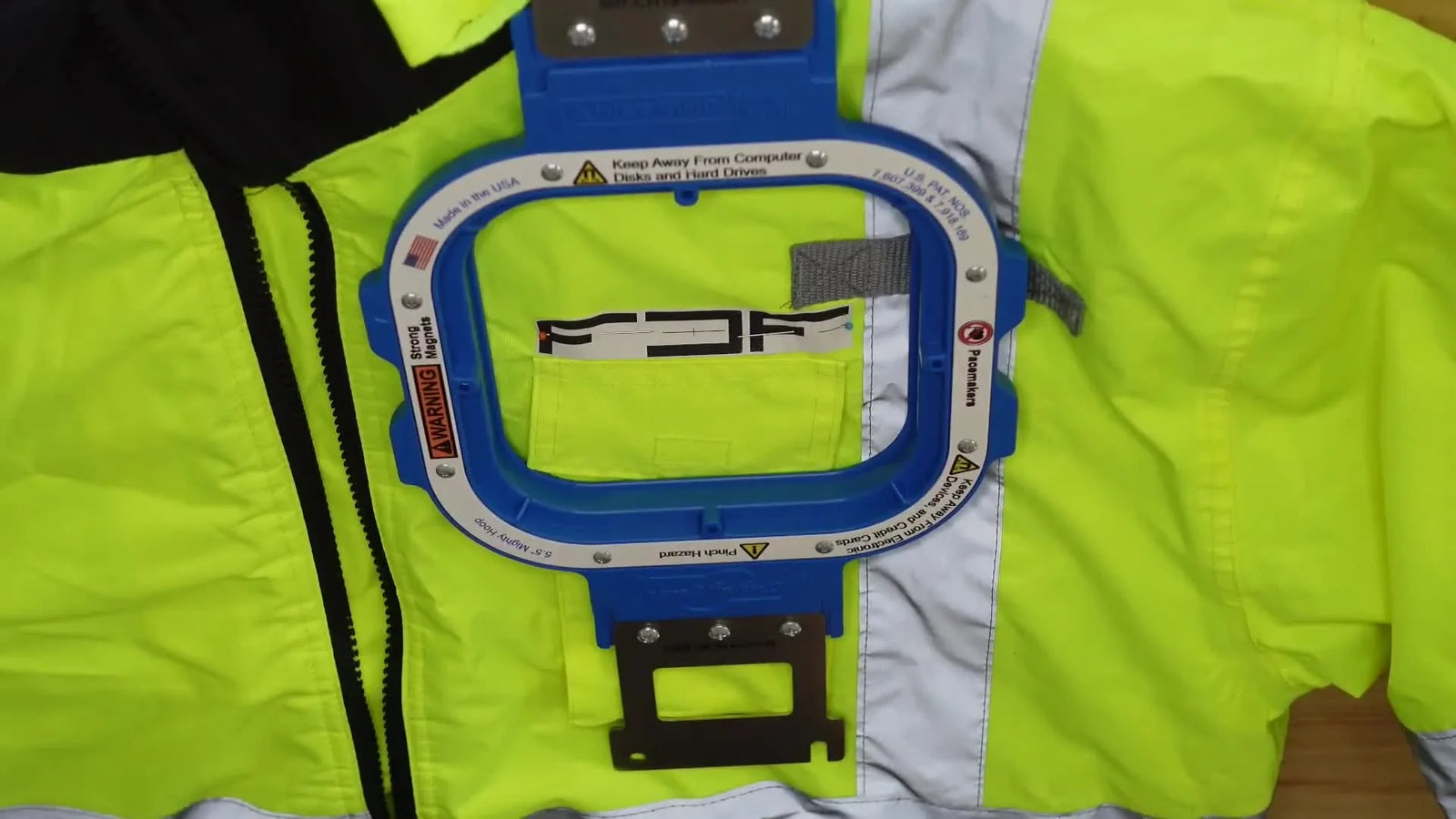

Step-by-step hooping technique 1) Print and pin your design template. Center it visually over the left pocket, accounting for the nearby strap. The pocket itself may not be perfectly straight, so judge alignment relative to the garment, not the pocket’s stitch line.
2) Place hooped cutaway stabilizer in the bottom Mighty Hoop on the station. Keep the jacket unzipped and lay the target area over the hoop, following the station’s center marks. 3) Rotate the hoop orientation 90° for a side-entry load. This reduces throat bulk on the machine.
4) Align the hoop’s centerline to the template crosshairs. Lower the top hoop—let the magnets snap, but guide gently for precision.
5) Confirm the stabilizer is fully captured and taut on the back.
Watch out Pins through thick material can bite. Work slowly and keep fingers clear of the pin path.
Quick check
- Is the template centered and level to the garment (not the pocket seam)?
- Is the jacket smooth in the hoop—no wrinkles trapped?
- Are margins between design, strap, and pocket seam acceptable?
Checklist—Hooping
- Jacket unzipped, target area isolated on the station.
- Cutaway stabilizer hooped and fully captured.
- Hoop orientation rotated for side entry.
- Template centerlines matched to hoop center.
Achieving Perfect Design Placement
Precision alignment strategies The printed template is your truth source. Pin it carefully, then align the hoop’s vertical and horizontal centers to the template—not to potentially crooked pocket edges. With a tight left-chest area framed by a strap above and a pocket seam below, minor misalignment is noticeable, so take the extra seconds to sight both axes. hooping station for embroidery
Pro tip Hold up the hooped garment and visually check the crosshairs again before removing it from the station. If anything shifts, it’s much easier to fix now than at the machine.
Utilizing machine tracing functions Load the hoop, rotate the design to match the jacket’s orientation, and trace from needle 1 to find center and edges. Because margins are tight, add a contour trace to preview the exact stitch path and confirm that no part of the design lands on the strap or pocket seam.
From the comments A viewer highlighted how turning the hoop orientation was the game-changer—this side-entry approach is the reason the machine throat stays clear and placement stays accurate.
Quick check
- Does the rotated on-screen design match the hooped garment orientation?
- Did the initial trace pass through your template center?
- Does the contour trace avoid the strap above and the pocket edge below?
Machine Setup for Success
Managing fabric bulk on the embroidery arm Support the jacket’s weight in front of the machine—placing a stool or stand under the garment reduces strain on your brackets and keeps the hoop from tilting. Slide the hoop all the way in and make sure nothing is folded under the sewing arm. The goal: a clear, unobstructed stitch path with no fabric drag.
Thread and bobbin considerations For a black logo on a yellow jacket, use black top thread and a black bobbin to avoid light bobbin peeking through. Confirm your bobbin is seated and that your top color is selected on the machine before you trace.
From the comments—needle size When asked about needle size for this project, the creator replied: 65/9. Use this as your baseline reference for a clean stitch on this specific setup.
Checklist—Machine prep
- Hoop attached firmly and supported from below.
- No folds or layers caught under the sewing arm.
- Top thread color set; bobbin color matched as needed.
- Ready to rotate, trace, and contour trace. ricoma mighty hoops
The Embroidery Process: Stitching and Finishing
Step 1: Rotate the design On the Ricoma EM1010, rotate the design so the screen orientation matches your side-hooped jacket. Verify the rotation by comparing to your pinned template lines.
Step 2: Trace for alignment Run a standard trace and center the presser foot over your template’s crosshairs. Make small X/Y nudges if needed; even a slight tweak can save your margins on a compact left-chest design.
Pro tip After any move, re-trace. Micro-moves can shift clearances near straps or seams.
Step 3: Contour trace for boundaries With tight borders, contour trace to visualize the exact stitch path. If the bottom edge risks the pocket or the top grazes the strap, unlock and move the design slightly—then contour trace again. Once your boundaries are clean, lock it in.
Watch out Do not start before confirming both top and bottom clearances. A logo that kisses a strap or crosses a seam will telegraph errors you can’t unstitch from a thick jacket. magnetic embroidery hoop
Step 4: Stitch the logo Select the correct thread color and run the stitch-out. Because bulk is out front, the throat is clear—feeding remains smooth and consistent. When finished, remove the hoop and garment.
Step 5: Finish clean Cut away the stabilizer neatly on the back, taking care not to nick the garment. Zip the jacket to evaluate alignment in a natural wearing position. Expect an evenly centered, crisp logo with balanced spacing between strap and pocket seam.
Checklist—Operation
- Rotate: on-screen matches hooped orientation.
- Trace: center confirmed over template crosshairs.
- Contour trace: boundaries clear of strap and pocket.
- Stitch: clean finish, stabilizer trimmed, visual check zipped.
Outcome expectations
- The machine throat remains clear; the jacket’s bulk sits out front.
- The logo lands perfectly between strap and pocket seam.
- Backing is trimmed flush; no stray stabilizer visible at the edges. mighty hoops for ricoma em 1010
Troubleshooting & Recovery
Symptom: Trace shows the center is off
- Likely cause: Template not precisely centered or the hoop shifted while snapping the top frame.
- Fix: Re-align on screen first; if the offset is large, re-hoop on the station for a cleaner baseline.
Symptom: Contour trace hits the strap or pocket
- Likely cause: Design not moved after rotation; pocket or strap tolerances are tighter than estimated.
- Fix: Unlock design and nudge away from the obstacle; re-contour. Do not stitch until the path is clear.
Symptom: Fabric drag during stitch
- Likely cause: Jacket weight isn’t supported; folds caught under the sewing arm.
- Fix: Re-position the stool/support. Smooth and re-seat fabric around the arm.
Symptom: Bobbin color shows on top
- Likely cause: Bobbin color mismatch or tension peculiarity.
- Fix: Match bobbin to top color when possible; re-thread and test a small trace line to verify balance before stitching the logo.
Quick check—Before pressing Start
- Hooped section is flat and centered.
- Garment supported; brackets not bearing full weight.
- On-screen design rotation verified.
- Contour trace clears all obstacles.
From the comments—alternate frames A community member noted learning a similar side-entry concept from fast frames on other setups. The shared insight aligns with the core principle here: isolate the target area and keep bulk out of the throat. magnetic embroidery hoops
From the comments
- “What needle size did you use?” Answer from the creator: 65/9—used here for a clean, precise result on this thick jacket workflow.
- Multiple viewers called out that turning the hoop orientation made the process click—side-entry hooping is the difference maker on bulky garments.
- Community kudos emphasized how clear placement and contour tracing led to a perfectly centered finish.
Pro tip If you frequently embroider left-chest logos on utility jackets with straps or multi-layer pockets, save a labeled placement template for that garment pattern. It standardizes centering and speeds repeat orders. mighty hoop magnetic embroidery hoops
Final reflection Hooping from the side on a Freestyle station, rotating on screen, and confirming with contour trace transforms a tricky, bulky jacket into a quick, confident stitch-out. Expect fewer re-hoops, cleaner placement, and a polished finish—every time. mighty hoop embroidery
