Introduction to In-The-Hoop Key Fobs
ITH (in-the-hoop) projects are stitched entirely inside your embroidery hoop—no separate sewing step required. For a key fob, that means you’ll embroider the front artwork, sandwich it with a backing, and run a final outline stitch that seals the shape. The result is a neat, durable loop for your keys with pro-level edges.
Why it shines for quick gifts
- Efficient: All construction lines are digitized, so your machine does the heavy lifting.
- Consistent: The outline defines the shape for precise cutting.
- Beginner-friendly: The steps are short and repeatable—perfect for learning control over hooping and trimming.
Where it fits
- Personalized gifts and stocking stuffers.
- Small business add-on items.
- Coordinated sets with other small ITH accessories.
Pro tip: If you already hoop comfortably with modern aids like magnetic embroidery hoops, the process feels even quicker because setup and rehooping are simpler across multiple fobs.
Materials and Tools You'll Need
Core items
- Embroidery machine with an embroidery hoop.
- Stabilizer (hooped taut and flat).
- Vinyl (front) and matching vinyl (backing).
- Embroidery thread (follow the design’s color sequence).
- Scissors for tight trimming.
- Snap fastener set, jump ring, and key ring.
About stabilizer and vinyl
- Stabilizer needs to be hooped tightly so the outline stitches stay accurate.
- Vinyl should fully cover the design footprint with extra margin for trimming.
Hardware
- Snap fasteners create the loop that holds a jump ring and key ring.
- Pliers help close the jump ring; a snap press gives consistent snap results.
Quick check: Lay your front vinyl over the hooped stabilizer. If you can shift it with a light tap, hold it in place with your non-dominant hand during the first stitches.
From the comments: Some makers use a dedicated snap press (KAMsnap) and buy colored snaps from kamsnaps.com. This simplifies installation and expands color options.
If you organize batch runs of fobs, a hooping aid can speed alignment from project to project—for example, a station like hoopmaster can make repetitive placement more consistent without changing the ITH steps described here.
Prep checklist
- Stabilizer is hooped taut.
- Front and back vinyl pieces are cut with margin.
- Design file for a key fob is loaded and centered.
- Snaps, jump ring, key ring, pliers, and snap press are ready.
Step-by-Step Guide: Embroidering Your Key Fob

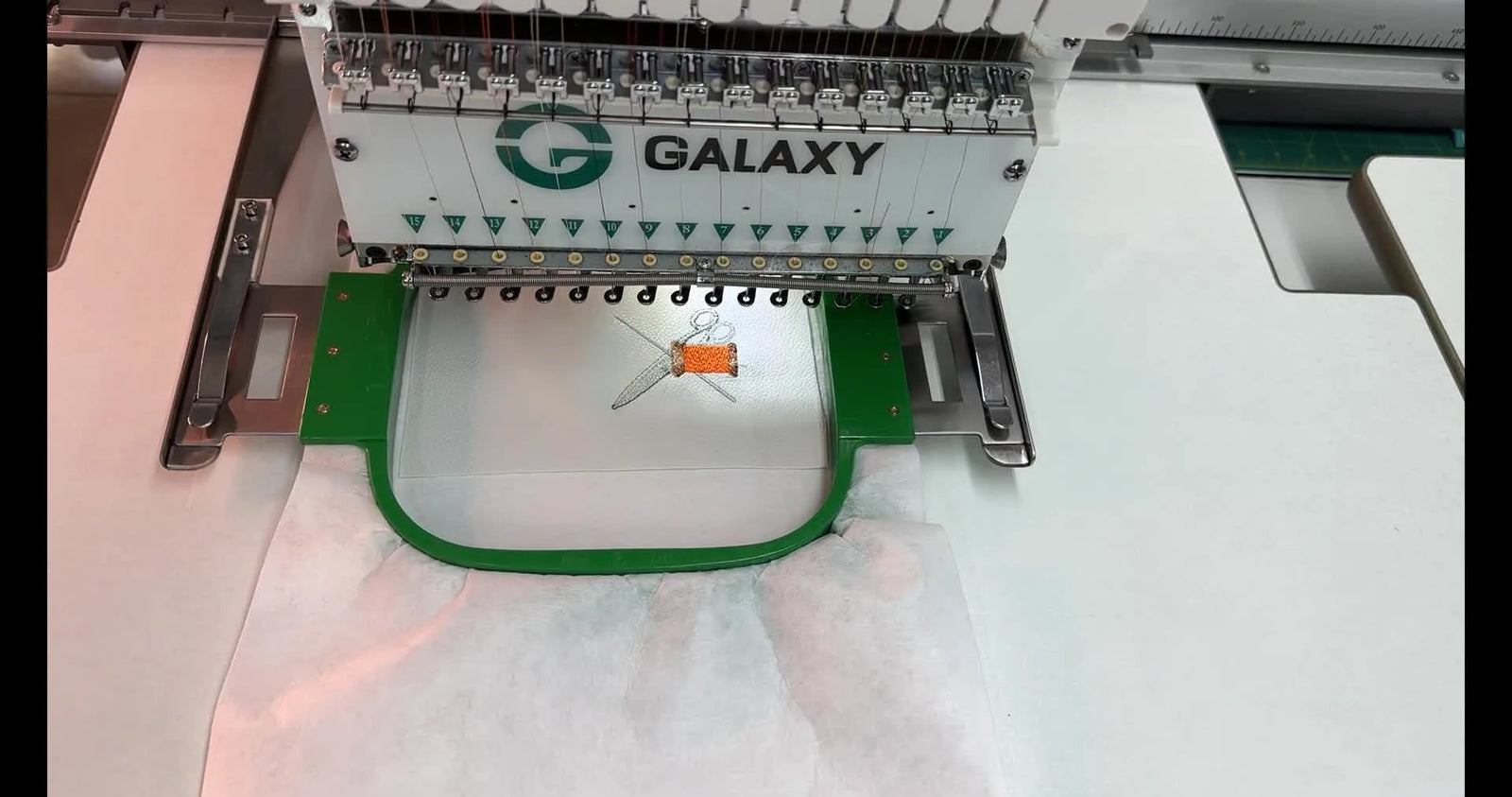

Hooping Your Stabilizer and Front Vinyl
1) Hoop the stabilizer securely. 2) Place the front vinyl centered over the design area. Smooth it flat; it must cover the entire motif and outline.
Expected result: The stabilizer is taut and the vinyl sits flat with no bubbles.
Watch out: Loose hooping leads to wavy outlines. If the stabilizer shifts when tapped, rehoop before stitching.
Decision point
- If your vinyl tends to slide, keep a steady hand on the edge during the first placement stitches.
- If you batch multiple fobs, consider workflow helpers you already own, such as a dime snap hoop, to make repeated hoopings faster without altering the technique.
Setup checklist
- Stabilizer hooped tight and drum-taut.
- Front vinyl centered and fully covering the design.
Stitching the Design: From Outline to Details
3) Run the placement/outline stitch. This first pass defines the design location on the vinyl.
4) Proceed through the color sequence to complete the artwork. Change threads as indicated by your design.
5) Continue with any remaining details or top elements until the front design is fully stitched.
Expected result: Even tension and smooth coverage on the vinyl, with clean edges around fills and satin stitches.
Quick check: Pause after a dense area—if you see puckering, the stabilizer may be a bit slack. Reassess hoop tension before your next fob.
Operation checklist
- Placement outline stitched accurately.
- All colors and details completed.
- Front design looks balanced and flat.
Adding the Backing Vinyl for a Professional Finish
6) Remove the hoop from the machine—but do not unhoop the project.
7) Place the backing vinyl on the underside of the hoop so it fully covers the stitched shape. Smooth it carefully.
8) Return the hoop to the machine and stitch the final outline. This secures both vinyl layers and defines the fob’s silhouette for trimming.
Expected result: A continuous outline through both vinyl layers, with no visible gaps or misalignment.
Watch out: Backing vinyl can shift when you move the hoop. If needed, use a small amount of temporary adhesive or tape to hold the backing during the final outline pass.
Quick check: After the outline completes, inspect the back—stitching should mirror the front outline cleanly.
Batching tip: If you’re running multiples, devices like magnetic embroidery frames can speed the repetitive hoop-in/hoop-out cycle, while the steps remain identical.
Finishing Touches: Trimming and Hardware
Precision Trimming Techniques
9) Remove the hoop from the machine and take the project out of the hoop. 10) Trim slowly around the outer stitch line with small, sharp scissors. Work in short snips, turning the fob—not your wrist—for curves.
Expected result: A clean, even cut that hugs the seam without nicking threads.
Pro tip: Leave a consistent narrow border outside the outline—too close risks snipping the thread; too wide looks bulky. Tools that give you repeatable cuts save time when producing multiple fobs.
If you’re trimming a dozen at once, consistent hooping and outlines make edges uniform. Many makers reach for compact hoops like a mighty hoop 5.5 when working with small vinyl pieces across batches—the workflow here stays the same.
Attaching Snap Fasteners and Key Rings
11) Punch the snap hole in the tab area if your design requires it. 12) Set the snap with a snap press for firm, even pressure. This forms the loop.
13) Add a jump ring and then a key ring to finish.
Expected result: The snap sits squarely and closes cleanly. Rings are secure with no wiggle at the seam.
From the comments: A KAMsnap press and colored snaps from kamsnaps.com were recommended by experienced users for reliable results and color matching.
Hardware checklist
- Hole punched neatly and centered.
- Snap aligns and closes firmly.
- Jump ring closed completely; key ring spins freely.
Tips for Perfect ITH Key Fobs Every Time
Stabilizer selection
- Use a stable hooping with a stabilizer that supports clean outlines. Taut hooping prevents distortion in dense areas and keeps edges crisp.
Vinyl handling
- Smooth the vinyl before your first stitch. When adding the back piece, hold or lightly secure it so it doesn’t creep.
Needle and thread choices (community-verified)
- One maker reports great results with a standard 75/11 needle on vinyl.
- Another shares: Organ sharps are fine—test on a scrap first. If the vinyl tears, switch to a ballpoint. Vinyl with a canvas-like backing is more forgiving and less prone to tearing.
Quick check: After the first 100–200 stitches of the front design, pause and review the surface—no perforation trails or tearing should appear.
Batch production
- Keep all cuts consistent by using the outline as your visual guide.
- If you work on a machine that supports additional hoop types—such as a model compatible with magnetic hoops for embroidery machines—you can streamline rehooping between fobs while following the same steps.
Workflow comfort
- Some embroiderers like the grip and reduced fabric fuss offered by accessories like a brother se1900 magnetic hoop for small designs; the ITH method remains unchanged.
Design fit
- Most key fob files are small and fit modest hoop sizes; always confirm your design’s dimensions before starting. If you own alternate hoop formats, such as a magnetic hoop for brother pe800, choose the one that fits your file with comfortable trimming space.
Expand Your Creativity: Other ITH Projects
Key fob skills translate easily to other small ITH makes—front stitch, backing placement, outline to finish, then trim and hardware or closures. Once you’re confident with vinyl handling and trimming, you can apply the same logic to tags, charms, or similar small accessories.
If you’re already set up with time-saving tools—say, magnetic embroidery hoops for quick swaps—the same efficiencies carry over to other ITH projects without changing the fundamental steps.
Troubleshooting & Recovery
Symptom → cause → fix
- Stitch outline looks wavy → Stabilizer wasn’t taut → Rehoop with firm tension before starting.
- Front looks great, back outline is offset → Backing shifted during placement → Add light temporary adhesive or tape and smooth thoroughly before the final outline.
- Vinyl shows perforation or tearing → Needle tips may be too aggressive for this vinyl or vinyl lacks supportive backing → Test on a scrap; switch to a ballpoint needle; look for vinyl with a canvas-like backing.
- Thread breaks during detail stitching → Path density or tension may be unforgiving → Rethread carefully and proceed; ensure the thread path is smooth.
- Snap feels loose after pressing → Inconsistent pressure or misalignment → Reseat and repress with a firm, level squeeze; check that the cap and socket are fully engaged.
Quick isolation tests
- Run a tiny test motif on a scrap of the same vinyl with your usual needle. If you see tearing, try a ballpoint.
- Stitch only the final outline on a scrap sandwich (front + stabilizer + back) to confirm your backing holds in place before committing to a full piece.
Recovery notes
- Nicked the outline while trimming? You can sometimes restitch the final outline on a new hooping and use the old piece as a guide, but for a polished finish, start a fresh fob.
- Mis-set snap? Carefully remove the snap with appropriate tools and reset; if the hole stretched, consider placing the snap slightly lower on the tab if the design allows.
From the comments
Q: Do you need a ballpoint needle for vinyl? A: Many embroiderers succeed with a standard 75/11. Test your vinyl; if it tears, switch to a ballpoint. Vinyl with a canvas-like backing helps resist tearing.
Q: What tool sets the snaps, and where can I find colorful options? A: A KAMsnap press was recommended, and colored snaps are available at kamsnaps.com.
—
Closing thought: The magic of ITH key fobs is that precision is built into the file. Hoop firmly, smooth the vinyl, and let your machine draw the perfect cutting guide—then add hardware and you’re done. For high-volume days, accessories like magnetic embroidery frames or compact hoops can make the handoffs faster, while the core steps stay the same.
