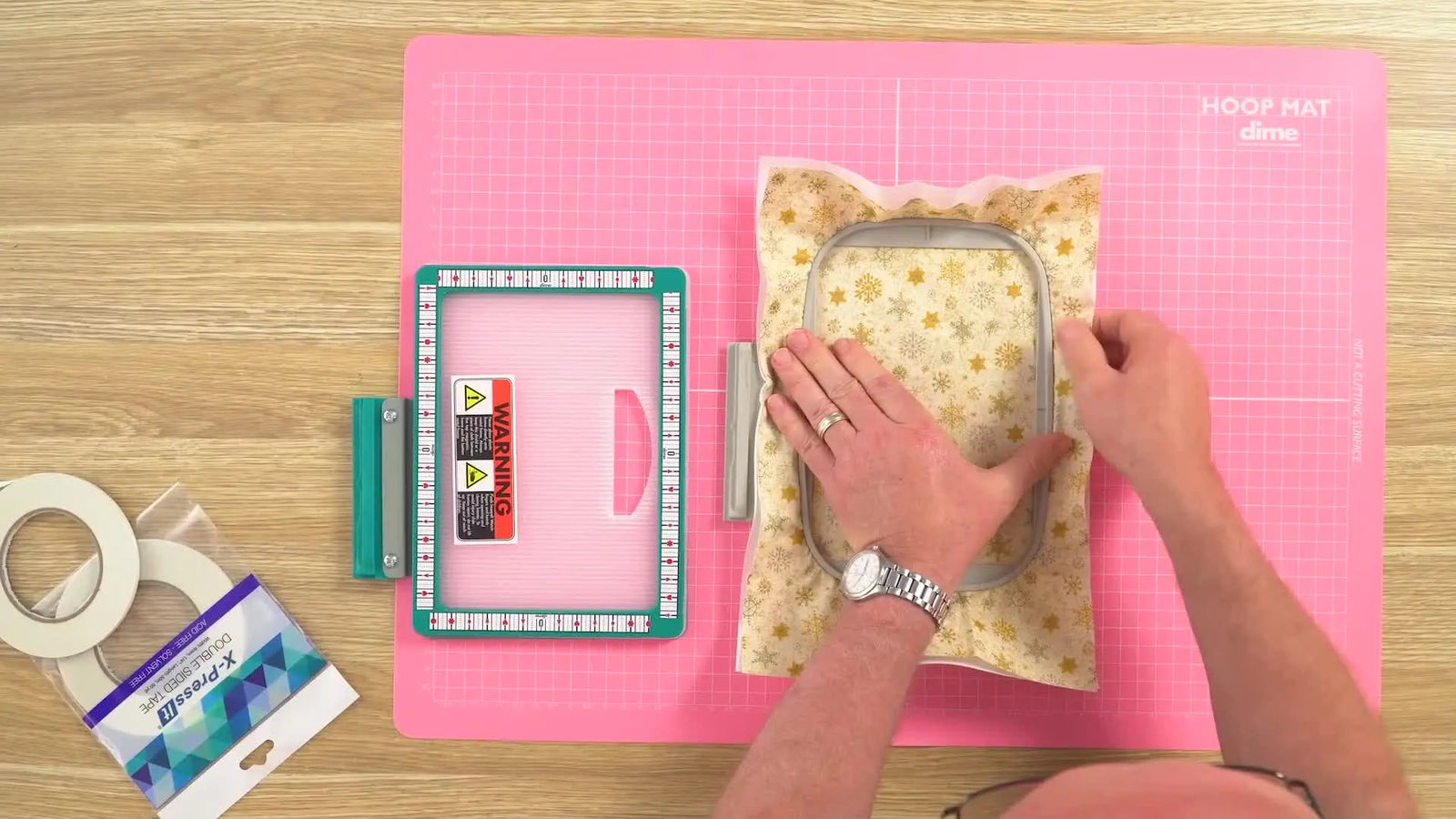

Stop Fabric Drift in a Brother 5x7 Hoop and a Dime Magnetic Hoop—The Tape Trick That Saves Your Outlines

You’ve been there. You watch your machine hum along perfectly for 20 minutes, stitching a complex floral design. Then, in the final sixty seconds, it lays down the black outline... and it misses the petals by three millimeters.

That sinking feeling isn't just frustration; it's the "phantom gap" of embroidery.

Most beginners panic and blame the machine's calibration. But as an embroidery educator with two decades on the floor, I can tell you that 90% of the time, the machine is fine. The culprit is physics. Specifically, fabric drift—the microscopic shifting of your material inside the hoop as the needle hammers it thousands of times.

Gary from Echidna Sewing demonstrates a "shop floor secret" that changes the friction coefficient of your hoop using simple 6mm high-tack double-sided tape. Below, we are going to break this down into a masterclass on stability, safety, and when it’s time to stop fighting your tools and upgrade them.

Fabric drift, outline misalignment, and puckering: why your hoop is the real culprit (not your Brother machine)

To understand the fix, you must visualization the violence occurring inside your hoop. A standard embroidery machine running at 600–800 stitches per minute (SPM) is essentially a jackhammer acting on a piece of flexible cloth.

Gary’s demo provides the "aha" moment: he lightly taps the center of the hooped fabric. Watch closely, and you will see the fabric sag and shift—particularly along the long straight sides of a 5x7 hoop. These long edges are the structural weak points; they bow slightly under tension, allowing the fabric to "creep" inward as the stitch count builds.

Here is what is happening in plain engineering terms:

• The Tug-of-War: Every needle penetration creates a tiny pull of thread tension against the fabric.
• The Accumulation: A design with 10,000 stitches equals 10,000 micro-tugs. If the hoop grip slips even 0.01mm per stitch, by the end, your outline is off by a noticeable margin.
• The Result: The design looks "shrunken," and the final border lands on empty fabric.

This tape trick works because it upgrades the coefficient of friction at the hoop's edge, mechanically locking the fabric fibers in place without relying solely on dangerous screw tension.

One veteran rule before we start: When you see a gap in your outline, do not touch your machine's calibration settings. Check your hoop security first. It is the cheapest fix and the most common cause.

The “hidden” prep that makes the tape trick actually work (fabric, cutaway backing, and a clean hoop surface)

The video demonstrates this technique on simple quilting cotton, but the principles apply broadly. However, success lives in the preparation. If you apply tape to a dirty hoop, you are wasting your time.

The stabilizer matters: Gary uses Cutaway backing.

• Why? Tearaway stabilizer offers zero structural support once the needle perforates it. For dense designs or ensuring perfect outlines, Cutaway is the industry standard because it remains a solid sheet, acting as a foundation that prevents the fabric from distorting.

The "Hidden" Consumables you need:

1. Isopropyl Alcohol: To clean the hoop surface before taping.
2. Tweezers: Essential for peeling the backing off 6mm tape.
3. High-Tack Double-Sided Tape (6mm): Standard stationary tape is too weak; look for "craft" or "industrial" grade.

Prep Checklist (Complete BEFORE cutting tape):

• Surface Prep: Wipe hoop rings with alcohol to remove lint and skin oils.
• Stabilizer Selection: Matched to fabric (e.g., Cutaway for knits/high stitch counts).
• Hooping Strategy: Decide if you are standard hooping or "floating" (see the Decision Tree below).
• Zone Check: Ensure the tape placement will NOT be in the needle's path (Hoop perimeter only).


The hoop screw “feel test” on a Brother 5x7 hoop: tight enough to hold, not tight enough to break

This is the most common failure point for beginners. There is a fear-based tendency to over-tighten the hoop screw, thinking "tighter = safer."

The Reality: Plastic hoops distort when over-tightened. An oval-shaped hoop grips the top and bottom but loses grip on the sides—creating the very gap you are trying to avoid.

Gary’s rule is a masterclass in "feel": The inner ring should push into the outer ring firmly, but without extreme force.

• Auditory Cue: You might hear a solid "thud" or "snap" as it seats.
• Tactile Cue: It should feel like snapping a Tupperware lid, not like forcing a square peg into a round hole.

Warning: Mechanical Safety
Never use a hammer, mallet, or handle of a screwdriver to force the inner ring into place. Gary explicitly warns against this. If you need that much force, your screw is too tight. You risk cracking the hoop or, worse, stripping the screw mechanism.

If you find yourself constantly wrestling with screws or suffering from wrist pain, this is a clear indicator that your production volume has outgrown standard plastic hoops. This is where many professionals transition to magnetic solutions to remove the variable of "screw tension" entirely.

Apply 6mm high-tack double-sided tape to the Brother 5x7 inner ring—exact placement that stops slippage

Precision is key here. You are creating a "gasket" of friction.

The Protocol:

1. Separate your hoop rings.
2. Take the Inner Ring (the one that goes inside the garment).
3. Apply the tape to the outside perimeter of this ring (the wall that touches the outer ring).
4. Run it all the way around, ensuring no bubbles.
5. Peel the paper backing to expose the sticky surface.

By finding the right brother 5x7 hoop setup—specifically adding this friction layer—you transform a novice tool into a production-ready griper. This effectively converts the smooth plastic surface into a non-slip brake pad for your fabric.

Longevity Note: You do not need to change this every time. A good application lasts for 4–5 projects before it loses its tackiness or picks up too much lint.

Hooping cotton (and handling stretch fabric) without distortion: the “fullness” correction you must do gently

Once your tape is exposed, hooping requires a change in technique. You can no longer "slide" the hoop parts together easily; the tape will grab instantly.

The "Neutral Tension" Goal: You want the fabric flat, but not stretched like a drum skin. If you stretch the fabric while hooping, it will relax after embroidery, causing puckering that no amount of ironing can fix.

The Procedure:

1. Place the Outer Ring on a flat surface.
2. Lay fabric/stabilizer over it.
3. Press the Taped Inner Ring straight down.
4. The Critical Step: Check for "fullness" or slack.
   • Micro-move: Gently pull the fabric edges to remove ripples.
   • Stop point: Stop pulling the moment the fabric is flat. If you see the weave distort, you have pulled too far.

Setup Checklist (Pre-Flight Check):

• Tap Test: Tap the center of the fabric. It should sound firm (like a cardboard box), not ring high-pitched (too tight) or sound flappy (too loose).
• Grain Check: Are the horizontal and vertical threads of the fabric straight?
• Physical Clearance: Is the hoop seated fully at the bottom?
• Screw Check: Is the screw finger-tight?


Tape removal and maintenance: the thumb-roll method that keeps your hoop clean (and your patience intact)

Residue anxiety is real, but manageable.

Removal Technique: Do not try to peel it like a sticker. Instead, use the pad of your thumb to "roll" the tape from the edge. It will ball up into a gummy mass that lifts off cleanly.

Cleaning Protocol:

• Frequency: Change every 4–5 projects. Leaving tape on for weeks allows the adhesive to cure and harden, turning a 30-second job into a 20-minute scraping nightmare.
• Solvent: If residue remains, a dab of citrus-based cleaner or Isopropyl alcohol on a rag will dissolve it instantly.


Magnetic hoop slippage is real: tape the underside of the Dime magnetic hoop top frame for more friction

Here is an industry truth: Magnetic hoops are incredible for speed and ergonomics, but magnets only provide vertical clamping force. On slick fabrics (like performance wear) or smooth plastic frames, the fabric can still slide horizontally between the magnets.

Gary’s fix adapts perfectly here:

1. Take the Top Magnetic Frame.
2. Flip it over to the underside (the side contacting the fabric).
3. Apply the double-sided tape here.

This provides the "bite" that magnets alone sometimes lack. If you have invested in a dime magnetic hoop or similar magnetic systems, this ten-cent upgrade ensures you get the speed of magnets with the security of a screw hoop.

Warning: Magnet Safety
Magnetic hoops snap together with up to 10lbs of force.
1. Pinch Hazard: Keep fingers clear of the edge when snapping frames together.
2. Medical Safety: Keep high-power magnets away from pacemakers, insulin pumps, and sensitive electronics.

Gary’s stress test confirms this: With tape applied, manually pulling the fabric requires significantly more force, proving the "micro-creep" is eliminated.

“Will it gummy up my needle?” and other comment-section worries—answered like a shop tech

Let’s address the fears preventing you from trying this.

Fear 1: "The needle will get sticky and break thread."

• Fact: The tape is applied to the hoop frame, far away from the stitching area. Unless you are stitching essentially onto the plastic frame itself (which would break your needle anyway), the needle never touches the tape.

Fear 2: "Is the tape water soluble? Will it wash away?"

• Fact: No. This is industrial mounting tape. It is meant to stay on the hoop, not the fabric.

Fear 3: "Will this stop hoop burn?"

• Fact: No. "Hoop burn" is the crushing of fabric fibers (velvet/terry cloth) due to pressure. Tape adds friction, but it maintains pressure. To prevent hoop burn, you must use a different technique: Floating.


Decision tree: choose stabilizer + hooping method based on fabric behavior (so you don’t chase problems later)

Stop guessing. Use this logic flow to determine your setup for every project.

Decision Tree: The Fabric-First Approach

1. Is the fabric delicate or crushable? (Velvet, Towels, Fleece)
   • YES: Do not hoop the fabric. Hoop the stabilizer only, then use spray adhesive or a basting stitch to "Float" the fabric on top.
   • NO: Proceed to step 2.
2. Is the fabric slippery or synthetic? (Satin, Performance Knits)
   • YES: Use Cutaway stabilizer + Tape on Hoop for friction.
   • NO: Proceed to step 3.
3. Is the design massive or dense? (20,000+ stitches, full fill)
   • YES: Risk of pull is high. Use Cutaway stabilizer + Tape. Consider slowing machine speed to 600 SPM.
   • NO: Standard hooping is likely fine.
4. Are you doing production? (50+ shirts)
   • YES: Standard hoops are too slow. Upgrade to a magnetic embroidery hoop for ergonomic speed and consistency.


The real “why”: stitch count, needle penetrations, and tension forces that slowly walk fabric out of place

Why do we need this friction? Gary explains that high stitch counts create a cumulative "draw" on the fabric.

The Physics of Pull Compensation: Embroidery thread has elasticity. As it forms a loop, it pulls the fabric fibers together.

• Column A: Pulling left-to-right.
• Column B: Pulling top-to-bottom.
• The fabric is under constant, shifting directional stress.

If your hoop is smooth plastic on smooth cotton, the coefficient of friction is low. The fabric will take the path of least resistance and slide. By adding the tape, widely used in sticky hoop for embroidery machine applications, you increase the friction threshold so it is higher than the thread tension force. The fabric stays put.

Troubleshooting fabric movement in hoops: symptom → likely cause → fix you can do today

If things go wrong, use this diagnostic table before changing software settings.

The upgrade path: when tape is enough—and when it’s time to level up your hooping workflow

Tape is a fantastic "Level 1" fix. It makes a $500 machine perform like a $2000 machine regarding stability. However, there comes a point where "hacking" your tools costs you more in time than upgrading them.

When to Upgrade: A Business Case for Enthusiasts

Scenario A: The "Wrist Pain" Trigger

• The Pain: You dread hooping because tightening screws hurts your hands, or you are getting "hoop burn" marks on delicate customer items.
• The Solution: magnetic embroidery hoops for brother or compatible machines.
• Why: Magnetic hoops (like those from SEWTECH or Dime) clamp instantly without twisting screws. They reduce hoop burn because the pressure is distributed flatly, not wedged into a recessed groove.

Scenario B: The "Production Bottleneck" Trigger

• The Pain: You have an order for 20 polo shirts. Re-hooping and changing thread colors on a single-needle machine takes 45 minutes per shirt.
• The Solution: SEWTECH Multi-Needle Machines.
• Why: When you move to a 10-needle or 15-needle machine, you gain professional tubular hooping (faster) and automatic color changes. Pro machines also handle the heavy drag of large designs better than domestic arms.

Hidden Consumable Check: Before buying a new machine, ensure you are using high-quality embroidery thread and the correct needles (75/11 Ballpoint for knits, 75/11 Sharp for wovens). Sometimes the "machine problem" is just a dull needle problem.

The “do it like Gary” operating routine: a repeatable sequence that prevents drift without drama

Consistency is the secret to professional results. Implement this routine to eliminate variables.

1. Prep: Clean hoop, check tape condition.
2. Hoop: Apply tape to inner ring (or underside of magnet), hoop the fabric with neutral tension.
3. Check: Do the "Tap Test" or "Pull Test."
4. Confirm: Ensure the hoop is locked into the machine carriage with a distinct click.
5. Stitch: Run your trace/basting stitch first to verify position.
6. Maintain: Roll off tape every 5 jobs.

Operation Checklist (End-of-Run):

• Did the outline align? (If yes, your tension + hoop formula works).
• Is there sticky residue on the fabric? (If yes, you used the wrong tape or taped the stitch area).
• Is the hoop screw stripped? (Check for wear).

For those setting up a small business, standardizing this process—perhaps by building dedicated hooping stations—ensure that every shirt in a 50-piece run looks identical to the first.

Stop fighting physics. Add friction, stabilize correctly, and stitch with confidence.

FAQ

• Q: How do I stop a Brother 5x7 plastic embroidery hoop from causing outline gaps from fabric drift?
  A: Add 6mm high-tack double-sided tape to the Brother 5x7 inner ring perimeter to increase grip instead of over-tightening the screw.
  • Clean: Wipe both hoop rings with isopropyl alcohol and let them dry.
  • Apply: Tape the outside wall/perimeter of the inner ring (hoop edge only), then peel the backing.
  • Hoop: Press straight down (no sliding), then finger-tighten the screw.
  • Success check: After hooping, tap the fabric center—firm and stable (not flappy), and the fabric should not creep when lightly tugged.
  • If it still fails… Switch to cutaway backing for better support and re-check that the hoop is not distorted from over-tightening.
• Q: What “hidden prep items” are required before using 6mm high-tack tape on a Brother embroidery hoop to prevent slippage?
  A: Use a clean hoop surface and the right small tools so the tape actually bonds and stays consistent.
  • Clean: Use isopropyl alcohol to remove lint and skin oils from the hoop rings before taping.
  • Grab: Use tweezers to peel the 6mm tape liner cleanly without stretching it.
  • Choose: Use high-tack double-sided tape (craft/industrial grade), not weak office tape.
  • Success check: The tape lies flat with no bubbles and feels evenly “grippy” all the way around the inner ring.
  • If it still fails… Replace the tape sooner (lint reduces tack) and confirm tape placement is on the hoop perimeter, not drifting into the stitch field.
• Q: How do I hoop cotton on a Brother 5x7 hoop with tape without causing puckering from over-stretching?
  A: Hoop with “neutral tension”—flat, not drum-tight—because stretching during hooping often relaxes later and puckers.
  • Place: Set the outer ring on a flat surface, then lay fabric + stabilizer over it.
  • Press: Push the taped inner ring straight down so it seats evenly.
  • Adjust: Gently pull fabric edges only until ripples disappear (stop the moment the fabric is flat).
  • Success check: Fabric grain stays straight (no weave distortion) and the surface looks smooth without being over-tensioned.
  • If it still fails… Re-hoop and reduce pulling; puckering commonly comes from hooping too tight, not from machine settings.
• Q: When should I choose cutaway backing instead of tearaway stabilizer to prevent outline misalignment and distortion on embroidery designs?
  A: Use cutaway backing when stability must remain after needle perforations—especially for dense designs or when perfect outlines matter.
  • Match: Choose cutaway for knits/high stitch counts or when outlines keep “walking” off position.
  • Hoop: Stabilize first, then hoop with neutral tension (or float delicate fabrics as needed).
  • Review: Treat tearaway as limited support because it weakens as stitches perforate it.
  • Success check: After stitching, the outline lands consistently where expected and the design does not look “shrunken” or pulled inward.
  • If it still fails… Add the hoop-tape friction method and verify the hoop is not slipping along the long sides.
• Q: What is the safe hoop screw “feel test” for a Brother 5x7 hoop to avoid cracking the hoop and causing more fabric drift?
  A: Tighten only until the inner ring seats firmly—never force it with tools—because over-tightening can distort plastic and reduce side grip.
  • Tighten: Turn the screw to finger-tight, aiming for a firm seat rather than maximum torque.
  • Listen/Feel: Expect a solid seat like snapping a lid on, not a strained “forced” fit.
  • Avoid: Do not use a hammer, mallet, or screwdriver handle to press the ring in.
  • Success check: The hoop remains round (not oval) and the fabric tension is even on all sides.
  • If it still fails… Loosen slightly and re-seat; a distorted hoop often grips top/bottom but slips on the long sides.
• Q: How do I prevent fabric sliding inside a Dime magnetic hoop top frame when magnets clamp but the material still creeps?
  A: Add 6mm high-tack double-sided tape to the underside of the Dime magnetic hoop top frame to increase horizontal friction.
  • Flip: Turn the top magnetic frame over to the side that contacts the fabric.
  • Apply: Run tape along the contact area (keep tape away from the stitch field).
  • Test: Do a manual pull test before stitching to confirm the fabric resists sliding.
  • Success check: You must use noticeably more force to pull the fabric, and it does not “micro-creep” when tugged.
  • If it still fails… Switch to cutaway backing and reconsider floating for slick or delicate materials.
• Q: What magnet safety steps are required when using a Dime magnetic hoop or other magnetic embroidery hoops to avoid pinch injuries and medical device risk?
  A: Treat magnetic hoops as high-force clamps—keep fingers clear during closing and keep magnets away from pacemakers and sensitive electronics.
  • Position: Hold frames by safe areas and keep fingertips away from the closing edges.
  • Close: Let the frames snap together in a controlled way; do not “chase” alignment with fingers between frames.
  • Separate: Open slowly and deliberately to avoid sudden re-snap.
  • Success check: Frames close without pinching and the operator never places fingers in the pinch zone.
  • If it still fails… Re-train the closing motion and set up a consistent hooping routine/positioning to reduce rushed handling during production.
