Ethos Embroidery Virtuoso Plus Satin Settings: Dial In Pitch, Corners, Short/Longs, Compensation, and Underlay Without Breaking Thread

Mastering Satin Stitches: The "Physics First" Approach to Digitizing & Production

From Screen Perfection to Production Reality

If you’ve ever watched a satin column look pristine on your monitor only to stitch out with gaps, bulletproof density, or the dreaded "birdnest" underneath, you aren't bad at digitizing. You are likely fighting the physical laws of thread and fabric tension.

Embroidery is an experience science. It’s about managing the "Push and Pull"—the way fabric distorts under the stress of thousands of needle penetrations. This guide rebuilds the workflow from the aps-ethos Series, validated by 20 years of shop-floor experience. We will move beyond theory into the "Sweet Spot" settings that keep your machine running and your profits flowing.

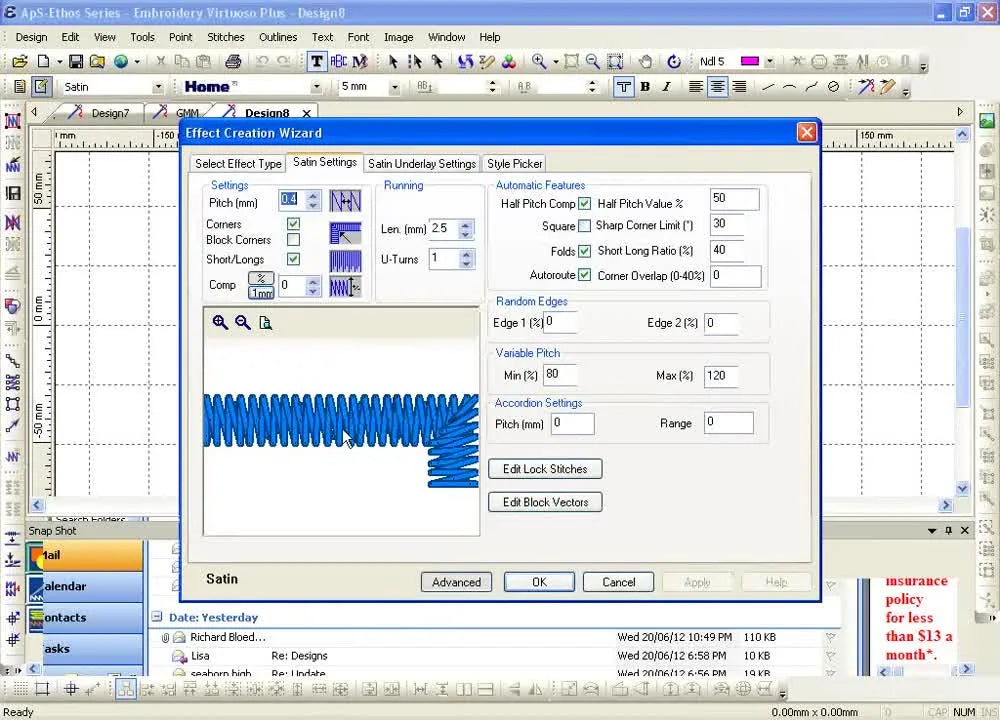

1. The Dashboard: Open the "Effect Creation Wizard"

In the Ethos software (and generally in Wilcom, Hatch, or Pulse), you rarely get good results with "Auto" settings. The instructor opens the Effect Creation Wizard via the waveform icon.

Pro Tip: Think of this window as your "Global Physics Engine." Changes here affect how the machine physically interacts with the garment.

• Ignore the top text box. As the instructor notes, this is a default label. Don't waste cognitive load on it.
• Focus on the sliders. This is where you tell the machine how to handle stress.


2. Pitch (Density): The "Golden Ratio" of Coverage vs. Drape

Pitch—often called Density in other software—is the distance between needle penetrations.

• Lower Number (e.g., 0.30mm) = Tighter stitches, solid coverage, high stress.
• Higher Number (e.g., 0.60mm) = Looser stitches, see-through, low stress.

The Beginner's Sweet Spot

The video suggests a default of 0.40 mm. This is your safe baseline.

• The "Danger Zone": 0.30 mm. The instructor warns that going below this is asking for thread breaks.
• The Physics: When stitches are too close, the needle enters the same hole twice. This shreds the fabric and snaps the thread.

Sensory Check (The "Crowded Elevator" Rule): If your machine sounds like it's hammering in place (thump-thump-thump) rather than stitching rhythmically (zip-zip-zip), your pitch is too tight.

Real-World Density Adjustments

1. High Contrast (White Thread on Black Shirt):
   • Problem: The black fabric shows through the white thread.
   • Action: Tighten pitch slightly to 0.36 mm – 0.37 mm. Do not go lower. If coverage is still poor, switch to a thicker thread (40wt to 30wt) rather than choking the design.
2. Performance Wear (Wicking Polos):
   • Problem: The logo feels like a stiff piece of cardboard (the "bulletproof patch" effect).
   • Action: Loosen pitch to 0.50 mm+. Let the fabric breathe.

Warning: The "Birdnest" Risk
Never force density below 0.30 mm to fix gaps. Extremely tight density causes thread buildup under the throat plate (a "birdnest"). This can bend your needle, ruin the garment, and even throw off your hook timing.

🔴 PREP CHECKLIST: Before You Digitize

• Fabric ID: Is it Stable (Denim), Stretchy (Pique), or Fluffy (Fleece)?
• Contrast Check: Are you stitching light thread on dark fabric? (Requires tighter pitch).
• Consumables Check: Do you have the right needle? (Use 75/11 Ballpoint for knits to push fibers aside rather than cutting them).
• Limit Check: Is your Pitch set no lower than 0.30 mm?

3. Corners: Miters vs. Blocks (Avoiding the "Hard Lump")

Satin columns must turn corners. How they turn determines if the embroidery looks professional or feels sharp and amateurish.

The "Miter" Standard (Corners ON)

Use this 95% of the time. The software tapers the stitches inside the corner, creating a clean 45-degree angle. It looks finished and high-end.

The "Narrow Column" Trap

In the video, the instructor highlights a 1.0 mm wide column.

• The Issue: If you miter a tiny column, the inner stitches become microscopic. This causes needle deflection.
• The Fix: Turn Corners OFF (Capping). The stitches will wrap around the curve. It looks slightly less sharp but stitches much smoother on thin lines.

Block Corners (The Special Case)

Checking Block Corners forces the stitches to stay parallel throughout the turn.

• The Risk: As the instructor warns, if you use standard density (0.40 mm) with Block Corners, you get a hard lump of thread at the turn.
• Sensory Check: Run your finger over the corner. If it feels like a hard pebble or snag, you used Block Corners with too much density. Only use this for very open, applique-style stitching.


4. Short/Longs: The Curve Saver

When a satin column curves, the outer edge covers a longer distance than the inner edge. Without "Short/Longs" active, the inner stitches pile up on top of each other.

• Rule: Keep Short/Longs ON for 99% of jobs. It randomly shortens inner stitches to distribute bulk.
• Exception: Turn it OFF only for 3D Puff Foam. You need the foam to be perforated evenly to tear away cleanly.

5. Pull Compensation: The "Girdle" for Your Fabric

This is the number one reason beginners fail. Fabric is flexible; stitches pull it inward. If you digitize a 5mm column, it might stitch out as 4mm, leaving gaps between the outline and the fill.

Pull Compensation intentionally over-stitches the outline to account for this shrinkage.

The Instructor’s Advice: He "almost always" uses Comp.

• Standard Setting: 0.20 mm - 0.40 mm (absolute) or 10% - 15% (relative).
• Stretchy Fabric (Pique/Spandex): Needs MORE compensation.
• Stable Fabric (Twill/Canvas): Needs LESS compensation.

6. Underlay: The Foundation Logic

Underlay is the stitching that happens before the visible satin. It attaches the fabric to the stabilizer. Without it, your satin sinks into the fabric (like stepping in mud).

🌳 DECISION TREE: Choosing Your Underlay

Use this logic flow based on the video’s guidelines:

• Scenario A: Tiny Text / Very Thin Columns (<1.5mm)
  • Action: Center Run (Simple walking stitch).
  • Why: Anything else will poke out the sides.
• Scenario B: Standard Logos on Dress Shirts/Twill
  • Action: Edge Run or Zigzag.
  • Why: Provides edge definition and lift without bulk.
• Scenario C: Pique Polos / T-Shirts (Stretchy)
  • Action: Double Zigzag or Edge Run + Zigzag.
  • Why: You need to lock the stretch before the satin pulls it.
• Scenario D: Towels / Fleece / Velvet (High Pile)
  • Action: Double Cross (The instructor’s favorite for heavy lift).
  • Why: Creates a "net" so the top stitches sit on thread, not deep in the fabric pile.




🟠 SETUP CHECKLIST: Digitizing Guidelines

• Corner Logic: Is Corners ON? (Unless the column is <1.5mm wide).
• Comp Check: Is Pull Comp active? (Aim for 0.20mm - 0.30mm minimum).
• Short/Longs: Is it ON? (Unless doing Puffy Foam).
• Underlay: Does the underlay match the fabric stability (Decision Tree)?

7. Satin Fill (Seeding) & The Physical Workflow

For very wide columns (e.g., >8mm), standard satin stitches become loose loops called "snags." The specific fix in Ethos is Seeding Length (Auto-Split in other software).

• Setting: 4.5 mm. This forces the needle to penetrate the fabric every 4.5mm, turning a long float into a textured, durable fill.

8. The "Hidden" Variable: Hooping & Stabilization

You can have perfect digitizing settings, but if your hooping is loose, you will get gaps like the San Andreas Fault.

The "Drum Skin" Test: When hooped, run your fingers across the fabric. It should be taut (like a drum skin) but not stretched so tight that the grain distorts.

The Production Upgrade Path

If you are struggling with "Hoop Burn" (shiny rings left on fabric) or wrist fatigue from clamping thicker garments, this is where tool selection overrules technique.

1. The Pain Point: Traditional hoops require force to close and often pinch delicate fabrics or fail to hold thick fleece. 2. The Trigger: Are you re-hooping the same shirt 3 times to get it straight? Are you rejecting garments because of hoop marks? 3. The Solution:

• Level 1 (Skill): Use "floating" techniques with spray adhesive (messy, but works).
• Level 2 (Tool): Switch to magnetic embroidery hoops.
  • Terms like magnetic embroidery frame refer to open-face frames that use strong magnets to hold fabric without forcing it into a ring. This eliminates hoop burn almost entirely.
  • For production shops, searching for a magnetic hoop compatible with your machine (Ricoma, Tajima, Brother, etc.) is a standard productivity upgrade.
• Level 3 (Scale): Use an embroidery hooping station. This ensures every logo is placed in the exact same spot, every time. A hooping station for embroidery reduces operator error by 50%+.

Warning: Magnetic Hoop Safety
Do not use magnetic hoops if you have a pacemaker. The magnets are industrial strength. Also, keep fingers clear when snapping them together—they close with enough force to cause a severe pinch injury.

9. Troubleshooting & Operations

Use this diagnostic table before you blame the digitizer.

10. The One-Minute Test Stitch

Before running a 10,000-stitch design on a client's jacket, run this test:

1. Isolate: Copy just the most complex satin letter or element.
2. Scrap: Hoop a piece of scrap fabric identical to the final garment.
3. Run: Watch the machine. Listen.
4. Verify: Does it look solid? Does the outline meet the fill?

🟢 OPERATION CHECKLIST: Final Flight Check

• Bobbin: Is the tension correct? (Look for the "1/3 white strip" on the back).
• Needle: Is it a fresh needle? (Change every 8 production hours or after a break).
• Hooping: Is the fabric "drum tight" without distortion?
• Path: Is the needle path clear of clips or loose cables?
• Consumables: Do you have your Hidden Consumables ready? (Temporary spray adhesive, thread snips, water-soluble topping for towels).

By combining the precision digitizing rules from the Ethos tutorial with professional grade tooling—like hooping station for machine embroidery setups and quality stabilizers—you move from "hoping it works" to knowing it will.

FAQ

• Q: In Ethos (and Wilcom/Hatch/Pulse), what satin stitch Pitch (Density) should beginners start with to avoid thread breaks and birdnesting?
  A: Use 0.40 mm as a safe baseline, and avoid going below 0.30 mm.
  • Set Pitch to 0.40 mm first, then test-stitch one small satin element on matching scrap fabric.
  • Tighten only slightly (about 0.36–0.37 mm) when light thread shows dark fabric underneath, instead of forcing ultra-tight density.
  • Success check: The machine sound stays rhythmic (“zip-zip-zip”), not hammering in place (“thump-thump-thump”).
  • If it still fails: Switch to a thicker thread rather than tightening Pitch below 0.30 mm.
• Q: On stretchy pique polos or performance wear, how can Ethos satin stitches avoid the “bulletproof patch” feel while still looking solid?
  A: Loosen satin Pitch to 0.50 mm+ and rely on proper underlay instead of heavy density.
  • Increase Pitch to 0.50 mm or higher to reduce stiffness and stress.
  • Choose a stretchy-fabric underlay (often Double Zigzag or Edge Run + Zigzag) before the satin to “lock” the knit.
  • Success check: The logo drapes with the garment and does not feel like cardboard when you flex the fabric.
  • If it still fails: Re-check hooping tightness and confirm the needle type is appropriate for knits (often a 75/11 ballpoint).
• Q: In Ethos satin columns, how do I stop hard “bumps” or lumps at corners when stitching logos?
  A: Use Corners ON (Miter) for most work, and avoid Block Corners at standard density.
  • Switch to Corners ON (Miter) for clean 45-degree turns in normal-width satin columns.
  • Reserve Block Corners only for very open, applique-style stitching because it can stack thread into a lump.
  • Success check: Run a finger over the corner—good corners feel smooth, not like a hard pebble that can snag.
  • If it still fails: Review your Pitch (Density); overly tight density can exaggerate corner buildup.
• Q: In Ethos, how should Pull Compensation be set when satin outlines separate from the fill and leave visible gaps?
  A: Turn Pull Compensation ON and start around 0.20–0.40 mm (or about 10%–15%) to counter fabric shrink-in.
  • Increase compensation on stretchy fabrics (pique/spandex) and reduce it on stable fabrics (twill/canvas).
  • Test on the same fabric type before production, especially when columns are narrow or outlines are critical.
  • Success check: The outline meets the fill with no daylight gaps after stitching, even after the fabric relaxes off the hoop.
  • If it still fails: Re-check hooping tension (“drum skin” taut without distortion) and confirm underlay matches the fabric.
• Q: In Ethos, which underlay should be used when satin stitches sink into towels, fleece, or velvet and lose definition?
  A: Use Double Cross underlay for high-pile fabrics to lift satin stitches above the nap.
  • Select Double Cross underlay to create a supportive “net” before the visible satin.
  • Add appropriate topping/consumables when needed for pile control (commonly used on towels) so stitches don’t disappear.
  • Success check: Satin stitches sit on top of the pile instead of vanishing into it, and edges stay crisp.
  • If it still fails: Run a one-minute test stitch of the worst letter/element and adjust underlay before touching density.
• Q: What is the correct hooping success standard to prevent satin gaps, shifting, and “San Andreas Fault” separation during production?
  A: Hoop to “drum skin” tautness—tight but not stretched to the point of distorting the fabric grain.
  • Tighten the hoop so the fabric is evenly taut, then sweep fingers across the surface to confirm uniform tension.
  • Avoid over-stretching knits; tension should be taut, not warped or rippled.
  • Success check: The fabric feels like a drum skin and the design stays aligned without re-hooping multiple times.
  • If it still fails: Consider a floating method with temporary spray adhesive, then reassess hoop choice if hoop burn or slippage persists.
• Q: What safety rules should operators follow to prevent injuries when using magnetic embroidery hoops and when snapping hoops closed?
  A: Treat magnetic hoops as industrial-strength magnets—avoid pacemakers and keep fingers clear when closing.
  • Do not use magnetic embroidery hoops if the operator has a pacemaker (magnet strength can be hazardous).
  • Keep fingertips out of the closing path; magnets can snap shut hard enough to cause severe pinch injuries.
  • Success check: The hoop closes without finger contact and the fabric is held securely without excessive force or clamp struggle.
  • If it still fails: Stop and reposition—never “fight” the magnets or force alignment under load.
• Q: When hoop burn, re-hooping, and operator fatigue keep happening, what is the practical upgrade path from technique to tooling to production equipment?
  A: Start with skill fixes, then move to magnetic hoops, and finally add a hooping station if repeatability is the bottleneck.
  • Level 1 (Skill): Use floating techniques with temporary spray adhesive when clamping damages delicate fabrics or thick garments won’t seat well.
  • Level 2 (Tool): Switch to magnetic hoops/frames to reduce hoop burn and make thick garments easier to secure.
  • Level 3 (Scale): Add an embroidery hooping station to standardize placement and reduce operator error on repeat jobs.
  • Success check: The same garment type hoops quickly in one attempt with consistent placement and fewer rejects.
  • If it still fails: Run the one-minute test stitch on a complex satin element to confirm the issue is hooping/stability—not digitizing settings.
