Brother PE535 in the Real World: Touchscreen Editing, Clean Hooping, and the Fastest Way to Start Stitching

Master the Brother PE535: A White Paper Guide for Modern Embroiderers

If you just bought (or are about to buy) a Brother PE535, you’re likely oscillating between excitement and a quiet panic: "What if I mess up the hooping? What if the needle breaks? What if I ruin the fabric?"

Take a breath. This is normal.

Key industry insight: The Brother PE535 is a robust, entry-level system. It features a 4" x 4" field, a 3.2-inch color LCD, and runs at a fixed speed of 400 stitches per minute (SPM). While 400 SPM is slow compared to industrial standards (which run 1000+ SPM), it is the perfect "sweet spot" for learning. It gives you reaction time.

However, machines don’t stitch perfectly by magic; they stitch perfectly by physics. The trick is to treat embroidery as a system: Digitizing + Hooping Tension + Stabilization + Thread Path.

This guide covers the operational realities of the PE535, from the tactile feel of a correct setup to knowing when it's time to upgrade your tools for production.

The Brother PE535 “Reality Check”: What This Machine Is (and Isn’t)

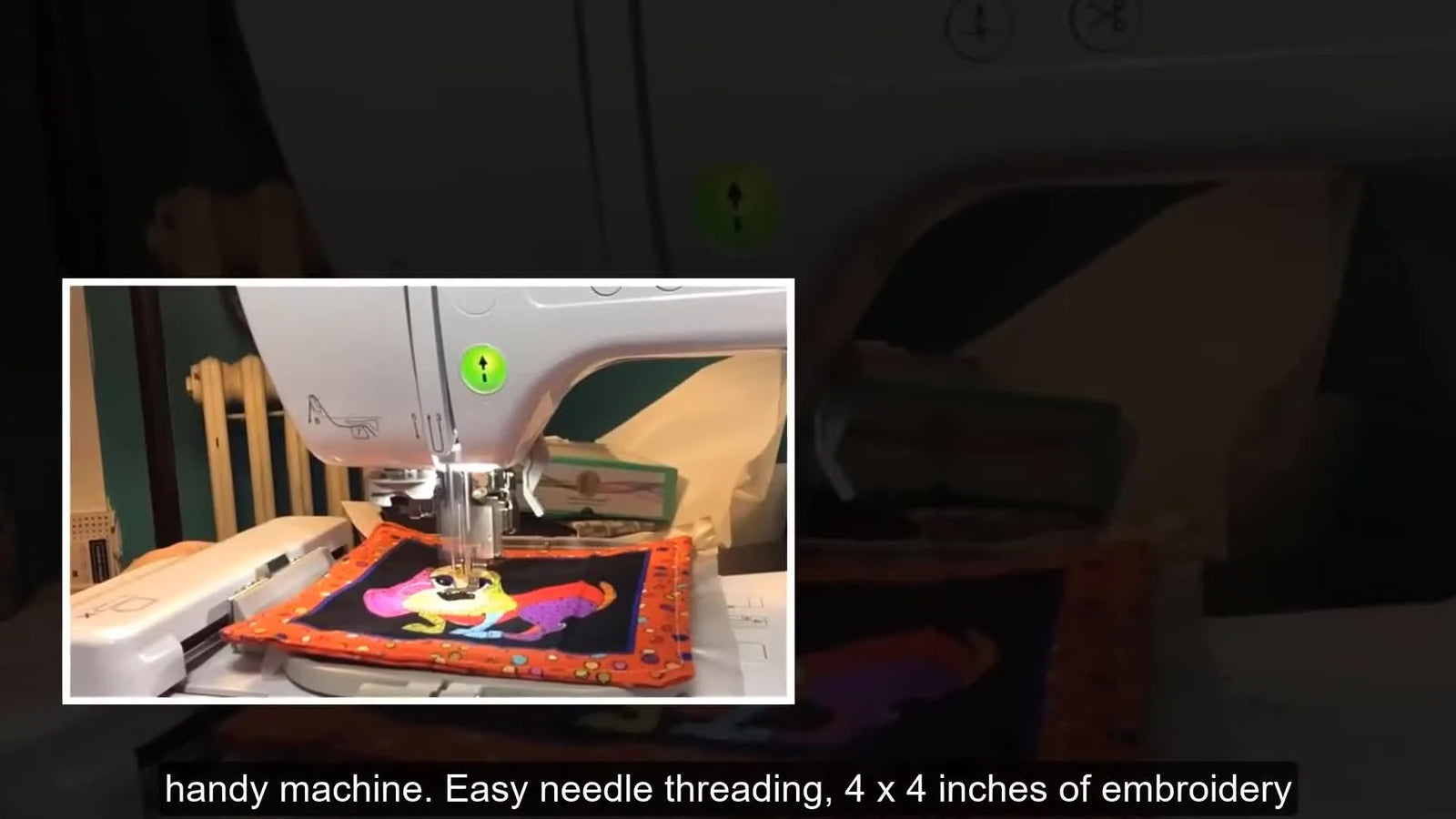

The PE535 is an embroidery-only unit. It has a metal chassis where it counts, but it is lightweight.

Two expectations to lock in early:

1. It is not a sewing machine. You cannot hem pants with it.
2. The 4" x 4" (100mm x 100mm) limit is physical. No matter what software you use, the arm cannot travel further. Your design planning must respect this boundary.

If you are shopping for an embroidery machine for beginners, this model's biggest advantage is the "Preview Audit." It allows you to catch errors on the LCD screen before a single needle puncture occurs.

The 3.2" LCD Touchscreen: Your "Pre-Flight" Command Center

The LCD isn't just a display; it is your quality control station. Novices hit "start." Pros verify alignment first.

The "three-tap" check every pro does:

1. Palette Check: Tap the color icon to verify the machine reads the thread stops correctly.
2. Boundary Check: Use the arrow keys to move the needle to the four corners of the design (Trace function). Does it hit the hoop?
3. Orientation Check: Use the rotation keys.
   • Pro Tip: Always rotate the design on screen, do not try to hoop the fabric crookedly to match a design.
   • Precision: You can rotate in 90°, 10°, or 1° increments. Use the 1° increment for fine-tuning text alignment.


The Needle Zone: Sensory Feedback & Safety

The video provides a close-up of the needle bar and presser foot. Memorize this visual as your baseline. In embroidery, your ears are as important as your eyes.

The Auditory Diagnostics:

• Rhythmic Hum: A consistent whir-whir-whir indicates a healthy thread path and good tension.
• Sharp "Tick" or "Slap": Usually means the needle is dull (punching rather than piercing) or the thread is catching on a spool cap nick.
• Dull "Thump": STOP IMMEDIATELY. This is often a "bird's nest" (tangle) forming under the throat plate.

Warning: Mechanical Safety. Never put your hands near the needle bar while the machine is running. Embroidery needles move faster than the eye can track. Always press the "Lock/Safety" button on the screen or turn the machine off before threading the needle or changing the bobbin.

The "Hidden" Prep System: Don't Let Materials Ruin Your Design

Beginners often blame the machine for issues caused by physics. 80% of embroidery failures are actually stabilizer failures.

The "Hidden" Consumables Checklist

Before you start, ensure you have these items that likely didn't come in the box:

• Temporary Spray Adhesive (e.g., 505): Crucial for "floating" items or holding stabilizers to fabric.
• Water Soluble Topping: Essential for towels/fleece to prevent stitches from sinking.
• New Needles: Size 75/11 is standard, but you need 90/14 for denim. Change needles every 8-10 hours of stitching.

Pre-Flight Checklist (Do this *before* touching the hoop)

• Bobbin Check: Is it the correct weight (usually 60wt or 90wt)? Is it wound evenly?
• Needle Check: Is the needle straight? Run your fingernail down the tip to check for burrs.
• Path Clear: Is there lint in the bobbin case? (Use the included brush).
• Design Plan: Have you printed the template to check size against your garment?


Precision Alignment: Using the Grid Sheet

You cannot "eyeball" embroidery. The PE535 includes a grid sheet that fits inside the hoop.

The Pro Alignment Method:

1. Mark the center of your fabric with a water-soluble pen or chalk.
2. Hoop the stabilizer/fabric loosely.
3. Place the grid sheet over the fabric.
4. Align your fabric's center mark with the grid's crosshairs.
5. Tighten the hoop.

Note on Friction: If you find yourself constantly re-hooping because the fabric slips, this is the #1 trigger for upgrading your tools. Standard plastic hoops rely on friction and muscle power. This is where researching terms like hooping for embroidery machine technique becomes critical, or upgrading to better gripping tools.

Text & Arcing: The "Array" Tool

The video demonstrates using the Array function to curve text (e.g., "Natalia").

The Density Trap: When you curve text on a small 4x4 screen, the letters at the bottom of the curve often pinch together.

• The Fix: Increase Character Spacing immediately after applying a curve.
• Visual Check: Ensure there is at least a needle-width gap between letters. If they touch on screen, they will overlap on fabric and break needles.


Hooping Physics: The "Drum-Skin" Standard

The video shows the standard procedure: Outer ring $\rightarrow$ Stabilizer + Fabric $\rightarrow$ Inner ring.

The Sensory Check: The "Tug" Test Once hooped, run your finger lightly across the fabric. It should not ripple. Gently pull on the fabric edges before tightening the screw fully. It should feel taut, like a drum skin.

• If it's too loose: The design will pucker (outline won't match the fill).
• If you stretch it too much (knits): The fabric will shrink back after stitching, causing wrinkles around the design.

Decision Tree: Fabric $\rightarrow$ Stabilizer Logic

• Scenario A: Non-Stretch (Cotton, Denim, Canvas)
  • Stabilizer: Tearaway.
  • Why: The fabric has its own structure. Stabilizer just adds stiffness.
• Scenario B: Stretch (T-Shirts, Hoodies, Jersey)
  • Stabilizer: Cutaway (Mesh).
  • Why: Knits have no structure. If you tear the backing away, the stitches will distort the fabric. The backing must remain forever to hold the shape.
• Scenario C: High Pile (Towels, Fleece)
  • Stabilizer: Tearaway (Bottom) + Water Soluble Topping (Top).
  • Why: Topping prevents the stitches from getting lost in the fluff.

Warning: Magnetic Field Safety. If you choose to upgrade to a Magnetic Hoop to solve hooping difficulty, be aware these magnets are industrial strength. Keep them away from pacemakers. Do not let them pinch your fingers against the frame. Keep away from credit cards and hard drives.

Threading & The Auto-Threader: Listen for the "Click"

Threading is where tension is born.

1. The Tension Discs (Step 2-3): When passing the thread through the top channels, hold the thread taut with both hands (flossing motion). You should hear or feel a subtle "click" or resistance as it enters the tension disks. If it floats on top, you will get "looping" on the back of your fabric.
2. The #6 Guide: The thread must be behind the needle bar guide.
3. The Auto-Threader:
   • The Action: It’s not a button; it’s a lever. Depress it fully and firmly. If it fails, your needle is likely not in the highest position (Press the "Needle Up/Down" button).

USB & Data: The Language of Embroidery

The video confirms the USB port's function. This is your gateway to the world outside the machine.

Common Misconception: The machine does not "see" pictures. You cannot put a JPEG on a USB stick and stitch it. The Workflow: Image $\rightarrow$ Digitizing Software on PC $\rightarrow$ .PES File $\rightarrow$ USB Stick $\rightarrow$ brother embroidery machine.

Licensing & Built-in Designs

The PE535 comes with 80 designs and 9 fonts.

Commercial Reality: Disney/Marvel designs (often found on iBroidery) are usually for Personal Use Only. If you plan to sell your work on Etsy or at markets, stick to the generic built-in fonts or purchase royalty-free designs from reputable digitizers. Do not jeopardize your new business with copyright infringement.

Hats, Patches, & The Limitations of Flatbed

Can the PE535 do hats? technically, yes. Is it easy? No.

The Flatbed Friction: Because the PE535 is a flatbed machine, you cannot insert a structured baseball cap "into" it. You must flatten the cap bill-flat, which is difficult.

• The Workaround: Floating. Hoop adhesive stabilizer, stick the hat to the stabilizer.
• The Limit: It is nearly impossible to stitch close to the bill.
• The Upgrade Trigger: If you want to sell hats, you will eventually need a machine with a creating "free arm" or a dedicated cap driver system.

Patches: Efficient. Use the brother 4x4 embroidery hoop with a heavy water-soluble stabilizer (like badge master) to create standalone patches.

Troubleshooting: The "Quick Fix" Matrix

When things go wrong, follow this Low-Cost to High-Cost order:

The Upgrade Path: Solving Setup Fatigue

The PE535 is an incredible learning tool. However, as your skills grow, you may encounter physical or efficiency bottlenecks. This is where specialized tools change the game.

Scenario 1: The "Hoop Burn" Struggle

• The Pain: Traditional plastic hoops leave shining rings on delicate fabrics (velvet, dark cotton) or require massive hand strength to close over thick hoodies.
• The Solution: Magnetic Hoops. These clamp fabric automatically using magnetic force. They prevent "hoop burn" and require zero hand strength, making them essential for high-volume runs or delicate garments.

Scenario 2: The "Size Envy"

• The Pain: You want to stitch a large back-piece design.
• The Check: Many search for a brother 5x7 hoop hoping it fits the PE535. It does not. The limitation is the machine arm length.
• The Solution: While "split designs" are a software workaround, the true solution for larger work is moving to a multi-needle machine or a larger single-needle model.

Scenario 3: The Production Bottleneck

• The Pain: You have an order for 20 polo shirts. Changing thread colors 6 times per shirt is taking hours.
• The Solution: This is the trigger for Multi-Needle Machines (like SEWTECH models). These machines hold 10-15 colors at once and stitch automatically without stopping for thread changes, often doubling or tripling your profit per hour.

Operation Checklist: Your Safety Net

• Foot Down? The machine won't start if the presser foot is up (Red Light).
• Tail Trimmed? Hold the thread tail for the first 3-4 stitches, then pause and trim it close to prevent tangling.
• Clearance? Ensure the hoop has nothing behind it (wall, scissors) that will block its movement.

By mastering the science of stabilization and hooping, you transform the Brother PE535 from a confusing gadget into a reliable production tool. Start small, verify your tension, and upgrade your accessories when your volume demands it. Happy stitching.

FAQ

• Q: What consumables and pre-flight checks should be ready before stitching on a Brother PE535 embroidery machine?
  A: Prepare the stabilizer, needle, and bobbin first—most early failures come from prep, not the Brother PE535.
  • Gather: temporary spray adhesive (for floating/holding stabilizer), water-soluble topping (towels/fleece), and fresh needles (75/11 standard; 90/14 for denim).
  • Check: bobbin weight (commonly 60wt or 90wt) and confirm the bobbin is wound evenly.
  • Clean: remove lint from the bobbin area using the included brush before a long run.
  • Success check: the machine sounds like a steady rhythmic hum (no thumps/ticks) and the fabric/stabilizer stay stable during the first stitches.
  • If it still fails… stop and re-check stabilizer choice (tearaway vs cutaway vs topping) before changing settings.
• Q: How tight should fabric be hooped in the Brother PE535 4" x 4" hoop to avoid puckering or misaligned outlines?
  A: Aim for “drum-skin” tension—taut and smooth, not stretched out of shape.
  • Hoop: place stabilizer + fabric, then tighten gradually while lightly tugging the fabric edges before fully tightening the screw.
  • Avoid: over-stretching knits (the fabric rebounds after stitching and wrinkles around the design).
  • Pair: use tearaway for stable wovens, cutaway (mesh) for knits, and topping for towels/fleece when needed.
  • Success check: run a finger across the hooped area—no ripples, and the fabric feels evenly taut like a drum.
  • If it still fails… upgrade stabilization first (often moving from tearaway to cutaway on tricky items), then consider a magnetic hoop if slipping/rehooping is constant.
• Q: How do you confirm the top thread is seated in the Brother PE535 tension discs to prevent looping and bird’s nests?
  A: Rethread with a firm “flossing” motion so the thread drops into the tension discs—this fixes most looping/bird’s nests.
  • Rethread: guide the thread through the top channels while holding it taut with both hands to feel/hear a subtle “click” or resistance at the tension area.
  • Verify: ensure the thread is behind the needle bar guide (#6 guide) before using the auto-threader.
  • Start: hold the thread tail for the first 3–4 stitches, then pause and trim close to reduce tangles.
  • Success check: the back of the fabric shows controlled bobbin lines (not big loose top-thread loops) and the machine runs without a dull “thump.”
  • If it still fails… stop and rethread the TOP again (bird’s nests are commonly caused by missing the tension discs), then check for lint in the bobbin area.
• Q: What should you do when the Brother PE535 makes a dull “thump” sound and you suspect a bird’s nest under the fabric?
  A: Stop immediately and rethread the top thread first—don’t keep running the Brother PE535 through a tangle.
  • Stop: press the on-screen Lock/Safety button or power off before touching anything near the needle area.
  • Remove: take off the hoop and gently clear the tangle from under the throat plate area.
  • Rethread: rethread the TOP path carefully so the thread seats into the tension discs.
  • Success check: after restarting, the sound returns to a consistent “whir-whir” and the underside shows no new thread wad forming.
  • If it still fails… inspect the needle for damage and replace it before continuing.
• Q: How do you reduce top thread breaks on a Brother PE535 during embroidery runs?
  A: Fix the thread path first, then change the needle—top thread breaks are often path/needle issues, not “bad luck.”
  • Rethread: rethread the machine cleanly and ensure the thread is properly guided through all points.
  • Replace: install a new needle (dull needles can “punch” and cause snapping).
  • Inspect: check the spool cap area for nicks/burrs that can catch thread.
  • Success check: stitching becomes smooth with no sharp “tick/slap” sounds and the run completes without repeated breaks.
  • If it still fails… pause and check for lint buildup in the bobbin area and confirm the thread is not snagging anywhere along the path.
• Q: What needle safety steps should beginners follow when working near the Brother PE535 needle bar and presser foot?
  A: Never put hands near the moving needle—lock the Brother PE535 or power it off before threading, changing needles, or swapping bobbins.
  • Lock: use the on-screen Lock/Safety function (or turn the machine off) before any hand reaches the needle zone.
  • Wait: confirm the needle is fully stopped before removing the hoop or clearing thread.
  • Thread: use the auto-threader lever only when the needle is in the highest position (use Needle Up/Down if needed).
  • Success check: hands only enter the needle area when the machine is locked/off, and there is zero accidental motion during threading.
  • If it still fails… stop and review the basic safety habit: “lock first, then touch.”
• Q: When is it time to upgrade from standard Brother PE535 hoops to magnetic hoops, and what are the magnetic hoop safety rules?
  A: Upgrade to magnetic hoops when hoop burn, hand strain, or constant fabric slipping makes hooping unreliable—then handle magnets like industrial tools.
  • Diagnose: if plastic hoops leave shiny rings on delicate fabric or are hard to close on thick hoodies, magnetic clamping can reduce hoop burn and effort.
  • Use: keep fingers clear when the magnetic frame closes to avoid pinching.
  • Protect: keep magnetic hoops away from pacemakers, credit cards, and hard drives.
  • Success check: fabric is held evenly without repeated re-hooping, and the hooped surface stays stable through the stitch-out.
  • If it still fails… revisit stabilization (often the real cause) before assuming the hoop is the only issue.
