The Feather Texture Trick in Brother PE-Design: Layered Manual Punch Stitches That Sew Like Real Plumage

Feather textures are the "final boss" for many digitizers—they look deceptively simple but often sew out as a disaster of gaps, jagged tips, and endless thread trims. If you have ever carefully digitized a beautiful plumage on-screen (perhaps a cormorant or eagle) only to watch the actual sew-out disintegrate into a "holy" mess of fabric showing through the satin, you are not alone.

This guide rebuilds the workflow for creating realistic feather effects in Brother PE-Design (Layout & Editing), based on Kathleen McKee’s methodology. However, we are going to layer on the "shop floor" physics—the friction, tension, and material science—that ensures the file survives the transition from digital pixels to physical thread.

The Calm-Down Primer: Why Feather Effects Fail Even When Your PE-Design File Looks Perfect

Feathers are a controlled illusion. They are formed by stacking narrow satin columns in a "shingle" formation, relying on light reflection to create depth. The two primary failure points for beginners are:

1. Inverse Stitch Order: Stitching top-down instead of bottom-up, destroying the shadowing effect.
2. The "Pull" Gap: Underestimating how much satin stitches shrink the fabric, creating white gaps between feathers.

kathleen’s method solves these by building the structure logically (bottom-up) and applying mathematical safety margins (pull compensation).

If you are stitching this on a standard entry-level setup, such as a brother 4x4 embroidery hoop, your margin for error is near zero. Small hoops on single-needle machines have less stability than industrial frames, meaning tiny digitization errors magnify into visible defects quickly.

Warning: Mechanical Safety. Manual punch satin blocks create high-density stitching that can generate significant torque. Keep fingers well clear of the needle zone during test sew-outs. Never reach under the presser foot to "help" the fabric feed—if the needle strikes the hoop or metal throat plate, shards can fly at high velocity.

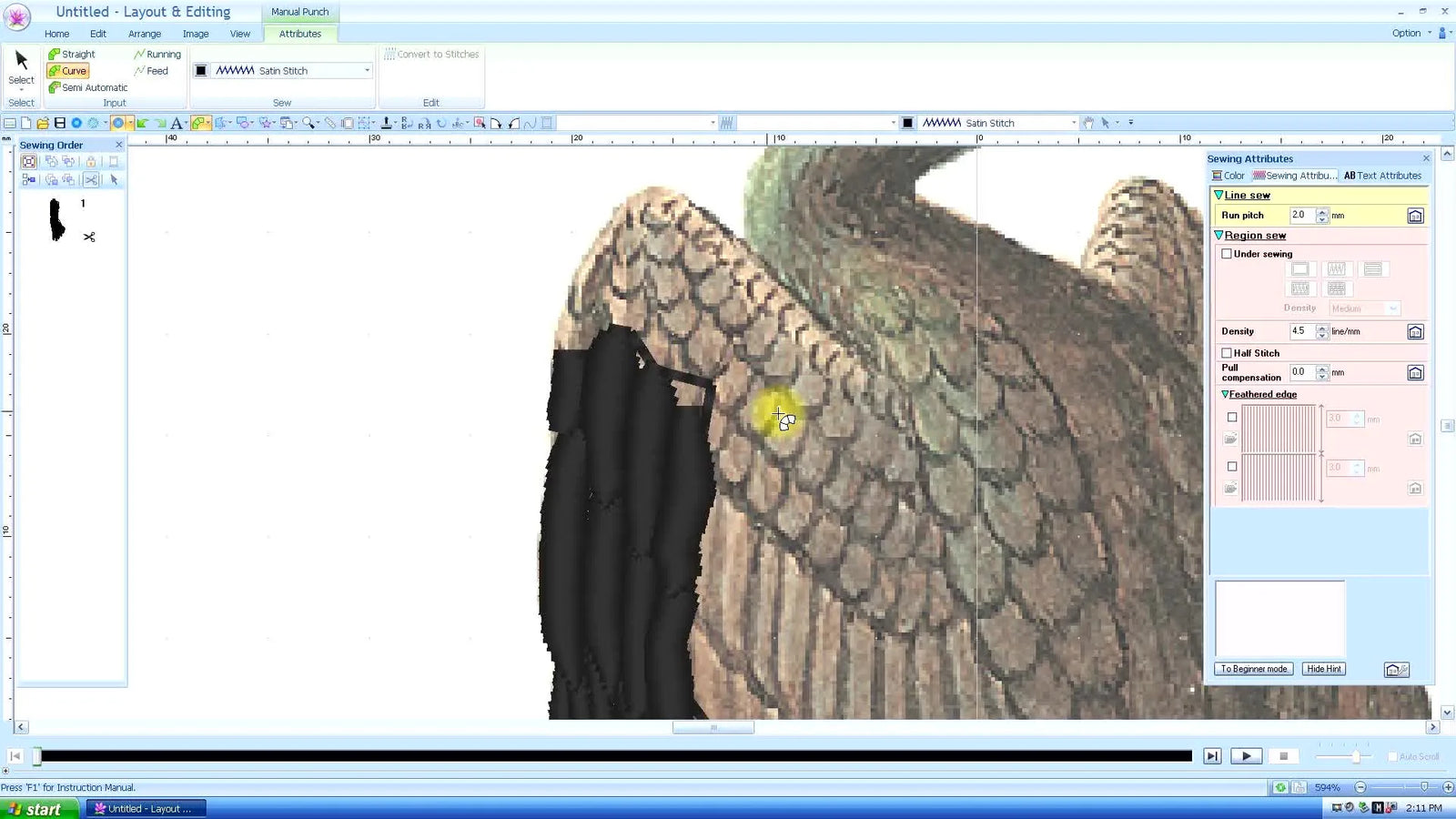

The “Hidden” Prep in Brother PE-Design Layout & Editing: Make the Reference Image Work for You

Success starts before you place a single stitch. Kathleen begins by importing a background image (the cormorant) and resizing it. This seems trivial, but many digitizers lose accuracy here by working on a dim or distorted image.

Step-by-Step Import and Calibration

1. Navigate: Go to the Image tab.
2. Select: Click the folder icon (“Input from File”) and open your reference image.
3. Scale: Use the corner handles to resize the image proportionally until it fits comfortably inside the 4x4 grid lines.
4. Lock: Click outside the pattern to deselect handles.

Pro Tip: Creating realistic feathers requires seeing the "spine" of the feather. If your image is too dark, go to Image > Modify Image and increase brightness/transparency so you can see your virtual needle points clearly.

Prep Checklist (Do this before digitizing)

• Visual Clarity: Can you see the distinct edge of individual feathers in the background image?
• Grid Check: Is your workspace set to match your physical hoop (e.g., 100mm x 100mm)?
• Consumables Check: Do you have a fresh needle (Size 75/11 Sharp is recommended for detailed satin) installed? Burrs on old needles will shred satin thread.
• Path Planning: Have you identified the lowest point of the tail/wing to start the bottom-up sequence?


The Bottom-Up Layering Rule: Stitch Order That Creates the “Roof-Shingle” Feather Look

The golden rule of feather digitizing is: Start at the bottom and layer up.

Why? Physical physics. When you stitch the bottom row first, the next row (Row 2) stitches slightly over the top edge of Row 1. This creates a physical ridge. Light hits this ridge, creating a highlight, and casts a shadow below it. This differentiation is what makes the feathers look 3D, even if you are using the exact same shade of thread.

If you stitch top-down, the new stitches bury the edges of the previous ones, resulting in a flat, messy "blob" rather than defined plumage.

The “Catch the Thread” Move: Why Kathleen Starts With a Short Anchor Running Stitch

This is a nuanced move that separates pros from amateurs. Before beginning a manual punch satin block, place a short running stitch.

The Sensory Why: When a machine starts a wide satin swing immediately after a cut, the top thread can snap out of the needle eye, or the bobbin thread may fail to engage. You might hear a "slap" sound or see a birdnest (tangled thread knot) on the back.

The Fix: A 3-4 stitch "run" allows the machine to perform the lock-stitch cycle and "catch" the bobbin thread securely before it accelerates into the complex satin movement. It stabilizes the tension immediately.

The Fast Workflow: Manual Punch (X) + Running Stitch Travel (V) Without Constant Trims

Efficiency is key. You do not want your machine stopping to trim thread every 3 seconds—this increases wear on the cutter and sew-out time. Kathleen uses a keyboard-based rhythm.

The "X/V" Rhythm Method

• Press 'X': Switches to Curve / Manual Punch (creates the satin feather body).
• Press 'V': Switches to Running Stitch (creates the invisible travel path to the next feather).

By toggling these keys, you create a continuous flow of stitching. You are essentially drawing with thread, using the running stitch (V) to "walk" the needle to the start of the next feather without cutting the thread.

The Top/Bottom Clicking Rhythm in Manual Punch: How to Build a Feather Column That Doesn’t Twist

Satin stitches are defined by two banks of points: Side A and Side B. Kathleen digitizes by clicking in a specific "zig-zag" rhythm:

Bottom Click → Top Click → Bottom Click → Top Click…

The Sensory Check: Watch the "rungs" of the ladder (the stitch angle lines generated on screen). They should be perpendicular to the flow of the feather. If you lose your rhythm (e.g., click Bottom, Bottom, Top), the stitch lines will twist into an hourglass shape (an "X"). This will snap needles and ruin fabric.

Crucial Checkpoint:

• Visual: Are the stitch direction lines parallel and smooth?
• Action: If lines cross, press Backspace immediately to undo the point and correct the order.


The No-Trim Travel Line: Using Running Stitch (V) to Connect Feathers Cleanly

Instead of a trim command, press V. Draw a running stitch down the side of the feather you just finished, moving toward the start point of the next feather.

Why this matters for upgrades: If you ever move to commercial production, thread trims are the enemy of speed. A trim takes 7-10 seconds of machine operation time. Traveling with a running stitch is instant. This technique makes your design "production ready," suitable for everything from a home machine to a multi-needle workhorse.

The Feather Tip Trick: Making Row 2 and Row 3 Look Sharp Instead of Blobby

When shaping the tip of a feather on the second row (layering over the first), geometry matters.

The Technique:

1. Start: Place points very close together at the tip (almost touching).
2. Effect: This creates a sharp, tapered point.
3. Expansion: Gradually widen the distance between clicks as you move down the feather shaft.

Visual Check: The tip should look like a spearpoint, not a thumb. If you widen too fast, the feather looks blunt. If you keep it narrow for too long, you create high-density "bullet-proof" stitching that feels like hard plastic on the shirt.

A quick note from the comments: how to get “fluffier” feathers

"Fluffiness" is a function of density and edge randomness.

• Standard Satin: ~0.40mm density (shiny, solid).
• Fluffy Look: Lower density to ~0.55mm and use the "Feathered Edge" ( jagged edge) setting in Sewing Attributes. This allows the fabric texture to peek through slightly, mimicking the softness of down.


The Gap Killer Setting: Pull Compensation (~0.3 mm) So Satin Columns Still Touch After Sew-Out

This is the most critical parameter in the tutorial.

The Physics: When a needle penetrates fabric and the take-up lever pulls the thread tight, the fabric bunches together horizontally. A satin column digitized at 4mm wide might only sew out at 3.5mm wide. This shrinkage creates gaps between your feather rows.

The Fix:

1. Open Sewing Attributes.
2. Locate Pull Compensation.
3. Increase the value to 0.3 mm (or +3 clicks).
4. Visual Anchor: You will see the columns on screen puff out and overlap. It may look "too thick" on the monitor, but trust the math—the tension will pull it back to the perfect size on the fabric.


Stabilizer Decision Tree for Feather Textures: Match Fabric + Backing So Your Digitizing Actually Holds Shape

Even perfect digitizing fails if the foundation (stabilizer) is weak. Use this logic tree to select your consumables.

Decision Tree: Stabilizer Selection Strategy

• Scenario A: Is the fabric stretchy (T-shirt, Polo, Knit)?
  • Action: MUST use Cut-Away Stabilizer (2.5oz or 3.0oz).
  • Why: Knits distort under satin tension. Tear-away will rip and cause alignment gaps.
  • Topper: Yes (Water Soluble) if the knit has a rib.
• Scenario B: Is the fabric woven/stable (Denim, Twill, Canvas)?
  • Action: Tear-Away Stabilizer is acceptable.
  • Why: The fabric structure holds the stitch; the stabilizer just adds rigidity.
• Scenario C: Is the fabric high-pile (Towel, Fleece, Velvet)?
  • Action: Cut-Away + Water Soluble Topper (Solvy).
  • Why: Without the topper, your beautiful feather stitches will sink into the pile and disappear.
• Hidden variable: The Hoop. If you can't get the fabric "drum skin tight" (tighter than you think, but not stretched), consider learning the basics of hooping for embroidery machine technique. Poor hooping causes more puckering than poor digitizing.


Operation Checklist: The “Sew-Out Reality Check” Before You Call the File Finished

Before you save to USB, run this pre-flight check.

• Density Check: Is standard satin density set (approx 4.5 lines/mm or 0.45mm spacing)?
• Pull Comp: Is Pull Compensation set to at least 0.2mm - 0.3mm?
• Pathing: Did you use "V" (Running Stitch) to connect feathers, or are there 50 trims in the file?
• Start/Stop: Are entry/exit points defined to prevent long jump stitches across the design?
• Underlay: Is a Center Run underlay active for the wider parts of the feathers?

Troubleshooting the Two Scariest Outcomes: Gaps and “Constant Stops”

Here is your repair guide for when things go wrong.

The Upgrade Path When You’re Ready to Work Faster (Without Sacrificing Detail)

Once you master the software, the bottleneck inevitably shifts to the physical hardware. Digitizing a file in 10 minutes doesn't matter if hooping the shirt takes 15 minutes of struggle.

Phase 1: Solving the "Hoop Burn" & Wrist Pain

If you are hooping delicate items or thick garments (like Carhartt jackets), traditional screw-tightened hoops are a nightmare. They leave "hoop burn" rings and are physically hard to tighten.

• The Trigger: You are rejecting jobs because you can't hoop them, or you are getting wrist fatigue.
• The Solution: Many professionals switch to machine embroidery hoops that use magnetic force.
• The Upgrade: A magnetic embroidery hoop allows you to clamp thick or delicate fabric instantly without forcing an inner ring. For home users, finding compatible magnetic embroidery hoops for brother machines can instantly make the hobby enjoyable again by removing the physical struggle of the "screw and push" method.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch skin severely (blood blister risk). They can also interfere with pacemakers. Keep them at least 6 inches away from medical devices and computerized machine screens.

Phase 2: Solving the "Baby-Sitting" Problem

If you are running small production batches (e.g., 20 polos for a local club), you will find that changing threads on a single-needle machine kills your profit margin.

• The Trigger: You spend more time threading needs than sewing.
• The Solution: This is when a hooping station for embroidery (for consistent placement) and a Multi-Needle Machine become viable.
• The Logic: Moving to a multi-needle machine (like SEWTECH’s options) allows you to set up 6-10 colors at once. You press start and walk away. This converts your time from "operator" to "business owner."

One Last Comment Thread Worth Addressing: “Why Won’t Layout & Editing See My Bitmap?”

A note on file formats: If you click the folder icon and your cormorant image is invisible, it is likely a format issue.

• Check: Is the file a standard JPG or BMP?
• Fix: Open the image in Paint or Photoshop and "Save As" a standard JPG. Some modern formats (like HEIC from iPhones or WebP) may not be recognized by older versions of PE-Design.

By combining Kathleen’s "X/V" rhythm with proper stabilization and pull compensation, you turn a frustrating texture into a reliable, repeatable asset.

FAQ

• Q: In Brother PE-Design Layout & Editing, why do feather satin columns sew out with white gaps between rows even when the design looks perfect on screen?
  A: Increase Pull Compensation to about 0.3 mm so the satin columns still touch after fabric shrinkage (this is common—don’t worry).
  • Open Sewing Attributes and raise Pull Compensation to 0.3 mm (about +3 clicks).
  • Re-sew a small test area on the same fabric + stabilizer combination.
  • Success check: the overlap looks slightly “too thick” on-screen, but the sew-out closes the gaps and the fabric no longer shows through between feather rows.
  • If it still fails: increase Pull Compensation to 0.4 mm and confirm the backing is cut-away (not soft tear-away), especially on knits.
• Q: In Brother PE-Design manual punch satin feathers, how do you prevent birdnesting at the start of a feather column on single-needle machines?
  A: Add a short anchor running stitch before the satin so the stitch cycle “catches” the bobbin thread cleanly.
  • Add 3–4 running stitches before the first wide satin swings.
  • Hold the top thread tail for the first 3 stitches at the machine.
  • Success check: no “slap” sound at start, and the back shows a clean lock instead of a knot/tangle.
  • If it still fails: slow the first few stitches and re-check upper threading and bobbin engagement per the machine manual.
• Q: In Brother PE-Design manual punch (satin) feathers, how do you stop twisted “hourglass/X” stitch angles caused by incorrect point clicking?
  A: Click points in a strict Bottom → Top → Bottom → Top rhythm so the stitch direction lines stay smooth and parallel.
  • Watch the on-screen stitch angle/rung lines while placing points.
  • Press Backspace immediately if the stitch lines cross, then re-place the last point in the correct sequence.
  • Success check: stitch direction lines look parallel and do not form an “X” inside the column.
  • If it still fails: reduce how quickly the column width changes at the tip and re-check that Side A and Side B points alternate consistently.
• Q: In Brother PE-Design feather designs, how do you reduce constant thread trims and speed up sew-out using Running Stitch travel instead of cutting?
  A: Use Running Stitch travel to connect feathers and hide the travel under the next feather layer.
  • Toggle X for Manual Punch (satin) and V for Running Stitch (travel) to move to the next feather.
  • Draw the running stitch down the side of the finished feather toward the next start point.
  • Success check: the machine stops far less often, and travel stitches are not visible on the front because the next feather covers them.
  • If it still fails: re-route travel paths so they run under upcoming columns, not across open background areas.
• Q: For feather satin textures on knit T-shirts, what stabilizer setup prevents puckering and alignment gaps during sewing?
  A: Use cut-away stabilizer on knits, and add water-soluble topper if the knit is ribbed so satin tension doesn’t distort the fabric.
  • Choose cut-away backing (2.5 oz or 3.0 oz) for stretchy knits.
  • Add water-soluble topper when the surface texture (rib) would let stitches sink.
  • Success check: the design stays flat after unhooping, and feather rows remain aligned without rippling or “pulled” gaps.
  • If it still fails: improve hooping tightness (drum-skin tight but not stretched) and re-check Pull Compensation settings.
• Q: What needle choice and pre-check prevents thread shredding when stitching dense satin feather details on home embroidery machines?
  A: Start with a fresh 75/11 Sharp needle for detailed satin, because worn needles can shred thread (very common in feather work).
  • Replace the needle before testing high-density satin areas.
  • Inspect the old needle for burrs and discard it if thread has been fraying.
  • Success check: thread stops fuzzing/shredding and satin edges look clean instead of hairy or broken.
  • If it still fails: review density/overlap areas (too many stacked satin layers can overload the needle) and simplify hidden overlaps.
• Q: What mechanical safety steps prevent injury during test sew-outs of dense manual punch satin feathers on embroidery machines?
  A: Keep hands completely clear and never assist fabric feed under the presser foot, because high-density satin can generate torque and a needle/hoop strike can eject shards.
  • Keep fingers away from the needle zone during test runs, especially at starts/stops.
  • Do not reach under the presser foot to “help” the fabric move.
  • Success check: the machine runs without the operator’s hands entering the danger area, and there is no contact between needle and hoop/throat plate.
  • If it still fails: stop immediately, re-check hoop placement/clearance, and re-run at a slower speed for the first test.
