Stop the “Shadowy Feathers”: Palette 11 Stitch Sequence Rules for FSL Turkey Earrings (and the Color-Sort Trap That Ruins Lace)

If you’ve ever stitched Free Standing Lace (FSL) and thought, “Why do my light feathers look dirty?” or “Why did the lace split between colors?”, you’re not alone. FSL is the ultimate stress test for any embroiderer because there is no fabric underneath to hide registration errors—your thread layers are the structure.

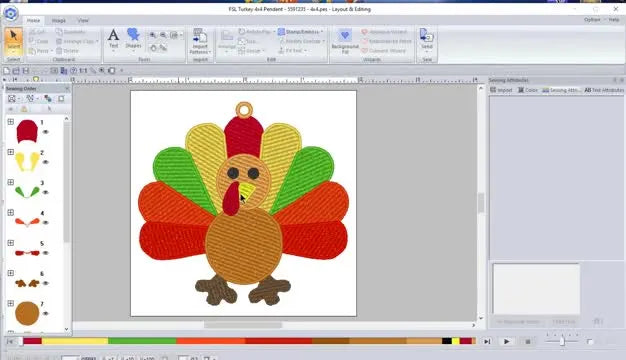

In this Palette 11 stitch-sequence tutorial, Regina demonstrates a simple but critical workflow: simulate the design first, keep the stitch order light-to-dark, and resist the temptation to “optimize” production by color sorting multiple items in one hoop. Done right, you’ll get crisp feather layers, clean overlaps, and lace that holds together instead of separating at the edges.

Calm the Panic First: What Palette 11 “Redraw/Slow Draw” Really Tells You About FSL Turkey Earrings

Palette 11’s simulation (Regina uses the redraw/slow draw style preview) isn’t just a nice animation—it is your time machine. It allows you to see catastrophes before they happen. When you watch the virtual needle travel, you are looking for two specific "red flags" that will waste your consummables:

1. The "Shadow" Effect: Dark thread stitched before light thread. In FSL, transparency is high; dark threads underneath will make your pristine yellow feathers look muddy or bruised.
2. Structural Integrity Failures: Areas where layers barely touch. FSL relies on underlay grids and overlapping satins to lock together. If the simulation shows a gap, gravity will pull that gap open in the finished piece.

Regina points out that the turkey feather section is built in five sets of feathers. This isn't random; visually, feathers must stack like roof shingles. If the timing is off, the roof leads.

The Light-to-Dark Rule in Palette 11: Preventing Shading Bleed in FSL Feather Layers

Regina’s core rule is non-negotiable for lace: stitch the lightest color first, then move progressively darker.

Why does this matter scientifically? In standard embroidery, fabric absorbs light and blocks transparency. In FSL, you are stitching on water-soluble stabilizer (WSS) or thin air. If you stitch a black detail and then cover it with yellow satin stitching, the black will "bleed" through visually, creating a dirty cast.

The "Sweet Spot" Strategy:

• Layer 1: Lightest cream/yellow.
• Layer 2: Gold/Ochre (slightly darker).
• Layer 3: Rust/Brown (darkest).

This order ensures that the darker threads act as shadows behind or next to the light threads, rather than muddying them from underneath.

If you are struggling to keep your layers aligned during these color changes, physical stability is key. Using a tool like a hooping station for machine embroidery can ensure your initial stabilization is perfectly square, which is half the battle in preventing registration errors later in the sequence.

File Variations in Palette 11: One Pair, Two Pairs, a 4x4 Pendant, and a Fill Stitch Version (Know What You’re Loading)

Regina flips through multiple file options. This is where 30% of beginners fail before hitting the "Start" button. You must distinguish between the engineering types:

• FSL Versions (Earrings/Pendants): These files have a heavy structural underlay (often a grid or mesh) designed to support the top stitching. They are dense and self-supporting.
• Fill Stitch Version (Towel/Quilt): These files lack the structural grid. They rely on the fabric fibers to hold the stitches.

The Horror Scenario: If you stitch the "Fill Version" on water-soluble stabilizer, the moment you wash it, the design will disintegrate into a pile of loose thread spaghetti. Always check the file name and the stitch count (FSL usually has a higher stitch count relative to size due to the underlay).

The Stitch Sequence You Should Expect: Feet → Body Layers → Eyes → Beak → Snood → Hanging Loop

Regina walks through the detail stitching order. For a successful structural build, the machine should follow this logic:

1. Foundation (Feet): Anchors the bottom.
2. Structure (Body Layers): Stitched light to dark to build thickness.
3. Details (Eyes/Beak/Snood): These are surface embellishments.
4. Hardware Point (Hanging Loop): Crucial Step.

Sensory Check: When the machine starts the hanging loop (Step 6/7), listen closely. It should be a dense, slow satin stitch. If it sounds loose or fast, stop immediately. This loop must be bulletproof to hold the earring hardware. If the loop fails, the product is trash.

The “Hidden” Prep Before You Stitch FSL: Stabilizer, Thread Plan, and Pull Control (So Your Lace Doesn’t Split)

Regina recommends the T-pin hooping method, which involves floating two layers of heavy water-soluble stabilizer (WSS) and pinning them taut. This is an "old school" but effective method to create drum-tight tension.

However, FSL is unforgiving. If your stabilizer is loose, the "pull compensation" (the math the digitizer used to account for thread contraction) will fail.

Prep Checklist (Do this *before* you thread the machine)

• File Integrity: Confirm you loaded the FSL file, not the Fill file.
• Needle Check: Install a fresh 75/11 Sharp or Embroidery needle. Ballpoint needles can tear water-soluble stabilizer, causing the design to punch out.
• Bobbin Match: For FSL, you typically use a matching bobbin thread (same color as top thread) because the back is visible. Wind bobbins for all 5 colors now.
• Stabilizer Feel: Tap the hooped stabilizer. It should sound like a drum. If it sags, FSL will distort.
• Hidden Consumable: Keep a pair of curved precision snips nearby for trimming jump threads between color changes.

Warning: Mechanical Safety. When trimming jump threads mid-design on FSL, never put your fingers under the needle bar area while your foot is near the pedal (for industrial machines) or the start button. A distracted "quick snip" is the leading cause of needle-through-finger injuries. Always full-stop the machine.

The Setup That Saves Your Sanity: Hooping for FSL Without Overstretching (and Without Leaving Marks)

Regina’s emphasis on "pull" highlights a major pain point. Stabilizer needs to be tight, but if you tighten a traditional hoop screw too much, you get "hoop burn" (permanent crushed fibers) or the stabilizer pops out.

This creates a dilemma: You need extreme tension for FSL, but extreme tension damages materials.

The Evolutionary Path of Hooping:

• Level 1 (Basic): Traditional hoops + T-pins. Effective, but slow and can be painful for those with arthritis or repetitive strain issues.
• Level 2 (Comfort & Speed): If you struggle with wrist pain or hoop burn, a magnetic embroidery hoop is the industry standard upgrade. They clamp the stabilizer automatically without the "unscrew-tighten-pull" struggle.
• Level 3 (Machine Specific): If you own a Baby Lock, ensure you search for magnetic hoops for babylock embroidery machines specifically, as the attachment brackets differ from other brands.

We often see studio clients migrate to magnetic hoops simply to reduce the setup time between the 5-7 color changes FSL requires.

Setup Checklist (Right before the first stitch)

• Clearance: Ensure the hoop arms aren't hitting the wall/table behind the machine.
• Bobbin Thread: Check the bobbin case for lint. FSL creates a lot of lint; a clogged tension spring will cause the bobbin thread to loop on top.
• Speed Limit: Set your machine speed to 400-600 SPM (Stitches Per Minute). High speed on lace creates vibration, which ruins registration.
• Magnet Check: If using magnetic frames, slide your finger along the edge to ensure no stabilizer is bunched between the magnets.

Warning: Magnet Safety. Powerful magnetic hoops can pinch skin severely (blood blister risk). Never place your fingers between the magnets as they snap shut. Also, keep magnets away from pacemakers and sensitive electronics.

The Big Trap: Why “Color Sort” Can Create Registration Gaps in Multi-Item FSL Hoops

This is the most valuable technical advice in the tutorial. Regina warns: Do not color sort multi-hoopings.

The Physics of the Failure: Imagine you have 4 turkeys in one hoop (Top Left, Top Right, Bottom Left, Bottom Right).

• If you Color Sort: The machine stitches Yellow on TL, then TR, then BL, then BR. Then it goes back to TL for Red.
• The Result: By the time the machine returns to TL for the Red layer, the stabilizer has been pushed and pulled by the stitching in the other three corners. The Red layer will shift 1-2mm, missing the Yellow layer entirely. Your lace will have gaps and fall apart.

The Correct Method: Stitch Turkey #1 complete (all colors). Then Stitch Turkey #2 complete. Yes, this means 20 manual color changes instead of 5. But 20 changes is better than 4 ruined pairs of earrings.

A Decision Tree You Can Actually Use: FSL Stabilizer + Hooping Choices Based on What’s Going Wrong

Use this logic flow to diagnose your FSL setup failures.

Start: Are you stitching FSL (lace) or Fill (fabric)?

• Path A: It's FSL (Earrings)
  • Problem: Layers separating/gaps?
    • Fix: precise hooping prevents drag; stop Color Sorting. Stitch one item at a time.
  • Problem: Muddy colors?
    • Fix: Enforce Light-to-Dark sequence.
  • Problem: Hooping hurts hands or leaves marks?
    • Fix: Upgrade toolset. A baby lock magnetic embroidery hoop (or brand equivalent) uses magnetic force rather than wrist torque to secure the heavy WSS stabilizer.
• Path B: It's Fill Stitch (Towel)
  • Problem: Puckering fabric?
    • Fix: Switch to Cutaway stabilizer.
  • Problem: Design outlines off?
    • Fix: Increase pull compensation in software or slow down the machine.


The Pendant Version (About 3x3 Inches): Same Sequence, Bigger Payoff for Gifts and Seasonal Sales

Regina shows the 4x4 pendant version. The physics remain the same, but the drag increases. A larger FSL design puts more weight on the stabilizer.

If you are producing these for sale (e.g., Christmas ornaments), consistency is your profit margin. This is where batch processing matters. Using embroidery magnetic hoops allows you to pop one hoop off and snap the next one on without recalibrating your tension screw, maintaining identical tension across a run of 50 ornaments.

The Fill Stitch Version for Towels and Quilts: Same “Look,” Different Rules (Don’t Treat It Like Lace)

Regina clarifies the "Fill Version." Do not use heavy Water Soluble Stabilizer (WSS) here.

• Material: Dish Towel / Quilt square.
• Stabilizer: Tear-away (for simple towels) or Cut-away (for knits/quilts).
• Topping: Use a Water Soluble Topping (film) on towels to prevent the stitches from sinking into the pile.


The “Pull” Problem Explained Like a Technician: Why FSL Hates Long Runs Across Multiple Objects

"Pull" is the movement of fabric/stabilizer towards the needle penetration point.

• Fact: Every stitch pulls the fabric slightly inward (about 0.1mm - 0.2mm depending on density).
• Cumulative Effect: Over 10,000 stitches, this can shift the material by 2mm or more.

If you use a magnetic hooping station, you can mitigate the initial error by ensuring the stabilizer is perfectly squared, but you cannot stop the physics of pull. That is why Regina's advice to stitch one object at a time is superior—it resets the "local distortion" for each earring.

Operation Habits That Prevent Rework: Run the Simulation, Then Stitch Like You Mean It

Once the machine starts, your job changes from "Engineer" to "Pilot."

Pilot Habits:

1. Stop and Snip: For FSL, trim jump threads immediately after a color finishes. If you stitch over a jump thread in lace, it becomes trapped inside the openwork and is impossible to remove later.
2. Float Support: If you hear the stabilizer tearing (a distinctive "ripping paper" sound), pause. Slide a scrap piece of WSS under the hoop to patch the weak spot.

Operation Checklist (End-of-Run QC)

• Loop Test: Give the hanging loop a firm tug. It should not stretch.
• Edge Check: Look at the perimeter satin stitch. Ideally, the bobbin thread should occupy the center 1/3 of the back, and top thread the outer 2/3.
• Wash Test: Rinse one test piece in warm water. Does it hold shape? If it turns to mush, you likely used "Topping" (light film) instead of "Heavy WSS" (fibrous fabric-like stabilizer).

Strategic Note for Growth: If you find yourself stitching 50+ pairs of these for a craft show, the bottleneck will be the 5 color changes per earring. On a single-needle machine, this is agonizing. This is the volume threshold where many hobbyists transition to SEWTECH Multi-Needle Machines. Being able to set 6 colors and walk away while the machine handles the FSL layering automatically is the only way to make lace profitable at scale.

Quick Fix Table: Symptoms → Likely Cause → What to Change Next Time

The Upgrade Result: Cleaner FSL, Less Hooping Stress, and a Workflow You Can Repeat

Regina’s message is the kind that saves materials: Simulate first, stitch Light-to-Dark, and never Color Sort FSL.

When you combine that software discipline with better physical tools, you close the gap between "hobby" and "professional."

• Stabilization: Use the T-pin method or heavy WSS.
• Holding: Use a magnetic frame to reduce hand strain and eliminate hoop burn.
• Production: Respect the machine's speed limits.

If hooping is your current bottleneck (taking longer to hoop than to stitch), magnetic frames are your Level 1 upgrade. If color changes are your bottleneck, a multi-needle machine is your Level 2 upgrade. Choose the tool that solves your specific pain today.

FAQ

• Q: In Palette 11, why do Free Standing Lace (FSL) light feather layers look dirty or grey after stitching?
  A: Re-sequence the design so the lightest thread stitches first, then progressively darker colors.
  • Run Redraw/Slow Draw and look for any dark layer stitching underneath a light satin layer.
  • Reorder the color blocks to follow Light → Mid → Dark before committing to the stitch-out.
  • Success check: the finished yellow/cream feathers look bright and clean, not bruised or muddy.
  • If it still fails: confirm the file is the FSL version (not the Fill version) and avoid stitching dark details under large light satins.
• Q: Why do Palette 11 FSL turkey earrings split or show gaps between colors when stitching multiple earrings in one hoop?
  A: Stop using Color Sort for multi-item FSL; stitch one turkey completely before starting the next.
  • Load the multi-position file, but run the full sequence for Turkey #1 (all colors) before moving to Turkey #2.
  • Keep machine speed in the 400–600 SPM range to reduce vibration-based registration shift.
  • Success check: each color layer lands on the previous layer with no 1–2 mm offset at edges or overlaps.
  • If it still fails: re-check hoop tension (drum-tight WSS) and watch the simulation for areas where layers barely touch.
• Q: How can embroidery operators verify heavy water-soluble stabilizer (WSS) hooping tension is correct for FSL before the first stitch?
  A: Hoop heavy WSS “drum-tight” without sag, because loose WSS causes pull distortion and layer separation.
  • Tap the hooped stabilizer and adjust until it sounds and feels like a drum (no soft spots).
  • Inspect the edges to ensure the stabilizer is not bunched, wrinkled, or slipping out of the frame.
  • Success check: the stabilizer stays flat and tight after the first several hundred stitches (no rippling or shifting).
  • If it still fails: slow the machine down and reinforce weak areas by sliding a scrap piece of WSS under the hoop when tearing starts.
• Q: Why does an FSL design “punch out” or tear the water-soluble stabilizer during stitching, and what is the fastest fix?
  A: Replace the needle and reduce speed; a blunt/wrong needle and high speed can tear WSS and let the design break free.
  • Install a fresh 75/11 Sharp or Embroidery needle before restarting.
  • Set stitch speed to roughly 400–600 SPM to reduce vibration and punching force.
  • Patch immediately by pausing and sliding a scrap piece of WSS under the damaged area to support the next stitches.
  • Success check: the stabilizer stops making a “ripping paper” sound and the design remains anchored.
  • If it still fails: confirm the stabilizer is heavy WSS (not light topping film) and re-hoop for tighter tension.
• Q: What is the safest way to trim jump threads during Free Standing Lace (FSL) stitching on an embroidery machine?
  A: Full-stop the machine before trimming; never put fingers near the needle bar area while the machine can start.
  • Press stop and wait until the needle is fully parked and motion has ended.
  • Use curved precision snips and trim jump threads right after each color finishes (before the next layer traps them).
  • Success check: jump threads are removed cleanly and do not get stitched into open lace areas.
  • If it still fails: reposition the hoop for access and trim more frequently so threads do not accumulate between color changes.
• Q: What magnetic embroidery hoop safety precautions should embroidery operators follow when clamping heavy WSS for FSL?
  A: Keep fingers out of the closing path and keep magnetic hoops away from pacemakers and sensitive electronics.
  • Close the magnetic frame using the frame edges/handles, not by placing fingers between the magnets.
  • Slide a finger around the outer edge after clamping to confirm no stabilizer is bunched between magnets.
  • Success check: the hoop closes evenly with no pinched stabilizer and no skin pinch risk during closure.
  • If it still fails: reopen and re-seat the stabilizer flat—do not force magnets to close over wrinkles or thick folds.
• Q: For high-volume FSL production, when should embroidery operators upgrade from technique changes to magnetic hoops or a multi-needle machine?
  A: Use a tiered approach: fix stitch sequence and workflow first, upgrade hooping next if setup is the bottleneck, and consider a multi-needle machine if color changes are the bottleneck.
  • Level 1 (technique): always simulate first, stitch Light-to-Dark, and never Color Sort multi-item FSL.
  • Level 2 (tooling): switch to magnetic hoops if hooping causes hoop burn, wrist pain, or inconsistent tension across runs.
  • Level 3 (capacity): move to a multi-needle machine when repeated manual color changes make 50+ pairs impractical on a single-needle workflow.
  • Success check: repeat runs produce consistent registration and loops without re-hooping or re-tensioning every piece.
  • If it still fails: reduce speed to stabilize registration and re-evaluate stabilizer type (heavy WSS for FSL, not topping film).
