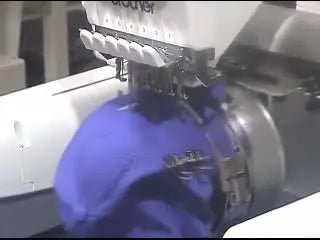

Cap Embroidery Without the Headache: Installing a Brother PR Cap Driver and Hooping an Unstructured Hat That Actually Stays Put

The Master Guide to Cap Embroidery: From "First-Time Panic" to Production Precision

Cap embroidery is deceptively difficult. It looks simple—it’s just a logo on a hat, right? But the moment you hear the cap frame snap violently, watch the bill grind against the machine arm, or see your needle shatter on a center seam, you realize: Caps are an engineering challenge, not just an art project.

As an embroiderer, you are fighting physics. You are trying to stitch a flat design onto a curved, flexible surface that wants to bounce, shift, and distort.

If you are staring at your machine feeling that distinct “I bought the cap kit… now what?” panic, take a deep breath. This guide is your operational manual. We are going to move beyond the basics and into the physics of how to achieve consistent, saleable results without breaking your machine (or your spirit).

1. Anatomy of an Enemy: Know Your Cap Kit Before You Fight It

You cannot win a fight if you don't know your weapon. A standard multi-needle cap kit consists of three specific components, each solving a specific mechanical problem.

• The Framing Gauge (The Mold): This is your preparation station. Its job is to provide a rigid cylinder that mimics the shape of a head. Tip: It must be bolted down. If your gauge wobbles, your design will be crooked.
• The Cap Driver (The Interface): This replaces your machine’s standard pantograph arm. It drives the X and Y movement around a cylinder.
• The Mechanical Cap Frame (The Clamp): The actual hoop. It uses a flexible metal band and a tension wire to grip the fabric.

When beginners struggle, they often blame the digitizing. 90% of the time, it is mechanical failure. If you are using a cap hoop for brother embroidery machine or a compatible SEWTECH system, treat it like a precision fixture. If it is loose, dirty, or bent, no amount of software settings will save the hat.

2. Machine Conversion: Installing the Cap Driver Without "Wiggle"

This step determines whether your session runs smoothly or sounds like a car crash.

The Conversion Workflow

1. Remove the flat table/arm: Clear the deck.
2. Slide the Cap Driver onto the mounting shaft: align the pins carefully.
3. The "Push-Back" Maneuver (Crucial): Before you tighten the thumb screws, you must apply firm pressure to push the driver snugly toward the rear of the machine. Usually, there is a physical stop.
4. Tactile Check: tighten the screws while holding that rearward pressure.
5. Validation: Wiggle the driver gently. It should feel like a solid part of the machine chassis, not an attachment.

If the driver sits even 1mm too far forward, you introduce vibration. Vibration leads to "flagging" (fabric bouncing), which leads to birdnesting.

Warning: High Injury Risk. Always power off your machine before installing or removing the cap driver. The driver mechanism is heavy and sits dangerously close to the needle bars. Keep fingers clear of the pinch points around the driver wheels. A sudden machine initialization can crush a finger.

3. The Tiny Riser Plate: The Physics of "Flagging"

The video tutorial utilizes a specific component often lost by second-hand buyers: the Riser Plate (or Cap Needle Plate spacer).

Why do you need it?

Caps are concave (curved inward). Your standard needle plate is flat. This creates a gap in the air between the hat fabric and the needle plate hole.

• Without the plate: The needle punches down, pushing the fabric into the gap. Upon retraction, the fabric bounces up. This is called "Flagging."
• The Consequence: Loops, skipped stitches, and thread breaks.
• The Fix: The Riser Plate fills that gap, providing a solid surface for the needle to form the loop against.


If your machine kit came with one, install it. If you are doing high-volume production, ensure this plate is free of burrs or needle scratches that could snag thread.

4. The "Hidden" Prep: Backing, Latch Tension, and Sensory Checks

Professional embroidery isn't about hope; it's about preparation. Before touching a hat, perform these checks.

A. The Consumables (Hidden Essentials)

You need more than just the cap frame.

• Needles: Upgrade to Titanium 75/11 or 80/12 Sharps. Ballpoint needles often struggle to penetrate the thick buckram of structured hats without deflecting.
• Backing: Use Pre-cut Stiff Tear-Away Cap Backing. Never use cutaway for caps unless you are covering the back; it's too bulky.
• Gym Clips (Binder Clips): Essential for side tension.
• Adhesive: A light dusting of temporary spray adhesive can help hold the backing to the gauge.

B. Dialing in Latch Tension (The "Goldilocks" Zone)

The cap frame latch controls how tightly the metal band grips the hat.

• Too Loose: The hat shifts -> Registration errors.
• Too Tight: You warp the bill or snap the wire.

The Sensory Test: When closing the latch over a cap, you should feel significant resistance. It should require firmness to snap shut—a solid thud sound, not a light click. If it closes easily, it's too loose.

• Adjustment: Locate the three screws on the latch buckle. Loosen them, slide the buckle forward/back, and retighten.

If you are setting up a shop, consistency is key. Terms like hooping stations often refer to dedicated ergonomic setups that allow you to apply this force consistently without straining your wrists—a worthy investment if you plan to embroider 50+ hats a week.

5. Hooping Unstructured Caps (The "Sweatband Flip")

Unstructured caps (daddy hats) are notoriously difficult because they lack a stiff front panel (buckram). They wrinkle easily. The video demonstrates a three-point control method: Stabilization, Alignment, and Tension.

Step 1: Backing Positioning

Place your stiff tear-away backing over the gauge teeth. Press it down so the teeth puncture the paper. This prevents the stabilizer from sliding down during hooping.

Step 2: The Sweatband Maneuver

This is where 50% of beginners fail.

• Slide the cap onto the gauge.
• Flip the sweatband OUT.
• Slide the sweatband UNDER the metal location tab (the lip with the red line), while the cap brim goes OVER it.


Visual Check: The red line on the gauge should be visible. If the sweatband is covering it, you have loaded it wrong.

Step 3: Center Alignment

Align the cap's center seam exactly with the red line. For 5-panel caps, crease the center first to create a visual guide.

• Pro Tip: Use a piece of masking tape to mark the center if you are learning hooping for embroidery machine alignment for the first time.

6. Locking It Down: Band, Clips, and Bill

Once aligned, you must lock the fabric so it behaves like a drum skin.

1. The Metal Band (Teeth Placement)

Pull the strap over the bill.

• Crucial: The serrated teeth of the strap must sit in the seam/crease where the bill meets the cap crown.
• Not on the bill, not on the logo area. Right in the crease.
• The smooth wire/strap goes under the bill.


Close the latch firmly.

2. The "Gym Clip" Technique (Side Tension)

The cap is tight vertically, but loose horizontally.

• Smooth the side panels down against the frame posts.
• Use large binder clips (gym clips) to clamp the backing and cap side material to the posts by the ears.


Why this matters: This pulls the fabric taut horizontally, preventing "puckering" near the edges of your logo.

3. The Bill Protector (Rubbing Prevention)

Snap the rod/bill protector over the brim.

• Action: Push down firmly on the bill to flatten it.
• The "Why": A curved bill stands tall and can scrape against the machine head during rotation, ruining the hat or throwing off the alignment.


Warning: Pinch Hazard. Cap frames operate under high tension. When snapping the latch or the bill protector, keep the meat of your hand clear of the closing mechanism.

7. Loading: The 90-Degree Twist

Loading the frame into the driver is terrifying for new users because the needle bar looks like it's in the way.

The Safe Loading Protocol:

1. Rotate the entire cap frame 90 degrees (sideways) so the bill clears the needle bar.
2. Slide the frame under the head.
3. Rotate it back to the upright position.
4. Align the frame slots with the driver wheels.
5. Auditory Check: Push until you hear clear clicks on both the left and right sides.
6. Physical Check: Give the frame a gentle tug. It should be locked.


If you are using a brother pr600 hat hoop setup, this rotation is mandatory. Forcing it straight in will bend your needle bar.

8. The Danger Zone: Center Seams and Speed

The center seam of a hat is a thick, multi-layered obstacle. Needles love to deflect off this seam, causing them to break or stitches to look "crooked."

Mitigation Strategy 1: The Design Offset

Trace your design. Look closely at where vertical columns of satin stitches fall.

• The Fix: If a letter I or l falls directly on the seam, shift the entire design left or right by just 1mm to 2mm (1/8 inch).
• Reality: Your customer will never notice a 1mm offset. They will notice a shredded letter I.


Mitigation Strategy 2: Speed Kills

Beginners often run machines at 1000 SPM (Stitches Per Minute).

• Beginner Sweet Spot: For caps, slow your machine down to 500 - 600 SPM.
• Physics: Slower speeds reduce the impact force on the seam and reduce needle deflection.

9. Unloading and Cleanup

To unload, reverse the process.

• Lift the bottom of the frame to unlock.
• Rotate 90 degrees to exit.
• The Reveal: Unlatch, remove clips, remove hat. Tear away the backing.




10. Troubleshooting: Interpreting Your Failure

When things go wrong, use this diagnostic table.

11. Decision Tree: Cap Workflow

Stop guessing which consumables to use.

START: Assessment

• Is the Hat Structured? (Hard Buckram Front)
  • YES: You can sew without backing, but for best results, use 1 layer of Tear-Away to smooth the surface. Use Sharp Needles.
  • NO (Unstructured): You MUST use Stiff Tear-Away Backing. Use Ballpoint or Sharp Needles.
• Is the Run Volume High? (50+ Hats)
  • YES: Consider magnetic frames or a multi-needle upgrade.
  • NO: Standard mechanical hoops are sufficient.

Warning (Magnets): If you opt to upgrade your workflow with Magnetic Hoops, be aware they use powerful Neodymium magnets. Keep away from pacemakers. Do not place near credit cards or hard drives. Watch your fingers—they can pinch severely.

12. The Upgrade Path: Moving from Hobby to Profit

If you find yourself spending 10 minutes hooping for a 5-minute run, your profit margin is zero. This is where equipment upgrades become a business decision, not just a luxury.

1. The "Hoop Burn" Problem: Mechanical hoops can leave marks on sensitive hats. If this happens frequently, look into Magnetic Cap Frames. They hold firm without crushing the fibers.
2. The Scale Problem: If you are moving from one-offs to team orders, single-needle machines will bottleneck you. SEWTECH Multi-Needle Machines allow you to queue colors and reduce downtime, while a dedicated brother prs100 hat hoop style workflow allows you to hoop the next hat while the current one sews.
3. The Tooling Problem: Upgrading to a dedicated Hooping Station stabilizes the gauge, cutting your prep time by 50%.

13. Pre-Flight Checklists

Prep Checklist (Do Once)

• Cap Driver installed and pushed snugly to the back.
• Riser Plate installed over needle plate.
• Latch tension adjusted (Firm "Thud" upon closing).
• Needles checked: Are they bent? Are they sharp?
• Bobbin check: Is it full? (Changing bobbins on a cap driver is annoying).

Setup Checklist (Every Hat)

• Backing on teeth.
• Sweatband flipped OUT and tucked UNDER the tab.
• Center seam aligned with red line.
• Band teeth seated in the bill crease.
• Side clips attached (Fabric drum-tight).
• Bill flattened with protector.

Operation Checklist (The Run)

• Loading: Rotate 90°, insert, snap both sides.
• TRACE COMPLETE: Check needle clearance (especially near the bill).
• Speed set to 600 SPM or lower.
• Listen: Any rubbing sounds? Stop immediately.

Mastering caps is about respecting the tolerances. Follow the physics, secure your workspace, and the machine will do the rest.

FAQ

• Q: How do I install a SEWTECH multi-needle cap driver so the cap driver does not “wiggle” and cause vibration birdnesting?
  A: Push the cap driver snugly toward the rear stop before tightening the thumb screws to eliminate play.
  • Power off the embroidery machine before touching the cap driver.
  • Slide the cap driver onto the mounting shaft, then apply firm rearward pressure (the “push-back” maneuver).
  • Tighten the screws while holding that rearward pressure.
  • Success check: Gently wiggle the cap driver—there should be no looseness; it should feel like part of the machine chassis.
  • If it still fails: Remove and reinstall the cap driver, checking for dirt/debris on mating surfaces that can keep the driver from seating fully.
• Q: Why does cap embroidery on a SEWTECH multi-needle machine show flagging, loops, skipped stitches, or thread breaks without a cap riser plate?
  A: Install the cap riser plate (cap needle plate spacer) to remove the gap that causes the cap fabric to bounce (“flag”).
  • Install the riser plate over the standard needle plate before running caps.
  • Use stiff tear-away cap backing so the fabric has a firm surface to stitch against.
  • Inspect the riser plate for burrs or needle scratches that may snag thread during production.
  • Success check: During stitching, the cap fabric should stay stable (no visible bouncing) and the stitch formation should look consistent.
  • If it still fails: Recheck that the riser plate is the correct part and seated flat; then reassess backing stiffness and hooping tension.
• Q: How tight should the latch tension be on a mechanical cap frame used on SEWTECH multi-needle cap embroidery kits?
  A: Set latch tension to the “firm thud” zone—tight enough to resist closing, not so tight that it warps the bill or risks snapping the wire.
  • Close the latch over a cap and feel for significant resistance before it snaps shut.
  • Adjust the latch buckle by loosening the three screws, sliding the buckle forward/back, then retightening.
  • Avoid over-tightening that distorts the cap shape or stresses the tension wire.
  • Success check: The latch closes with a solid “thud” (not an easy click) and the cap does not shift during a trace or run.
  • If it still fails: Add side binder clips for horizontal tension and recheck that the band teeth are seated in the bill-to-crown crease.
• Q: What is the correct “sweatband flip” hooping method for unstructured caps on a SEWTECH mechanical cap frame and gauge?
  A: Flip the sweatband out and tuck the sweatband under the location tab while keeping the brim over the tab to prevent misloading and crooked designs.
  • Press stiff tear-away backing onto the gauge teeth first so the stabilizer cannot slide.
  • Slide the cap onto the gauge, flip the sweatband OUT, then tuck the sweatband UNDER the location tab (red-line lip) while the brim goes OVER it.
  • Align the cap center seam exactly to the red line before closing the band.
  • Success check: The red line remains visible (not covered by the sweatband) and the center seam tracks the red line straight.
  • If it still fails: Mark center temporarily (for learning) and add side binder clips to keep the cap panels drum-tight.
• Q: How do I load a mechanical cap frame into a SEWTECH cap driver safely using the 90-degree twist so the brim does not hit the needle bar?
  A: Rotate the cap frame 90 degrees to clear the needle bar, insert under the head, then rotate upright and lock in until both sides click.
  • Rotate the frame sideways (90 degrees) before sliding it under the needle area.
  • Rotate the frame back upright, align the slots with the driver wheels, and push evenly.
  • Confirm both left and right sides lock into place.
  • Success check: You hear clear clicks on both sides and a gentle tug shows the frame is fully locked.
  • If it still fails: Stop and do not force it—recheck driver installation depth and reattempt the 90-degree insertion path.
• Q: How do I reduce SEWTECH cap embroidery needle breaks on the thick center seam and prevent crooked satin columns?
  A: Slow the machine down and offset the design slightly so dense vertical satin does not land directly on the center seam.
  • Reduce stitching speed to a beginner-safe range of 500–600 SPM for caps.
  • Use Titanium 75/11 or 80/12 Sharp needles to penetrate structured buckram and seams more reliably.
  • Shift the entire design left or right by 1–2 mm if a narrow satin column (like an “I”) hits the seam.
  • Success check: The needle stops snapping at the seam and vertical columns stitch cleanly without a “kicked” or shredded look.
  • If it still fails: Re-run a trace for clearance and inspect hooping stability (latch tension + side clips) to reduce deflection and movement.
• Q: What safety steps should be followed when installing a SEWTECH cap driver and snapping a high-tension mechanical cap frame latch or bill protector?
  A: Power off before installing/removing the cap driver, and keep fingers clear of pinch points when closing the latch or bill protector.
  • Turn the machine OFF before mounting or removing the heavy cap driver near needle bars.
  • Keep fingers away from the driver wheels, latch buckle, and bill protector snap points.
  • Apply closing force with controlled hand placement to avoid sudden slips.
  • Success check: The cap driver installs without any unexpected movement, and the latch/bill protector closes without pinching or hand contact with moving parts.
  • If it still fails: Pause the setup, reposition hands/tools, and do not continue until the mechanism can be operated without risk.
