The "Physics of Stitching": A Master Class in Digitizing Text Logos with Forte PD

If you have ever watched a text logo look razor-sharp on your computer screen only to stitch out with gaps, shaky edges, or the dreaded "bird's nest" of thread underneath, you are not alone. You have just encountered the fundamental truth of our craft: Digitizing is not graphic design; it is engineering.

On screen, pixels are weightless. In the machine, thread has tension, needles create friction, and fabric—no matter how stable—wants to buckle. Lettering is where these forces collide.

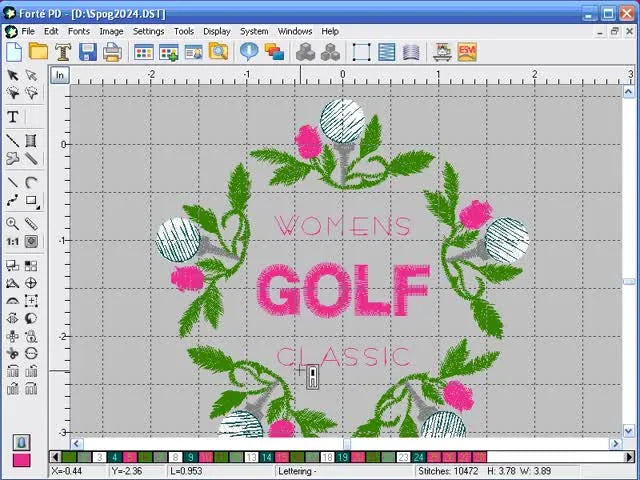

This guide rebuilds the workflow for creating a stacked logo (WOMENS / GOLF / CLASSIC / 2006) in Forte PD, as shown in the original tutorial. However, as your Chief Embroidery Education Officer, I am going to layer in 20 years of floor experience. We won’t just click buttons; we will configure the physics of your design to ensure that when you press "Start," you hear that rhythmic, confident thump-thump-thump of a perfect stitch-out, not the grinding noise of a fail.

1. Zero Cognitive Friction: Taming the Selection Tool

The first hurdle in Forte PD is a subtle interface behavior that often causes "micro-frustrations" for new users. You click a word to move it, but the software thinks you only want to move the letter "W".

In the video, the narrator navigates a specific dialog box to keep the word intact. Why does this matter? Because in a production environment, if you accidentally nudge one letter out of alignment by 1mm, the human eye will catch it immediately.

The Action Plan

1. Select the Tool: Click the Select Object icon.
2. Target the Asset: Click anywhere on the word you wish to manipulate.
3. The Critical Choice: A dialog will pop up asking: "Do you want to select just that character?"
   • Click No.
   • Why? By clicking "No," you force the software to grab the entire text block (segment).

Visual Confirmation: You should see the selection box surround the entire word, not just the single letter. This is your green light to move, resize, or recolor safely.

Warning: Mechanical Safety Protocol. Later, when you move from software to hardware involving dense lettering, ensure your hands are nowhere near the needle bar during the initial trace. Digitizing changes can alter jump stitch locations, and unexpected frame movement can lead to finger injuries.

2. The "Hidden" Prep: Configuring for Reality

Before we move a single pixel, we must address the physical reality of the job. The screen is a lie; the fabric is the truth.

In the tutorial, we are setting up a logo. But a logo on a stiff denim jacket requires different engineering than the same logo on a floppy performance polo. The software defaults are often "middle of the road"—good for neither.

If you are already searching for terms like hooping for embroidery machine, you understand that success is 50% digitizing and 50% stabilization. If you hoop poorly, no amount of software tweaking will save the design.

Prep Checklist: The "Pre-Flight" Safety Check

Perform these checks before editing any objects.

• Grid Calibration: Ensure the Zero Line is visible. This is your "True North" for alignment.
• Fabric/Needle Pairing: Are you using a 75/11 needle for standard cotton, or a Ballpoint 70/10 for knits? (Wrong needle = holes in fabric).
• Consumables Check: Do you have your backing (stabilizer), temporary spray adhesive (if needed), and the correct bobbin tension?
• Tactile Tension Check: Pull your top thread through the needle path by hand. It should feel like pulling dental floss through tight teeth—consistent resistance, no snags.
• Version Control: Save your file as Logo_V1_Base.jeff before making edits.


3. Designing Phase I: Positioning and Coloring "WOMENS"

The video demonstrates moving the "WOMENS" text to the top of the wreath. This uses the grid system we verified in the Prep phase.

The Workflow

1. Select: Click a character in "WOMENS" $\rightarrow$ Click No to select the group.
2. Move: Click and drag the word upward. Use the grid lines to ensure it doesn't drift left or right.


Coloring with Intent (Isacord 2300)

Next, we assign a specific thread color.

1. With "WOMENS" selected, click the Select New Color icon.
2. Navigate to the Isacord tab.
3. Select Isacord 2300 (Pink) and apply.


Expert Insight: Why be specific about Isacord? In a professional shop, "Red" is not a color; "Isacord 1902" is a color. Standardizing your thread charts in software prevents the costly mistake of picking the wrong spool during a rush order. High-contrast colors (like pink on dark fabric) are unforgiving—they highlight every wobble, so your underlay settings (discussed below) must be solid.

4. Designing Phase II: Adding "CLASSIC"

1. Click the Lettering icon.
2. Click firmly in the work area below the wreath.
3. Type Classic.
4. Retain the default settings for now and click OK.


The Trap: Software "remembers" your last settings. If your previous project was a giant back-jacket logo with heavy density, and you create text for a small chest logo, it might inherit those heavy settings. Always glance at the property bar before clicking OK.

5. The Technical Core: Engineering the Word "GOLF"

This is the most critical section. We are creating the word "GOLF" with specific parameters. These numbers are not random; they are a recipe for stability.

Step-by-Step Configuration

1. Create: Click Lettering $\rightarrow$ Click betwen "WOMENS" and "CLASSIC" $\rightarrow$ Type GOLF.
2. Font: Select Helvetica Compressed. Block fonts like this are excellent for legibility on textured fabrics (like Pique).


3. Size: Set Character Size to 0.526 inches (~13mm). This is a standard left-chest size.


4. Spacing: Set Character Spacing to 0.039 inches (~1mm).
   • Why? If letters touch, they push against each other, causing the fabric to bunch up. Give them breathing room.
5. The Physics Settings (Stitches Tab):
   • Density: 63.659 stitches/inch.
   • Stitch Length: 0.039 inches.
   • Underlay: Center Walk (Crucial!).
   • Direction: Left-to-Right.


Expert Analysis - The "Why":

• Center Walk Underlay: Think of this as the rebar in concrete. It stitches a line down the center before the satin stitch covers it. This anchors the fabric to the backing, preventing the letters from sinking into the fabric pile. Without it, your "GOLF" will look thin and ragged.
• Density (64 spi): This provides solid coverage without being "bulletproof." Too dense, and you break needles; too loose, and you see the fabric through the thread.

Finally, change the color to Isacord 4515 (Teal/Green) using the same selection method (Select $\rightarrow$ No $\rightarrow$ Color).

6. Layout Discipline: The Art of vertical Stacking

Now we align the stack: EMPIRICAL (WOMENS), GOLF, and CLASSIC.

1. Drag "GOLF" directly under "WOMENS."
2. Drag "CLASSIC" under "GOLF."
3. The check: Zoom in on the Grid Zero Line. The visual center of the text should bisect this line perfectly.


Pro Tip: Your eye is better than the computer. Sometimes mathematically centered text looks off-balance due to the shape of letters like "W" or "C." Trust the grid, but verify with your eye.

7. Handling Small Text: "2006" and the Danger Zone

Small text is the nemesis of every embroiderer. The rules of physics change when letters drop below 0.25 inches.

1. Create: Click Lettering $\rightarrow$ Click at the bottom $\rightarrow$ Type 2006.


2. Font: Switch to Helvetica Condensed. (Thinner columns needed for small text).


3. Size: 0.394 inches (~10mm).
4. Critical Overrides (Stitches Tab):
   • Density: Lower to 57 (~2.25 mm).
   • Stitch Length: 0.0984 inches (approx 2.5 mm).
   • Underlay: Center Walk.




Why these specific numbers?

• Lower Density (57 vs 64): As text gets smaller, needle penetrations get closer together. If you keep the density high, you will shred the fabric, causing a hole. We open up the spacing to save the fabric.
• Stitch Length (2.5mm): This prevents the machine from making micro-movements that cause thread breaks. It keeps the machine running smoother on tiny details.

8. The Decision Matrix: Fabric vs. Strategy

You have the file, but will it sew? Use this decision tree to determine your next move before hitting "Start."

Scenario A: The Stable Flat (Denim, Twill, Canvas)

• Stabilizer: Tearaway (2 layers) or Cutaway (Medium).
• Hooping: Standard hoop or Magnetic.
• Risk: Low.

Scenario B: The Stretch (Performance Polo, Dry-Fit)

• Stabilizer: No Show Mesh (Polymesh) Cutaway + Temporary Spray.
• Hooping: Must not stretch the fabric while hooping!
• Risk: High (Distortion).

Scenario C: The Texture (Fleece, Towel)

• Stabilizer: Tearaway/Cutaway backing + Soluble Topping (Solvy) on top.
• Why: Without topping, your lovely "Center Walk" underlay isn't enough; the stitches will sink into the fuzz.

9. Operation "Commercial Scale": Moving from Hobby to Pro

In my 20 years of experience, I have seen many creators perfect their digitizing only to be defeated by the physical labor of production. You digitize a perfect logo, but after doing 50 shirts, your wrists ache and the hoop marks (hoop burn) on the fabric are ruining the presentation.

This is where you execute a "Tooling Upgrade."

If you encounter Hoop Burn (shiny rings left by plastic hoops) or struggle to clamp thick garments like Carhartt jackets, it is not a software issue. It is a physics issue.

• For the Single-Needle User: Consider upgrading to a magnetic embroidery hoop. Unlike traditional screw-tightened hoops, these use magnetic force to hold the fabric. This eliminates the "cranking" motion that hurts your wrists and removes the friction that causes hoop burn.
• For the Volume Producer: If you are changing threads manually for every color swap (Pink to Teal to Black), you are bleeding profit. When your daily output hits 20+ garments, the math suggests moving to a multineedle platform like a SEWTECH multi-needle embroidery machine. These machines hold all colors simultaneously (Isacord 2300, 4515, etc.), allowing you to hit "Start" and walk away to prep the next hoop.

Strategic Insight: Terms like hooping stations and hoopmaster often pop up in professional shops because alignment speed determines profit margin. Combining these with magnetic embroidery frames creates a workflow where the machine never stops waiting for the operator.

Warning: Magnetic Field Safety. Professional magnetic embroidery hoops use powerful neodymium magnets. They pose a severe pinch hazard—users have bruised fingers by letting brackets snap together. Additionally, keep these magnets at least 6 inches away from pacemakers and sensitive electronics.

10. Final Execution: The "Go/No-Go" Sequence

We never export and sew without a final sanity check.

Operation Checklist (The Final 30 Seconds)

• Text Integrity: Click each word group only once. Does the whole word light up? (Confirms "Grouped").
• Color Verification: Are you looking at the right spool numbers? (Isacord 2300 vs generic pink).
• Parameter Scan:
  • "GOLF" $\rightarrow$ Density 63 $\rightarrow$ Center Walk ON.
  • "2006" $\rightarrow$ Density 57 $\rightarrow$ Center Walk ON.
• Pathing: Run the "Slow Redraw" simulator (if available in your version) to ensure the machine isn't jumping wildly between letters.
• Export: Save as .DST (or your machine's format) and copy to USB.

Frequently Asked Questions (From the Floor)

"Do you still use Forte?" The principles of density, underlay, and pull compensation are universal. Whether you use Forte, Wilcom, or Hatch, the geometry of the stitch remains the same. If this software works for your workflow, stick with it—mastery of one tool beats mediocrity in three.

"My outlines are not lining up with the fill!" This is rarely a software bug; it is usually "Pull Compensation." The fabric pulls in as stitches tighten. Increase your pull compensation or use a more stable hooping method (like a magnetic embroidery hoop) to rigidify the fabric during stitching.

By following this guide, you haven't just learned to click buttons in Forte PD; you have learned to engineer a textile product. Now, thread up, lower the presser foot, and listen for that perfect sound of quality.

FAQ

• Q: In Forte PD, how do I move the entire “WOMENS” text object without accidentally selecting only the letter “W”?
  A: Use Select Object, click the text, and click No when Forte PD asks to select just that character.
  • Click Select Object, then click anywhere on the word “WOMENS”.
  • Choose No on the pop-up so Forte PD selects the whole text segment.
  • Move/resize only after the full-word bounding box appears.
  • Success check: the selection box surrounds the entire word (not one letter).
  • If it still fails: click a different part of the word again and repeat the No choice until the whole group highlights.
• Q: Before stitching a Forte PD text logo like “WOMENS / GOLF / CLASSIC / 2006”, what pre-flight checks prevent gaps, shaky edges, and bird’s nests?
  A: Run a fast pre-flight: grid zero line, correct needle, stabilizer ready, and a hand-pull thread tension feel test before editing or exporting.
  • Turn on/verify the Zero Line so alignment changes are measurable.
  • Confirm needle choice (example given: 75/11 for standard cotton or Ballpoint 70/10 for knits).
  • Prepare backing/stabilizer and any temporary spray adhesive if the fabric needs it.
  • Pull the top thread by hand through the path to confirm smooth, consistent resistance (no snags).
  • Success check: thread pull feels consistent and controlled, and the work area has a clear alignment reference (Zero Line).
  • If it still fails: re-thread carefully and re-check consumables (backing and bobbin tension) before blaming digitizing.
• Q: For Forte PD lettering, how do I set “GOLF” to stitch cleanly on a left-chest logo without thin columns or ragged satin edges?
  A: Use the blog’s “GOLF” recipe: Helvetica Compressed, 0.526 in size, 0.039 in spacing, and Center Walk underlay with the specified density/length.
  • Set font to Helvetica Compressed and size to 0.526 inches (~13 mm).
  • Set character spacing to 0.039 inches (~1 mm) to prevent letters crowding and fabric bunching.
  • In the Stitches tab, set Density: 63.659 stitches/inch, Stitch Length: 0.039 inches, Underlay: Center Walk, Direction: Left-to-Right.
  • Success check: the stitched “GOLF” looks filled-in without sinking or frayed edges, and the machine runs smoothly without constant thread stress.
  • If it still fails: verify stabilization and hooping first (poor hooping can mimic bad digitizing), then re-check that Center Walk underlay is actually enabled for that object.
• Q: In Forte PD, how do I digitize small text like “2006” without shredding fabric or causing thread breaks?
  A: For small text, reduce density and avoid ultra-short, jittery stitching: use Helvetica Condensed, 0.394 in size, Density 57, Stitch Length 0.0984 in, and Center Walk underlay.
  • Switch font to Helvetica Condensed and set size to 0.394 inches (~10 mm).
  • Override stitches: set Density to 57, Stitch Length to 0.0984 inches (~2.5 mm), and Underlay to Center Walk.
  • Keep the focus on preventing needle penetrations from becoming too close together as the letters shrink.
  • Success check: “2006” remains readable with no holes forming around the characters and fewer/no thread breaks on the tiny details.
  • If it still fails: treat it as a fabric/stabilizer problem next (small text is unforgiving)—change stabilization strategy before tightening density again.
• Q: How do I choose stabilizer and topping for a Forte PD text logo on denim, performance polo (stretch knit), or fleece/towel (texture)?
  A: Match stabilization to fabric behavior: stable flats need strong backing, stretch needs polymesh cutaway plus careful hooping, and texture needs topping to stop sink-in.
  • For denim/twill/canvas: use 2 layers tearaway or medium cutaway backing.
  • For performance polo/dry-fit: use No Show Mesh (polymesh) cutaway plus temporary spray, and avoid stretching the fabric while hooping.
  • For fleece/towel: add soluble topping (Solvy) on top, plus tearaway/cutaway backing underneath.
  • Success check: letters stay crisp (no sink-in on fleece, no distortion ripples on knits, no show-through gaps on flats).
  • If it still fails: re-evaluate hooping technique and tension consistency—stabilizer can’t compensate for fabric being stretched in the hoop.
• Q: What is the safest way to run the first trace/stitch after Forte PD digitizing changes on dense lettering?
  A: Keep hands completely away from the needle bar and expect jump locations to change after edits—treat the first run as a safety check.
  • Start with a cautious first run after moving/resizing/adjusting text objects, especially dense lettering.
  • Keep fingers and tools away from the needle bar area during the initial trace and first stitches.
  • Watch for unexpected frame movement caused by new jump stitch locations.
  • Success check: the machine traces and begins stitching without surprising jumps near the hoop edge or sudden frame swings.
  • If it still fails: stop the machine immediately and re-check pathing (slow redraw/simulator if available) before restarting.
• Q: How do I use magnetic embroidery hoops safely to reduce hoop burn and wrist strain during high-volume logo production?
  A: Magnetic hoops can reduce hoop burn and repetitive “cranking,” but handle neodymium magnets like a pinch hazard and keep them away from medical implants/electronics.
  • Upgrade to magnetic hoops when hoop burn or wrist fatigue comes from screw-tightened hoops and frequent hooping.
  • Keep fingers clear when bringing magnetic brackets together—let them close in a controlled way.
  • Keep magnetic hoops at least 6 inches away from pacemakers and sensitive electronics (as warned).
  • Success check: garments clamp securely with fewer shiny hoop rings and less operator strain during repeated hooping.
  • If it still fails: treat it as a process issue next—verify stabilization/hooping method on the fabric type, and consider a production upgrade (multi-needle) if thread-change downtime is the main bottleneck.
