No Cap Driver, No Panic: Embroidering the Side of a Structured Hat with a Smartstitch Flat Magnetic Hoop (Without Smashing Clips or Stitching the Sweatband)

Side of Hat Embroidery on a Flat Hoop: The "No Cap Driver" Survival Guide

If you’ve ever tried to stitch the side of a structured cap on a flat frame, you already know the feeling: the hat wants to spring back into a curve, the bill is threatening to crash into the needle bar, and the sweatband is just waiting to get stitched down forever. It’s a battle between 3D physics and 2D tools.

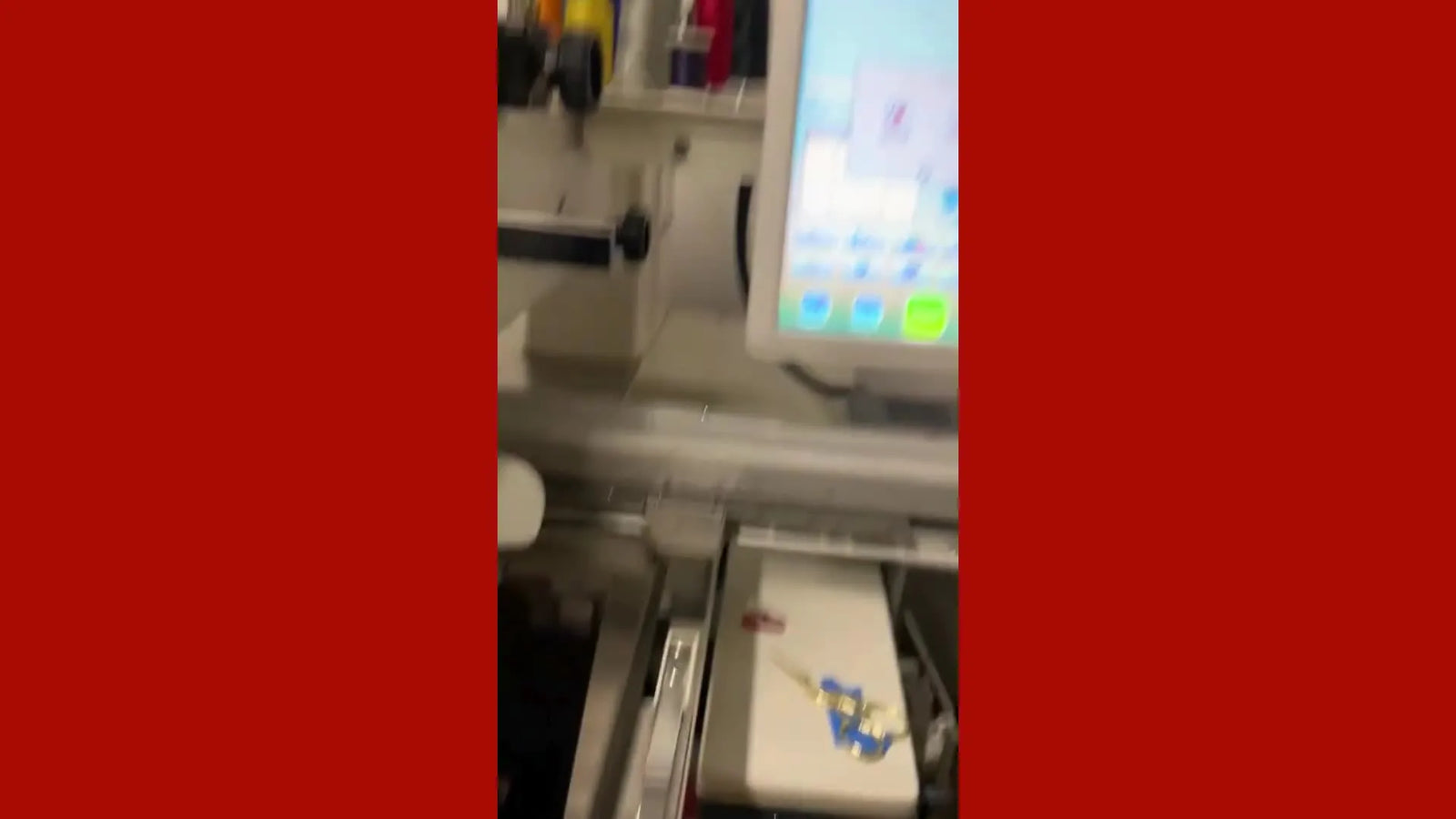

This workflow is a practical “no cap driver” method demonstrated on a machine using a small flat magnetic hoop (3.1" x 3.9"). The magic isn’t one secret setting—it’s the combination of sweatband control, forced flattening with clips, and a disciplined alignment routine using Needle Down + Trace.

The “Don’t-Panic” Primer: Why Side Hat Embroidery Feels Hard on a Flat Magnetic Hoop

Before we touch the machine, let's understand the enemy. A structured cap is a pre-formed 3D object tailored to fit a sphere (a head). A flat hoop is… well, flat. When you clamp a curved surface into a flat window without a specialized cap driver, the cap fights you in three distinct ways:

1. Spring-back Tension: The cap wants to return to its curved shape, pulling violently against the hoop magnets.
2. Flagging Risk: Any loose area near the stitch field can lift ("flag") with the needle's up-motion, causing skipped stitches, birdnesting, or a messy underside.
3. Clearance Risk: Binder clips, hoop edges, and the stiff bill can collide with the needle bar or presser foot if you don’t mathematically verify your travel path.

The video’s solution is refreshingly honest: you “rig” the cap so it behaves flat just long enough to stitch cleanly—then you verify everything twice before you hit start.

1. The Hidden Prep That Saves the Stitch-Out: Sweatband Flip + Stabilizer Choice

The first move isn't on the machine—it’s inside the hat. This creates your "safety zone."

Flip the sweatband outward (The "Do Not Stitch" Zone)

In the demo, the sweatband is flipped out of the way before hooping. This serves a dual purpose:

• Physical Barrier: Keeps the sweatband from creeping into the stitch area and ruining the fit.
• Visual Guide: Gives you a clearer view of the side seam so you can straighten it in the hoop window.

Sensory Check: Run your thumb along the fold. It should feel flat and deliberate, not bunched. If you skip this, you can have a perfect stitch-out that is unwearable because you sewed the sweatband shut.

Stabilizer: The "Cutaway" Rule

The video uses cutaway stabilizer. While tearaway seems easier, it is a mistake for structured hats on flat hoops. Cutaway provides the permanent structural integrity needed to counteract the hat's desire to curve back.

• Beginner Rule: Use 2.5oz or 3.0oz Cutaway.
• Consumable Alert: Have Painter's Tape and Binder Clips ready. You cannot rely on magnets alone for this specific hack.

Pro tip from the comments: A viewer asked about 505 spray adhesive. The creator avoids it. Why? Hats are high-touch, high-sweat items. Overspray or residue inside a hat becomes a sticky irritant for the customer. Mechanical holding (clips) is cleaner than chemical holding (spray).

Prep Checklist (Complete BEFORE hooping):

• Sweatband flipped outward and secured (tape it if it won't stay).
• Side seam identified; visualize how it will sit straight in the window.
• Cutaway Stabilizer cut larger than the hoop frame (2 inches overlap).
• Hidden Consumable: Fresh 75/11 Sharp Needle installed (Ballpoints struggle with structured canvas).
• Thread colors loaded (Demo: White + Purple).


2. Forcing a Curved Cap to Behave: Clips + Tape on a 3.1" x 3.9" Magnetic Hoop

The hoop in the video is a 3.1" x 3.9" flat magnetic hoop. The cap is curved. To bridge this gap, we must mechanically flatten the cap around the hoop perimeter.

The arsenal:

• Black Binder Clips: For heavy clamping power on the edges.
• Red Quilting Clips: For lower profile holding.
• Blue Painter’s Tape: For flutter control near the brim.

This is not about “more is better.” It’s about placing holding power where the cap is trying hardest to lift.

Step 1: Seat the cap and stabilizer

Position the cap so the seam is vertically straight in the hoop window. Be mindful of where the sweatband edge sits relative to your design bottom.

If you are using a smartstitch magnetic hoop, treat the inner window as a "No-Surprises Zone." Gravity and tension will try to shift the hat; your job is to lock it down.

Step 2: Clip the perimeter for TENSION

Because the cap is curved, the magnets alone may not hold the fabric taut against the stabilizer. Place clips around the frame edges to force the cap material down.

Tactile Cue: Tap the fabric inside the hoop. It should sound like a dull drum (thump-thump), not loose paper. If it ripples, you need more clips.

Step 3: Tape the "Flagging Zone" near the brim

The video adds blue painter’s tape near the brim area. Why? This is the "loose tail" of fabric that wants to flutter when the needle penetrates. Tape pins it to the stabilizer.

Warning: Mechanical Hazard
Keep clips and tape strictly outside the needle’s travel path. A presser foot striking a binder clip at 800 stitches per minute can shatter the needle, damage the reciprocating bar, and send metal shrapnel flying toward your eyes. Always assume collision is imminent until proven otherwise.

The Physics: Why Puckering Happens

When you flatten a curved panel, you create excess tension at the edges. Clips act as external "hands" keeping the fabric pressed into the stabilizer. If you see puckering after removal, it means the fabric was stretched too aggressively during hooping and snapped back. Aim for "taut," not "stretched to death."

3. The Hooping Station Advantage: Stability is Speed

The creator uses a frame fixture to hold the magnetic hoop during loading. This is critical. Trying to wrestle a curved hat onto a flat magnetic hoop on a slippery table is a recipe for crooked designs.

A stable fixture allows you to:

1. Use both hands to smooth the fabric.
2. Apply clips without the hoop sliding away.
3. Keep the cutaway stabilizer centered.

If you are setting up a small shop, a magnetic hooping station is the "quiet upgrade" that pays for itself in saved frustration. It turns a 5-minute struggle into a 30-second routine.

Warning: Magnetic Field Safety
magnetic embroidery hoops use powerful Neodymium magnets. They can pinch skin severely causing blood blisters. Do not place them near pacemakers, mechanical watches, or credit cards. Handle with respect.

Setup Checklist (Verification before mounting):

• Hoop fully seated; magnets clicked into place.
• Cap panel is taut; test with a gentle finger press (no ballooning).
• Clips are positioned away from the center stitch field.
• Painter’s tape is pressed firmly; no lifting edges.
• Stabilizer is captured on all four sides.

4. The Needle-Down Alignment Trick: Precision Targeting

Once mounted, we move to the screen. Do not trust your eyes from a distance—parallax view will lie to you.

Step 1: Design Placement

The creator loads a design approx. 1.18" x 1.35".

• Safety Note: Keep designs small for side-hat work. Large designs require more travel, increasing the risk of hitting the bill.
• Organization: If you use various smartstitch embroidery hoops, keep a notebook of "Max Safe Area" for each hoop size on hats.

Step 2: "Needle Down" Verification

She uses the touchscreen to move the design down, away from the bill. Then, she uses the Needle Down button.

This physically drops the needle (without stitching) to point exactly where the center/bottom will land. She confirms it lands on the seam.

Expert Nuance: Stitching on a seam is controversial.

• Risk: Thick seams deflect needles, causing thread shreds.
• Mitigation: If you must stitch on a seam, use a Sharp needle and slow the machine down.

Step 3: The "Trace" (Your Insurance Policy)

She runs a trace (boundary check). She places her hand near the hoop (safely) to gauge clearance.

The Rule of Air Gap: You must see physical light (air gap) between the presser foot and your clips/brim during the entire trace. If it looks "kinda close," move the clip.

When working with a smartstitch hat hoop method like this, the trace is the only thing standing between you and a broken machine.

5. Stitch-Out: Sound, Speed, and Sensory Checks

The video stitches with white and purple thread at 780 SPM.

• Beginner Sweet Spot: 500 - 600 SPM.
  • Why? The hat is unstable. Slower speeds reduce the violence of the needle penetration and give threads more time to recover tension. 780 SPM is for when you are confident; 500 SPM is for when you want to be safe.


Listen to your Machine

Don't just watch; listen.

• Rhythmic "Thump-Thump": Good. The needle is penetrating solid fabric.
• Sharp "Click" or "Snap": Stop immediately. You hit a clip or the hoop edge.
• "Pop" sound: Thread break or needle deflection.

6. Unhooping and Finishing: The Professional Touch

After stitching, remove the "thousands of clips." Trim the cutaway stabilizer closely with curved scissors.

Quality Control:

• Check the inside. Are there birdnests (bunched thread)? This usually means the hat flagged up the needle plate.
• Trim threads flush.
• Ensure no adhesive residue from the tape remains.


Troubleshooting: The "Why Did It Fail?" Matrix

This method is a hack. It works, but it's fragile. Here is how to fix common failures.

Decision Tree: Fabric vs. Strategy

Don't guess. Use this logic flow to determine your setup.

• Decision 1: Is the Hat Structured (Stiff)?
  • Yes: REQUIRED: Cutaway Stabilizer + 4 to 6 Binder Clips + Tape.
  • No (Floppy/Dad Hat): Cutaway Stabilizer + Magnets may suffice, but clips suggested.
• Decision 2: Is the Design > 2 Inches Wide?
  • Yes: STOP. This flat hoop method is too risky for wide designs on curved surfaces. Upgrade to a machine with a Cap Driver.
  • No: Proceed with the clip method.
• Decision 3: Volume of Order?
  • 1-5 Hats: Use this clip method.
  • 50+ Hats: Do not do this. You need a hooping station for machine embroidery and a cap driver attachment to maintain sanity and profit margins.

The Upgrade Path: Moving from "Hacking" to "Manufacturing"

This video proves you can embroider a hat side without a cap driver—but it also reveals the cost: Time.

Level 1: Workflow Upgrade

If hooping feels like a wrestling match, a hooping station for machine embroidery is essential. It holds the hoop static so you can align the seam with both hands. This is the first step in professionalizing your shop.

Level 2: Tooling Upgrade

Users searching for magnetic embroidery hoops often find they solve the "Hoop Burn" issue common with traditional plastic screw hoops. If you are struggling with thick seams on Carhartt or Richardson 112 caps, upgrading to high-quality magnetic hoops for embroidery machines (like those from SEWTECH) provides the vertical holding force needed without the physical strain of tightening screws.

Level 3: Production Upgrade (The End Game)

For one-off gifts, the clip method is fine. But if you have an order for 24 hats, this method will take you 3x longer than necessary. This is where the ROI of SEWTECH Multi-Needle Machines kicks in—machines designed with true cylindrical arms and cap drivers that let you stitch 270 degrees around a cap without clips, tape, or prayer.

Operation Checklist: The "No-Fail" Routine

• Sweatband Safe: Flipped and cleared.
• Fabric Taut: Clips applied, "Drum Skin" tap test passed.
• Tape Applied: Brim-side flagging controlled.
• Mount & Align: Hoop clicked in; Design centered vertically.
• Needle Down Check: Physical confirmation of start point.
• TRACE: Visual confirmation of "Air Gap" between foot and clips.
• Speed: Set to 600 SPM (or lower for beginners).
• Listen: Monitor sound profile during the run.
• Finish: remove clips, trim backing, inspect inside.

FAQ

• Q: Which stabilizer should be used for structured hat side embroidery on a flat magnetic hoop (no cap driver method)?
  A: Use cutaway stabilizer (tearaway is a common failure point on structured hats held flat in a window).
  • Choose 2.5oz or 3.0oz cutaway as a safe starting point for beginners.
  • Cut the stabilizer larger than the hoop with about 2 inches of overlap so all sides are captured.
  • Avoid relying on spray adhesive inside hats; clips + tape are a cleaner holding method for high-touch, high-sweat items.
  • Success check: The hat panel stays taut against the stabilizer with no “ballooning” when gently pressed.
  • If it still fails: Add perimeter binder clips and reduce stitch speed to improve stability.
• Q: What is the correct prep to prevent stitching the sweatband during side hat embroidery on a flat magnetic hoop?
  A: Flip the sweatband outward before hooping to create a clear “do not stitch” zone.
  • Flip the sweatband fully out of the interior so it cannot creep under the needle area.
  • Tape the sweatband in place if it will not stay flipped during handling.
  • Align the side seam after the sweatband is controlled, not before.
  • Success check: Running a thumb along the fold feels flat and deliberate, not bunched or rolled.
  • If it still fails: Re-hoop and re-check design placement with Needle Down before stitching.
• Q: How can a 3.1" x 3.9" flat magnetic hoop be stabilized for side embroidery on a curved structured cap without a cap driver?
  A: Mechanically flatten the cap using binder clips, quilting clips, and painter’s tape—magnets alone may not hold a curved cap flat.
  • Seat the cap and stabilizer first, keeping the seam visually straight in the hoop window.
  • Clamp the perimeter with binder clips where the cap tries hardest to lift.
  • Tape the brim-side “flagging zone” to keep loose fabric from fluttering during needle penetration.
  • Success check: Tap the fabric in the hoop—aim for a dull “drum skin” thump, not ripples or a paper-like flutter.
  • If it still fails: Reduce how aggressively the fabric is stretched (taut, not over-stretched) and reposition clips for more even tension.
• Q: How do Needle Down and Trace prevent presser-foot collisions with binder clips during side hat embroidery on a flat hoop?
  A: Always Needle-Down the start point and run a full Trace (boundary check) before stitching to confirm real clearance.
  • Move the design away from the bill, then use Needle Down to physically confirm where the needle will land.
  • Run Trace and watch the entire travel path, not just the corners.
  • Reposition any clip that looks “kinda close” during Trace—do not gamble.
  • Success check: During Trace, there is visible air gap (light) between the presser foot and every clip/brim area for the full path.
  • If it still fails: Stop and re-hoop with clips placed farther from the stitch field, then re-trace before restarting.
• Q: What machine speed is safest for side hat embroidery on a flat magnetic hoop, and what sounds indicate a problem?
  A: Use 500–600 SPM as a safer beginner range and stop immediately if the sound changes to a sharp click/snap.
  • Set speed to 500–600 SPM to reduce needle “violence” on an unstable, curved setup.
  • Listen for steady rhythmic “thump-thump” as a normal penetration sound.
  • Stop immediately on sharp “click” or “snap” (possible clip/hoop strike) or a “pop” (often thread break or needle deflection).
  • Success check: The machine maintains a consistent rhythm without sudden metallic clicks or snapping sounds.
  • If it still fails: Re-run Trace for clearance and replace the needle before continuing.
• Q: What needle should be used when stitching near a bulky hat seam on a flat hoop, and how can thread shredding be reduced?
  A: Use a fresh #75/11 sharp needle and slow down if the design crosses thick seams.
  • Install a new #75/11 sharp needle before the run (ballpoints often struggle on structured canvas).
  • Slow the machine down (a safer starting point is 500 SPM) when stitching on or near the seam.
  • Keep the design small to reduce travel and seam impacts.
  • Success check: The top thread runs smoothly with no fraying/shredding and no repeated breaks at the seam.
  • If it still fails: Move placement off the seam if possible and re-check hoop stability to reduce deflection.
• Q: What are the key safety risks when using binder clips and magnetic embroidery hoops for side hat embroidery on a flat hoop setup?
  A: Treat clip strikes and magnet pinches as real hazards—verify clearance with Trace and handle magnets deliberately.
  • Keep all binder clips and tape strictly outside the needle travel path; assume collision is possible until Trace proves otherwise.
  • Stop immediately if the presser foot hits anything; inspect the needle for damage before continuing.
  • Handle magnetic hoops carefully to avoid severe pinching; keep magnets away from pacemakers, mechanical watches, and credit cards.
  • Success check: Trace completes with clear air gap everywhere and magnets are fully seated without forcing or finger pinch points.
  • If it still fails: Remove and reposition clips farther out, then re-mount and re-trace before stitching again.
