Foam Trucker Hat Embroidery: The Ultimate Production Guide (Ricoma MT-1502 Case Study)

Foam trucker hats are the kind of job that can make you feel like a hero—or make you question your whole setup in the first 30 seconds.

If you’ve ever watched a cap stitch-out and thought, “It looks fine… wait, why is that outline drifting?” you’re not alone. The structureless nature of foam, combined with the rigidity of the bill, creates a unique set of physics that differs entirely from stitching flats or structured baseball caps.

In this production-day breakdown, we analyze a real-world scenario where Bob (Aesthetic Imprints) tackles foam trucker hats on a Ricoma MT-1502 dual-head. He hits a nasty registration problem, proves it’s a file issue, gets the design re-digitized, and lands a clean, repeatable result.

We are going to rebuild that exact workflow into a "shop-ready" Standard Operating Procedure (SOP). I will add the necessary safety margins, sensory checks, and "hidden" consumable advice that only comes from 20 years of floor experience, ensuring you don’t burn through a pile of blanks learning the hard way.

Foam Trucker Hat Embroidery “Panic Moment”: What Lost Registration Looks Like on a Ricoma MT-1502

Foam trucker hats (poly/foam front with mesh back) feel forgiving because there’s no center seam on the front panel—so precise centering seems simpler than on a structured snapback. But foam has a hidden trap: Compression and Rebound.

When a needle penetrates foam, the material compresses. When the needle retracts, the foam rebounds. If your stitch direction and density aren't calibrated for this "breathing" movement, the fabric shifts under the foot.

In the case study video, the first test stitch-out looks decent from three feet away. But up close, the outline and fill don’t track together—classic lost registration. You see gaps between the fill and the satin border, or the border sits on top of the fill unevenly.

This is the "Panic Moment." You have three variables: The Hooping (Mechanical), The Machine (Calibration), or The File (Digitizing).

The reality is that lost registration happens frequently on foam truckers because the material is soft and spongy. That softness requires a much tighter process—and often different tools—than you would use on a sturdy denim jacket.

The “Hidden” Prep Before You Touch the Panel: Blanks, Backing, and a Reality Check

Before you even touch the interface, you need to stabilize your variables. The video demonstrates a critical production habit: running a test with high-contrast thread (white) on a spare hat, and shutting off the second head to minimize risk.

Here is the "Invisible Prep" you need to master for foam:

1. Blank Selection & Physics The hats used here are Valucap VC700 foam mesh back truckers. Different brands use different foam densities. A Richardson 112 foam front behaves differently than a Valucap or Otto.

• The Rule: If you switch hat brands, you must re-test. The "drag" on the needles changes.

2. The Consumable Trinity: Backing, Needles, and Adhesives The video mentions stabilizer but doesn't specify specs. For foam truckers, "standard" isn't enough.

• Backing: Use a 3.0 oz Tearaway Cap Backing. If the foam is incredibly soft/thin, use two layers of 2.5 oz.
• Hidden Consumable: Use temporary adhesive spray (like KK100 or 505). Lightly mist the backing and stick it to the inside of the cap’s sweatband area. This prevents the backing from sliding independently of the foam during the violent motion of the cap driver.
• Needles: Use a 75/11 Sharp Titanium needle. Ballpoints can tear foam; sharps pierce clean. Titanium resists the friction heat that melts foam.

3. Tooling Up If you are doing this for customers, workflow speed is your profit margin. If you are fighting to get the hat straight or your wrists hurt after 10 caps, it is time to upgrade. Terms like hooping stations are your gateways to understanding efficient production. These stations hold the cap frame rigid, allowing you to use both hands to smooth the foam, reducing the "human error" variable in hooping.

Prep Checklist (Do this before loading the DST)

• Blank Check: Verify model consistency (foam density varies by batch).
• Needle Check: Install fresh 75/11 Sharp needles. Run your finger over the tip—if it catches your skin (burr), trash it.
• Consumables: Cut 3.0oz Cap Backing to size (approx 4.5" x 12").
• Adhesive: Lightly spray backing and adhere to the inside curvature of the hat.
• Waste Control: Designate your "sacrificial hat" for the first test run.
• Mechanical Check: Inspect the cap frame driver on the machine. Is it clean? Lint buildup here causes registration loss.


Loading FINAL11~1.DST: Why "Cap Hoop Mode" Is Not Optional

In the specific Ricoma workflow shown:

1. Insert USB.
2. Select .DST file.
3. Crucial Step: Enter settings and explicitly select Cap Hoop mode.

The "Why" (Expert Elevation): Embroidery machines operate on an X/Y axis. When you switch to caps, the Y-axis (front to back) is inverted in the software to match the rotation of the cylindrical cap driver. If you fail to select "Cap Mode," your design will likely stitch upside down or slam into the limit frame immediately.

He also checks stitch count on-screen. The estimated 13,000 stitches drops to an actual 10,736 stitches. This is normal—DST files are machine instructions, and the machine recalculates jumps and trims based on its specific configuration.

If you are new to this ecosystem, understand that cap hoop for embroidery machine refers to a specific operational state, not just the physical object. The machine's brain must match the hardware.

Needle Choice, Test Strategy, and the One-Head Trick

The video highlights a risk-management strategy that separates pros from gamblers. He selects green thread for the final (Needle 7) but runs a test with white thread first (Needle 1) on only one head of the dual-head machine.

The "Pilot Run" Protocol: If you own a multi-head machine (Ricoma, Tajima, or a high-efficiency SEWTECH production model), never run "all heads" on a new file.

• Turn off Head 2.
• Run Head 1.
• Verify.
• Enable Head 2.

This saves you exactly 50% on wasted blanks during testing.

Warning: Mechanical Hazard. Keep hands, snips, and loose sleeves away from the needle area and moving pantograph. Cap frames sit incredibly close to the needle case mechanisms. The "pinch point" between the cap driver and the rotary hook cover is unforgiving.

For those scaling up, this ability to isolate heads and manage large thread libraries is where ricoma embroidery machines and similar industrial multi-needles prove their worth over single-needle home machines. You keep your production colors loaded while using a spare needle for testing.

The Real Root Cause: When to Blame the Digitizer (Not Yourself)

Here is the pivot point of the case study. The creator identifies the registration error (outline not meeting fill) and correctly diagnoses it as a digitizing/file issue, sending it back for edits.

How to Diagnose Like an Expert: How do you know if it's the machine, the hooping, or the file?

• The Symptom: Gap between the fill and the satin border.
• The Test: Look at the error on two different hats.
  • Scenario A: The gap is in the exact same spot (e.g., left side of the "A") on both hats. Verdict: Digitizing. The file lacks "Pull Compensation."
  • Scenario B: The gap moves. On Hat 1, it's on the left. On Hat 2, it's on the top. Verdict: Hooping/Stabilizer. The hat is moving in the frame.

The Fix for Foam: Foam compresses. A standard design for a t-shirt will fail on foam. You need to ask your digitizer for:

1. Center-Out Run: The design should stitch from the middle toward the edges to push the fabric wave out.
2. Increased Pull Compensation: Foam needs 0.3mm to 0.5mm (or 15-20%) pull comp to account for the sink.
3. Edge Run Underlay: A running stitch inside the satin column borders to anchor them to the fill.

Hooping Foam Truckers: The Tactile "Strap Tension" Technique

Hooping is where the battle is won or lost.

The Process:

1. Place the hat on the gauge.
2. Smooth the sweatband.
3. The "Strap" Move: Pull the metal strap tensioner over the bill/seam area and latch it to the post.

Sensory Check (The "Goldilocks" Zone):

• Too Loose: The strap latches easily with no resistance. Result: The hat will flag (bounce) and registration will fail.
• Too Tight: You have to use your body weight to latch it, and the bill crushes. Result: You will leave permanent "hoop burn" marks or warp the hat's structure.
• Just Right: You feel firm resistance (like pulling a heavy door), the strap snaps with a sharp "Click", and when you tap the foam front, it sounds like a dull drum (thump-thump), not a hollow rattle.

The Commercial Solution for Fatigue: If you are hooping 50 hats, your hands will get tired. Tired hands lead to loose hooping. This is the precise "trigger moment" where many shops upgrade to magnetic embroidery hoops.

• Level 1: Better manual technique.
• Level 2: Mechanical Hooping Stations.
• Level 3: Magnetic Cap Frames (if compatible). Magnets provide consistent, unvarying pressure that human hands cannot maintain over an 8-hour shift, eliminating "hoop burn" on delicate foam.

Warning: Magnetic Safety. Industrial magnetic hoops use high-power neodymium magnets. They can pinch skin severely (blood blister risk) and interfere with pacemakers/ICDs. Store them away from control panels and phones.

Installing the Cap Frame: Lock It Like You Mean It

In the video: Rotate frame -> Slide onto driver -> Lock.

The "Auditory" Check: When you lock the three latches (or top clamps) of the cap driver, you must hear a distinctive mechanical engagement. Once locked, grab the cap frame (gently) and try to wiggle it left and right.

• It should feel solid as a rock.
• If there is any "play" or clicking sound when you wiggle, you are not locked in, or your cap driver bearings are worn.

Many professionals search for compatible ricoma hoops or aftermarket drivers when they notice their original frames developing "slop" or wiggle, which is a silent killer of registration.

Running the Job: Speed, Sound, and Observation

The creator presses Start and runs at 690 SPM (Stitches Per Minute).

Expert Calibration:

• 690 SPM is a solid "Pro" speed for specific machines.
• Beginner Sweet Spot: If you are new to foam, lower your speed to 550-600 SPM. Speed causes vibration; vibration causes foam to shift. Reliability beats speed until you are confident.

What to Watch (Visual & Auditory): Don't walk away. Watch the first 500 stitches.

• Visual: Look for the "flagging" effect—is the hat bouncing up and down with the needle? If yes, your hooping is too loose or the presser foot is too high.
• Auditory: Listen for rhythm. A smooth hum-hum-hum is good. A sharp slap-slap-slap means the presser foot is hitting the cap frame or the material too hard.

The Scaling Question: If you are running a single-needle machine, this process is agonizingly slow because of thread changes. If you have orders for 20+ hats, the time cost becomes unsustainable. This is the criteria for upgrading to a SEWTECH multi-needle machine. The ability to set 12 colors and walk away while it runs at 800+ SPM is how you move from "hobbyist" to "business owner."

Setup Checklist (Right before you press Start)

• Cap Mode: Confirmed on screen?
• Needle Select: Is the correct needle/color active?
• Head Isolation: Are unused heads turned off?
• Physical Lock: Is the cap frame unshakeable on the driver?
• Clearance: Rotate the needle bar by hand (or use the trace function) to ensure the needle doesn't hit the metal strap.

The "Sweatband Hack": Solving Physical Clearance

A commenter noted that sometimes the logo sits too high, and the machine arm hits the crown. Their fix: Hooping lower on the sweatband.

Expert Context: This is risky but sometimes necessary for "high profile" designs.

• Risk: The lower you clamp, the less stability you have at the top of the crown.
• Mitigation: If you must do this, slow the machine down to 500 SPM.

Why Foam Caps Warp (The "Tight Front" Syndrome)

Ever finish a hat and it looks like it shrank? The foam front is pulled tight and the hat fits weirdly. This is thread tension distortion.

The Fix:

• Tension: Thread tension for caps should be slightly looser than for flats. When you pull the top thread, it should feel like flossing your teeth—resistance, but smooth flow. It should not feel like a guitar string.
• Check Bobbin: Look at the back. You should see 1/3 white bobbin thread in the center of the satin column. If you see no white, your top tension is too tight.

Decision Tree: Stabilizer & Hooping Strategy for Foam Truckers

Stop guessing. Use this logic flow to determine your setup.

START: Pinch the Foam Front.

1. Is it mushy/soft/thin? (e.g., Budget Truckers)
   • Action: Use 2 layers of 3.0oz Tearaway Backing.
   • Hooping: Needs extra-tight strap tension. Stick backing to hat with spray.
2. Is it firm/stiff? (e.g., Premium Brands)
   • Action: Use 1 layer of 3.0oz Tearaway.
   • Hooping: Standard tension to avoid crushing the structure.

NEXT: Analyze the Design.

1. Heavy Satins & Borders?
   • Risk: High distortion.
   • Action: Request high pull compensation (0.4mm+) from digitizer. Slow machine to 600 SPM.
2. Light Tatami Fills / Open Design?
   • Risk: Low.
   • Action: Standard settings.

FINALLY: Production Volume.

1. Order Size: 50+ Hats?
   • Bottleneck: Hooping fatigue.
   • Solution: Deploy hooping station for embroidery or upgrade to Magnetic Frames to maintain consistency from Hat #1 to Hat #50.

The Upgrade Path: When Tools Pay for Themselves

The case study shows that specific tools (Pro machine, Cap driver, Digitizing software) are required for pro results.

• Pain Point: "I can't get the hat straight / my hands hurt."
  • Solution: Magnetic Hoops (Compatible with Ricoma/Tajima/SEWTECH). They self-align and clamp instantly without physical force.
• Pain Point: "Small designs create 'ring marks' on the fabric."
  • Solution: Research the ricoma 8 in 1 device or similar specialized clamping systems designed for difficult placements like back-of-cap or pockets, which use smaller frames to avoid crushing the surrounding foam.
• Pain Point: "Changing thread takes longer than stitching."
  • Solution: SEWTECH Multi-Needle Machine. If you are changing threads manually on a single needle for a 3-color design on 20 hats, you are losing hours of profit.

"Perfection at Its Finest": Repeatability is the Goal

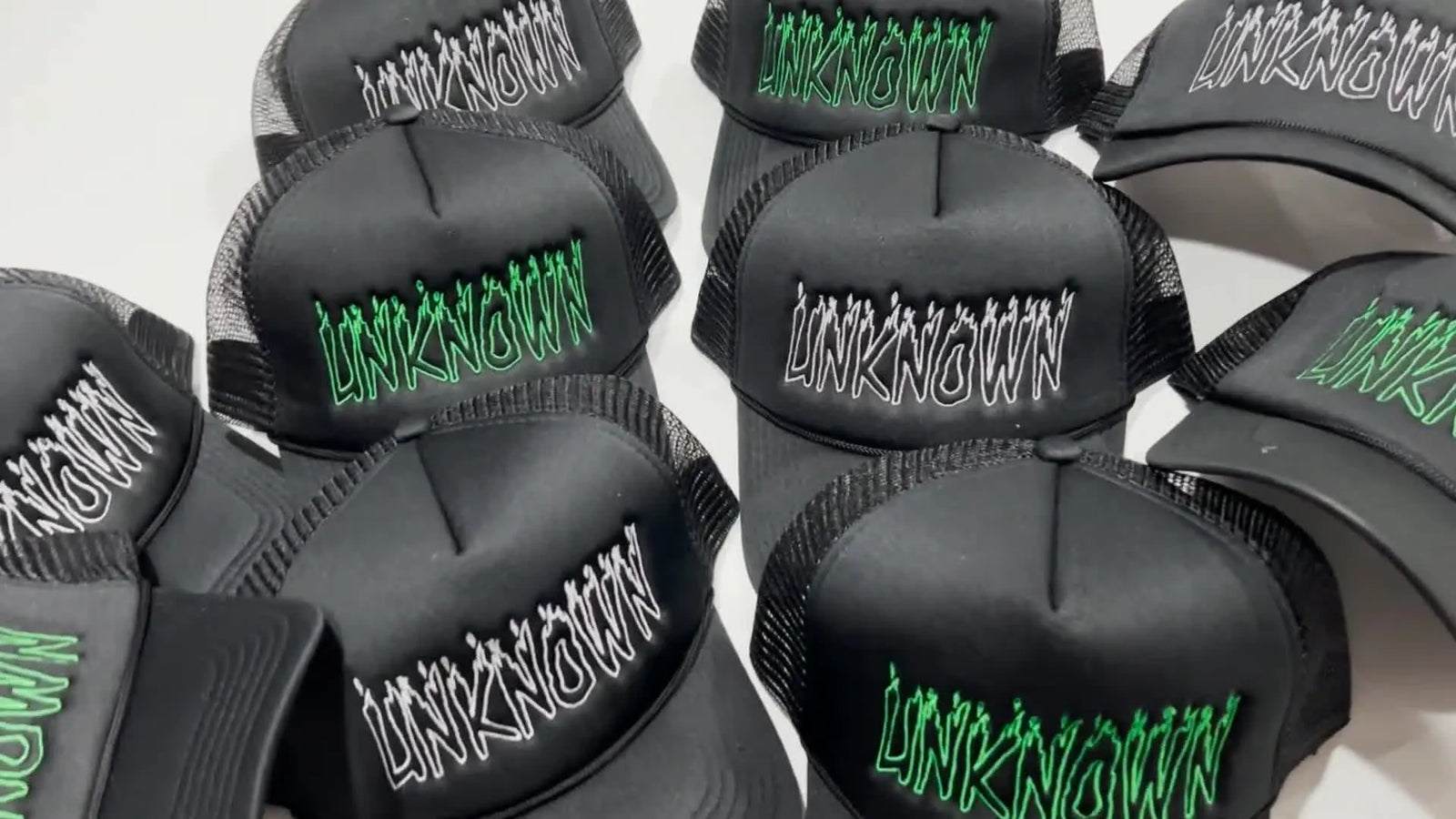

After the file is fixed, the creator runs the job. Black hats, green thread, 690 SPM. The result is crisp, aligned, and professional.

"Perfection" isn't magic. It is:

1. Correct Digitizing (Pull Comp).
2. Correct Hooping (Tight strap + adhesive).
3. Correct Settings (Cap Mode + Reasonable Speed).






Operation Checklist (The Final Quality Control)

• First 500 Stitches: No drift between outline and fill.
• Sound Check: No "slapping" or "clicking" noises.
• Foam Integrity: The foam isn't "cupping" or buckling inward.
• Thread Path: No shredding or fraying (indicates tension too tight or needle too hot).
• Stop & Inspect: If anything looks off, stop immediately. It is cheaper to lose one hat than to stitch 12 bad ones.

Foam trucker hats don’t forgive guesswork using "flat" embroidery rules. Respect the foam, stabilize the bounce, and when in doubt—blame the file before you blame the machine.

FAQ

• Q: How do I fix lost registration on foam trucker hats on a Ricoma MT-1502 when the satin border gaps away from the fill?
  A: Treat it as a file-versus-hooping diagnosis first—foam makes both fail, but the “gap pattern” tells you which one it is.
  • Compare two stitch-outs on two different hats: same gap location each time usually points to digitizing (pull compensation/sequence), while a moving gap usually points to hooping/stabilizer slip.
  • Request foam-specific edits from the digitizer: center-out sequencing, increased pull compensation, and an edge-run underlay inside satin borders.
  • Tighten process variables: use proper cap backing weight and stick backing to the hat interior with a light mist of temporary adhesive so it cannot slide independently.
  • Success check: the satin border lands evenly on the fill with no daylight gaps in the same problem area.
  • If it still fails: re-check cap frame lock/play on the driver and slow speed to reduce vibration-induced shift.
• Q: What stabilizer, needle, and adhesive setup is a safe starting point for foam trucker hat embroidery on a Ricoma MT-1502 cap frame?
  A: Start with firm stabilization and a sharp needle—foam needs control more than “gentleness.”
  • Use 3.0 oz tearaway cap backing; if the foam front is very soft/thin, stack layers rather than guessing.
  • Install a fresh 75/11 sharp titanium needle to pierce foam cleanly and reduce heat/friction issues.
  • Lightly spray temporary adhesive on the backing and bond it to the inside sweatband area to prevent backing slip during cap-driver motion.
  • Success check: during the first few hundred stitches, the cap does not “bounce/flag,” and the backing stays flat without creeping.
  • If it still fails: inspect for lint buildup on the cap frame driver and replace any needle that shows burrs or starts shredding thread.
• Q: Why does a Ricoma MT-1502 need “Cap Hoop/Cap Mode” selected when running a DST file on caps?
  A: Cap Mode is not optional because the machine’s coordinate handling must match the rotating cap driver hardware.
  • Enter the machine settings before stitching and explicitly select Cap Hoop/Cap Mode for cap frames.
  • Verify clearance with trace/hand-rotate before starting so the needle path will not strike the cap strap or metal.
  • Run the first test stitch-out on only one head to confirm the file behaves correctly before enabling additional heads.
  • Success check: the design stitches in the expected orientation and does not immediately run into frame limits.
  • If it still fails: stop immediately and re-confirm the cap frame is the correct hardware and fully locked on the driver.
• Q: How tight should the cap frame strap tension be for hooping foam trucker hats to avoid hoop burn and registration problems?
  A: Aim for the “Goldilocks” strap tension—firm resistance without crushing the bill or foam structure.
  • Latch the strap so it closes with a sharp, confident “click,” not a soft easy latch and not a forced body-weight slam.
  • Tap the foam front after hooping: it should sound like a dull drum (thump-thump), not a hollow rattle.
  • Avoid overtightening that crushes the bill/foam and leaves permanent marks; avoid undertightening that allows flagging.
  • Success check: the cap front feels stable and does not bounce under the presser foot during the first stitches.
  • If it still fails: add adhesive-backed stabilizer control and reduce stitch speed to cut vibration.
• Q: What is the safest way to test a new foam trucker hat design on a dual-head Ricoma MT-1502 to avoid wasting blanks?
  A: Use a one-head pilot run with high-contrast thread—this is common practice and saves blanks.
  • Turn off Head 2 and run Head 1 only for the first test stitch-out.
  • Use a high-contrast thread color for the test so small registration drift is visible immediately.
  • Inspect the result up close, then enable the second head only after the file and hooping prove stable.
  • Success check: the first 500 stitches track cleanly with no outline/fill drift and no abnormal “slap” sounds.
  • If it still fails: stop and diagnose whether the error repeats in the same spot (digitizing) or moves around (hooping/stabilizer).
• Q: What mechanical safety precautions are critical when running cap frames on a Ricoma MT-1502 multi-needle embroidery machine?
  A: Keep hands and tools out of pinch points—cap frames run very close to moving needle-case and hook-area parts.
  • Keep fingers, snips, and loose sleeves away from the needle area and moving pantograph while the machine is running.
  • Use trace/hand-rotation to confirm the needle path clears the cap strap and frame hardware before pressing Start.
  • Stop the machine fully before reaching in to adjust thread, backing, or the cap frame latch.
  • Success check: there are no “slap-slap” impacts, and nothing contacts the frame during rotation/trace.
  • If it still fails: slow down and re-check frame installation—any contact risk means something is mounted or set incorrectly.
• Q: When hooping foam trucker hats becomes inconsistent or causes hand fatigue, what is the practical upgrade path from technique to tools?
  A: Use a tiered approach: improve technique first, then reduce human variability with better tooling, then upgrade production capacity if volume demands it.
  • Level 1: Standardize manual hooping—strap tension consistency, backing adhered with spray, and a sacrificial test hat.
  • Level 2: Add a hooping station to hold the cap frame rigid so both hands can smooth and align the foam consistently.
  • Level 3: Consider magnetic clamping solutions (when compatible) to maintain repeatable pressure across long runs and reduce hoop burn risk.
  • Success check: Hat #1 and Hat #50 look the same in registration and the cap front is not warped or marked.
  • If it still fails: treat repeatable distortion as a digitizing/tension issue and re-check speed, pull compensation, and top tension balance.
