Floriani FTCU Auto Clip Stitches: Clean Overlaps, Less Bulk, and Zero “Mystery Gaps” in Interlocking Designs

The "Bulletproof" Patch Problem: Mastering Auto Clip Stitches in FTCU for Softer, Safer Embroidery

We have all been there. You finish a 45-minute stitch-out, remove the hoop, and realize your design feels like a piece of cardboard glued to a T-shirt. It’s stiff, it doesn’t drape, and if you listen closely during the process, your machine was likely making that strained thump-thump-thump sound as the needle struggled to penetrate five layers of thread.

In the world of professional embroidery, this is called "Stitch Stacking," and it is the enemy of quality.

When specific designs—like interlocking monograms, layered logos, or stacked geometric fills—overlap, the software default is often to simply stitch one complete object on top of another. This creates bulk, increases heat (leading to thread breaks), and distorts the fabric.

That is exactly the problem DJ Anderson solves in Floriani Total Control U (FTCU) using Auto Clip Stitches. This tool isn’t just a "delete" button; it is a surgical instrument that removes hidden stitches while keeping your design editable.

But software is only half the battle. As your Chief Embroidery Education Officer, I am going to walk you through the software workflow, but I will also layer in the physics of production—because even the best digitized file will fail if your hooping and stabilization aren't dialed in.

The Physics of Bulk: Why You Need Auto Clip Stitches

Before we click buttons, let’s understand the mechanics. When you stack two solid fills on top of each other:

1. Needle Deflection: The needle hits a wall of existing thread, causing it to bend slightly. This leads to broken needles or burrs that shred thread.
2. Fabric Distortion: Dense areas push fabric outward. This is why your outline often doesn't line up with your fill (registration errors).
3. The "Armour" Effect: The embroidery becomes so dense it creates a stiff "shield" that is uncomfortable to wear.

Auto Clip Stitches is the remedy. It logically removes the flooring (the bottom object) only where the furniture (the top object) sits, leaving the visible parts of the bottom object intact.

Phase 1: The "Hidden" Preparation (Do Not Skip)

Most setbacks happen before you even open the Auto Clip tool. The software obeys the laws of the specific layer order you set. If you tell the software the wrong story, it will give you the wrong ending.

The Golden Rule of Sequence View

You must verify the Sequence View before clipping.

• The Hero (Top Object): The object you want to look complete and unbroken must be at the bottom of the list (stitched last) or visually on top.
• The Sacrifice (Bottom Object): The object that sits underneath must be stitched earlier in the sequence.

In the "LOVE" example:

• To make the L look like it is sitting on top, the O must be lower in the stacking order (underneath).
• To make the V dominate, the O and E must be underneath it.

If you skip this check, Auto Clip might cut a hole in your top letter, leaving you with a disjointed puzzle.

Pre-Flight Hardware Check

While you are prepping your file, check your physical station. A dense design requires a sharp path.

• Needle: If you are stitching through overlaps, switch to a fresh Topstitch 75/11 or 80/12. Do not use a Ballpoint if you can avoid it; you need penetration power.
• Bobbin Case: clear out lint. Lint + High Density = Birdnesting.

Prep Checklist: The "Go/No-Go" Decision

• Sequence Verification: The object visually on top is physically last in the stitch order.
• Overlap Intent: Zoom in 400%. Confirm the overlap is intentional and not an accidental nudge.
• Version Control: Save your file as Design_Name_V1_PreClip. You need a backup if you over-clip.
• Fill Type Check: Identify if you are using Gradient or Standard Fill (strategy changes slightly for gradients).
• Hardware Check: Fresh needle installed; bobbin area cleared of lint.


Phase 2: The Execution Workflow

DJ’s workflow in FTCU is streamlined for efficiency. Follow this exact path to avoid "menu fatigue."

1. The Global Selection

Drag a selection box around all participating objects.

• Why? Auto Clip calculates the spatial relationship between objects. If you only select the top letter, it doesn't know what it is supposed to be clipping against.


2. Properties & Mode Selection

Navigate to the Properties box and locate Automatic Clip.

• Select: "Clip overlap stitches in segments below"

This is the industry standard setting. It tells the software: "Look at what is selected, identify what is on top, and remove the stitches from whatever is underneath."

3. Apply and Verify (The Sensory Check)

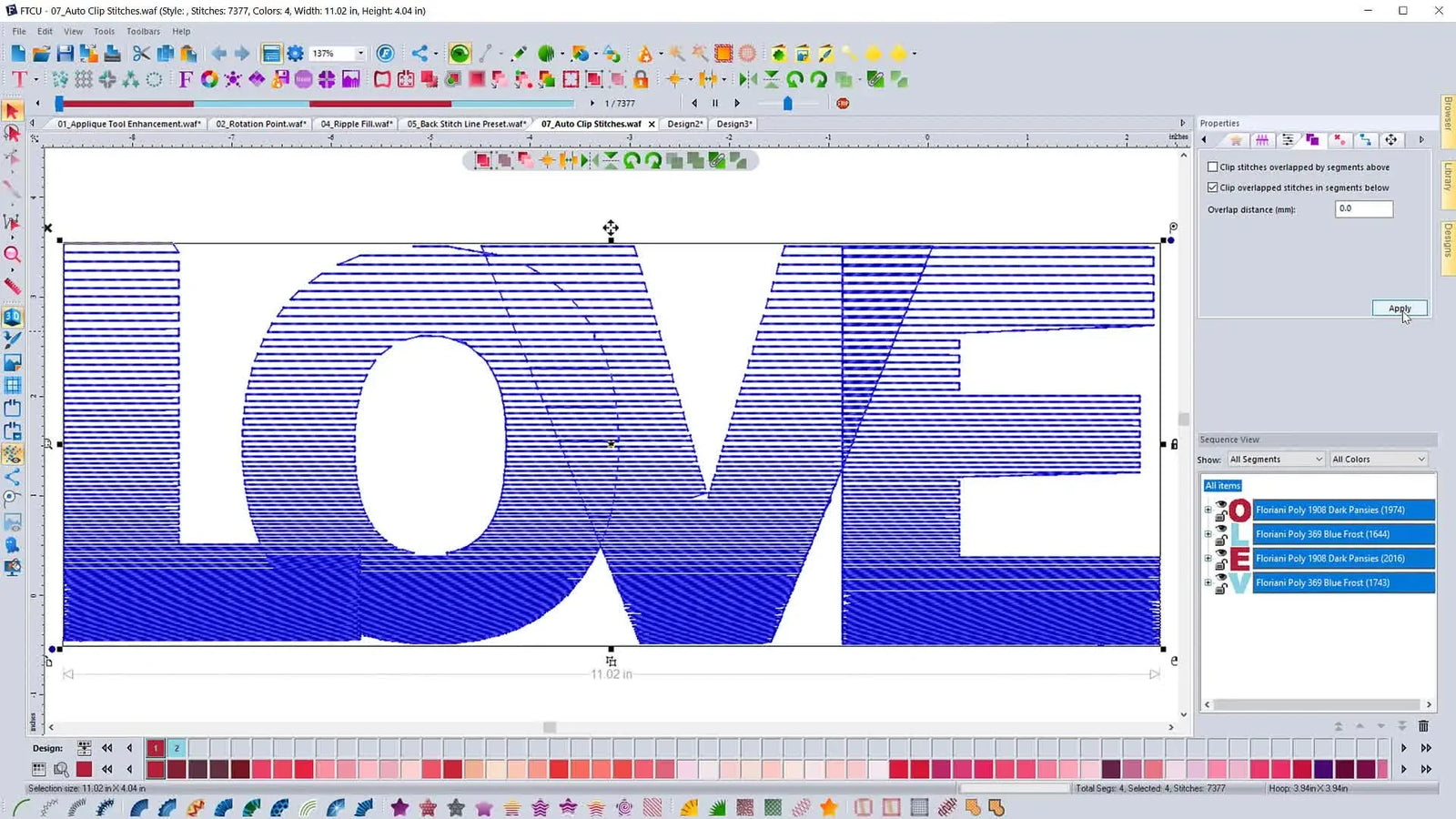

Click Apply. Do not just trust the computer. You need to visually verify the cut.

• Action: Temporarily move the top object (the distinct letter).
• Visual Check: You should see a "cookie-cutter" hole in the shape underneath. This confirms the bulk is gone.
• Action: Undo the move (Ctrl+Z) to snap it back into perfect position.






Setup Checklist: The Integrity Check

• The "Cookie Cutter" Test: Move the top object, verify the hole exists, undo the move.
• Edge Inspection: Zoom in to the border. Does the rim of the hole look clean, or are there jagged tatami jumps?
• Ghost Segments: Ensure no tiny, unwanted slivers of thread were left behind in the gap.
• Layer Lock: Once satisfied, consider locking these layers in the software so you don't accidentally shift them.

Warning (Safety): When testing dense designs on your machine, always keep your fingers outside the hoop area. If a needle breaks due to density deflection, the tip can fly at high velocity. Wear safety glasses if you are closely monitoring the first run.

Phase 3: The "Editable" Miracle

Here is the massive advantage of FTCU over older software. In the past, "clipping" was destructive—once you cut the stitches, they were gone forever. If you moved the letter, you had a hole in the wrong place.

FTCU is dynamic.

1. Move: Shift your letter layout (e.g., kerning adjustment).
2. Select All: Grab the group again.
3. Re-Apply: Click Automatic Clip > Apply.

The software "heals" the old hole and cuts a new one in the correct spot. This allows you to tweak designs for different garment sizes (Small vs. XL) without rebuilding the file from scratch.

Phase 4: The Physics of "Gap Insurance" (Overlap Distance)

This is the section that separates the amateurs from the pros. The Problem: Fabric is fluid. As you stitch, thread tension pulls the fabric inward (Pull Compensation). If you cut a hole in the bottom layer exactly the size of the top layer, the fabric will pull apart during stitching, revealing a white gap of fabric between the two colors.

The Solution: You need a safety margin. This is called Overlap Distance.

DJ demonstrates entering 1.2 mm in the Overlap Distance field for solid fills.

The "Sweet Spot" Data Guide

While 1.2mm is a great safe zone, professional digitizers adjust this based on material physics. Use this table as your starting point:

Visualizing the Mechanics

Imagine tiling a floor. You don't cut the tile exactly to the edge of the wall; you leave a tiny gap for grout. Here, we do the opposite. We want the top tile (Top Stitch) to hang slightly over the edge of the bottom tile (Underlay) so that when the house settles (fabric shrinks), no cracks appear.

Troubleshooting: The "Symptom-Cause-Fix" Matrix

If your stitch-out fails, do not guess. Use this matrix to diagnose the problem systematically. Start with the "Low Cost" fixes (checking the hoop) before moving to "High Cost" fixes (re-digitizing).

Phase 5: The Production Mindset (Beyond the Software)

You can have the perfect 1.2mm overlap and a perfectly clipped file, but if your physical hooping is sloppy, you will still get gaps.

The "Hooping Variable" Traditional screw-tightened hoops create uneven tension using a "push-pull" mechanism that can distort the fabric grain before you even start. If the fabric is stretched when hooped, it will snap back when unhooped, ruining your registration.

The "Tooling Upgrade" Path If you are struggling with registration despite using Auto Clip, examine your tools:

1. Level 1: Hooping Stations. A machine embroidery hooping station ensures your placement is identical every time. It holds the outer hoop static while you place the inner hoop, reducing the "hands wrestling fabric" variable.
2. Level 2: Magnetic Hoops. Many professionals search for how to use magnetic embroidery hoop videos because they solve the "crush" problem. Magnetic hoops hold the fabric flat with downward pressure rather than lateral stretching. This pairs perfectly with Auto Clip Stitches because it allows the fabric to relax, making your 1.2mm overlap setting accurate and effective.
3. Level 3: Multi-Needle Efficiency. If you are constantly changing thread colors for these complex layered designs, a single-needle machine becomes the bottleneck. SEWTECH Multi-Needle Machines maintain consistent tension across all needle bars, which drastically improves registration on overlapping designs compared to the constant re-threading of home machines.

Warning (Magnet Safety): If you upgrade to magnetic hoops, be aware they use industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens. Always slide them apart; never try to pry them open.

Decision Tree: Where is the failure?

Before you blame the software, trace the failure:

1. Is the gap consistent on every single shirt in the exact same spot?
   • YES: It is a Digitizing Issue. Go back to FTCU, increase overlap distance by 0.3mm.
   • NO (It moves around): It is a Hooping Issue. Your fabric tension varies. Consider a hooping station or magnetic hoop to standardize tension.
2. Is the embroidery bulletproof/stiff?
   • YES: You forgot to specific "Clip segments below." Go back to Phase 2.
3. Is the outline off-center?
   • YES: Check your stabilizer. For dense overlaps, you must use Cutaway stabilizer. Tearaway is not strong enough to hold the tension of layered fills.

Final Operation Checklist: Your Success Routine

• Prep: Sequence View verified (Top is Top, Bottom is Bottom).
• Action: Select All > Auto Clip > Clip Segments Below.
• Variable: Set Overlap Distance based on fabric (1.2mm for Pique, 1.5mm for tees).
• Verify: Visual check for the "cookie cutter" hole.
• Stabilize: Use Cutaway stabilizer for any design with heavy overlaps.
• Hoop: Ensure "drum-tight" tension (sound check: rhythmic tap, not a dull thud). Consider magnetic embroidery frames for consistency.
• Safety: Keep hands clear, watch the first layer run.

Hidden Consumables You'll Need

• Temporary Spray Adhesive (505): Essential to adhere backing to fabric so it doesn't shift during gaps.
• Fabric Pens: In a pinch, a fabric marker matching your thread color can hide a tiny gap—save the garment, then fix the file.
• Tweezers: For picking out those tiny "ghost stitches" if you re-clip a design multiple times.

Mastering Auto Clip Stitches is the difference between an "amateur patch" and a "professional emblem." It respects the fabric, protects your needle, and ensures your wearer is comfortable. Start with the 1.2mm safety zone, trust the physics, and keep your hooping consistent.

FAQ

• Q: In Floriani Total Control U (FTCU), how do I stop stitch stacking on layered monograms using the “Automatic Clip: Clip overlap stitches in segments below” setting?
  A: Use FTCU Automatic Clip on a full multi-object selection so the bottom layers get trimmed under the top layers.
  • Select: Drag a box to select all overlapping objects (not just the top letter).
  • Set: Properties > Automatic Clip > choose “Clip overlap stitches in segments below” > Apply.
  • Verify: Temporarily move the top object, confirm a clean “cookie-cutter” hole in the layer underneath, then Ctrl+Z to undo.
  • If it still fails: Recheck FTCU Sequence View so the visual “top” object stitches last (on top).
• Q: In Floriani Total Control U (FTCU) Sequence View, what stitch order prevents Auto Clip from cutting holes in the wrong letter of a stacked “LOVE” monogram?
  A: Put the object that must look unbroken and on top as the last-stitched (topmost visually) object before applying Auto Clip.
  • Identify: Decide which letter must visually sit on top (the “hero”).
  • Confirm: In FTCU Sequence View, ensure the “hero” stitches after the “sacrifice” (the underneath letter).
  • Apply: Select all related letters and re-run Automatic Clip.
  • Success check: After the clip, moving the top letter shows the hole only in the underneath letter—not in the top letter.
  • If it still fails: Undo, fix the sequence order again, then re-apply the clip (don’t try to patch it manually).
• Q: In Floriani Total Control U (FTCU), what Overlap Distance should I start with to prevent white gaps between solid fill colors after using Auto Clip Stitches?
  A: Start with FTCU Overlap Distance around 1.2 mm for solid fills, then adjust by fabric stability if gaps appear.
  • Set: Enter 1.2 mm as a safe starting point for medium-stability fabrics like pique polos.
  • Adjust: Increase overlap for stretchy or lofty fabrics (often 1.5–1.8 mm for T-shirts/performance; around 1.5 mm for fleece/hoodies).
  • Reduce: Use smaller overlap on stable fabrics like canvas/denim (often 0.8–1.0 mm) for a crisper edge.
  • Success check: After stitching, color boundaries meet cleanly with no fabric “peek-through” line.
  • If it still fails: Improve stabilization (cutaway for heavy overlaps) and re-run the clip after any layout changes.
• Q: On dense overlap designs digitized in Floriani Total Control U (FTCU), what needle and bobbin-area prep reduces “thump-thump” sounds and birdnesting?
  A: Install a fresh Topstitch 75/11 or 80/12 and clean lint from the bobbin area before running high-density overlaps.
  • Change: Replace the needle (avoid ballpoint when you need penetration through stacked thread).
  • Clean: Remove lint from the bobbin case area to reduce nesting risk under heavy density.
  • Save: Keep a pre-clip file version (e.g., V1_PreClip) so you can back out if you over-clip and re-test.
  • Success check: Stitching sounds smoother (less strained “thump-thump”) and the underside shows no sudden thread wad forming.
  • If it still fails: Stop the run early and reduce bulk via Auto Clip (don’t force the machine through stacked fills).
• Q: When testing dense layered fills after Floriani Total Control U (FTCU) Auto Clip, what needle-break safety steps should embroidery operators follow at the machine?
  A: Keep hands outside the hoop path and wear eye protection when closely monitoring a first run on dense overlaps.
  • Position: Keep fingers fully clear of the hoop area during stitching.
  • Monitor: Watch the first layer carefully so you can stop quickly if deflection starts.
  • Protect: Wear safety glasses if you are leaning in during the initial test run.
  • Success check: The run completes without needle deflection events (no sudden snap, no needle tip fragments).
  • If it still fails: Reduce density/bulk with proper clipping and overlap settings before attempting another run.
• Q: For registration shifts and inconsistent gaps on overlapping designs (Floriani Total Control U workflow), when should embroidery operators upgrade from standard screw hoops to magnetic embroidery hoops or a hooping station?
  A: Upgrade when the same design’s gap or misalignment moves around from garment to garment, indicating hooping tension variation rather than digitizing.
  • Diagnose: If the gap is identical in the same spot every time, adjust digitizing (often add about 0.3 mm overlap); if it “wanders,” focus on hooping consistency.
  • Level 1: Use a hooping station to standardize placement and reduce hand-induced distortion.
  • Level 2: Use magnetic embroidery hoops to hold fabric flat with downward pressure instead of stretching, improving repeatability on overlaps.
  • Success check: Repeated stitch-outs land outlines/fills consistently in the same position across multiple garments.
  • If it still fails: Switch to stronger stabilization (cutaway for heavy overlaps) and confirm the fabric wasn’t stretched during hooping.
• Q: What neodymium magnet safety rules should embroidery operators follow when using magnetic embroidery hoops on home or industrial machines?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from pacemakers, cards, and sensitive electronics.
  • Handle: Slide magnets apart—never pry them open—to reduce sudden snap pinches.
  • Protect: Keep fingers out of the closing path; magnets can pinch severely.
  • Isolate: Keep magnets away from pacemakers, credit cards, and computerized machine screens.
  • Success check: The hoop can be opened/closed repeatedly without finger pinches or uncontrolled snapping.
  • If it still fails: Stop and retrain handling technique before production—magnet injuries happen fast and are preventable.
