DesignShop 11’s “Funny Little Property” That Saves Your Satin: Stop Snags, Stop Breaks, Keep Small Lettering Clean

Master the "Invisible" Settings: A Guide to Perfect Top Stitching in DesignShop 11

When a sew-out fails, it rarely fails because you "can’t digitize." It usually fails because the laws of physics collided with your file. A stitch got just a little too long (creating a snag hazard) or just a little too cramped (creating a thread break).

DesignShop 11 has a deceptively simple Top Stitching property—often overlooked by beginners—that acts as an automated safety net. It serves two critical functions:

1. On Satin/Lettering: It converts overly long satin stitch lines into a textured fill. This prevents the loops from snagging on zippers or washing machines.
2. On Complex Fill: It converts overly thin fill stitch lines into satin columns. This prevents the needle from hammering into a space smaller than the needle itself, which causes fabric damage and "bird nesting."

If you’re doing small lettering for corporate logos (especially on performance pique or tees), this is the setting that turns "constant test-stitch thread breaks" into a profitable, production-ready file.

Calm the Panic: What DesignShop 11 “Use Fill/Satin for Stitch Lines” Actually Changes (and What It Doesn’t)

New digitizers often fear that changing settings will "ruin" the look of their design. Let me offer you some psychological safety: This feature does not change your design’s DNA the way "Auto Stitch Type" does. It is a surgical intervention.

It selectively swaps stitch behavior only where the geometry crosses into the "Danger Zone":

• Satin objects: When stitch lines exceed your safety threshold (e.g., >7mm), the software inserts a fill-style texture to anchor the thread.
• Complex fill objects: When stitch lines drop below your minimum width (e.g., <1mm), the software swaps to a satin stitch to maintain clean edges.

That’s why experienced operators consider this a "hidden" pro feature. You keep your design intent, but you eliminate the physical causes of snags and breaks.

If you are running a melco embroidery machine or a high-speed SEWTECH multi-needle machine in a commercial workflow, this is your "digitizing insurance." It protects your delivery dates by preventing the need for repairs.

The “Hidden” Prep Pros Do Before Touching Top Stitching Settings in DesignShop 11

Before you start tweaking numbers, you need to perform a "Pre-Flight Check." Changing these settings blindly can solve one problem while creating another.

1) Identify the Object Type

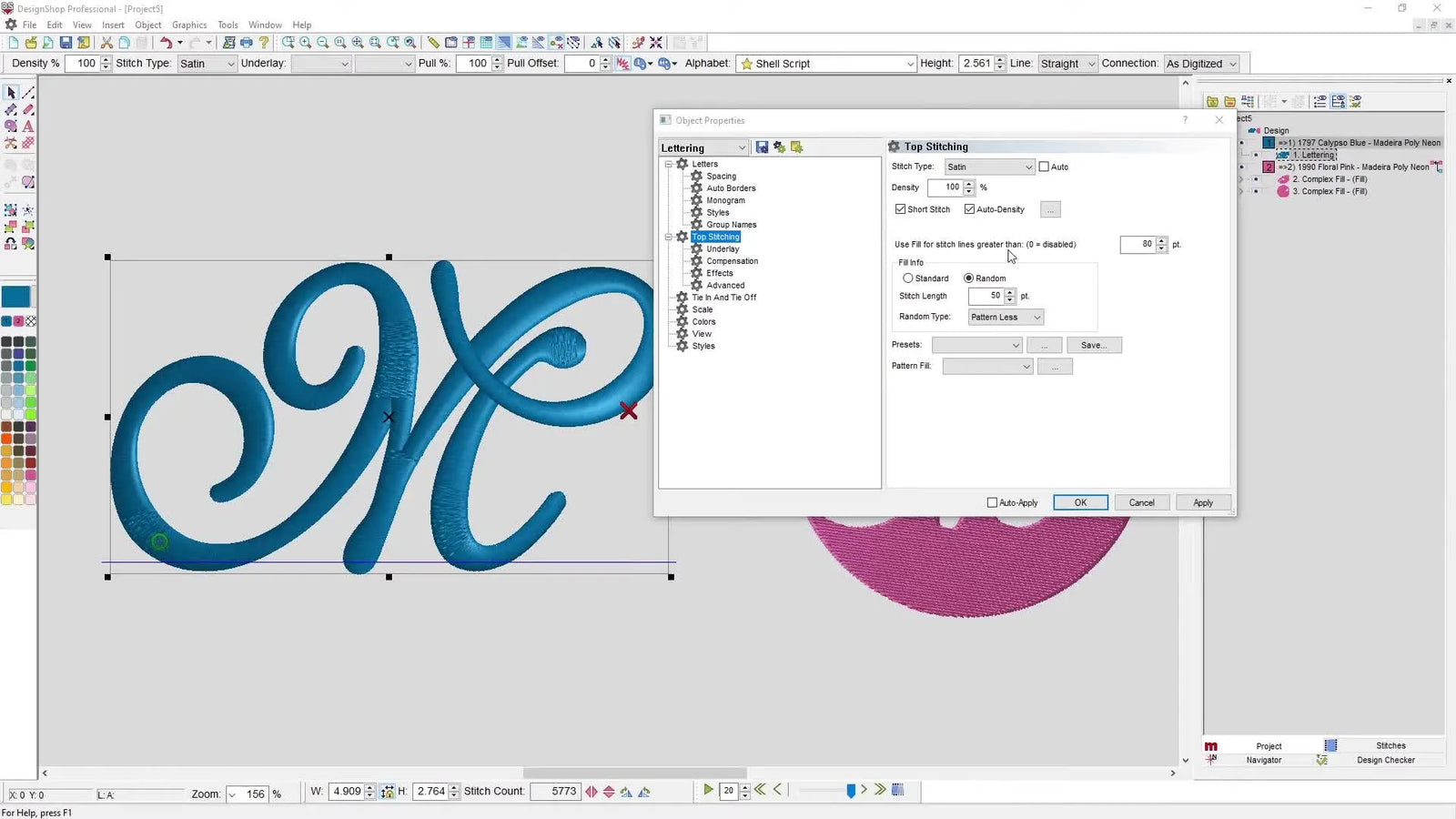

• The video example highlights a blue “M” lettering object (Satin).
• It later switches to Complex Fill elements (pink swirls).
• Why this matters: The menu options change completely based on the object type.

2) Diagnose the Risk Profile

• High Friction: Is this a mechanic's uniform or a toddler's shirt? You need to prevent snags (manage long satins).
• High Detail: Is this a tiny chest logo? You need to prevent breaks (protect thin fills).

3) Speak the Language of "Points"

• DesignShop uses "points" (10 points = 1mm).
• Sensory Check: 70 points is roughly the width of a standard pencil eraser (7mm). 120 points (12mm) is nearly half an inch—way too long for a t-shirt.

Warning: Mechanical Safety First. Don't chase thread breaks with software settings alone if you hear a sharp cracking sound or see "bird nesting" under the throat plate. Stop immediately. Inspect your needle for burrs (run your fingernail down the tip) and check your thread path. A software setting cannot fix a physical burr or a bent needle.

Prep Checklist (do this before editing properties)

• Object Audit: Click the object. Is it Satin/Lettering or Complex Fill?
• Hidden Consumable Check: Do you have a fresh 75/11 needle installed? (Old needles cause breaks that look like digitizing errors).
• Risk Assessment: Is the goal to stop snagging (too long) or breaks (too small)?
• Benchmark: Plan to verify sizes with the Ruler tool after changes.
• Backup: Note your original values (or save a _v1 file) so you can revert if needed.


Make Long Satin Safer: “Use Fill for Stitch Lines Greater Than” in DesignShop 11 Lettering

Let's look at the practical application. In the video, the presenter selects the blue “M” (satin lettering), then navigates to: Right-click Object > Properties > Top Stitching > “Use fill for stitch lines greater than”

The default shows 80 points (8mm). The presenter lowers it to 60 points (6mm).

The "Why" behind the number: Long satin stitches look glossy and beautiful on a screen. However, on a physical garment, a 10mm loop of thread is a hook waiting to catch on a button, a zipper, or a ring. By lowering the threshold to 60 points, you force the machine to anchor the thread before it becomes a snag hazard.

Note: You can set this to 0 to disable the feature, but I rarely recommend this for wearables.

What you should expect to see on screen

As you lower the threshold (e.g., 80 $\to$ 60), watch the center of the satin column. You will see needle penetration points (texture) appear in the widest parts of the letter. This is the safety net engaging.

The Trade-off:

• Visual: You lose a tiny bit of that "smooth glass" satin look in the widest areas.
• Functional: You gain massive durability. The stitches won't pull out after the first wash.

When digitizing small logo lettering for tees—a staple for anyone searching for a melco embroidery machine setup—this setting is often the difference between a rejected order and a happy client.

Measure, Don’t Guess: Use the DesignShop 11 Ruler Tool to Verify Stitch Line Length

In embroidery, "eyeballing it" is the fast track to failure. The video demonstrates the most professional habit you can build: Using the Ruler Tool.

1. Activate the Ruler tool.
2. Click and drag across the widest part of your satin stitch.
3. Read the tooltip (e.g., "Length: 7.7mm (77 pts)").

The Reality Check: If your ruler says 77 points, and your threshold is set to 80, the safety feature will not work. You need to lower your threshold to 70 or 60 to catch that area.

Expert insight: why “points” thresholds matter in production

Professional shops often use one logo file for multiple locations (Left Chest vs. Full Back). If you scale that "M" up by 20%, that 7.7mm stitch becomes 9.2mm.

If you have your threshold set correctly, DesignShop will automatically trigger the fill conversion as soon as you resize the logo up, protecting the larger garment without you needing to redigitize. That is the definition of a robust workflow.

Pick the Split Look: Random Patternless vs Standard Auto Split Pattern Type

Once the software decides "this satin is too long, I must make it a fill," you get to choose how that fill looks.

The Auto Split Pattern Type dropdown offers:

• Random Patternless
• Standard

The Visual Difference:

• Random Patternless: Scatters the needle penetrations. It effectively hides the "fix." It attempts to mimic the look of satin while adding structural integrity.
• Standard: Creates a structured "brick" or "step" pattern. It looks intentional and uniform.




When I’d choose each option (shop-floor logic)

• Select "Random Patternless" for Lettering: You usually want text to look like text. The random pattern breaks up the light less harshly, keeping the "flow" of the letter.
• Select "Standard" for Shapes/Backgrounds: If you have a large shape, the random pattern can look messy or like a mistake. The standard pattern looks like a deliberate texture choice.

Pro-Tip: If consistency is key (e.g., 50 shirts), stick to Standard. Random patterns can sometimes look slightly different if the file is re-processed, causing slight variations in sheen.

Stop Thread Breaks in Skinny Details: “Use Satin for Stitch Lines Less Than” in Complex Fill

Now, let's flip the script. We are moving from "Too Big" to "Too Small."

When you select a Complex Fill object (like the pink swirls), the property changes to: “Use satin for stitch lines less than”

In the video, the value is 15 points (1.5mm).

Why this prevents breaks (the geometry problem)

Consider the physics: A standard #11 needle is about 0.75mm thick. If you try to put fill stitches (which require multiple penetrations side-by-side) into a shape that is only 1.0mm wide, you are effectively hammering the needle into the same hole repeatedly.

The Consequence:

• Thread shreds (friction).
• Fabric turns to pulp (perforation).
• Sensory Cue: You will hear a rhythmic thump-thump-thump as the machine struggles to clear the thread in that tight spot.

By setting this to 15 points, DesignShop converts those skinny zones into a single Satin column (zig-zag). This flows over the fabric rather than piercing it to death.

Comment-driven pro tip (small lettering logos)

If you are doing tiny tagline text (e.g., "Established 1990" under a main logo), this setting is mandatory. Tiny fills in letters are the #1 cause of thread breaks on t-shirts. Set your threshold to 15-20 points to ensure those thin lines sew out as clean satins.

The Wear-and-Tear Rule for Satin Stitch Length: Use mm as Your Real-World Language

"How long is too long?" This is the most common question I get from students. The answer depends on Utility, not just aesthetics.

One of the comments in the thread nails this with Melco's official guidance:

• High Wear (Uniforms, Kids, Bags): Cap satin length at 6–7 mm. Friction will destroy anything longer.
• Low Wear (Hats, Jackets, Wall Art): You can push up to 10–12 mm.
• 3D Puff: Long sitches are required (often 10mm+) to cover the foam. The foam's tension prevents snagging.

The Translation:

• 6mm = 60 Points
• 7mm = 70 Points
• 12mm = 120 Points

Write these down. Tape them to your monitor. This is your safe zone.

Setup That Actually Holds Up on a Real Garment: Threshold Tuning by Use Case (Not by Ego)

There is no "Magic Number" that works for every project. A master digitizer adjusts based on context. Here is your tuning guide:

Case A: The Mechanic’s Polo (High Wear)

• Goal: Maximum durability. Bulletproof.
• Strategy: Set "Use fill greater than" to 50-60 points. No snags allowed. Use Standard split for a uniform look.

Case B: The Wedding Handkerchief (Low Wear / Delicate)

• Goal: Maximum shine and luxury.
• Strategy: Set threshold to 120 points. Let those satins float.

Case C: The Complex Crest (High Detail)

• Goal: Legibility and zero breaks.
• Strategy: Aggressively use "Use satin less than" at 20 points to force all tiny lines into clean satin stitches.

The Hardware Component: Even perfect digitizing can fail if your hooping is loose. If you are struggling with fabric shifting during these precise stitches, you might need to look beyond software. Many operators find that melco embroidery hoops or specifically magnetic options provide the grip needed for these settings to verify correctly.

Setup Checklist (after you set thresholds, before you export/run)

• Validation: Confirm Satin objects show "Use fill..." and Fill objects show "Use satin..."
• Measurement: Measure the widest satin and thinnest fill with the Ruler Tool.
• Visual Check: Scaling the design? Zoom in and check if the texture appeared where you expected.
• Aesthetic Choice: Did you intentionally choose Random or Standard? Don't leave it on default by accident.

A Simple Decision Tree: Fabric Wear Level → Stitch Strategy → Stabilizer & Hooping Choices

Digitizing is only 50% of the battle. The other 50% is physics. Use this decision tree to match your file settings to your production reality.

1) Is the item High-Wear and Flexible (T-shirt, Polo, Knit)?

• Yes: Threshold = 60 points. Stabilizer = Cutaway (Must support the stitches).
• No: Threshold = 80+ points. Stabilizer = Tearaway (if fabric is stable).

2) Are there ultra-thin details (swirls, tiny text)?

• Yes: Turn on "Use Satin Less Than" (15 pts). Use a 65/9 or 70/10 needle for crispness.
• No: Standard settings apply.

3) Is the fabric delicate or prone to "Hoop Burn"?

• The Pain Point: You digitize perfectly, but the hoop leaves a permanent ring or creases the fabric.
• The Solution: This is where tools matter. Learning how to use magnetic embroidery hoop systems can save your garment. They hold fabric firmly without the friction burn of traditional rings, allowing your perfectly digitized satins to lay flat.

Warning: Magnet Safety. Magnetic hoops (like Mighty Hoops) are incredibly powerful. They can pinch fingers severely and must be kept away from pacemakers and implanted medical devices. Always handle with respect.

Troubleshooting the Two Failures This Feature Is Built to Prevent

If you are still seeing issues, use this diagnostic table. Do not guess—isolate variables.

If you run production on a melco amaya embroidery machine, standardizing these fixes in your template files will drastically reduce your downtime.

The Upgrade Path: When Better Digitizing Isn’t Enough (and What to Upgrade First)

Once your files are "clean" (using the settings above), your next bottleneck will be production speed. If you have mastered the software but are still tired or slow, it's time to look at your hardware.

Level 1: The Stability Issue

• Trigger: You spend more time fighting with hooping than sewing.
• Solution: A hooping station for machine embroidery. This ensures every shirt is hooped in the exact same spot, reducing operator fatigue and "crooked logo" waste.

Level 2: The Quality/Speed Issue

• Trigger: You see fabric puckering on knits, or your wrists hurt from manual clamping.
• Solution: mighty hoops for melco or similar magnetic frames. They allow you to hoop faster and hold thick items (like Carhartt jackets) that standard hoops can't grip.

Level 3: The Scale Issue

• Trigger: You are turning away orders because you can't stitch fast enough on a single needle.
• Solution: It’s time to move to a multi-needle platform. Machines like the SEWTECH commercial series offer the speed and color-change capacity to turn your digitized files into profit at scale.

Operation Checklist: The “Before You Hit Start” Habit That Prevents 80% of Rework

• Visual Scan: Do you see the "texture" in the long satins on your screen? Good.
• Needle Integrity: Is the needle sharp and straight? (Roll it on a flat surface to check).
• Tension Check: Pull the top thread. It should feel like the resistance of flossing your teeth—consistent, not loose.
• Ruler Verification: Measure one "risky" area with the Ruler Tool to confirm points vs. mm.
• Test Sew: Run a scrap swatch. Listen to the machine. A smooth hum is success; a rhythmic banging needs adjustment.

By integrating these "Top Stitching" safeguards with proper physical setup, you transform from a person who hopes it sews well to a professional who knows it will.

FAQ

• Q: In DesignShop 11 Top Stitching, how does “Use Fill for Stitch Lines Greater Than” prevent satin lettering snags on high-wear garments?
  A: Lower the “Use fill for stitch lines greater than” threshold so long satin areas convert to a textured fill before they become snag hazards.
  • Open the satin/lettering object: Right-click Object → Properties → Top Stitching → “Use fill for stitch lines greater than”.
  • Set a practical starting point for high-wear items to about 60–70 points (6–7 mm), then re-check the widest areas.
  • Measure the real stitch length with the Ruler tool instead of guessing.
  • Success check: On-screen, the widest satin zones show added penetration “texture” (the safety net engaging) instead of a single long glossy span.
  • If it still fails… inspect for physical causes of snags (loose fabric, poor hooping, or damaged needle) before changing more software settings.
• Q: In DesignShop 11, how do I use the Ruler Tool to confirm Top Stitching point thresholds will actually trigger after resizing a logo?
  A: Measure the widest satin stitch line in mm/points and set the threshold lower than that measured value so the conversion reliably activates.
  • Activate the Ruler tool and drag across the widest part of the satin column.
  • Read the tooltip (example format: “Length: 7.7mm (77 pts)”).
  • Set “Use fill for stitch lines greater than” below the measured points (e.g., if it measures 77 pts, 80 pts will not trigger).
  • Success check: After scaling the design up, newly “too-long” areas show the fill-style texture automatically without re-digitizing.
  • If it still fails… confirm you are editing the correct object type (Satin/Lettering vs Complex Fill), because the available Top Stitching options change by type.
• Q: In DesignShop 11 Complex Fill objects, how does “Use Satin for Stitch Lines Less Than” stop thread breaks and bird nesting in ultra-thin details?
  A: Turn on “Use satin for stitch lines less than” so skinny fill zones convert into a single satin column instead of dense fill penetrations.
  • Select the Complex Fill object and open Properties → Top Stitching → “Use satin for stitch lines less than”.
  • Use the video’s shown value of about 15 points (1.5 mm) as a reference point for thin swirls/tiny details.
  • Listen during test sew-outs for tight-area “thump-thump-thump,” which often indicates the needle is hammering a space that’s too small for fill.
  • Success check: Thin details sew smoothly with fewer breaks, and the machine sound returns to a steady hum instead of rhythmic thumping.
  • If it still fails… stop and check for mechanical issues (needle burrs, bent needle, or incorrect thread path) because software settings cannot fix damaged hardware.
• Q: In DesignShop 11, should I choose “Random Patternless” or “Standard” Auto Split Pattern Type after long satin stitches convert to fill?
  A: Choose “Random Patternless” to disguise the fix in lettering, and choose “Standard” for a consistent, intentional texture on shapes/backgrounds.
  • Set Top Stitching so the satin actually converts (your threshold must be below the measured stitch length).
  • For lettering, try “Random Patternless” to keep the letter flow and reduce obvious patterning.
  • For large shapes or when consistency matters across many garments, use “Standard” for a uniform look.
  • Success check: The converted area looks intentional—lettering doesn’t look “blocky,” and backgrounds don’t look messy or accidental.
  • If it still fails… re-check the wear level: high-wear items often need a shorter satin safe zone (about 6–7 mm) to avoid future pulls.
• Q: In DesignShop 11 production, what needle and mechanical checks should I do before blaming Top Stitching settings for thread breaks or bird nesting?
  A: Stop and verify needle condition and the thread path first—Top Stitching cannot compensate for a burr, a bent needle, or a physical jam.
  • Inspect the needle for burrs by lightly running a fingernail down the tip, and replace if you feel a catch.
  • Confirm a fresh needle is installed (the blog’s checklist calls out a fresh 75/11 as a common baseline check).
  • Stop immediately if you hear sharp cracking sounds or see bird nesting under the throat plate; clear the jam and re-thread correctly.
  • Success check: After correction, the machine runs with a smooth hum and no rapid nesting buildup under the needle plate area.
  • If it still fails… return to the geometry checks (measure stitch lengths/widths and verify the correct Top Stitching option appears for the selected object type).
• Q: How do I reduce hoop burn and puckering on delicate fabrics when running DesignShop 11 files with precise satin and thin-detail settings?
  A: Reduce hoop-related stress first (don’t over-tighten), and consider magnetic hooping systems when hoop burn is recurring on delicate items.
  • Identify the symptom: shiny ring marks or ripples around the design indicate hoop burn/pucker rather than a digitizing failure.
  • Re-hoop with firm, even tension instead of extreme tightening; verify stability before sewing.
  • If steaming is safe for the fabric, try steaming out minor marks after sewing.
  • Success check: The fabric around the design lays flat with no permanent ring impression before and after the sew-out.
  • If it still fails… consider upgrading the hooping method (magnetic hoops can reduce friction burn while holding firmly), and confirm stabilizer choice matches the fabric (the blog notes cutaway for high-wear flexible knits).
• Q: When Top Stitching settings in DesignShop 11 are correct but production is still slow or inconsistent, what is the practical upgrade path from technique to tools to capacity?
  A: Follow a staged approach: fix stability first, then hooping efficiency, then move to multi-needle capacity if orders outgrow single-head speed.
  • Level 1 (Technique): Standardize thresholds (e.g., protect high-wear satins around 6–7 mm and force ultra-thin fills to satin around 15–20 pts) and measure with the Ruler tool.
  • Level 2 (Tooling): If hooping is the bottleneck or fabric shifts, add a hooping station and/or magnetic frames to improve repeatability and reduce operator fatigue.
  • Level 3 (Capacity): If you’re turning away work due to stitch time and color changes, move to a multi-needle platform (such as SEWTECH commercial multi-needle machines).
  • Success check: Fewer re-hoops and fewer test runs are needed, and delivery dates become predictable instead of “hope-based.”
  • If it still fails… document which failure dominates (snags, breaks, hoop burn, or throughput), then address that single bottleneck before changing multiple variables at once.
