DIY SWF Embroidery Machine Repair: Adjusting Hook Timing and Support
A professional yet approachable walkthrough on correctly setting the hook timing and hook support for SWF embroidery machines. Learn how to loosen and align with precision, verify on all needles, and reassemble with confidence. This guide turns a technical repair into a manageable advanced maintenance skill.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Why Correct Hook Timing is Crucial for Your SWF Machine
  2. Essential Tools for the Job
  3. Step 1: Preparing Your Machine for Adjustment
  4. Step 2: The 3-Screw Loosening Procedure
  5. Step 3: Setting the Perfect Hook Timing at 200 Degrees
  6. Step 4: Securing the Hook and Finalizing the Adjustment
  7. Bonus: How to Adjust the Hook Support

Why Correct Hook Timing is Crucial for Your SWF Machine

A rotary hook that’s even a fraction off can lead to skipped stitches, thread breaks, and lots of rework. Proper timing ensures your needle and hook meet precisely where the thread loop forms. When that mechanical ballet is off, tension problems multiply.

Understanding the Role of the Rotary Hook The hook’s job is to catch the upper thread loop and carry it around the bobbin case. If it arrives too early or too late, that loop disappears—and with it, your stitch consistency.

Symptoms of Poor Hook Timing Skipped stitches, shredded thread, or a clicking noise all point to possible misalignment. Watch closely for subtle issues, especially after a needle break or jam.

When You Should Check Your Timing Anytime you experience repeated thread breakage or after service transport, verify the hook alignment before assuming tension issues.

Essential Tools for the Job

You’ll need precision and a steady hand. A basic screwdriver is used throughout. Keep a piece of paper or a spare needle handy to measure micro‑distances. The technician in the video also demonstrates safe hand positioning to avoid damage to delicate parts.

_(A comparable accessory in other machine lines would be tools and timing aids like those used alongside mighty hoops on multi-head setups.)_

A technician removing the needle plate from the embroidery machine.
Remove the needle plate using a screwdriver to access the rotary hook.

Step 1: Preparing Your Machine for Adjustment

Before anything else, power down the machine—or set it into a safe maintenance mode so it won’t start unexpectedly. Remove the needle plate above the hook using your screwdriver.

Make sure the area is clear and well‑lit. Being able to see the hook’s reflection under the needle bar will make your alignment smoother.

_(If you’re used to aligning accessories such as magnetic embroidery hoops for brother, this preparation step will feel just as methodical—organization before calibration.)_

Step 2: The 3‑Screw Loosening Procedure

Loosening all three screws allows the hook to move freely when setting its new position.

1. Turn the timing wheel to 100 degrees and loosen the first screw.

Screwdriver loosening a screw at 100 degrees timing mark.
Loosen the first screw with the timing wheel set to 100 degrees.

2. Move to 150 degrees, releasing the hidden second screw behind the hook.

Technician rotating timing wheel to 150 degrees.
Rotate the timing wheel to 150 degrees to access the second screw.
Tool loosening second screw at 150-degree position.
Loosen the second screw located behind the hook at 150 degrees.

3. Finally, rotate to 200 degrees and loosen the third screw.

Turning the timing wheel to 200 degrees.
Set the timing wheel to 200 degrees for the final loosening and reference position.

For bridge‑style multi‑head machines, note the wheel may look different, but degree marks function the same.

Bridge-style multi-head machine timing wheel close-up.
Bridge-style multi-head machines have a different wheel design but follow the same reference points.

_(This sequence is as structured as hooping alignment on larger frames like magnetic hoops for tajima embroidery machines—precision in symmetry counts.)_

Step 3: Setting the Perfect Hook Timing at 200 Degrees

This is where the magic—and the patience—come in.

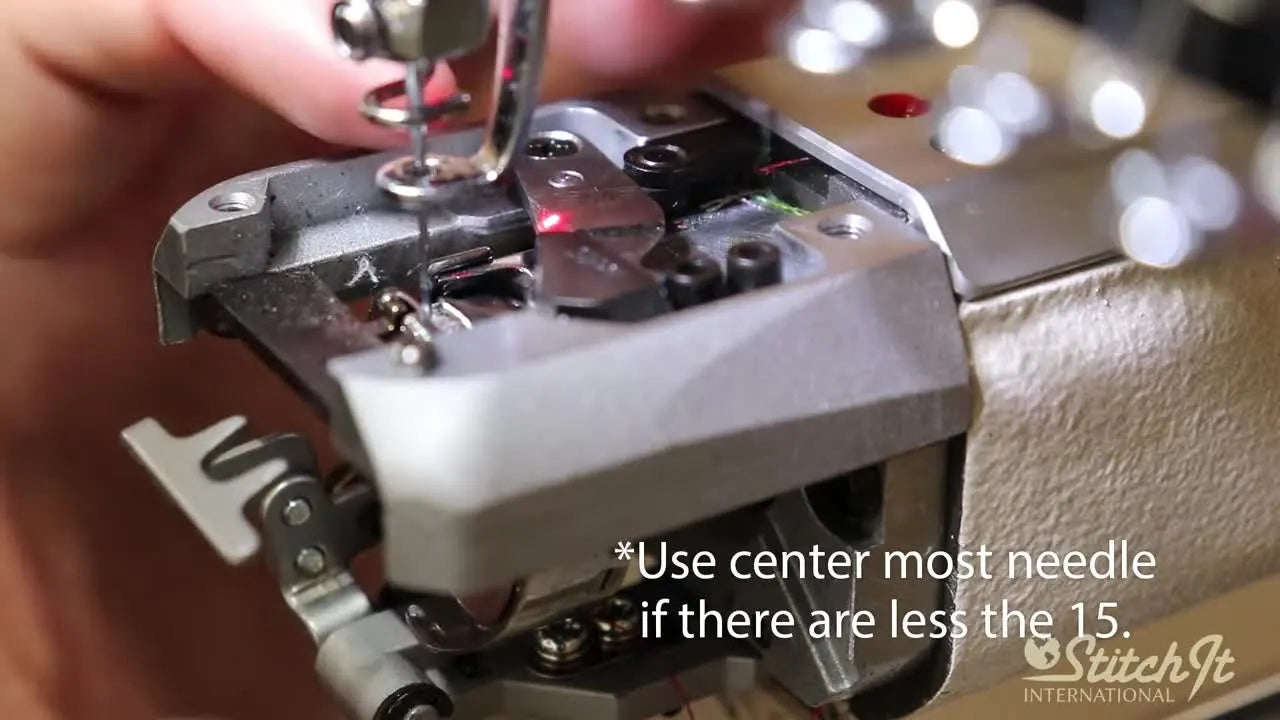

At 200 degrees on the dial (needle number eight in the video), align the flattened point of the hook directly behind the needle’s center. The left‑to‑right “rotation” sets the catching moment.

Close-up of hook alignment behind needle at 200 degrees.
At 200 degrees, ensure the hook aligns precisely behind the needle's center point.
Screwdriver tip showing flat spot on the hook.
Align the hook’s flat spot directly behind the needle for correct rotation.

Next, check the front‑to‑back “deflection.” The ideal gap ranges from 0.3 to 0.7 mm. Slip a sheet of paper into the space: if it barely fits, you’re good. Then, gently press the needle toward the hook; a light flex confirms precision.

Technician pushing the needle slightly to test deflection.
A gentle push verifying suitable deflection between the hook and needle.

Quick Check – If the needle moves slightly when pushed, your gap is correct. Too firm? The hook is touching the needle. Too loose? The hook sits too far back.

_(Embroidery technicians who upgrade with multi‑needle systems or specialty accessories like barudan magnetic embroidery frame will appreciate how consistent calibration techniques apply across brands.)_

Verification Across Needles Check the highest and lowest needles—here numbers 15 and 1—to ensure timing doesn’t drift. Minor degree variances are acceptable; drastic ones may indicate a warped head.

Checking hook and needle alignment on needle 15.
Verify timing on outermost needles to confirm consistency.

Step 4: Securing the Hook and Finalizing the Adjustment

Once everything lines up perfectly on all needles, secure the hook.

At 200 degrees, tighten your first screw. Rotate back to 150 degrees for the second, then 100 degrees for the final fastener.

Tightening second screw at 150 degrees.
Secure the rotary hook screws as you move through 200, 150, and 100 degrees.

Check that the hook no longer shifts when nudged. The goal is firmness without over‑torquing. Consistent pressure keeps the timing locked for thousands of stitches.

_(For crafters balancing multiple machines—including brands compatible with magnetic hoops for ricoma embroidery machine or other industrial frames—careful torque management ensures reliability across setups.)_

Bonus: How to Adjust the Hook Support

If your hook or bobbin needs replacement, you’ll remove and reset the “hook support”—the bracket guiding the bobbin case.

1. Loosen one bottom screw; remove the other to swing the bracket aside.

Hook support bracket being removed.
Remove the hook support bracket if replacing or resetting the hook.

2. Reinstall with the needle centered through the middle of the hook support when the dial reads 200 degrees.

Finger aligning hook support with needle center.
Center the hook support under the needle path for accurate bobbin alignment.

3. To set the spacing, place a spare needle between the hook and the support as a makeshift gauge before tightening.

Spare needle used as a spacer between hook and hook support.
Use a spare needle to gauge the proper distance between hook and hook support.

Alignment here is crucial: shift too far left or right and your bobbin thread will misfeed, forming loops underneath your embroidery.

Pro Tip – This centering step mirrors precision work in hoop alignment for multi‑head arrays such as baby lock magnetic embroidery hoops, where left‑right symmetry prevents thread tension errors.

Once satisfied, reinstall the needle plate carefully.

Technician replacing the needle plate.
Reinstall the needle plate after completing adjustments.
⚠️ Never skip verifying thread path clearance after reassembly. Engage the handwheel slowly to ensure no contact occurs between metal parts.

Testing, Maintenance, and Sharing Your Results

Give the handwheel a full rotation and observe the smooth interplay of needle, hook, and support. A correctly timed machine hooks the thread cleanly every cycle.

Mark down the date, degrees, and any parts replaced. Regular logs prevent future mystery issues. Keep spare screws and notes organized—just as you might track various hoop sizes such as babylock hoops when managing multiple projects.

From the Workshop: Technicians often keep a practice scrap to confirm perfect tension before running customer designs. This is an easy habit that catches subtle timing drifts early.

_(And if you ever switch brands or models, knowing these fundamentals transfers easily—whether you’re calibrating an SWF or aligning the sensor arm on a brother embroidery machine at home.)_

Perfect hook timing isn’t magic; it’s engineering elegance you can learn. Follow each mechanical motion with purpose, and you’ll bring your SWF embroidery machine back to peak performance—ready for the next masterpiece.
