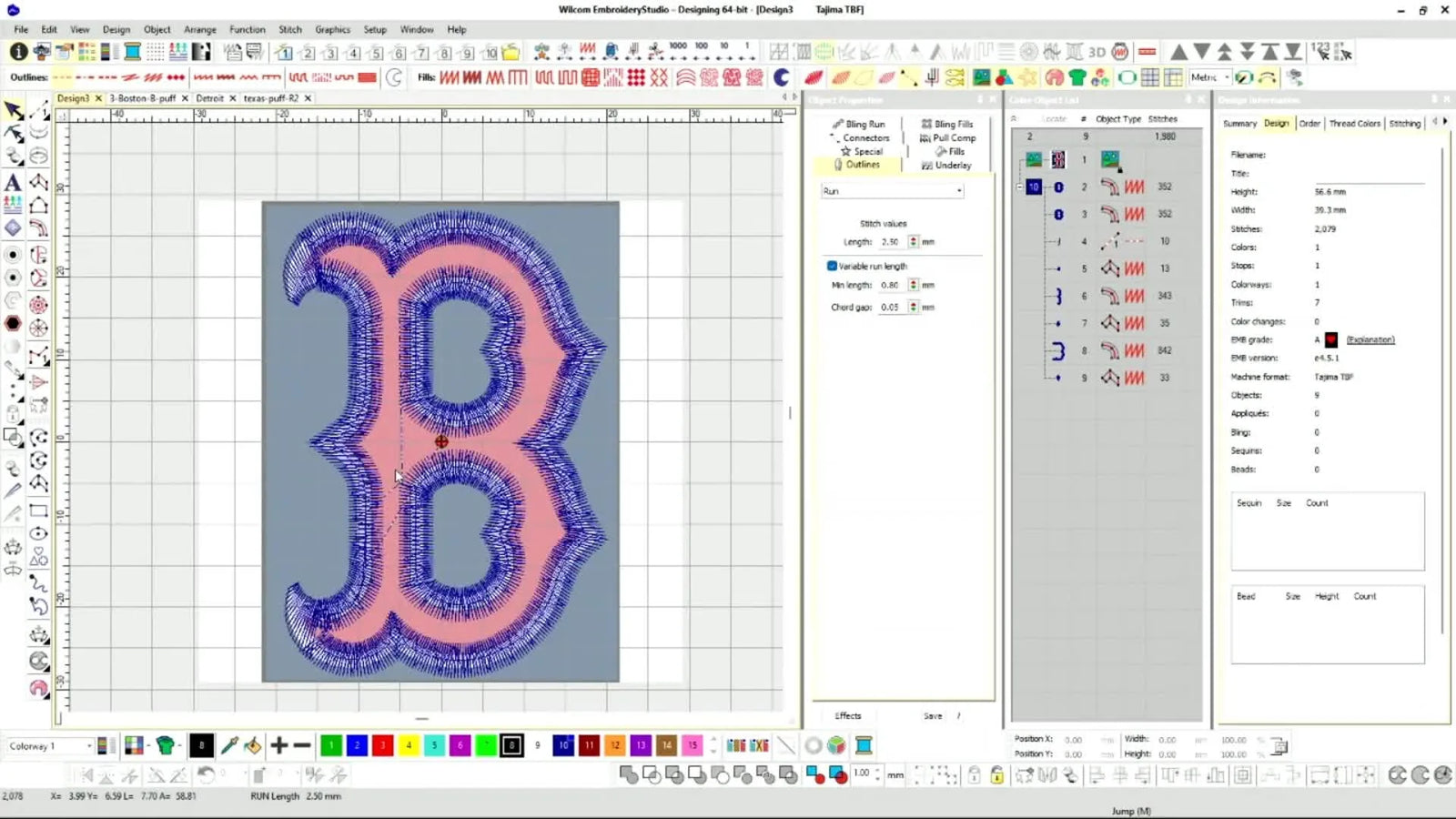

Wilcom 3D Puff Digitizing That Actually Stitches Clean: The Red Sox “B” Logo Workflow (Offsets, Edge Run, and the 11mm Danger Zone)

If you’ve ever watched a 3D puff logo sew beautifully on someone else’s cap… then watched your own version chew foam, snap thread, or leave ugly gaps at the serifs, you’re not alone.

3D puff is unforgiving because it’s not just “satin, but taller.” It is a controlled fight between foam compression, stitch length, underlay grip, and cap curvature. The smallest digitizing shortcut that works on a flat polo shirt will show up immediately as a disaster on a hat.

In this guide, I’m rebuilding the exact workflow from the video: digitizing the Boston Red Sox “B” in Wilcom for 3D puff. We will move from the flat base layer to the finishing foam layer, keeping the settings faithful to the tutorial (offset 70/30, Column C width 3.75 mm, Lap Corners 80, density 0.18 mm). More importantly, I will add the “shop-floor” sensory checks and safety protocols that prevent wasted hats and broken needles.

The “Don’t Panic” Primer: 3D Puff Satin vs. Satin Raised

One of the most common questions I hear from students is: “You used normal satin, not satin raised—does that matter?”

Here’s the calm truth: In this workflow, the 3D effect comes from the foam physics + the digitizing structure, not from a magic “raised” button in your software. The video builds a flat base satin first, then a top satin column designed to cut and compress foam.

If you are confused because your software labels things differently, ignore the names and focus on the mechanics:

1. The Base Layer: Intentionally tucked under the puff layer using an offset. Its job is to block the fabric color from showing through.
2. The Puff Layer: Uses a specific high-density setting and edge-run underlay to “slice” the foam cleanly like a perforated stamp.

Sensory Check: When holding your foam, it should feel firm, like a yoga mat, not squishy like a dish sponge. Squishy foam doesn't "cut" cleanly; it tears.

The “Hidden” Prep: Cap Reality, Foam Reality, and File Reality

Before you touch Column B or Column C, we must perform the "Pre-Flight Check." This is where experienced digitizers save the most money.

What the video confirms (and what you should copy)

• Size Matters: The creator confirms the logo width is 1.73 inches. This is a safe zone. If you go much smaller (under 1 inch), the needle penetrations get too close, and you risk cutting a hole in the cap fabric.
• Layer Strategy: He digitizes the base layer first, then the puff layer.
• The "Bleed": He calls out the need for overlap between the white base and the red top so the cap fabric doesn't peek through the gap.


Why this matters on hats (Expert Reality)

Caps are curved, structured, and often stiff. That means two things happen physically:

1. Flagging: The cap fabric bounces up and down, which can cause skipped stitches.
2. Distortion: The thread pulls the fabric tighter than on a flat hoop.

If you are producing hats for customers, treat every design like it has to survive a bad day: slightly inconsistent cap panels, generic foam, and a machine that isn’t perfectly tuned.

Prep Checklist: The Go/No-Go Decision

• Size Check: Is the column width at least 3mm? (Puff needs width to lift). Is the total design not "micro-sized" (target 1.75 in width or greater)?
• Needle Selection: Are you using a Sharp point (75/11) needle? Ballpoints struggle to cut foam cleanly.
• Foam Selection: Have you chosen dense foam (3mm or 2mm high density)?
• Consumables: Do you have a heat gun and tweezers ready for cleanup?
• Layer Plan: Have you planned the flat base first, then the puff second?

Warning: Project Safety Alert. Don’t test a brand-new puff file on a customer cap. The combination of Satin columns + Foam + Cap Curvature creates high deflection force. If your stitch lengths are wrong, the needle can hit the needle plate. Always run a sew-out on scrap denim + foam first.

The Base Layer “Insurance Policy”: Offset 70/30

The video’s base layer is the part most hobbyists skip—and it’s also what makes the final logo look like it was bought at a stadium store.

What you do in Wilcom (The Steps)

1. Trace the inside satin portion of the “B” using the Open Shape tool.
2. Close the curve (using “close curve with straight line”).
3. Copy/paste as needed to build clean shapes.
4. Convert shapes into satin stitches.
5. The Critical Step: Apply Offset 70/30.

What Offset 70/30 is really doing (The "Why")

In production terms, the offset is a controlled compensation move. Puff stitches compress foam and pull fabric inward (the "Pull Effect"). If you don't offset the base layer, the top puff layer will shrink, and the base layer will poke out the sides, looking messy.

By setting it to 70/30, you are forcing the base layer to sit inside the footprint of the top layer. It provides a foundation without becoming bulky.

Sharp Serifs Without Gaps: Column C at 3.75 mm + Manual Geometry

Corners are where 3D puff files go to die—especially on serif logos (hats with letters that have "feet").

What the video does (The Data)

• Tool: Uses Column C for end caps.
• Width: Sets width to 3.75 mm.
• Underlay: Center run and zigzag (acceptable for the base layer only).
• Corner Logic: He sets Lap Corners to 80.


Why Lap Corners 80 matters

When multiple satin columns meet at a corner, the machine doesn’t “see” a letter; it only sees math. If the join is too tight, you get a hard knot of thread (thread nest). If it's too loose, you get a "light leak"—a gap where you see the cap fabric.

Lap Corners 80 creates a deliberate overlap. It functions like a carpenter's joint, ensuring that when the foam lifts the thread up, the corner remains solid.

Visual Check: The "Bridge" Fix

The creator shows a practical fix when he sees a gap on screen:

1. Close it up slightly by adjusting geometry nodes.
2. Add a small manual closer/bridge stitch (a few running stitches) to physically bridge the gap.


The Setup: Sequencing and "Killing" Trims

A distinct mark of a professional file is silence. A hobby file adds constant click-clack-cut sounds because of unnecessary trims. A pro file flows.

What the video prioritizes

• Order: Base elements first -> Puff later.
• Flow: Avoids extra trims so the design runs "in one shot" where possible.
• Connectors: Uses connectors to jump between areas without cutting.

Setup Checklist: The Flow Check

• Sequence: Does the machine finish all flat work before asking for the foam placement?
• Trims: Scan for scissors icons in your software. If two objects are 1mm apart, turn off the trim and use a connector.
• Travel: Are your travel stitches (running stitches) hidden underneath where the puff will eventually go?


The Puff Layer: Column B + Edge Run Underlay

Now we build the red top layer—the muscle of the design.

What the video does in Wilcom

1. Switch to Column B (ideal for varying widths).
2. Underlay: He explicitly chooses Edge Run.
3. Zigzag: He removes zigzag underlay for this puff layer.
4. Tracing: Trace one side (Right-click for curve points, Left-click for straight points).


Expert Analysis: Edge Run vs. Center Run

Why Edge Run? Imagine a postage stamp. It has perforations on the side to help it tear cleanly. Edge Run underlay acts as that perforation. It needles the foam along the edges of the column, perforating it so the excess foam tears away easily after the embroidery is done.

The Rule of Thumb:

• Dense Foam + Wide Columns: Use Edge Run. It holds the walls up.
• Thin Foam + Narrow Columns: Center Run is safer to prevent cutting the foam too early.


The 0.18 mm “Sweet Spot” and the 11 mm “No Man’s Land”

This is the most critical technical section. 3D Puff requires aggressive density.

Density: The "Saw Blade" Effect

The creator sets density to 0.18 mm (approx 4.5 points).

• Standard Satin: Usually 0.40 mm.
• Puff Satin: Must be roughly twice as dense (0.18 - 0.20 mm).
• Why: You aren't just covering fabric; you are sawing through foam. You need more thread to cover the expanded surface area.


Stitch Angle Reset

He resets stitch angles to 0 (horizontal). On caps, horizontal satin stitches generally sew cleaner than vertical ones due to the seam of the hat.

The Danger Zone: 10–11 mm

He measures the stitch span.

• The Limit: He flags 10–11 mm as "No Man's Land."
• The Fix: If a stitch is longer than 11mm, the machine slows down, the thread loops, and the needle creates a "baggy" look. You must break the object or use "Auto Split" (though Auto Split ruins the smooth puff look). Ideally, redesign the letter width to stay under 10mm.


A Practical Decision Tree: Foam + Fabric + Stabilizer Choices

Your digitization is only 50% of the battle. The other 50% is physics.

Decision Tree (Caps / Hats):

1. Is your Stitch Length > 10mm?
   • YES: Stop. Redesign graphics or split the object. Do not sew.
   • NO: Proceed.
2. Is the Cap Structured (Stiff)?
   • YES: Use Tear-away stabilizer (2 layers).
   • NO (Unstructured/Dad Hat): Use Cut-away stabilizer to prevent distortion.
3. Foam Type?
   • Dense (3mm): Use Edge Run underlay. (Setup used in video).
   • Soft/Thin (2mm): Use Center Run underlay.
4. Are you using a Cap Driver?
   • YES: Ensure the "Cap" flag is on in your software (flips design, adjusts tension).

Foam Cleanup: The Heat Gun Technique

The video demonstrates a "shop secret." Even with perfect digitization, tiny foam "hairs" might poke out.

• Technique: Use a heat gun (or high-end hair dryer) in short bursts.
• Sensory Check: Watch the foam. It will shrink back inside the thread tunnel.
• Warning: Do not linger. Polyester thread melts. Keep the gun moving.

Troubleshooting: From Symptom to Cure

Warning: Magnetic Safety. If you choose to upgrade your workflow with magnetic embroidery hoops, treat them with extreme caution. These magnets are industrial strength. Keep them away from pacemakers and be very careful not to pinch your fingers between the rings—they snap together with bone-crushing force.

The “Upgrade” Path: When to Stop Blaming Design and Upgrade Tools

Once your file is clean (passed the checklist above), the bottleneck usually shifts to hooping speed and machine limitation. If you are struggling with physical pain or slow production, here is the clear path to upgrading your shop.

Level 1: If Hooping Hurts Your Wrists

If you are struggling to frame thick caps or thick jackets using standard hoops, the physical strain is real. Many embroiderers switch to a magnetic hooping station not just for speed, but to save their wrists. The magnets self-align the garment, removing the need for excessive hand force.

Level 2: If Production is too Slow

If you are running batches (e.g., 24+ hats) on a single-needle machine, the thread changes (Color 1 -> Stop -> Color 2 -> Stop / trim) are killing your profit. This is the criteria for moving to a multi-needle machine (like SEWTECH): auto-color changes and faster trims turn a 20-minute hat into an 8-minute hat.

Level 3: The Specialized Cap Solution

Standard flat hoops struggle with curved hats. If you see "flagging" (bouncing fabric), verify your equipment.

• If you use a Brother machine, search for a specific hat hoop for brother embroidery machine or brother cap hoop. Generic ones often lack the grip for thick seams.
• For other machines, a dedicated cap hoop for embroidery machine (often cylindrical) is required for 270-degree sewing.

Final Operation Checklist

• Test Run: Sew on a scrap hat first.
• Density: Confirmed at 0.18 mm for Puff.
• Underlay: Confirmed Edge Run.
• Max Stitch: Confirmed no stitch exceeds 11mm.
• Visual: Corners look sharp (Lap Corners 80).
• Finish: Heat gun used to retract foam whiskers.

If you follow this rigor—digitize safely, prep the physics, and troubleshoot with logic—3D puff stops being a gamble and starts being your most profitable selling point.

FAQ

• Q: In Wilcom 3D puff cap embroidery, should the file use “Satin Raised” or normal satin for the base layer and puff layer?
  A: Use normal satin for the base layer and a dedicated high-density satin structure for the foam layer; the 3D effect comes from foam compression + the digitizing structure, not a “raised” button.
  • Build: Digitize a flat base satin first, then digitize the top puff satin designed to compress/cut the foam.
  • Focus: Set the puff layer with the video-style mechanics (edge-focused underlay + aggressive density) instead of relying on object names.
  • Success check: The base layer hides fabric color cleanly while the top layer stands up and “tunnels” over the foam with crisp edges.
  • If it still fails… Re-check foam firmness (dense vs squishy) and confirm the puff layer is not using zigzag underlay.
• Q: For Wilcom 3D puff on hats, how does Offset 70/30 prevent the base satin from showing or getting messy?
  A: Apply Offset 70/30 to tuck the base satin inside the puff layer footprint so push/pull doesn’t expose the underlayer.
  • Set: Convert the base shapes to satin stitches, then apply Offset 70/30 on the base layer.
  • Verify: Keep the base as an “insurance” layer only—do not let it widen beyond the puff coverage area.
  • Success check: After sewing, the base color blocks the cap fabric with no base “peeking” outside the top satin edges.
  • If it still fails… Reduce base layer footprint further and confirm the puff layer is sequencing after all flat work.
• Q: In Wilcom 3D puff satin on caps, how do Lap Corners 80 and manual bridge stitches fix gaps at serif corners?
  A: Use Lap Corners 80 to force a deliberate overlap at joins, then add a small manual bridge if a light-leak gap still shows.
  • Set: Apply Lap Corners = 80 where satin columns meet at corners (especially serifs).
  • Adjust: Move geometry nodes to close the corner slightly before adding extra stitches.
  • Add: Insert a few short manual running stitches to physically bridge the gap if needed.
  • Success check: Corners sew solid with no visible cap fabric showing through at the serif “feet.”
  • If it still fails… Check for distortion/flagging on the cap and consider stabilizer choice (structured vs unstructured).
• Q: For Wilcom 3D puff hats, why use Column B with Edge Run underlay (and remove zigzag) on the foam layer?
  A: Use Column B with Edge Run underlay on the puff layer because Edge Run perforates the foam edges so the excess tears away cleaner; zigzag underlay is removed for this foam-cutting layer.
  • Select: Switch the foam/top layer to Column B for width control.
  • Choose: Set underlay to Edge Run and remove zigzag underlay on the puff layer.
  • Match: Use Edge Run especially when foam is dense and columns are wider; generally, thinner/softer foam may behave better with Center Run.
  • Success check: Foam tears away cleanly after stitching, with minimal “whiskers” and clean column walls.
  • If it still fails… Confirm foam is dense (not squishy) and re-check density is in the puff range (video uses 0.18 mm).
• Q: In 3D puff cap embroidery, what does 0.18 mm density solve, and how do you avoid the 10–11 mm “No Man’s Land” stitch span?
  A: Use 0.18 mm density for the puff satin to cut/compress foam, and redesign so no stitch span reaches 10–11 mm to avoid looping, slowdown, and a baggy look.
  • Set: Apply puff density at 0.18 mm (about 4.5 points) on the foam layer.
  • Measure: Check stitch span; stop and redesign if stitches approach 10–11 mm.
  • Fix: Break the object or redesign widths to stay under 10 mm (Auto Split may reduce the smooth puff look).
  • Success check: The puff surface looks tight and full, with no loose loops or “baggy” satin across wide spans.
  • If it still fails… Re-check stitch angles (the workflow resets to 0/horizontal) and test-sew on scrap before sewing a cap.
• Q: What is the safe “pre-flight check” for testing a new 3D puff hat file to prevent needle hits and wasted caps?
  A: Do not test a new 3D puff file on a customer cap; run a sew-out on scrap denim + foam first because cap curvature + satin + foam creates high deflection force.
  • Confirm: Needle type is Sharp point 75/11 and foam is dense (2–3 mm high density).
  • Prepare: Keep heat gun and tweezers ready for cleanup before production runs.
  • Test: Sew the full sequence on scrap denim + foam and watch for any needle strike risk or extreme deflection.
  • Success check: The test run completes without needle contact issues, thread breaks, or severe distortion before moving to a cap.
  • If it still fails… Reduce risk by re-checking stitch span limits and sequencing (finish flat work before foam placement).
• Q: What are the safety rules for using magnetic embroidery hoops in a 3D puff workflow?
  A: Treat magnetic embroidery hoops as industrial-strength magnets—keep them away from pacemakers and keep fingers clear because the rings can snap together with crushing force.
  • Keep: Maintain distance from medical implants/devices and store magnets away from sensitive electronics.
  • Handle: Separate and align hoops slowly; never let the rings “jump” closed.
  • Control: Use a stable surface and a deliberate grip to avoid pinching during hooping.
  • Success check: The hoop closes under control with no sudden snap, and fabric is held evenly without hand strain.
  • If it still fails… Stop and switch to a safer handling routine (or a hooping station) before continuing production.
