Smartstitch Yarn Couching on Needle 15: The Setup That Prevents Cutter Errors and Delivers Clean Texture

Master Yarn Couching on Smartstitch: The Commercial Guide to Setup, Stabilization, and Safety

Yarn couching on a multi-needle machine looks magical when it’s right—a rich, textured effect that commands a premium price. But when it goes wrong, it feels absolutely brutal.

If your Smartstitch yarn attachment is installed but the machine keeps jamming the cutter, snapping threads, or leaving ugly tails, you are not alone. These issues usually stem from a single misunderstanding: Couching is a "hack." You are asking a machine designed for microscopic thread loops to suddenly handle thick, heavy yarn.

The good news? The fix is 90% setup discipline and 10% software adjustment. This guide rebuilds the standard tutorial into a "Shop-Floor Standard Operating Procedure" (SOP) used by professionals to eliminate variables and reduce anxiety.

The "Don't Panic" Primer: The Physics of Couching

Yarn embroidery (couching) is a dual-material system: the attachment lays the thick yarn, while the needle stitches over it using a thin hold-down thread.

Here is the critical conflict: Your machine’s automatic trimmer is designed to slice through thin 40wt thread. It is not designed to cut thick chenille yarn. If you leave standard trimming enabled, the knife will attempt to cut the yarn, likelyResulting in a dull blade, a jammed hook, or a "bird's nest" of tangled fiber.

If you are running a heavy-duty unit like a 15 needle embroidery machine, you must treat couching as a specialty operation: slow down the speed (start at 600 SPM, not 1000), disengage the auto-pilot features, and adopt a "pre-flight check" mindset.

Tools Required: The Standard List & The Hidden Essentials

Before you touch a screw, gather your kit. Missing one tool mid-setup creates the frustration that leads to mistakes.

The Essentials (From the Box):

• Smartstitch multi-needle embroidery machine
• Yarn embroidery attachment (couching device)
• Yarn holder/spool (white plastic rod)
• Variegated purple yarn (chenille type)
• Thin purple thread (hold-down thread - 60wt recommended for invisibility)
• Electric screwdriver (used as a winder)
• 2mm Allen wrench (for set screws)

The "Old Hand" Additions (Hidden Consumables):

• Magnetic Embroidery Hoop: Essential for holding thick knits without "hoop burn" marks.
• Tweezers: For threading the tiny guide holes.
• Cutaway Stabilizer: Tearaway is rarely strong enough for the drag of yarn.
• Small Parts Tray: Set screws will bounce if dropped; a tray saves hours of searching.

Warning (Mechanical Safety): Keep fingers, loose sleeves, and long hair tied back and away from the needle area during test runs. Never reach under the presser-foot zone while the machine is powered.

Phase 1: The "Hidden" Prep (Winding)

The video starts by winding yarn onto the specialized plastic holder using an electric screwdriver. This seems trivial, but it is where many jobs fail.

The Goal: You need a "Low-Tension Wind." If the yarn is wound too tight or lumpy, it will "pulse" as it feeds off the spool. This pulsing creates uneven loops on your garment.

Sensory Check:

• Visual: The spool should look smooth, not cone-shaped or ridged.
• Tactile: Pull the yarn. It should spool off with zero resistance—lighter than pulling a tissue from a box.
• Auditory: When winding with the screwdriver, use low speed. If you hear a high-pitched whine, you are winding too fast and creating heat/static.


Prep Checklist 1 (Do this BEFORE mounting)

• Yarn is wound evenly (no soft spots, no bulges).
• Yarn end is easy to find and pulls without snagging.
• Thin hold-down thread is gathered and ready.
• Scissors are physically on the table. (You will need them immediately).
• Garment is stabilized with Cutaway (for knits) or heavy Tearaway (for woven).


Phase 2: Mounting the Hardware

In the video, the yarn holder slides onto the rear spindle. The thick yarn then feeds through the overhead metal guide loop and down into the tensioner system.

The "Click" Factor: When threading the overhead guides, don’t just drape the yarn. Press it in. You should feel a subtle thud or resistance as it seats into the guides. If the yarn rides "half-in/half-out," it will jump out during high-speed stitching.

If you are setting up a permanent station, stability is key. Many professionals build dedicated hooping stations to ensure that once the bulky couching attachment is on, the fabric loading process remains smooth and flat.

Phase 3: The Critical Path (Threading the Guide Block)

The yarn attachment uses a 3-hole guide block. Using the wrong hole is the #1 cause of "slipping yarn."

The Rule:

• Right Hole: Used for the thin hold-down thread (as shown in the video).
• Middle Hole: Too big for standard thread; allows slop.
• Left Hole: Often used for alternative gauges.

Sensory Check: After threading the hold-down thread through the Right Hole, pull it gently towards the needle. You should feel a tiny bit of friction, like flossing teeth. If it slides completely free, check that it hasn't popped out.

Phase 4: The "6 O’Clock" Alignment Ritual

This mechanical calibration separates professional output from amateur mess. The yarn nozzle must point exactly forward.

The Procedure:

1. Use the 2mm Allen wrench to loosen (do not remove) the set screws on the presser foot collar.
2. Rotate the yarn guide head so the exit hole faces exactly 6 o’clock (straight down and towards you).
3. Tighten both screws securely.

Why this matters: Couching is directional. If the nozzle aims at 5:30 or 6:30, the yarn lays slightly to the side, and the needle will pierce the yarn instead of stitching over it.

Pro Tip: Look at the nozzle from the side, then from the front. It should look perpendicular to the needle plate. If it looks "kicked out" to the side, adjust it.

Phase 5: The "Cutter Saver" Software Settings

CRITICAL STEP: You must tell the machine not to cut the yarn. If you skip this, you risk jamming the cutter blade.

Video Workflow (Smartstitch Interface):

1. Go to Setting -> User Parameters.
2. Enter Thread-trimming Parameters.
3. Select Jump and trim stitch.
4. Choose Modify All -> Change Yes → No.
   (Meaning: Stop trimming on jumps for ALL needles).
5. Go to the next page/tab.
6. Locate Needle Position 15 (or whichever needle holds the device).
7. Change to Jump without trimming.
8. Press Enter and return Home.

Verification: On models like the smartstitch s1501, the screen icons for that needle bar should change (often removing the scissor icon) to confirm the new status.

Setup Checklist 2 (Pre-Flight)

• Nozzle is aligned to 6 o’clock; screws are tight.
• Thin thread is in the Right guide hole.
• "Jump and trim stitch" is set to NO.
• Needle Position 15 is set to Jump without trimming.
• You have manually pulled 3 inches of yarn and thread through the nozzle.


Phase 6: Programming the Run

The Rule of Isolation: Needle 15 is now a "Special Forces" needle. Do not use it for anything else until you remove the attachment.

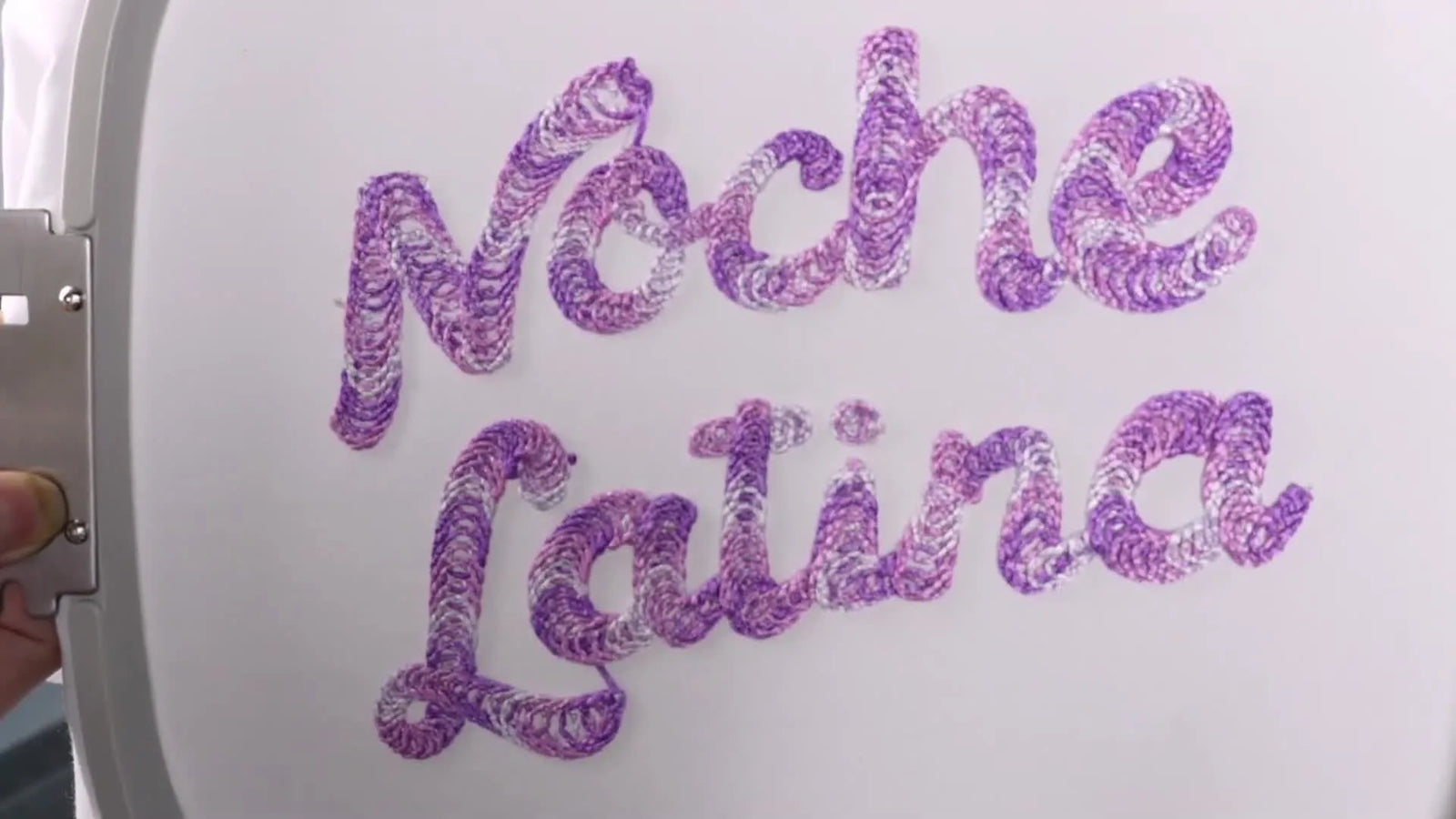

• Select Design: “Noche Latina”
• Select Hoop: Frame F (or size appropriate).
• Color 1: Assign to Needle 15 (The Couching Needle).
• Mode: Ensure Z4 (Couching Mode) is active if your firmware requires it.
• Subsequent Colors: Assign to Needles 1-14. NEVER assign back to 15.

Commercial Insight: When choosing smartstitch embroidery hoops, opt for a frame that leaves at least 1 inch of buffer space around the design. Yarn creates drag; a tight hoop boundary increases the risk of the foot hitting the frame.

Stabilizer & Hooping Decision Tree

The video shows a white knit garment. Knits + Heavy Yarn = High distortion risk. You cannot rely on luck here.

Use this Decision Matrix:

If you find yourself constantly re-hooping because of puckering, upgrading to embroidery machine hoops that use magnetic force can solve the tension issue. Magnetic frames hold the fabric flat without the "tug-of-war" distortion caused by traditional inner/outer rings.

Warning (Magnet Safety): Strong magnetic hoops can pinch fingers severely. Slide them apart; do not pry. Keep away from pacemakers.

Phase 7: Operation & The "First Stitch" Watch

Start the machine. The attachment should lay the yarn, and the needle should "tack" it down.

The "10-Second" Audit: Do not walk away. Watch the first 10 seconds.

1. Feed Check: Is the yarn spool turning smoothly? (Jerky movement = Bad wind).
2. Sound Check: Listen for a rhythmic thump-thump. A sharp metal-on-metal click means the 6 o'clock alignment is off and the needle clamp is hitting the device. STOP IMMEDIATELY if you hear this.

For owners of the smartstitch 1501, this is where you establish your rhythm: Run -> Pause -> Manual Trim -> Resume.

Operation Checklist 3 (During Run)

• Yarn is feeding without "pulsing."
• No clicking/grinding sounds.
• Scissors are in hand for manual trims at jump points.
• Fabric is not "flagging" (bouncing up and down) – if so, add support.


Phase 8: The Finishing Touch

Because we disabled the automatic trimmer, the machine will leave tails.

1. Pause/End: Machine stops.
2. Manual Cut: Snip the yarn leaving a small tail.
3. Lock Stitches: Allow the machine to finish its lock sequence (it effectively ties a knot over the cut yarn end).
4. Final Trim: Trim the remaining fuzz close to the lock stitch.

Pro Standard: Use curved embroidery scissors (snips) to get close to the fabric without risking a hole in the garment.

Troubleshooting Guide: Symptoms & Solutions

Moving to Production: When to Upgrade?

Once you master the technique, the bottleneck shifts from "how to do it" to "how to do it fast."

• If you struggle with hooping straight: Consider a hoop station.
• If you struggle with hoop burn on sensitive knits: This is the primary trigger to invest in Magnetic Hoops. Terms like hooping for embroidery machine efficiency often lead professionals to magnetic solutions because they reduce reject rates on expensive garments.
• If your throughput is too slow: High-texture designs take time. If couching becomes your best-seller, dedicated multi-head equipment or faster commercial frames like the smartstitch embroidery frame systems become necessary investments to maintain profit margins.

By following this disciplined setup, you turn a risky "hack" into a reliable, high-profit lineup in your embroidery business.

FAQ

• Q: How do I stop a Smartstitch multi-needle embroidery machine from jamming the cutter when using a yarn couching attachment?
  A: Disable trimming so the Smartstitch trimmer never tries to cut thick yarn (this is the most common cause of cutter jams).
  • Go to Setting → User Parameters → Thread-trimming Parameters and set “Jump and trim stitch” = NO (Modify All: Yes → No).
  • Set the couching needle position (example: Needle 15) to “Jump without trimming.”
  • Keep scissors at the table and manual-trim yarn tails at jump points.
  • Success check: the needle bar display for that needle no longer shows the trim/scissor status, and there is no cutter “struggle” sound during jumps.
  • If it still fails: re-check that trimming was changed for all needles and that the couching needle is specifically set to Jump without trimming.
• Q: Which guide hole should the Smartstitch yarn couching attachment use to prevent yarn slipping out of the stitches?
  A: Thread the thin hold-down thread through the Right Hole of the 3-hole guide block to prevent slipping.
  • Re-thread the hold-down thread and confirm it passes the Right Hole (not the middle hole).
  • Pull the thread gently toward the needle to confirm the thread is seated correctly.
  • Avoid the Middle Hole for standard thread because it can allow too much play.
  • Success check: the thread feels like light floss friction (not completely free-sliding) when pulled by hand.
  • If it still fails: inspect whether the thread popped out of the guide path and re-seat it with tweezers if needed.
• Q: How do I align the Smartstitch yarn couching nozzle to the correct “6 o’clock” position to stop needle strikes and messy couching?
  A: Align the yarn nozzle to exactly 6 o’clock so the needle stitches over the yarn instead of piercing it or hitting the device.
  • Loosen (do not remove) the presser-foot collar set screws using a 2mm Allen wrench.
  • Rotate the yarn guide head until the exit hole points straight down toward you (6 o’clock).
  • Tighten both screws firmly before running any test stitch-out.
  • Success check: during the first seconds of stitching there is no sharp metal-on-metal click, and the yarn lays centered under the tack-down stitches.
  • If it still fails: stop immediately and re-check alignment from both side and front views until the nozzle looks perpendicular to the needle plate.
• Q: How should chenille yarn be wound for a Smartstitch yarn couching setup to prevent pulsing feed and uneven loops?
  A: Wind the yarn with low tension so it feeds smoothly without jerking or “pulsing.”
  • Wind slowly (an electric screwdriver is fine) and aim for a spool that looks smooth (not ridged or cone-shaped).
  • Pull yarn off the wound holder by hand and confirm it releases with near-zero resistance.
  • Rewind if there are bulges, soft spots, or tight sections.
  • Success check: the spool turns smoothly during stitching (no jerky start-stop motion) and couching looks even.
  • If it still fails: re-check that the yarn is fully seated into each overhead guide (press in until it “clicks/sets”).
• Q: What stabilizer and hooping method should be used for Smartstitch yarn couching on knit garments to reduce puckering and hoop burn?
  A: For knits with heavy yarn drag, use cutaway stabilizer and avoid over-tight hoop pressure; magnetic hoops are the upgrade when hoop burn or re-hooping becomes frequent.
  • Use cutaway stabilizer for T-shirts/hoodies (often two layers for heavier fleece).
  • If puckering starts, bond fabric to stabilizer with temporary spray adhesive to reduce shifting.
  • If hoop burn (shiny rings) appears, reduce screw tightness or switch hooping method.
  • Success check: the fabric stays flat (no “flagging” bounce) and the hoop leaves minimal or no visible ring after unhooping.
  • If it still fails: move to a magnetic embroidery hoop to clamp without friction burn and reduce distortion from inner/outer ring tension.
• Q: What are the key mechanical safety rules when test-running a Smartstitch multi-needle embroidery machine with a yarn couching attachment installed?
  A: Treat the first test run as a hazard zone—keep hands and anything loose away from the needle/presser-foot area and stop immediately on abnormal noise.
  • Keep fingers, sleeves, and long hair away from the needle area during any run.
  • Never reach under the presser-foot zone while the machine is powered.
  • Watch the first 10 seconds closely and pause if anything looks off.
  • Success check: the machine runs without grinding/clicking and you never feel tempted to “reach in” to fix a snag while powered.
  • If it still fails: power down before touching the attachment area and re-check the 6 o’clock alignment and yarn/thread paths.
• Q: What are the safe handling rules for strong magnetic embroidery hoops when hooping thick knits for yarn couching production?
  A: Handle magnetic hoops by sliding them apart to avoid finger pinch injuries and keep them away from pacemakers.
  • Slide the magnets apart—do not pry them straight up where they can snap together.
  • Keep fingertips clear of the closing path when seating the top ring.
  • Store and use magnetic hoops away from pacemakers and similar medical devices.
  • Success check: hooping is fast and consistent with no pinched fingers and the fabric is held flat without over-stretching.
  • If it still fails: switch to slower, two-handed placement and consider a dedicated hooping station workflow to keep fabric loading controlled.
