HSW 5G Double Head Embroidery Machine Demo: Big Sash Frame Blouses, Cap Driver Logos, and Tubular T-Shirts—What to Watch Before You Buy

If you’re shopping for a commercial machine, a short video demo like this can tell you a lot—but only if you know how to look past the shiny metal and listen to the production reality. The HSW 5G Double Head Embroidery Machine demonstration runs through three real production modes: a large sash/border frame for blouse neck designs, a cap driver setup for baseball caps, and tubular hooping for finished t-shirts.

As an educator who has spent two decades on shop floors listening to the rhythmic thump-thump-click of industrial machines, I know that what creates a sellable product isn’t just the machine’s specs—it’s the operator’s hands. The video is light on narration, so I’m going to do what an experienced shop tech does: translate what you’re seeing into a repeatable workflow, point out the “silent” failure points (fabric distortion, hoop burn, seam deflection), and show where upgrading your tools—from needles to hoops—actually pays for itself.

HSW 5G Double Head Embroidery Machine: the quick reality check before you fall in love with the spec sheet

A double head machine is exciting because it looks like an instant doubling of output. In practice, your real throughput is limited by the slowest part of the cycle—almost always hooping, loading/unloading, and fixing preventable defects.

This demo shows the HSW 5G running two heads at once. That’s the right kind of versatility for a shop that wants to take mixed orders. However, novices often underestimate the "Synchronization Penalty." If Head #1 breaks a thread, Head #2 stops waiting.

The Golden Rule of Multi-Head: You are only as fast as your worst setup. If you plan to scale, you must master the art of consistency across all stations.

The 20×32 inch (500×800mm) sash frame moment: why big frames make money only when your fabric stays honest

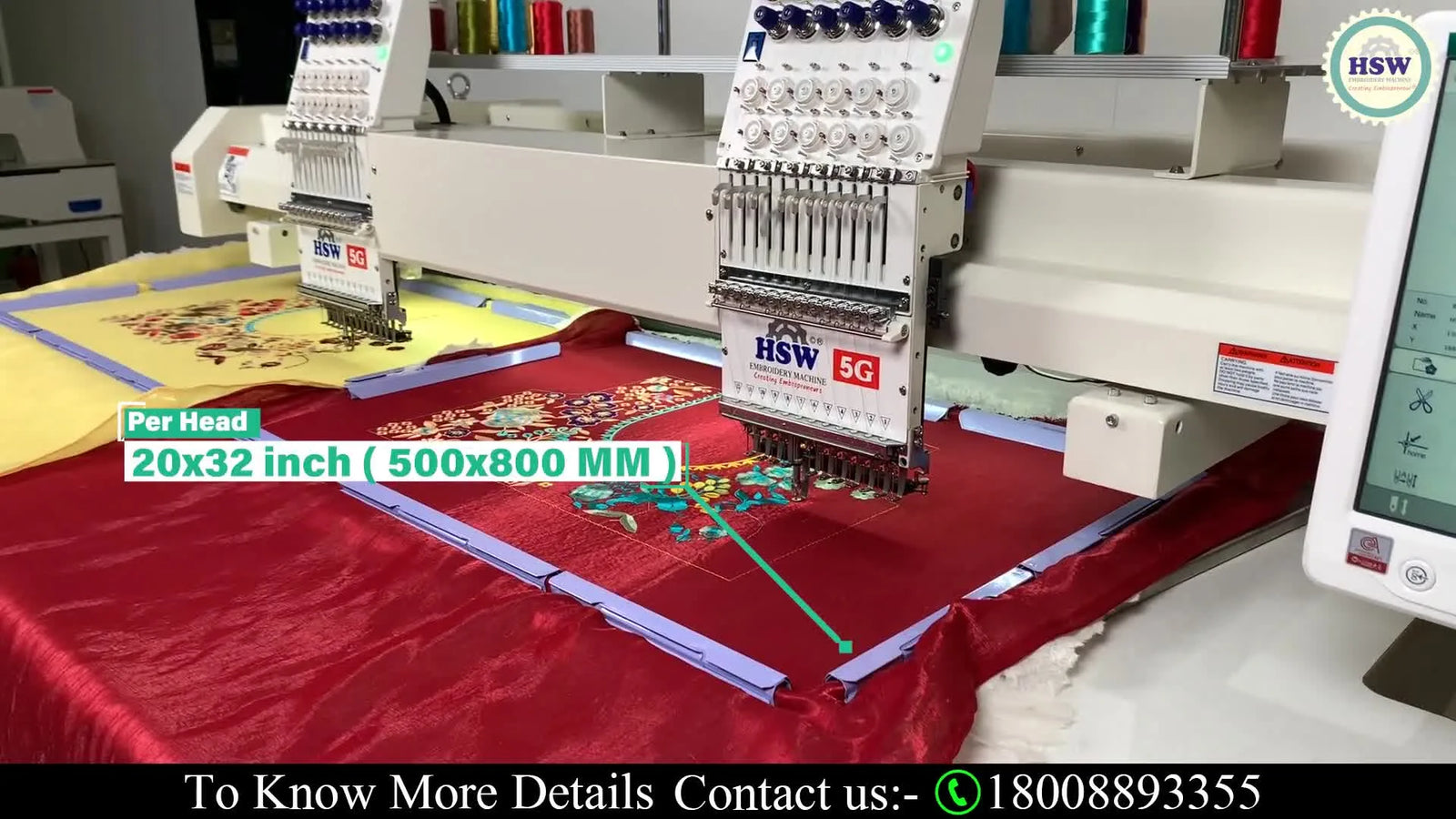

The video flashes the working area as 20×32 inch (500×800mm) per head.

In the blouse segment, the machine is set up with a full-width sash/border frame. Two separate blouse neck designs are stitched simultaneously on flat fabric. This looks efficient, but it introduces the number one enemy of large-format embroidery: Physics.

Here’s the veteran takeaway: big frames don’t forgive sloppy tension. When fabric is clamped wide, any uneven pull becomes distortion right where customers stare—necklines.

The "Drum Skin" Myth: Many beginners pull fabric until it pings like a high-tension snare drum. This is dangerous. If you stretch the fabric fibers by 5% during clamping, they will try to shrink back by 5% the moment you unclamp. The result? Puckering that no amount of ironing can fix.

• The Sensory Check: Clamp the fabric so it is taut but neutral. When you run your hand across it, it should feel firm like a well-made sofa cushion, not tight like a trampoline.

The “Hidden” Prep for sash/border frames (what prevents puckers and rework)

Before you clamp fabric into a sash frame, you must perform a "consistency audit." On a double head, if Head 1 has a slightly dull needle and Head 2 is brand new, you will get two different looking shirts.

Prep Checklist (Sash/Border Frame Mode)

• Field Check: Confirm the displayed embroidery field matches your job plan (20×32 inch / 500×800mm). Ensure the pantograph has clearance to move this full distance without hitting a wall or a pile of blanks.
• Directional Stretch Test: Pull your fabric vertically and horizontally. Identify the "stretchy" grain. Your stabilizer must oppose this stretch.
• Consumable Audit:
  • Needles: Are they new? For woven blouses, use a 75/11 Sharp.
  • Bobbin: Is the tension correct? Drop test the bobbin case—it should slide down 1-2 inches and stop.
  • Spray: Have a can of temporary adhesive (like 505) ready to float backing if needed.
• Thread Path: Floss the thread through the tension disks. You should feel a smooth, consistent resistance, like pulling dental floss through tight teeth.

Warning: Mechanical Hazard. Keep hands, tools, loose sleeves, and jewelry away from the needle area while the machine is running. Multi-needle heads move at 800+ stitches per minute (SPM). A "quick adjustment" while the machine is live is the fastest way to stitch your finger to the fabric.

The blouse neck embroidery setup on a sash frame: clamp strategy that avoids edge drag and neckline distortion

In the demo, yellow and red blouse fabrics are stretched flat across the entire table.

A practical clamp strategy is essential. If you clamp the left side, then walk around and pull hard to clamp the right side, you have just introduced a massive bias into the fabric weave.

The "Star Pattern" Technique:

1. Secure the top center.
2. Secure the bottom center (gentle pull).
3. Secure the left center, then right center.
4. Work your way out to the corners.

Sensory Troubleshooting: If you see "waves" forming in front of the presser foot as it sews, your fabric is too loose. If you hear a popping sound when the needle penetrates, your fabric is too tight (drumming), or your needle is blunt.

Cap driver conversion on the HSW 5G: the mode switch that separates hobby setups from real production

The video shows the flat table removed, exposing the cylinder arm, and a cap driver installed.

This conversion is the "barrier to entry" for many shops. It takes time—often 10 to 20 minutes for a safe changeover.

Two things experienced operators watch during a conversion:

1. The "Click": When locking the cap driver onto the pantograph, you must feel a solid mechanical lock. If there is any wiggle, your registration will drift 1mm every 1000 stitches.
2. The Clearance: Manually rotate the drive shaft (with the machine off) to ensure the needle bar doesn't strike the cap frame.

Pro Tip: If you run a mixed shop, batch your work. Do all your flat work on Monday-Wednesday, and all your cap work Thursday-Friday. The cost of switching back and forth daily destroys profit margins.

Cap embroidery on a center seam: how the cap frame rotation saves your stitches (and where it still fails)

The demo shows stitching a logo across the cap’s center seam.

Center seams are the "boss fight" of embroidery. You are stitching through six layers of twill and buckram, plus the seam tape.

The Speed Limit Rule: While the machine can runs at 1000 SPM, seasoned pros slow down to 600-700 SPM when crossing the center seam. The friction generates heat, which melts thread and breaks needles.

If you’re selecting a cap hoop for embroidery machine, don't just look at the size. You need to judge the tension curve.

• The Grip Test: When the cap is hooped, pull firmly on the bill. If the cap slides at all, the hoop is trash.
• The Curve: Does the hoop match the radius of your specific caps? A mismatch here leaves a gap between the cap and the needle plate, leading to "flagging" (fabric bouncing) and birdnesting.

Comment-driven reality: “Price?” is the loudest question—so calculate cost per finished cap, not machine cost

The comments ask about machine price, but the real metric is Efficiency ROI.

Calculate it like this:

• Machine Cost / (Expected Lifespan in Stitches) = Machine Cost per 1000 Stitches.
• Labor Cost = (Hourly Wage / Caps per Hour).

If a cheaper machine causes you to re-hoop every 5th cap due to slipping, your labor cost skyrockets. High-quality equipment (and high-quality hoops) lower the "Caps per Hour" denominator, increasing profit.

Tubular t-shirt embroidery with green round hoops: the fastest way to start—and the fastest way to waste time

The video switches to standard green tubular hoops.

This is the classic workflow. But here is the trap: Hoop Burn. Standard plastic hoops work by friction and pressure. To hold a t-shirt tight enough for embroidery, you have to crush the fibers between two plastic rings. On delicate knits or performance wear, this leaves a permanent "ring of death" (hoop burn) that steaming often cannot remove.

Furthermore, traditional hoops are slow. Aligning the inner and outer ring, keeping the shirt straight, and pushing down requires significant wrist strength.

If you are doing hooping for embroidery machine tasks on 50+ shirts a day, standard hoops will fatigue your wrists and slow you down. By 3 PM, your alignment accuracy will drop.

The “Hidden” Prep for tubular garments: stop chasing puckers with tension knobs

On t-shirts, puckering is rarely a tension issue—it is almost always a stabilization failure.

The Sandwich Theory: You are building a structure. The t-shirt is fluid; the backing is the foundation.

• Knits move: They stretch left-to-right.
• Stabilizer holds: It must be rigid.

Decision Tree: Fabric → Stabilizer/Backing (Practical Shop Logic)

• Stable Woven (Dress Shirt/Denim):
  • Stabilizer: Tearaway (1.5 - 2.0 oz).
  • Why: Fabric supports itself; stabilizer just adds crispness.
• Unstable Knit (T-Shirt/Polo):
  • Stabilizer: Cutaway (2.5 - 3.0 oz). No exceptions for beginners.
  • Why: The stitches will cut the knit fibers. Cutaway holds the design shape forever.
• High Stretch/Performance Wear:
  • Stabilizer: No-Show Mesh (Cutaway) + potentially a fusible layer.
  • Why: Heavy cutaway shows a "badge" effect; mesh is invisible but strong.

Tubular hoop placement on finished t-shirts: the physics of hoop tension that prevents “hoop burn” and design drift

A hoop is a clamp. Every clamp creates stress. On knits, stress becomes stretch, and stretch becomes distortion.

Two rules that keep you out of trouble:

1. Hoop Neutral: Don't pull the shirt while tightening the screw.
2. Support the Weight: Gravity is your enemy. If the heavy XL shirt hangs off the machine arm, it drags the design down. Use table extenders or clip the excess fabric up.

This is where magnetic embroidery hoops become a legitimate business upgrade, not just a luxury.

• The Solution: Magnetic hoops (like higher-end MaggieFrames or SEWTECH equivalents) clamp using vertical magnetic force, not friction ring-crushing.
• The Result: Zero hoop burn. Faster loading (just "snap" and go). Less wrist strain.
• The ROI: If a magnetic hoop saves you 30 seconds per shirt, on a run of 100 shirts, you save nearly an hour of labor.

Warning: Magnetic Safety. Industrial magnetic hoops use Neodymium magnets. They are incredibly powerful. Pinch Hazard: They can crush fingers instantly. Medical Hazard: Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards.

Multi-color t-shirt stitching on a standard round hoop: what the demo quietly proves about 12 needles

The video shows multi-color stitching on a white t-shirt.

In production, needle count equals autonomy. A 12 or 15-needle machine allows you to load your standard colors (Black, White, Red, Blue, Gold, Silver) and leave them there.

Maintenance Tip: Just because you have 12 needles doesn't mean you ignore them.

• Check the path: If Needle #4 hasn't been used in a month, the thread may have gathered dust or become brittle. Pull a yard of thread through before hitting start.
• Compatibility: If you are comparing machine embroidery hoops, ensure the arms of your machine fit the specific hoop width (360mm vs 400mm spacing).

Two heads running at once: the scalability win—and the scheduling mistake that kills it

The split screens show both heads in action.

This is the commercial advantage: two outputs per cycle. But here is the scheduling mistake that kills profit: Fragmentation.

Do not mix jobs. If you have a job for 10 hats and a job for 10 shirts:

• Bad Workflow: Set up caps, run 10. Tear down. Set up tubular, run 10.
• Good Workflow: Run all cap orders for the week (50 hats). Then switch mechanics.

The "Ghost" Head: If you only have one order for a jacket back, you have to turn off Head #2. A double-head machine running on one head is just a very wide, very expensive single-head machine. This is why many growing shops prefer buying two separate single-head machines (like the SEWTECH advance series) rather than one double-head—it offers redundancy and flexibility.

Setup choices that save your wrists: hooping stations, repeatability, and when upgrades pay back

Manual hooping is a physical sport. Repeating the same gripping motion 200 times a day leads to Carpal Tunnel Syndrome.

• Level 1 Fix: ergonomic mats and proper table height.
• Level 2 Fix (Tools): Professional hooping aids. If you are researching a hoop master embroidery hooping station, you are paying for repeatability. A station ensures the logo is exactly 4 inches from the collar every single time, regardless of who loads it.
• Level 3 Fix (Speed): For tubular items, a dime totally tubular hooping station or similar device helps invert the shirt quickly.

However, the most immediate "wrist-saver" is usually upgrading your embroidery machine hoops to magnetic versions. The elimination of the "unscrew-push-pull-screw" cycle significantly reduces physical fatigue.

The “Hidden” Setup checks on the HSW 5G: what I’d verify before a long run

Complex machines have complex failure modes. Don't trust; verify.

Setup Checklist (Before You Hit Start)

• Mode Match: Is the machine software set to "Cap" mode? If you leave it in "Flat" mode and hit start, the frame will rotate into the needle plate and shatter the needle bar. (An expensive mistake).
• Pantograph Lock: Physically wiggle the frame holders. They must be rigid.
• Backing Coverage: Look underneath. Is the cutaway covering the entire design area?
• Bobbin Quantity: Do you have enough bobbin thread to finish the run? Changing bobbins mid-design often leaves a visible seam.
• Oil Check: Has the rotary hook been oiled in the last 4 hours? One drop of clear sewing oil goes a long way.

Operation checkpoints: what “good” looks like while it’s stitching

During stitching, step back but keep your eyes (and ears) open.

The "Sound" of Success:

• Good: A rhythmic, dull humming or clicking (tick-tick-tick).
• Bad: A harsh metallic slapping, a grinding noise, or a "bird chirp" (often dry bearings).

Operation Checklist (First 60 Seconds)

1. Watch the uptake lever: Is the thread feeding smoothly, or jerky? Jerky feed = tension too tight.
2. Watch the fabric: Is it "flagging" (lifting up with the needle)? If yes, your hoop is too loose or backing is insufficient.
3. Watch the design edges: Are they lining up? If the outline is off by 1mm, stop immediately. It won't get better; it will get worse.

The upgrade path that actually makes sense: from standard hoops to magnetic frames to multi-needle productivity

This demo is a good reminder that embroidery is an ecosystem: Machine + Hoop + Consumables = Product.

If you are struggling with quality on a standard setup using those green plastic hoops:

1. Don't blame the machine yet.
2. Upgrade your stabilization: Switch to premium Cutaway.
3. Upgrade your workholding: Move to magnetic hoops/frames (check compatibility for your specific machine beam width). This solves the "hoop burn" and "wrist pain" issues instantly.
4. Scale Up: When you have more orders than time, that is the trigger to invest in industrial capacity. Whether it's the HSW 5G or reliable workhorses like SEWTECH multi-needle embroidery machines, the investment only makes sense when your workflow (hooping and prep) is already optimized.

Build your system, protect your wrists, and listen to your machine—it will tell you exactly what it needs.

If you are looking for an embroidery frame system that unifies your production, look for magnetic options that fit all your machine heads, ensuring every operator produces the same high-quality result.

FAQ

• Q: How do I hoop blouse fabric on an HSW 5G sash/border frame without neckline distortion and puckering?
  A: Hoop the blouse fabric “taut but neutral” and clamp in a star pattern to avoid bias stretch across the neckline.
  • Secure in a star pattern: top center → bottom center → left center → right center → then work out to corners.
  • Do a directional stretch test (vertical vs. horizontal) and choose stabilizer to oppose the stretchier grain.
  • Keep consumables consistent across both heads (same needle condition, same thread path feel, correct bobbin tension).
  • Success check: fabric feels firm like a sofa cushion (not trampoline-tight), and there are no “waves” forming in front of the presser foot while stitching.
  • If it still fails… stop and compare Head #1 vs Head #2 setup (needle sharpness, bobbin drop test behavior, and thread flossing resistance) to remove station-to-station inconsistency.
• Q: What is the correct bobbin drop-test result for the HSW 5G rotary hook bobbin case when troubleshooting puckers or inconsistent stitching?
  A: The safe starting point is a bobbin case that slides down about 1–2 inches during the drop test and then stops.
  • Hold the bobbin case by the thread and perform the drop test before a long run.
  • Re-seat the bobbin and re-thread if the movement is jerky or inconsistent.
  • Keep the test consistent across both heads to avoid two different-looking outputs.
  • Success check: the bobbin case drops smoothly 1–2 inches and stops (not free-falling, not refusing to move).
  • If it still fails… treat puckering as a stabilization issue first on knits, and verify backing coverage fully spans the design area before changing other settings.
• Q: How do I prevent thread breaks and needle breaks on an HSW 5G when embroidering across a baseball cap center seam?
  A: Slow the HSW 5G down to about 600–700 SPM over the center seam and confirm the cap is firmly gripped with the correct curve.
  • Reduce speed before the seam section; heat and friction rise sharply through seam tape and buckram layers.
  • Perform a grip test: pull firmly on the bill after hooping; any sliding indicates the cap is not secured enough.
  • Verify the cap frame curve matches the cap radius to reduce flagging and birdnesting.
  • Success check: stitch formation stays consistent across the seam without popping sounds, needle snaps, or repeated thread breaks.
  • If it still fails… re-check cap driver lock/registration (any wiggle can drift) and confirm clearance by manually rotating the drive shaft with the machine off.
• Q: What does “flagging” look like on tubular t-shirt embroidery on the HSW 5G, and what is the fastest fix?
  A: If the t-shirt fabric lifts and bounces with the needle, tighten the workholding (hoop stability) and upgrade stabilization—flagging is usually not a top tension problem.
  • Switch unstable knits to cutaway backing as a practical baseline for beginners.
  • Ensure backing coverage fully spans the entire design area underneath the garment.
  • Support garment weight so gravity does not pull the shirt down (use table extenders or clip excess fabric up).
  • Success check: fabric stays flat under the presser foot with minimal lift, and outlines stay aligned instead of drifting.
  • If it still fails… stop within the first 60 seconds and re-hoop using “hoop neutral” technique (do not pull the shirt while tightening), then re-check for hoop looseness.
• Q: How can I avoid hoop burn on t-shirts when using standard round tubular hoops on the HSW 5G?
  A: Reduce clamp stress by hooping neutrally and supporting the garment—standard friction hoops can permanently crush knit fibers if over-tightened.
  • Hoop neutral: do not pull or stretch the shirt while tightening the hoop screw.
  • Avoid over-compressing the knit; use just enough hold to prevent movement.
  • Support the heavy shirt so it does not drag and distort the hooped area during stitching.
  • Success check: after unhooping, there is no persistent “ring” impression and the design does not look pulled downward.
  • If it still fails… consider upgrading to magnetic embroidery hoops/frames to reduce ring-crush pressure and speed loading for high-volume shirt work.
• Q: What are the two most important safety rules when operating an HSW 5G multi-needle head during live stitching adjustments?
  A: Do not reach into the needle area while the HSW 5G is running, and keep loose sleeves/jewelry/tools away—multi-needle heads move fast enough to cause instant injury.
  • Power down before making any “quick adjustment,” especially near needles and the moving pantograph.
  • Keep hands clear of the needle bar path and presser foot area during operation.
  • Step back during the first 60 seconds and observe with eyes/ears rather than touching anything.
  • Success check: no hands or objects enter the moving zone while stitching, and adjustments only happen with motion stopped.
  • If it still fails… pause the job, stop the machine fully, and re-check setup items (mode match, pantograph lock, backing coverage) before restarting.
• Q: What magnetic hoop safety precautions should operators follow when using industrial magnetic embroidery hoops/frames on tubular garments?
  A: Treat industrial magnetic hoops as pinch hazards and keep them away from medical implants and sensitive items.
  • Keep fingers out of the closing path; magnets can snap together suddenly and crush fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and credit cards.
  • Load deliberately: align first, then let the hoop “snap” closed under control.
  • Success check: operators can load/unload without finger pinches, and hoops close cleanly without uncontrolled slamming.
  • If it still fails… slow the loading routine down and assign one trained operator until safe handling becomes consistent across the team.
• Q: When production slows down on an HSW 5G double head because hooping is the bottleneck, what upgrade path reduces rework and improves throughput?
  A: Fix consistency first, then upgrade workholding, then scale capacity—most throughput losses come from hooping time and preventable defects, not raw stitch speed.
  • Level 1 (technique): standardize prep across both heads (needle condition, bobbin drop test behavior, thread path flossing feel) and batch jobs to reduce cap/flat changeovers.
  • Level 2 (tools): move high-volume tubular work to magnetic hoops/frames to reduce hoop burn, wrist strain, and loading time.
  • Level 3 (capacity): invest in multi-needle productivity only after hooping and stabilization are stable, because a stopped head stops the whole cycle (synchronization penalty).
  • Success check: fewer re-hoops, fewer visible registration drifts, and steady output without frequent stops for preventable defects.
  • If it still fails… time the full cycle (hoop/load/unload + fixes) and identify whether changeovers, slipping caps, or garment drag is the true limiter before buying more heads.
