Brother PR1055X Daily Hook Oiling + 4x4 Text on a Tote Bag: The Calm, Repeatable Routine That Prevents Costly Bobbin-Area Drama

If you own a Brother PR-series multi-needle machine, you likely know the specific anxiety that hits right before a deadline. You are ready to stitch, the order is due, and you are staring at the bobbin area thinking, "If I touch this wrong, will I break a $10,000 machine?"

Take a breath. This is normal. Machine embroidery is an experience-based science, and the hook area is the heart of it.

The routine detailed below is one of the safest, most repeatable ways to keep your hook happy and your stitch quality consistent. This is critical on a machine like the brother pr1055x, where daily lubrication is not a "nice to have"—it is a mechanical necessity to prevent expensive friction welding in the hook race.

The “Don’t Panic” Primer for the Brother PR1055X Rotary Hook: What You’re Actually Protecting

To master maintenance, you must understand the physics. The rotary hook is a high-precision component where metal parts slide against each other at speeds up to 1,000 stitches per minute (SPM).

That sliding contact is why we oil every single day before use. When that contact runs dry, two things happen:

1. Friction Heat: Metal expands microscopically, causing drag.
2. Lint Cement: Oil turns into sludge, and dry heat bakes lint into the race.

Sensory Check: A happy machines hums rhythmically. An un-oiled machine sounds "angry"—you will hear a sharper, metallic clatter or a higher-pitched whine. If you hear this, stop immediately.

Many beginners assume oiling is a messy, vague chore. It isn’t. If you let the machine position the hook for you and use a precision oiler, it becomes a 60-second habit that buys you peace of mind.

Warning: When the PR1055X runs the automated oiling function, the handwheel rotates on its own. Crush Hazard: Keep fingers, tools, and loose sleeves/jewelry at least 6 inches away from the handwheel and hook area until the machine comes to a complete stop.

The “Hidden” Prep Pros Do First: Oil, Light, Lint Control, and a No-Guess Setup

Before you touch the screen, set your physical stage. Most "mystery defects" in embroidery are actually caused by rushed maintenance—either too much oil (which stains fabric) or lint packed into the hook race.

Prep Checklist: The "Clean Start" Protocol

Perform these checks before the machine is even turned on:

• The Right Oil: Ensure you have clear, high-quality sewing machine oil (mineral based). Never use WD-40 or dark household oils.
• Precision Delivery: Use a needle-nose oiler pen. Standard bottle spouts dispense 5x too much oil.
• Lint Escape: Have a small detailing brush and a can of compressed air (use gently and only if approved by your manual).
• Visual Access: Angle a bright LED task light directly into the hook area. You cannot clean what you cannot see.
• Safety Buffer: Keep a small piece of fabric or tissue/Kleenex nearby to blot the oiler tip.

Use the PR1055X “Oil Can” Icon: Let the Machine Rotate the Hook to the Perfect Spot

The host’s best beginner tip removes the variable of human error: don't fight the handwheel. Manually turning the wheel can be confusing for a novice trying to find the "race."

Instead, use the on-screen maintenance function. This tells the machine’s computer to rotate the hook stepper motor to the precise open position required for lubrication.

The Sequence:

1. Tap the Oil Icon on the screen.
2. Acknowledge the safety warning.
3. The machine will mechanically rotate.

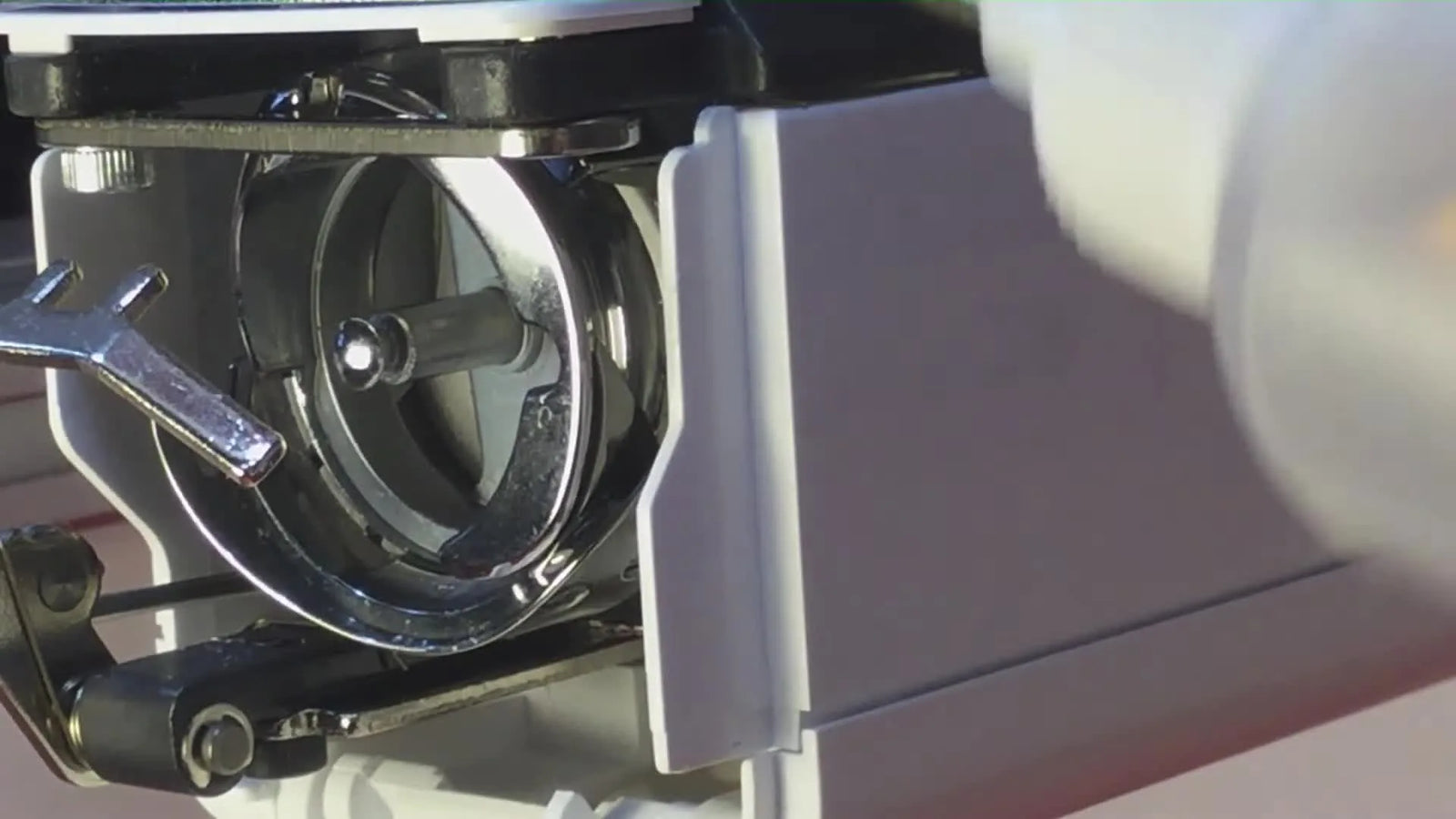

4. Success Metric: You will see the "cup" of the hook race rotate to an open position, exposing the gap between the rotating hook and the stationary race. This is your target zone.

The One-Drop Rule: Oiling the Hook Race Without Making a Lint Magnet

The host uses a precision oiler and places exactly one drop into the hook race. This is the "Goldilocks" zone of maintenance.

Why "One Drop" is Scientific Fact, not a Suggestion:

• Too Little (Dry): increased friction, thread breaks, potential hook seizure.
• Too Much (Flooded): Centrifugal force spins the excess oil out, staining your garment and collecting lint into a sludge that jams the thread cutter.

The Action: Place the tip of your oiler near the race (without scratching it) and dispense a droplet the size of a pinhead. That is all you need.

Once done, press OK on the screen. The machine will rotate back to the stitch-start position.

Pro User Habit: remove the bobbin case at the end of every shift and leave it on the machine table. The next morning, the missing bobbin case serves as a physical "Look Here!" alarm, reminding you to oil before you re-insert it.

The Bobbin Case “Click” Test: Reseating It So It Doesn’t Half-Latch Mid-Run

After oiling, the host reinstalls the bobbin case. This is where 40% of beginner errors occur. A bobbin case that is "mostly" in will fly out or rattle, causing massive bird nests.

Troubleshooting the "Latch"

If the bobbin case won't lock in, do not force it. Use this logic:

The Sensory Anchor: You are looking for a sharp, tactile SNAP or CLICK. Push firmly on the center of the case (not the latch lever) until you hear it. Give the thread tail a gentle tug; the bobbin should rotate smoothly, and the case should not wiggle.

Note on Tension: When pulling the bobbin thread, you should feel slight resistance, similar to pulling dental floss from its container. If it flops loose, check your tension spring.

On-Screen Text on the Brother PR1055X: Fitting a Phrase Into a 4x4 Hoop Without Guesswork

Now we move to the digital setup. The host programs text directly on the machine interface.

She selects a built-in font and types "Bus Driver". Immediately, she hits a hard constraint: the text is too wide for the standard 4x4 inch field. This is a common frustration when using a brother 4x4 embroidery hoop, which is often the go-to size for logo work and small bags.

The Logical Fix (Cognitive Chunking): Instead of shrinking the text until it is unreadable, she engages a format change:

1. Change font size from Medium to Small.
2. Input a Line Break (Return key) between "Bus" and "Driver".
3. Center the alignment.


Success Metric: The preview window shows the text stacked vertically. The text is now comfortably within the red boundary box on the screen, meaning the machine will not refuse the design.

The 10.00 Placement Nudge: Moving the Design Up Before You Stitch

After the text is set, the host uses the positioning arrows to bump the design vertically, showing a Y-axis value of 10.00mm.

The Physics of Placement: Why move it up? Tote bags often have a boxed bottom seam or a thick folded hem.

• The Risk: If the needle bar hits a thick seam at 800 SPM, the needle can deflect (bend), hitting the throat plate or the hook.
• The Solution: creating a "Safety Buffer" of 10-20mm from the bottom edge keeps the presser foot flat on the canvas, ensuring even stitch formation.

Blind Spot Check: Before stitching, lower the presser foot manually (or use the trace function) to ensure the foot doesn't get hung up on the bag handle clamps.

Stabilizer Choices for a Canvas Tote Bag: Why Two Layers of 8x8 Cutaway Works

The host selects two sheets of New Brothread cutaway stabilizer (8x8 pre-cuts).

The Material Science: Beginners often ask, "Canvas is stiff, why do I need Cutaway?" Canvas Woven fabrics are stable in X/Y directions, but a tote bag is a "floating" object often held by clamps, not fully hooped. The stabilizer provides the anchoring structure that the floating bag lacks.

Precision Decision Tree: Fabric vs. Stabilizer

Use this logic to avoid ruining your blanks:

1. Is the item a tube/bag that cannot be hooped flat?
   • Yes: It will experience "flagging" (bouncing). Use Cutaway (2 layers for text) to rigidize the stitch area.
   • No: Proceed to step 2.
2. Is the design text-heavy or dense?
   • Yes: Text columns pull fabric inward (pucker). Cutaway is mandatory to hold column width.
   • No: Light sketch designs may get away with Tearaway.
3. Will the item be washed frequently?
   • Yes: Cutaway (Tearaway disintegrates in the wash, leaving embroidery unsupported).

The Host's Choice: Two layers of cutaway creates a "sandwich" that prevents the canvas from distorting under the high needle penetration of satin fonts.

Clamp Frame Hooping on a Tote Bag: The Tension Trick That Prevents Skewed Text

The host utilizes a compact clamp frame (shoe/bag style). She slides the bag over the lower arm, inserts the stabilizer inside the bag, and clamps the top frame down.

The "Good Enough" Principle: She notes that she doesn't obsess over minor wrinkles outside the clamp area. This is a key distinction. In a clamp frame, tension is applied by the jaws. As long as the stitch field (the area inside the inner window) is taut like a drum skin, the rest of the bag can be loose.

The Reality Check: If you find standard clamp frames slow to load or difficult to align, you are encountering the number one bottleneck in embroidery production: Hooping Time. The struggle to keep the bag straight while closing the heavy clamp is where human error (crooked logos) creeps in. This is exactly where specific hooping for embroidery machine technique becomes your primary skill to practice.

Setup That Saves Your Wrists: When a Hooping Station or Magnetic Frame Is the Right Upgrade

If you are doing one bag a month, a standard clamp is fine. However, if you are fulfilling orders for 20, 50, or 100 bags, the physical strain of clamping—and the risk of "hoop burn" (permanent ring marks on the fabric)—becomes a business risk.

The Commercial Logic: When to Upgrade? Use this diagnostic to see if you need better tools:

• Trigger: Are your wrists sore after a job? Are you rejecting 10% of items because they are crooked?
• Criteria: If Setup Time > Stitch Time, you are losing profit.
• The Solutions:

Level 1: The Alignment Fix A hooping station for embroidery machine allows you to pre-measure and hold the garment in place before you even touch the hoop. Professional shops often pair this with a hoop master embroidery hooping station workflow to ensure "Shirt #1" and "Shirt #50" look identical.

Level 2: The Efficiency Fix (Magnetic Frames) Many pros switch to magnetic embroidery hoops (like the MaggieFrame) for bags and thick items.

• Why? They snap shut automatically, adjusting to proper tension without manual screwing or clamping force that crushes fibers.
• Result: Faster loading, zero hoop turn, and relief for your hands.

Warning: Magnetic Safety
Industrial magnetic hoops use high-power Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
* Medical Risk: Keep them away from pacemakers and insulin pumps.

Level 3: The Scale Fix If you are consistently battling cycle times, this is where adding a multi-needle workhorse (like the SEWTECH series) allows you to prep the next hoop while the current one runs, doubling your output.

Running the Stitch-Out on the Brother PR1055X: What “Normal” Looks Like While It’s Sewing

Once clamped, the machine begins stitching the text in red.

Sensory Monitoring (The Ear of the Operator): Do not walk away immediately. Listen to the first 100 stitches.

• Good Sound: A rhythmic thump-thump-thump.
• Bad Sound: A slapping noise (fabric flagging) or a grinding noise (needle deflection).

Hidden Consumable Check: Have you changed your needle recently? Canvas is tough. A Dull needle will push fabric down rather than piercing it, causing the machine to sound louder and potentially ruining the registration. Use a fresh 75/11 Universal or Titanium needle for canvas.

Comment-Driven Fixes: The Questions Beginners Ask (and the Answers That Prevent Rework)

A few themes emerged in the community comments that address common "Points of Fear":

1) “Where is the hook, exactly?” Visualizing the hook race is the biggest hurdle. The video close-up confirms it: you are looking for the gap between the spinning outer shell and the stationary inner race. If you can't see metal sliding on metal, you aren't oiling the right spot.

2) “What if I’m scared a big hoop will hit the machine?” Valid fear. The PR1055X has sensors, but they aren't magic. Always do a "Trace" (Trial key) before stitching. This moves the hoop around the design's perimeter. If the hoop frame gets too close to the machine arm, stop and move the design.

3) “What exact oil should I buy?” Commenters often ask for Amazon links. The Answer: Look for "Water White Sewing Machine Oil" (Clear Mineral Oil). If the bottle doesn't say "Stainless" or "Non-staining," don't buy it. Never use 3-in-One household oil; it gums up over time.

The “Why It Works” Layer: Daily Oiling + Correct Hooping = Fewer Breaks

This routine works because it systematically eliminates the variables that cause failure:

1. Friction Management: Daily oiling keeps the hook temperature down, preventing thread breaks caused by heat.
2. Structural Stability: Two layers of cutaway stabilizer prevent the canvas from distorting, ensuring the text stays crisp.
3. Clearance: Moving the design up 10mm protects the needle from breaking on the seam.

The Upgrade Result: Turning This Into a Repeatable Tote-Bag Workflow

The finished tote bag reveal shows clean, legible lettering on the back, matching the quality of the detailed flower stitched on the front.

This result is replicable. Whether you are doing one bag or fifty, the process remains the same. However, as your volume grows, your focus must shift from "how do I stitch this?" to "how do I stitch this faster?"

This is where standardization saves you. Using pre-cut stabilizers, magnetic frames for instant hooping, and reliable multi-needle machines (like SEWTECH) transforms a hobby into a profitable production line.

Final Operation Checklist

Before you press "Start" on your next bag:

• Hook Maintenance: Has it been oiled today (1 drop)?
• Bobbin Check: Did you hear the click? Is the tail 2-3 inches long?
• Design Check: Did you split long words (e.g., "Bus Driver") to fit the 4x4 limit?
• Clearance: Is the design at least 10mm away from the thick bottom seam?
• Hoop Check: Is the stitch field taut (drum-skin tight)?
• Trace: Did you run a trace to ensure the needle won't hit the clamp?

Follow this rhythm—Oil, Click, Setup, Stabilize, Trace—and you will stop fixing mistakes and start producing professional inventory.

FAQ

• Q: How do I oil the Brother PR1055X rotary hook race without staining fabric or creating lint sludge?
  A: Use the Brother PR1055X on-screen Oil Can function and apply exactly one precision drop to the hook race.
  • Tap the Oil Icon, acknowledge the warning, and let the machine rotate the hook to the open “cup” position.
  • Brush out visible lint first, then place a pinhead-sized single drop into the race without scratching metal surfaces.
  • Press OK and let the machine return to start position; blot any excess oil from the oiler tip.
  • Success check: The machine sounds smooth and rhythmic (not metallic or “angry”) on the first stitches.
  • If it still fails: If oil spins out or fabric stains, reduce oil to one drop and re-check for over-oiling and lint packed into the race.
• Q: What safety precautions are required when the Brother PR1055X runs the automated oiling function and the handwheel turns by itself?
  A: Keep hands, tools, sleeves, and jewelry away because the Brother PR1055X handwheel rotates automatically during oiling.
  • Trigger the Oil Icon only when the area is clear and you are not reaching into the hook space.
  • Maintain at least 6 inches of clearance from the handwheel and hook area until the machine fully stops.
  • Wait for complete stop before reinstalling the bobbin case or touching anything near the hook.
  • Success check: The oiling rotation completes with nothing contacting the moving handwheel or hook area.
  • If it still fails: If you feel tempted to steady the wheel or guide parts by hand, stop and restart the oiling cycle only after clearing obstructions.
• Q: How do I reseat the Brother PR1055X bobbin case so it “clicks” and does not half-latch and cause bird nests?
  A: Install the Brother PR1055X bobbin case until a sharp SNAP/CLICK is felt—never accept a “mushy” fit.
  • Push firmly on the center of the bobbin case (not the latch lever) until the click is obvious.
  • Align the pigtail (spiral wire) with the correct notch; rotate slightly until it drops into place.
  • Clean lint from the back of the center post if the case feels soft or won’t lock.
  • Success check: The case does not wiggle, the thread tail tugs smoothly, and the click was clear and tactile.
  • If it still fails: Inspect the bobbin case brake/backlash spring for bending and replace the bobbin case if deformed.
• Q: How do I fit text like “Bus Driver” within the Brother PR1055X 4x4 hoop field without shrinking it until unreadable?
  A: Stack the text into two lines on the Brother PR1055X screen instead of forcing extreme downscaling.
  • Change the built-in font size from Medium to Small.
  • Insert a line break (Return) between “Bus” and “Driver.”
  • Center the alignment and confirm the preview stays inside the red boundary box.
  • Success check: The preview shows stacked text fully inside the hoop boundary, and the machine does not refuse the design.
  • If it still fails: Re-check that the line break is applied and that the preview boundary is not exceeded before stitching.
• Q: Why should the Brother PR1055X design be moved up by 10.00 mm on a canvas tote bag before stitching?
  A: Move the design up (example shown: 10.00 mm) to avoid thick bottom seams that can deflect needles on the Brother PR1055X.
  • Use the positioning arrows to nudge the design upward until the Y-axis shows the desired offset.
  • Keep a safety buffer (often 10–20 mm) away from boxed seams or heavy hems on tote bags.
  • Lower the presser foot or use a trace function to confirm the foot and needle path stay flat and clear.
  • Success check: No seam contact during trace, and the presser foot does not snag or tilt at the bottom edge.
  • If it still fails: Reposition farther from the seam and re-run trace before pressing Start.
• Q: What stabilizer setup is a safe starting point for Brother PR1055X text embroidery on a canvas tote bag clamped (not fully hooped)?
  A: Two layers of cutaway stabilizer are a safe starting point for text on a floating canvas tote bag setup.
  • Insert stabilizer to support the stitch field because the bag is clamped and can “flag” (bounce).
  • Choose cutaway for text-heavy or dense lettering to resist pull-in and puckering.
  • Keep the stitch area taut inside the clamp window; ignore minor wrinkles outside the clamp zone.
  • Success check: During the first stitches, fabric does not slap, bounce, or distort, and lettering columns stay crisp.
  • If it still fails: If you hear slapping or see movement, improve clamping tension and consider adding structure (often more supportive stabilizing) per the machine manual and your material behavior.
• Q: When should an embroidery shop upgrade from a standard clamp frame to magnetic embroidery hoops or a multi-needle machine for tote bag orders?
  A: Upgrade when hooping time and physical strain become the bottleneck—start with technique, then tools, then capacity.
  • Level 1 (Technique): Standardize alignment so bags load straight; focus on keeping only the stitch field drum-tight.
  • Level 2 (Tool): Switch to magnetic embroidery hoops to speed loading and reduce hoop burn and wrist strain when volume grows.
  • Level 3 (Capacity): Add a reliable multi-needle machine when you need to prep the next hoop while one runs to increase output.
  • Success check: Setup time no longer exceeds stitch time, rejects from crooked placement drop, and wrists/hands are not sore after a run.
  • If it still fails: If rejects remain high, add a hooping station workflow for repeatable placement and keep running a trace on every new setup.
