Mastering the Brother PE800: A Professional’s Field Guide to Your First Stitch-Out

If you just unboxed a Brother PE800, you are likely suspended somewhere between excitement and terror. This is normal. Unlike standard sewing, where you guide the fabric, embroidery is an automated engineering process where you program a robot to execute a plan. It feels high-stakes because once you press "Start," you lose physical control.

Here is the industry truth: The machine is rarely the problem. 90% of failures—be it birdsnesting, needle breaks, or puckered designs—are setup errors. They are physics problems caused by skipping small, seemingly invisible steps.

This guide converts the standard "unboxing tutorial" into a production-grade Standard Operating Procedure (SOP). We will rebuild the workflow with professional safety margins, sensory checkpoints, and the "why" behind every lever, turning your anxiety into engineering confidence.

The "Calm-Down" Protocol: Managing Expectations

Your first stitch-out is a stress test, not a masterpiece. In professional circles, we call this a "sew-out." You are verifying three things:

1. Thread Path Integrity: Is the tension balanced?
2. Hoop Stability: Is the fabric slipping?
3. Digitization Quality: Does the file push the fabric too hard?

Treat this learning curve as a calibration phase. Even the monogram in the tutorial video shows slight pulling (scrunching)—a classic sign that learning membrane tension and stabilization is an art form.

The Supply Bench: The "Hidden" Consumables That Determine Success

Professional embroidery relies on a "system" where the needle, thread, stabilizer, and bobbin work in unison. Using the wrong combination is like putting diesel in a gasoline engine.

1. Bobbins: The Case for Pre-Wounds

The tutorial correctly recommends 60wt or 90wt pre-wound bobbins.

• The Beginner Trap: Trying to wind your own bobbins on a sewing machine often results in uneven winding tension.
• The Pro Rule: In embroidery, uneven bottom tension leads to "looping" on top or thread breaks. Pre-wounds eliminate this variable entirely.


2. Needles: Your Cheapest Insurance

The video demonstrates a 75/11 needle, which is the industry standard for woven cottons.

• The Physics: An embroidery needle has a larger eye and a special scarf to protect high-speed thread movement.
• The Rule: Change your needle every 8 hours of actual stitch time or after any birdsnest jam. A $0.50 needle can ruin a $20 garment if it has a microscopic burr.


3. Stabilizers (Backing): The Foundation

Think of stabilizer not as "backing," but as the actual structure of your embroidery. The fabric is just the veneer.

• Tear-Away: For stable, woven fabrics (towels, denim). Sensory Check: It feels like stiff paper.
• Cutaway: MANDATORY for knits (T-shirts, hoodies). Why: Knits stretch; stitches don't. Cutaway locks the fibers in place permanently.
• Water-Soluble (Topping): Prevents stitches from sinking into high-pile fabrics (terry cloth, fleece).
• Iron-On Backing (Comfort Cover): Applied after stitching to seal the scratchy back of the design—crucial for children's wear.

4. The "Hidden" Toolkit

Beyond the machine, you need these on your bench:

• Curved Embroidery Scissors: To trim jump stitches flush against the fabric without snipping the knot.
• Seam Ripper: You will make mistakes. Own it.
• Non-Permanent Adhesive Spray (Example: 505): Not shown in every video, but pros use a light mist to bond fabric to stabilizer for zero movement.

Phase 1: Prep Checklist (The "Go/No-Go" Flight Check)

• Fresh Needle: 75/11 Ballpoint (for knits) or Sharp (for wovens) installed flat-side back.
• Bobbin: Pre-wound, check for lint in the race area.
• Stabilizer Match: Cutaway for stretch, Tear-away for stable.
• Tools: Curved scissors and seam ripper placed on the right-hand side.
• Safety: Screwdriver and oil stored away from the vibration zone.


Hooping Physics: The "Drum Skin" Standard

This is where most beginners fail. The tutorial shows the standard PE800 5x7 hoop. The goal is Tension without Distortion.

The Sequence

1. Loosen & Separate: Unscrew the outer ring thoroughly.
2. Layering: Place outer hoop on table → Stabilizer → Fabric.
3. Insertion: Press inner hoop down. Check: Ensure the arrow alignment matches.
4. The Tactile Check: Before tightening the screw, smooth the fabric gently.
5. Locking: Tighten the screw.


The "Drum" Test vs. The "Stretch" Trap

• The Sound: Tap the fabric. It should make a dull thump sound, like a drum.
• The Danger: Do NOT pull the fabric edges aggressively after the hoop is tightened. This stretches the fiber. When you unhoop later, the fabric snaps back, but the stitches stay rigid. Result: Puckering.

The Pain Point: When Manual Hooping Holds You Back

Manual screw-hoops are fine for hobbyists. However, if you are doing a run of 50 shirts, you will encounter two issues:

1. Hoop Burn: The friction marks left by the plastic rings on delicate fabric.
2. Repetitive Strain: The constant screwing/unscrewing hurts the wrist.

This is the commercial trigger point. Many intermediate users upgrade to a magnetic embroidery hoop. Magnetic frames clamp instantly without "screwing," drastically reducing hoop burn and wrist fatigue. While not strictly necessary for your first design, they are a standard efficiency tool for volume production.

Many professionals also search for terms like how to use magnetic embroidery hoop specifically to solve the issue of hooping thick items like towels or hoodies, which are notoriously difficult to force into standard plastic frames.

Warning: Pinch Hazard. If you eventually upgrade to magnetic hoops, treat them with respect. They use industrial neodymium magnets. Keep fingers clear of the snap zone, and strictly keep them away from pacemakers or medical implants.

Phase 2: Setup Checklist

• Orientation: Inner hoop matches outer hoop arrows.
• Tension: Fabric is taut (drum sound) but the grain is straight (not distorted).
• Clearance: Excess fabric is folded/clipped away so it won't get sewn to the machine arm.
• Hardware: Hoop screw is finger-tight (use a screwdriver gently if your grip strength is low).


Threading Mechanics: The "Presser Foot" Rule

This is the single most critical mechanical rule in sewing and embroidery.

The Problem

Inside the machine's head are Tension Discs. When the presser foot is DOWN, these discs clamp shut. When the foot is UP, they open.

The Protocol

1. Presser Foot UP: Always. This opens the gates.
2. Thread Path: Guide the thread through channels 1–5.
3. The Tactile Anchor: When pulling the thread down through the channel, you should feel a slight resistance—similar to flossing teeth. If there is zero drag, the thread missed the tension assembly.
4. Take-Up Lever: Ensure the thread hooks fully into the eye of the lever (Step 6).


Bobbin Insertion: The "P" Rule

Drop the bobbin in so the thread tail forms the letter P (unwinding off the left).

• Sensory Check: As you pull the thread through the grey plastic guide, listen for a tiny click or feel a snap as it seats into the unseen lower tension spring. If you don't feel this, you will have zero bottom tension.




The Stitch-Out: Digital to Physical

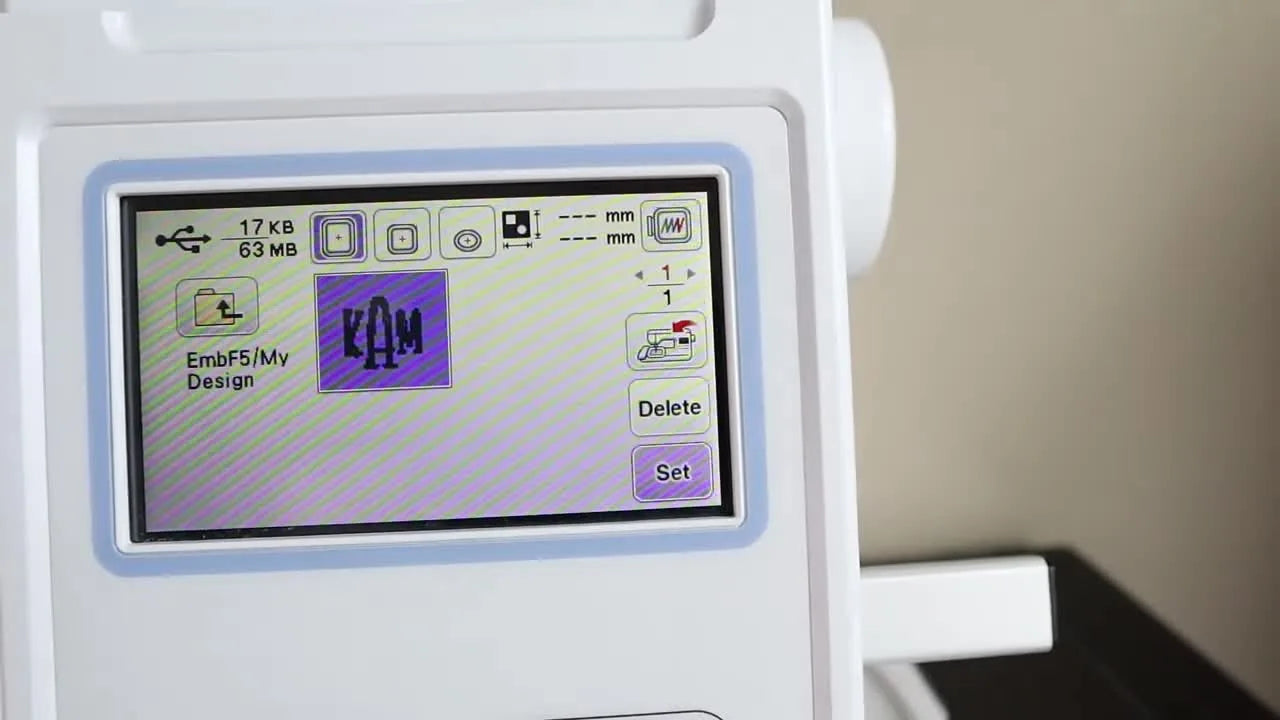

On the PE800 screen:

1. USB Import: Select your file.
2. Rotation: Rotate 90° if needed (5x7 hoops usually require this).
3. Positioning: Drag the design to center.


Warning: Collision Course. Before you press start, check the space behind the machine. The embroidery arm will travel backward. If it hits a wall or a coffee mug, it can knock the stepper motors out of alignment, requiring a service call.

The "Ghost" Trace

(If your specific firmware allows a trace/check): Watch the hoop boundaries to ensure the needle won't strike the plastic frame.

Press Start (Green Button): Keep your hand near the stop button for the first 100 stitches. This is the "danger zone" where birdsnesting usually happens.

Phase 3: Operation Checklist

• Environment: 12 inches of clearance behind the machine.
• Digital: Design rotated and centered.
• Physical: Hoop clicked solidly into the carriage arm (check both attachment points).
• Thread: Top thread under the foot, tail held gently for the first 3 stitches.
• Start: Watch the first layer closely.

Finishing: The Professional Exit

Once the machine sings its finish song:

1. Trim Jump Stitches: Use your curved scissors to snip the connecting threads before removing the stabilizer.
2. Unhoop: Release the screw completely.
3. Tear-Away Technique: Do not rip the paper like a barbarian. Place your thumb on the stitches to support them, and gently tear the stabilizer away. Stressing the stitches now can distort the design you just worked so hard to create.




The Decision Logic: Stabilizer & Fabric Pairing

Do not guess. Use this decision tree to prevent 90% of puckering issues.

Troubleshooting Diagnostic: Symptom to Cure

Stop random guessing. Follow this repair hierarchy from Low Cost (User Error) to High Cost (Machine Adjustment).

Symptom 1: Birdsnest (Huge knot under the throat plate)

• Diagnosis: Zero top tension. The thread is just falling into the machine.
• The Fix: Raise presser foot. Re-thread the entire upper path. Ensure you hit the Take-Up Lever.

Symptom 2: Thread Breaks Every 2 Minutes

• Likely Cause A: Old Needle/Burr. -> Action: Replace needle (New 75/11).
• Likely Cause B: Spool Cap. -> Action: Ensure the spool cap is slightly larger than the spool diameter so thread doesn't snag on the plastic rim.

Symptom 3: Needle Breaks with a Loud "Bang"

• Diagnosis: Needle deflection. The needle bent slightly and hit the metal plate or hoop.
• The Fix: Fabric was likely tugging the needle. Improve hooping stability or slow the machine speed down (if adjustable).

Symptom 4: White Bobbin Thread Showing on Top

• Diagnosis: Top voltage is too tight, or bottom tension is non-existent.
• The Fix: First, clean lint from the bobbin case. Second, re-thread bobbin (Check the "P" rule). Only adjust tension dial as a last resort.

Commercial Scaling: From Hobby to Side Hustle

The PE800 is a gateway machine. As you gain confidence, you may begin selling sets—party hats, patches, or personalized uniforms. This is where the workflow changes.

The Bottlenecks of Production

1. Hooping Time: It takes 2-3 minutes to screw-hoop a shirt perfectly.
2. Color Changes: On a single-needle machine, you are the automatic color changer. You must sit there.
3. Placement Accuracy: Getting a logo in the exact same spot on 20 shirts is hard.

The Upgrade Path

When these bottlenecks cost you money, consider these upgrades:

• Placement Tools: Many shops invest in a hooping station for machine embroidery. These fixtures act like a rig, holding the hoop and garment in a fixed position to ensure every chest logo is exactly 3 inches down from the collar.
• Speed Hardware: This is the ideal time to re-evaluate the magnetic hoop for brother pe800. By removing the screw mechanism, you can hoop a shirt in 30 seconds rather than 3 minutes.
• Capacity Upgrade: If you are consistently stitching 4+ color designs on batches of 10+ items, a single-needle machine becomes the choke point. This is where the SEWTECH multi-needle embroidery machine ecosystem comes into play—allowing you to set 10 colors and walk away, multiplying your profit per hour.

For now, master the PE800. Respect the physics, trust the "Presser Foot Up" rule, and keep your machine clean. Welcome to the guild.

FAQ

• Q: How do I stop Brother PE800 birdnesting (a huge knot under the needle plate) during the first 100 stitches?
  A: Re-thread the Brother PE800 with the presser foot UP so the thread actually enters the tension discs.
  • Raise the presser foot fully, then completely re-thread the upper path and confirm the thread is seated in the take-up lever.
  • Pull the thread down the channel and feel slight “floss-like” resistance (no drag usually means the tension assembly was missed).
  • Hold the top thread tail gently for the first 3 stitches after pressing Start.
  • Success check: Stitches form cleanly without a growing wad under the throat plate, and the top thread does not slack-loop.
  • If it still fails: Remove the hoop, clean lint from the bobbin/race area, then re-insert the bobbin using the Brother PE800 “P” orientation and re-test.
• Q: How do I insert the bobbin correctly in a Brother PE800 to prevent looping and white bobbin thread showing on top?
  A: Load the bobbin so the thread tail forms a clear “P” and seats into the lower tension guide.
  • Drop the bobbin in so it unwinds off the left (the “P” rule), then route the thread through the grey guide.
  • Pull the thread firmly enough to feel/hear a tiny “click/snap” as it seats under the lower tension spring.
  • Clean visible lint in the bobbin case area before closing up.
  • Success check: Bobbin thread does not freely spill out with zero resistance, and the top side does not show excessive white bobbin thread.
  • If it still fails: Re-thread the top path with presser foot UP; only consider tension adjustments as a last resort and follow the machine manual.
• Q: What is the correct hooping standard for a Brother PE800 5x7 hoop to prevent puckering and fabric distortion?
  A: Aim for “drum-skin taut” on the Brother PE800 hoop without stretching the fabric grain.
  • Layer in order: outer hoop on table → stabilizer → fabric, then press the inner hoop in and align the arrows.
  • Smooth the fabric gently before tightening, then tighten the screw to finger-tight.
  • Avoid tugging the fabric edges after tightening (that “stretch trap” often causes puckering after unhooping).
  • Success check: Tap the hooped fabric and hear a dull “thump,” while the fabric grain stays straight (not pulled off-grain).
  • If it still fails: Add a light mist of temporary adhesive spray to bond fabric to stabilizer and reduce shifting, or re-hoop with better stabilizer support.
• Q: Which stabilizer should be used on a Brother PE800 for T-shirts/hoodies versus towels to reduce puckering and stitch sink?
  A: Match stabilizer to fabric behavior: cutaway for stretch knits, tear-away for stable wovens, and add topping for high pile.
  • Use medium-weight cutaway for T-shirts/hoodies because knits stretch but stitches do not.
  • Use tear-away for stable woven items like denim/canvas; add water-soluble topping on towels to prevent stitches sinking into loops.
  • Use spray adhesive (light mist) when needed to prevent shifting between fabric and stabilizer.
  • Success check: The design stays flat after unhooping, and satin/filled areas do not “tunnel” or sink into pile.
  • If it still fails: Switch to a more supportive stabilizer choice for that fabric type (for delicate fabrics, consider poly-mesh/no-show with a float technique).
• Q: How often should the embroidery needle be changed on a Brother PE800, and what needle symptom suggests an immediate change?
  A: Replace the Brother PE800 needle every 8 hours of stitch time or immediately after a birdnest jam.
  • Install a fresh 75/11 embroidery needle appropriate to the fabric (ballpoint for knits, sharp for wovens), flat side to the back.
  • Change right away after any jam because microscopic burrs can form and start cutting thread.
  • Keep a spare needle ready on the bench so the change is not delayed mid-project.
  • Success check: Thread breaks reduce sharply and stitches look consistent without random skips after the needle swap.
  • If it still fails: Check the spool cap fit so the top thread does not snag on the spool rim, then re-thread with presser foot UP.
• Q: What safety checks should be done before pressing Start on a Brother PE800 to prevent hoop collision or mechanical problems?
  A: Create clearance and confirm the hoop is locked before starting the Brother PE800 stitch-out.
  • Leave at least 12 inches of free space behind the machine so the embroidery arm cannot hit a wall or objects.
  • Confirm the hoop is clicked solidly into the carriage at both attachment points.
  • Run a boundary/trace check if the firmware allows, and verify the needle will not strike the hoop frame.
  • Success check: The arm travels freely through its first movements with no impact, grinding, or frame strikes.
  • If it still fails: Stop immediately, re-seat the hoop, re-center/rotate the design on-screen, and remove any excess fabric that could get caught.
• Q: When does it make sense to upgrade from a Brother PE800 screw hoop to a magnetic embroidery hoop or to a multi-needle machine for small production runs?
  A: Upgrade only when manual hooping time, hoop burn, wrist strain, or frequent color changes becomes the real bottleneck.
  • Level 1 (technique): Improve hooping to “drum-skin” taut and add spray adhesive to reduce movement and rework.
  • Level 2 (tool): Consider a magnetic hoop if screw-hooping causes hoop burn on delicate fabrics or wrist fatigue, especially on thicker items like towels/hoodies.
  • Level 3 (capacity): Move to a multi-needle machine when frequent color changes on batches (for example, 10+ items with 4+ colors) keeps you tied to the machine.
  • Success check: Hooping time and repeat placement consistency improve measurably without increasing rehoops or puckering.
  • If it still fails: Add a hooping station for repeatable placement, and review the pinch-hazard safety rules before using magnetic hoops (keep fingers clear and keep magnets away from medical implants/pacemakers).
