Baby Lock Altair/Meridian 2 Upgrade Kit Unboxing: The Magnetic 7x12 Frame, Couching Foot, and the 2-Point Positioning Trick That Saves Crooked Hoops

If you’ve ever hooped a project slightly crooked, hit start anyway, and then watched in horror as your name stitched out at a painful 5-degree slant, you know the specific flavor of embroidery heartbreak. This upgrade kit is aimed directly at that moment of panic.

Jordan from Carolina Sew-n-Vac provides a practical unboxing of the official Baby Lock upgrade that lifts an original Altair or Meridian to the “2” series feature set. But as someone who has spent two decades listening to the rhythm of embroidery machines, I see more than just new accessories here. I see a shift in how we handle precision.

Below is a master-class breakdown of this upgrade, filtered through the lens of production safety and workflow efficiency.

The “Don’t Panic” Primer: What the Baby Lock Altair/Meridian 2 Upgrade Actually Is

Jordan is explicit: This is an embroidery upgrade. It is not a magic wand that turns a hobby machine into a completely different hardware platform, but it is a massive software brain transplant.

Understanding the "Upgrade Psychology" is crucial to avoiding buyer's remorse:

1. The Expectation: "This kit will fix my bad hooping."
2. The Reality: The kit gives you tools (2-Point Positioning and Magnetic Frames) to compensate for human error, but it requires you to learn a new logic.

If you are hoping the upgrade turns your workflow into a fully automated production line, you need to temper that expectation. You still need solid hooping habits (drum-tight tension), good stabilization, and a repeatable process.

Comment-driven reality check: "Is an Altair 1 with the kit exactly the same as an Altair 2?" Functionally, regarding the embroidery interface and features? Generally, yes. You create feature parity. However, factory-made "2" series machines may have subtle internal hardware revisions that a kit cannot replicate. Treat this as a Software + Tooling upgrade.

The Hidden Prep Pros Do First: Unboxing Without Losing Parts (or Your Fingers)

Unboxing small, expensive components requires a "surgeon's mindset." Jordan opens the shipping carton with a box cutter—a standard move, but one that makes safety officers nervous.

Warning: Mechanical Safety Hazard. Box cutters, loose embroidery needles (sharp!), and small metal accessories are a dangerous mix on a cluttered craft table. Always cut away from your body. More importantly, never leave a magnetic frame near your screen or storage media during unboxing until you know where the magnets are located.

Before you install anything, establish a "Clean Zone."

Prep Checklist: The "Surgeon's Table" Method

• Surface: Clear a flat table and lay down a light-colored towel or mat. Small screws and feet are often dark metal; they disappear on dark tables but pop against white.
• Containment: Use a magnetic dish for loose screws or feet. If you don't have one, a small Tupperware container works.
• Inventory: Take a photo of the box contents immediately upon opening. This is your insurance policy if you need to repack or claim missing items.
• Hidden Consumables: Check for items newbies often miss—do you have fresh 75/11 embroidery needles? Do you have your machine's sensor pen (if applicable)?
• Documentation: Separate the Activation Card immediately. Treat it like a passport.


The Madeira Thread Bonus: Nice to Have, But Listen to Your Machine

The kit includes a Madeira thread set (1000m spools). It’s a nice bonus, but let’s talk about thread physics.

Sensory Concept: When testing new features like the decorative fills in this upgrade, your machine should hum rhythmically. If you hear a dry, "slapping" sound or a high-pitched squeal, your thread is likely too dry or old, or your tension is off.

Expert Rule: Never test a major machine upgrade with cheap or old thread. Use high-quality polyester (like the included Madeira or equivalents). Changing the machine and the thread quality simultaneously creates too many variables. If stiches loop, you won't know if it's the new software update or the thread.

The Upgrade Kit Box Breakdown: Reframing the "Altair vs. Meridian" Question

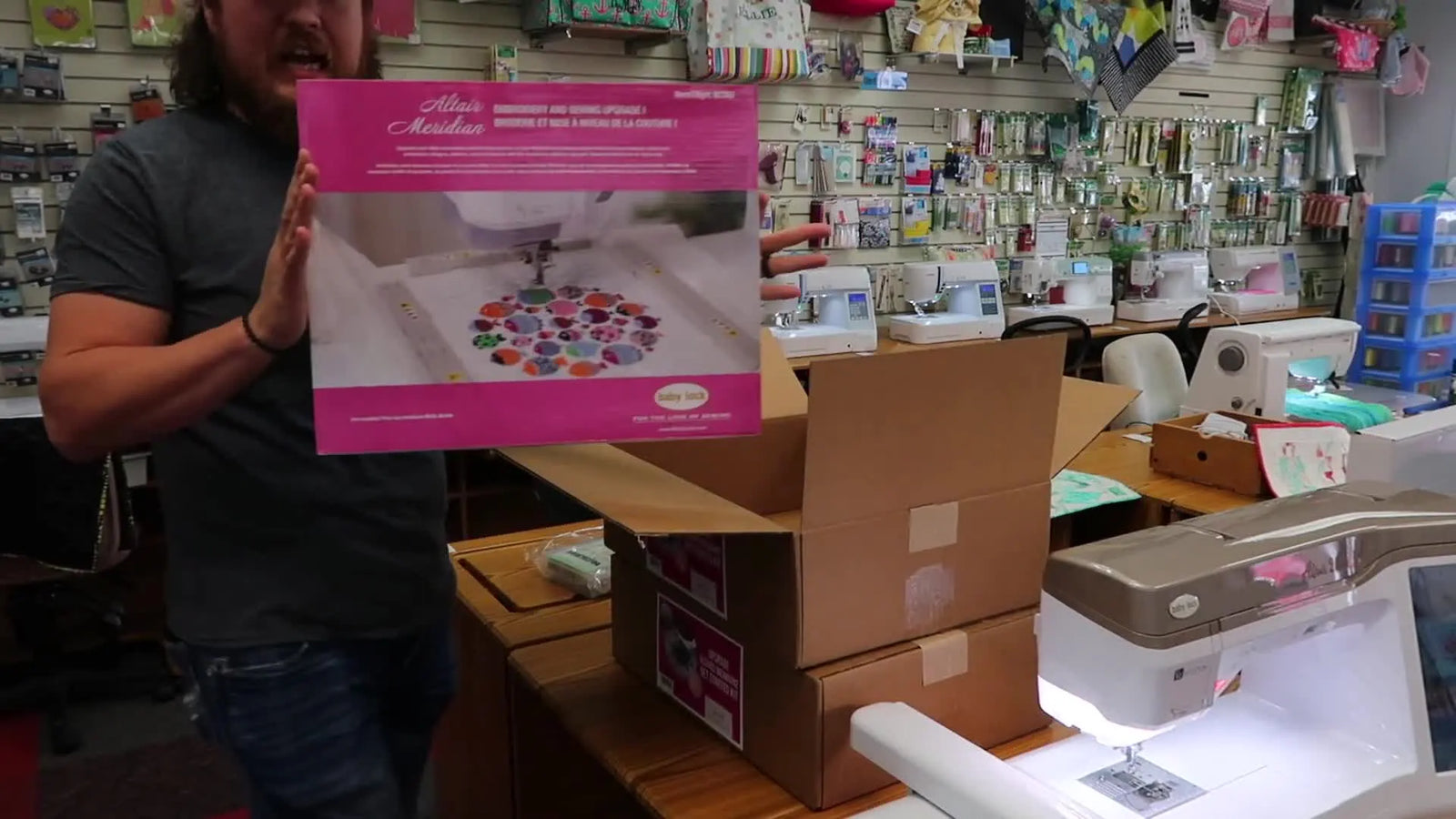

Jordan holds up the pink box, noting it serves both Altair and Meridian. This confuses many because the machines have different price points.

The Commercial Distinction:

• Altair: Sewing + Embroidery. (The "Do It All" machine).
• Meridian: Embroidery Only. (The specialist).

The Upgrade Path: If you are strictly an embroidery business owner or aspiring to be one, you buy the Meridian. If you are a quilter who embroiders, you buy the Altair. However, if your goal is volume production—creating 50 logo shirts a week—neither of these single-needle machines is the endgame. They are the stepping stones. Professional shops eventually move to multi-needle machines (like SEWTECH platforms) to eliminate the downtime of changing threads manually.

Couching Embroidery Foot: Texture Without the Tangle

Jordan describes couching as “embroidery with yarn.” It creates a raised, 3D texture that looks incredibly premium on denim jackets or home decor.

The Physics of Failure: Couching fails when the yarn feeds unevenly or "loops" away from the lockdown stitch.

• Speed Limit: While your machine can stitch at 800+ SPM (Stitches Per Minute), do not do this with couching.
• Sweet Spot: Slow your machine down to 400-600 SPM.
• Sensory Check: You should see the yarn feeding effortlessly from your bucket/stand. If you feel any tension on the yarn line with your finger, it's too tight and will pull the fabric.

Pro Tip: If your couching looks uneven, check your fabric stability. The heavy yarn pushes fabric around more than thin thread. You need a stabilizer that creates a "floor" for the yarn to sit on.

The 7x12 Magnetic Frame: Strong Hold, But Don't Believe the "No Stabilizer" Myth

Jordan shows off the 7" x 12" (180mm x 300mm) magnetic frame. He mentions testing it on raw cotton without stabilizer and it "worked," but he immediately walks that back. Good.

Stitching without stabilizer is a cardinal sin in embroidery.

Terminology: If you are researching babylock magnetic embroidery hoop, you are looking for convenience and hoop burn prevention.

Why Magnetic Frames? (The Physics): Traditional hoops rely on friction (inner ring vs. outer ring). This crushes the fabric fibers, leaving "hoop burn" (shiny marks) that are sometimes permanent on velvet or delicate knits. Magnetic frames use clamping force from the top, preserving the fabric grain.

• The Sound of Safety: When placing the magnets, listen for a solid THWACK. If it sounds weak or slides easily, the hoop is too thick for the magnets.
• The Tug Test: Once hooped, gently tug the fabric corners. It should feel taut like a drum skin, but not distorted.

Warning: High-Strength Magnet Hazard. These are rare-earth magnets. They can pinch skin severely enough to cause blood blisters. Pacemaker Safety: Keep these magnets at least 6-12 inches away from anyone with a pacemaker or insulin pump. Never let two magnets snap together without a separator—they can shatter.

Tool Upgrade Path: If you love this 7x12 frame, you will quickly realize you want more sizes. Third-party magnetic frames are often the next logical purchase to cover small left-chest logos (4x4 or 5x5) or larger jacket backs.

The “Crooked Hooping” Save: 2-Point Positioning is Applied Geometry

Jordan identifies 2-Point Positioning as the kit's MVP (Most Valuable Player). He is absolutely correct. This feature saves you money by saving garments you hooped crookedly.

The Mental Model:

1. Old Way: Hoop perfectly straight or fail.
2. New Way: Hoop mostly straight, then tell the machine, "Align with this line."

How it works (Sensory): You aren't just moving the design; you are rotating the grid.

• Action: Draw a chalk line on your fabric.
• Step 1: Using the laser foot/on-screen controls, drop the laser point on the start of your line. (Click).
• Step 2: moved the laser to the end of your line. (Click).
• Result: The machine rotates the entire design to match that angle.

Usage of terms like multi hooping machine embroidery often intimidates beginners, but 2-Point Positioning simplifies the math. It allows you to focus on the result, not the protractor.

Setup Checklist: The "Laser Alignment" Protocol

• Fabric: Test on scrap cotton with a clearly drawn Pen line.
• Lighting: Dim the room lights slightly so you can see the laser dot clearly.
• Calibration: Ensure the laser foot is calibrated (check manual). A misaligned laser defeats the purpose.
• Execution: Move the laser slowly. Precision beats speed here.


The Multi-Hooping Promise: Connecting the Dots

Jordan discusses stitching large designs (e.g., a 30-inch sign) using a smaller hoop. This involves splitting the design and re-hooping the fabric.

The Reality of Multi-Hooping: It is technically possible, but physically demanding.

• The Risk: If the fabric stretches differently in Hoop A vs. Hoop B, the design segments won't match, leaving a visible gap or overlap.
• The Solution: You need a magnetic frame for embroidery machine usage strategy here. Magnetic frames allow you to slide the fabric to the next position without "un-ringing" and distorting the fibers as much as traditional hoops.

Production Mindset: If you are consistently doing oversized designs, multi-hooping a single-needle machine is slow. This is the "Trigger Point" where many businesses upgrade to a large-field multi-needle machine to do the job in one pass.

IQ Designer Updates & The Stabilization Decision Matrix

The update adds 15 decorative fills and 12 motifs. These are beautiful, but they add stitch density. High density = high stress on the fabric.

If you use a dense fill on a t-shirt with a light stabilizer, you will get "puckering" (the fabric wrinkles around the embroidery). You need to match your support to the stress.

Decision Tree: Fabric vs. Stabilizer Strategy

Use this guide to prevent puckering with the new IQ Designer Fills.

For serious hobbyists or shops, using a magnetic hooping station ensures that when you apply the stabilizer, it stays perfectly flat while you clamp the magnet.

The Fonts and Built-In Designs: Efficiency vs. "Free Stuff"

New fonts and a large monogram "K" are mentioned. Expert Business Note: Built-in fonts are faster than loading USB designs. Use them for quick personalization.

However, if you are strictly using built-in fonts, you are limited. Most profit comes from custom logos.

• Workflow Friction: Typing names on a small screen is tedious.
• Level Up: If you are doing team rosters (10+ names), typing on the machine screen is a bottleneck. This is when external digitizing software or a multi-needle machine with a larger interface becomes necessary.

Regarding workflows, hooping stations are critical here. If you are doing 20 names, your wrists will fail before the machine does. Mechanical aids save your body.

The Activation Card: Digital Gold

Jordan shows the activation card. Crucial Advice: Take a picture of the code. Email it to yourself. Save it in the cloud. If you lose the physical card before activation, you have lost the value of the kit.

Installation Nuance: Jordan doesn't show the install, but be aware: Firmware updates can reset machine custom settings.

• Pre-Flight: Go into your settings menu and photograph your current speeds, tension adjustments, and default preferences. You might need to restore them manually after the update.


The "Why It Works" Insight: Reference Geometry

2-Point Positioning works because it changes the Angle of Attack. Instead of trying to force the fabric to match the machine's X/Y axis (which is hard), you force the machine's axis to match the fabric (which is software, and easy).

This feature alone justifies the cost for anyone who does:

1. Quilt blocks in the hoop (where precise squares define the quilt).
2. Stripes or Plaid fabrics (where a crooked design looks terrible against the pattern).


Troubleshooting Guide: Failure Modes & Fixes

Even with the upgrade, things go wrong. Here is your structured guide to getting back on track.

The Upgrade Decision: When to Buy This vs. When to Buy a New Machine

This is the "Consultant's Diagnosis."

Buy this Upgrade Kit IF:

• You love your current machine size/capability.
• You struggle primarily with alignment/straightness.
• You want magnetic convenience without buying a new machine.

Do NOT Buy this Kit (Look at SEWTECH Multi-Needles) IF:

• Your struggle is speed. (Single needles still max out around 1000SPM effectively).
• Your struggle is color changes. (This kit doesn't help you change 15 colors on a logo).
• Your struggle is volume. (If you have 100 shirts to do, upgrade the engine, not the tires).

If you decide to stick with your single-needle, investing in third-party magnetic hooping station gear and better stabilizers is the most cost-effective way to mimic professional results.

Operation Checklist: Your First "Real Project"

Do not jump straight to a client's jacket. Follow this "Burn-In" procedure.

1. Select Test Fabric: Use a non-stretch woven cotton or denim scrap.
2. Stabilize: Hoop with Medium Cutaway stabilizer.
3. Hoop "Crooked": Intentionally hoop the fabric at a slight angle. Draw a straight line on it.
4. Engage: Use the 2-Point Positioning tool to align the design to your line.
5. Stitch: Run the design.
6. Verify: Measure the distance from the design to the line at the top and bottom. It should be identical.

By mastering the tools in this kit—specifically the laser alignment and the magnetic frame physics—you are moving from "hoping it works" to "knowing it works." And in the embroidery business, predictable results are the only currency that matters.

FAQ

• Q: What should embroidery users prepare before installing the Baby Lock Altair/Meridian 2 Upgrade Kit to avoid missing parts and setup delays?
  A: Set up a clean “surgeon’s table” and confirm hidden consumables before opening the small boxes.
  • Clear a flat table and lay down a light-colored towel/mat so dark screws/feet are visible.
  • Contain small parts in a magnetic dish or a small container, and separate the Activation Card immediately.
  • Photograph the box contents right away for repacking or missing-item claims.
  • Confirm fresh 75/11 embroidery needles and the machine sensor pen (if applicable) are on hand before starting.
  • Success check: No loose metal parts are rolling on the table, and the Activation Card is already secured separately.
  • If it still fails: Stop and inventory again from the photos before installing anything.
• Q: What safety steps should embroidery users follow when unboxing and handling the Baby Lock magnetic frame included in the Altair/Meridian 2 Upgrade Kit?
  A: Treat the magnetic frame as a high-strength pinch hazard and control magnet placement deliberately.
  • Cut packaging away from the body, and keep sharp items (box cutter, needles) separated from small metal accessories.
  • Place magnets one at a time—never let two magnets snap together without a separator because magnets can shatter.
  • Keep magnets 6–12 inches away from anyone with a pacemaker or insulin pump, and avoid placing magnets near sensitive electronics/media during unboxing.
  • Success check: Magnets land with a controlled, solid contact instead of “snapping” unpredictably toward each other.
  • If it still fails: Pause and reorganize the workspace into a clear zone before continuing.
• Q: How can Baby Lock Altair/Meridian users tell if the 7x12 magnetic embroidery frame is clamping fabric correctly without causing distortion?
  A: Clamp for drum-tight tension without stretching the grain, and verify with sound + a gentle tug test.
  • Place magnets and listen for a solid “THWACK”; a weak sound or easy sliding suggests the setup is not clamping confidently.
  • Tug fabric corners gently after clamping; aim for taut like a drum skin, not warped or stretched.
  • Add stabilizer even if a test “seems fine” without it; skipping stabilizer is a common cause of puckering and registration issues.
  • Success check: Fabric feels evenly taut and stays put when lightly tugged, with no visible grain distortion.
  • If it still fails: Re-hoop with stabilizer applied flatter (often with adhesive or sticky stabilizer strategies) and re-clamp.
• Q: How do Baby Lock Altair/Meridian users stop thread nesting (bird’s nest) after installing the 2-series upgrade features?
  A: Rethread the upper thread with the presser foot UP so the thread seats correctly in the tension discs.
  • Raise the presser foot fully before rethreading the top path.
  • Rethread slowly and deliberately, ensuring the thread follows every guide.
  • Restart on a scrap test to confirm stability before returning to the real garment.
  • Success check: The machine stitches with a steady rhythm and the underside shows controlled bobbin formation, not a tangled wad.
  • If it still fails: Simplify variables—test again using high-quality thread (like the included Madeira) and confirm needle condition.
• Q: How do Baby Lock Altair/Meridian users prevent the 2-Point Positioning feature from rotating an embroidery design unexpectedly?
  A: Reset the positioning and choose two alignment points that are far apart to improve angle accuracy.
  • Draw a clear straight reference line on fabric and work on scrap first.
  • Select Point 1 at one end of the line, then move carefully to Point 2 at the far end of the same line.
  • Move the laser slowly; precision matters more than speed, and ensure the laser is calibrated per the manual.
  • Success check: After alignment, the design grid matches the drawn line with no surprise tilt.
  • If it still fails: Redo the two points with greater distance between them and recheck laser calibration.
• Q: How do Baby Lock Altair/Meridian users reduce gaps or overlaps when doing multi-hooping on large embroidery designs?
  A: Control fabric shift between Hoop A and Hoop B by improving stabilizer adhesion and minimizing fabric distortion during rehooping.
  • Use temporary spray adhesive or a sticky stabilizer approach to keep layers from creeping.
  • Reposition fabric carefully so the second hooping does not stretch differently than the first.
  • Consider magnetic frames for multi-hooping workflows because clamping can reduce “un-ringing” distortion compared to traditional hoops.
  • Success check: The join line between sections shows no visible gap/overlap when viewed from normal distance.
  • If it still fails: Reevaluate stabilization strength for the fabric and reduce handling/stretch during the hoop transition.
• Q: When should embroidery business owners choose a magnetic hoop upgrade versus moving to a SEWTECH multi-needle embroidery machine for production speed?
  A: Use a layered decision: optimize technique first, then upgrade tooling (magnetic hoops), then upgrade capacity (multi-needle) when volume and color changes become the bottleneck.
  • Level 1 (technique): Improve hooping habits, stabilization choices, and alignment workflow (including 2-Point Positioning).
  • Level 2 (tooling): Add magnetic frames/hooping aids when hoop burn, rehooping distortion, or operator fatigue slows consistency.
  • Level 3 (capacity): Move to a SEWTECH multi-needle platform when speed, frequent color changes, or high weekly volume makes single-needle downtime the limiting factor.
  • Success check: Production becomes predictable—less rework for crooked hooping, fewer garment saves, and fewer stops for manual thread changes.
  • If it still fails: Track the real bottleneck (alignment errors vs. hooping time vs. color-change time); generally, the largest time sink points to the next upgrade step.
