3D Puff Lettering on Fuzzy Socks with the Smart Stitch S1501: Magnetic Hoop Setup That Won’t Slip, Strike, or Flatten Your Foam

Master Class: The “Impossible” Fuzzy Sock – 3D Puff Embroidery Demystified

If you have ever tried to embroider a thick, fuzzy sock, you know the specific kind of panic it induces. It is tubular, it is springy, and it is bulky—exactly the kind of unstable substrate that loves to shift mid-stitch, snag on the presser foot, or get hit by the needle bar if your clearance is off by even a millimeter.

In this master class, we are breaking down a project that scares many beginners away: stitching a two-color, college-style 3D puffy monogram (a “G”) on a comfortable fuzzy sock using a Smart Stitch S1501 15-needle machine and a small square magnetic hoop.

While the video makes it look "simple," that simplicity is the result of respecting three non-negotiable pillars of machine embroidery: Mechanical Clearance, Surface Control (Topping), and Foam Discipline.

Trust the Trace: Preventing a Smart Stitch S1501 Needle-Bar Hoop Strike Before You Waste a Sock

The very first move in the video is the one that saves machines from the repair shop and operators from a mental breakdown: The Trace.

When working with bulky items like winter socks, your eyes can deceive you. The fabric might look low enough, but the loft (fluffiness) can hide the true height of the hoop edge. The host explicitly selects Needle 1 and runs a trace around the design area to verify the needle path clears the white plastic edges of the small magnetic hoop.

Why Needle 1? On multi-needle machines, the outer needles (1 or 15) are often the closest to the hoop arms during travel. If Needle 1 clears, you are generally safe.

The "Safe Zone" Protocols

Do not just watch the laser; watch the physical clearance.

What you’re checking during the trace (Action-First):

• Listen to the machine: It should move smoothly without any grinding sounds.
• Check the Gap: Get your eyes level with the needle plate. Ensure the needle bar (the metal cylinder holding the needle) does not graze the plastic hoop frame.
• Check the Loft: Fuzzy socks can “stand up” inside the hoop. Ensure the presser foot isn’t dragging heavily on the fluff, which can distort the sock before the needle even penetrates.
• Check the "Travel Slack": Reach under the hoop mechanism. The back side of the sock must have enough slack to move left, right, forward, and back without pulling tight against the machine arm.

Expected outcome: The trace completes smoothly, with the needle path staying successfully inside the hoop opening by at least a 3mm safety margin.

Warning: Mechanical Hazard. Keep hands, scissors, and loose tools away from the needle area during the trace and stitching. A multi-needle head moves faster than your reflexes. A "hoop strike" (needle bar hitting the frame) can shatter the needle mechanism, sending metal shrapnel flying toward your face. Always wear protective eyewear.

The “Hidden” Prep for Fuzzy Sock 3D Puff: Foam Color, Topping Control, and Tape That Won’t Betray You

Before you press Start, the video quietly executes three critical decisions. In the industry, we call this "Pre-Flight Stabilization." If you skip these, you will likely end up with foam poking out or a distorted letter.

1) Match foam color to thread color (The "Zero-Tolerance" Rule)

The host uses black thread for the outline (flat) and green thread for the puff portion. Crucially, she uses green foam.

The Principle: The thread color for the 3D satin stitch MUST match the foam color. With 3D puff, the needle perforates the foam thousands of times. On sharp corners or ends, tiny micro-particles of foam can peek through. If you use white foam under green thread, it will look like dandruff on a dark suit. Matches make mistakes invisible.

A clean way to remember it: if you are investing in high-end tools like magnetic embroidery hoops to secure thick items, you must commit equally to the consumables. The hoop provides stability, but it cannot hide a color mismatch.

2) Plan your topping handling (Taming the Pile)

Fuzzy socks are the enemy of stitch definition. Without a barrier, your stitches will sink into the fur, disappearing completely. The video uses clear water-soluble topping (Solvy) over the sock surface.

The host starts by holding the topping in place by hand until the outline stitches tack it down. This requires confidence—keep your fingers well outside the "Danger Zone" of the needle.

3) Use painter’s tape to anchor foam to the hoop frame

After the outline is finished, the foam is placed over the stitched area. The host secures it by taping the top and bottom edges to the plastic hoop frame using blue painter’s tape.

Why tape to the frame? Never tape foam directly to the fabric inside the stitch zone if you can avoid it. Tape adhesive gums up needles, causing thread breaks. Anchoring to the hard frame keeps the foam under "drum-tight" tension without ruining your needle.

Prep Checklist (Do this BEFORE you touch the Start button)

• Design Audit: Confirm your design is a two-color sequence: Outline first (flat run stitch), then Puff Satin (Column stitch).
• Color Match: Verify Foam Color matches Top Thread Color (e.g., Green Foam + Green Thread).
• Sizing: Cut a foam piece 1/2 inch larger than the design on all sides.
• Consumables: Have clear water-soluble topping and blue painter’s tape pre-cut and within reach.
• Bobbin Check: Ensure your bobbin has enough thread for the 3D satin pass (running out of bobbin mid-puff is a disaster).
• Travel Check: Verify your sock is hooped so the back side has slack to travel.

Magnetic Hoop Setup on a Tubular Sock: Getting Grip Without Crushing Loft

The video demonstrates a small square magnetic hoop holding a thick sock securely. This is a specific use case where magnetic frames outperform traditional screw-tightened hoops.

With tubular items like socks, traditional hooping forces a "Sophie's Choice":

1. Over-tighten: You stop the slipping, but you crush the sock fibers and leave a permanent "hoop burn" ring.
2. Under-tighten: The fibers stay fluffy, but the sock shifts, ruining the registration.

Magnetic hoops bypass this friction. They clamp directly down, holding the sock stable while preserving the loft—critical for plush, comfy knits.

However, if you are building a workflow around smartstitch magnetic hoop style frames, you must treat the trace as non-optional. The magnets add height to the hoop profile.

Warning: Magnet Safety. Magnetic frames use powerful Neodymium magnets.
1. Pinch Hazard: Do not let the top and bottom frames snap together near your fingers; they can break skin or bone.
2. Medical Danger: Keep them at least 6 inches away from pacemakers or insulin pumps.
3. Tech Safe: Store away from tablets, phones, and credit cards.

Outline First, Then Puff: Running the Black Stitch Pass with Water-Soluble Topping on Fuzzy Socks

Once clearance is confirmed, the stitching begins with the first color: the black outline. Even though this isn't the "puff" part yet, the topping is mandatory.

The host holds the clear water-soluble topping over the sock as the machine starts, then carefully lets the stitches tack it down.

Sensory Check: You should hear the crisp sound of the needle piercing the topping, not a dull thud.

Why topping matters on fuzzy socks (The Physics)

On chenille or fuzzy socks, the pile wants to spring up through open areas in the stitch. Topping acts as a temporary "glass ceiling," compressing the pile so the outline sits on top of the fabric rather than buried in it.

Pro Tip: The video notes glare from the machine light reflecting off the topping. In a professional shop, we often dim the task light for a moment to check placement, then turn it back on.

The Stop Command Moment: Switching to Manual So You Can Place Puffy Foam Cleanly

After the outline finishes, the host stops and mentions she “forgot to turn it to manual,” then switches from automatic to manual.

This is a critical workflow step. Standard embroidery files flow from Color 1 to Color 2 automatically. For 3D puff, you need a Hard Stop (Frame Out or Stop command) programmed into the machine or manually triggered. You need the machine to pause and wait for you to apply the foam.

Success Metric: The outline completes, the machine stops/trims, and the pantograph does not move to the next start point immediately. You have a stable, hooped sock ready for foam.

Foam Placement That Doesn’t Drift: Cover the Outline, Tape to the Hoop Frame, Then Restart the Green Satin

The foam placement in the video is textbook:

1. Place the green foam square directly over the stitched outline.
2. Tape the foam at the top and bottom edges to the hoop frame.




Expert-Level Analysis: Notice how the tape is pulled slightly taut? Tension on the foam helps the needle cut it cleanly. Loose foam bounces, leading to "loops" in your thread.

If you are running a multi needle embroidery machine in a small business setting, speed is profit. Pre-cutting your foam squares and sticking tape tabs to your bench before the run begins turns a clumsy 30-second stop into a 5-second professional maneuver.

Wide Satin Reality Check: Why Your Smart Stitch S1501 Drops from 750 SPM to ~400 SPM (and Why You Should Let It)

The host starts the puff pass. She mentions running at 750 stitches per minute (SPM), but the machine automatically decelerates—down to about 400 SPM.

Do not fight this. This is the machine's physics engine protecting your work.

The "Why": Resistance & Drag

Stitching through embroidery foam adds significant friction. Furthermore, wide satin stitches (the column stitch that covers the foam) require the pantograph to make wide jumps left and right.

• High Speed + Wide Jump + Foam Resistance = Distortion.
• The machine slows down to ensure the pantograph settles exactly at the needle point before the needle descends.

The "Sweet Spot" for Beginners: I recommend manually setting your speed cap to 500-600 SPM for the puff layer.

• Too Fast (>800): You risk breaking needles, snapping thread, or heating the needle so much it melts the foam.
• Too Slow (<300): You lose the momentum needed for a clean puncture.

Sensory Check:

• Sound: Listen for a rhythmic thump-thump sound. It should be deeper than normal embroidery.
• Visual: Watch the foam. It should look like a perforated stamp line is being drawn. If the foam starts lifting or bubbling, STOP immediately and add more tape.

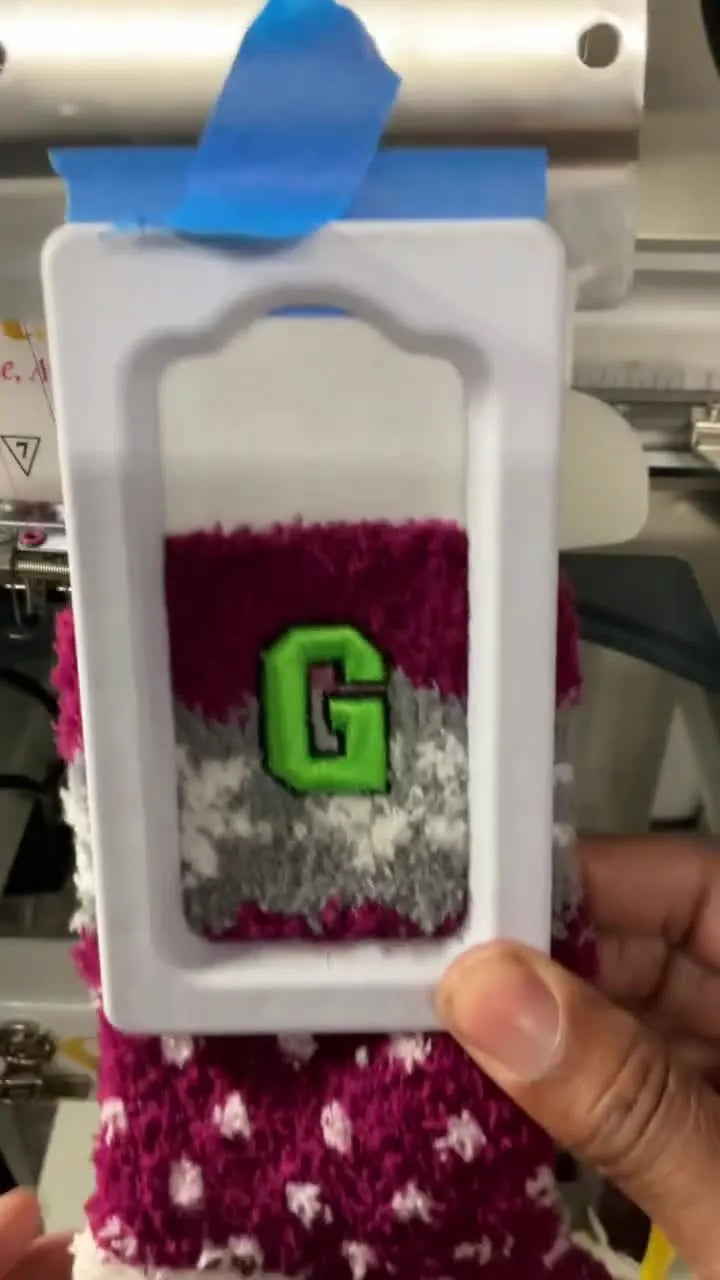

The Reveal: Unhooping, Tearing Away Excess Foam, and Getting a Clean 3D Edge on a Fuzzy Sock

When the design finishes, the host removes the hoop by unscrewing it from the machine bracket and pulling it off.

Now, the "magic trick." Because the needle perforations (density) created a perforated line around the satin, the excess foam should pull away easily.

Technique: Pull the excess foam away laterally (sideways), not straight up. This shears the foam cleanly against the stitch wall.

Expected outcome: A sharp, raised 3D “G” with clean edges. No "hairy" foam bits should be sticking out.

Fabric-to-Stabilization Decision Tree: Choosing the Right "Sandwich"

The video utilizes topping, but skirts the issue of backing stabilizer. For a fuzzy sock, relying solely on a magnetic hoop and topping is risky for beginners. Here is the professional decision matrix:

Decision Tree (Fabric Surface → Control Strategy):

If you are trying to standardize results, do not guess. If the sock stretches, use Cutaway. If the sock is stable but fuzzy, use Topping.

Troubleshooting: When Good Socks Go Bad

Workflow Checklists

Setup Checklist (Pre-Flight)

• Trace: Run Needle 1 trace; confirm 3mm+ clearance from hoop edge.
• Slack: Reach under; confirm sock back has travel room.
• Load: Design is loaded (Outline -> Stop -> Puff).
• Topping: Solvy is cut and ready.
• Tape: Painter's tape strips are pre-torn.

Operation Checklist (In-Flight)

• Outline: Hold topping flat (hands safe!) or tape it down.
• Stop: Machine pauses cleanly.
• Foam: Place foam; check coverage; TAPE to frame.
• Speed: Manually reduce to ~500 SPM (or let machine auto-slow).
• Monitor: Watch for thread shredding (burrs).

The Upgrade Path: Turning Frustration into Production

This video perfectly illustrates the "cliff" many embroiderers face. Doing one sock on a standard hoop is a fun challenge. Doing 50 socks for a local sports team on standard hoops is a nightmare of wrist pain and "hoop burn."

If you find yourself constantly fighting hoop marks or struggling to clamp thick tubular items, listen to that frustration. It is a data point telling you it is time to upgrade.

1. Level 1 (Technique): Use the methods here—trace carefully, use topping, and slow down.
2. Level 2 (Tool Upgrade): If you are searching for a sock hoop for embroidery machine that doesn't hurt your hands, a Magnetic Hoop System is the industry standard for thick garments. It solves the "crush vs. slip" dilemma instantly.
3. Level 3 (Capacity Upgrade): If you are running these jobs on a single-needle machine and losing 5 minutes per sock just changing thread colors, consider the ROI of a machine like the smartstitch s1501. 15 needles mean you load the colors once and just hit "Start."

Whether you are a hobbyist or a shop owner, the goal is the same: Clean stitches, safe fingers, and a sock that looks as good as it feels.

Note regarding magnetic embroidery hoop products: While brands vary, focus on magnet strength and frame durability. A weak magnet on a thick sock is worse than a standard hoop.

FAQ

• Q: How do I prevent a Smart Stitch S1501 needle-bar hoop strike when embroidering a thick fuzzy sock in a small square magnetic hoop?
  A: Run a Needle 1 trace and confirm real, physical clearance before stitching—do not rely on eyesight alone.
  • Select Needle 1 and run the machine trace around the full design boundary.
  • Watch the needle bar clearance to the hoop frame (not just the laser) and confirm the sock pile is not lifting into the travel path.
  • Reach under the hoop and ensure the sock has enough “travel slack” to move in all directions without pulling tight.
  • Success check: The trace completes smoothly with no rubbing/grinding sounds and at least ~3 mm clearance from the hoop edge.
  • If it still fails: Re-hoop with more slack and lower the item inside the hoop opening before running the trace again.
• Q: What is the safest way to handle Smart Stitch S1501 mechanical hazards during tracing and stitching on tubular socks?
  A: Treat the trace and the start of stitching like an active cutting tool—keep hands and tools out of the needle zone and wear protective eyewear.
  • Remove scissors, tweezers, and loose tools from the needle area before pressing trace or start.
  • Keep fingers well outside the needle/presser-foot area, especially when holding water-soluble topping at the beginning.
  • Listen for abnormal sounds and stop immediately if anything contacts the hoop frame.
  • Success check: Hands never enter the moving head area, and the machine runs without any impact or sudden jolts.
  • If it still fails: Pause the job, re-check hoop clearance with Needle 1 trace, and do not continue until clearance is confirmed.
• Q: How do I keep stitch definition on a fuzzy sock using water-soluble topping when running the outline pass on a Smart Stitch S1501?
  A: Use clear water-soluble topping on top of the sock and let the outline stitches tack it down before you let go.
  • Place clear water-soluble topping over the embroidery area before starting Color 1 (outline).
  • Hold the topping steady only long enough for the first stitches to secure it, keeping fingers out of the danger zone.
  • Continue the outline pass with topping in place so the pile stays compressed.
  • Success check: The outline sits visibly on top of the sock surface instead of sinking into the fuzz.
  • If it still fails: Reposition/replace the topping and restart the outline so the topping is captured cleanly from the first stitches.
• Q: Why does Smart Stitch S1501 need a Stop/Manual pause between outline and 3D puff satin when embroidering foam on a sock?
  A: 3D puff requires a hard pause so foam can be placed and secured before the satin layer starts.
  • Ensure the workflow stops after the outline (either programmed Stop/Frame Out or a manual stop) before the next color begins.
  • Confirm the machine trims/stops and does not immediately travel to the next start point.
  • Place foam only after the outline is complete and the machine is fully paused.
  • Success check: The machine is waiting with a stable hooped sock and does not begin the puff satin until you restart.
  • If it still fails: Switch to manual control before the color change so the machine cannot auto-advance into the puff layer.
• Q: How do I stop 3D puff embroidery foam from drifting on a fuzzy sock when using a magnetic hoop on a Smart Stitch S1501?
  A: Cover the outline completely and tape the foam to the hoop frame (not the stitch zone) so the foam stays taut.
  • Cut foam at least 1/2 inch larger than the design on all sides and center it over the stitched outline.
  • Anchor foam with blue painter’s tape on the top and bottom edges, attaching tape to the hoop frame rather than the fabric inside the stitch area.
  • Pull the tape slightly taut so the foam doesn’t bounce during wide satin movement.
  • Success check: Foam stays flat with no lifting/bubbling while the satin stitches perforate a clean edge.
  • If it still fails: Stop immediately and add more frame-anchored tape before continuing the puff pass.
• Q: What Smart Stitch S1501 speed should I use for wide satin 3D puff on embroidery foam, and why does the machine slow down to ~400 SPM?
  A: Let the machine slow down or cap speed around 500–600 SPM for the puff layer to prevent distortion, needle breaks, and foam drag issues.
  • Start the puff satin pass and allow automatic deceleration; do not force high speed through foam resistance.
  • Manually cap speed to a safer range (often 500–600 SPM) if consistent control is needed.
  • Watch for foam lifting and listen for a steady, deeper rhythmic stitch sound.
  • Success check: Satin columns stitch evenly without thread shredding, needle breaks, or foam “bubbling” upward.
  • If it still fails: Stop, secure foam better with tape to the frame, then resume at the reduced speed.
• Q: How do I prevent hoop burn marks on fuzzy socks when hooping for Smart Stitch S1501 embroidery—standard hoop vs magnetic hoop?
  A: Avoid over-tightening and consider magnetic hoops when thick tubular socks either slip or get crushed in standard hoops.
  • Diagnose the tradeoff: Over-tightened standard hoops can crush fibers and leave a ring; under-tightened hoops can slip and ruin registration.
  • Use technique first: Hoop with enough grip to prevent shifting while preserving loft; always confirm travel slack.
  • Upgrade path: If hoop burn or slipping is recurring, magnetic hoops often clamp securely without the same “crush vs slip” problem.
  • Success check: The sock stays registered during stitching and unhoops without a deep, persistent hoop ring.
  • If it still fails: Steam the mark gently to relax fibers (avoid pressing an iron directly on the sock) and switch to a magnetic hoop for repeat jobs.
