Fast Frames on the Ricoma EM-1010: The No-Panic Workflow for Sleeves, Jeans Legs, and Other “Impossible” Placements

If you’ve ever stared at a heavy jeans leg, a tight child’s sleeve, or a small leotard and thought, “There’s no way this is fitting in a standard hoop without destroying the fabric,” you’re not alone. Hard-to-hoop placements are the exact friction point where a growing embroidery business either levels up its tooling—or wastes billable hours unpicking side seams, struggling with hoop burn, and praying the needle doesn’t kiss the plastic frame.

Manny’s demonstration on the Ricoma EM-1010 illustrates a clean, repeatable workflow using Fast Frames: a bracket system plus interchangeable arm-style frames that allow you to slide awkward, tubular items into position and stitch them using adhesive backing. I’m going to rebuild that workflow into a production-ready "White Paper"—adding the sensory checkpoints, safety margins, and commercial logic that standard manuals leave out.

Fast Frames + Ricoma EM-1010: Why This Setup Saves Jobs You’d Normally Decline

Fast Frames help bridge the gap between a standard tubular hoop and a specialized clamp system. They mount to the machine drive bar like a normal hoop but extend a metal arm that holds a window of sticky stabilizer. Manny’s key point is physics: standard hoops are closed loops that simply cannot slide inside a narrow pant leg or sleeve, but these open-ended frames can.

If you are operating a ricoma em 1010 embroidery machine, mastering this accessory creates a massive competitive advantage. The EM-1010 is a production workhorse, but its profitability is often bottlenecked by access, not needle speed. By removing the outer ring of a traditional hoop, you remove the physical barrier preventing you from embroidering finished goods.

What Fast Frames are great for (from video examples & field experience):

• Tubular goods: Jeans legs, shirt sleeves, socks.
• Thick items: Backpack pockets, lunch bags, heavy canvas totes where clamping rings pop off.
• Odd shapes: Leotards, dog collars, and items with zippers near the stitch field.

The emotional truth: The first time you run a trace with a fast frame—which has no software safety limits—your stomach drops. That fear is healthy. Our goal is to replace that anxiety with a rigorous safety protocol.

The “Hidden” Prep Pros Do First: Backing, Clearance, and a Crash-Prevention Mindset

Before you touch the control panel, you must prep like you are responsible for the repair bill. With standard hoops, the hoop itself creates tension. With Fast Frames, adhesion creates the tension.

What you’re really managing (The Physics)

Fast Frames rely 100% on specific adhesive backing (sticky stabilizer) to hold the garment flat. Your success depends on three variables:

1. Shear Resistance: As the needle penetrates, does the fabric slide on the glue? (If yes, your design registration will drift).
2. Vertical Load: The weight of a heavy denim jacket can physically pull the metal frame downward, changing the clearance zone.
3. Collision Risk: Because you will use the “Other” hoop setting, the machine's "No-Go" zones are disabled. You are the safety sensor.

Hidden Consumables Check:

• Adhesive Stabilizer: Filmoplast or Sulky Sticky+.
• 75/11 Ballpoint Needles: Ideally titanium-coated to resist glue buildup.
• Sewer's Aid / Silicone: To lubricate needles if glue gumming occurs.
• Binder Clips: Small sizes (essential for the trace step).


Prep Checklist (Do this BEFORE mounting the frame)

• Hardware Match: Confirm you have the correct arm width for your item. (Manny uses the narrow vertical frame for the sleeve).
• Surface Check: Run your finger along the metal frame edges. File down any burrs that could snag delicate lycra or satin.
• Adhesive Integrity: Verify your sticky backing is fresh. Old stabilizer loses tackiness and causes fabric shifting.
• Clear the Field: Remove everything from the sewing arm area—snips, loose bobbins, or thread tails.
• Weight Management Plan: Decide now how you will support the rest of the garment (e.g., using a table extension or holding it) so it doesn't drag the frame down.

Warning: Mechanical Safety. Keep fingers entirely clear of the needle bar when testing clearance. Never assume the machine is "paused" enough to put your hand near the needle while the pantograph is moving.

Mount the Fast Frame Bracket on the Ricoma EM-1010 Without Fighting It

Manny installs the yellow Fast Frame bracket onto the pantograph arm. This interface is identical to your standard hoop driver.

The Action:

1. Align the bracket slots with the machine's drive arm knobs.
2. Push firmly until you hear a distinct, sharp click.
3. Tighten the thumb screws until they feel "finger-tight plus a quarter turn."

Sensory Check (The Wobble Test): Grab the yellow bracket and give it a gentle shake. It should feel like a solid part of the machine. If there is any "play" or rattling sound, the registration will be off, and needle breaks are guaranteed.

The One Setting That Changes Everything: Selecting “Other” Hoop on the Ricoma Control Panel

This is the "Red Alert" moment where most crashes originate.

Manny’s Workflow:

1. Navigate to the Design Set / Hoop menu.
2. Scroll past all the A, B, C, D presets.
3. Select “Other”.

The Consequence: Selecting “Other” tells the EM-1010 logic board: "I am using a custom shape. Disable the automatic centering and disable the bezel protection limits." The machine will now go wherever you tell it to go—even if that means driving the needle bar gracefully into the metal frame.

If you are running fast frames embroidery jobs, you must treat "Other" as "Pro Mode": You gain flexibility, but you lose the safety net. You must manually verify boundaries every single time.

Setup Checklist (Control Panel Phase)

• Hoop Selection: Confirmed set to "Other".
• Speed Limit: Set the machine speed to 600 SPM (Stitches Per Minute) or lower for the first run. High speed increases vibration and chance of fabric detachment.
• Design Orientation: Rotate the design on screen to match the orientation of your frame (usually 90 or 270 degrees for sleeves).
• Trace Mode Ready: Designate the "Trace" button as your most important tool.

Warning: No Auto-Center. With "Other" selected, pressing "Center Design" may move the pantograph to the absolute mechanical center of the arm, not the center of your mounted frame. Always center manually.

Sticky Backing Done Right: The “Adhesive Side Up” Rule

This step trips up 30% of beginners. The stabilizer is not going on top of the fabric; it is becoming the "floor" that grabs the fabric from below.

The Protocol:

1. Cut a piece of adhesive stabilizer slightly larger than the frame window.
2. Peel the protective paper.
3. Stick the stabilizer to the underside of the metal frame, with the adhesive side facing UP (towards the needle).
4. Wrap the excess edges around the frame bars to lock it in place.

The Commercial Reality: Questions about adhesive brands are common. Ricoma mentions Sulky, which is excellent. However, if you are doing high-volume production, adhesive stabilizer is expensive and eventually gums up needles. This is typically the trigger point where shops consider upgrading. If you are currently relying on a sticky hoop for embroidery machine hack for everything, check your P&L. The cost of sticky backing adds up fast compared to standard backing used with magnetic hoops.

Decision Tree: Fabric Type → Stabilizer Strategy

Backing choice determines whether the design puckers or stays flat.

• Scenario A: Stable Woven (Jeans / Canvas)
  • Risk: Needle deflection on thick seams.
  • Solution: Use FilmoPlast (Sticky). Reinforce with a floating layer of firm Tearaway underneath if the denim is heavy.
• Scenario B: Stretchy Knit (Leotard / T-Shirt Sleeve)
  • Risk: Fabric stretching during application = distorted design when relaxed.
  • Solution: Use Sticky Backing + float a layer of Cutaway under the frame.
  • Technique: "Drape, don't pull." Gently pat the fabric onto the glue; do not stretch it.
• Scenario C: High Pile / Delicate (Velvet / Performance Wear)
  • Risk: Hoop burn or adhesive residue damaging the nap.
  • Solution: STOP. Adhesive is risky here. This is a trigger to upgrade to Magnetic Hoops (discussed below) which clamp without glue or friction marks.


Lock the Frame Into the Bracket: Tight, But Not Stripped

Manny slides the specific metal frame (the sleeve arm) into the yellow bracket.

Checkpoint: Tighten the black knobs securely. When you wiggle the tip of the long metal arm, the entire machine carriage should move. If the arm pivots independently, your design will be crooked.

Compatibility Note: If you see terms like durkee fast frames or generic clones, be careful. While the concept is the same, the bracket width (mounting distance) must match your specific machine model (Ricoma, Tajima, Barudan, etc.). A mismatch of 2mm results in vibration and poor stitch quality.

The Bending Tip That Feels Wrong (But Is Necessary)

In the video, Manny demonstrates physically bending the long metal arm slightly. This shocks new users, but it is standard operating procedure for this tool.

The "Why": Gravity and garment weight act as a lever. A heavy jacket hanging off the end of a 12-inch metal arm will pull the tip downward. Conversely, sometimes the arm angles up and hits the needle plate.

• The Adjustment: Apply gentle, steady pressure to bend the arm up or down until it is perfectly parallel to the needle plate.
• The Gap Check: Slide a piece of paper between the frame and the needle plate. It should pass through freely, but the gap shouldn't be huge.


Manual Centering on “Other”: The Calm, Repeatable Way

Because we disabled the software limits, we must align by eye. A user specifically commented asking for this because it feels imprecise. Let's make it precise.

The Expert Method:

1. Lower the Needle: With the machine stopped, turn the hand wheel (or use the needle down button if safe) to bring the needle tip close to the fabric.
2. Jog the Pantograph: Use the arrow keys to move the frame until the needle point hovers exactly over the visual center of your sticky window.
3. Confirm Alignment: Press the presser foot down manually. Ensure it lands flat on the stabilizer, not on the metal edge.

If you find yourself constantly building a workflow around hooping for embroidery machine bottlenecks like this, consider marking the center of your metal frames with a permanent marker (on the side) to speed up this visual check.

Loading a Sleeve: The "Under-Under" Rule

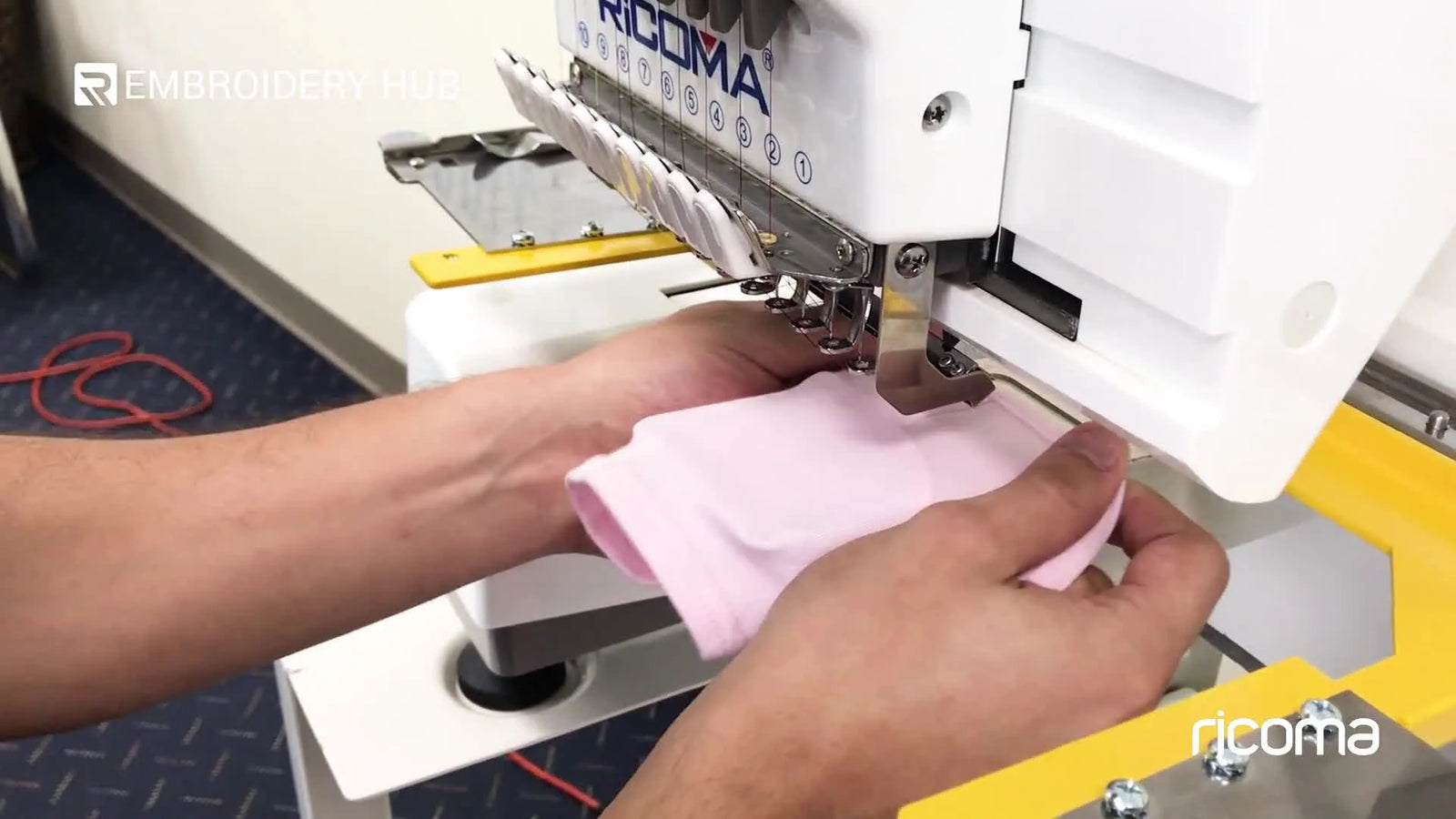

Manny slides the leotard sleeve onto the frame.

The Action: Ensure the fabric slides UNDER the presser foot and UNDER the needle. It sounds obvious, but in the rush of production, it is easy to snag the fabric over the foot.

Sensory Technique: Once the sleeve is positioned, use the heel of your hand to smooth the fabric onto the adhesive. Work from the center out. You should feel the fabric "grip" the stabilizer. If it peels up easily, your stabilizer is dead—change it.

For repetitive sleeve work, this method is slower than a dedicated sleeve hoop or a magnetic station, but for one-offs, it is unbeatable.

The Binder-Clip Trace Hack: The "3D Fence" Technique

This is Manny’s most valuable safety tip. When the garment covers the frame, you become blind to where the metal edges are.

1. Clip: Attach small binder clips to the extreme edges of your metal frame (top, bottom, left, right).
2. Trace: Run the machine's "Trace" or "Contour" function.
3. Watch: The binder clips act as a 3D visual barrier. If the needle bar or presser foot comes within 5mm of a clip, STOP. You are too close to the metal. Adjust your design scaling or position.

This creates a "Physical Firewall" against needle strikes.

Stitching the Design: The Final Sequence

CRITICAL STEP: Remove the binder clips. Manny removes the clips, ensures the rest of the leotard isn't bunched under the arm, and presses Start.

The "Hover" Phase: Do not walk away. Keep your finger over the Stop button for the first 30 seconds (the "tie-in" stitches). Watch for:

• Flagging: Fabric bouncing up and down (means adhesion is weak).
• Drifting: The design shifting off-center (means the frame is loose).


Operation Checklist (The "Don't Ruin the Job" List)

• Clips Removed: All binder clips are taken off the frame.
• Clearance Verified: Trace completed successfully with no near-misses.
• Garment Supported: The weight of the item is supported by a table or your hands (gently), not dragging on the drive bar.
• Speed Set: Machine is running at a safe speed (e.g., 600-700 SPM).
• Sound Check: Listen for the rhythmic thump-thump of the needle. A loud slap or metallic clank requires an immediate E-Stop.


Troubleshooting Fast Frames Layouts

When things go wrong, they usually follow a pattern.

The Upgrade Path: When to Switch Tools

Fast Frames are a "Solver" tool—excellent for irregular problems. However, for efficient production, you need "Runner" tools.

1. The "Sticky Mess" Trigger → Magnetic Hoops

If you are tired of picking sticky residue off needles, or if you are embroidering performance wear that cannot tolerate adhesive backing, this is your trigger to upgrade. A SEWTECH Magnetic Hoop (specifically the MaggieFrame series) allows you to clamp garments firmly without adhesive. They are faster to load and leave zero hoop burn.

Warning: Magnetic Safety. High-power magnetic hoops can pinch fingers severely. Slide them apart; never pry them. Keep away from pacemakers.

2. The Volume Trigger → Multi-Needle Scale

If your hooping is fast but your machine is slow, or if you are refusing orders of 50+ polos because you can't keep up, the bottleneck has shifted. This is where moving to a dedicated SEWTECH Multi-Needle setup becomes a math decision, not a hobby decision. The ability to run 15 colors without re-threading pairs perfectly with the speed of magnetic hooping.

The Real Takeaway: Make It Boring, Make It Safe

Manny’s demo proves that “hard to hoop” doesn’t mean “impossible.” It just means you need a rigid protocol.

1. Prep: Sticky side UP.
2. Safety: Binder clips for the trace.
3. Operation: Support the garment weight.

Once you turn this scary process into a boring checklist, you stop worrying about the machine crash and start focusing on the next upgrade to your shop's efficiency.

FAQ

• Q: How do I prevent a needle strike when using Fast Frames on a Ricoma EM-1010 with the “Other” hoop setting?
  A: Always run a physical boundary trace before stitching because “Other” disables the machine safety limits.
  • Clip: Attach small binder clips to the extreme top/bottom/left/right edges of the Fast Frame arm.
  • Trace: Run the Ricoma EM-1010 “Trace/Contour” function at low speed and watch clearance closely.
  • Adjust: Reposition or scale the design if the needle bar/presser foot comes within about 5 mm of a clip.
  • Success check: The full trace completes with no near-miss to any binder clip and no contact with metal.
  • If it still fails: Re-center manually and re-check frame arm level/parallel before attempting another trace.
• Q: What is the correct “adhesive side up” method for sticky stabilizer on Fast Frames for Ricoma EM-1010 tubular embroidery?
  A: Mount sticky stabilizer under the metal frame with the adhesive facing up toward the needle so the garment grips from below.
  • Cut: Trim sticky stabilizer slightly larger than the Fast Frame window.
  • Peel: Remove the release paper completely.
  • Stick: Apply stabilizer to the underside of the metal frame with adhesive facing UP, then wrap excess edges around the bars to lock it.
  • Success check: The fabric “grips” when smoothed on and does not peel up easily during handling.
  • If it still fails: Replace old/contaminated sticky stabilizer because low tack commonly causes shifting and flagging.
• Q: How tight should the Fast Frames bracket and arm be on a Ricoma EM-1010 to avoid crooked designs and needle breaks?
  A: Fast Frames must feel like a solid part of the machine—any play will cause drift and breakage.
  • Click: Push the yellow bracket onto the drive arm until a distinct, sharp click is felt/heard.
  • Tighten: Secure thumb screws “finger-tight plus a quarter turn,” then tighten the arm knobs so the arm cannot pivot.
  • Test: Perform the wobble test by gently shaking the bracket and wiggling the tip of the metal arm.
  • Success check: There is no rattling or “play,” and wiggling the arm moves the whole carriage, not just the arm.
  • If it still fails: Stop and verify bracket width/fitment matches the machine model because even small mismatch can create vibration.
• Q: How do I manually center a design on a Ricoma EM-1010 after selecting the “Other” hoop option with Fast Frames?
  A: Center by needle-point alignment, not by the “Center Design” function, because “Other” can move to the machine’s mechanical center.
  • Lower: Bring the needle tip close to the stabilizer/fabric using a safe needle-down method.
  • Jog: Use arrow keys to move the pantograph until the needle hovers over the visual center of the sticky window.
  • Confirm: Lower the presser foot and ensure it lands on stabilizer/fabric—not on the metal edge.
  • Success check: The needle point aligns to the intended center and the presser foot sits flat without touching the frame.
  • If it still fails: Mark frame center reference points on the frame (commonly done) to speed repeatable alignment.
• Q: Why does fabric “flag” (bounce) when stitching with Fast Frames on a Ricoma EM-1010, and what is the quickest fix?
  A: Flagging usually means adhesion is weak, so the fabric is lifting instead of staying bonded to the sticky backing.
  • Stop: Pause immediately and avoid continuing while the fabric is bouncing.
  • Replace: Apply a fresh layer of sticky stabilizer if the current layer is linty, dusty, or worn out.
  • Smooth: Re-apply the garment by patting from center outward to seat it onto the adhesive (do not stretch knits).
  • Success check: The first tie-in stitches run with the fabric staying flat, with no visible up/down bounce.
  • If it still fails: Reduce speed to a safer first-run level (commonly 600 SPM or lower in this workflow) and re-check garment weight support.
• Q: What should I do when sticky stabilizer gums up needles and causes constant needle breaks on Fast Frames (Ricoma EM-1010 workflow)?
  A: Treat it as adhesive buildup first—lubricate and switch needles before changing the whole process.
  • Lube: Apply Sewer’s Aid/silicone (used sparingly) to reduce glue friction and heat.
  • Swap: Change to 75/11 ballpoint needles, ideally titanium-coated, to resist buildup.
  • Slow: Run the first pass at a controlled speed to reduce vibration and stress on the needle.
  • Success check: Stitching sound returns to a steady rhythmic “thump-thump” without repeated snapping.
  • If it still fails: Reassess whether the job is better suited to clamping (often magnetic hoops) instead of adhesive-based holding.
• Q: When should an embroidery shop switch from Fast Frames with sticky backing to SEWTECH Magnetic Hoops or a SEWTECH multi-needle machine for production?
  A: Switch tools when the bottleneck changes: sticky mess/delicate fabric issues point to magnetic hoops, while order volume points to multi-needle scaling.
  • Diagnose (Level 1): If setup is working but time is lost cleaning residue, replacing sticky backing, or rejecting delicate/high-pile items, the holding method is the constraint.
  • Upgrade (Level 2): Move to magnetic hoops when adhesive residue, hoop burn risk, or fabric sensitivity becomes the recurring trigger.
  • Scale (Level 3): Consider a multi-needle machine when hooping is no longer the slow step but throughput (e.g., frequent 50+ piece orders) is limited by re-threading/time.
  • Success check: Load time drops and rework (residue cleanup, misregistration, rejects) decreases noticeably across repeated jobs.
  • If it still fails: Track consumable spend and rework hours for 2–4 weeks to confirm whether the true constraint is hooping method or machine capacity.
