DesignShop v10 “Convert to Wireframe”: The Fastest Way to Make EXP Stitch Files and Lettering Truly Editable (Without Wrecking the Whole Design)

When you’re staring at an expanded stitch file and you can’t grab a shape, rotate it cleanly, or fix one ugly overlap without breaking everything else—your stress is valid. It feels like trying to edit a PDF by painting over it with Wite-Out. Expanded data is stubborn by design.

DesignShop v10 gives you a practical escape hatch: Convert Object to Wireframe. Used correctly, it gets you back to something you can actually edit—without pretending it magically recreates the digitizer’s original object logic.

But here is the reality check from 20 years on the production floor: A software edit is only theoretical until it runs on the machine. If you fix the nodes on screen but fail the physical setup—tension, hooping, or stabilization—the result is still a ruined garment.

Below is the roadmap to converting stitch data, rebuilt into a production-ready process with sensory checkpoints, safety margins, and the tooling upgrades that turn a struggle into a system.

Convert Object to Wireframe in DesignShop v10: the calm, controlled way to edit EXP stitch data

Expanded data (EXP, DST) is basically “just stitches.” Think of it like a printed document—you can read it, but you can’t easily change a paragraph. It lacks the object blocks, color logic, and editable outlines you expect from a native wireframe file.

In the video, the instructor opens a native wireframe design (an OFM) and explains that if you save it out as expanded data and reopen it, the Project View no longer behaves like a friendly object-based design. That’s the moment most digitizers realize: I can see stitches, but I can’t truly manipulate the design the way I need.

The Convert Object to Wireframe tool is how you ask DesignShop to interpret those stitches and reverse-engineer editable objects.

Two truths you must hold at the same time:

1. It gets you editable pieces fast.
2. It creates a "best guess" interpretation, not a perfect clone.

That second point is where time gets burned. You might convert a defined shape and see it explode into four separate pieces. Often, nothing went wrong; you are just seeing the raw stitch logic exposed.

Expert Rule of Thumb: Don’t fight the fragmentation. Software sees a stitch path; you see a shape. Your job is to bridge that gap.

Expanded Data vs. OFM Wireframe in the Project View: why your “simple edit” suddenly feels impossible

In the video, the instructor compares a native wireframe file (OFM) with an expanded version of the same design. In expanded form, you lose the comfortable structure that makes edits predictable.

Here’s the practical takeaway:

• Wireframe (OFM): Behaves like Lego blocks—modular, movable, easy to snap apart and rebuild.
• Expanded data (EXP): Behaves like a melted plastic sculpture—it holds its shape, but you can’t move an arm without cutting and gluing.

If you’re working with a customer-supplied stitch file and you need to adjust one area (a leaf, a logo element, a small overlap), converting the entire design is rarely the smartest first move. It creates too much noise.

That’s why the instructor’s approach matters: Surgical Conversion.

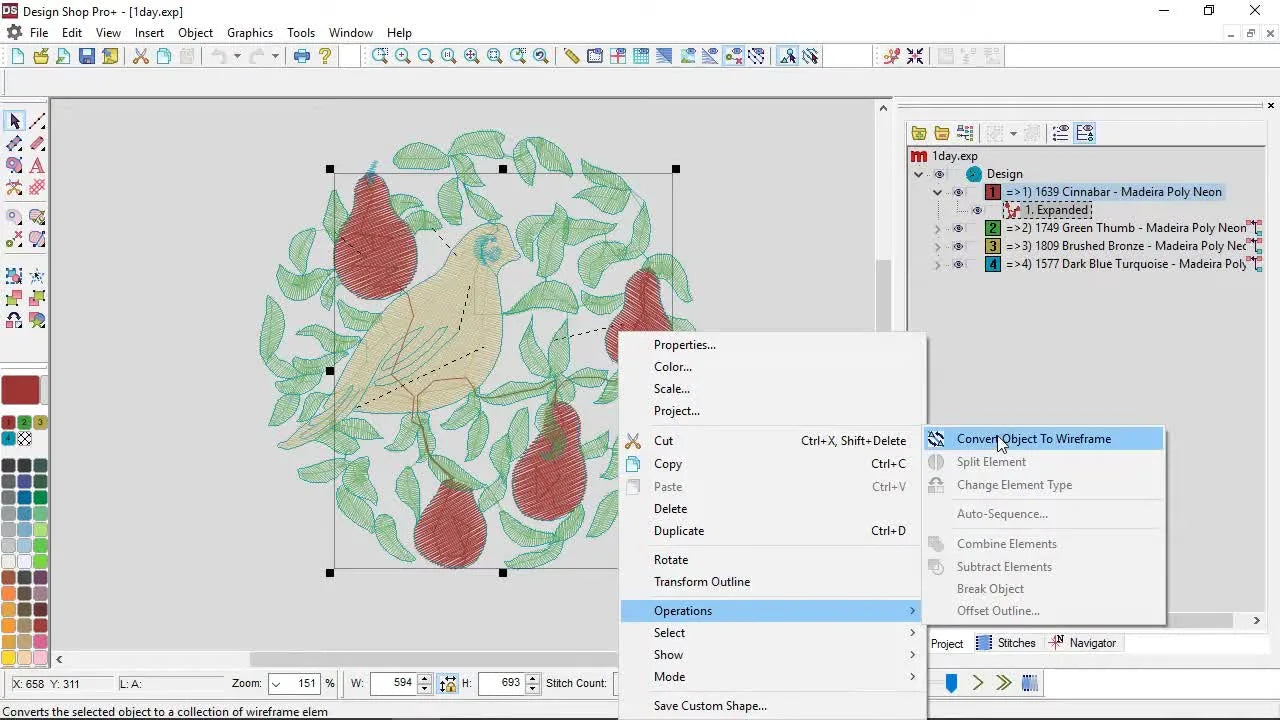

The “Surgical Conversion” move: convert only the pears color group so you don’t disturb the whole design

This is the first scenario shown in the video, and it’s the maneuver that saves professionals the most time.

What you do (exact workflow from the video)

1. In the Project View, select only the element you want to edit—in the example, the color group that contains the pears.
2. Right-click the selected element.
3. Go to Operations.
4. Choose Convert Object to Wireframe.

What you should see (expected outcome)

After conversion, when you expand that color group in the Project View, the single expanded element breaks into multiple wireframe components, typically:

• Walk Normal (Usually the underlay or travel stitches).
• Complex Fill (The visible top stitching).

The instructor checks in 3D view and notes that the software attempts to mimic the original stitch direction and density.

Why this matters for the machine

In real production, converting everything creates a messy object tree. By isolating the conversion, you ensure the rest of the design retains the digitizer’s original tensions and pathing.

Success Metric (Sensory Check):

• Visual: The design on screen should look identical before and after conversion. If the density suddenly looks "heavy" or the texture changes, the conversion parameters (stitch length/density) may need adjustment.
• Data: Check your density. For standard wovens, a fill density of 0.40mm is the industry sweet spot. If the conversion defaults to 0.35mm, you risk stiff, bulletproof embroidery.

Prep Checklist (Physical & Digital)

• Digital: Confirm you are selecting the smallest editable target (one color group).
• Digital: Save a copy (filename_v2_edited.ofm) before touching a single node.
• Physical: If you are editing customer art for production on melco embroidery machines, check the fabric. Is it stretchy? If yes, ensure your digital Pull Compensation is set to 0.3mm - 0.4mm to account for the fabric shrinking under the needle.


The “Why did my circle explode into four objects?” moment: how DesignShop v10 interprets underlay and travel stitches

The second scenario in the video is the source of the most confusion for new editors. The instructor creates a simple filled circle, intentionally leaving underlay (the foundation stitching) in place, and shows visible travel stitches. He saves it as an EXP, reopens it, and converts it.

What he does (as shown)

• Create a circle fill.
• Leave underlay present.
• Save as .EXP.
• Reopen/import the EXP version.
• Right-click → Operations → Convert Object to Wireframe.


What you should see (expected outcome)

Instead of one clean circle, the Project View lists multiple objects:

1. Walk Normal (The Underlay).
2. Complex Fill (Slice A).
3. Walk Normal (Travel Stitch).
4. Complex Fill (Slice B).

This is not a bug. This is physics.

Expert insight: The "House Foundation" Analogy

Think of embroidery like building a house. You cannot have a roof (Fill) without a foundation (Underlay).

• Digitizer's View: "I want a circle with edge run underlay." (1 Object with properties).
• Machine's View: "Run a straight stitch around the edge, then start zigzagging the fill." (2 Distinct actions).

When you convert EXP data, DesignShop sees the machine's actions. It sees the foundation (Walk Normal) separate from the roof (Complex Fill).

Why this matters: If you delete that "Walk Normal" because it looks like clutter, you are removing the foundation. Your final embroidery will pucker, the edges will be ragged, and you will get "gapping" where the fabric shows through.

Slow Redraw + Convert to Wireframe: the fastest way to spot travel stitches before they bite you

The video uses Slow Redraw to help you see what the stitch file is doing. This is your X-Ray vision.

How to use this like a Pro

Before you convert, run Slow Redraw at high speed.

• Visual Anchor: Watch for the "running ants" lines that happen before the color fills in. That is your underlay.
• Decision Point: If the underlay is solid, you can proceed. If the underlay looks sparse or non-existent in the EXP file, you may need to add underlay to the converted object later, especially if you are using unstable fabrics like pique polo.

Warning: Never delete walk objects blindly after conversion. A Walk Normal object often represents structural underlay. Removing it destabilizes the fabric, leading to registration errors (colors not lining up).

The clean comparison that tells the truth: original wireframe circle vs. imported EXP circle

The instructor places the original wireframe circle next to the imported EXP circle. This side-by-side view is critical.

When editing customer files, keep the original visible on a locked layer (or open in a second window). You need to verify:

1. Stitch Direction: Did the angle change? (e.g., from 45° to 30°). This changes how light reflects off the thread.
2. Entry/Exit Points: Did the start and stop points move?
3. Hoop Travel: If the machine has to jump across the hoop unnecessarily, you lose efficiency.

Auditory Check: When running the test, listen to the machine. A long, smooth "hummmmm" indicates clean fills. A choppy "chug-chug-chug" suggests the conversion created too many tiny stitch segments or messy travel paths.

Walk Normal objects after conversion: how to manage underlay paths without losing your mind

In the video, the underlay is interpreted as a Walk Normal path.

The Strategy:

• Treat Walk Normal objects as Structural, not Decorative.
• Do not edit them unless you are changing the shape of the main fill significantly.
• If you resize the fill (e.g., make the circle 20% larger), you must manually resize the Walk Normal (underlay) creates to match, or rely on the software to regenerate new underlay properties on the fill object itself (often the safer bet).


Travel stitches that split fills: what to do when Convert to Wireframe creates “Complex Fill (Part 1)” and “Complex Fill (Part 2)”

The video highlights a travel stitch connecting two halves of a fill area. This happens when the machine has to "walk" through the middle of a shape to fill functionality.

The "Sane Editor's" Decision Guide:

1. Leave the split alone: If your edit is small (e.g., changing color), do not waste time merging. The machine doesn't care.
2. Edit cautiously: If you must reshape, ensure you edit both halves so they still meet perfectly.
3. Merge (Advanced): You can delete the split segments and redraw one new Complex Fill. This is cleaner but risky—you lose the original stitch angles and density unless you copy the properties carefully.

Hidden Consumable: This is where a temporary fabric marker (vanishing pen) saves you. Draw the desired shape on the actual garment or a scrap piece before you stitch. It gives you a physical target to verify your digital edits.

Setup Checklist (Right after conversion)

• Object Count: Expand the tree. Identify Structure (Walks) vs. Surface (Fills).
• Flow Check: Run Slow Redraw. Does the needle jump wildly?
• Density Check: Click properties. Is density in the safe zone (0.40mm - 0.45mm)?
• Constraint Check: If you are merging layers, ensure you do not exceed the max stitch count for your machine speed.


Converting keyboard lettering to wireframe in DesignShop v10: the trick for fixing overlapped “LB” logos cleanly

The third scenario is lettering—where Convert to Wireframe feels almost magical. The instructor overlaps an “L” and a “B” (Clarendon font) and needs to remove the "foot" of the L sitting behind the B.

The Commitment: Once you convert lettering, it is no longer text. It is artwork. You cannot backspace to fix a typo. You are now sculpting nodes.

The overlap problem you actually care about: removing the “foot” of the L behind the B

The video zooms in on the L’s serif peeking out. This is a classic "Left Chest Logo" problem.

Why fix it? If you stitch stitch-on-top-of-stitch (double density), two things happen physically:

1. The "Bulletproof" Patch: The area becomes hard and stiff.
2. Needle Breaks: The needle has to penetrate too much thread, leading to friction, heat, and snapped needles (or shredded thread).
3. Hoop Burn risk: The intense pressure in that one spot can distort the fabric around it.


Right-click → Operations → Convert Object to Wireframe: breaking the lettering block on purpose

The process is identical to shapes:

1. Select lettering.
2. Right-click → Operations → Convert Object to Wireframe.

This explodes the "LB" text block into separate "L" and "B" wireframe objects. Now they are independent vectors.

Node editing the serif: deleting points to straighten the L and make the overlap look intentional

The instructor highlights vector nodes on the L and deletes them to straight-line the edge behind the B.

Safety & Precision:

• Zoom is your friend. Zoom in to 600%+.
• Delete, don't drag. Deleting nodes usually snaps the line straight between the remaining points. Dragging creates wobbly lines.

Warning (Physical Safety): When testing these overlapping edits on your machine, keep your hands clear. If a needle breaks due to density buildup (which happens if you miss a node and create a knot), the tip can fly. Always use safety glasses when running new, untested files.

The 10-point nudge shortcut (Shift + Alt + Arrow Keys): fast alignment without dragging yourself crazy

Dragging with a mouse is imprecise. The instructor uses Shift + Alt + Arrow Keys to nudge elements by 10 points (embroidery points, not pixels).

The Workflow Bridge: Digital Precision vs. Physical Reality You can nudge a logo 0.1mm to the left in software, but if you hoop your shirt crookedly, that precision is wasted. This is where your tooling dictates your quality.

If you find yourself constantly nudging designs in software to compensate for bad hooping, stop. The fix isn't in DesignShop; it's on your table. Terms like hooping stations are your gateways to understanding efficient production. A station allows you to place the hoop in the exact same spot on every shirt, making your software "nudges" actually repeatable on the fabric.

The finished “LB” result: what a clean overlap should look like before you ever stitch it

The final "LB" shows a clean intersection.

Final Pro Check:

1. Gap Check: Ensure there is a tiny overlap (0.2mm) rather than a perfect abutment. Why? As the stitches pull in, a perfect gap will open up and show fabric. You need slight overlap for "Pull Compensation."
2. Tactile Expectation: When stitched, run your finger over the intersection. It should feel flat, not like a speed bump.

The decision tree I use in real shops: Convert to Wireframe vs. re-digitize vs. leave it alone

When the pressure is on, use this logic to decide your move.

Decision Tree (The "Save My Day" Protocol):

1. Is it a small, cosmetic fix (e.g., delete a stray stitch)?
   • Yes: Convert ONE object -> Wireframe -> Edit -> Save.
   • No: See #2.
2. Is it a massive structural change (e.g., "Make this circle a square")?
   • Yes: Do not convert. Re-digitize from scratch (or trace). Converting will leave too many artifacts.
   • No: See #3.
3. Is it Text/Lettering with a serif problem?
   • Yes: Convert -> Wireframe -> Node Edit. (Fastest method).
   • No: See #4.
4. Is the design dense and intended for a different fabric (e.g., cap logo going on a t-shirt)?
   • Yes: Convert -> Adjust Density globally (reduce by 10-15%) and increase Pull Comp. Cap files tear t-shirts if not adjusted.

Production reality: why software edits and hooping efficiency belong in the same conversation

Digitizing edits are only profitable if they don’t create downstream chaos.

Here’s the shop math most people ignore:

• If you spend 12 minutes cleaning an EXP file to perfection...
• But then engage in a 5-minute wrestling match to hoop a thick Carhartt jacket...
• Your "software efficiency" just evaporated.

When you upgrade your digitizing skills (like learning Convert to Wireframe), you must upgrade your hardware to match the new pace. For thick items or delicate performance wear where "hoop burn" (the ring mark left by standard hoops) is a killer, traditional hoops are a liability.

Many professionals search for how to use magnetic embroidery hoop videos precisely because they solve the physical side of this equation. Solutions like the melco mighty hoop or the melco xl hoop use magnetic force to clamp instantly, adjusting automatically to fabric thickness.

The Cycle: Faster Edits (Software) + Faster Hooping (magnetic hooping station) = Actual Profit.

Warning (Magnet Safety): Industrial magnetic hoops are incredibly powerful. They can crush fingers if you aren't careful (Pinch Hazard). Crucial: Keep them away from anyone with a pacemaker, and keep credit cards/phones at a safe distance.

If you are running volume, look into the specific mighty hoop for melco configurations or the melco fast clamp pro for items like bags where frame access is difficult.

Troubleshooting Convert to Wireframe in DesignShop v10: symptoms, causes, and fixes you can trust

Operation Checklist: The "Pilot's Check" before you press Start

Do not send that edited file to the machine until you have cleared this list.

• Visual: Run Slow Redraw. Does the stitch flow look smooth? (No wild jumps).
• Structural: Did you accidentally delete the "Walk Normal" (Underlay)? If yes, add underlay back to the Fill properties.
• Physical: Do you have the right needle? (Standard: 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
• Consumables: Is your bobbin full? Do you have temporary adhesive spray and snips ready for the test run?
• Hooping: Is the fabric tension "drum tight" (for standard hoops) or firmly suspended (for magnetic setups)?
• File Version: Save your file as Model_Edit_FINAL.ofm so you never overwrite the original customer file.

Mastering Convert to Wireframe changes you from a machine operator who "presses buttons" to a digitizer who "controls the outcome." Start with the surgical edits, respect the underlay, and ensure your physical setup is as pro as your digital one.

FAQ

• Q: How do I use DesignShop v10 Convert Object to Wireframe to edit an EXP stitch file without destroying the entire design?
  A: Convert only the smallest target object (usually one color group) instead of converting the whole EXP at once.
  • Select: Highlight only the specific color group/element that needs the edit in Project View.
  • Convert: Right-click → Operations → Convert Object to Wireframe.
  • Save: Save a new version name (example: filename_v2_edited.ofm) before node edits.
  • Success check: The on-screen design should look identical before vs. after conversion (no sudden “heavier” texture or obvious density change).
  • If it still fails: Undo and re-convert only an even smaller section, then recheck fill density and stitch direction in properties/3D view.
• Q: Why does DesignShop v10 Convert Object to Wireframe split a simple circle EXP into multiple objects like Walk Normal and Complex Fill (Part 1/Part 2)?
  A: This is expected—DesignShop v10 is interpreting machine actions (underlay and travel stitches) as separate objects, not “one shape.”
  • Identify: Expand the object tree and label Walk Normal as structural (often underlay/travel) and Complex Fill as surface stitches.
  • Keep: Do not delete Walk Normal objects blindly, especially if they are underlay.
  • Review: Use Slow Redraw to confirm which “running” lines happen before the fill (underlay) and which lines connect sections (travel).
  • Success check: Slow Redraw shows a logical foundation first, then smooth fills—no random jumps that weren’t present before.
  • If it still fails: If you must reshape, edit both fill parts so they still meet cleanly, or redraw a single new fill only if you can manage stitch angle/density consistently.
• Q: How do I stop DesignShop v10 Convert Object to Wireframe edits from creating loose, loopy stitching on the embroidery machine?
  A: After conversion, verify density and underlay—conversion can change or weaken structure if defaults are off.
  • Check: Open object properties and confirm fill density is in the safe zone (the blog’s standard woven benchmark is ~0.40 mm).
  • Verify: Confirm underlay still exists (often shown as Walk Normal) before stitching.
  • Compare: Keep the original design visible (locked layer or second window) and confirm stitch direction and entry/exit points did not drift.
  • Success check: In a test sew, the machine sound is smooth during fills (a steady “hummmm”), not choppy from tiny segments.
  • If it still fails: Re-run Slow Redraw to spot messy travel paths, then reduce unnecessary splits/overlaps and confirm the underlay is not missing.
• Q: How do I fix gaps between colors after using DesignShop v10 Convert Object to Wireframe on expanded stitch data (EXP/DST)?
  A: Add pull compensation manually—conversion may remove the “generic” compensation that used to hide gaps.
  • Adjust: Apply pull compensation to fills as needed (the blog’s reference starting range for stretchy fabrics is 0.3–0.4 mm).
  • Inspect: Compare before/after and watch for small separations where fabric would show through.
  • Test: Stitch a sample on the same fabric type to confirm registration holds.
  • Success check: Visually, adjacent colors meet cleanly with no fabric “peek-through” after stitch-out.
  • If it still fails: Re-check hooping and stabilization—software compensation cannot overcome unstable fabric or poor setup.
• Q: What should I do if the embroidery machine breaks needles after I edited overlapping lettering using DesignShop v10 Convert Object to Wireframe (for example an overlapped “LB” logo)?
  A: Treat it as a density stacking problem—overlaps can create a “knot” of stitches that snaps needles.
  • Diagnose: Use Slow Redraw to confirm you did not stack 3+ layers of fill or create a tight cluster at the overlap.
  • Edit: Convert the lettering, separate the letters, then node-edit the hidden serif/foot (delete points rather than dragging for cleaner edges).
  • Allow: Keep a tiny intentional overlap (the blog references ~0.2 mm) rather than a perfect butt-joint to avoid pull-in gaps.
  • Success check: The stitched overlap feels flat to the touch (not like a raised “speed bump”) and runs without repeated needle strikes.
  • If it still fails: Reduce overlap density in that zone and re-test; if the change is structural, consider re-digitizing that lettering area instead of forcing a conversion.
• Q: What safety steps should I follow when test-running a newly edited DesignShop v10 Convert Object to Wireframe file on an embroidery machine?
  A: Assume the first run can break a needle—protect hands and eyes and run a controlled test.
  • Clear: Keep hands away from the needle area during the first stitch-out of any untested edited file.
  • Wear: Use safety glasses, especially when testing dense overlap edits.
  • Verify: Confirm needle choice before starting (blog reference: 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
  • Success check: The machine runs smoothly without repeated punching in one spot, and there is no sudden thread shredding or needle deflection.
  • If it still fails: Stop immediately, inspect the edited area in Slow Redraw for density knots or tiny segments, then correct before restarting.
• Q: When embroidery editing in DesignShop v10 still doesn’t solve hoop burn or slow hooping, when should a shop upgrade to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine?
  A: Use a tiered fix: optimize technique first, then upgrade tooling only if the same production pain repeats.
  • Level 1 (Technique): Improve file edits and run the “Pilot’s Check” (Slow Redraw flow, keep underlay, confirm needle, confirm hooping tension/stabilization).
  • Level 2 (Tooling): Move to magnetic hoops when hoop burn, thick garments, or inconsistent clamping makes repeatability hard or slow.
  • Level 3 (Capacity): Move to a multi-needle platform like SEWTECH when volume demands faster throughput and fewer manual changeovers.
  • Success check: Your stitch-outs become repeatable without constant re-nudging/compensating in software to “fix” crooked hooping.
  • If it still fails: Track where time is actually lost (editing vs. hooping vs. rework) and solve the bottleneck first rather than over-editing the file.
