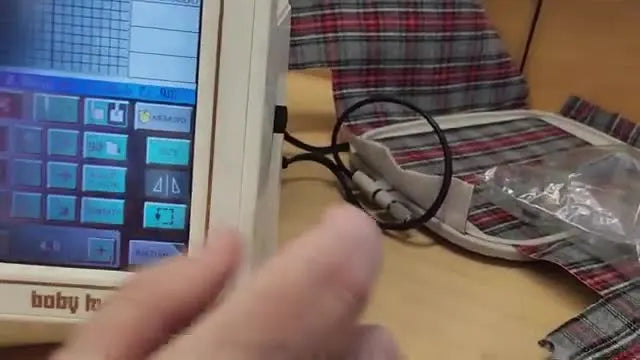

Baby Lock Ellageo Name Embroidery That Actually Lands Where You Want It: Fonts, Rotation, Sizing, and the “Disappearing Hoop” Fix

If you have ever stared at your Baby Lock Ellageo screen in a panic because the hoop icon suddenly vanished, or wondered if that loud clunk during startup meant you just broke a $2,000 machine, listen closely: You are not alone, and you likely didn’t break anything.

Machine embroidery is a discipline of physics and constraints. The machine isn't trying to frustrate you; it is protecting itself. When the hoop icon disappears, the machine’s logic board is simply saying, "The math doesn't work; if I sew this, I will hit the frame."

This guide does more than just recap a video. We are going to deconstruct the workflow of digitizing and stitching a simple name ("Simmons") on a Baby Lock Ellageo. We will move beyond button-pushing and get into the tactile, sensory details—the specific sounds, tensions, and visual cues—that separate a nervous beginner from a confident operator. Whether you are a hobbyist or a budding business owner, this is your blueprint for a zero-mistake setup.

Calm the Baby Lock Ellageo Carriage Warning: Power-On Without the “Oh No” Moment

The moment you flip the switch on the right side of the Baby Lock Ellageo, you are initiating a mechanical calibration sequence. The machine must determine exactly where its embroidery arm is in 3D space. To do this, it has to move—physically and sometimes abruptly.

The screen will flash a warning: "The carriage of the embroidery unit will move. Keep your hands etc. away from the carriage." This is not a suggestion.

The Sensory Check: When you press "OK," listen for a distinct, rhythmic mechanical sound.

• Normal: A smooth sliding whir, followed by a solid thud-click as the arm locks into position.
• Abnormal: A grinding noise (like plastic gears stripping) or a high-pitched whine. If you hear grinding, power down immediately.




Wait for the arm to come to a complete stop before you even think about touching the screen again.

Warning: Mechanical Pinch & Impact Hazard
Never leave scissors, thread snips, or magnetic pin bowls on the machine bed during startup. The embroidery arm moves with significant torque. If it hits an obstruction, it won't just knock it over—it can knock the internal belts out of alignment or shatter a needle driver. Keep a "exclusion zone" of 6 inches around the arm during boot-up.

The "Old Workhorse" Reality: The Baby Lock Ellageo is a legacy machine. Like many older, heavy-duty units, it is robust but unforgiving. It lacks the advanced sensors of modern SEWTECH multi-needle machines that might detect an obstruction instantly. You must be the sensor.

Prep Checklist: The "Flight Check"

Before you touch the LCD screen, verify these physical states:

• Clearance Zone: The embroidery arm has full range of motion (nothing piled behind or to the left of the machine).
• Hoop Status: The hoop is NOT attached during the initial power-on calibration (unless the manual explicitly allows it, but safe practice is to attach it later).
• Needle Integrity: Run your fingernail down the needle tip. If you feel a "catch" or burr, replace the needle immediately. A burred needle creates birdnests.
• Bobbin Check: Open the bobbin case. Ensure there is no lint buildup under the tension spring.
• Consumables Staged: You have your specific thread colors, correct stabilizer, and 505 temporary spray (if using) within arm's reach.

The “Hidden” Prep Nobody Mentions: Plaid Fabric, Stabilizer, and Hooping Tension That Won’t Drift

The video demonstrates a classic challenge: embroidering text onto a plaid fabric panel. Plaid is the ultimate truth-teller in embroidery. If your design is rotated 1° off-axis, or if your fabric stretches during hooping, the grid lines of the plaid will make the error screamingly obvious.

The Sensory Physics of Hooping: To get this right, you need to master "Drum Tension."

1. Lay your stabilizer: For a standard woven cotton plaid, use a medium-weight cut-away or a fused tear-away.
2. Place the fabric: Align the plaid lines perfectly with the extensive grid marks on the inner hoop.
3. The Press: As you press the inner hoop into the outer hoop, you need to apply even pressure.
4. The Tactile Test: Once hooped, run your fingers over the fabric. It should feel taut like a drum skin, but not distorted. Look at the plaid lines—if they bow outwards like a ) ( shape, you pulled too tight. If they wave, it's too loose.

The Bottleneck: If you are doing a production run of 20 plaid shirts, using a standard screw-tightened hoop is a recipe for repetitive strain injury and inconsistent tension. This is where the term hooping for embroidery machine shifts from a task to a technique. Beginners often spend 10 minutes hooping for a 5-minute stitch-out.

Commercial Upgrade Path: If you struggle with "Hoop Burn" (those shiny rings left on dark fabric) or keeping the plaid straight:

• The Problem: Standard hoops rely on friction and friction creates distortion.
• The Solution: baby lock magnetic embroidery hoops. These use high-force magnets to sandwich the fabric without forcing it into a recess. This eliminates hoop burn and makes aligning plaid lines significantly faster because you aren't wrestling with a screw.

Warning: Magnetic Field Safety
Professional magnetic hoops are not fridge magnets. They use industrial Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise skin or blood blister a finger. Handle by the rims.
* Device Safety: Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards.
* Machine Safety: Do not lay the magnets directly on the LCD screen or computer disk drives.

Pick a Built-In Baby Lock Ellageo Font That Stitches Readable Names (Not Skinny Spaghetti)

On the Ellageo screen, you will see options for "fancy" scripts and tiny block letters. Ignore them for now. The video correctly navigates to the basic "A" block font category.

Why this matters (The Engineering View): Thread has dimension. When you stitch very small or very thin fonts on textured fabric (like flannel plaid), the thread sinks into the weave.

• Thin Scripts: Often disappear or look like broken lines.
• Serif / Block Fonts: Have a wider "column width." This provides a stable platform of thread that sits on top of the fabric texture.

The instructor selects a heavy Serif font and sets the size to Medium (M).

Pro Tip: If you absolutely must use a thin font, you need to add a "topping" stabilizer (like a water-soluble film) on top of the fabric to float the stitches.

If you find yourself constantly limited by the small sewing field of standard hoops when trying to spell out long team names, investigating babylock magnetic hoop sizes is your next research step. Often, aftermarket hoops can maximize the available travel of your specific machine arm better than the stock plastic hoops.

Type the Name “Simmons” on the Baby Lock Ellageo Keyboard—and Catch Spelling Before Thread Makes It Permanent

Embroidery is permanent. Unlike a word processor, you cannot "backspace" a stitched typo without hours of painful picking.

The input workflow shown is:

1. Select "Exclusives" or the Font tab.
2. Type the capital "S."
3. Switch tabs to lowercase (often labeled "abc" vs "ABC").
4. Type "i-m-m-o-n-s."




The "Read-Aloud" Protocol: Do not just look at the screen. Read the letters out loud: "S... I... M... M... O... N... S." Your brain often auto-corrects typos when reading silently, but catching them audibly forces you to verify.

Rotate Baby Lock Ellageo Text 90 Degrees So the Hoop Loads Cleanly (and Your Layout Matches Reality)

Most home machines, including the Ellageo, have rectangular hoops that attach to the arm from the side. However, the screen often displays upright. This cognitive dissonance creates mistakes.

The instructor enters the Sewing/Edit mode and rotates the design 90 degrees.

The "Why": You want the Baseline of the text to run parallel to the long axis of the hoop. The machine stitches in X and Y coordinates. Aligning the long part of your design (the name) with the long axis of the hoop (the Y-axis movement) is generally smoother for the machine.

If you are upgrading your gear to speed up production, magnetic hoops for babylock embroidery machines often slide into the module more easily than standard hoops because the attachment bracket is designed for quick-release, reducing the friction of swapping hoops between jobs.

The Baby Lock Ellageo “Check” Trace Button: Your Last Chance to Save a Project (and Your Seam Allowance)

This is the most critical step in the entire process. The "Check" or "Trace" button (usually an icon of a box with a needle) forces the machine to physically move the hoop to the four corners of the design's outer boundary without stitching.

Visual & Spatial Verification: Watch the needle (or the LED pointer if your machine has one).

1. Start Trace: The hoop moves.
2. Corner 1: Is it too close to the plastic edge?
3. Corner 2: Is it crossing into the seam allowance? (The video highlights this crucial error).
4. Clearance: Is the presser foot hitting a clamp or a bulky seam?

In the video, the user notes the design is encroaching on the seam allowance—the area where pieces will be sewn together later. If you embroider there, the text will be cut off or sewn over.

Correction: Go back, scale the design down, or shift the position.

Setup Checklist: The "Runway" Check

Perform this one minute before pressing the green start button.

• Hoop Lock: The hoop lever is firmly locked into the carriage unit. Give it a gentle wiggle; it should move the whole arm, not just the hoop.
• Trace Completed: You have run the trace function after your last size adjustment.
• Seam Allowance Safe: There is at least 1/2 inch clearance between the needle's trace path and any seam allowance or hoop edge.
• Tail Check: The top thread tail is held or tucked so it doesn't get pulled down into the bobbin area on the first stitch.

When the Hoop Icon Disappears on the Baby Lock Ellageo Screen: Resize Without Guessing

During the video, the user hits a common wall: they increase the font size, and suddenly the hoop icon on the screen disappears. The machine locks out.

This is the "Field Limit Hard Stop." The machine knows which hoop is selected (or detected). If your design is 101mm wide and the hoop limit is 100mm, the machine disables the start function to prevent the needle form slamming into the plastic frame.

The Fix:

1. Don't panic. You haven't corrupted the file.
2. Go to the "Size" menu.
3. Tap the "Decrease" button incrementally.
4. Watch the screen. As soon as the design dimensions drop back within the safe zone, the hoop icon will reappear.

If you find yourself constantly fighting these size limits for commercial orders, this is a sign. Home machines have limited fields. Commercial equipment uses larger, open-area hoops. For those stuck in this cycle, an embroidery hooping station can help ensure you are maximizing every millimeter of your current hoop by centering the fabric perfectly, so you don't waste space on crooked hooping.

The Seam-Allowance Reality Check: Trace Twice, Then Commit

The video shows a "Measure Twice, Cut Once" approach. The user traces, adjusts size, traces again.

The "Safe Zone" Rule: Always leave a 10% safety buffer. If your hoop is 100x100mm, try to keep your design under 90x90mm. Why? stabilizing entails fabric "pull." As stitches accumulate, they pull the fabric in. A design that was 1mm from the edge at the start might be hitting the edge by the end due to fabric contraction.

Operation Checklist: The "Go" Button

• Trace Confirmed: No obstruction.
• Foot Down: Presser foot is lowered (machine usually won't start otherwise, but check anyway).
• Color Stop: Verify the machine is set to stop for thread changes if doing multi-color (not applicable for this single-color text).
• Speed: set the speed slider to medium (approx 600 SPM) for the first minute to ensure smooth feeding.

Decision Tree: Fabric, Stabilizer, and Tooling

Should I stitch this? And how?

Use this logic flow to make safe decisions for your projects.

1. Is the Fabric Stable? (e.g., Plaid Shirt, Denim)
   • YES: Use Tear-away (light use) or Cut-away (apparel).
     • Hooping: Standard hoop is okay.
   • NO (Stretchy T-shirt/Knit): Use Cut-away Mesh Stabilizer (REQUIRED) + Ballpoint Needle.
     • Hooping: Critical Risk. Do not stretch the fabric. Highly Recommend embroidery magnetic hoops to hold fabric without stretching.
2. Is this a Repeat Production Job? (e.g., 20 Uniforms)
   • NO: Manual hooping is fine.
   • YES:
     • Risk: Hand fatigue and inconsistent placement.
     • Solution: Invest in a hoop master embroidery hooping station or similar jig system to guarantee every logo is in the exact same spot.
3. Are you fighting Hoop Burn?
   • YES: Switch to Magnetic Hoops.
   • NO: Continue with standard hoops, but loosen the outer screw slightly.

The Upgrade Conversation: When to Move Beyond the Ellageo

The Baby Lock Ellageo is a fantastic introductory machine. But if you follow this guide and still feel frustrated by the speed (single needle thread changes) or the hooping (screw-tightening pain), you have likely hit a Hardware Ceiling.

The Commercial Bridge:

• Problem: "I spend more time changing threads than sewing."
  • Solution: SEWTECH Multi-Needle Machines. (4, 10, or 15 needles mean the machine changes colors automatically).
• Problem: "Putting the design on the fabric takes too long."
  • Solution: High-End Magnetic Frames. These clamp instantly.

Terms like how to use magnetic embroidery hoop are frequent search queries because they represent the first step a user takes from "hobby frustration" to "efficient production."

Quick Troubleshooting: Symptoms & Cures

Use this rapid-fire chart when things go wrong.

By respecting the physics of the machine—Trace, Resize, Stabilize—you turn the "scary" Baby Lock Ellageo into the reliable workhorse it was built to be.

FAQ

• Q: Why does the Baby Lock Ellageo show the carriage warning and make a loud clunk during power-on startup?
  A: This is usually normal calibration movement—keep hands and tools clear and let the embroidery arm finish homing.
  • Press OK and keep a 6-inch exclusion zone around the arm (no scissors, snips, pin bowls on the bed).
  • Listen for a smooth sliding whir followed by a solid thud-click as the arm locks into position.
  • Power down immediately if the sound is grinding (like gears stripping) or a high-pitched whine.
  • Success check: the arm stops completely and the machine becomes responsive without unusual noise.
  • If it still fails… remove any obstruction around/behind the arm and restart; consult the machine manual if abnormal noises persist.
• Q: What is the Baby Lock Ellageo pre-stitch “flight check” to prevent birdnesting and startup problems?
  A: Do a fast physical check before touching the LCD—most “mystery” thread nests start with needle, bobbin, or clutter issues.
  • Verify the hoop is not attached during initial power-on calibration (safe practice unless the manual says otherwise).
  • Inspect the needle by running a fingernail down the tip; replace immediately if you feel a catch/burr.
  • Open the bobbin area and remove lint under the tension spring; re-seat the bobbin case correctly.
  • Success check: the first stitches form cleanly with no crunching sound under the needle plate.
  • If it still fails… re-thread completely (with presser foot up when threading) and try again at a medium speed setting.
• Q: How do I hoop plaid fabric correctly for Baby Lock Ellageo name embroidery without crooked text or fabric distortion?
  A: Aim for “drum tension” without warping the plaid—tight and flat, not stretched.
  • Align stabilizer first (often medium cut-away for apparel or fused tear-away for stable wovens) and then match plaid lines to the hoop grid marks.
  • Press the inner hoop into the outer hoop using even pressure; avoid pulling the fabric on one side to “fix” alignment.
  • Run fingers across the hooped area and visually confirm plaid lines stay straight (no bowing like “)(” and no waves).
  • Success check: fabric feels taut like a drum skin and plaid lines remain straight relative to the hoop grid.
  • If it still fails… consider a magnetic hoop to reduce distortion and speed up consistent alignment for repeated jobs.
• Q: How do I choose a readable built-in Baby Lock Ellageo font for names on textured fabric like plaid flannel?
  A: Start with a heavier serif or block-style built-in font—thin scripts often sink into textured weaves and look broken.
  • Select a basic block/serif category (not a thin fancy script) and keep the lettering at a moderate size.
  • Add a water-soluble topping film if a thinner font must be used so stitches don’t disappear into the fabric texture.
  • Stitch a small test if possible before committing to the final garment panel.
  • Success check: letters look solid and continuous, not “skinny spaghetti” or broken lines.
  • If it still fails… switch to a heavier font style or strengthen stabilization (cut-away is often the safer starting point for apparel).
• Q: How do I use the Baby Lock Ellageo “Check/Trace” function to avoid stitching into hoop edges or seam allowance?
  A: Always trace the design boundary before stitching—this is the last safe moment to catch placement mistakes.
  • Run Check/Trace and watch the needle travel to each corner of the design boundary.
  • Confirm the trace path stays clear of hoop plastic edges and leaves at least 1/2 inch from any seam allowance.
  • Re-trace after every size or position adjustment (trace, adjust, trace again).
  • Success check: the full trace completes with no corner approaching the frame or crossing into seam allowance.
  • If it still fails… scale the design down or shift the layout until the trace path stays fully inside the safe area.
• Q: Why does the hoop icon disappear on the Baby Lock Ellageo screen after resizing text, and how do I bring the hoop icon back?
  A: The design is exceeding the selected hoop’s stitch field—reduce size slightly until the hoop icon returns.
  • Open the Size menu and tap Decrease in small steps instead of guessing.
  • Watch for the hoop icon to reappear; that indicates the design is back within safe limits.
  • Re-run Check/Trace after resizing to confirm real-world clearance.
  • Success check: the hoop icon is visible again and Check/Trace completes without nearing the hoop edge.
  • If it still fails… verify the correct hoop is selected/attached and keep a safety buffer (often staying under about 90% of the hoop area helps with fabric pull).
• Q: What safety rules should I follow when using magnetic embroidery hoops to prevent pinch injuries and device damage?
  A: Treat magnetic hoops as industrial tools—handle by the rims and keep magnets away from sensitive devices.
  • Grip magnets by the hoop/frame edges; do not place fingers between mating magnet surfaces.
  • Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, credit cards, and similar items.
  • Do not set magnets directly on an embroidery machine LCD or near computer disk drives.
  • Success check: magnets seat without snapping onto skin, and the hoop holds fabric evenly without hoop burn rings.
  • If it still fails… slow down the handling process and reposition using the rim-to-rim method; if safety remains a concern, switch back to a standard hoop for that operator/job.
