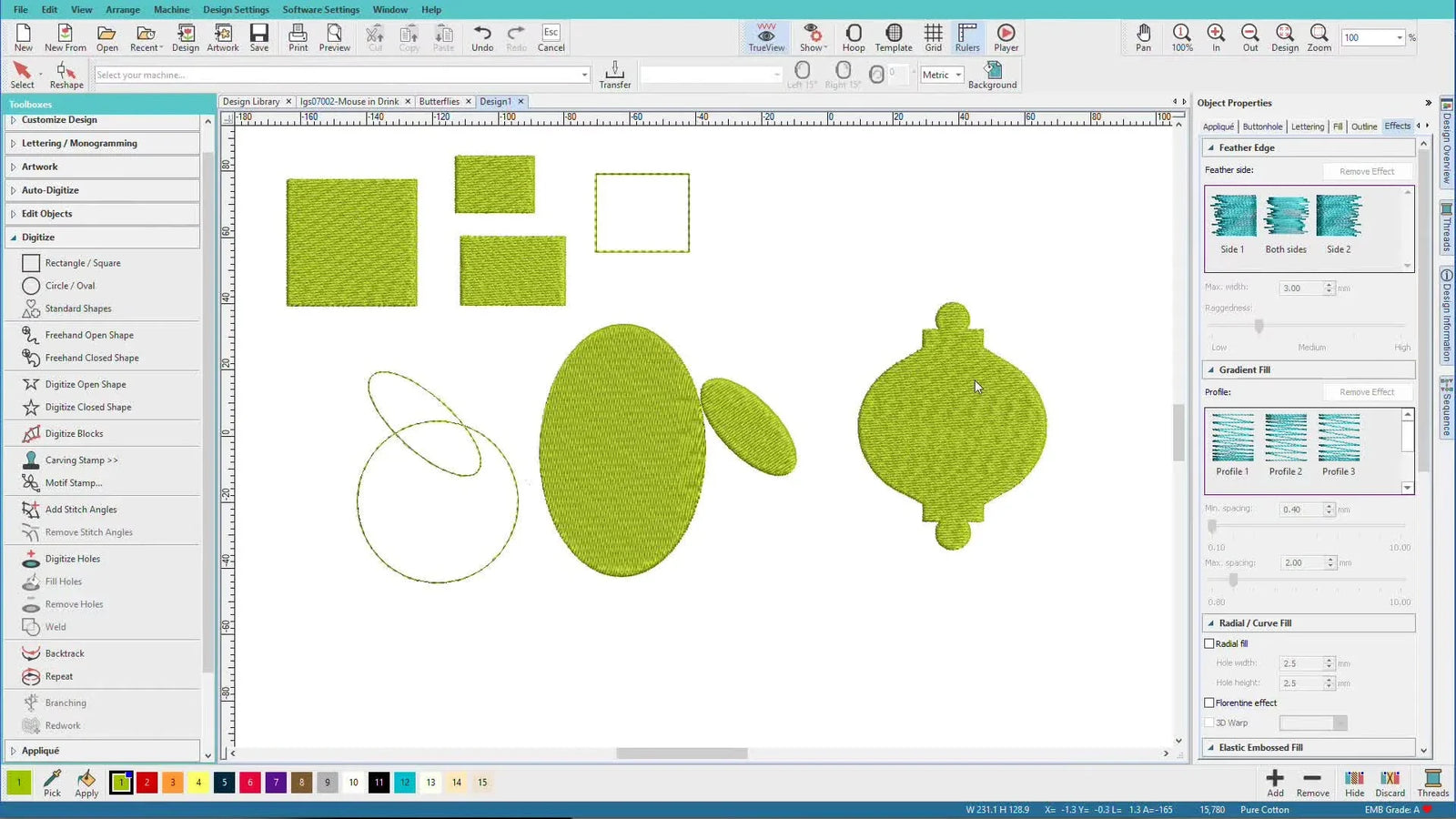

Hatch Manual Digitizing Basics: Draw Clean Shapes, Pick the Right Stitch Type, and Avoid the “Why Won’t This Fill?” Trap

The "Digital Twin" Strategy: Mastering Hatch's Digitize Toolbox for Flawless Stitch-Outs

If you’ve ever opened Hatch, stared at the Digitize Toolbox, and thought, “I just want to draw something that stitches clean,” you are facing the classic disconnect between screen perfection and physical reality.

As someone who has spent two decades watching digital designs fail on physical fabric, I can tell you this: Manual digitizing is not about fancy art first. It is about structural engineering. You are programming a needle to penetrate fabric 600 to 1,000 times per minute.

To thrive, you must make two binary decisions correctly, every single time:

1. Do I want a fill (texture) or an outline (border)?
2. Do I need an open shape (a path) or a closed shape (a container)?

Get those wrong, and you will waste hours fighting tools, redoing objects, and wondering why the software “won’t let you” change something later. Get them right, and you will build designs that stitch out predictably without breaking needles or puckering your fabric.

The Digitize Toolbox in Hatch Embroidery Software: The Calm Start That Saves You 30 Minutes Later

The video begins with the Digitize Toolbox because it is the foundation for creating wireframe shapes and then applying stitches. However, from an operational standpoint, this is where you establish your "Digital Twin"—the file that must behave exactly like the physical machine.

Start exactly the way the expert demonstrates, but with a production mindset:

• Create a new blank document: Press Ctrl + N.
• Open the Digitize Toolbox.
• Master the "Control Trinity":
  • Select tool: Your primary hand.
  • Reshape tool (Hotkey: H): This is non-negotiable. You will spend 40% of your time here adjusting wireframe nodes to account for "push and pull" compensation.
  • Contextual Fill/Outline toggles: These appear when a digitizing tool is active.

Pro Tip: A small habit that separates hobby digitizing from production mastery is keyboard efficiency. The video calls out H for Reshape and F1 for Help. Learn these so your eyes never have to leave the design to hunt for an icon. This reduces cognitive load, allowing you to focus on stitch angles rather than interface navigation.

The “two questions” rule (and the one thing you can’t undo)

The instructor states a critical rule that every digitizer eventually learns through the frustration of a "greyed out" button:

• You can’t change an open shape into a closed shape later, and you can’t change a closed shape into an open shape later.

Before you click-drag anything, pause and apply the Physical Logic Test:

• Closed shape: A contiguous line with no breaks (Circle, Rectangle, Polygon). Physical equivalent: A patch, a filled logo background, or a satin border. These can hold Fill stitches or Outline stitches.
• Open shape: A line that does not connect to itself. Physical equivalent: A running stitch, a signature, or a vine. These only work with Outline stitch types.

That is the logic behind almost every error message you will encounter in the Toolbox.

Fill vs Outline Stitch Types in Hatch: Make the Choice Before You Draw (Not After)

When you select a digitizing tool, Hatch shows you what is legally possible for that geometry.

• For closed shapes, you can toggle Fill or Outline.
• For open shapes, Hatch only offers outline stitch types—because you cannot "fill" a single line.

The demonstration uses the Rectangle tool to prove this:

What you should see (Expected Outcome)

• Fill Selected: You create a filled object. In the video, this appears as a Tatami fill.
  • Sensory Check: Tatami fills feel like a woven mat. They add significant stability but also high stitch counts.
• Outline Selected: The Object Properties docker updates to show outline stitch types (Single Run, Triple Run, Satin).
  • Sensory Check: A Satin outline feels like a raised rope or cord.

Crucial Warning: The "properties panel changes based on object type" is your built-in sanity check. If you select a tool and the panel doesn't show the stitch type you want (e.g., you want a satin border but only see fill options), stop. You have likely selected the wrong geometry type (Open vs. Closed).

Rectangle Tool in Hatch Digitize Toolbox: The Fastest Way to Practice Clean Closed Shapes

The rectangle workflow is simple, repeatable, and the best way to calibrate your mouse hand.

1. Select the Rectangle shape tool.
2. Choose Fill (for a solid block).
3. Click on the canvas to set the anchor point.
4. Drag diagonally to the opposite corner.
5. Release to place the rectangle.

Then repeat for an outline:

1. With the Rectangle tool still selected, click Outline.
2. Click and drag diagonally again.

Checkpoint: How to “exit” the tool cleanly

The video notes the tool stays attached to your cursor until you select a different tool or press Escape.

Why this matters for production: If you don't press Escape, you risk accidentally clicking the canvas again, creating a microscopic "stray stitch" object. On a physical machine, the trimmer will cut, move 1mm, needle down, and potentially cause a "bird's nest" (thread tangle) on the bobbin side. Always press Escape to clear your tool.

Object Properties Docker in Hatch: Use It Like a Dashboard, Not a Decoration

When the instructor switches from Fill to Outline, the Object Properties docker changes. This is not just a UI detail—is your Flight Deck.

Practical Habit: After you create any object, glance at Object Properties and verify:

1. Stitch Type: Is it Tatami? Satin? Run?
2. Density/Spacing: This is the invisible killer.
   • Standard Tatami: usually defaults around 0.40mm.
   • Standard Satin: usually defaults around 0.40mm.
   • Expert Note: If working on unstable fabric (like a pique polo), consider increasing spacing to 0.45mm to prevent bulletproof stiffness. If working on a cap with a center seam, you might need 0.38mm for better coverage.

This is where you determine if a "cool effect" is going to be stitch-friendly or if it will perforate your fabric into a hole.

Circle/Oval Tool in Hatch: The Two-Click Method (Plus the Enter Key Trick)

Circles are notoriously difficult to digest because fabric stretches comfortably in the direction of the weave (warp) but resists in the cross-grain (weft). This creates ovaling.

The Hatch Method:

1. Select the Circle/Oval tool.
2. Click to set the center point.
3. Drag outward to your desired circumference.
4. Click again to define the oval shape—or press Enter to force a perfect circle.

The Physical Reality: Even if you draw a perfect circle in Hatch, it may stitch out as an oval due to hoop tension. If you drag diagonally, you create an angled oval.

• Hooping Tip: If you find your perfect circles are always distorting into ovals, your hoop tension may be uneven. This is a primary driver for why professionals switch to magnetic embroidery hoops. The magnetic clamping force distributes tension evenly across the ring, unlike thumbscrew hoops which often pull tightest only near the screw.


Standard Shapes Library in Hatch: Borrow a Shield/Ornament Shape Without Losing Control

If you need a badge outline or a crest, do not draw it manually—you will struggle to get symmetry. Use Standard Shapes.

1. Select the Standard Shapes tool.
2. Browse the library (Borders, Urban Borders).
3. Choose a shape (Shield/Ornament).
4. Click and drag to place.

Scale & Distort: While dragging, you can make the shield tall/skinny or wide/fat.

• Calibration: If this is for a left-chest logo, keep the width under 3.5 inches (90mm). Anything wider typically curves into the wearer's armpit, which looks professional.


The “Dress It Up” Moment: Contour, Motif, Embossed Fill, and Ripple Fill That Actually Look Intentional

This is where manual digitizing becomes fun, but also dangerous. You are taking flat fills and applying texture.

Contour effect (Spacing is Critical)

• Select an object.
• Apply Contour.
• Change Spacing: The video shows 8 mm.
  • Analysis: 8mm is a massive gap. This creates a "ripple effect" or a loose sketch look. It is not for coverage. If you want full coverage, spacing must be 0.4mm - 0.5mm.
  • Sensation: A tight contour feels like corduroy; an 8mm contour feels like loose quilting.


Ripple Fill and Texture

• Motif: Replaces solid stitches with small patterns (hearts, stars).
• Embossed Fill: Presses a pattern into a solid Tatami.
• Ripple: Radiates out from a center point.

Stabilizer Alert: These effects, particularly Ripple, push fabric outward from the center. If you are using a basic tear-away stabilizer on a knit shirt, you will get puckering (the "volcano effect"). You must use a Cutaway Stabilizer to support the radial stress of these fancy fills.

Line motifs and the “halo” look

Changing an outline to Single Motifs creates a dotted or decorative border.

• Scale Check: A motif that looks great on a large banner will look like a messy blob on a 3-inch patch. Always use the Measure Tool (M) to check the size of the individual motif elements. If they are smaller than 1.5mm, they may just look like thread knots on the finished product.


Backstitch and 3D Satin in Hatch: Pretty on Screen, But Test Like a Pro Before You Stitch 50 Pieces

Linda highlights Backstitch (hand-sewn look) and 3D Satin.

3D Satin simulates the look of Puffy Foam without actually using foam by layering stitches.

Expert Reality Check: 3D Satin Risks

Software effects are powerful, but physics is unforgiving. 3D Satin drastically increases stitch density.

• Needle Heat: The friction from multiple layers can melt polyester thread or break needles.
• The Fix: Use a Topstitch Needle (Size 80/12 or 90/14) which has a larger eye and groove to accommodate the friction.
• Speed: Slow your machine down. If your default is 800 SPM (Stitches Per Minute), drop to 500-600 SPM for 3D Satin work.
• Test: Never run a 3D Satin design on a final garment without a test scrap.

Freehand Open Shape in Hatch: The Sketchy Line Tool for Signatures, Stippling, and Shading

For Freehand Open Shape:

1. Select Freehand Open Shape.
2. Note that only outline stitch types are available.
3. Hold the left mouse button and drag like a pen.

Tools of the Trade: While the mouse works, smooth curves are difficult. If you plan to digitize signatures or "thread painting" art frequently, a Pen Tablet (Wacom style) is highly recommended. It smooths out the "micro-wobbles" that a mouse creates.

• Why it matters: Every "wobble" is a needle penetration. Too many penetrations in one spot cuts the fabric. Smoother lines = stronger fabric.


Freehand Closed Shape in Hatch: The Rubber-Band Loop That Can Betray You If You Backtrack

For Freehand Closed Shape:

1. Select Freehand Closed Shape.
2. Choose Fill (or Outline).
3. Draw a continuous loop. Hatch closes the shape for you automatically.


The Common Failure: The "Bow Tie" Error

Symptom: Part of the shape does not fill, or looks inverted. Cause: You crossed your own line (backtracked) while drawing, creating a figure-8 or "bow tie" overlap. Fix: Undo and redraw without overlapping lines.

Warning: Mechanical Safety
Even though this is “just software,” your stitch choices dictate mechanical violence. Before running a dense fill or layered satin on a real machine, keep fingers clear of the needle area. Use the correct needle point (Ballpoint for knits, Sharp for wovens). Never attempt to trim jump stitches with scissors while the machine is in motion.

The “Hidden” Prep Pros Use Before Digitizing Shapes in Hatch

The video focuses on tools, but the pros focus on the substrate (the material). Before you draw a single line, you must answer three questions.

Prep Checklist (Do not skip)

• Fabric Check: Is this going on a stable woven (denim/twill) or a stretchy knit (performance wear)?
  • If Knit: You need Cutaway stabilizer.
  • If Woven: You can often use Tearaway.
• Shape Strategy: Is your first object open or closed?
• Texture Strategy: Do you want fill or outline?
• Machine Prep: Is your bobbin full? Is your needle fresh? (A burred needle will shred the thread on dense fills).

Hidden Consumable: Keep Temporary Adhesive Spray (like 505) or a Glue Stick handy. Even with good digitizing, if your fabric floats inside the hoop, the design will shift.

Setup That Prevents Rework: Select + Reshape + Escape as Your “Control Trio”

Your workflow relies on muscle memory:

1. Select (to choose).
2. Reshape (H) (to fix geometry).
3. Escape (to disengage).

If you are digitizing for production, speed is cost. But placement accuracy is profit. The more designs you test, the more often you will hoop. This is where physical tools complement software skills. A dedicated hooping station for machine embroidery allows you to place the hoop in the exact same spot on every shirt, ensuring that your perfectly digitized design lands in the perfect spot on the chest.

Setup Checklist (Before applying effects)

• Confirm object type (Open vs Closed) is correct.
• Check Object Properties: Does the density match the fabric? (Standard ~0.40mm).
• Verify the sew order: Background fills first, details last.
• Press Escape (Clear tools).

A Simple Decision Tree: Match Fabric Behavior to Stabilizer Strategy

Your digitizing is only as good as your stabilization. Use this decision tree to make the right call before you press start.

Decision Tree (Fabric → Stabilizer → Hoop Strategy)

1. Is the fabric stretchy (Knits, Polos, T-shirts)?
   • Stabilizer: Cutaway (Non-negotiable).
   • Hooping: Do not stretch the fabric. It should be taut like a drum skin, but not distorted.
   • Risk: "Hoop Burn" (shiny rings from stretching).
   • Solution: Use magnetic embroidery hoops. They clamp without the friction-pull of standard rings, reducing burn on delicate knits.
2. Is the fabric stable (Denim, Canvas, Twill)?
   • Stabilizer: Tearaway is usually sufficient.
   • Hooping: Tight tension is easier to achieve here.
   • Risk: Thick seams causing hoop popping.
   • Solution: Magnetic frames with high-strength magnets can hold over thick seams (like jeans pockets) where plastic hoops fail.
3. Is the fabric lofty (Fleece, Towels)?
   • Stabilizer: Tearaway backing + Water Soluble Topping (Solvy) to keep stitches from sinking.
   • Digitizing Note: Increase pull compensation in Hatch to 0.4mm or higher so stitches don't disappear.

Warning: Magnetic Hoop Safety
Magnetic frames are powerful industrial tools. Pinch Hazard: Handle with care to avoid pinching fingers between magnets. Pacemaker Safety: Keep strong magnets at least 6 inches away from pacemakers, ICDs, and other medical implants. Store away from credit cards and hard drives.

Operation Workflow: From Flat Shapes to Finished Effects

Here is the clean operational sequence shown in the video, optimized for success.

1) Create Base Geometry

• Rectangle/Circle: Create the container.
• Standard Shapes: Place the patch/badge outline.

2) Verify Type

• Closed? (Fill/Satin)
• Open? (Run/Motif)

3) Apply Effects

• Select Object -> Apply Contour, Motif, or Ripple.
• Audit density: Check the stitch count. If a small simple shape suddenly has 10,000 stitches, you have applied an effect that is too dense. Adjust spacing immediately.

4) Freehand Organic Elements

• Add shading or signatures with Freehand tools. Avoid backtracking to prevent "Bow Tie" errors.

Operation Checklist (Pre-Flight)

• No "Bow Tie" crossovers in filled shapes.
• Closest point connection is checked (reduces jump stitches).
• Test Stitch Ran: Run a sample on scrap fabric.
• Hooping Verified: Fabric is taut, not stretched.
• Machine Speed: Set to a safe beginner range (600-700 SPM) for complex fills.

The Upgrade Path: When Better Hoops Beat More Software Tweaks

Digitizing skill is half the battle. The other half is mechanics. If your designs look great in Hatch but fail on the machine, the bottleneck is likely your Physical Interface (Hooping and Machine capability).

• The Symptom: You spend 5 minutes hooping a shirt, and it's still crooked.
• The Level 1 Fix: Use a hooping station for machine embroidery to standardize placement.
• The Level 2 Fix: Upgrade to magnetic embroidery hoops. They allow for faster, safer hooping, especially on easy-to-mark fabrics. Many operators using systems like a hoopmaster find that magnetic frames significantly increase their hourly output.
• The Scale Problem: If you are running a single-needle machine and frustrated by the time it takes to change thread colors (stopping, rethreading, starting), no amount of Hatch digitizing will fix that efficiency loss.
• The Level 3 Fix: This is the trigger point to consider a Multi-Needle Machine (like SEWTECH). The ability to load 10-15 colors and let the machine run uninterrupted frees you to digitize the next job while the current one stitches.

Expertise is a blend of software precision and mechanical efficiency. Master the Digitize Toolbox, but respect the physics of the hoop.

FAQ

• Q: In Hatch Embroidery Digitize Toolbox, why is the Fill option greyed out when using Freehand Open Shape or other open-shape tools?
  A: Hatch only allows Fill stitches on closed shapes, so an open path will only show outline stitch types.
  • Switch to a closed-shape tool (Rectangle, Circle/Oval, Freehand Closed Shape) if the object must be filled.
  • Redraw the geometry as a continuous loop; Hatch cannot convert open ↔ closed after creation.
  • Use Object Properties as the check: open shapes should show Run/Motif-style outlines, not Tatami fill.
  • Success check: the Object Properties docker shows the intended stitch family (Tatami for Fill, Satin/Run for Outline) immediately after drawing.
  • If it still fails: delete the object and redraw from scratch—editing later cannot change open vs closed behavior.
• Q: In Hatch Embroidery, how do I prevent accidental tiny “stray stitch” objects that later cause bird’s nests during stitch-out?
  A: Clear the active digitizing tool with Escape so Hatch does not keep placing new micro-objects.
  • Press Escape right after placing a shape to disengage the tool.
  • Switch back to Select before panning/zooming or clicking elsewhere on the canvas.
  • Visually scan for tiny unintended objects before exporting or stitching.
  • Success check: the cursor is no longer “attached” to a shape tool, and clicking the canvas does not create a new object.
  • If it still fails: zoom in around the design edges and delete any microscopic objects that would force trims and short jumps.
• Q: In Hatch Embroidery, why does a “perfect circle” from the Circle/Oval tool stitch out as an oval on fabric?
  A: Fabric and hoop tension can distort circles, so the on-screen circle may oval during stitching.
  • Use the Circle/Oval tool correctly: click center, drag, then press Enter to force a perfect circle in software.
  • Re-check hooping tension for evenness; avoid uneven pull that stretches one direction more than the other.
  • Keep fabric taut but not distorted, especially on knits.
  • Success check: the stitched circle measures consistently in multiple directions (not noticeably longer on one axis).
  • If it still fails: consider switching from thumbscrew hoops to magnetic embroidery hoops, which often distribute clamping force more evenly.
• Q: In Hatch Embroidery Object Properties, what stitch density/spacing is a safe starting point, and when should spacing be loosened for unstable fabric?
  A: A common starting point is about 0.40 mm spacing, and unstable fabrics often need slightly more spacing to avoid stiffness and puckering.
  • Start around 0.40 mm for standard Tatami and standard Satin when fabric is stable.
  • Increase spacing to about 0.45 mm when fabric is unstable (for example, a pique polo) to reduce “bulletproof” stiffness and distortion.
  • Tighten carefully (for example, around 0.38 mm) only when extra coverage is truly needed and the fabric can tolerate it.
  • Success check: the embroidery feels firm but not board-stiff, and the fabric around the design stays flat without tunneling.
  • If it still fails: change stabilizer strategy first (Cutaway for knits), then re-test on scrap before tightening density further.
• Q: When using Hatch Embroidery Ripple Fill, Motif, or Embossed Fill on knit shirts, how do I stop puckering and the “volcano effect”?
  A: Use Cutaway stabilizer for knits, because Ripple-style effects push fabric outward and tear-away often cannot hold the stress.
  • Switch backing to Cutaway Stabilizer for T-shirts, polos, and other stretchy knits.
  • Audit effect spacing and stitch count; if a small shape jumps to an extreme stitch count, reduce effect intensity/spacing.
  • Add temporary hold (adhesive spray like 505 or a glue stick) to prevent fabric shifting inside the hoop.
  • Success check: after stitch-out, the fabric relaxes flat around the design with no raised “ring” or ripples outside the borders.
  • If it still fails: simplify the effect (less Ripple) or test the same design on a more stable fabric to confirm the digitizing is not over-stressing the knit.
• Q: In Hatch Embroidery Freehand Closed Shape, what causes the “bow tie” fill error where parts do not fill or look inverted, and how do I fix it?
  A: The bow-tie error is usually caused by crossing your own line (a figure-8 overlap) while drawing the closed loop.
  • Undo immediately and redraw the loop without backtracking or crossing over the path.
  • Draw slower and keep the loop continuous so Hatch can interpret the interior correctly.
  • Use Reshape (H) only for minor node cleanup; don’t rely on it to “uncross” a badly overlapped loop.
  • Success check: the filled area previews as one continuous region with no missing wedges or inverted sections.
  • If it still fails: redraw using a more controlled tool (like Standard Shapes or a simpler closed geometry) and then apply effects after the base shape is clean.
• Q: What safety steps should operators follow before running dense Hatch Embroidery effects like 3D Satin, especially regarding needles, speed, and hand placement?
  A: Treat dense effects like a high-stress job: use the correct needle, reduce speed, test on scrap, and keep hands clear—this is common and preventable.
  • Install a Topstitch needle (80/12 or 90/14) to reduce friction issues with layered stitches.
  • Slow the machine from a typical 800 SPM range down to about 500–600 SPM for 3D Satin work.
  • Run a test stitch on scrap fabric before stitching final garments.
  • Success check: the machine runs smoothly without frequent thread shredding, needle breaks, or excessive heat signs during the dense section.
  • If it still fails: re-check stitch density in Object Properties and confirm needle point choice (Ballpoint for knits, Sharp for wovens) per the machine manual.
