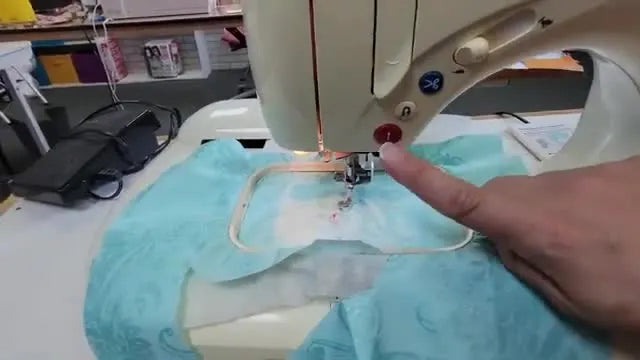

Singer Quantum XL-100 Setup Without the Headache: Threading, the “Letter P” Bobbin Trick, Hooping, and First Stitch-Out

If you have just inherited, rescued, or dusted off a Singer Quantum XL-100, the first five minutes can feel less like a creative awakening and more like a high-stakes pop quiz. You are facing a screen full of cryptograms, a thread path that seems to defy physics, and a hoop that fights you for control.

Take a deep breath. Lower your shoulders.

As an educator with two decades of floor experience, I can tell you this: Machine embroidery is a sequence of physical variables. It is not magic; it is engineering. The Singer XL-100 is a capable legacy machine, but it demands respect for the "Order of Operations." When you rush the setup, you get birdnests (giant tangles of thread). When you respect the physics, you get professional satin stitches.

This guide is not just a manual rewrite. It is a cognitive reconstruction of the setup process, designed to remove the fear factor and replace it with muscle memory. We will cover the specific sensory cues (clicks, snaps, and tension pulls) that tell you—before you press "Start"—whether you are about to succeed or fail.

The Calm-Down Primer for the Singer Quantum XL-100: What’s Normal, What’s Not

The XL-100 is a "binary" machine—it either works perfectly, or it refuses to stitch entirely. There is rarely a middle ground. Most "mystery failures" that break a beginner's heart are actually caused by three invisible physical errors:

1. The Tension Trap: Threading with the presser foot down (which leaves tension discs closed).
2. The Bobbin Orientation: Inserting the bobbin backward (which eliminates drag).
3. The Mechanical Lock: The hoop unit not being fully seated "home."

If you are staring at this machine feeling a mix of nostalgia and dread, you are not alone. Many users return to the XL-100 after a loss in the family or a 10-year hiatus. The emotional weight is real, but the machine doesn't know that. It only knows physics.

Our goal is to move you from Unconscious Incompetence (you don't know what's wrong) to Conscious Competence (you run a checklist and know it will work).

Upper Threading on the Singer Quantum XL-100: The Presser-Foot “Tension Disc” Secret That Stops Jams

This is the single most critical step in the entire process. If you get this wrong, no software setting will save you.

The thread path on the XL-100 is a "winding road" printed on the casing. However, the secret isn't where the thread goes, but the state of the machine while you thread it. Inside the machine are metal discs (tension discs) that act like a gatekeeper.

• Presser Foot DOWN: The discs clamp shut (like brakes on a car).
• Presser Foot UP: The discs open (releasing the brakes).

The Protocol (Action + Sensory Check):

1. Raise the Presser Foot: Do this first. If you thread with the foot down, the thread floats on top of the tension discs rather than seating between them.
2. Mount the Spool: Place your spool on the horizontal pin. Use a spool cap that is slightly larger than the spool diameter to prevent snagging.
3. Follow the Guides: Trace the solid lines on the casing.
4. The Metal Guide Check: Ensure the thread passes completely behind the metal guide located just above the needle bar.
5. The Sensory Test (Crucial): Before you thread the eye of the needle, lower the presser foot. Pull the thread gently.
   • Sensory Anchor: You should feel significant resistance, similar to pulling dental floss between tight teeth.
   • If it feels loose: You missed the discs. Raise the foot and re-thread.
6. Raise the foot again to thread the needle eye.








The “Letter P” Drop-In Bobbin Method on the Singer Quantum XL-100: One Tiny Detail That Prevents Birdnesting

The underside of your embroidery is controlled by the bobbin. If the bobbin spins the wrong way, the machine cannot apply the necessary drag to create a tight stitch. We use the "Letter P" Mnemonic.

The Execution Sequence:

1. Visual Check: Hold the bobbin up in front of you. The thread should hang down from the left side, forming the vertical line of a capital letter P. If it looks like a "Q", flip it over.
2. The Drop: Drop the bobbin into the case.
3. The Anchor: Place your right index finger on top of the bobbin to stop it from spinning.
4. The Snap: Bring the thread around to the front opening. Pull the thread straight back firmly toward the rear of the machine (follow the arrow).
   • Sensory Anchor: You must feel or hear a tiny "click" or snap as the thread slips under the tension spring leaf.
5. The Cutter: Trim excess thread if the machine has a built-in cutter here, or leave a 4-inch tail.

Why this matters: If the thread doesn't snap under that tension leaf, your machine has zero lower tension. This causes the top thread to be pulled aggressively to the bottom, resulting in a "birdnest" or loop tangle instantly.

Pulling Up the Bobbin Thread: The Handwheel Move That Saves Your First Stitch

Modern machines often cut the thread automatically, but on the XL-100 (and for purists), manually bringing up the bobbin thread prevents the "tail" from being stitched into the back of your design.

The Technique:

1. Left Hand: Hold the needle thread (top thread) with slight tension.
2. Right Hand: Turn the handwheel toward you (counter-clockwise). Never turn it away from you, as this can disrupt the timing belt.
3. Watch the Plate: As the needle creates a full cycle (down and up), you will see a loop of the white bobbin thread pop up through the needle plate hole.
4. The Sweep: Use scissors or a stylistic tool to sweep that loop out. You should now have two thread tails (top and bottom) on top of the plate.

Warning: Mechanical Safety. Always keep your fingers at least 2 inches away from the needle bar when turning the handwheel. If your finger is under the needle clamp when you crank it, you can suffer a crush injury or a needle puncture.

When the Needle Threader Fails on the Singer Quantum XL-100: Don’t Force It

The XL-100 series is aging. The built-in needle threader relies on a microscopic metal hook that passes through the eye of the needle. Over 20 years, these hooks bend, misalign, or break.

The Rule of Force: If you depress the needle threader lever and it meets resistance or doesn't pull the thread back: STOP.

Do not force it. Forcing a stuck threader can bend the needle bar or damage the linkage.

• The Workaround: Thread the eye manually. Use a white piece of paper behind the needle to make the eye visible, or use a handheld needle insertion tool.
• The Reality: Experiencing a broken automatic threader is a rite of passage. It does not affect the machine's ability to embroider; it is merely a convenience feature lost.

The “Hidden” Prep Before You Stitch: Stabilizer, Fabric, and a Reality Check on Stretch

Here is the uncomfortable truth: 80% of embroidery failures are not machine failures; they are stabilizer failures.

You cannot frame a piece of tissue paper and expect it to hold a heavy oil painting. Similarly, you cannot stitch a dense 10,000-stitch design onto a T-shirt without rigid support.

The Stabilizer Decision Tree:

• Scenario A: The Kitchen Towel (Terry Cloth/Loops)
  • Challenge: Stitches sink into the loops and disappear.
  • Solution: Water-Soluble Topping (Solvy). This creates a "glass floor" for the stitches to sit on. It washes away later.
• Scenario B: The T-Shirt / Onesie (Knits/Stretchy)
  • Challenge: The fabric stretches as the needle pounds it, creating distorted circles and puckered outlines.
  • Solution: Fusible Poly Mesh (Cutaway). This is a non-negotiable for professionals. You iron it onto the back of the knit. It is soft against the skin but provides a permanent skeleton for the embroidery.
  • Rule: "If you wear it, don't tear it." Use cutaway stabilizer for wearables.
• Scenario C: Woven Cotton / Denim (Stable)
  • Challenge: Less stretch, but can still shift.
  • Solution: Tear-Away Stabilizer. Sufficient for stable fabrics.

The Hidden Consumables List: Beginners often buy the machine but forget the "support crew." A proper kit for singer embroidery machines requires:

1. Spray Adhesive (Temporary): To stick fabric to stabilizer.
2. Appliqué Scissors: Duck-bill shape to trim without cutting fabric.
3. Correct Needles: Ballpoint for knits, Sharp for wovens.
4. Isopropyl Alcohol: To clean adhesive off the needle.






Prep Checklist (Do this before you touch the hoop)

• Presser Foot Lifted: Ensure foot is UP before threading.
• Thread Path: Thread is behind the metal guide above the needle.
• Tension Check: (CRITICAL) Lower foot, pull thread, feel resistance. Raise foot again.
• Bobbin: Letter "P" orientation, snapped into tension leaf, tail trimmed.
• Needle: New embroidery needle installed (Size 75/11 or 90/14).
• Fabric: Pre-shrunk (washed) and pressed flat. Ironing is not optional.
• Stabilizer: Correct type selected based on the Decision Tree above.

Manual Hooping on the Singer Standard Rectangular Hoop: Tight, Flat, and “Slight Dip” (Not Drum-Head)

Manual hooping is an art form that causes physical pain for many users. The goal is to suspend the fabric so it cannot move, without stretching it so much that it deforms.

The Physics of the "Dip": Beginners often create a "drum skin" (tight as possible). This is dangerous for knits. When you un-hoop a T-shirt stretched like a drum, the fabric relaxes back to its original size, but the stitches do not. The result? Severe puckering.

The Correct Process:

1. Loosen the outer hoop screw significantly.
2. Sandwich fabric/stabilizer over the outer ring.
3. Press the inner ring into place.
4. The Tactile Check: Tighten the screw until the fabric is taut but has a slight dip toward the limitless bed. It should not be trampoline-tight, but it should not have wrinkles.
5. The "Migration" Test: Run your finger firmly across the fabric. If it ripples or moves, it is too loose.

This manual process is the primary cause of "Hoop Burn" (permanent shiny rings on fabric) and wrist strain. Understanding the nuances of hooping for embroidery machine technique is critical for screw-hoop users.

Mounting the Hoop on the Singer Quantum XL-100 Carriage: The Click You Must Hear

The interface between the hoop and the machine (the pantograph/carriage) is a precision fit.

1. Clearance: Ensure the presser foot is UP and the needle is at its highest point (turn handwheel toward you).
2. Slide: Slide the hoop bracket onto the carriage arm.
3. The Engagement: Push firmly until it engages.
4. Sensory Anchor: You must feel a tactile lock or click.
5. Verification: Gently try to wiggle the hoop left and right. If it moves independently of the arm, it is not locked.

If you are running a small business and doing this 50 times a day, look into a hooping station for machine embroidery. These devices hold the outer hoop static, allowing you to force the inner hoop down using leverage rather than grip strength, ensuring consistent placement every time.

Design Card Insertion + Embroidery Unit Attachment: The Order That Prevents Weird Screen Behavior

The XL-100 uses proprietary design cards. The electronic "handshake" requires a specific startup sequence.

The Golden Sequence:

1. Switch the machine OFF. Never insert or remove cards while powered on (risk of data corruption).
2. Insert Card: Picture side facing you. Push until flush.
3. Attach Unit: Slide the embroidery module onto the machine body until flush.
4. Power ON: Now, turn the switch.


Clearing the “Hand Holding Hoop” Calibration Icon on the Singer XL-100 Screen (It’s Not Broken)

Upon boot-up, you will likely see an icon of a hand touching a hoop. This is not an error code; it is a Calibration Request.

The machine needs to verify the needle position relative to the hook timing.

• The Fix: Slowly turn the handwheel toward you (down) and then continue turning until the needle returns to the highest position.
• Success Indicator: The icon disappears, and the main menu (pattern selection) appears.

Starting Your First Stitch-Out on the Singer Quantum XL-100: Red Button, Trim Tail, Then Let It Run

You are ready. The hoop is safe, the thread is tensioned, and the brain is calm.

1. Select Pattern: Choose a simple design (like the camel shown in FIG-12) to test.
2. Lower Presser Foot: The machine will beep and refuse to sew if the foot is up.
3. Press START: The physical red button near the needle.
4. The "Trim Tail" Pause:
   • Let the machine stitch 3-5 stitches.
   • Press STOP.
   • Take your small appliqué scissors and snip the starting thread tail close to the fabric.
   • Why? If you don't do this, that loose tail will get stitched over, potentially showing through or causing a snag.
5. Press START again and monitor.




Resizing Designs on the Singer XL-100 Touchscreen: The Diamond Icons and the Hoop-Safety Limit

The touchscreen allows resizing via diamond icons (Small/Large).

• Constraint: The machine has a hard-coded limit. It will not allow you to enlarge a design if it pushes the borders outside the safe stitching area.
• Rule: If the machine refuses to resize, do not fight it. It is protecting you from driving the needle into the metal hoop frame—a catastrophe that breaks needles and ruins timing.




Setup Checklist (Right before you press Start)

• Needle Clearance: Needle is at the highest position.
• Hoop Lock: Hoop is clicked into the carriage; no wiggle.
• Embroidery Unit: Flush with machine body.
• Calibration: "Hand" icon cleared via handwheel turn.
• Foot Down: Presser foot lowered.
• Speed: If adjustable, set to medium for the first run.

The “Why It Works” Layer: Hooping Physics, Stabilizer Strategy, and How to Avoid Hoop Burn

Understanding why we fail is the key to mastery.

1. The Tension Myth: Many users think tension happens at the dial. Truth: Tension happens at the discs (controlled by the foot) and the bobbin case. If your presser foot is up, you have zero tension, regardless of what the dial says.

2. The Hoop Burn Problem: Traditional screw hoops rely on friction and compression. To hold a sweatshirt, you have to tighten the screw aggressively. This crushes the fabric fibers, leaving a white "halo" (hoop burn) that often won't wash out.

Level 2: The Tool Upgrade If you are struggling with hoop marks on velvet, corduroy, or performance wear, or if you simply cannot tighten the screw enough due to arthritis / hand strength:

• The Fix: Professionals switch to magnetic embroidery hoop systems.
• How it works: Instead of screwing an inner ring into an outer ring (friction), these use powerful magnets to clamp the fabric flat.
• Result: Zero "hoop burn" because there is no friction-rubbing. Hooping takes 5 seconds instead of 2 minutes.

Warning: Magnet Safety. Magnetic hoops contain industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear when snapping them together.
* Health Hazard: Do NOT use if you have a pacemaker or implanted medical device affected by magnetic fields. Keep away from credit cards and hard drives.

Troubleshooting the Singer Quantum XL-100 Like a Technician: Symptom → Cause → Fix

Do not guess. Use this diagnostic matrix.

The Upgrade Path: When Tools Actually Pay You Back

Embroidery is a journey from "Making it work" to "Production."

• The Hobbyist Stage: You are using the XL-100 for occasional gifts. The standard hoop and manual trimming are fine. Stick with the checklist above.
• The Improvement Stage (Pain Points):
  • Symptom: Hooping takes too long or leaves marks.
  • Solution: Terms like magnetic embroidery hoop are your gateways to understanding efficient production. They protect your fabric and save your wrists.
  • Symptom: Placement is always crooked.
  • Solution: Look for a hoopmaster or similar placement station to guarantee straight logos every time.
• The Commercial Stage (The "Scale" Wall):
  • Symptom: You are rejecting orders for 50 shirts because changing thread colors manually on a single-needle machine takes too long.
  • Diagnosis: You have outgrown the tool. This is a "good problem."
  • The Prescription: This is when you look at SEWTECH multi-needle solutions. Moving from 1 needle to 10+ needles means you press "Start" and walk away while the machine changes colors automatically. It turns specialized labor into passive production.

Operation Checklist (During the first 2 minutes of stitching)

• Auditory Check: Listen for a rhythmic "thump-thump." A harsh "clack-clack" means needle danger.
• Visual Check: Top thread is not shredding.
• Fabric Check: Fabric is not lifting (flagging) with the needle.
• Safety: Hands are 6 inches away from the active stitch area.


FAQ

• Q: How do I stop birdnesting (loops underneath) on a Singer Quantum XL-100 right at the start of embroidery?
  A: Re-thread the upper thread with the presser foot UP, then confirm tension with the presser foot DOWN before stitching.
  • Raise the presser foot first, then re-thread the entire top path (don’t “patch” just one guide).
  • Lower the presser foot and gently pull the thread to confirm the thread is seated in the tension discs.
  • Re-seat the drop-in bobbin using the “Letter P” orientation and snap the thread into the tension spring.
  • Success check: With presser foot DOWN, the needle thread should feel like dental floss between tight teeth (clear resistance).
  • If it still fails: Cut out any tangled thread completely, then re-do the bobbin “snap/click” step and restart with a simple test design.
• Q: What is the correct Singer Quantum XL-100 drop-in bobbin direction to prevent loose stitching and tangles?
  A: Use the “Letter P” orientation and make sure the bobbin thread snaps under the tension spring leaf.
  • Hold the bobbin up: thread should hang on the left like a capital “P” (if it looks like a “Q,” flip it).
  • Drop the bobbin in, hold it down with a finger, then pull the thread straight back along the arrow path.
  • Listen/feel for the tiny click/snap as the thread goes under the tension spring leaf.
  • Success check: The bobbin thread pulls with steady drag (not free-spinning, not jerky).
  • If it still fails: Remove the bobbin and repeat the “snap” step—most “mystery” nests come from missing the tension leaf.
• Q: How tight should fabric be in the standard screw hoop on a Singer Quantum XL-100 to avoid puckering and hoop burn?
  A: Aim for “tight, flat, slight dip”—not drum-tight and not wrinkled.
  • Loosen the outer hoop screw a lot, then sandwich fabric + stabilizer over the outer ring and press the inner ring in.
  • Tighten until the surface is smooth but still has a slight dip (especially important on knits).
  • Run a firm finger sweep across the fabric to test for shifting.
  • Success check: Fabric stays flat with no ripples when you rub across it, but it is not stretched like a trampoline.
  • If it still fails: Stop and change stabilizer strategy (knits typically need fusible poly mesh cutaway) before tightening the hoop harder.
• Q: How do I clear the “hand holding hoop” calibration icon on the Singer Quantum XL-100 screen?
  A: Turn the handwheel toward you through a full needle cycle until the needle returns to the highest point.
  • Power on normally and wait for the icon.
  • Slowly rotate the handwheel toward you (counter-clockwise) as the needle goes down and back up.
  • Continue until the needle is fully at the highest position.
  • Success check: The hand/hoop icon disappears and the pattern menu appears.
  • If it still fails: Turn the handwheel 360° toward you once more and confirm the needle is truly at the highest position before trying again.
• Q: What is the safe way to pull up the bobbin thread on a Singer Quantum XL-100 without risking injury or timing issues?
  A: Hold the needle thread, then turn the handwheel toward you only, keeping fingers well away from the needle bar.
  • Hold the top thread with light tension using your left hand.
  • Turn the handwheel toward you with your right hand until the bobbin thread loop pops up through the needle plate.
  • Sweep the loop out so both top and bobbin tails are on top before stitching.
  • Success check: Two thread tails (top + bobbin) are visible above the needle plate, ready to be held or trimmed.
  • If it still fails: Re-seat the bobbin (Letter P + snap) and try again—no snap often means no usable lower tension.
• Q: What stabilizer should I use on a Singer Quantum XL-100 for towels vs T-shirts to prevent sinking stitches and puckering?
  A: Match stabilizer to fabric behavior: water-soluble topping for towels, fusible poly mesh cutaway for knits, tear-away for stable wovens.
  • Add water-soluble topping on terry towels so stitches don’t sink into loops.
  • Fuse poly mesh cutaway to the back of T-shirts/onesies (wearables) to control stretch.
  • Use tear-away stabilizer for stable woven cotton or denim when appropriate.
  • Success check: Circles stay round and outlines stay flat during stitching (no distortion or edge puckers).
  • If it still fails: Stop and upgrade stabilizer strength before adjusting machine settings—weak stabilizer is a primary cause of failure.
• Q: When should Singer Quantum XL-100 users switch from a screw hoop to a magnetic embroidery hoop or to a multi-needle machine for efficiency?
  A: Upgrade based on the bottleneck: fix technique first, then upgrade hooping speed/marks, then upgrade production capacity when color changes and volume become the limit.
  • Level 1 (Technique): Re-do threading/bobbin checks and use the correct stabilizer to eliminate nests and puckers.
  • Level 2 (Tool): Choose a magnetic embroidery hoop when screw-hooping causes hoop burn, crooked placement, or wrist/hand strain from frequent hooping.
  • Level 3 (Capacity): Consider a multi-needle machine when single-needle color changes make larger orders impractical.
  • Success check: Hooping becomes consistent and fast (seconds, not minutes) and fabric shows minimal or no hoop marking after unhooping.
  • If it still fails: Pause and reassess the main symptom (hoop marks vs placement vs throughput)—each points to a different upgrade path.
