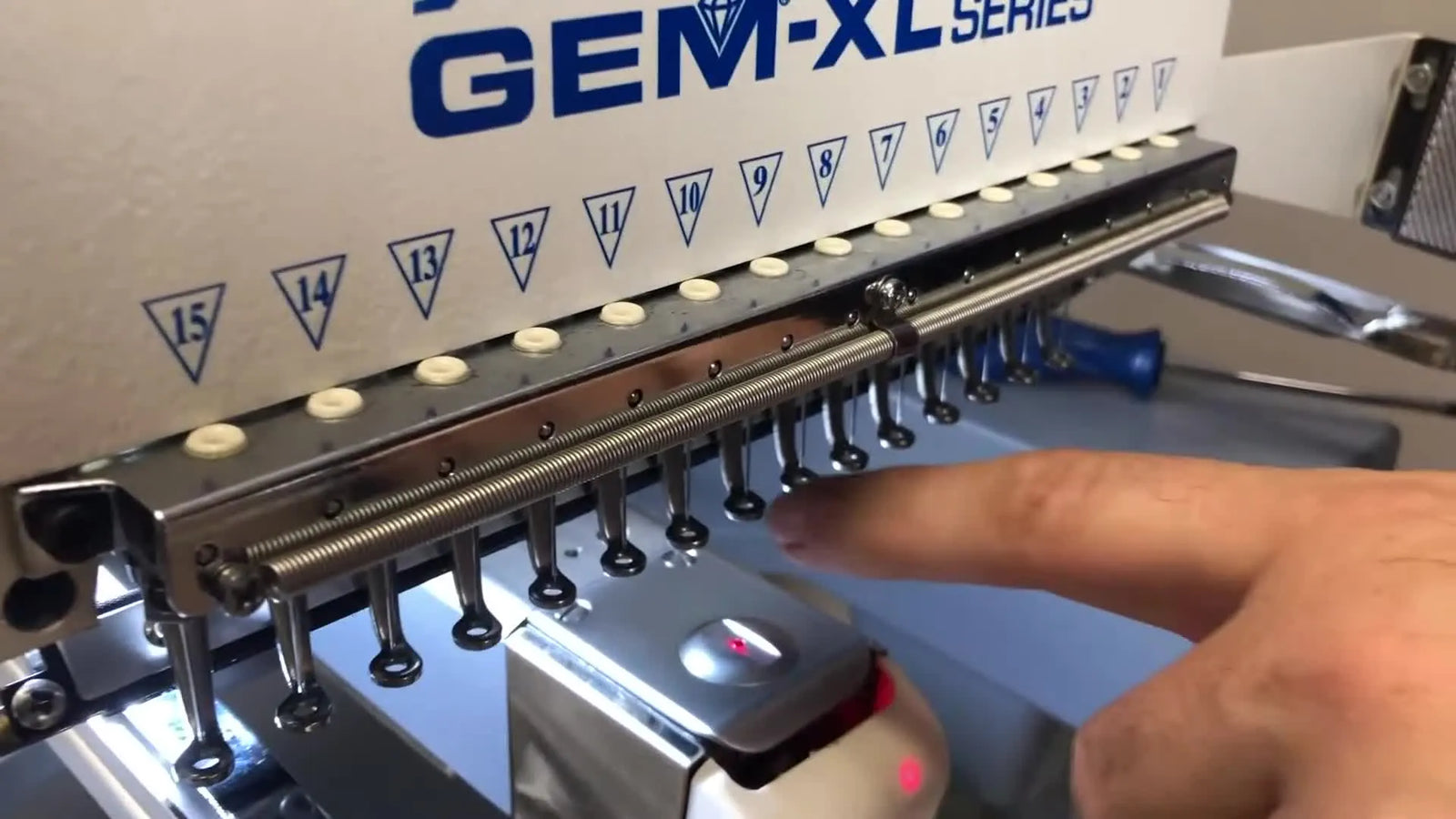

Meistergram GEM 1500 XL Needle Case Removal: The Calm, Safe Way to Pull the Head Without Losing Screws (or Your Threading)

If you’re here because your Meistergram GEM 1500 XL needs service—whether it's reciprocator work, a stuck needle bar, or you simply need access behind the head—removing the needle case can feel like a “one wrong move and I’m down for days” moment.

I have seen seasoned operators freeze up at this stage. The fear is valid: You are dealing with a heavy mechanical assembly, delicate electronics, and precision alignment rails. But take a breath. This is not a mystery repair; it is a controlled disassembly sequence.

The methodology we are breaking down today (based on Hector’s masterful demonstration) transforms this from a risky gamble into a clean, repeatable protocol. We will remove the covers, free the tension base, surgically disconnect the sensors, and lift the case—without unthreading the machine. This single technique can save you 45 minutes of re-threading time.

The “Don’t Panic” Primer for Meistergram GEM 1500 XL Needle Case Removal (What You’re Actually Doing)

On the Meistergram GEM 1500 XL, the needle case assembly is not just a cover; it is a substantial, heavy unit containing the reciprocating bars and color change mechanism that rides on a horizontal rail.

Your mission is to remove this mass without:

1. Stripping the rail alignment: Forcing the head off-angle can damage the bearings.
2. Dropping "The Jesus Screw": That one tiny screw that falls into the chassis and forces you to take the whole machine apart.
3. Stressing the harness: Especially on XL models, the safety beam wire remains attached, acting like a delicate umbilical cord.

In the video, Hector’s approach is "Technician-Clean." He stages parts in a way that protects wiring and preserves threading. This distinction is vital: Amateurs disassemble; Professionals stage. Efficiency here determines whether downtime eats your profit or just your lunch hour.

Tools Required for Meistergram GEM 1500 XL Maintenance (Bring the Right Drivers First)

You do not need a toolbox the size of a truck, but you do need precision. Using the wrong size screwdriver here guarantees stripped heads and frustration.

The Essential Kit:

• #2 Phillips Screwdriver: Standard size, magnetic tip preferred.
• 3mm Hex Wrench (Allen Key): This is the MVP. It fits the tension base screws and the main needle case mounting screws.
• Parts Tray (Magnetic Bowl): Do not skip this. Placing screws on the table is a recipe for disaster.
• Blue Painters Tape: To tape screws to the covers if you lack a tray.
• Flashlight: To see the small white PCB connector.

One quick note for shop owners: If you are running multiple heads or performing frequent maintenance across different commercial embroidery machines, build a dedicated "Head Service Kit" that lives at the machine. Hunting for a 3mm wrench while the machine is disassembled adds unnecessary cognitive friction.

The “Hidden” Prep: Set Yourself Up So You Don’t Lose Screws, Wiring, or Your Place

Before you touch a screw, set the machine and your workspace like a surgeon—not like a hobbyist working on a kitchen table. The environment dictates the outcome.

The Pre-Flight Protocol:

• Clear the Launch Pad: Clear the machine table area entirely. If a screw drops, you want to hear a ping and see it, not have it vanish into a pile of bobbins.
• Plan the Landing Zone: Decide before you unbolt where the tension base will rest. Hector uses the thread stand bars behind the head.
• Power Down: This is non-negotiable.

Warning: Mechanical Hazard. Small screws and metal tools around moving needle bars are a real puncture and pinch hazard. Always power the machine down per your machine manual. Keep fingers out of the needle bar path, and never "test jog" the head while parts are loose. A recip bar moves with enough force to pierce bone.

Prep Checklist (Do this OR Fail)

• Power Check: Machine is turned OFF and unplugged if possible.
• Tool Verification: Phillips driver tip is not worn; 3mm hex wrench is confirmed (do not use SAE/Imperial keys—they will strip the bolt).
• Containment: A parts tray or magnetic bowl is placed away from the electronics area.
• Staging Area: The space behind the head (thread stand) is clear to receive the tension base.
• Slack Check: Ensure there is enough slack in the thread path to flip the tension base without snapping thread.


Removing the Take-up Lever Cover on the Meistergram GEM 1500 XL (Two Screws, No Drama)

Hector starts by removing the white plastic take-up lever cover. This shields the moving levers that pull the thread tight.

1. Locate: Find the two Phillips screws on the side of the cover.
2. Remove: Fully remove both screws and place them in your tray.
3. Detach: Pull the cover off straight to expose the take-up levers.

Sensory Check: When reinstalling later, remember that you are screwing metal into plastic. Stop turning the moment you feel resistance (like a firm handshake). If you overtighten, you will hear a crack, and you will be buying a new cover.

Popping Off the Tension Base Back Cover (Clips That Break When You Get Impatient)

Next, he removes the back cover of the tension base. This protects the solenoids and springs.

1. Position: Place fingers on the top edge of the rear cover casing.
2. Action: Press down slightly while pulling the cover away from the machine body.
3. Store: Set it on the back of the machine table.

The "Feel" of Plastic: This includes plastic retention clips. If it feels stuck, do not pry with a screwdriver—that leaves gouge marks (evidence of rushing). Re-seat your fingers, apply firm pressure to disengage the lip, and it should "pop" off cleanly.

Unbolting the Tension Base with a 3mm Hex Wrench (Four Screws, Top to Bottom)

Now we get to the core structure. The tension base is secured by four 3mm hex screws.

1. Tool: Use the 3mm hex key.
2. Sequence: Remove the four screws. Hector works top to bottom to prevent the unit from falling forward onto the last screw, which can bind the threads.
3. Secure: These are machine screws—keep them separate from the wood/plastic screws removed earlier.

At this point, the tension base becomes loose. STOP. Do not yank it forward. You are about to expose the nervous system of the machine.

Why this matters (Machine health, not just “getting it off”)

In commercial heads, wiring harnesses and small boards live right behind assemblies like this. A hard pull can stress crimped connectors, loosen a soldering point on a board, or create an intermittent fault that only shows up later as "random" thread break sensor behavior. Gentle separation is the cheapest insurance you can buy.

Disconnecting the Thread Break Sensor / LED Wiring (The Screw Everyone Drops)

Hector gently separates the tension base to locate the thread break sensor wiring. This is the most delicate part of the operation.

1. Reveal: Pull the tension base forward gently (maybe 2-3 inches) to expose the wiring.
2. Inspect: Identify the wire powering the LED light and the small PCB (Printed Circuit Board).
3. Unscrew: Remove the small Phillips screw holding the LED PCB in place.
   • Expert Tip: Put a magnetic screwdriver tip on this screw. If it falls, it falls into the head assembly.
4. Unplug: Unplug the white plug connector so the tension base can be fully separated.

Sensory Check: When unplugging, grab the white plastic connector housing, never the wires themselves. You should feel a slight click as it releases.

Warning: Magnetic Safety. If you’re using magnetic parts trays or magnetic tools near electronics, keep them controlled and away from sensitive components like the main PCB. Additionally, if you upgrade to accessories like magnetic hoops, remember powerful magnets can affect pacemakers and implanted devices. Treat magnets as industrial equipment, not fridge decorations.

The Time-Saving Move: Staging the Tension Base Without Unthreading (Braided Threads = Less Downtime)

This is the "Technician Trick" that distinguishes a pro from a novice. It saves real hours over the course of a month's maintenance cycle.

Instead of unthreading the machine (which ruins your tension settings and takes 20 minutes to restore), Hector leaves the tension base threaded. He mentions he has already braided and locked down the excess thread to keep it organized (like a ponytail).

1. Flip: Invert the tension base assembly.
2. Rest: Place it securely on the thread stand bars behind the head.

This keeps your thread paths intact. When you reassemble, you simply flip it back, bolt it on, and you are ready to sew.

Commercial Context: If you’re running production and find yourself constantly hooping, threading, and re-threading, your bottleneck often isn’t stitch speed (SPM)—it’s setup time. This is why shops that invest in workflow tools—like a dedicated embroidery hooping station—often see faster turnaround times than shops that just buy faster machines. It's about flow, not just speed.

The “Needle #8 Rule”: Centering the Needle Case Before You Lift It (Balance Beats Brute Force)

Before removing the needle case, Hector loosens the two main mounting screws and immediately performs a critical alignment step: moving the needle case to needle position #8.

The Sequence:

1. Loosen: Use the 3mm hex wrench to break loose (turn 1/2 rotation) the two main mounting screws—do not fully remove them yet.
2. Center: Manually move the needle case knob/bar until it is at position #8 (centered over the needle plate).

Why Needle #8? Physics. Position #8 puts the center of gravity directly in the middle of the rail.

• Off-Center: The case wants to twist and bind on the rail, fighting you as you lift.
• Centered: It balances perfectly. You will feel less torque in your wrists and zero tendency for the assembly to twist.
• Result: Smoother removal, less risk of bumping the safety beam wire.


Removing the Meistergram GEM 1500 XL Needle Case Assembly (Lift Up, Then Pull the Top Forward)

Once you act on the "Needle #8 Rule," you are ready for the lift.

1. Unbolt: Fully remove the two hex screws that hold the needle case onto the rail.
2. Grip: Place one hand on each side of the needle case (firm grip, like holding a heavy book).
3. Lift: Lift gently upward to disengage the bearings from the rail. You should feel it slide free.
4. Tilt: Pull from the top first until the top clears the structure.

Crucial Note for XL Models: Hector notes that the safety beam wire remains attached. You cannot just walk away with the assembly to a workbench. It is tethered.

1. Rest: Carefully rest the needle case on the machine arm or just in front of the thread stand so the wire is not strained.

Expected outcome: The entire needle bar assembly is separated and supported safely, with wiring intact.

Setup Checklist (Right before you lift the needle case)

Do not proceed until you tick these boxes.

• Center of Gravity: Needle case moved to needle position #8.
• Hardware Safe: Two mounting screws fully removed and placed in the tray.
• Thread Control: Tension base flipped and staged on the thread stand (still threaded).
• Electronics Safe: Thread break sensor/LED wiring unplugged cleanly (white connector free).
• Landing Zone: A safe resting spot is identified for the needle case (accommodating the safety beam wire).

The “Why” Behind These Steps: Tension, Harnesses, and Repeatable Reassembly

A lot of people treat disassembly like a one-time emergency event. In a professional shop, it’s a repeatable process—and repeatability is what protects stitch quality.

1) Centering reduces twist and protects alignment

When the needle case is off-center, you naturally compensate with your wrists and shoulders. That twist can pull unevenly on the rail interface or make the assembly "catch" as you lift. If you force it, you risk bending the guide rails. Centering to #8 is a simple mechanical advantage.

2) Staging prevents "Rework Loops"

Leaving the machine threaded is not laziness—it’s smart production thinking. Re-threading introduces variability:

• A missed guide can cause false thread breaks.
• A crossed path creates friction that ruins tension.
• Hector’s braided-thread habit is exactly what I teach new technicians: Control the thread, and you control the outcome.

3) Gentle connector handling prevents “Ghost Problems”

Most "random" sensor issues (like the machine stopping for a thread break when there isn't one) are self-inflicted during maintenance. A connector not fully seated or a wire pinched during reassembly causes voltage drops. Treat connectors like precision optical parts—handle with care.

If you are evaluating machines for growth—say you are comparing a GEM-style head to a meistergram pro 1500 embroidery machine—this is one of the hidden differences between operators who thrive and those who struggle: disciplined maintenance habits.

Decision Tree: Fabric Type → Stabilizer Choice (So Your Next Run Doesn’t Pucker)

This tutorial is about head removal, but most owners do this kind of maintenance because stitch quality or reliability slipped. After reassembly, your first test sew should match fabric + stabilizer correctly to verify the machine's health.

Use this Quick Decision Logic:

1. Is the garment a stable knit (Standard T-Shirt)?
   • Yes → Use Medium Cutaway (2.5oz).
   • No → Go to Step 2.
2. Is it a Hoodie or Thick Fleece?
   • Yes → Use Heavy Cutaway (3.0oz+). The bulk needs structure.
   • No → Go to Step 3.
3. Is the fabric highly elastic (Spandex/Performance Wear) or thin?
   • Yes → Use No-Show Mesh (Cutaway) + Water Soluble Topper. High Risk of Puckering.
   • No (It is Woven/Denim/Canvas) → Tearaway is acceptable here.

General Rule: Stabilizer is your "foundation." If you see movement, puckering, or registration drift after your repair, it is frequently a stabilization or hooping problem, not a head problem.

Troubleshooting: Symptoms You’ll Hit During Needle Case Removal (and the Fixes That Actually Work)

Even with a clean procedure, variables happen. Here is your cheat sheet.

Operation Checklist (After removal, before you walk away)

• Support: Needle case is sitting securely (not hanging by the safety wire).
• Wire Safety: Safety beam wire (XL models) has slack and is not pinched under the heavy case.
• Hardware Count: All screws are accounted for (especially that tiny LED PCB screw).
• Thread Integrity: Tension base is staged safely and threads are controlled (braided/locked).
• Cleanliness: Work area is free of loose hardware that could vibrate into the machine.

The Upgrade Path After Maintenance: Reduce Downtime, Reduce Hooping Fatigue, Increase Output

Once you have performed a procedure like this, you start noticing the real enemy in embroidery production: it is not the stitch cycle, it's the "friction" around it.

1) If hooping is slowing you down, fix the workflow first

If you’re spending too long loading garments, fighting hoop burn on delicate poly-blends, or re-hooping because fabric shifts, upgrading your hooping method is a higher ROI activity than just tweaking speed settings. A practical next step is improving consistency with terms like hooping for embroidery machine implying a systematic station approach.

2) When Magnetic Hoops make sense (and when they don’t)

For many shops, magnetic embroidery hoops are the single biggest productivity upgrade because they reduce hooping time to seconds and eliminate the "hoop burn" ring on fabric.

• Trigger: You are hooping thick hoodies or delicate performance tees all day.
• Standard: If your wrists hurt or you are rejecting garments due to clamp marks, magnets are the solution.
• Options: For home/hobby usage, magnetic frames reduce frustration. For industrial usage, a rigid magnetic embroidery frame ensures the fabric stays tight at 1000 SPM.

Warning: Pinches & Pacemakers. Magnetic hoops are incredibly powerful. Keep them away from pacemakers/implanted medical devices. Avoid snapping magnets together near fingers—blood blisters are the "initiation rite" for careless operators.

3) If you’re scaling beyond one head

When you perform frequent maintenance and production runs, the cost of downtime becomes obvious. Many growing shops eventually move toward higher-throughput multi-needle systems (like SEWTECH multi-needle embroidery machines) because the productivity jump allows you to keep one machine running while servicing the other.

Paired with a magnetic hooping station, you can standardize placement across your team, reducing the variables that lead to needing maintenance in the first place.

FAQ

• Q: What tools are required to remove the needle case assembly on a Meistergram GEM 1500 XL without stripping screws?
  A: Use a #2 Phillips screwdriver and a 3mm hex (Allen) key, and stage every screw in a tray before starting.
  • Verify: Confirm the hex key is 3mm (avoid SAE/Imperial keys that can strip bolts).
  • Use: Choose a magnetic-tip Phillips driver for small screws when possible.
  • Stage: Place screws in a magnetic bowl/parts tray (or tape screws to covers).
  • Success check: Screw heads stay crisp (no cam-out), and the driver feels fully seated with no wobble.
  • If it still fails… Stop and switch to the correct driver size; forcing it usually makes the next step harder.
• Q: What is the correct pre-flight checklist before removing the tension base on a Meistergram GEM 1500 XL?
  A: Power the Meistergram GEM 1500 XL OFF (and unplug if possible), clear the workspace, and confirm thread slack before loosening hardware.
  • Clear: Remove loose items from the table so dropped screws are easy to see and retrieve.
  • Plan: Identify where the tension base will rest (behind the head on the thread stand bars).
  • Check: Ensure enough slack in the thread path to flip/stage the tension base without snapping thread.
  • Success check: The area behind the head is open, the machine is powerless, and threads can move slightly without feeling tight.
  • If it still fails… Do not remove screws yet; reset the staging area and re-check slack to avoid sudden thread snaps.
• Q: How do you safely remove the take-up lever cover on a Meistergram GEM 1500 XL without cracking the plastic?
  A: Remove the two Phillips screws and stop tightening as soon as the screw seats during reinstallation to avoid cracking the cover.
  • Locate: Find the two Phillips screws on the side of the white plastic cover.
  • Remove: Fully remove both screws and store them immediately in a tray.
  • Refit: Reinstall with light pressure—metal into plastic does not need torque.
  • Success check: The cover sits flush with no gaps, and tightening feels like a firm stop (not a “crunch”).
  • If it still fails… Inspect the cover tabs/edges for misalignment and reseat before tightening again.
• Q: Why won’t the tension base separate on a Meistergram GEM 1500 XL after removing the four 3mm hex screws?
  A: The thread break sensor/LED wiring is often still attached, so stop pulling and disconnect the white connector first.
  • Pull: Separate the tension base only 2–3 inches to expose the wiring (do not yank).
  • Unscrew: Remove the small Phillips screw holding the LED PCB.
  • Unplug: Disconnect the white plug connector by gripping the plastic housing, not the wires.
  • Success check: The tension base lifts away freely with no “rubber-band” tug from wiring.
  • If it still fails… Look again for any remaining connector or harness still tethering the assembly before applying force.
• Q: What is the “Needle #8 Rule” when lifting the needle case on a Meistergram GEM 1500 XL, and what problem does it prevent?
  A: Center the Meistergram GEM 1500 XL needle case at needle position #8 before lifting to prevent twisting/binding on the rail.
  • Loosen: Crack the two main mounting screws loose (about a half turn) before repositioning.
  • Center: Manually move the needle case knob/bar to needle position #8 (center over the needle plate).
  • Lift: After centering, fully remove the two screws and lift up to disengage from the rail, then pull the top forward.
  • Success check: The assembly feels balanced in both hands and slides free without torque or catching.
  • If it still fails… Reattach loosely and re-center to #8; lifting off-center usually causes the “heavy/awkward” bind.
• Q: What safety steps prevent injury when removing the needle case assembly on a Meistergram GEM 1500 XL?
  A: Treat the procedure as a mechanical hazard: power down, keep fingers out of the needle bar path, and never jog/test the head while parts are loose.
  • Power down: Turn the machine OFF (and unplug if possible) before any disassembly.
  • Control: Keep tools and fingers away from needle bar/reciprocator movement zones.
  • Avoid: Do not “test jog” or move the head with covers/assemblies unsecured.
  • Success check: The machine cannot move unexpectedly, and hands never need to enter the needle bar path to support parts.
  • If it still fails… Stop immediately and reset the machine to a fully powered-down state before continuing.
• Q: When do magnetic embroidery hoops make sense for reducing hoop burn and hooping time, and what is the key magnet safety warning?
  A: Magnetic embroidery hoops make sense when hoop burn, re-hooping, or wrist fatigue is the daily bottleneck, but magnets must be handled as industrial-strength pinch hazards and kept away from pacemakers/implanted devices.
  • Trigger: Upgrade when clamp marks (hoop burn) or slow hooping is causing rejects or wrist pain.
  • Use: Choose magnetic hoops/frames to load garments faster and more consistently (especially on thick or delicate fabrics).
  • Handle: Keep fingers clear when magnets close; control magnetic trays/tools around electronics.
  • Success check: Hooping becomes repeatable in seconds with fewer clamp-ring marks and fewer re-hoops.
  • If it still fails… Re-evaluate stabilization/hooping method first; puckering and drift are often setup issues, not speed issues.
