DesignShop v11 Fixes That Save Real Production Time: Bean Stitch Length, Manual Arching, 60wt Thread Settings, and EMT16Plus Trimmer Shortcuts

Melco DesignShop v11 & Machine Mastery: The Field Guide to Troubleshooting and Production Flow

If you run a DesignShop workstation all day, you already know the harsh reality: the "little" software quirks and setup choices are what quietly steal your profit. It’s rarely the big design concept that fails; it’s the one re-sew caused by a density error, the one crash mid-save, or the twenty minutes lost fighting a stubborn outline color change.

This guide rebuilds the common Melco DesignShop workflow into a clean, shop-ready protocol. We are moving beyond "tips and tricks" into production science. I will keep the steps faithful to the standard procedures, but I will add the missing "why"—the sensory cues and safety margins—that keep you from fighting the same problem next week.

When DesignShop v11 Acts Up: Control the Variable, Don't Fight the Ghost

A stitch setting that won’t stick, lettering that won’t arch, or a grayed-out maintenance menu doesn't mean you are "doing it wrong." It usually means you are colliding with software logic designed to protect the machine from impossible physics.

The goal isn’t to memorize cheats. The goal is to build a workflow that:

1. Produces predictable stitch results (no surprises at the machine).
2. Reduces rework (getting it right on the screen first).
3. Keeps the machine running without risky improvisation.

If you are running a commercial setup, this is the operational difference between "I can digitize" and "I can ship on time."

The Bean Stitch Length Bug: Locking '35' by Converting to Wireframe

The Issue: You set a bean stitch length to 35 points (3.5mm) in the alphabet editor for a rustic, hand-sewn look. You type the word, hit Enter, and watch the setting snap back to 20 points (2.0mm). This is a known behavior in certain v11 builds.

The Fix: Stop treating it like editable text. Force it into editable stitch objects (Wireframe).

The Production Workflow

1. Type & Size: Type your text using your bean stitch font. Scale it exactly how you want it—size changes later will alter the stitch length again.
2. Convert: Go to Operations > Convert to Wireframe.
3. Select All Walks: Click one of the walk/bean elements. Right-click and choose Selections > Select Same Type. This grabs every bean stitch segment instantly.
4. Hard Set: In the property field, manually set the stitch length to 35.


The "Why" (Physics Check)

Why does the software fight you? Because a stitch length cannot physically exceed the distance between digitizing nodes (clicks). If you used a mouse to click around a tight curve and placed nodes 2mm apart, typing "3.5mm" in the settings won't matter. The machine must drop a needle at every node.

The Sensory Check:

• Visual: Zoom in. If your curve looks like a "connect-the-dots" puzzle with many dots close together, your bean stitch will look like a solid line, not a hand stitch.
• Fix: Delete intermediate nodes. A bean stitch needs breathing room to look like a bean stitch.

Warning: Wireframe editing is destructive to text properties. You can no longer change spelling or fonts easily. Always save a master copy (Design_v1.OFM) before converting to wireframe (Design_v1_Stitch.OFM).

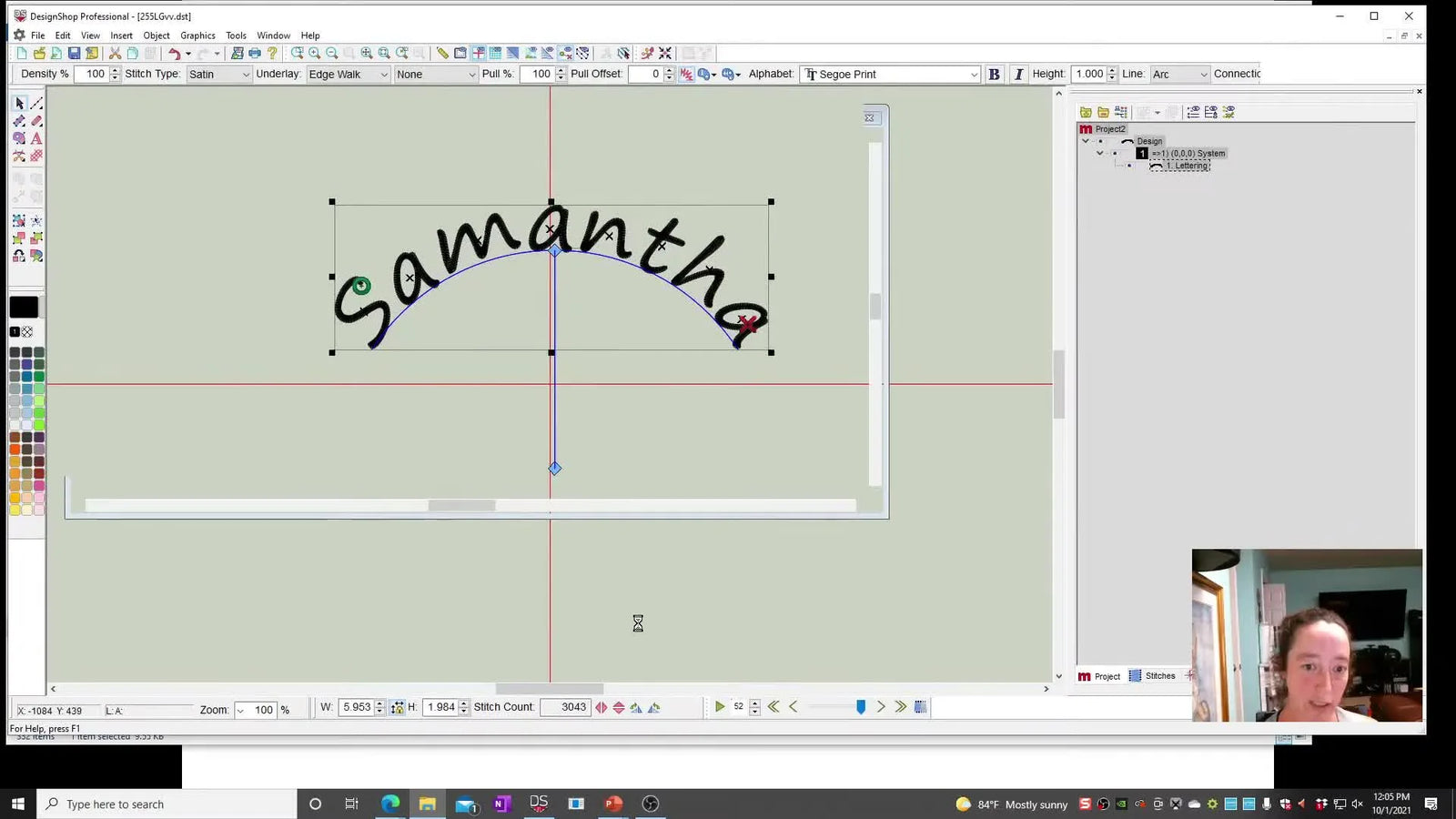

Manual Arching for Imported DST Files: The "Sign Painter" Method

If you are using built-in TrueType fonts, arching is one click. But if you bought a specialized font where every letter is a separate DST or PES file, there is no "Arch" button. You have to build it manually.

This method mimics how old-school sign painters worked: create a baseline, then snap to it.

The Setup

• Files: Your imported letters (e.g., R, E, V stitch files).
• Guide: A vector circle (not a stitch object).

The Step-By-Step

1. Draw the Guide: Use the Vector Circle tool to draw a baseline. Size it to your desired arc (e.g., 5-inch/127mm diameter).
2. Rough Placement: Move your letters near the curve line.
3. The "Tangent" Rotate:
   • Click a letter once to select.
   • Click again to see the open-square rotation handles.
   • Rotate the letter until its bottom edge is perfectly tangent (flat) against the curve.
4. Refine Spacing: Use Ctrl + Click to select the group, then use the Alignment tools (Horizontal Center / Distribute Evenly).


Pro Tip: The Layout Bottleneck

If you are doing this manually for 50 team jerseys, you are bleeding money in labor time. Professional shops often tackle alignment issues at the physical stage rather than the software stage. Using a dedicated magnetic hooping station allows you to ensure the garment is perfectly square and centered quickly, which is often faster than trying to compensate for crooked loading by rotating designs in software.

Switching from 40wt to 60wt Thread: The "Pencil vs. Marker" Rule

Thread weight is not just a cosmetic choice; it is a volumetric change.

• 40wt (Standard): Like a thick permanent marker. Good coverage, standard detail.
• 60wt (Thinner): Like a sharpened lead pencil. Essential for small text (under 5mm) and intricate badges.

If you put 60wt thread into a design digitized for 40wt, you will see gaps. If you put 40wt into a 60wt design, you will break needles.

The Conversion Formula

Sensory Outcomes

• Proper 60wt Setup: Text looks crisp; "loops" in e's and a's are open and clear.
• Improper Setup (Too loose): Fabric shows through the stitching (the "screen door" effect).
• Improper Setup (Too tight): The design feels like a hard piece of cardboard (bulletproof effect) and may cause thread breaks.

Experienced melco embroidery machine operators often save two versions of their standard fonts: one pre-set for 40wt and one pre-set for 60wt, to avoid manually adjusting density on every job.

Global Outline Color Changes: The "Slot Edit" Trick

Two-color athletic fonts often generate dozens of individual outline objects. If a customer wants to change the outline from Black to Gold, do not click every single object.

The Fast Fix:

1. Look at the Color Palette/Sequence view on the right.
2. Find the color square (slot) being used for the outline.
3. Right-Click > Edit Color.
4. Change it once. Every element assigned to that slot updates instantly.


Non-English Characters: Character Maps over Import

Need to stitch a name in Hebrew, Arabic, or Mandarin? Importing distinct DST files for every character is a nightmare for spacing.

The Professional Path:

1. Install: Get a high-quality TrueType (TTF) or OTF font for that language.
2. Restart: Close and reopen DesighShop to load the font system.
3. Map:
   • v11: Use the built-in logic to type directly.
   • Legacy: Use Windows Character Map -> Copy -> Paste into the DesignShop text bar.




Preventing Crashes: The Hardware Reality

A "complex design" in embroidery involves thousands of vector calculations for stitch generation. If DesignShop crashes during 3D rendering:

• Symptom: Screen freezes when zooming in on high-stitch-count files.
• Likely Cause: Integrated Graphics (Intel UHD/Iris).
• Remedy: Embroidery requires gaming-class stability. A dedicated NVIDIA card is the industry standard for stability. Treat your computer specs as part of your machine maintenance.


The "Grayed Out" Trimmer Menu: Physical Keypad Override

On the EMT16/EMT16X, you may find the "Extend Trimmer" option grayed out in the operating system (OS) menu. This isn't a bug; strictly speaking, it's a UI restriction. You must use the physical machine keypad.

The Technician's Sequence

1. Extend: Hold Adjustment Key + Press Trace Key.
2. Retract: Hold Adjustment Key + Press Trace Key again.

Warning: Finger Safety
Never place your fingers near the knife or hook area while cycling the trimmer. The mechanism moves with high torque and speed. Keep hands clear and visualize the action before pressing the keys.

Sensory Diagnostics for the Trimmer: When you cycle the trimmer, listen:

• Good: A sharp, clean "Click-Clack" or smooth slide.
• Bad: A grinding noise, a "hesitant" slide, or a dull thud. This indicates lint buildup or a burr on the selector.

Running a melco emt16x embroidery machine at high speeds requires that this mechanism is pristine. Make this "listen test" part of your morning warm-up.

Pen Tablet Issues: The "Right-Click" Workaround

Wacom or Huion tablets sometimes fail to register a "Right-Click" (used for curve points) in DesignShop.

The Fixes:

1. The Drag Method: Instead of right-clicking for a curve, Left-Click and Drag. The software interprets the drag as a curve command.
2. The Hybrid Method: Hold the pen with your dominant hand to position the cursor, and use a mouse with your non-dominant hand solely to click buttons.


The "Hidden" Prep: Decisions Before Digitizing

Before you touch the software, you must make physical decisions. The software cannot compensate for the wrong stabilizer or the wrong hoop.

1. The Stabilizer Decision Tree

Use this logic to avoid puckering (the ripple effect around stitches):

• Is the fabric stretchy (T-shirt, Hoodie, Performance Polo)?
  • MUST USE: Cutaway Stabilizer. No exceptions for beginners. Tearaway will allow the stitches to pull the fabric inward, distorting the circle into an oval.
• Is the fabric stable (Canvas, Denim, Cap)?
  • USE: Tearaway (clean back) or Cutaway (soft feel).
• Is there pile/fluff (Towel, Fleece)?
  • ADD: Water Soluble Topping (Solvy) to prevent stitches from sinking.

2. The Hooping Strategy

Hooping is the #1 variable in production speed and quality. Traditional screw-tightened hoops rely on friction, which can leave "hoop burn" (shiny crushed rings) on delicate performance wear.

• The Problem: Operator fatigue from tightening screws 100 times a day, and fabric slippage causing outline misalignment (registration errors).
• The Commercial Solution: If you are moving beyond hobby volumes, consider upgrading to magnetic embroidery hoops.
  • Why? They use vertical clamping force rather than radial friction. This holds the fabric securely without crushing the fibers, eliminating hoop burn.
  • Efficiency: They self-adjust to different fabric thicknesses, preventing the need to constantly adjust hoop screw tension between a sweatshirt and a T-shirt.

Safety Warning: Magnetic Force
Commercial magnetic hoops use industrial-grade magnets. They snap together with immense force.
* Pinch Hazard: Keep fingers clear of the clamping zone.
* Medical Risk: Keep away from pacemakers and sensitive electronics.

When selecting embroidery hoops for melco, ensure you choose the correct bracket width for your specific machine arm (EMT16 vs older AMAYA models may differ).

3. Setup Checklist (The "Pre-Flight" Check)

Always run this 10-second mental check before pressing Start:

• Needle/Thread Match: Do I have a #65 needle for this 60wt thread?
• Bobbin Check: is there enough thread for the run? (Look for the white thread).
• Presser Foot Height: Is it set correctly for the fabric thickness? (Too high = thread breaks; Too low = dragging fabric).
• Path Clear: Does the hoop clear the back of the machine area?

Troubleshooting Quick-Reference

Mastery of the Melco system isn't about avoiding problems; it's about diagnosing them instantly. By combining these software workflows with the correct physical toolkit, you turn your shop from a place of frustration into a place of production.

FAQ

• Q: How do you fix the Melco DesignShop v11 bean stitch length snapping back from 35 points (3.5mm) to 20 points (2.0mm) in the Alphabet Editor?
  A: Convert the lettering to Wireframe first, then set the bean/walk stitch length on the stitch objects (not on editable text).
  • Type and size the text first (resizing later can change the stitch length behavior again).
  • Go to Operations > Convert to Wireframe.
  • Select one walk/bean element, then use Selections > Select Same Type to grab all bean segments.
  • Manually set stitch length to 35 in the property field.
  • Success check: Zoom in and confirm the bean segments have “breathing room” (not a solid line caused by too many close nodes).
  • If it still fails: Delete intermediate nodes on tight curves; stitch length cannot exceed the distance between digitizing nodes.
• Q: How do you manually arch imported DST letters in Melco DesignShop v11 when there is no “Arch” button for the lettering files?
  A: Use a Vector Circle as a guide and rotate each imported letter tangent to the curve.
  • Draw a Vector Circle baseline and size it to the desired arc (for example, 5-inch/127mm diameter).
  • Move imported letters near the guide line, then select each letter and click again to reveal rotation handles.
  • Rotate each letter until the bottom edge sits tangent (flat) against the curve, then refine spacing with alignment/distribute tools.
  • Success check: The letter bottoms visually “kiss” the curve evenly with consistent spacing across the word.
  • If it still fails: Rebuild the guide circle at the correct diameter first—manual tangency is faster when the baseline matches the intended arc.
• Q: What settings should you change in Melco embroidery production when switching a design from 40wt thread to 60wt thread to avoid gaps or needle breaks?
  A: Treat 60wt like a thinner “pencil line”: use a smaller needle and adjust density so coverage stays clean without over-packing.
  • Change needle size from 75/11 to 65/9 or 70/10.
  • Adjust density from 4.0 pts to 3.0–3.3 pts, or reduce density from 100% to about 80%–85%.
  • Run a small test on the actual fabric/stabilizer combo before committing to production.
  • Success check: Small text looks crisp and the inner loops (e, a) stay open—no “screen door” gaps and no cardboard-stiff feel.
  • If it still fails: If fabric shows through, increase density (lower the point value slightly); if the design feels bulletproof or breaks thread, back off density and recheck needle/thread match.
• Q: How do you perform a global outline color change in Melco DesignShop v11 without clicking dozens of individual outline objects?
  A: Edit the color slot once in the Color Palette/Sequence view so every object assigned to that slot updates.
  • Open the Color Palette/Sequence panel on the right.
  • Locate the outline color square (the slot being used for the outlines).
  • Right-click the slot and choose Edit Color, then set the new color.
  • Success check: All outline segments across the design update immediately with no leftover outlines in the old color.
  • If it still fails: Confirm the outlines actually share the same color slot—some designs create multiple similar outline slots that must be edited one by one.
• Q: How do you extend or retract the trimmer on a Melco EMT16/EMT16X when the “Extend Trimmer” option is grayed out in the OS menu?
  A: Use the physical keypad override: hold Adjustment and press Trace to toggle the trimmer.
  • Keep hands clear of the knife/hook area before cycling the trimmer.
  • Hold the Adjustment Key and press the Trace Key to extend.
  • Hold the Adjustment Key and press the Trace Key again to retract.
  • Success check: Listen for a sharp, clean “click-clack” or a smooth slide—no grinding or dull thud.
  • If it still fails: Stop cycling and inspect for lint buildup or a burr/drag in the selector area (follow the machine manual for cleaning/service steps).
• Q: What is the safe way to handle industrial magnetic embroidery hoops to prevent finger injuries and device interference during hooping?
  A: Treat magnetic hoops like a pinch hazard and keep them away from pacemakers and sensitive electronics.
  • Keep fingers out of the clamping zone before bringing the magnetic ring halves together.
  • Let the magnets “find” each other under control—do not let them snap shut near fingertips.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Success check: The hoop closes without finger contact, and the fabric is held firmly without crushed shiny rings typical of screw-hoop friction.
  • If it still fails: If fabric still slips or alignment drifts, reassess stabilizer choice and hooping method before changing design settings.
• Q: How do you choose stabilizer and hooping strategy to prevent puckering and hoop burn in commercial embroidery on stretchy garments?
  A: Start with the correct stabilizer, then control hoop pressure—cutaway for stretch fabrics and consider magnetic hooping to reduce hoop burn and slippage.
  • Use cutaway stabilizer for stretchy fabrics (T-shirts, hoodies, performance polos); tearaway often allows distortion.
  • Add water-soluble topping on pile/fluffy fabrics (towel, fleece) to prevent stitches from sinking.
  • If delicate performance wear shows hoop burn or operators fight screw tension all day, switch to magnetic hoops to clamp vertically without crushing fibers.
  • Success check: After stitching, the design area stays flat (no ripples/oval distortion) and the fabric shows minimal shiny ring marks.
  • If it still fails: Run the 10-second pre-flight—verify needle/thread match, bobbin supply, presser foot height, and hoop clearance before re-digitizing or slowing production.
