Resize Brother SE400 Built-In Fonts Without Losing Your Placement: The “Size-Then-Move” Workflow That Saves Hoops (and Sanity)

If you have ever stopped a project halfway through because your Brother SE400 beeped a refusal to move a design just one inch to the right, you know the specific flavor of frustration that comes with machine embroidery. I have spent two decades watching beginners battle this exact moment. The fear—that you will break the machine, ruin the shirt, or waste the last of your good stabilizer—is real.

But here is the truth experienced embroiderers know: The machine is not random; it is rigid.

The Brother SE400, like many entry-level single-needle machines, operates on strict coordinate logic. The frustration usually stems from trying to force the machine to do two things at once: resizing and positioning. Once you learn the "Master Sequence" (resize first, position second), the machine stops fighting you.

This guide acts as your operating manual for the "Hello" workflow—a fundamental lesson in spatial management on a 4x4 field—and provides the safety protocols you need to move from "hoping it works" to "knowing it will print."

Read the Brother SE400 font presets like a pro (Large/Medium/Small dimensions you can trust)

The fastest way to eliminate fear is to look at the data. New users often guess what "Large" or "Small" means, leading to designs that look massive on screen but stitch out tiny, or vice versa.

In the SE400 interface, the machine explicitly tells you the bounding box (the outer limits) of your selection. In our case study, we verified the built-in "A" font presets. These are your Safe Zones:

• Large "A": 1.18" x 1.36" (approx. 30mm x 34.5mm)
• Medium "A": 0.59" x 0.68" (approx. 15mm x 17mm)
• Small "A": 0.35" x 0.41" (approx. 9mm x 10mm)

Why this matters: These are not just sizes; they are density calculations. The machine has pre-calculated the stitch count for these exact dimensions to ensure full coverage without bullet-proof density.

Where those numbers live on the SE400 screen

You do not need to memorize these. You need to build the muscle memory to find them:

1. Select your letter.
2. Navigate to the Adjust tab.
3. Tap Layout.

The dimensions appear at the top of the screen. Before you ever thread a needle, this number is your reality check. If the screen says 1.18" and your hoop space only has 1.0" left, physics will win every time.

Warning: Mechanical Safety Protocol. When navigating these menus, keep your hands entirely clear of the embroidery arm and needle bar. When the SE400 engages a new coordinate or starts a trace, the carriage moves instantly and with significant torque. The risk of a needle puncture or a pinched finger is highest during setup, not stitching.

The “Hidden” Size button on the Brother SE400: shrink, expand, and reset without panic

The "Size" icon (usually found in the upper right of the layout screen) is the most under-utilized tool for beginners. It unlocks the ability to break free from the L/M/S presets.

When you tap Size, you are presented with a simple vector control panel:

• Inward Arrows: Shrink the object (scaling down).
• Outward Arrows: Expand the object (scaling up).
• Reset: Instant return to the factory default.

The Sensory Check: When you tap these arrows, do not just watch the number. Watch the icon. It should visibly pulse larger or smaller. If the machine beeps three times rapidly, stop pressing—you have hit the Maximum Scale Limit (usually +/- 20% for built-in fonts). The machine safeguards you from distorting the design so much that the stitch density fails.

What to expect while resizing (so you know it’s working)

As you adjust, the numeric display updates in real-time. If you are using a standard hoop for brother embroidery machine, you must ensure these numbers stay well within the roughly 3.93" x 3.93" (100mm) usable area. If a design reads 3.95", it is technically "safe," but practically, you are flirting with disaster if your hooping isn't surgically precise.

The prep nobody tells you: stabilize and hoop like your lettering depends on it (because it does)

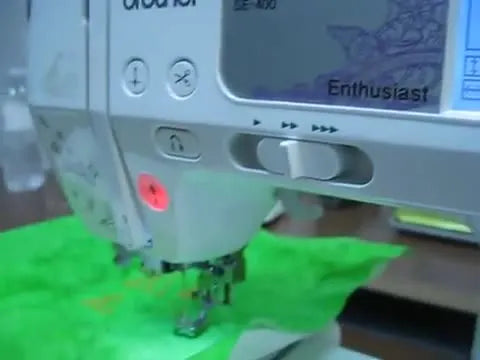

The video case study uses green felt, which is a "Cheat Mode" fabric—it is stable, fuzzy (hides needle holes), and doesn't stretch. However, most of you want to embroider t-shirts or towels.

Here is the "Expert Reality": The smaller the font, the more critical your stabilization. A 2mm shift on a large flower is invisible. A 2mm shift on a small letter "e" closes the loop and makes it look like a blob.

If you are working in a brother 4x4 embroidery hoop environment, you are operating in a confined space. The fabric must be "drum tight" (tactile check: tap it, it should sound taut) but never stretched (visual check: the fabric grain must remain square).

Prep Checklist (Do this BEFORE you touch the screen)

• Needle Integrity: Rub your fingernail down the needle tip. If you feel a "catch," change it. A burred needle shreds thread. Use a 75/11 for standard cotton/felt.
• Bobbin Area Hygiene: Open the bobbin case. Is there grey fuzz? Blow it out or use a brush. One piece of lint can confuse the tension sensors and cause a "bird's nest."
• Stabilizer Matching: See the Decision Tree below. Wrong stabilizer = puckered letters.
• Hooping Tension: Tighten the hoop screw before you push the inner ring in completely. You should need to use firm palm pressure to seat the ring. If it slides in effortlessly, it is too loose.

Build the word “Hello” on the Brother SE400 screen (and why starting with Small is smart)

In our workflow, we build the word "Hello." The crucial strategic move here is selecting Small (S) as the base size before typing.

Why this works: Cognitively, it is easier to expand a design into available space than to shrink a massive design that is constantly triggering "Out of Bounds" alarms. Starting small keeps the machine quiet and lets you visualize the layout first.

• Select "S".
• Type H-e-l-l-o.
• Observe the total width.






The order that prevents “I can’t move it!”: resize first, then position inside the 4x4 hoop

This is the failure point for 90% of beginners. You move the word to the bottom corner, then try to make it bigger. The machine screams at you.

The Physics of the Machine: The SE400 calculates the center point of your design relative to the edges of the 4x4 hoop.

1. If you move a design to the far right edge (X: +1.50).
2. And then try to enlarge it.
3. The expansion pushes the right edge past the safety limit (X: +1.98).
4. The machine blocks the action.

The Master Sequence: Resize First. Get the word to the dimensions you want (e.g., 0.44" x 1.71"). Position Second. Move the resized block to its final destination.

In the video, after resizing, the word “Hello” is safely placed at X: +1.10, Y: -1.73 (Bottom Right).

Setup Checklist (The "Green Light" Protocol)

• The "Size-Lock" Check: Have you finished ALL sizing adjustments?
• The Field Check: Does the screen show the design fully inside the grid?
• The Obstruction Check: Is there anything behind the machine (wall, scissors, coffee cup) that the embroidery arm will hit when it moves to the far back?
• The Hoop Check: When you slide the hoop onto the carriage, listen for the audbile "Click." Wiggle it gently. If it rattles, it is not locked.

Use the Brother SE400 Outline/Trace test like a seatbelt (it’s faster than re-hooping)

The Trace/Outline button is your final defense against placement errors. When activated, the embroidery foot travels the exact perimeter of your design without stitching.

What you are watching for:

1. Hoop Collision: Does the foot come dangerously close (within 1-2mm) of the plastic hoop edge?
2. Fabric Position: Does the trace fall exactly where you marked your fabric?
3. Previous Embroidery: If adding a second line of text, does the trace overlap existing stitches?

If you are running a small production run (e.g., 10 Christmas stockings), consistent placement is the hardest part. This is where professional tools like hooping stations become valuable, converting the "guesswork" of alignment into a mechanical certainty.

Why resized letters sometimes look thin, gappy, or “misshapen” (and what the SE400 can’t fix on-screen)

You might successfully resize a letter, but look at the result and think, "Why does it look disjointed?"

The Science of Density: When you resize a built-in font on the SE400, the machine does a mathematical calculation to add or remove stitches. However, it is not a professional digitizer. It does not know that when you make a column wider, you need to add "Pull Compensation" (extra stitches to fight fabric stretch).

• Scaling Up: The satin stitches may become too long and loose (snag hazard).
• Scaling Down: The stitches may pack so tightly that they punch a hole in your fabric or snap the thread.

The Fix: For critical text (like a monogram on a cuff), resizing a built-in font is often "Stage 1." If you need sharper results, you eventually move to "Stage 2": using digitized files designed specifically for that size. Furthermore, using magnetic embroidery hoops for brother can drastically improve the stitch quality of resized fonts. Why? because they hold the fabric with even tension across the entire surface, preventing the "pulling" that causes resized letters to look warped.

Troubleshooting the scary stuff: symptoms → likely cause → fix you can try today

When things go wrong, do not panic. Use this diagnostic table to isolate the variable.

Decision Tree: choose stabilizer + hooping method based on fabric (so resized text stays crisp)

Your machine settings mean nothing if your foundation (stabilizer) is weak.

START: What are you stitching on?

1. Is it Stretchy? (T-Shirt, Hoodie, Knit)
   • YES: Use Cutaway Stabilizer.
     • Why: The fabric moves; Cutaway stays forever to hold the stitches.
     • Hooping: Hoop the stabilizer, use temporary spray adhesive to float the shirt, or hoop both gently.
   • NO: Go to step 2.
2. Is it Stable but Thick? (Denim, Canvas, Felt)
   • YES: Use Tearaway Stabilizer.
     • Why: The fabric supports itself. The stabilizer just ensures crisp edges.
     • Hooping: Hoop fabric and stabilizer together tightly.
3. Is it fluffy/looped? (Towel, Velvet)
   • YES: Use Water Soluble Topping (Solvy) + Tearaway Backing.
     • Why: Topping prevents stitches from sinking into the loops.
     • Expert Tip: Do NOT pull the topping off; dissolve it with water to avoid distorting loops.

For repetitive tasks like towels or left-chest logos, consistent hooping is physically demanding. A hooping station for embroidery setup allows you to align the garment perfectly every time before you even touch the machine.

The upgrade path that actually makes sense: when to stick with the SE400, and when to change the tool

I believe in exhausting the capabilities of your current machine before upgrading. The Brother SE400 is a workhorse. However, there are two specific "Pain thresholds" where upgrading becomes a business decision, not a luxury.

Scenario A: "I hate hooping." If you spend 10 minutes fighting to hoop a thick sweatshirt, or if you are getting "hoop burn" (crushed fibers) on velvet, your tool is the bottleneck.

• Solution Level 1: embroidery hoops magnetic.
• The Shift: Instead of screwing and forcing rings together, magnets snap the fabric in place. It protects the fabric and saves your wrists.

Scenario B: "I have an order for 20 shirts." If you have to change thread 4 times for every shirt on a single-needle machine, that is 80 thread changes. That is hours of unpaid labor.

• Solution Level 2: Multi-Needle Machines (like SEWTECH).
• The Shift: You set up 6-10 colors once, press start, and walk away. Speed is not just stitches per minute; it is autonomy.

Warning: Magnetic Hazard. Magnetic hoops use industrial-strength neodymium magnets. They can pinch skin severely causing blood blisters. Do not use if you have a pacemaker, as the magnetic field can interfere with medical devices. Keep away from credit cards and children.

Stitch-out reality check: what “success” looks like on fabric

The final validation is the stitch-out. In our example, the user tests the "Hello" in orange thread on green felt.

Do not skip the test stitch. A "Test Swatch" is the cheapest insurance you can buy.

Operation Checklist (The Flight Check)

• Visual Scan: Is the hoop flat? Is the excess fabric folded away from the needle bar?
• Thread Path: Is the thread passing through the metal guide bar above the needle? (Most common error).
• Sensory Start: Press the green button. Listen.
  • Rhythmic Thump-Thump: Good.
  • Grinding/Loud Clacking: HIT STOP IMMEDIATELY.
• The 3-Second Rule: Watch the first 3 seconds of stitching. If the thread does not catch or bunches up, stop and rethread.

By following this resizing logic—Measure, Prep, Resize, Position, Trace—you stop playing roulette with your SE400 and start producing repeatable, high-quality embroidery.

FAQ

• Q: How do Brother SE400 built-in font preset sizes (Large/Medium/Small) translate into real embroidery dimensions on the screen?
  A: Use the Brother SE400 Layout screen dimensions as the truth: Large “A” is 1.18" x 1.36", Medium “A” is 0.59" x 0.68", and Small “A” is 0.35" x 0.41".
  • Open Adjust → Layout after selecting the letter to view the bounding box size.
  • Compare the on-screen size to the usable 4x4 field before stitching (don’t “guess” by appearance).
  • Build a habit of checking size before threading to avoid out-of-bounds errors.
  • Success check: The dimension readout matches the space available in the hoop grid, with visible margin inside the field.
  • If it still fails… Re-check that the correct letter/object is selected, then verify the displayed size again in Layout.
• Q: Why does the Brother SE400 beep and refuse when resizing built-in fonts with the Brother SE400 Size button?
  A: The Brother SE400 is hitting its maximum scale limit for built-in fonts, so stop pressing and resize within the allowed range.
  • Tap Size and use inward/outward arrows in small steps instead of holding the button.
  • Watch both the number and the icon change; rapid triple beeps mean the limit has been reached.
  • Use Reset to return to factory default if the size changes become confusing.
  • Success check: The icon visibly grows/shrinks and the dimensions update without rapid triple beeps.
  • If it still fails… Reset size, then choose a different base preset (S/M/L) before resizing again.
• Q: What is the correct resize-and-move order on a Brother SE400 to prevent the “cannot move” boundary alarm in a 4x4 hoop?
  A: On a Brother SE400, resize first and position second—moving to the edge and then enlarging is what triggers the block.
  • Reset and re-center the design if it is already near an edge.
  • Resize to the final dimensions while the design is safely centered.
  • Move the resized design to the final X/Y position only after sizing is finished.
  • Success check: The design stays fully inside the grid on-screen after the final move, with no refusal beep.
  • If it still fails… Reduce the size slightly, then try moving again; being “barely inside” the field often isn’t practical if hooping is not perfectly centered.
• Q: What Brother SE400 prep checks prevent bird’s nest thread nests before starting small lettering embroidery?
  A: Do a quick Brother SE400 “prep triage” (needle, bobbin area hygiene, stabilizer, hoop tension) before touching layout controls.
  • Inspect needle integrity by lightly rubbing a fingernail down the tip; replace if it “catches” (a safe starting point is a 75/11 for standard cotton/felt).
  • Clean the bobbin area; remove lint/fuzz with a brush or air to avoid tension sensor confusion.
  • Match stabilizer to fabric (cutaway for stretchy knits; tearaway for stable thick fabrics; topping + backing for towels/loops).
  • Tighten hoop screw before fully seating the inner ring; hoop should require firm palm pressure to seat.
  • Success check: Fabric feels drum-tight when tapped, the grain stays square (not stretched), and the machine starts without immediate looping underneath.
  • If it still fails… Stop and rethread completely, because upper thread not seated correctly is a common nesting trigger.
• Q: How do Brother SE400 Trace/Outline test results confirm safe placement before stitching a design near the hoop edge?
  A: Run Brother SE400 Trace/Outline as a seatbelt—confirm the foot traces the perimeter without nearing the hoop edge or missing your marks.
  • Activate Trace/Outline and watch the embroidery foot travel the design boundary without stitching.
  • Check clearance: avoid traces that come within about 1–2 mm of the plastic hoop edge.
  • Verify alignment against fabric markings and any previous embroidery if adding text lines.
  • Success check: The trace path stays comfortably inside the hoop boundary and lands exactly where the placement marks are.
  • If it still fails… Re-position on-screen and trace again before stitching; re-hooping is the last resort, not the first.
• Q: What mechanical safety steps prevent finger pinches and needle injuries when setting up menus and movement on a Brother SE400 embroidery machine?
  A: Keep hands completely clear whenever the Brother SE400 changes coordinates or starts a trace, because the carriage can move instantly with force.
  • Remove fingers from the needle bar/arm area before pressing layout, move, or trace controls.
  • Clear the rear and sides of the machine so the embroidery arm cannot hit walls or objects during travel.
  • Slide the hoop onto the carriage until an audible “click,” then gently wiggle-check for a solid lock.
  • Success check: The hoop locks with a click, the arm has full travel clearance, and no part of your hand is near the moving carriage during tests.
  • If it still fails… Power off and re-check hoop installation and workspace clearance before trying again.
• Q: When should Brother SE400 users upgrade from standard screw hoops to magnetic embroidery hoops or upgrade to a multi-needle embroidery machine for small production?
  A: Use a staged approach: optimize technique first, then upgrade hooping tools for hooping pain/hoop burn, and consider a multi-needle machine when thread changes become the real time sink.
  • Level 1 (technique): Improve stabilization and hooping to stop flagging, gaps, and placement drift (especially on small letters).
  • Level 2 (tooling): Switch to magnetic hoops when hoop burn or difficult hooping on thick/sensitive fabrics becomes the bottleneck; magnetic pressure is more even and avoids friction marks.
  • Level 3 (capacity): Move to a multi-needle machine when orders (e.g., many shirts with multiple colors) make repeated thread changes the main cost in time.
  • Success check: Setup time drops (less fighting the hoop), placement becomes repeatable, and stitch quality stays consistent across multiples.
  • If it still fails… If using magnetic hoops, stop and follow magnetic safety rules (pinch hazard; do not use with pacemakers; keep away from children/credit cards) and reassess whether the issue is stabilization or digitizing rather than hoop type.
