The Definitive Guide to Digital Appliqué: Mastering the SewWhat-Pro to ScanNCut Workflow

Appliqué is the embroidery world's greatest paradox. When done right, it is a shortcut to high-impact, low-stitch-count luxury. When done wrong, it is a graveyard of wasted fabric and "almost aligned" frustration.

As an educator with two decades on the studio floor, I have seen the same scene play out a thousand times: A user spends 40 minutes on a design, only to have the pre-cut fabric shape come out 2mm too small, exposing the raw edge under the satin stitch. The joy of creating turns into the anxiety of "hoping it covers."

This guide eliminates that hope-based approach. We will replace it with a precision-engineered workflow using SewWhat-Pro and Brother ScanNCut. We will move beyond the "how-to" and tackle the "why-to," ensuring that when you press "Start" on your machine, you feel nothing but confidence.

Below is the verified field workflow: extracting appliqué cut files from a .PES design, verifying them in Sure Cuts A Lot (SCAL), and managing the physical variables that software can't control.

The "Lost File" Syndrome: Why Your ScanNCut Can't See What You Saved

If you have ever saved a cut file and then spent 20 minutes hunting for it in the digital abyss, you aren't doing it wrong—you are just fighting default software behavior. SewWhat-Pro defaults to saving the cut file in the same directory as the source embroidery file. If that file is buried six folders deep in "My Documents," your ScanNCut (which likely only reads the USB root) will never find it.

We solve this with a "Hard Path" strategy: forcing the software to write directly to your transfer stick every time.

Step 1: The "Hard Path" Setup

The Goal: Eliminate file hunting. The Method: In the tutorial, the host navigates to Options > Applique Cutter and hard-codes the Default Folder to the USB stick (Drive E:/).

Action Plan:

1. Launch SewWhat-Pro.
2. Navigate to Options > Applique Cutter.
3. Select "User-defined folder" under the Select Default Folder for Cut Files section.
4. Click "Change Folder."
5. Select your USB drive root (e.g., E:/).
6. Verify the path displays clearly as E:/.


The "Ghost Drive" Glitch & Fix

The Symptom: You click "Change Folder," but your USB drive isn't listed. The Cause: Windows mounts drives dynamically. If you plugged the USB stick in after opening the Options menu, the software hasn't refreshed its hardware list. The Quick Fix: unplug nothing. Simply Cancel out of the menu, close the Options window, and re-open Options > Applique Cutter. The drive will appear.

Prep Checklist: The "Zero_Error" Start

• USB Drive Mounted: The drive is plugged in and recognized by Windows before opening software.
• Path Hardware-Locked: SewWhat-Pro default folder is set to the USB root.
• Clean Slate: No previous "test" files are cluttering the drive with identical names (e.g., "owl.svg").

Step 2: Loading & Interpreting the .PES Design

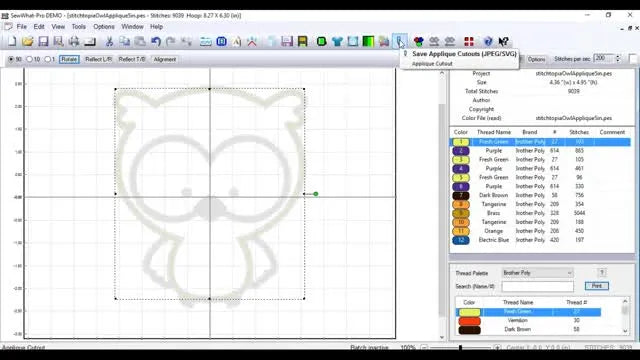

Load your embroidery file. In this case, we are using an owl appliqué.

You will see the design mapped out on the workspace grid.

Expert Insight: The Architecture of Appliqué

To the novice, an appliqué file is just "a picture." To the pro, it is a sequence of Stops.

1. Placement Line (Run Stitch): Shows you where to put the fabric.
2. Tackdown Line (Zig-Zag/Run): Holds the fabric down.
3. Cover Stitch (Satin): Hides the raw edges.

Crucial Mental Shift: When generating a cut file, SewWhat-Pro is analyzing the Placement or Tackdown layer. If your design has multiple fabric pieces (e.g., an owl's body vs. its eyes), you must isolate each layer. You cannot export a "whole owl" cut file if the owl is made of three different fabrics. You must export three separate SVG files.

Step 3: The "Inflation" Variable – Where Precision Happens

This is the most critical step in the digital process. Open the Applique Cutter tool.

Execution Strategy:

1. Open the Applique Cutter tool.
2. Select Output: Choose SVG. (Avoid JPEG; raster images result in jagged cuts and pixelation errors. SVG is clean vector math).
3. Set Inflation Factor.
4. Click Save Outputs.


You will receive a confirmation popup.

The "Inflation Factor" Explained (Cognitive Anchor)

The tutorial shows a slider simply labeled "Inflation." This is actually your Safety Margin.

• 1.0 (Zero Margin): The cutter cuts exactly on the placement line.
• >1.0 (Positive Margin): The cutter cuts outside the line.

The Expert's Sweet Spot: Fabric is not rigid; it is fluid. It frays, shrinks, and shifts. If you cut at 1.0, and your hooping is off by even 0.5mm, the raw edge of the fabric will peek out from under the satin stitch. This is called "gapping," and it ruins the piece.

• Standard Cotton/Wovens: Set Inflation to 1.0 - 1.5mm. This ensures the fabric extends slightly under the satin stitch, guaranteeing a clean finish.
• Thick Materials (Fleece/Felt): Keep it closer to 1.0mm. Too much excess bulk under the satin stitch can look lumpy.

Step 4: Verification in SCAL (The "Measure Twice" Phase)

Never trust a file blindly. We use Sure Cuts A Lot 4 (SCAL) as our quality control station. Open SCAL and import the SVG from your USB.

The vector outline appears on the cutting mat.

The Golden Rule: The "No-Touch" Protoco

Do. Not. Resize. The host is emphatic about this, and for good reason. The SVG size is mathematically linked to the embroidery file's placement stitches. If you think, "I want the owl bigger," and you resize the SVG in SCAL, you have broken the link. The machine will stitch a small owl, and you will cut a giant fabric patch.

Setup Checklist: The "Flight Check"

• Visual Match: Does the shape on the mat look identical to the design in SewWhat-Pro?
• Scale Lock: Have you ensured you did not click or drag the sizing handles?
• Import Source: Did you import the file from the USB (the one you just made) rather than an old version in "Downloads"?

Step 5: Exporting for Speed (Optional but Recommended)

While the ScanNCut can read SVGs, it translates its native language, FCM, much faster. If you are working on a complex batch, this step saves loading time at the cutting machine.

The Process:

1. File > Export.
2. Format: Select FCM.
3. Save to USB.

The Physical Reality: Physics vs. Software

We have perfected the software side, but 90% of appliqué failures happen in the physical world. You can have a perfect SVG, but if your fabric moves in the hoop, you will still get gaps.

The Invisible Enemy: Hoop Burn & Shift

Appliqué requires multiple steps: Hooping -> Stitching Placement -> Cutting/Placing -> Stitching Tackdown -> Stitching Cover. Every time you interact with the hoop, you risk shifting the stabilizer. Traditional screw-tightened hoops rely on friction and brute force. To keep fabric tight, users often over-tighten, creating "hoop burn" (permanent crush marks) or warping the fabric grain.

The Professional Solution: Magnetic Hoops

If you find yourself constantly fighting alignment or struggling to hoop thick appliqué garments (like hoodies or towels), this is the "Trigger Point" to upgrade your toolkit.

Magnetic hoops for embroidery machines utilize magnetic force rather than friction.

• Sensory Check: Instead of the struggle of tightening a screw, you feel a solid snap as the magnets lock the fabric.
• The Benefit: They hold thick items without forcing them into an inner ring, drastically reducing hoop burn and "flagging" (bouncing fabric).

For home users, a magnetic hoop for brother machine can be transformative. It allows for faster re-hooping between appliqué steps, which is critical when doing batch production. By removing the physical struggle of the hoop, you reduce the human error that causes alignment drift.

Warning: Magnet Safety
Current SEWTECH Magnetic Hoops (and similar pro-grade tools) use industrial-strength magnets.
* Pinch Hazard: Never place fingers between the top and bottom frames. The snap is instantaneous and powerful.
* Electronics: Keep at least 6 inches away from cardiac pacemakers, credit cards, and computerized machine screens.

Consumables Decision Tree: The Foundation of Stability

Choosing the right "sandwich" of materials is just as important as the hoop.

What are you stitching on?

• A: Stretchy Knits (T-Shirts, Onesies)
  • Risk: Fabric stretches while cutting/stitching.
  • Solution: Fusible Poly-Mesh Cutaway Stabilizer. You must stop the stretch. Do not use tearaway.
  • Hooping: Do not pull the fabric tight; lay it flat and neutral.
• B: Stable Wovens (Denim, Canvas)
  • Risk: Fabric is stiff; needle deflection.
  • Solution: Medium Weight Tearaway. The fabric supports itself; the stabilizer just anchors the stitches.
• C: Lofty Fabrics (Towels, Fleece)
  • Risk: Sinking stitches; fabric shifting under the foot.
  • Solution: Cutaway Stabilizer + Water Soluble Topper. The topper prevents the appliqué edges from getting lost in the loops.

Hidden Consumable: Use a Temporary Spray Adhesive (like 505) on the back of your pre-cut appliqué fabric. This ensures that when you place that SVG-cut shape inside the placement line, it stays there while the machine moves to the tackdown position.

Troubleshooting: The "Why is this happening?" Guide

The Production Mindset: "One Setup, Zero Stress"

The difference between a hobbyist struggling and a pro producing is Standard Operating Procedures (SOPs).

If you plan to scale—making 20 team jerseys or 50 patches—you cannot rely on luck. You need:

1. A Dedicated Station: A specific USB stick that never leaves the machine area.
2. The Right Tools: Sharp duckbill scissors for trimming (if not using a cutter) and magnetic embroidery hoops to save your wrists and ensure consistent tension.
3. The "How to Use" Knowledge: Knowing how to use magnetic embroidery hoop correctly (sliding them apart rather than pulling) preserves the tool and your energy.

Warning: Physical Safety
When working with appliqué, your hands are often near the needle zone to place fabric. Always bring the machine to a complete stop before placing fabric. Never reach through the frame while the machine is "resting" in a color change—accidental starts happen.

Final Operation Checklist

• Path: Default save folder set to USB Root.
• Inflation: Factor set to 1.0 - 1.5mm (Sweet Spot).
• Scale: SVG imported to SCAL and not resized.
• Stabilizer: Matched to fabric type (Knit = Cutaway).
• Adhesion: Appliqué fabric sprayed lightly with adhesive before placement.
• Hooping: Fabric is drum-tight but not stretched (consider Magnetic Hoops for consistency).

By following this rigid, empirical approach, you transform appliqué from a game of chance into a repeatable science. Happy stitching.

FAQ

• Q: Why can’t a Brother ScanNCut find the SVG cut file saved from SewWhat-Pro on a USB drive?
  A: Set SewWhat-Pro to save cut files directly to the USB root (for example, E:/) so Brother ScanNCut can see the file.
  • Open SewWhat-Pro and go to Options > Applique Cutter.
  • Select “User-defined folder,” click “Change Folder,” and choose the USB drive root (not a subfolder).
  • Re-save the cut file to the USB, then safely eject and reinsert the USB into Brother ScanNCut.
  • Success check: The SVG/FCM appears immediately when browsing the USB on Brother ScanNCut (no deep-folder hunting).
  • If it still fails… Re-open the Options menu after the USB is plugged in (the drive list may not refresh if the USB was inserted later).
• Q: What should a SewWhat-Pro “Inflation Factor” be to prevent satin-stitch gapping in digital appliqué cut files for Brother ScanNCut?
  A: Use Inflation as a safety margin—often 1.0–1.5 mm for standard cotton/wovens, and closer to 1.0 mm for thicker fleece/felt.
  • Open Applique Cutter in SewWhat-Pro and choose SVG output.
  • Set Inflation so the fabric will extend slightly under the satin cover stitch (avoid 1.0 with zero margin if gapping is happening).
  • Save Outputs and cut that exact file on Brother ScanNCut.
  • Success check: After the satin stitch finishes, no raw fabric edge peeks out (clean covered edge all around).
  • If it still fails… Re-check hooping and fabric shift controls (adhesive + stabilizer choice), because perfect files can still gap if fabric moves.
• Q: Why is an SVG appliqué shape the wrong size after importing into Sure Cuts A Lot 4 (SCAL4) for Brother ScanNCut?
  A: Do not resize the SVG in SCAL4—any resizing breaks the 1:1 link between placement stitches and the cut shape.
  • Delete the imported shape in SCAL4 and re-import the SVG you just generated from the USB.
  • Avoid clicking/dragging any sizing handles after import.
  • Visually compare the outline to the SewWhat-Pro design before exporting.
  • Success check: The cut fabric lands inside the placement line without fighting alignment.
  • If it still fails… Confirm the imported file is the newest USB version (not an older download), then re-export the cut file again from SewWhat-Pro.
• Q: How do I stop appliqué fabric from shifting between placement, tackdown, and cover stitch during an appliqué run?
  A: Lightly use temporary spray adhesive on the back of the pre-cut appliqué fabric so it stays put through the tackdown and satin steps.
  • Spray a light, even coat on the back of the cut appliqué piece (avoid overspray onto needle plate areas).
  • Place the fabric inside the stitched placement line, then smooth it flat before continuing.
  • Match stabilizer to fabric type (for example, fusible poly-mesh cutaway for stretchy knits).
  • Success check: The tackdown line lands centered on the fabric edge with no visible creep or skew.
  • If it still fails… Reduce handling of the hooped item and evaluate hooping method, because repeated touches can introduce drift.
• Q: How can I reduce hoop burn and alignment drift during multi-step appliqué hooping using traditional screw-tightened embroidery hoops?
  A: Stop over-tightening and minimize re-hooping stress—if thick garments or repeated alignment issues persist, magnetic embroidery hoops are often the next practical upgrade.
  • Hoop fabric “drum-tight but not stretched,” especially on knits (keep the fabric neutral).
  • Avoid using brute force on the screw; excessive pressure can crush fibers and still allow shifting later.
  • Reduce how often the hoop is removed/handled between appliqué steps when possible.
  • Success check: No permanent ring marks after stitching, and placement/tackdown stays consistently aligned across steps.
  • If it still fails… Move from Level 1 technique tuning to Level 2 tool upgrade (magnetic hooping) to stabilize thick or difficult items with less distortion.
• Q: What magnetic embroidery hoop safety precautions should be followed when using industrial-strength magnetic frames?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive electronics and medical devices.
  • Keep fingers out of the closing gap when bringing top and bottom frames together.
  • Maintain at least 6 inches distance from pacemakers, credit cards, and computerized machine screens.
  • Separate frames by sliding them apart rather than pulling straight up (safer control).
  • Success check: The frame “snaps” closed cleanly without finger pinches, and the hooped item stays secure without over-compression.
  • If it still fails… Stop and reposition slowly—rushing magnetic alignment is when pinches and fabric shifts most often happen.
• Q: What needle-zone safety steps should be used when placing appliqué fabric near the needle on an embroidery machine during color changes?
  A: Always bring the machine to a complete stop before placing fabric—never reach into the hoop area while the machine could restart.
  • Stop the machine fully before hands enter the frame/needle zone to place the appliqué piece.
  • Keep hands out of the hoop opening if the machine is only “resting” at a color change (accidental starts can happen).
  • Resume only after fabric is placed flat and clear of moving parts.
  • Success check: Fabric placement is controlled with no sudden machine movement while hands are near the needle area.
  • If it still fails… Use a consistent stop-and-place routine every time (an SOP) so the same safe sequence is followed on every appliqué run.
