PE Design 11 Programmable Stitch Creator: Build a Custom Decorative Fill That Actually Stitches Clean (No Broken Nodes, No Surprise Tie-Offs)

If you have ever designed a custom background fill that looked pristine on your computer screen only to hear your embroidery machine thrash, jump, and trim like a nervous squirrel during the stitch-out, you have encountered the "Digitizer's Mirage."

On screen, it’s art. On the machine, it is physics. A poorly digitized fill is not just ugly; it creates "bullet holes" in your fabric, causes thread nests, and pulls your material so tight it resembles a potato chip.

In this deep-dive tutorial based on Terry’s PE Design 11 workflow, we aren’t just drawing diamonds. We are engineering a continuous path. We will build a custom fill inside Programmable Stitch Creator, apply it to a sunflower design, and—crucially—learn the tactile, sensory checks that prevent your machine from eating your shirt.

Don’t Panic: PE Design 11 Programmable Stitch Creator Is Powerful—But It Punishes Sloppy Connection Points

The first time you open the Programmable Stitch Creator, the interface shifts. You leave the user-friendly "wizard" mode of Layout & Editing and enter a stark grid environment. This is where engineering happens.

New users often feel a spike of anxiety here. The grid looks unforgiving.

Here is the psychological anchor: You do not need to be an artist. You need to be a plumber. Your job is to create a pipe (stitch path) that does not leak (break).

Terry’s core lesson is the foundation of all machine embroidery: The machine stitches exactly what you draw. If your path has a microscopic gap, the machine cannot "jump" it smoothly. It must stop, lock the stitch, trim the thread, move 1mm, tie in again, and resume. Multiply that by 500 repeats in a background fill, and you have a recipe for a 3-hour stitch-out that destroys your thread cutter.

The Golden Rule: Continuity beats perfection. A slightly wonky diamond that stitches in one continuous line is infinitely better than a perfect diamond that requires four trims.

The “Hidden” Prep Pros Do First: Grid Planning, File Hygiene, and a Reality Check Before You Ever Stitch

Amateurs open the software and start clicking. Professionals prep their environment to avoid "Digitizing Fatigue."

Before you draw a single vector, we need to set the stage. This prevents the frustration of spending an hour building a pattern only to realize it is the wrong file type for a background fill.

1. Define the Asset Type

Inside Programmable Stitch Creator, you have options. For this tutorial, you must select New Decorative Fill.

• Why? You are creating a "tile" that repeats seamlessly in all directions (like bathroom floor tiles).
• The Trap: If you select "Motif," you are creating a stamp, not a fill.

2. The Analog Workflow

Terry suggests a "low-tech" hack that saves hours of digital frustration: Sketch on Grid Paper first.

• The Cognitive Benefit: When you draw with a pencil, your brain naturally plans the path. You feel where the line stops and starts.
• The Strategy: Plan your entry and exit points. In a repeating pattern, the line must exit the tile at the exact point it needs to enter the next tile.

3. Hidden Consumables List

Before you start digitizing, ensure you have the physical tools ready for the eventual test stitch:

• New Needles: A defined fill requires a sharp point. Use a 75/11 Organ or Schmetz needle. Old needles will deflect on dense fills.
• Stabilizer: Use a Medium Weight Cutaway (2.5oz) for testing. Tearaway is often too weak for dense custom fills.
• Grid Paper: For the sketching phase.

Prep Checklist (Do this before touching the mouse)

• Software Mode: Confirm you are in PE Design 11 > Options > Programmable Stitch Creator.
• File Type: Select New Decorative Fill (Verify you are not in Motif mode).
• Analog Plan: Sketch one tile on paper. Does the logic hold up?
• Folder Hygiene: Create a folder named "Custom_Fills_v1" to save your .PAS files.
• Mental Check: Are you ready to focus? This requires 10 minutes of uninterrupted attention.


Draw the Diamond Motif on the Grid Without Creating Future Trim-Stitch Chaos

Terry selects the Draw Line tool. This is your primary weapon.

The workflow is rhythmic: Click, move, click. You are snapping to the grid intersections.

• Click: Sets a node (corner).
• Double-Click: Ends the path.

Sensory Check: Watch the preview window. As you draw one line, look at how the software instantly tiles it. Does it look like a fence? A mesh? The preview is your reality check.

The "Open Shape" Paradox: Novices try to close every shape manually. In Programmable Stitch Creator, your shape does not have to be a closed loop on the first pass. You are drawing the components of the path.

If you draw a line and it looks wrong—too jagged, or the angle allows for spacing that is too tight (under 1mm)—delete it immediately. Do not try to "fix" a bad foundation. Delete and redraw.

Practical Drawing Habits for Safety

1. Snap to Grid: Always click strictly on the grid intersections. Do not click "near" them.
2. Outer Hull First: Draw the perimeter of your diamond before adding the center.
3. Density Awareness: If you draw lines that are consistently closer than 1.5mm to each other, you are creating a "bulletproof vest." This produces a stiff, stiff embroidery that drapes poorly. Keep it open.


The Make-or-Break Move: Turn Hollow White Squares Into One Solid Black “Singular Point”

This section contains the most critical technical skill in the entire article. If you skim this, your design will fail.

After drawing your lines, you will have multiple segments. Where those segments meet, the software sees two different endpoints sitting on top of each other. To the computer, that is a gap. To the machine, that is a trim command.

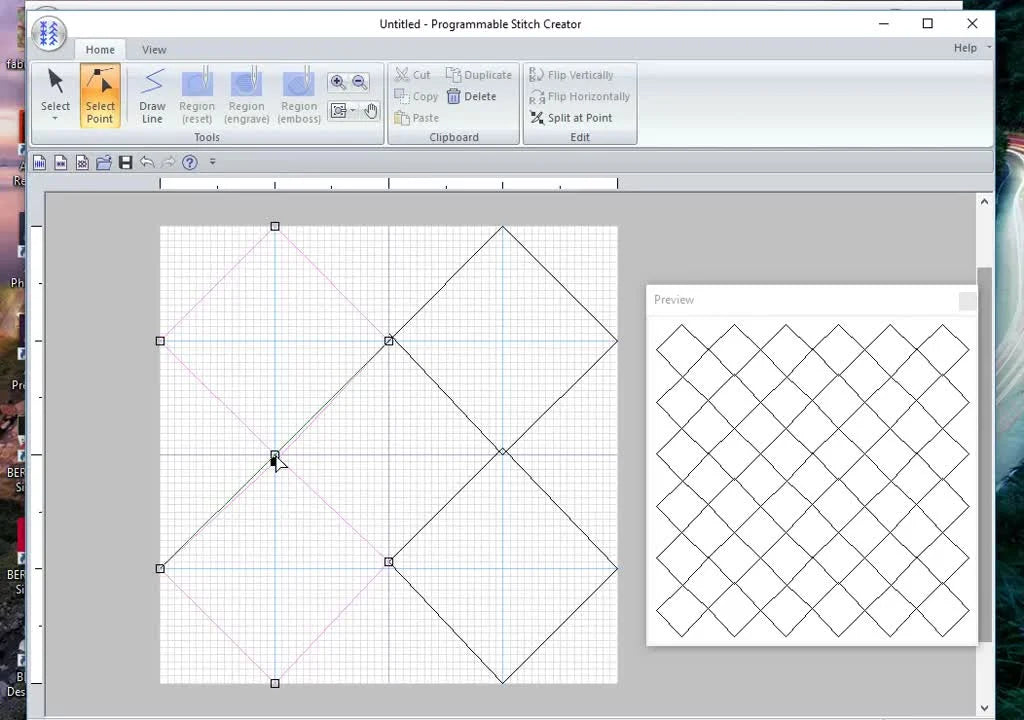

Terry switches to the Select Point tool. Here is the visual language you must memorize:

• ⬜ White / Hollow Square: This is an unconnected endpoint. It is a "Loose Wire."
• ⬛ Solid Black Square: This is a "Singular Point." Two or more lines are welded together here.

Your Goal: Hunt down every instance where lines should touch, and turn those white squares black.

The "Welding" Technique (Step-by-Step)

1. Select the Select Point tool (Arrow icon).
2. Locate a corner where two lines meet. You will see two hollow white squares overlapping or near each other.
3. The Action: Click one hollow square, drag it away slightly, and then drag it directly back on top of the other hollow square.
4. The Trigger: Watch for the color change. When you release the mouse, the two white squares must transform into ONE solid black square.
5. The Validation: If it stays white, you missed. Try again.


Warning: The Zoom Trap. When zoomed out, two points may look connected. This is an optical illusion. A gap of 0.1mm breaks the path and forces a trim. Always zoom in to 400% or greater when welding points.

Recovery Protocol

If you drag a point and accidentally create a third weird node or destroy your angle, do not panic. Use Ctrl+Z (Undo). If you have extra points cluttering the line, right-click the node and delete it to straighten the path.

Add an Inner Diamond Detail (Without Losing Symmetry) and Use Zoom Like a Quality Inspector

Now that the outer diamond is a continuous highway, Terry adds internal complexity—a smaller diamond inside.

This introduces a new risk: Symmetry Drift. When you draw freehand (even with grid snap), it is easy to make the left side slightly wider than the right. In a single design, no one notices. In a repeating pattern, this error multiplies 1,000 times and creates a "wobbly" background.

The "Quality Inspector" Routine

Switch from "Creator Mode" to "Inspector Mode."

1. Zoom In: Maximize your view on the vertices (corners).
2. Nudge: If the inner diamond isn't perfectly centered, do not accept "good enough." Select the nodes and nudge them using the arrow keys for precision.
3. Visual Rhythm: Look at the gap between the inner and outer diamond. Is the spacing consistent? If it varies, the stitch density will vary, potentially causing puckering on unstable fabrics like knits.


Save the Custom Decorative Fill as a .PAS File (and Don’t Ignore the 100.0 mm Default Size)

Once the geometry is verified and the points are black, click Save. You are saving a .PAS file (Programmable Asset). Name it logically (e.g., Terry_Diamond_03.pas).

Critical Data Point: The 100.0 mm Default. Terry notes that the pattern saves at a default size of 100.0 mm. Use this as your "Control Variable."

• Why it matters: If you shrink this pattern down later in Layout & Editing to 20mm, the density increases 5x. That creates a thread clog.
• Rule of Thumb: Design at the scale you intend to use most often, or keep the 100mm standard and scale carefully (no more than +/- 20%) in the editing phase.




Apply Your .PAS Decorative Fill in PE Design 11 Layout & Editing (Sunflower Example)

Now, we leave the Creator and return to the Layout & Editing canvas. This is where we put the tile to work.

Terry imports a sunflower design. She wants the diamond fill to sit behind the sunflower, inside a defined shape.

The Integration Workflow

1. Import Core Design: Bring in your sunflower (or logo). Center it.
2. Select the Boundary: Click the background or draw a shape around the sunflower where you want the fill.
3. Activate Wizard: Open the Background Fill tab.
4. Select Asset: Choose Decorative Fill (not stippling).
5. Browse: Navigate to your saved Terry_Diamond_03.pas.
6. Apply.






The Size Check: Terry notes the preview size is 3.94 inches. This validates her earlier setup. The aspect ratio looks correct.

Setup Checklist: Before You Commit This Background Fill to a Real Stitch-Out

Background fills are high-risk elements. They cover large areas and have high stitch counts (often adding 10,000+ stitches). If your setup is weak, the fabric will shift, leaving a white gap between the sunflower and the background.

This is your Pre-Flight Safety Check:

• Continuity Verification: Look at the on-screen simulation. Does the machine stitch in long, fluid passes? Or does it look like a shotgun blast (jump-stitch-jump)?
• Density Hazard Check: Are there areas where the fill overlaps excessively? (Dark blobs on screen). If yes, increase the pattern size to open it up.
• File Protection: Save your project as a .PES (working file), keeping the original .PAS separate. Never overwrite your source asset.
• Bobbin Check: A full background fill is a "bobbin eater." Start with a fresh, full bobbin. Running out mid-background often leaves a visible seam.

The “Why It Works” Layer: Continuity, Tie-Off Behavior, and What Your Machine Will Do With Broken Paths

Why did we obsess over the Black Squares?

Physics. Every time your machine trims:

1. The machine slows down (loss of momentum).
2. The solenoid fires (mechanical wear).
3. The needle pulls up the bobbin thread to cut (potential for "bird nesting" or loops on the back).
4. The machine moves and restarts (potential for unthreading).

By ensuring Continuity, you keep the machine in a "Flow State." The machine hums instead of clunking. The tension remains consistent. The result is a background that feels like fabric, not like a stiff patch of cardboard.

Comment-Proofing: The Questions People Ask After This Video (and the Clean Answers)

The comments section of embroidery tutorials is often where the real troubleshooting happens. Let’s address the most common points of confusion.

“How do I change the size to something like 7 x 12, and why doesn’t the outline show?”

The Diagnosis: This user is confusing the Fill Pattern with the Boundary Shape. The Fix: You must first draw a rectangle (using the Shape tool) that measures 7x12 inches. Then, with that rectangle selected, apply the background fill. The outline doesn't show because a Background Fill usually suppresses the satin outline by default. You can turn the outline back on in the Sewing Attributes tab.

Production Note: If you are targeting a massive 7x12 fill, hoop security is paramount. A standard plastic hoop may lose tension in the center of such a large field. This is a scenario where creating a secure "sandwich" is vital. If you are using a large setup like the brother magnetic hoop 7 x 12, ensure the magnets are fully engaged on all sides to prevent the "flagging" (bouncing) of fabric in the center.

“Can I use a fill design in my machine the way I use built-in fills?”

The Reality: Generally, no. The .PAS file lives in your software (PE Design 11). Your machine (Luminaire, Stellaris, etc.) usually cannot import a raw .PAS file to edit on-screen. The Workflow: You must build the design in the software, export it as a stitch file (PES/DST), and then send it to the machine. Hoop Strategy: If you are quilting with the largest brother embroidery hoop available for your machine, always perform a trace layout on the machine screen to ensure your custom fill doesn't hit the hoop edges.

“Can I scan an image and trace it?”

Terry’s Advice: Yes. Scanning a drawing and tracing over it with the line tool is a great way to get organic shapes (like vines) rather than geometric diamonds. Pro Tip: Use the Image Tab > Background Image function to load your scan, then dim the image to 50% opacity so you can see your stitch lines clearly.

“How do I get purchased designs into PE Design 11?”

The Path: Use the Import feature (often under the 'Home' or 'Import' tab depending on version) > From File. The Safety Net: Always use "Save As" immediately after importing. If you edit the original purchased file and save it, you risk corrupting the only copy you paid for.

Decision Tree: Choosing Stabilizer and Hooping Strategy for Dense Decorative Background Fills

A background fill adds stress to your fabric. It pushes and pulls fibers in all directions. Use this logic flow to choose your weapon.

1. Analyze the Fabric:

• A. Stable Woven (Denim, Canvas, Twill):
  • Risk: Moderate.
  • Solution: Medium Tearaway is acceptable for light fills. For dense diamonds? Use Cutaway.
• B. Unstable Knit (T-Shirt, Jersey, Hoodie):
  • Risk: High. The fill will distort the shirt into an hourglass shape.
  • Solution: Must use Fusible No-Show Mesh (PolyMesh) or a solid Cutaway. Float a layer of tearaway under the hoop for extra rigidity.

2. Analyze the Density:

• A. Open / Airy Pattern:
  • Standard hooping is likely fine.
• B. Dense / Complex Pattern:
  • Fabric will shrink ("draw up"). You rely 100% on hoop tension.

3. Evaluate Your Hooping Success:

• If you struggle to tighten the hoop screw without hurting your wrist...
• If you see "hoop burn" (shiny crushed rings) on the fabric...
• Then consider the mechanics of your frame.

Many professionals dealing with dense fills look for alternatives to the "screw-and-push" loops. Users often compare systems like the hoopmaster when they need to align these backgrounds perfectly on multiple shirts.

Warning: Magnet Safety. If you choose to upgrade to magnetic frames, be aware they use neodymium magnets. They are incredibly powerful. Keep fingers clear of the snap zone to avoid pinch injuries, and keep them away from pacemakers or sensitive electronics.

The Upgrade Path (Without the Hype): When Software Skills Start Demanding Better Hooping Tools

You have mastered the software. You built a perfect, continuous .PAS file. But your stitch-out typically has gaps or puckers.

The hard truth: Perfect digitizing cannot fix poor hooping.

When you start doing full-coverage background fills, the physical limitations of standard plastic hoops become obvious. The fabric slips micro-millimeters with every needle penetration. Over 10,000 stitches, that slip becomes a visible error.

When to consider an upgrade (The Diagnostic Criteria):

1. The "Re-Hooping" Blues: If you spend more time hooping than stitching, or if you dread doing bulky items like towels/quilts because the inner ring won't pop in.
   • Solution: Search for how to use magnetic embroidery hoop tutorials. These frames clamp fabric instantly without forcing an inner ring inside a tight garment.
2. The "Quilter's" Need: If you own a high-end machine and are doing edge-to-edge quilting fills.
   • Solution: A brother luminaire magnetic hoop allows you to slide the quilt sandwich along without un-hooping and re-hooping the traditional way, maintaining better tension consistency.
3. The "Batch" Problem: You have an order for 20 left-chest logos with background fills.
   • Solution: magnetic embroidery hoops for brother machines can shave 2-3 minutes off per shirt.

The Production Ceiling: If you find yourself perfectly digitizing files but simply cannot output them fast enough on a single-needle machine because of thread changes, that is the signal to look at SEWTECH multi-needle embroidery machines. The jump from "hobby" to "business" usually happens when the software is no longer the bottleneck—the needle count is.

Operation Checklist: Your First Stitch-Out Test (So You Don’t Learn on a Customer’s Project)

Terry admits she "doesn't know yet" how the design will stitch until she runs it. This is the mark of a pro. Software is theory; embroidery is reality.

Run this exact sequence:

• Bypass the Good Fabric: Hoop a piece of scrap denim or heavy cotton with two layers of stabilizer.
• Speed Limit: Set your machine to a moderate speed (e.g., 600 SPM). Do not run a new, untested fill at 1000 SPM.
• Auditory Check: Listen. A rhythmic "hum" is good. A frantic "thump-thump-trim" means you missed a connection point in the software.
• Tactile Check: After stitching, run your hand over the fill. Is it pliable? Or is it a hard "bulletproof patch"? If it's too hard, go back to the software and increase the scale or spacing.
• Hoop Check: If the fabric pulled out of the frame during the test, you must cure the hooping issue issues before running the final. This is often where magnetic embroidery hoops save the day by providing uniform perimeter pressure that plastic screws cannot match.

Stitch perfectly, and stay continuous.

FAQ

• Q: In Brother PE Design 11 Programmable Stitch Creator, why does a Decorative Fill stitch with constant trims and jump stitches even when the diamond lines look connected on screen?
  A: The stitch path has tiny unconnected endpoints, so the machine treats each segment as a stop-and-trim; weld every intended corner into a single solid black point.
  • Zoom to 400% or more and inspect every corner where lines should meet.
  • Switch to Select Point and drag one hollow white square off, then place it directly onto the other until it becomes one solid black square.
  • Undo (Ctrl+Z) if an extra node appears, then delete stray points to clean the line.
  • Success check: the preview shows long, fluid runs instead of a “shotgun blast” of jump–trim–jump.
  • If it still fails: re-check for “connected-looking” points that remain hollow when zoomed in (the common zoom illusion).
• Q: In Brother PE Design 11 Programmable Stitch Creator, how do users prevent the “Zoom Trap” where endpoints look connected but still cause trims in a Decorative Fill?
  A: Always validate point welding at high magnification, because even a 0.1 mm gap can force a trim.
  • Zoom in to 400%+ before declaring any corner “connected.”
  • Look specifically for endpoint symbols: hollow white squares mean “not connected,” solid black squares mean “welded.”
  • Re-weld by overlapping endpoints until the two whites become one black.
  • Success check: every junction that should be continuous displays a single solid black square.
  • If it still fails: methodically sweep the entire tile corner-by-corner (don’t trust the tiled preview alone).
• Q: In Brother PE Design 11 Programmable Stitch Creator, what spacing and drawing habits help prevent “bullet holes,” stiff fills, and puckering in a custom diamond Decorative Fill?
  A: Keep the pattern open and grid-true—too-tight line spacing and sloppy node placement make dense, rigid stitching that distorts fabric.
  • Snap every click exactly to grid intersections (do not click “near” them).
  • Draw the outer diamond first, then add inner details to keep structure stable.
  • Avoid consistently placing lines closer than about 1.5 mm, which often creates an overly dense “bulletproof” feel.
  • Success check: after a test stitch, the fill feels pliable by hand rather than like a hard patch.
  • If it still fails: increase the pattern scale/spacing and re-test on scrap before using the fill on garments.
• Q: In Brother PE Design 11, why does scaling a saved .PAS Decorative Fill after creation cause thread clogs or excessive density, especially when shrinking from the default 100.0 mm?
  A: Shrinking the pattern massively increases stitch density, so treat the default 100.0 mm as a control size and scale cautiously.
  • Save the Decorative Fill as a .PAS and note the default 100.0 mm size.
  • In Layout & Editing, avoid extreme down-scaling; a safe starting point is staying within about ±20% unless testing proves otherwise.
  • If the on-screen fill shows dark “blobs,” open the pattern by increasing the applied size.
  • Success check: the machine runs with a steady hum and no repeated stop–trim behavior during the fill.
  • If it still fails: redesign the tile closer to the final intended scale rather than forcing heavy scaling in Layout & Editing.
• Q: In Brother PE Design 11 Layout & Editing, how do users create a 7 × 12 inch filled background when the Decorative Fill pattern size changes but the outline/border does not appear?
  A: Size the boundary shape first (the rectangle), then apply the Decorative Fill to that shape and re-enable the outline in Sewing Attributes if needed.
  • Draw or select a rectangle boundary set to 7 × 12 inches.
  • With the rectangle selected, go to Background Fill and choose Decorative Fill, then load the .PAS.
  • Turn the outline back on in Sewing Attributes if the border is suppressed by default.
  • Success check: the fill covers the full 7 × 12 area on preview, and a trace on the machine confirms it stays inside hoop limits.
  • If it still fails: verify the correct object is selected (boundary shape, not the fill tile itself) before applying the Background Fill.
• Q: For dense Decorative Background Fills stitched on knit T-shirts, what stabilizer setup is a safe starting point to reduce shifting, gaps, and distortion during a high-stitch-count background?
  A: Use Fusible No-Show Mesh (PolyMesh) or a solid cutaway, and add support when needed because knits distort easily under dense fills.
  • Fuse PolyMesh (or use a firm cutaway) as the primary stabilizer for the knit.
  • Float an additional layer of tearaway under the hoop for extra rigidity when the fill is dense.
  • Start with a fresh, full bobbin because background fills consume bobbin quickly and stopping mid-field can leave a visible seam.
  • Success check: the stitched background stays flat with no widening gaps around the main design and no “hourglass” pull on the shirt.
  • If it still fails: improve hooping security (better clamping/tension consistency) before changing digitizing again.
• Q: What safety precautions should machine embroidery users follow when switching to magnetic embroidery hoops/frames for large or dense background fills?
  A: Treat magnetic frames as pinch hazards and keep them away from medical implants and sensitive electronics.
  • Keep fingers clear of the snap zone when seating the magnetic top frame onto the bottom frame.
  • Control the frame placement deliberately—do not let magnets “slam” together.
  • Store and handle magnets away from pacemakers (and similar devices) and sensitive electronics.
  • Success check: the frame seats evenly all around without sudden snapping or finger pinches.
  • If it still fails: stop and reposition calmly—forcing alignment with magnets increases injury risk and can mis-hoop the fabric.
• Q: For repeated puckering, gaps, or fabric “flagging” during high-stitch-count Decorative Background Fills, when should embroidery users move from technique fixes to magnetic hoops or a multi-needle embroidery machine?
  A: Start with continuity and stabilization fixes, upgrade to magnetic hoops if hoop tension is the limiting factor, and consider a multi-needle machine when thread changes and throughput become the bottleneck.
  • Level 1 (technique): verify welded black points (continuity), open up density, slow to a moderate speed (e.g., 600 SPM) for first tests, and use appropriate cutaway/PolyMesh on knits.
  • Level 2 (tool): choose magnetic hoops when hooping is inconsistent, hoop burn is frequent, or fabric slips micro-millimeters over long fills.
  • Level 3 (capacity): consider a multi-needle machine when single-needle thread changes and time per piece prevent meeting order volume.
  • Success check: the machine stitches the fill with a steady rhythm, and the finished field stays aligned with clean edges and minimal puckering.
  • If it still fails: run the same design on scrap fabric with the same stabilizer stack to separate digitizing issues from hooping/tooling issues.
