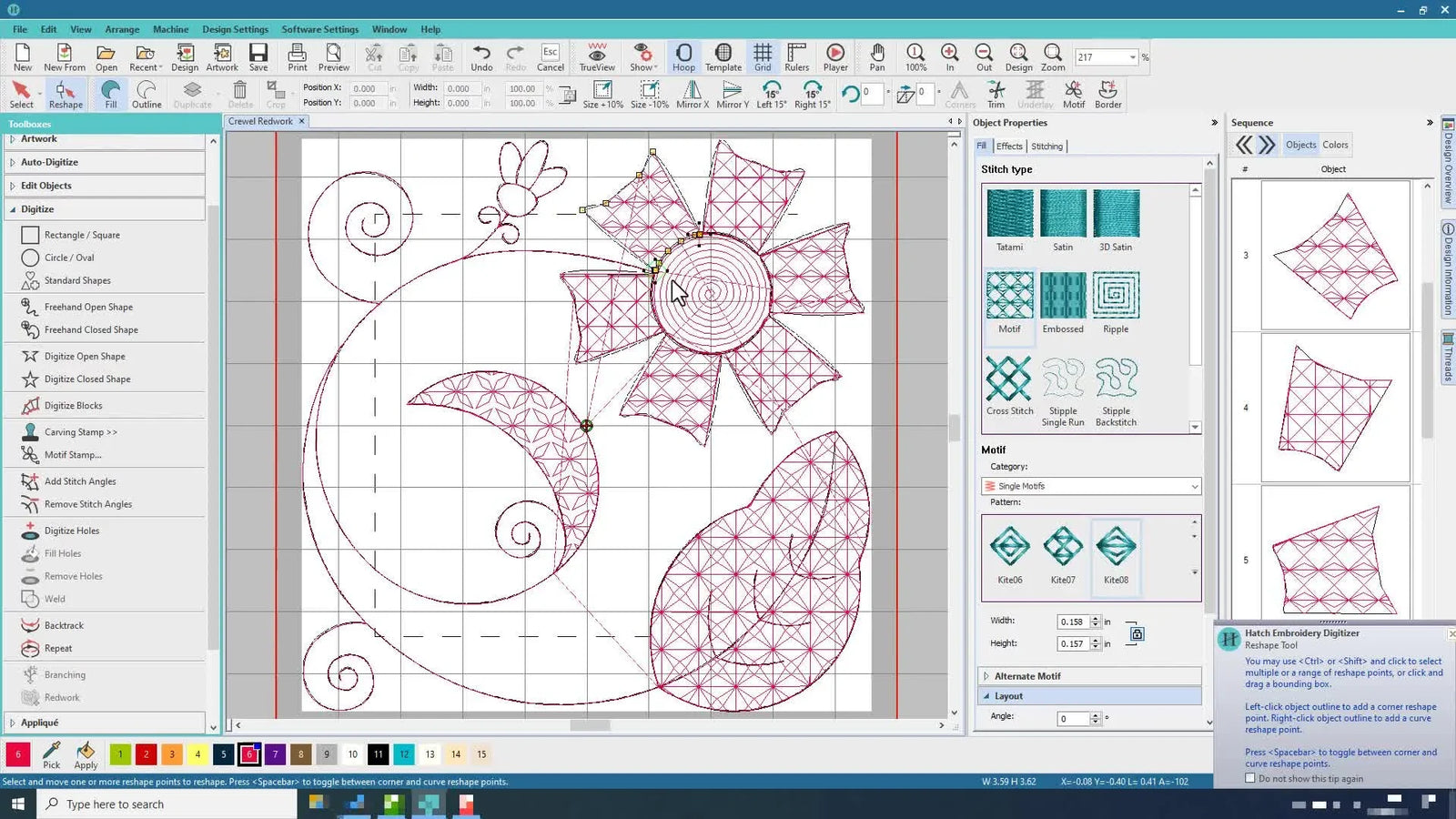

Motif Fills + Redwork in Wilcom Hatch: The Clean-Running Workflow That Cuts Jump Stitches (and Cleanup) to the Bone

From Software to Stitch: The Master Guide to Motif Fills, Redwork, and "Zero-Cleanup" Digitizing

If you have ever watched your machine finish a beautiful design, felt a surge of pride, and then spent the next 45 minutes with sniper-nosed scissors trimming jump stitches, sniping thread tails, and trying to hide travel marks with a permanent marker, you are not alone. This is the "hidden tax" of embroidery that software tutorials rarely mention.

But here is the truth seasoned professionals know: 90% of that mess is decided before the file ever leaves your computer.

In this industry-level breakdown of John Bloodworth’s (Gentleman Crafter) workflow, we aren’t just looking at buttons in Wilcom Hatch. We are going to connect the digital dots to physical reality—tension, hoop physics, and machine behavior. We will transform "pretty on screen" into "profitable on fabric."

Calm the Chaos: Why "Closest Join" is the Enemy of Control

John starts by setting up the canvas, but he immediately toggles two settings that separate the hobbyist from the pro:

1. Closest Join: Off
2. Positioning: Manual

Why This Matters (The "Why")

By default, modern software tries to be "helpful." It calculates the shortest distance between two objects to save travel time. However, software logic is mathematical, not aesthetic. It will often drag a travel thread right across a delicate open space because it is mathematically "closer."

By turning Closest Join Off, you are telling the machine: "Do not think for me. I will tell you exactly where to start and where to stop." This is the first step in eliminating those ugly travel lines that ruin a redwork design.

Pro Tip: This requires patience. As you digitize, you must adopt a rhythmic pace. Rushing manual sequencing is how you end up with a file that nests (bird-nests) underneath the throat plate.

The "Hidden" Prep: Physical & Digital Foundation

Before you click your first node, you must stabilize your environment—both in the software and on your desk.

The Digital Prep

• Import Artwork: Scale it now. Resizing a digitized file later changes density and can ruin stitch physics.
• Zone Planning: mentally divide the design. Which areas are Fills (heavy texture)? Which are Linework (outlines)?
• Layer Strategy: Plan to place your Redwork (outlines) last in the sequence. This acts like a "topstitch," visually sealing the edges of your fills.

The Physical Reality Check

You cannot out-digitize bad hooping. Even the perfect file will pucker if the fabric shifts. John mentions using stable cotton or calico for testing.

The Sensory Hooping Test: When you hoop your fabric, tap it with your finger.

• Too Loose: It sounds like a dull thud (fabric will flag/bounce, causing skipped stitches).
• Too Tight: It sounds like a high-pitched ping (fabric is stretched and will pucker when released).
• Just Right: It sounds like a firm drum—taut, but the weave of the fabric isn't distorted.

If you struggle to get this tension consistent, or if you are doing production runs of 50+ items, this is where fatigue sets in. Many professionals switch to a hooping station for machine embroidery to guarantee that the 50th shirt is hooped with the exact same tension and placement as the first. Consistency is the key to scientific testing.

Prep Checklist: The "Pre-Flight" Inspection

• Artwork: Imported, scaled, and locked.
• Settings: "Closest Join" OFF, "Positioning" MANUAL.
• Consumables: Fresh needle (Size 75/11 is the sweet spot for standard woven cotton), full bobbin, temporary spray adhesive (optional but recommended).
• Fabric: Ironed smooth; verified stabilizer choice (see decision tree below).
• Workspace: Scissors and tweezers within reach; machine throat plate clear of lint.


Digitizing Motif Fills: Texture Without the bullet-proof vest effect

John uses Digitize Closed Shape with a Motif Fill. Unlike Tatami fills which are solid and heavy, Motifs utilize open patterns. They are beautiful, but they are physically unstable compared to solids.

The Anchor Point Method

• Left-Click: Creates a hard corner (Sharp point).
• Right-Click: Creates a soft curve (Flowing line).
• Enter (x2): Closes the shape.

Expert Calibration: Density & Speed

Motif fills are light, which means they don't grip the stabilizer as firmly as a dense fill.

• Beginner Sweet Spot: If your machine can run 1000 stitches per minute (SPM), slow down. Run motif fills at 600-700 SPM.
• Why? High speed on long, open motif stitches creates "whip" in the thread, leading to looping or breakage. Listen to your machine. A rhythmic thump-thump is good. A harsh clack-clack means you are running too fast for the stitch length.


The Petal Shortcut: Scaling Your Effort

John digitizes one petal and uses the Layouts tool to mirror it. This is standard efficiency. However, note his adjustment: he uses straight corners (simple geometry) rather than complex curves.

The Lesson: Complex geometry in embroidery often looks messy because the thread has physical thickness. Simple, geometric shapes often stitch out looking cleaner and more "intentional" than shaky, organic attempts at realism.

Troubleshooting: Why is "Remove Overlaps" Grayed Out?

You want to remove the bulk where petals overlap, but the button is dead. This causes panic for new potential users.

The Logic: Hatch considers "Motif" a specialty effect, not a solid object. It cannot calculate overlap removal on open patterns easily.

The Fix:

1. Select the Motif object.
2. Change Stitch Type to Tatami (Fill).
3. Click Remove Overlaps.
4. Change Stitch Type back to Motif.

Think of this like freezing water to carve it, then melting it back to water.

Linework: Freehand Drawing & The Danger Zone

John uses Freehand Open Shape to draw stems, treating the mouse like a pencil. He lets the software handle the stitch length.

Critical Safety & Quality Note: While the software manages length, you must manage the machine. When measuring jump stitches or tails during a test, keep your hands away from the needle bar.

Warning: Mechanical Hazard
Never place your hands near the needle bar/presser foot while the machine is live. Modern machines can move the hoop instantly. If you need to snip a thread tail, STOP the machine completely. A needle through the finger is a common, painful, and preventable ER visit.

The "Million Dollar" Tool: Reshape

John draws a spiral and then uses Reshape to tweak the nodes. This is the difference between a amateur and a pro.

The Rule of Three: Look at your curve. Can you define it with fewer nodes?

• Amateur: 20 nodes to make a curve (results in a choppy, angular stitch).
• Pro: 3 nodes (Start, Peak, End) to make the same curve (results in a smooth, fluid arc).

Use the Reshape tool to delete excess nodes. The fewer instructions you give the machine, the smoother it runs.

Visual Management: Hide and Seek

John hides layers to see what he is doing. Workflow Tip: If you are struggling to select a line hidden behind a fill, do not guess. Go to the Sequence Tab, right-click the blocking object, and choose Hide.

• Why? Clicking blindly often moves the background object slightly, creating alignment gaps (white slivers) in the final output.


The "Lock-Out" Protocol: Preparing for Redwork

John creates outlines from his shapes, changes them to Single Run, and changes the color.

Crucial Step: He locks the fill shapes. If you skip this, when you apply the Redwork tool (which branches paths automatically), the software might try to branch your fills too, ruining his careful motif work.

• Locking = Safety. It protects your finished work from your current actions.


Redwork Branching: The Secret to Continuous Stitching

He selects the outlines and applies Redwork. Hatch now calculates a "double run" path that covers the entire design with minimal jumps.

The Physics of Redwork: Redwork isn't just a style; it's a structural reinforce. By running a double line (out and back), you create a bold border that hides raw edges.

• The Benefit: It buries the tails. Because it is continuous, you have one Start and one End. That means two tie-offs instead of fifty.


Motif Selection & Visual Variety

John cycles through patterns. Consistency Warning: When mixing motifs (e.g., Blackwork in one leaf, Candlewicking in another), be aware that different motifs pull fabric differently.

• Vertical patterns pull fabric horizontally.
• Horizontal patterns pull fabric vertically.

Mixing them heavily in a seamless design can cause slight warping. Always use a stable cut-away stabilizer if your design has heavy, conflicting pull directions.

The Money Move: Manual Start/End Point Adjustment

This is the step that makes this workflow profitable. John turns off TrueView (so he sees the raw connector lines) and manually moves the Start (Green) and End (Red) crosses.

The Strategy: Place the End of Object A exactly on top of the Start of Object B.

• Result: The machine does not jump. It flows.
• Savings: If a trim takes 7 seconds (slow down, cut, speed up) and you save 20 trims, you save 2+ minutes per run. On a 100-shirt order, that is 3+ hours of machine time saved—pure profit.

The Hooping Connection: If you are doing production runs where speed is this critical, you might find standard screw-tightened hoops slow you down during the reload. Upgrading to magnetic embroidery hoops allows you to "slap and click" fabric instantly, maintaining that high-speed workflow you just digitized for.

Simulation: The Virtual Test Drive

John uses the Stitch Player. What to look for (Visual Anchors):

1. Orphan parts: Does a leaf stitch 5 minutes after its stem? (Fix the sequence).
2. Long Jumps: Do you see a long dashed line crossing the center? (Fix the Start/End points).
3. Color Changes: Are there unnecessary color swaps?

Save as EMB (Master File) first, then export as PES (Machine File). Never lose your EMB file.

The Physical Stitch-Out: Where Theory Meets Fabric

Now we move to the machine. This is where your digital choices face the laws of physics.

Decision Tree: Stabilizer & Hoop Selection

Do not guess. Follow this logic path.

1. Is the fabric stretchy (T-shirt, Knit)?
   • YES: Use Cut-Away Stabilizer. (Tear-away will shatter under the needle impacts of a motif fill, leading to gaps).
   • NO (Denim, Canvas, Twill): You can use Tear-Away, but a medium Cut-Away is always safer for density.
2. Is the fabric thick or delicate (Velvet, Leather, Thick Jacket)?
   • YES: Standard hoops may leave "hoop burn" (crushed fibers) that won't steam out.
   • Recommendation: This is the primary use case for magnetic embroidery hoop systems. They hold gently via magnetic clamp force rather than friction, preventing permanent fabric damage.

Warning: Magnetic Field Safety
If you upgrade to magnetic embroidery hoops, handle them with extreme care. The magnets are industrial-strength.
* Pinch Hazard: They can snap together with enough force to bruise skin or break fingernails. Slide them apart; don't pry.
* Medical Device: Keep them at least 6 inches away from pacemakers or insulin pumps.

Setup Checklist: The "Go/No-Go" Sequence

• Bobbin Check: Is the bobbin full? Is the thread feeding smoothly? (Pull it—it should feel like flossing teeth, smooth resistance).
• Upper Tension: Thread properly seated in the tension discs? (Crucial: Thread correctly with the presser foot UP to open the discs).
• Hoop Check: Is the inner hoop pushed slightly past the outer hoop (for standard hoops) to create a "tray" effect?
• Clearance: Nothing behind the machine that the hoop will hit?
• Test Design: Loaded and orientated correctly?


Structured Troubleshooting Guide

Don't guess. Use this symptom-based diagnosis.

The Upgrade Path: From Hobbyist to Production Line

Achieving the "Perfect Stitch" is a journey. You start by mastering the software controls (Hatch), but eventually, you will hit a physical limit where your tools hold you back.

When you are ready to scale, follow this hierarchy of needs:

1. Level 1: Efficiency (The Foundation)
   Use the manual Start/End point techniques in this guide to stop wasting time trimming. Use high-quality stabilizers (Cut-away) to stop wasting money on ruined shirts.
2. Level 2: Speed & Consistency (The Tooling)
   If you are spending more time hooping than stitching, or if hoop burn is rejecting your finished goods, investigate machine embroidery hoops with magnetic attachment. They reduce the physical strain on your wrists and the fabric.
3. Level 3: Scale (The Machinery)
   If you find yourself waiting for the machine to change colors, or if you need to run this Redwork design on 50 caps and shirts, single-needle machines become the bottleneck. Commercial-style multi-needle machines (search for brands like Sewtech that offer high-value multi-needle options) allow you to queue colors and stitch faster, turning your digitized file into revenue.

Operation Checklist (First Production Run)

• Watch the first 60 seconds (Bird's nest check).
• Verify the first Redwork alignment (is it hitting the outline?).
• Listen to the sound (Rhythmic humming = Good).
• Inspect the back of the first finished piece (Tension check).

Mastering the software is step one. Mastering the physics is step two. Now, go stitch something amazing.

FAQ

• Q: In Wilcom Hatch, why does turning Closest Join ON create travel lines across open spaces in a redwork design?
  A: Turn Closest Join OFF and set Positioning to Manual so the software stops auto-choosing “shortest paths” that cut across your open areas.
  • Switch off Closest Join and digitize with intentional start/stop placement for each object.
  • Manually sequence objects so connectors run under future stitches (or end exactly where the next object starts).
  • Success check: In the connector view (with TrueView off), connector lines should not cross “clean” open spaces.
  • If it still fails: Use the Stitch Player to find long dashed jumps, then move Start (green) and End (red) points to overlap.
• Q: On a home embroidery machine hoop, how can fabric tension be checked using the “tap test” to prevent puckering and skipped stitches?
  A: Hoop to a “firm drum” feel—taut without distorting the weave—because both too-loose and too-tight hooping causes stitch problems.
  • Tap the hooped fabric with a finger: dull thud = too loose; high-pitched ping = too tight; firm drum = correct.
  • Re-hoop after ironing the fabric smooth and confirming stabilizer choice before testing.
  • Success check: Fabric surface stays flat during stitching (no flagging/bouncing) and relaxes without puckering after unhooping.
  • If it still fails: Move from tear-away to cut-away stabilizer for more support, and focus on getting repeatable hooping tension.
• Q: During a stitch-out, how can bobbin fill level and upper thread tension be verified when white bobbin thread shows on top?
  A: Reduce upper tension slightly and confirm the bobbin thread feeds smoothly, because bobbin thread showing on top usually means top tension is too tight or bobbin tension/path is off.
  • Pull the bobbin thread by hand to feel smooth, consistent resistance (not jerky).
  • Re-thread the upper path with the presser foot UP so the thread seats correctly in the tension discs.
  • Clean lint from the bobbin area/thread path if feeding feels inconsistent.
  • Success check: The top side shows clean top thread coverage with no bobbin “white” peeking through.
  • If it still fails: Inspect the bobbin path for lint again and swap to a fresh needle before making bigger tension changes.
• Q: In Wilcom Hatch, why is Remove Overlaps grayed out on a Motif Fill object, and what is the exact workaround?
  A: Convert the Motif object to a standard Fill (Tatami) to run Remove Overlaps, then convert it back to Motif.
  • Select the Motif object.
  • Change Stitch Type to Tatami (Fill), click Remove Overlaps, then change Stitch Type back to Motif.
  • Success check: Overlapped areas lose bulk without deleting the intended outer edges of the shape.
  • If it still fails: Confirm the correct object is selected (not an outline) and try hiding blocking layers in the Sequence list to select the right shape.
• Q: When embroidering Motif Fills, what machine speed (SPM) is a safe starting point to reduce looping, whipping, and thread breaks?
  A: Slow Motif Fills down to about 600–700 SPM as a safe starting point if the machine is capable of 1000 SPM, because long open stitches can “whip” at high speed.
  • Reduce speed before running long, open motif stitches and listen for a steady rhythm.
  • Stop and change the needle if thread starts shredding; size 75/11 is a common starting point on woven cotton.
  • Success check: The machine sound stays rhythmic (not harsh clacking) and stitches form without looping or frequent breaks.
  • If it still fails: Re-check threading and tension, then test again on stable fabric with the correct stabilizer.
• Q: What needle-bar safety steps should be followed when trimming jump stitches or thread tails on an embroidery machine during testing?
  A: Stop the embroidery machine completely before trimming—never put hands near the needle bar/presser foot while the machine is live.
  • Press STOP and wait for all motion to fully halt before reaching near the hoop/needle area.
  • Trim tails only when the hoop is stationary; keep fingers out of the needle’s travel zone.
  • Success check: Trimming can be done without the hoop making sudden movements toward the operator’s hand.
  • If it still fails: If frequent trimming is forcing unsafe habits, reduce jumps by manually aligning Start/End points so the design runs more continuously.
• Q: What magnetic embroidery hoop safety rules should be followed to prevent pinch injuries and medical-device interference?
  A: Handle magnetic embroidery hoops by sliding magnets apart (not prying), protect fingers from snap force, and keep magnets at least 6 inches from pacemakers or insulin pumps.
  • Slide the magnetic ring to separate; do not let magnets “slam” together.
  • Keep fingertips out of the closing path when placing fabric.
  • Store magnets so they cannot jump together unexpectedly.
  • Success check: No bruising/pinched skin during loading, and the hoop closes in a controlled way.
  • If it still fails: Use slower, two-handed placement and clear the work surface so magnets cannot snap to tools or each other.
• Q: For production embroidery orders with excessive trims, hoop burn on thick/delicate fabric, and slow reload time, what is a practical upgrade path from technique to tools to machinery?
  A: Start by optimizing digitizing and setup, then upgrade hooping tools for speed/consistency, and only then consider a multi-needle machine if color changes become the bottleneck.
  • Level 1 (Technique): Turn Closest Join OFF, manually overlap Start/End points, and verify stabilizer choice to reduce puckering and trims.
  • Level 2 (Tooling): Use magnetic hoops when standard hoops cause hoop burn or when fast “reload” hooping is limiting throughput.
  • Level 3 (Machinery): Move to a multi-needle platform when frequent color changes and single-needle handling time cap daily output.
  • Success check: Trim count drops, re-hooping time decreases, and stitch-outs require less cleanup while maintaining clean outlines.
  • If it still fails: Run the Stitch Player to confirm there are no long jumps/orphan parts, then re-test hooping consistency and tension before scaling further.
