Digitize a Clean 2" Caduceus Logo in Wilcom (Without Making It “Bulletproof”)—Sizing, Sequencing, and Underlay That Actually Stitches Well

You are not alone if a medical logo like a Caduceus makes you nervous. Thin curves, tiny overlaps, and satin edges on a stretch knit polo can turn into a stiff, bulletproof patch or a distorted mess faster than almost any other design.

The good news: this design is absolutely manageable when you treat size, sequence, and underlay as one interconnected system.

In this industry-grade guide, we are rebuilding the Romero Threads workflow into a shop-ready Standard Operating Procedure (SOP). We will move from measuring real stitch-outs with a ruler to the "Center Run Switch" that saves small logos. Plus, we will cover the physical side—hooping and stabilizing—that ensures your file runs clean on a machine like a SEWTECH multi-needle.

The “Don’t Panic” Primer: Why Small Caduceus Logos Fail (and Why Yours Doesn’t Have to)

A Caduceus is basically a stress test for both digitizing and machine operation. It features long satin paths (the staff), tight turns (the snakes), and high-density overlaps (the wings).

When this fails, it usually manifests in one of three sensory realities:

1. The Ripple Effect: The edges look wavy because the fabric is pushing ahead of the foot.
2. The "Speed Bump" Texture: The snake looks lumpy because overlaps weren't tapered, causing stitches to pile up 4-5 layers deep.
3. The Bulletproof Patch: You shrank the art to 2 inches but kept the complex underlay, resulting in a logo so stiff it stands up on its own.

If you are producing polos for clinics or corporate teams, you are likely dealing with Pique Knit (textured, stretchy). This is where the physics of the needle meets the physics of the fabric. The digitizing choices we make below are your primary defense against these failures.

The Ruler Test That Saves Jobs: Choosing 2.5" vs 2" Caduceus Size Before You Digitize

Start with the smartest habit in commercial embroidery: measure real stitch-outs instead of guessing on-screen. A computer monitor lacks scale; a physical ruler tells the truth.

• 2.5" Height: Positioned as a better fit for bags, backpacks, and handbags (flat, stable substrates).
• 2.0" Height: The "sweet spot" for left-chest garment logos (polos, scrubs).

The Physics of Shrinking: At 2 inches, your satin columns and overlaps compress. Underlay that behaved perfectly at 2.5 inches can suddenly become too dense at 2 inches.

Pro Tip (The Beginner Sweet Spot): If you are new to digitizing, don't promise the customer a 2-inch logo immediately. Check the width of the smallest satin column (the tip of the snake's tail). If it drops below 1.5mm, you enter the danger zone where needles struggle to form a clean stitch. When you are on that edge, the fix isn't "cranking density"—it is underlay simplification.

If you are planning to stitch on polos, this is also the moment to think about hooping consistency. A stable hooping method matters as much as the file—especially if you are researching hooping for embroidery machine setups to handle stretchy pique without resulting in "hoop burn" (the shiny ring left by tight plastic hoops).

The “Hidden” Prep Pros Do: Artwork Setup, Reference Tracing, and a Fabric Reality Check

Romero calls the tracing portion "where everything starts," and he is correct. Before you touch density or underlay, you must get your foundation clean.

Prep Checklist: The "Pre-Flight" Inspection

(Do this before you digitize a single stitch)

• Substrate Confirmation: Are you sewing on flat canvas (Bag) or stretchy Pique (Polo)? This dictates your stabilizer choice later.
• Size Lock: Confirm the target finished height (2.5" vs 2").
• The "One-Stitch" Visualization: Look at the artwork. Plan the snake's path so it flows like one continuous stroke, minimizing trims.
• Symmetry Check: Don't digitize both wings. Perfect one side, then copy/mirror it.
• Consumables Check: Ensure you have sharp needles (75/11 Ballpoint for knits), fresh bobbin cases cleans of lint, and temporary adhesive spray (like KK100) if floating backing.

Watch out: Novices often jump into "Object Properties" too early. If the pathing and overlaps are wrong, perfect density settings won't save the design.

Manual Tracing the Snake in Wilcom EmbroideryStudio: The Running-Stitch “Skeleton” for Smooth Curves

Romero uses a simple running stitch tool to trace the snake first. This is not the final stitching; it is a visual scaffolding to establish curvature and overlaps.

Why Auto-Digitizing Fails Here: Auto-digitizng tools often misinterpret the snake's crossover points as separate blobs, leading to jump stitches and hard stops.

The Skeleton Method:

1. Trace the centerline of the snake with a running stitch tool.
2. Mark the Intersections: specifically where the snake body crosses over the staff or itself.
3. Visual Flow: Ensure curves are smooth. If the skeleton looks jerky, the final satin will look jerky.

This is a high-cognitive-load step that saves hours of frustration later. It prevents the "Why is there a bump here?" loop during the sew-out.

The Tapering Trick That Makes Overlaps Look Like One Continuous Stitch (Not a Stack of Bulges)

Here is a concept crucial for quality: Density Stacking.

Imagine satin stitches as tiny physical bridges. If two satin segments (the snake body crossing over itself) collide at full width and full density, you create a "speed bump" of thread—roughly 4 to 6 layers high.

The Solution: Internal Tapering Romero shapes the satin objects so they taper (get thinner/less dense) as they go under the overlapping segment.

• Sensory Check: When the snake stitches out, run your finger over the intersection. It should feel like a gentle swell, not a hard ridge.
• Visual Check: The transition should look like one flowing brush stroke. You shouldn't be able to "count" the segments.

Pro Tip: If you are struggling with tiny text clarity (a common complaint in the comments), this principle applies there too. Reduce underlay and overlap "bulk" to prevent small letters from turning into mush.

The Slow Redraw Reality Check: Sequencing Wings, Borders, and Hidden Jumps So Trims Stay Low

Romero runs a simulator ("Slow Redraw") to verify stitch order. He keeps the Design Information panel visible to monitor trims and object counts.

The Logic of Sequencing:

• Wing Fills First: These act as the background.
• Satin Borders Second: They frame the fills.
• The Snake Last: It sits on top of everything.

Hiding the Jumps: Romero plans jump stitches so they occur underneath where the snake body will eventually sew. This means the machine doesn't need to trim the thread; it just jumps, and the next object covers the travel thread.

• Result: A design with only 4 trims instead of 20+.
• Why it matters: Every trim takes 6-10 seconds of machine cycle time and increases the risk of the thread pulling out of the needle.

Setup Checklist: The Simulation Audit

• Wing Order: Do the wings sew symmetrically?
• Trim Count: Are there unnecessary trims between touching objects? Eliminate them.
• Jump Safety: Do jumps land where they will be covered?
• Object Count: Keep it lean. 3,700 stitches usually implies around 25-30 objects for this design. If you have 60+ objects, you have fragmented the design too much.


The Settings Romero Used: Fill Density 0.40 mm, Satin Density 0.38 mm, and Underlay That Keeps Edges Straight

Settings are a "moving target" based on fabric, but Romero provides a solid baseline for Pique Knit.

The Gold Standard Settings:

• Fill Stitch Density: 0.40 mm (Safe for most standard threads).
• Fill Stitch Length: 4.0 mm.
• Satin Stitch Density: 0.38 mm (Slightly tighter for crisp borders).

The Underlay Strategy (For the 2.5" Version):

• Primary Satin: Edge Run + Zigzag.
• Small Satin: Double Zigzag.

Why Edge Run + Zigzag?

• Edge Run: Like a chalk line. It travels the perimeter to tack the fabric onto the stabilizer, preventing the knit from stretching.
• Zigzag: Like a foundation. It lofts the top stitches up so they don't sink into the textured pique fabric.

Sensory Anchor: When you pull the fabric after stitching, the logo should move with the shirt, not pull away from it.

The Underlay Tab That Makes or Breaks Knit Logos: Edge Run + Zigzag (Until You Go Small)

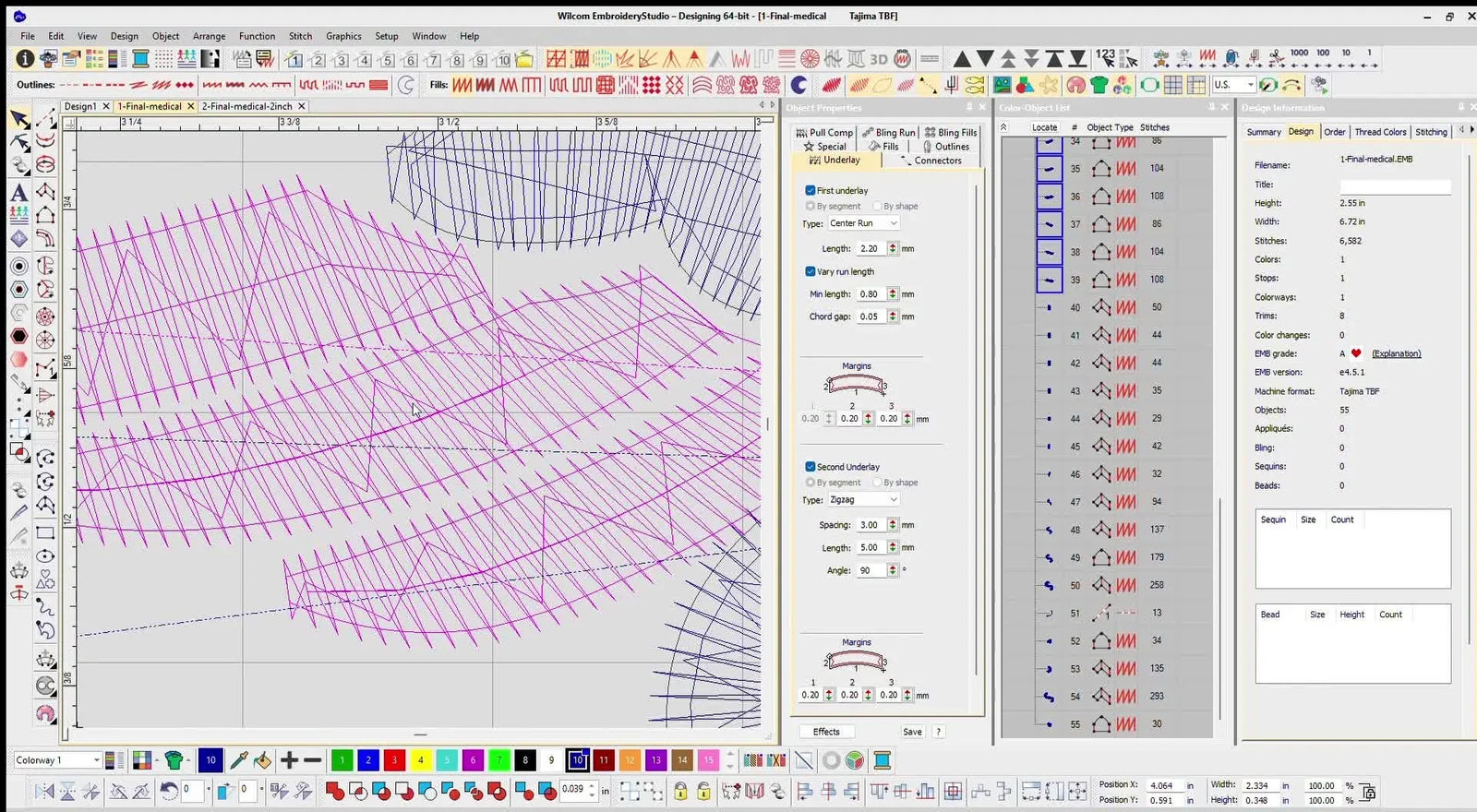

Romero shows the underlay settings explicitly. Note the wireframe view: you can physically see the "rail tracks" (edge run) and the "ladder" (zigzag) beneath the satin.

The Cost of Structure: Underlay is not free. It adds thread count and stiffness. On a 2.5" logo, this stiffness is good—it keeps the Caduceus straight. On a smaller logo, this same structure becomes a liability.

Warning: Mechanical Hazard. Do not chase sharpness by blindly cranking density (e.g., lowering spacing to 0.30mm). On knit polos, excessive density causes "tunneling" (where the fabric puckers inward) and can even deflect the needle, causing it to strike the throat plate and shatter. If the edge isn't clean, fix the structure (underlay), not the density.

Downsizing from 2.5" to 2": The Center Run Switch That Prevents a “Bulletproof” Logo

This is the most critical technical lesson in the workflow. Romero duplicates the design and shrinks it to 2 inches.

The Problem: If you keep "Edge Run + Zigzag" on a 2mm wide satin column, you are cramming 4 layers of thread into a space merely wide enough for 2.

The Fix:

1. Select the smaller satin objects (the snake head, the thin staff).
2. Change Underlay Type: Switch from Edge Run to Center Run.

The Difference:

• Before: Two rails + zigzags + top stitch = Rigid, thick, needle breaks.
• After: One single center line + top stitch = Flexible, clean, clean definition.

Expected Outcome: The 2-inch logo stays readable and drapes with the fabric, rather than feeling like a piece of cardboard glued to the chest.

The “Why” Behind the Fix: Underlay Complexity Doesn’t Scale Down Linearly

When you resize a design, the thread thickness does not change. A 40-weight thread is always the same thickness.

Therefore, you have less "real estate" inside the object, but the same amount of thread trying to occupy it.

• Edge Run starts to poke out the sides.
• Zigzag becomes a solid fill because the steps are too close together.

The Golden Rule of Downsizing: When you go down in size, simplify first. Strip away complex underlay. A single Center Run is often all the support a 1.5mm - 2mm satin column needs.

Polo Shirt Stitch-Out Specs: 60/40 Poly-Blend Pique + 3 oz Cutaway Stabilizer (and What That Implies)

Romero reveals the substrate:

• Garment: Port Authority Polo.
• Material: 60/40 Poly-Blend Pique (Textured, Stretchy).
• Stabilizer: 1 sheet of 3.0 oz Cutaway.

Why Cutaway? Make this your mantra: "If you wear it, cut it." Tearaway stabilizer eventually disintegrates in the wash. Knit fabric is unstable. If you use tearaway on a polo, the logo will distort and sag after three wash cycles. Cutaway remains permanent, supporting the stitches for the life of the garment.

Decision Tree: Fabric → Stabilizer & Hooping Strategy

Use this logical flow to make decisions on the shop floor:

1. Is the garment a Knit (Polo, T-shirt, Hoodie)?
   • YES: Use Cutaway Stabilizer (2.5oz - 3.0oz).
     • Check: Is it slippery performance wear? Add a layer of Water Soluble Topping to keep stitches sitting high.
   • NO: (Canvas, Denim, Cap) -> You may use Tearaway or Breakaway backing.
2. Is the logo small (approx. 2") with fine Satin details?
   • YES: Use Center Run underlay on fine columns. Lower top density slightly (0.42mm).
   • NO: Use Edge Run + Zigzag for sharp definition.
3. Are you fighting Hoop Burn?
   • YES: The plastic hoop is crushing the fabric fibers. Action: Steam the garment to relax fibers. Upgrade Option: Switch to magnetic embroidery hoops. These hold fabric with magnetic force rather than friction, eliminating shine marks and reducing hand strain.


Comment-Driven Pro Tips: Thread Weight, Software Choices, and When to Outsource Digitizing

Romero’s interaction with comments highlights practical realities:

• Thread Weight: Standard 40-weight polyester or rayon. If you want finer detail on the 2" version, you could switch to 60-weight thread (and a smaller #65/9 needle), but for standard production, optimizing the file for 40wt is more efficient.
• Software Paths: Romero uses Wilcom, but suggests Wilcom Hatch 3 for beginners. The concepts—underlay, compensation, density—are universal. Focus on learning the physics, not just the buttons.
• Outsourcing: Sometimes, the best use of your time is to stitch, not digitize. If a file is stopping production, paying a pro $15-$25 to digitize it is often cheaper than ruining 5 shirts testing your own version.


The Stitch-Out Inspection Ritual: Judge It at Real Viewing Distance, Not Nose-to-Fabric

Novices obsess over microscopic flaws. Pros look at the "Three Foot Rule."

The Inspection Protocol:

1. Audio Check: Listen to the machine. A rhythmic "thump-thump-thump" is good. A sharp "slap" or grinding noise indicates tension issues or a dull needle.
2. Visual Distance Check: Place the polo on a hanger. Step back 3 feet. Does the Caduceus read clearly? Is the staff straight?
3. Tactile Check: Run your hand over the back. Is the bobbin thread smooth? Is the cutaway trimmed neatly (leaving about 0.5" around the design)?

Operation Checklist: Post-Sew Analysis

• Readability: Does the snake look distinct from the staff?
• Stability: Are the edges flat, or is the fabric puckering (tunneling)?
• Feel: Is the logo flexible enough to wear, or is it a "bulletproof patch"?
• Registration: Did the outline line up with the fill, or is there a gap? (Adjust Pull Compensation if gaps exist).

Warning: Safety First. Always keep fingers clear of the needle bar and take-up lever during operation. When changing needles or clearing thread nests, engage the emergency stop or power down. A needle puncture is a serious shop injury that requires immediate medical attention.

The Upgrade Path That Actually Makes Sense: When Hooping Speed Becomes the Bottleneck

Once your file is clean (thanks to the 2" size fix), your bottleneck will shift from digitizing to hooping.

If you are doing one shirt, traditional hoops are fine. If you are doing 50 corporate polos:

1. The Pain: Your wrists hurt, and re-hooping to get the logo straight takes 2-3 minutes per shirt.
2. The Fix (Level 1): Use a hooping station for embroidery. This fixtures the shirt so you place the logo in the exact same spot every time.
3. The Fix (Level 2): Upgrade the hoop. Using a magnetic embroidery hoop allows you to "slap and go." It holds thick seams and button plackets that traditional hoops can't grip.
4. The Fix (Level 3): If your single-needle machine can't keep up with orders, this is the time to look at a multi-needle solution like a SEWTECH setup. Multi-needle machines allow you to queue colors without manual thread changes, doubling your daily output.

Warning: Magnet Safety. Magnetic hoops use powerful Neodymium magnets.
1. Pinch Hazard: They can snap together with crushing force. Keep fingers clear of the mating surfaces.
2. Medical Danger: Keep them at least 6 inches away from pacemakers and implanted medical devices.
3. Electronics: Store away from credit cards and hard drives.

Final Takeaway: Size + Sequence + Underlay = A Caduceus You Can Run on Polos All Day

Romero’s workflow succeeds because it respects reality. He doesn't force a complex 2.5" file to fit a 2" space.

Your Roadmap to Success:

1. Pick the right size (2.5" for bags, 2" for garments).
2. Skeleton Trace the snake to control flow and overlaps.
3. Simulate to Sequency triggers and hide jump stitches.
4. Simplify Underlay (Switch to Center Run) when objects get small.

If you follow these steps, you will stop fighting "mystery bulk" and start producing logos that look crisp, wear comfortably, and run consistently—exactly what commercial embroidery is supposed to be.

FAQ

• Q: What pre-flight consumables and machine checks should be done before stitching a 2"–2.5" Caduceus logo on a SEWTECH multi-needle embroidery machine?
  A: Do a quick “pre-flight” check first—most small-logo failures come from needles, lint, or poor prep, not the file.
  • Confirm the substrate (pique knit polo vs canvas bag) and lock the target height (2.0" vs 2.5") before changing any settings.
  • Install a sharp 75/11 ballpoint needle for knits and verify the bobbin area/bobbin case is clean of lint.
  • Prep for stable backing attachment: use temporary adhesive spray if floating backing is part of the setup.
  • Success check: the machine runs with a steady, rhythmic sound and the first outlines/fills look smooth without sudden vibration or thread “drag.”
  • If it still fails… stop and re-check needle condition and lint buildup before touching density or underlay.
• Q: How can hoop burn be prevented when hooping pique knit polos for left-chest logos using traditional plastic embroidery hoops?
  A: Reduce friction and crushing force—hoop burn is usually fiber shine from over-tight plastic hooping on knits.
  • Hoop with only the tension needed to hold the fabric flat; avoid “drum-tight” hooping on pique.
  • Steam the garment after unhooping to relax and lift crushed fibers.
  • Keep placement consistent so re-hooping is minimized (re-hooping increases ring marks and distortion risk).
  • Success check: after stitching and steaming, the hoop ring is minimal and the knit surface looks even without a shiny imprint.
  • If it still fails… consider upgrading to magnetic hoops, which hold with magnetic force instead of friction and typically reduce shine marks.
• Q: What stabilizer should be used for a 2" Caduceus satin logo on a 60/40 poly-blend pique polo, and how can the correct stabilizer choice be confirmed?
  A: Use one sheet of 3.0 oz cutaway stabilizer for pique polos—knits need permanent support for wash/wear.
  • Apply 2.5–3.0 oz cutaway for knit garments; add water-soluble topping if the fabric is slippery performance wear and stitches tend to sink.
  • Trim cutaway neatly after sewing, leaving about 0.5" around the design for ongoing support.
  • Success check: when gently pulling the fabric, the logo moves with the shirt instead of “pulling away,” and edges stay flat (no tunneling).
  • If it still fails… review underlay complexity on small satin columns (center run is often needed at 2").
• Q: What underlay change prevents a “bulletproof patch” feel when downsizing a Wilcom EmbroideryStudio Caduceus from 2.5" to 2" on a knit polo?
  A: Switch thin satin elements from Edge Run to Center Run underlay—downsizing requires simplifying structure, not increasing density.
  • Duplicate and resize the design to 2.0", then select the smallest satin objects (snake head, thin staff, fine columns).
  • Change underlay type from Edge Run (rails) to Center Run on those fine columns to reduce bulk and stiffness.
  • Avoid “fixing” small edges by cranking density (for example pushing spacing extremely tight), because knit tunneling and needle deflection can follow.
  • Success check: the 2" logo stays readable and flexible on the chest, not stiff like cardboard, and intersections feel like a gentle swell rather than a hard ridge.
  • If it still fails… re-check overlap tapering at intersections to prevent density stacking and “speed bump” ridges.
• Q: What stitch density baseline did Romero use for a Caduceus on pique knit, and when should density NOT be tightened for sharper edges?
  A: Use the baseline first—Fill 0.40 mm and Satin 0.38 mm are a solid starting point on pique knit, and sharpness should come from underlay/structure, not extreme density.
  • Set fill density to 0.40 mm (with 4.0 mm fill length) and satin density to 0.38 mm as the initial baseline for pique.
  • Use Edge Run + Zigzag underlay for larger satin borders, then simplify to Center Run on small satin columns when the design is reduced.
  • Do not chase sharpness by blindly tightening spacing (e.g., pushing toward very tight values) because it can cause tunneling and even needle/throat-plate strikes.
  • Success check: borders look crisp without puckering, and the machine sound remains smooth (no sharp “slap” or harsh vibration).
  • If it still fails… troubleshoot structure first (underlay choice and overlap tapering), then re-evaluate stabilizer and needle condition.
• Q: How can jump stitches and trims be reduced in a Wilcom Caduceus file so a SEWTECH multi-needle embroidery machine runs faster and more reliably?
  A: Sequence for coverage and hide travel under future stitching—fewer trims means less cycle time and fewer pull-outs.
  • Simulate using Slow Redraw and keep trims/object count visible while auditing stitch order.
  • Stitch wing fills first, satin borders second, and the snake last so top elements cover earlier travel where possible.
  • Plan jump stitches to land under areas that will be covered later to avoid unnecessary trims (aim for a lean trim count).
  • Success check: the simulation shows jumps getting covered and the trim count stays low (not exploding to 20+ without a reason).
  • If it still fails… look for fragmented objects (too many separate pieces) and redraw paths so the snake flows like one continuous stroke with fewer stops.
• Q: What safety steps should be followed when clearing a thread nest or changing needles on a SEWTECH multi-needle embroidery machine?
  A: Stop the machine fully before hands go near the needle bar—needle punctures are serious and nests can re-catch instantly if powered.
  • Engage the emergency stop or power down before clearing thread nests or replacing needles.
  • Keep fingers clear of the needle bar and take-up lever while the machine is energized.
  • Resume only after confirming the area is clear and thread path is properly set.
  • Success check: the machine restarts without immediate re-nesting and there is no abnormal grinding or sharp impact sound.
  • If it still fails… stop again and inspect for hidden thread wrapped in the hook/bobbin area and verify the needle is not bent or dull.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops for polo production in a commercial shop?
  A: Treat magnetic hoops as pinch-and-medical hazards—handle them deliberately and store them safely.
  • Keep fingers out of the mating surfaces; neodymium magnets can snap together with crushing force.
  • Keep magnetic hoops at least 6 inches away from pacemakers and implanted medical devices.
  • Store magnetic hoops away from credit cards and sensitive electronics/media.
  • Success check: hooping is faster with fewer re-hoops, and operators can place hoops without sudden “snap” incidents or pinched fingers.
  • If it still fails… slow down the handling process and use a consistent hooping routine (and consider a hooping station to reduce awkward alignment moves).
