Crisp Embroidery on Waffle-Weave Kitchen Towels (SWF 15-Needle): The Topping + Hooping Routine That Stops “Sinking” for Good

How to Embroider Waffle-Weave Towels Without Stitches Sinking: A Commercial Guide

Textured towels can make even confident stitchers feel nervous—because one small mistake turns clean lettering into a fuzzy, sunken mess that looks amateurish.

If you’re staring at a waffle-weave kitchen towel and thinking, "This fabric is going to eat my stitches," take a breath. You are right to be cautious. Waffle weave is essentially a grid of peaks and valleys, and thread naturally wants to settle into the low points, destroying the definition of your design.

However, the method demonstrated in the source video is solid foundation: a stabilizer "sandwich," sensible speed, and patient monitoring. With a few "veteran tweaks"—the kind you only learn after ruining a dozen towels—you can achieve sharp fruit outlines and readable text without hoop burn, shifting, or that dreaded sink-in effect.

Don’t Panic: Waffle-Weave Kitchen Towel Embroidery Is Predictable Once You Control the Surface

Waffle weave behaves like a tiny, unstable landscape. Satin stitches and small text love to fall into the "valleys" of the weave. This is why the video emphasizes a non-negotiable rule described in every professional shop: always use water-soluble topping on textured items.

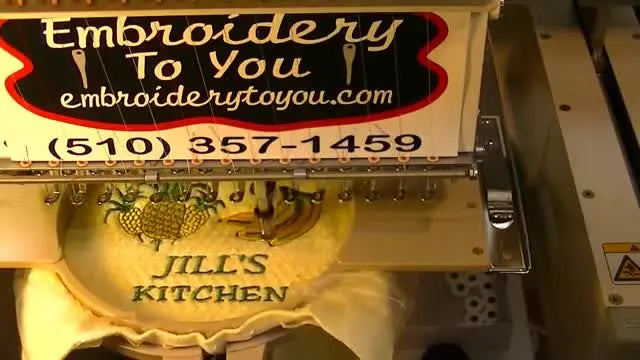

In the demonstration, the operator embroiders a personalized towel with a fruit motif (pineapples and bananas) plus the name text "Jill’s Kitchen." The design is roughly 18,000 stitches, runs at 720 RPM, and uses a 75/11 sharp needle.

Why these specific numbers?

• 720 RPM: This is a "safety speed." While commercial machines can go faster, towels create drag. 720 RPM is the sweet spot where the machine maintains rhythm without bouncing the hoop.
• 75/11 Sharp: Unlike ballpoint needles used for knits, a "Sharp" point pierces the thick waffle loops cleanly, preventing the needle from deflecting off the texture and creating crooked lines.

One mindset shift saves projects: Towels are not "hard," they are just surface-sensitive. Once you stabilize the surface (topping) and stabilize the base (backing), the rest becomes routine.

The “Hidden” Prep Pros Do First: Stabilizer Stack, Needle Choice, and a Quick Fabric Reality Check

Before you hoop anything, you must engineer the towel to behave like a piece of flat cardstock. If you skip this, no amount of machine tuning will save the design.

The "Sandwich" Formula (Video Method Verified)

1. Bottom Layer (Foundation): Tearaway backing. The video uses tearaway, which is standard for stable woven towels. It provides resistance against the needle's pounding but removes cleanly.
2. The Meat (Fabric): The waffle-weave towel itself.
3. Top Layer (Surface Tension): Water-soluble topping (Solvy). This creates a smooth glass-like surface over the waffle pits, ensuring stitches sit on the fabric, not in it.

If you’re running a swf embroidery machine, this prep is critical. Multi-needle heads generate significant force; if your stabilization is weak, the high-speed impact will push the fabric down through the throat plate, causing "birdnesting" (tangles).

My 20-Year "Reality Check" (The Pro Nudges)

• Adhesion matters: Experienced embroiderers often use a light mist of temporary spray adhesive (like 505) to bond the backing to the towel before hooping. This prevents the "shifting" that causes outlines to miss their fill.
• Needle Condition: Start with a fresh needle. A burred needle on a towel will snag a loop and pull a thread run across the entire width of the fabric.
• Hidden Consumable: Keep a water pen or spray bottle handy for the end. You'll need it to dissolve the topping cleanly.

Warning: Physical Safety
Keep fingers, loose sleeves, and trimming tools away from the needle area while the machine is running. A 15-needle head moves faster than human reaction time. Never try to brush away a thread tail while the machine is stitching.

Prep Checklist (Do this BEFORE you hoop)

• Fabric Check: Is the towel pre-washed? (Shrinkage can distort embroidery later).
• Backing: Cut Tearaway backing 2 inches larger than the hoop on all sides.
• Topping: Cut Water-Soluble topping to cover the entire design area.
• Needle: Install a new 75/11 Sharp needle.
• Bobbin: Check bobbin tension; it should slide with slight resistance (like pulling a spiderweb), not loosey-goosey.


Hooping a Waffle-Weave Dish Towel Without Distortion: Tension, Grain, and “Don’t Stretch It” Discipline

The video shows the towel hooped in a standard round plastic hoop (approx. 150mm - 180mm). This works, but towels punish sloppy hooping technique.

Here is the physics in plain language: If you pull a waffle towel tight like a drum skin, you stretch the grid open. You stitch your design on that open grid. When you unhoop, the grid snaps back to its relaxed state, and your beautiful circle turns into an oval, and your text looks like it was written during an earthquake.

A Reliable Hooping Routine

1. Float or Hoop: The video implies hooping the backing and towel together.
2. The "Neutral" Tension: Place the inner ring. Press the outer ring down. Tighten the screw. Do not pull on the towel edges after the hoop is closed. If it's rumbled, re-hoop it. Don't pull it smooth.
3. Topping Placement: Lay the water-soluble topping on top. You can pin it to the corners of the stabilizer can tape it, or float it.

If you are doing hooping for embroidery machine production runs—say, 50 towels for a corporate client—you will quickly find that standard plastic hoops cause wrist strain and leave "hoop burn" (crushed texture rings) that are hard to steam out.

The "Tool Upgrade" Trigger

When does a hobby become a headache? When you are fighting thick hems or struggling to close the hoop screw. In production environments, professionals almost universally upgrade to Magnetic Hoops.

Why? Because magnetic embroidery hoops use vertical magnetic force rather than friction to hold the fabric.

• No "Hoop Burn": They don't crush the towel texture as aggressively.
• Thickness Handling: They snap shut over thick towel borders where plastic hoops fail.
• Speed: You eliminate the "unscrew, loosen, shove, tighten" cycle.

Warning: Magnet Safety
Magnetic hoops are powerful industrial tools. Keep them away from pacemakers and implanted medical devices. Watch your fingers—the "snap" can pinch severely. Store away from credit cards and phone screens.

Stabilizer Decision Tree for Towels: Pick the Stack That Protects Text and Prevents Sink-In

Confusion about backing ruins more towels than machine settings do. Use this logic flow to determine your setup.

Decision Tree: Towel Fabric → Stabilizer Choice

1. Is the towel Woven (rigid, like a tea towel) or Knitted (stretchy, like a microfiber cloth)?
   • Woven: Use Tearaway. It supports the stitches but tears away cleanly, leaving the back of the towel soft.
   • Knitted/Stretchy: Use Cutaway. Tearaway is risky here; if the towel stretches, the stitches will break.
2. Is the texture Deep (Waffle/Terry) or Flat (Flour Sack)?
   • Deep Texture: REQUIRED: Water-Soluble Topping.
   • Flat: Topping is optional but recommended for small text to make it "pop."
3. Is the design heavy (High Stitch Count/Dense Fill)?
   • Yes: Use Medium Weight Tearaway (approx 2.5oz) or two layers of light tearaway.
   • No: Single layer is fine.

This structure explains why the video's project looks crisp: The combination of a stable woven base + Tearaway + Solvy Topping creates the perfect environment for the thread.

SWF 15-Needle Setup That Actually Works on Towels: 720 RPM, 75/11 Sharp, and a Calm Color Plan

The video sets the machine to 720 RPM. On a rigid 15 needle embroidery machine, you might be tempted to run at 1000 RPM. Don't do it on your first towel.

Towels are heavy. As the hoop moves on the X and Y axis, the weight of the towel creates inertia (drag). If you run too fast, the pantograph (the arm moving the hoop) might overshoot slightly, causing registration errors (where the outline doesn't match the fill).

Sensory Checks: What to Watch and Hear

• The Sound: Listen for a rhythmic thump-thump-thump. A sharp clack-clack usually means the presser foot is hitting the hoop, or the needle is hitting the needle plate.
• The Sight: Look at the hoop. Is the towel "bouncing" up and down like a trampoline? If yes, Slow Down. Bouncing causes loop distortions.
• The Thread: Watch the uptake lever. If the thread is shredding or fraying, your needle might be getting hot from the friction of the heavy towel. Slow down or change the needle.


Running the Fruit Motifs Cleanly: Let the Machine Work, but Don’t Ignore the “Early Warning” Signs

The design sequence is Green (Pineapple Crowns) → Golden Yellow (Fruit) → Black (Outlines/Text).

The "Underlay" Litmus Test

Watch the very first stitches (the underlay). This is the zig-zag travel stitch that happens before the solid color fills in.

• Good: The underlay sits on top of the Solvy topping.
• Bad: The underlay disappears into the waffle grid.
• Action: If the underlay disappears, PAUSE IMMEDIATELY. You likely forgot the topping, or your density is too low. Place another layer of topping over the area and resume. You cannot fix sinking stitches after the fact.

If you notice your machine embroidery hoops are slipping (the fabric is getting loose), stop. A loose towel is a ruined towel. This is another scenario where the constant, non-slip pressure of magnetic frames saves the day.

The Make-or-Break Moment: Black Outlines and “Jill’s Kitchen” Text on Waffle Weave

The final color is Black. This does two jobs: it outlines the fruit and writes the text "JILL’S KITCHEN."

This is the most dangerous part of the job.

1. Registration: Since the towel has been vibrating for 15 minutes, has it shifted?
2. Legibility: Small satin columns in text are prone to sinking.

Three Pro Habits for Crisp Text

• Refloat the Topping: If the Solvy has been perforated too much by the earlier fruit stitches, place a fresh scrap of Solvy over the area where the text will go. Better safe than sorry.
• Watch the Loops: Ensure the presser foot isn't catching on a stray waffle loop.
• Don't Rush: Even if you ran the fills at 750 RPM, consider slowing to 600 RPM for small text. Precision wins over speed here.


The “Why” Behind Topping on Towels: How Water-Soluble Film Protects Stitch Definition

Why does the video insist on topping? Imagine trying to walk across a grate. You would fall through. Now imagine laying a piece of plywood over the grate. You can walk easily.

Water-soluble topping is that plywood.

• Bridge Effect: It supports the thread as the stitch forms, keeping it elevated until the tension is locked.
• Tension Buffer: It prevents the thread from snagging on the rough texture of the towel fibers.

This is why the "Jill's Kitchen" text looks bold and continuous in the final shot, rather than broken and "dotty."

Finishing Like a Shop (Not a Hobby Table): Remove Topping, Tear Away Backing, Then Trim With Intention

The job isn't done when the machine stops. Post-processing is where you add the "retail finish."

The Correct Finishing Order

1. Remove Top Layer (Dry): Tear away the excess Solvy topping. Do not wet it yet! Pull it gently. If little bits remain in tight corners, use tweezers.
2. Remove Back Layer: Turn the towel over. Place your thumb against the stitches to support them, and tear the backing away. Pull the stabilizer, not the towel.
3. Trim Jump Stitches: Use small snips to trim any connecting threads.
4. Remove Topping Residue (Wet): Now—and only now—use a water pen, a wet Q-tip, or a misty spray bottle to dissolve the remaining Solvy bits inside the letters. Dab it; don't scrub it (scrubbing makes towels fuzzy).


Common Towel Embroidery Problems (and Fixes) You Can Apply Immediately

Troubleshooting is 90% of the job. Here is a quick reference guide mapped to Symptoms and Causes.

Setup Checklist (Right Before You Hit Start): The 30-Second Routine That Prevents 30 Minutes of Rework

Commit this to memory. These checks prevent 99% of failures.

• Design Orientation: Is the design right-side up relative to the towel bottom?
• Clearance: Is the back of the towel clear of the machine arm? (Don't stitch the towel to itself!)
• Topping: Is the Solvy flat and covering the entire area?
• Thread Path: pull the thread slightly—does it feel smooth like flossing teeth, or is it jagged?
• Speed: Manually cap the speed at 700-750 RPM on the control panel.
• Trace: Run a "Trace" or "Contour" on the screen to ensure the needle won't hit the plastic hoop frame.


The Upgrade Path When Towels Become a Product: Faster Hooping, Less Fatigue, Cleaner Results

The workflow shown in the video—standard hoop, tearaway, topping—is perfect for learning. It works.

But if you start getting orders for bridal showers, golf tournaments, or corporate gifts, you will hit a wall. That wall is Time and consistency.

If you frequently search for terms like embroidery hoops for swf hoping to solve issue with hoop marks or hand fatigue, consider this your trigger to upgrade:

1. For Speed & Quality: Magnetic Hooping Stations. These allow you to hoop a towel in 5 seconds with zero distortion, solving the "wavy text" issue at the source.
2. For Volume: If you are doing 50+ towels a day, a single-head machine is a bottleneck. Moving to a dedicated multi-needle system (like the SEWTECH supported ecosystem) allows you to queue colors without manual changes, drastically increasing profit per hour.

Operation Checklist (While Stitching)

• Listen: Monitor for the rhythmic "thrum," not a "clack."
• Watch Edge: Ensure the towel isn't bunched against the machine body.
• Topping Watch: If topping peels up, use a piece of tape or a magnetic window holder to pin it down safely (keep hands away!).

By respecting the weave, controlling the surface with topping, and upgrading your holding tools when production demands it, you turn "risky" towel projects into your most profitable best-sellers.

FAQ

• Q: How do I stop stitches from sinking when embroidering waffle-weave kitchen towels on an SWF 15-needle embroidery machine?
  A: Use a stabilizer “sandwich” with water-soluble topping so stitches sit on the surface, not in the weave.
  • Add water-soluble topping over the entire design area before stitching (double-layer it if the waffle texture is very deep).
  • Stabilize the back with tearaway backing cut at least 2 inches larger than the hoop on all sides.
  • Pause early if needed: if the first underlay disappears, stop and add topping before continuing.
  • Success check: the underlay and satin stitches remain visible on top of the topping instead of vanishing into the “valleys.”
  • If it still fails: slow down and review hoop stability, because bouncing or shifting can worsen sink-in and clarity.
• Q: What needle and speed settings are a safe starting point for waffle-weave towel embroidery on an SWF 15-needle embroidery machine?
  A: A safe starting point is 720 RPM with a fresh 75/11 Sharp needle to reduce deflection and improve line clarity.
  • Install a new 75/11 Sharp needle before starting (towels can expose burrs fast).
  • Cap speed around 700–750 RPM for the main design, and slow to about 600 RPM for small text if precision drops.
  • Listen and watch while stitching: slow down if you hear sharp clacking or see towel “bouncing.”
  • Success check: the machine sounds like a steady rhythmic thrum (not clack-clack), and outlines register cleanly with fills.
  • If it still fails: check for hoop contact (trace/contour first) and inspect needle condition for heat or burr damage.
• Q: How do I hoop a waffle-weave dish towel in a standard plastic embroidery hoop without wavy text or distorted shapes?
  A: Hoop with neutral tension—close the hoop first and do not stretch the towel afterward.
  • Hoop the towel and backing together, then tighten the screw without pulling towel edges to “smooth” it.
  • Re-hoop if the towel is rumbled; do not tug the waffle grid flat after the hoop is closed.
  • Place water-soluble topping on top after hooping and secure it (pin/tape/float) so it stays flat.
  • Success check: after unhooping, circles stay round and lettering looks stable rather than “earthquake wavy.”
  • If it still fails: consider a tool upgrade to magnetic hoops to reduce distortion and prevent slipping on thick towel areas.
• Q: How can I use temporary spray adhesive (like 505) correctly for waffle-weave towel embroidery to prevent shifting and outline misregistration?
  A: Lightly bond the backing to the towel before hooping so the stack behaves as one layer.
  • Spray a light mist on the stabilizer (not a heavy soak), then smooth the towel onto it before hooping.
  • Hoop the bonded layers without stretching, then add water-soluble topping on top.
  • Monitor early stitches: stop immediately if you see outlines drifting away from the fill path.
  • Success check: outlines land exactly where fills expect them, with no “shadow” offset as stitching progresses.
  • If it still fails: slow down (drag from towel weight can cause overshoot) and re-check hoop tightness or switch to a more secure holding method.
• Q: What is the correct order to remove water-soluble topping and tearaway backing after embroidering waffle-weave towels?
  A: Remove topping dry first, then tear away backing, then dissolve residue with water—wetting too early can fuzz the towel.
  • Tear away excess water-soluble topping while dry; use tweezers for tiny pieces in corners.
  • Turn the towel over and tear away the backing while supporting stitches with a thumb; pull stabilizer, not towel.
  • Trim jump stitches, then dab water (pen/Q-tip/mist) only to dissolve leftover topping inside letters.
  • Success check: text edges stay crisp and the towel surface is not scrubbed fuzzy around the embroidery.
  • If it still fails: use gentler dabbing (no scrubbing) and confirm topping was fully covering the design during stitching.
• Q: What are the quickest fixes when white bobbin thread shows on top during waffle-weave towel embroidery on an SWF multi-needle machine?
  A: Loosen top tension slightly and make sure the upper thread path feeds smoothly, because thick towels increase friction.
  • Reduce top tension in small steps rather than large jumps.
  • Check the thread path for snags (for example at the spool cap area) and rethread if it feels jagged.
  • Watch the stitch formation for a few seconds before committing to the full run.
  • Success check: the top stitches look solid in the intended color with minimal white bobbin “peeking” on the surface.
  • If it still fails: re-check bobbin tension feel (slight resistance, not loose) and confirm needle is fresh and correct type.
• Q: What safety rules should operators follow when running a 15-needle commercial embroidery head on towels, and what extra precautions apply to magnetic embroidery hoops?
  A: Keep hands and tools away from the needle area while running, and treat magnetic hoops as pinch-hazard industrial magnets.
  • Stop the machine before trimming, brushing threads, or adjusting topping—never reach into the stitching zone while the head is moving.
  • Keep loose sleeves and tools clear; a multi-needle head moves faster than human reaction time.
  • Handle magnetic hoops with controlled placement to avoid finger pinches; store them away from pacemakers, implanted medical devices, and sensitive cards/screens.
  • Success check: adjustments happen only when the machine is stopped, and hooping/unhooping is controlled with no “snap” incidents.
  • If it still fails: switch to a safer workflow (pause/stop procedures) and review shop handling rules before continuing production.
