Brother Luminaire My Design Center Appliqué Outlines That Actually Land on the Fabric (Satin vs Blanket, Scan, Trace, Fix)

If you’ve ever stared at your Brother Luminaire screen thinking, "That outline looks perfect," and then watched the stitch-out miss the appliqué edge by a solid millimeter, take a breath. You are experiencing a universal friction point in machine embroidery: the gap between digital theory and physical reality.

On-screen digitizing in My Design Center is brutally honest: wherever your line is, that’s where the needle goes. It does not account for the 3D nature of fabric, the drag of the presser foot, or the physics of thread tension.

In this guide, we are deconstructing Mel’s workflow for tracing fabric shapes. We will move beyond simple steps and inject the "shop-floor" physics—the tactile cues, the specific density numbers, and the tool upgrades—that turn a frustrating gamble into a repeatable engineering process.

The Calm-Down Primer: Why Brother Luminaire My Design Center Tracing Feels Hard (But Gets Easy Fast)

My Design Center is a powerful tool because it closes the loop between scanning and stitching. However, it exposes every microscopic wobble in your hand. Hand-eye coordination on a glass screen feels "slippery" compared to paper because there is no friction feedback.

Two fundamental truths will stabilize your mindset:

1. The "Parallax" Factor: The glass screen has thickness. If you view it from an angle, the line you draw will be offset from where the sensor detects it. You must position your head directly perpendicular to the screen.
2. The "Screen Lie": A stitch line that looks like a thick rope on-screen often stitches out as a thin thread. You must learn to trust numbers, not visuals.

If you plan to produce quilt blocks in volume, or if you are running a small business doing appliqué batches, this is where a hooping station for embroidery machine becomes a quiet game-changer. It standardizes the physical placement of your fabric before it ever reaches the camera, reducing the "why did it shift this time?" mystery by ensuring bias grains are perfectly straight.

Warning: Mechanical Safety. Keep fingers, loose sleeves, and long hair at least 4 inches away from the needle area during stitch-out. Never reach inside the hoop while the machine is active. A fast outline stitch (traveling at 800+ SPM) can trap a finger or break a needle instantly if you bump the frame.

The “Hidden” Prep Pros Do First: Hoop the Quilt Block So the Scan Matches Reality

Mel starts with the absolute requirement: have the fabric shapes bonded and hooped before scanning.

Beginners often scan, then try to fuse the appliqué. This is backward. The heat of fusing changes the fabric dimensions. Here is the professional standard for preparation:

• The "Floss" Test: Your appliqué edge must be fused completely flat. Run your fingernail over the edge; if it catches, the scanner will see a shadow and you will trace a "ghost" line.
• The "Drum" Tension: The fabric must be hooped securely. Tap it gently; it should sound like a dull thud, not loose, but not stretched so tight it warps the grain.
• Contrast is King: Mel uses red and black thread for the demo. In production, use a thread that contrasts with your fabric for the test, then switch to matching for the final.

If you struggle with thick quilt sandwiches or delicate fabrics that bruise under standard clamps, this is where magnetic embroidery hoops offer a massive functional upgrade. By using magnetic force rather than friction rings, you eliminate "hoop burn" and allow for adjustments without un-hooping the entire project. This stability is critical for keeping the scan aligned with the stitch.

Prep Checklist (Do this before touching the screen)

• Physical Fuse Check: Appliqué shapes are ironed down; edges do not lift when brushed with a finger.
• Hoop Integrity: Fabric is taut (drum-skin feel) and the inner hoop does not pop out when pressed.
• Consumable Check: A fresh needle (Size 75/11 or 90/14 Topstitch) is installed to prevent deflection.
• Optic Check: The camera lens (above the needle) is free of lint or oil smudges.
• Clearance: Ensuring the embroidery arm has full range of motion without hitting a wall or thread stand.


The Scan Choice That Makes or Breaks It: Using “Image Scan” on Brother Luminaire (Not the Other Two)

Inside the Scan menu, you are presented with three options. They look similar but function differently. For tracing, you must choose Image Scan.

• Line Scan: Attempts to auto-digitize line art (useless for fabric).
• Illustration Scan: Attempts to turn color blocks into embroidery data (messy for appliqué).
• Image Scan: Takes a high-resolution photo and places it as a passive background layer.

What you should observe:

1. The scanner arm moves smoothly to the back.
2. The machine processes for 5–10 seconds.
3. The LCD displays exactly what is in your hoop.

If you are researching techniques and typing how to use magnetic embroidery hoop into search bars, you will find that the scanning step is where magnetic hoops shine. Because the fabric sits flatter and the hoop profile is lower, the camera often gets a clearer, less distorted image near the edges compared to deep-walled traditional hoops.

The Visibility Trick: Background Density on the Luminaire Screen So Pale Appliqué Doesn’t Disappear

A raw scan often looks "blown out" or washed out, especially with light fabrics. If you cannot see the edge, you cannot trace the edge.

Mel uses the Background Density slider (often visualized as transparency droplets or contrast icons).

• The Trick: Do not just set it to "Dark." Toggle it. Slide it to the maximum darkness, then back to the lightest.
• The Goal: Find the "visual pop" where the edge pixel differentiates from the background fabric.

Empirical Note: There is no "correct" number. It depends on your room lighting and fabric glaze. Adjust until the edge is sharp.

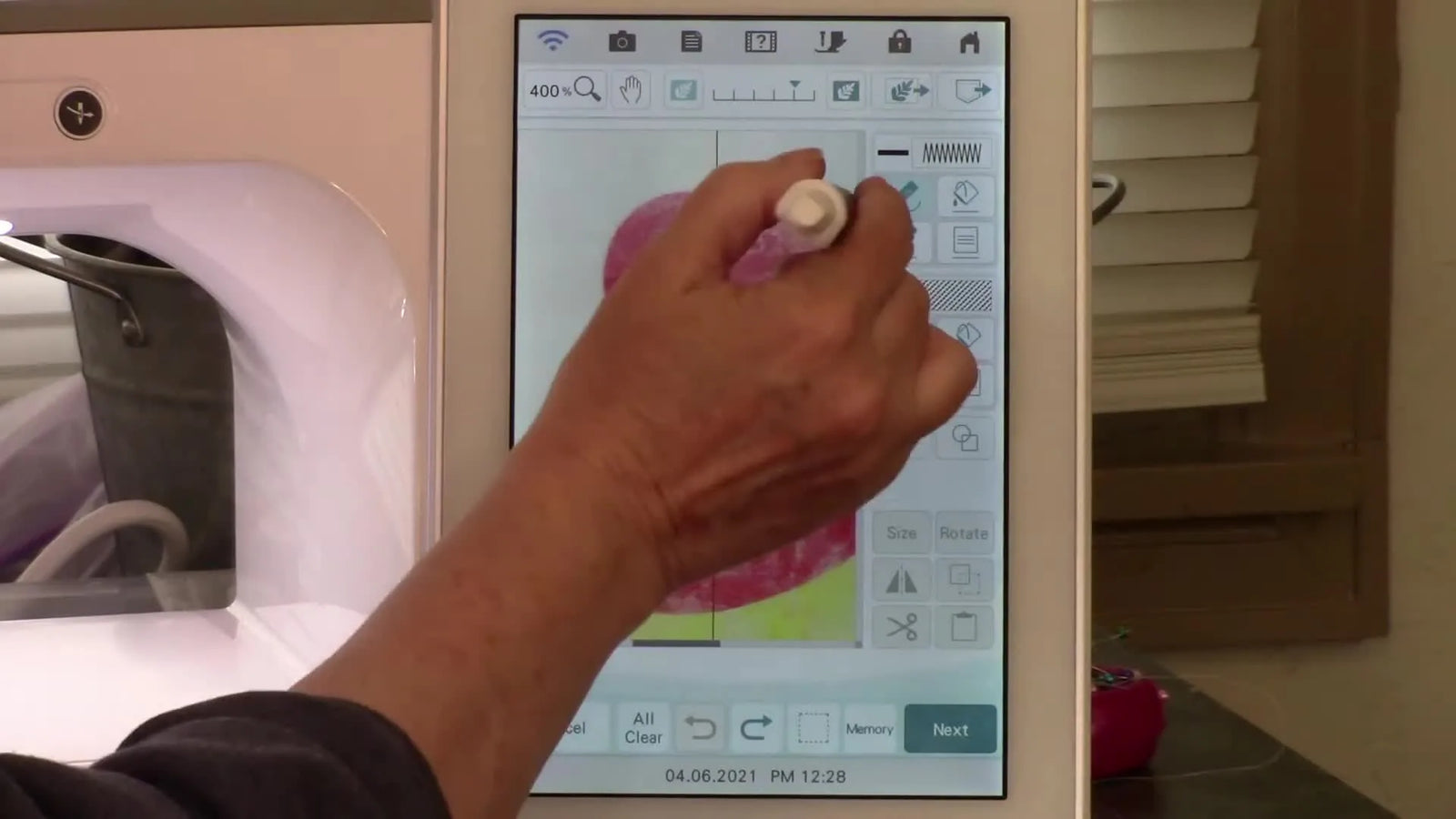

The Drawing Setup That Prevents Wobbles: Zoom + Pan + “Go Faster” on the Stylus

This is the most counter-intuitive advice in the entire process, but it is physically sound: Speed creates smoothness.

When you draw slowly, your hand muscles twitch, creating jagged "steps" in the line. When you move the stylus with confident momentum, the line curves naturally.

• Zoom Physics: Mel demonstrates zooming to 400%. Never trace at 100%. At 100%, a 1mm error looks invisible but stitches out as a gap. At 400%, you can see the error.
• Input Tools:
  • Finger: Low precision, blocks view.
  • Standard Stylus: Medium precision.
  • Active Stylus (e.g., Evach): High precision, usually preferred for detailed curves.

Ergonomics play a huge role here. If your hand is cramping from gripping the stylus or fighting the screen angle, your lines will suffer. This is why high-volume shops upgrade their environment—using ergonomic seating and brother luminaire magnetic hoop systems to reduce the physical strain of setup, allowing the operator to focus purely on the digital precision.

Setup Checklist (Before the first stroke)

• Zoom Level: Set to at least 400% (or 800% for corners).
• Tool Check: Active stylus is charged and paired (if applicable).
• Anchor Point: Your elbow is supported on the table/machine body (do not draw with a floating arm).
• Line Color: Select a digital ink color (e.g., bright blue or red) that contrasts with the scanned fabric image.


The 1600% Reality Check: Fixing Pixels with the Eraser Size Trap in My Design Center

When Mel spots a wobble, she zooms in to 1600% (max zoom) to perform surgery on the pixels.

The Trap: The Eraser tool size is relative to the screen, not the design.

• If you select a "Medium" eraser at 100% zoom, it might be 3mm wide.
• At 1600% zoom, that same "Medium" eraser covers a massive chunk of your design.

The Fix: As you zoom IN, you must size the eraser DOWN. Mel demonstrates using the smallest eraser sizes (like size 4 or even 1) to remove individual stray pixels.

Sensory Technique: Do not "scrub" back and forth like a pencil eraser. Use a "tap-tap-tap" motion to surgically remove pixels without breaking the line continuity.

The Satin Stitch Centerline Rule: Why You Must Draw Slightly Inside the Appliqué Edge

This is the single most important technical concept in this guide.

The Physics of Satin Stitch: The machine interprets your drawn line as the center axis of the satin column.

• If your satin width is 3mm, the needle will drop 1.5mm to the left and 1.5mm to the right of your line.
• If you draw exactly on the raw edge of the fabric, 50% of your stitches will land off the fabric on the outside.

The Mel Method: Deliberately draw your line 1mm to 2mm inside the raw edge of the appliqué.

• Result: The satin stitch captures the raw edge securely, with the majority of the thread anchoring into the appliqué fabric, preventing fraying.


Satin Stitch vs Blanket Stitch on Brother Luminaire: Picking Line Properties Without Guessing

Mel demonstrates assigning different stitch types to different shapes (a Satin heart and a Blanket Stitch heart).

Navigation Logic:

1. Select: Use the Selection Tool (Red Box).
2. Define: Open Line Properties.
3. Apply: Choose the stitch type (Zig-zag, Running, Satin, Blanket) and the color.
4. Pour: Use the "Bucket" icon to apply that property to the selected line.

This workflow is identical to painting in digital art. If you make a mistake, the "Undo" button is your safety net.

For users managing production runs—where you might be doing 20 club shirts with this design—efficiency is key. Just as upgrading to a magnetic hoop for brother allows you to hoop faster, mastering the "Select, Define, Pour" shortcut keys allows you to digitize faster. Reduces the time per unit.

The Stitch Width Wake-Up Call: Default 0.080" Satin Is Often Too Skinny to Cover Appliqué

Mel previews the design and notes the default Satin Width is 0.080 inches (approx. 2.0mm).

The Reality: 2.0mm is extremely narrow for an appliqué cover stitch. It requires perfect cutting and zero fraying.

• Risk: Any minor fraying will poke through a 2.0mm satin stitch.
• Recommendation: Bump the width to at least 0.120" (3.0mm) or 0.140" (3.5mm) for a secure, professional finish.

Density Check: Also, look for "light" showing through the preview. If the satin looks like a ladder rather than a solid bar, increase the density (lower the percentage number, e.g., from 100% to 90%).

Blanket Stitch Parameters: Making the Stitches Taller/Wider and Adjusting Spacing

The Blanket Stitch (or E-Stitch) has two dimensions you must control:

1. Width (Height of the "teeth"): How far into the fabric the stitch bites.
2. Spacing (The run between "teeth"): The distance between vertical strokes.

Mel increases the width to 0.200 inches (approx. 5mm).

• Why? A tiny blanket stitch vanishes into the texture of quilt cotton. A bold 4-5mm stitch mimics the look of hand-stitching and ensures the raw edge is caught.


The Pull Compensation Trap: Why You Shouldn’t Digitize a Whole Scene at Once

The Physics of Pull: Every stitch pulls the fabric slightly inward towards the center of the hoop. By the time you stitch the 100th object, the fabric may have shifted 2mm from where it started.

Mel’s Rule: Do not digitize a complex full-hoop scene in one pass.

• Batching: Trace 3 shapes -> Stitch them. Trace the next 3 -> Stitch them.
• Benefit: This "locks down" the fabric incrementally, maintaining registration accuracy across the whole block.

This is a production-grade mindset. In a commercial shop using a brother magnetic embroidery frame, we want speed, but never at the expense of accuracy. Breaking the job into chunks guarantees that the registration remains perfect from start to finish.

Warning: Magnetic Hazard. If you upgrade to magnetic hoops, handle them with extreme care. The magnets (often Neodymium) are powerful enough to pinch skin severely, damage credit cards, or interfere with pacemakers. Slide the magnets on and off; do not let them "snap" together uncontrolled.

Stitch-Out Reality Check: How to Critique the Result Without Blaming the Machine

After the stitch-out, Mel performs a forensic audit of the result. Inspect your work under good light:

• The Gap: Did the stitching fall off the edge? (cause: drawing line too close to edge).
• The Bulge: Did the stitching pile up? (cause: double lines drawn by accident).
• The Tunnel: Did the fabric pucker? (cause: insufficient stabilizer).

Treat this not as failure, but as data. Each error tells you exactly which parameter (drawing position, stabilizer, or tension) needs adjustment.

The Stitch-Width Reference Sheet You’ll Use Forever (Mel’s “Cheat Sheet” Method)

Stop guessing. Experience is just recognized patterns. Build a physical reference library.

The Exercise:

1. Hoop a piece of scrap fabric with stabilizer.
2. In My Design Center, draw 5 parallel straight lines.
3. Assign them widths of: 0.080", 0.100", 0.120", 0.160", 0.200".
4. Stitch them out in black thread on white fabric.
5. Write the numbers next to the stitched lines with a permanent marker.

The Value: Next time you are on screen, you won't wonder "Is 0.120 enough?" You will look at your Cheat Sheet and know.

Saving Your Work for Repeated Shapes: Working File First, Embroidery File Second

A critical workflow distinction:

• Working File: Saves the vector data (editable lines). Save this to the machine memory while still in My Design Center.
• Embroidery File: Saves the stitch data (frozen coordinates). This happens when you press "Set" and move to the Embroidery screen.

Rule: Always save the working file before you convert to embroidery. If you need to change the satin width next week, you need the working file. You cannot easily widen a satin stitch once it is converted to a .PES file.

Decision Tree: Choosing Stabilizer for Appliqué Outlines on Quilt Blocks

Stabilization is the foundation. If the foundation moves, the house falls. Use this decision logic to select the correct backing.

Start Here: What is your Appliqué Base?

1. Quilt Cotton (Standard Block):
   • Decision: Medium Tearaway (1.8 - 2.0 oz).
   • Why: Sufficient for standard satin stitches; removes cleanly from the back.
2. Knit / T-Shirt / Stretchy Fabric:
   • Decision: Fusible Mesh (No-Show Mesh) + Cutaway.
   • Why: Knits stretch. Tearaway will explode under the needle impact. You must use Cutaway to prevent the outline from distorted "footballing."
3. High-Loft Batting / Puffy Block:
   • Decision: Iron-on Tearaway + Water Soluble Topper.
   • Why: Prevents the fabric from shifting (iron-on) and prevents the stitches from sinking into the fluff (topper).

Hidden Consumable: Always keep a can of temporary spay adhesive (like Odif 505) handy. A light misting secures the stabilizer to the block better than hoop friction alone.

Troubleshooting Brother Luminaire My Design Center

Follow this hierarchy: Physical Fixes -> Process Fixes -> Machine Settings.

The Upgrade Path That Feels Natural: Faster Hooping, Cleaner Outlines, Less Rework

Once you master the digital side (My Design Center), the bottleneck usually shifts to the physical side. If you find yourself spending 20 minutes tracing perfectly, only to have the fabric slip in the hoop during the last minute of stitching, it is time to evaluate your tools.

Here is the professional progression for upgrading your workflow:

1. Level 1: Stability upgrade. If your hands hurt or you get hoop burn, investigate a brother 5x7 magnetic hoop. The "snap and go" action reduces wrist strain and holds fabric flatter for the camera scan.
2. Level 2: Consistency upgrade. If you are doing team jerseys or quilt blocks, look into alignment tools like the dime snap hoop for brother luminaire or the hoopmaster system. These ensure that every single block is hooped in the exact same spot, creating a standardized canvas for your digitizing.
3. Level 3: Capacity upgrade. If you are turning away orders because your single-needle machine is too slow, this is the trigger to consider a multi-needle machine (like the SEWTECH series). While the Luminaire is a tracing genius, a multi-needle is a production beast.

Operation Checklist (Right before you press “Start”)

• Connector Check: Zoom in to every start/stop point to ensure lines connect (no gaps).
• Placement Verification: Confirm your drawn line sits slightly inside the raw edge.
• Property Audit: Verify "Satin" vs "Blanket" is assigned correctly to each shape.
• Width Confirmation: You are using a width (e.g., 0.120") that you have visually verified on your Cheat Sheet.
• Obstruction Check: No excess fabric is bunched under the hoop that could get stitched into the back.

FAQ

• Q: Why does Brother Luminaire My Design Center tracing look accurate on-screen but the outline stitches 1 mm off the appliqué edge?
  A: This is common—Brother Luminaire stitches exactly where the drawn line is, but fabric thickness, presser-foot drag, and satin-centerline behavior make the real stitch-out shift.
  • Draw the outline 1–2 mm inside the raw appliqué edge when using Satin (the drawn line is the satin center axis).
  • Hoop and fuse the appliqué shapes before scanning so the scan matches the final fabric size.
  • Zoom to 400% (or more) while tracing so small offsets are visible before stitching.
  • Success check: A satin border should cover the raw edge with most stitches landing on the appliqué fabric (not falling outside).
  • If it still fails… Re-check hoop tension (“drum” feel) and stabilizer choice to reduce fabric movement during stitching.
• Q: How do Brother Luminaire users hoop a quilt block correctly before using Image Scan in My Design Center?
  A: Hoop and bond first—Brother Luminaire Image Scan should capture the fabric exactly as it will stitch, not a pre-fused “theoretical” shape.
  • Fuse appliqué pieces flat first; run a fingernail along edges to confirm nothing lifts or casts a shadow.
  • Hoop the block with firm, even tension; avoid warping the grain by over-stretching.
  • Clean the camera lens area (lint/oil) so the scanned edge is crisp.
  • Success check: Tapping the hooped fabric gives a dull “drum” sound and the scan shows clean edges without ghost shadows.
  • If it still fails… Consider switching hooping method if thick or delicate materials are getting bruised or shifting under clamp pressure.
• Q: Which Brother Luminaire Scan mode should be used for tracing fabric shapes in My Design Center: Line Scan, Illustration Scan, or Image Scan?
  A: Use Image Scan for tracing—Image Scan creates a high-resolution background photo for manual tracing.
  • Select Image Scan and confirm the machine processes briefly (about several seconds) before displaying the hoop image.
  • Avoid Line Scan (auto line-art behavior) and Illustration Scan (auto color-block conversion) for appliqué fabric edges.
  • Success check: The LCD shows a clear photo of the actual hooped fabric as a passive background layer.
  • If it still fails… Adjust lighting/contrast using Background Density so the edge becomes visible before tracing.
• Q: How do Brother Luminaire users fix a washed-out scan so pale appliqué edges are visible in My Design Center?
  A: Adjust the Background Density until the appliqué edge “pops”—there is no universal number because lighting and fabric finish vary.
  • Slide Background Density to maximum dark, then to minimum light, then settle at the point where edge pixels separate clearly.
  • Re-check room lighting and glare; view the screen straight-on to avoid parallax offset.
  • Success check: The exact fabric edge is easy to see at tracing zoom, without disappearing into the background.
  • If it still fails… Re-hoop and re-scan after confirming edges are fused flat (lifted edges create shadows and “ghost” outlines).
• Q: Why does the Eraser in Brother Luminaire My Design Center delete too much when editing at 1600% zoom, and how do you prevent it?
  A: The Eraser size is relative to the screen, not the design—at 1600% zoom, a “medium” eraser becomes huge on the design.
  • Zoom in to 1600% only for pixel-level fixes, then reduce Eraser size down (use the smallest sizes).
  • Tap-tap-tap to remove stray pixels instead of scrubbing, so the line stays continuous.
  • Success check: Only the unwanted pixel(s) disappear and the traced outline remains unbroken and smooth.
  • If it still fails… Zoom out one step and re-check tool size before erasing again.
• Q: What satin stitch width should Brother Luminaire users set in My Design Center when the default 0.080" satin does not cover appliqué edges?
  A: If 0.080" (≈2.0 mm) looks too skinny for coverage, increase satin width to a wider setting such as 0.120" (≈3.0 mm) or 0.140" (≈3.5 mm) for a safer appliqué edge cover.
  • Preview the design and look for “light showing through” that indicates weak coverage.
  • Increase density if the preview looks like a ladder rather than a solid bar (a lower percentage number indicates higher density).
  • Success check: The satin border visually covers the raw edge with no fabric peeking through after stitch-out.
  • If it still fails… Build a stitched width reference sample (“cheat sheet”) on scrap fabric so the next width choice is based on real stitched results.
• Q: What safety precautions should Brother Luminaire users follow during outline stitch-out and when handling magnetic embroidery hoops?
  A: Keep hands clear during stitching, and handle magnets with controlled sliding—both needle motion and strong magnets can cause sudden injuries.
  • Keep fingers, sleeves, and hair at least 4 inches away from the needle area; never reach inside the hoop while the machine is running.
  • Stop the machine fully before making any hoop or thread adjustments.
  • Slide magnetic hoop components on/off—do not let magnets snap together; keep magnets away from cards and pacemakers.
  • Success check: No need to “catch” fabric or touch the hoop while stitching, and magnetic parts never snap unexpectedly during handling.
  • If it still fails… Pause the job and re-evaluate the setup (hoop clearance, fabric slack, and operator positioning) before restarting.
