Janome Memory Craft 9850 Won’t Open a USB Design? Fix the Emb/Embf Folder, Then Prove the Hoop Size in Inkscape

You are not alone: nothing spikes your blood pressure like a design that should load… but your machine refuses to open it. You’ve bought the file, bought the machine, and bought the time—but the screen remains grey.

On the Janome Memory Craft 9850 (and similar models), file-transfer problems usually fall into three specific buckets:

1. The "Format" Fail: The USB stick structure isn't what the machine’s grimly specific operating system expects.
2. The "Overload" Fail: The stick is too large or too full (these machines get "brain fog" with modern high-capacity drives).
3. The "Physics" Fail: The design is technically on the stick, but it violates the hoop boundary by even 1 millimeter.

This guide rebuilds a clean, repeatable workflow from the source video and industry best practices. We will move beyond "turning it off and on again" and establish a professional protocol that prevents you from wasting an hour chasing the wrong problem.

The Calm-Down Check: Diagnostic Mode

If you can see some designs on the screen, but one specific file is greyed out or unselectable, take a breath. This is good news. It means your USB port is working and the machine is reading data. The issue is file compatibility, not hardware failure.

In the video example, two designs open normally, but the third design is a ghost—visible thumbnail, but the "Open" button is dead.

The Expert's Mindset: Don't treat this like a mysterious computer glitch. Treat it like a physical puzzle piece that is slightly too big for the hole. The machine is protecting itself (and you) from a needle strike.

• Logic Check: A design doesn't exist in a vacuum. It exists relative to a specific hoop size. If the file says "171mm" and the hoop says "170mm," the Janome MC 9850 wins every time.

One note for owners of a new janome embroidery machine: These interfaces often "page" designs based on hoop groups. A design might be "there," but hidden on Page 2 because the machine thinks it belongs to a different hoop category.

The Non-Negotiable USB Folder Path: Emb → Embf

Modern computers are flexible; embroidery machines are not. They are rigid filing clerks. The Janome 9850 requires a specific hierarchy to "see" anything.

The Golden Path:

• USB Root
  • folder: Emb
    • sub-folder: Embf
      • File.jef (MUST be here)

If you drop your .jef file directly onto the USB stick (the root) or just inside the Emb folder, the machine will likely ignore it completely.

Pre-Flight Checklist 1: The Prep

• Structure Check: Confirm the USB stick contains an Emb folder, and inside that, an Embf folder.
• Location Check: Confirm your .jef files are strictly inside the Embf sub-folder.
• Naming Hygiene: Rename files to 8 characters or less, using only letters and numbers (e.g., FLOWER01.jef). No emojis, spaces, or weird symbols.
• Capacity Check: Use a USB stick that is 4GB or smaller formatted to FAT32. Using a massive 64GB drive often causes lag or read errors.


The "Clean Transfer Stick" Rule: Hardware Discipline

The video emphasizes a rule I teach every day: Don't use your storage drive as your transfer drive.

• Storage: Your external hard drive or cloud where you keep 10,000 designs.
• Transfer: A cheap, low-capacity USB stick that only holds the 2-3 designs you are stitching today.

Why? The machine has limited processing power (RAM) to index files. If you plug in a stick with 500 designs, the machine has to "read" every single header before it lets you work. This causes freezing, crashing, or incomplete lists.

Sensory Check: When you plug the USB into the machine, listen for the subtle acknowledgment beep (if enabled) or watch the screen icon. If it takes more than 5 seconds to load the folder, your stick is too full or the format is wrong.

The On-Screen Route: Navigation Discipline

In the video, the creator demonstrates the exact button sequence. Muscle memory matters here.

1. Press the Home/Mode button to enter Embroidery Mode.
2. Select Designs.
3. Tap the USB Icon (looks like a memory stick).
4. Tap to open the Embf folder.

If you skip step 4 and just stare at the Emb folder, it will look empty. You must drill down.

Setup Checklist 2: The Machine

• Mode Verify: Are you definitely in Embroidery Mode (not Sewing Mode)?
• Source Verify: Did you select the USB icon, not the internal machine memory icon?
• Folder Drill-Down: Did you tap all the way into Embf?
• Page Scan: Use the arrow keys. Did the machine sort your design onto Page 2 or 3?


The "Physics" Fail: The Hoop Limit Trap (SQ14a vs RE20a)

This is the most common frustration source. You see the file. You touch it. The machine ignores you.

The Diagnosis: The design's digital footprint exceeds the hoop's stitchable area defined in the machine's firmware.

Janome 9850 Hoop Data (Hard Limits):

• RE20a / RA20a: 170mm × 200mm (approx. 6.7" × 7.9")
• SQ14a: 140mm × 140mm (approx. 5.5" × 5.5")
• FA10a: 100mm × 40mm (approx. 3.9" × 1.6")

The "Sweet Spot" Safety Margin: Expert digitizers never design to the absolute limit. If the hoop limit is 200mm, we design to 195mm. Why?

1. Fabric Pull: Fabric contracts as you stitch (the "scrunch" effect).
2. Hoop Physics: If you hit the plastic frame, you break a needle or knock the machine out of timing.
3. Firmware Buffer: Some machines require a 1-2mm buffer zone.


The Diagnostic Tool: Inkscape + Ink/Stitch

You need a "ruler" that tells the truth. The video suggests a powerful free combo:

• Inkscape: Vector graphics software.
• Ink/Stitch: An extension that turns Inkscape into an embroidery tool.

Even if you don't digitize, use this as a Viewer. Open your "broken" file in this software to see its true dimensions.

Business Context: Understanding software is Level 1. Level 2 is understanding physical stability. If you are constantly finding files that technically fit but result in puckering or gaps, your issue isn't software—it's likely your hooping for embroidery machine technique. Loose fabric in the hoop distorts dimensions, causing needle strikes even if the file is perfect.

The Template Trick: Visualization

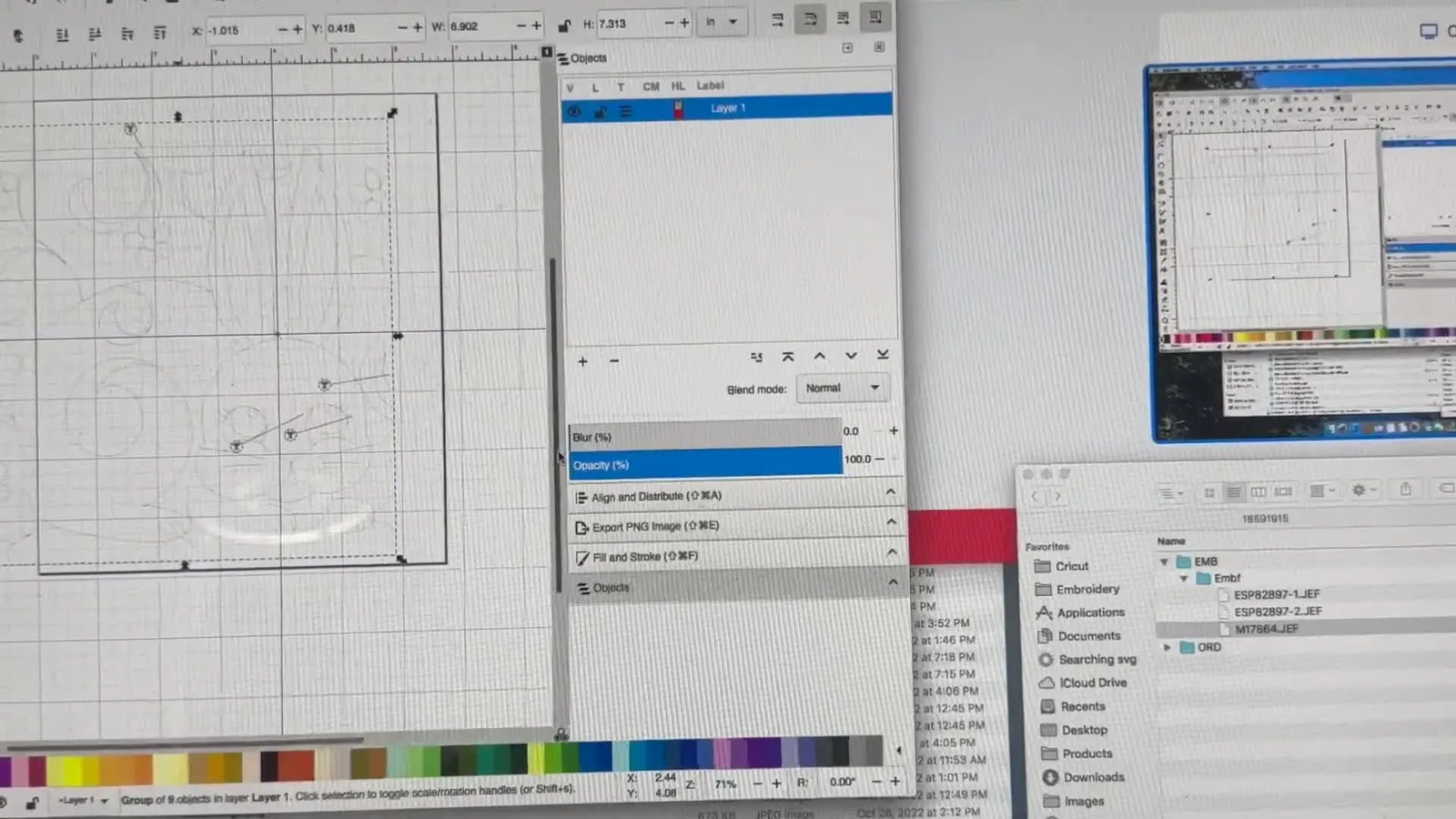

Don't guess. Build a template in Inkscape as shown in the video:

1. Open Document Properties.
2. Set units to mm.
3. Set Width to 170.00 and Height to 200.00.

This rectangle represents your "No Fly Zone." The video creator uses this visual boundary to prove the design is crossing the line.

Pro Tip: Save this file as TEMPLATE_RE20a.svg. Open it every time you have a questionable file. It’s your sanity check.

The Fast Diagnosis: Seeing the Violation

In the demonstration, once the file is imported into the template, the problem is undeniable. The design spills over the 170mm line.

Visual Anchor: Look at the bounding box (the dotted line around your design). If any part of that line touches or crosses your 170x200mm box, the Janome 9850 will reject it. It’s binary: Yes or No.

The Fix: Resize with Intent

The video demonstrates selecting all objects and lowering the Width value until it is safely under 170mm.

The Expert Warning on Resizing: Resizing changes density.

• Shrinking > 10-20%: stitches get closer together. This creates a "bulletproof vest" effect. You may break needles or get thread nests.
• Enlarging > 10-20%: stitches get further apart. You will see fabric showing through the gaps.
• Solution: If you resize drastically, you must maintain density (re-calculate stitches), which usually requires intermediate software skills or a "density recalculation" button in paid software.
• Hidden Consumable Check: If you are stitching a dense, resized design, ensure you are using a strong Cutaway Stabilizer, not just Tearaway. The extra density needs physical support.


Saving the Fixed File

Save the file back to your Transfer Stick (remember: inside Embf).

Best Practice: Do not overwrite the original. Save as DesignName_SM.jef (SM for Small). This way, if you over-shrunk it or ruined the density, your original purchase is safe.

The Final Verification

Back at the machine:

1. Insert USB.
2. Navigate to Embf.
3. Page Over.

Checklist 3: Operation Protocol

• Selection: Is the thumbnail now full color (selectable)?
• Hoop Choice: When you select it, does the screen show the correct hoop (e.g., RE20a) highlighted?
• Sensory Check: When you press "Start," does the hoop move freely to the center? Listen for any grinding sounds—that means the hoop is hitting the carriage or isn't locked in.


When to Stop Fixing and Start Upgrading

If you follow this guide, 90% of your file issues will vanish. But what if your workflow problems are physical?

The "Hobby vs. Production" Decision: If you are running a business or large batches (50+ shirts), resizing files and fighting with plastic hoops kills your profit margin.

• The Problem: "Hoop Burn" (shiny rings on fabric) and wrist fatigue from clamping plastic hoops.
• Level 1 Fix: Use better stabilizer and "floating" techniques.
• Level 2 Upgrade: Switch to magnetic embroidery hoops. These use strong magnets to clamp fabric instantly without forcing it into rings. This prevents hoop burn and speeds up hooping by 40%. They are standard in production shops for a reason.
• Level 3 Upgrade: If you are spending more time changing thread colors than stitching, it’s time to look at multi-needle machines (like SEWTECH platforms). Single-needle machines like the 9850 are fantastic, but they require you to be the "color changer." Multi-needle machines automate that labor so you can focus on sales.

Warning: Mechanical Safety
Never reach inside the hoop area while the machine is active. A needle moving at 800 stitches per minute can go through a finger bone instantly. Always keep hands clear.

Warning: Magnetic Safety
If you upgrade to magnetic hoops/frames, treat them with extreme caution. The magnets are industrial strength and can pinch skin severely. Keep them away from pacemakers, credit cards, and computerized machine screens.

A Quick Decision Tree: Why Won't It Load?

Use this logic flow to diagnose the issue in under 60 seconds:

1. Does the file appear on the screen at all?

• NO:
  • Is it inside Emb/Embf? (If no -> Fix folder).
  • Is the USB stick >32GB? (If yes -> Use smaller stick).
  • Is it a .jef file? (If no -> Convert format).
• YES (but greyed out):
  • Go to Step 2.

2. Does the design fit the hard limit?

• RE20a Hoop: Is design < 170x200mm?
• SQ14a Hoop: Is design < 140x140mm?
• Note: If it is exactly 170.0mm, resize to 169.0mm.
• Action: If too big -> Resize in software.

3. Are you looking at the right page?

• Janome sorts by size. Press the Page Arrow buttons to see if your design is filed under a "Large Hoop" grouping tab.

Summary Checklist

By adopting this workflow, you stop fighting the machine and start managing the process.

1. Prep: Use a small USB stick, correctly formatted, with Emb/Embf folders.
2. Check: Verify design size against 170x200mm limit (leave a buffer!).
3. Upgrade: When physical hooping becomes the bottleneck, look at magnetic solutions to match your improved digital workflow.

Now, go listen for that satisfying "click" of the start button. You’ve got this.

FAQ

• Q: Why does a Janome Memory Craft 9850 embroidery design show on the USB screen but stay greyed out and won’t open?
  A: The most common cause is that the design exceeds the active hoop’s stitchable limit by even 1 mm, so the Janome MC 9850 blocks it to prevent a needle strike.
  • Check: Confirm which hoop is selected on-screen (RE20a/RA20a, SQ14a, or FA10a) before judging the file.
  • Measure: Open the file in Inkscape + Ink/Stitch and compare the design bounding box to the hoop limit (RE20a/RA20a 170×200 mm, SQ14a 140×140 mm, FA10a 100×40 mm).
  • Resize: Reduce the design slightly under the limit (a safe buffer is often 1–2 mm), then save as a new name.
  • Success check: The thumbnail becomes selectable (not greyed out), and the machine allows “Open.”
  • If it still fails: Page through the design list—Janome may sort the design into a different hoop group/page.
• Q: What exact USB folder path does the Janome Memory Craft 9850 require to load .JEF embroidery files?
  A: The Janome MC 9850 typically only reads .JEF files from the strict path USB root → Emb → Embf.
  • Create: Make a folder named Emb in the USB root, then a subfolder Embf inside Emb.
  • Move: Place the .jef file only inside Embf (not in the USB root and not directly inside Emb).
  • Rename: Keep filenames simple (often safest is 8 characters or less, letters/numbers only).
  • Success check: After tapping the USB icon and opening Embf, the design list populates instead of appearing empty.
  • If it still fails: Reformat the USB to FAT32 and try a smaller-capacity stick as noted for these models.
• Q: What USB stick size and format works best for Janome Memory Craft 9850 embroidery file transfer?
  A: Use a small USB stick (commonly 4GB or smaller) formatted to FAT32, and keep only a few designs on it to avoid slow reads and missing files.
  • Use: Dedicate a “transfer stick” for today’s 2–3 designs instead of a large archive drive with hundreds of files.
  • Format: Format to FAT32 and rebuild the Emb/Embf folders afterward.
  • Reduce: Remove extra designs if the machine takes more than a few seconds to load the folder list.
  • Success check: The machine recognizes the USB quickly and shows the full design list without freezing or lag.
  • If it still fails: Try a different low-capacity USB stick—some modern high-capacity drives can be inconsistent on older machine interfaces.
• Q: What is the correct on-screen navigation sequence on a Janome Memory Craft 9850 to find designs inside the Embf folder on a USB stick?
  A: You must enter Embroidery Mode, choose Designs, select the USB icon, and then drill down into Embf—stopping at Emb can look “empty.”
  • Press: Home/Mode to enter Embroidery Mode (not Sewing Mode).
  • Select: Designs, then tap the USB icon (not internal memory).
  • Open: Tap into Emb, then tap into Embf to view the .jef files.
  • Success check: You can see .jef thumbnails after opening Embf, and page arrows move through additional pages if needed.
  • If it still fails: Use the page arrow keys—Janome may “page” designs by hoop size grouping.
• Q: How do I verify Janome Memory Craft 9850 hoop limits (RE20a/RA20a vs SQ14a vs FA10a) before stitching to avoid a hoop boundary rejection?
  A: Compare the design’s true dimensions to the machine’s hoop hard limits—RE20a/RA20a 170×200 mm, SQ14a 140×140 mm, FA10a 100×40 mm—and leave a small buffer.
  • Confirm: Identify the hoop you intend to use and its limit in the machine.
  • Visualize: Build a rectangle template in Inkscape set to the hoop size (mm) and import the design to check any overhang.
  • Decide: If the bounding box touches or crosses the limit line, resize slightly smaller (for example, if it’s exactly 170.0 mm wide, reduce to 169.0 mm).
  • Success check: The bounding box sits fully inside the hoop template with clear space around the edge.
  • If it still fails: Re-check that the correct hoop is selected on the machine—wrong hoop selection can make a valid file appear invalid.
• Q: What should I watch out for when resizing a .JEF design for Janome Memory Craft 9850 because the design is slightly too large for an RE20a/RA20a hoop?
  A: Resize cautiously because scaling changes stitch density—small reductions are usually safe, but large changes can cause thread nests, needle breaks, or gaps.
  • Resize: Reduce only as much as needed to get under the hoop limit (avoid drastic scaling when possible).
  • Plan: If shrinking more than about 10–20%, expect density to increase and stitching to get “bulletproof”; if enlarging, expect coverage gaps.
  • Support: Choose a stronger stabilizer when stitching a denser, resized design (cutaway is often more forgiving than tearaway in this situation).
  • Success check: The machine opens the file and the first stitches run smoothly without grinding, nesting, or excessive strain.
  • If it still fails: Use software that can recalculate density, or source the design in the correct size for the intended hoop.
• Q: What safety rule should Janome Memory Craft 9850 owners follow around the needle and hoop area during embroidery startup?
  A: Keep hands completely out of the hoop/needle area whenever the Janome MC 9850 is active—an embroidery needle moving at high speed can cause severe injury instantly.
  • Stop: Pause/stop the machine before reaching near the hoop or needle area for any adjustment.
  • Wait: Let the carriage finish moving to center before touching fabric or hoop clamps.
  • Listen: Treat unusual grinding as a warning sign and stop immediately to prevent a hoop strike.
  • Success check: The hoop moves freely to center with no contact sounds, and you can start stitching without any need to “hold” fabric by hand.
  • If it still fails: Re-check hoop locking and design size—forced starts are where most hoop strikes happen.
• Q: When should a Janome Memory Craft 9850 owner upgrade from plastic hoops to magnetic embroidery hoops, or consider a multi-needle machine for production work?
  A: Upgrade when hooping and workflow friction (hoop burn, wrist fatigue, constant resizing, and slow color changes) becomes the bottleneck instead of stitching quality.
  • Level 1 (Technique): Improve stabilizer choice and use “floating” methods to reduce hoop burn and re-hooping time.
  • Level 2 (Tool): Use magnetic embroidery hoops to clamp fabric faster and reduce hoop burn from tight plastic rings (handle magnets carefully).
  • Level 3 (Capacity): Move to a multi-needle machine when color-change labor is consuming your time in batch work.
  • Success check: Hooping time drops noticeably, fabric shows fewer shiny hoop rings, and daily output increases without extra frustration.
  • If it still fails: If files still won’t open consistently, return to the fundamentals—USB folder path, stick size/format, and hoop boundary verification.
