Brother PR1000e Firmware Update (4.01 → 4.14) Without Panic: The USB Method That Won’t Brick Your Machine

The "Don’t Panic" Primer for Brother PR1000e Firmware Updates: A 20-Year Veteran’s Guide

Firmware updates on a generic multi-needle machine feel scarier than they should. Why? Because the risk, while small, is absolute: one corrupted file, one cheap USB stick, or one power interruption at the wrong millisecond can turn a productive revenue-generator into a silent, expensive statue.

If you are running a Brother Entrepreneur Pro PR1000e, you are sitting on a workhorse. But even workhorses need new shoes. This guide isn't just about updating from Version 4.01 to 4.14; it is a lesson in Risk Management. We will walk through the exact, clean, repeatable workflow to update your machine without the heart palpitations, combined with the "shop-floor" habits that keep professional embroiderers out of trouble.

What You Are Actually Protecting (The "Why")

If your PR1000e is stitching fine, it is normal to hesitate. "If it ain't broke, don't fix it," right? However, updates often patch hidden bugs, improve color shuffling logic, or fix communication protocols with newer PC software.

The update process is straightforward, but you must respect the physics of computer memory. Here is what is at stake:

• The Main Board: During the "writing" phase, the machine is erasing its brain and writing a new one. If power cuts here, the brain is left half-empty.
• Production Continuity: A failed update means 3 to 10 days of downtime waiting for a technician.
• Settings Persistence: Sometimes, updates can reset specific user preferences (like hoop calibration or network settings).

Think of a firmware update like a controlled surgery. You don't do it while eating lunch; you scrub in, prep the tools, and focus.

Warning: During the "Saving" or "Writing" stage (where the bar moves from 0% to 100%), never turn the main power switch OFF and make sure the power cord is secure. A power interruption at that exact moment is the only way to truly damage the main board, requiring a dealer-level service call.

The "Hidden" Prep Phase: USB Discipline and File Hygiene

Most failures happen before you even touch the machine. The video source highlights the mechanical steps, but in my 20 years of diagnostics, 90% of "File Not Found" errors are caused by the USB Stick itself.

1. The Source Truth

Do not accept update files emailed from friends or found in random Facebook groups. Firmware is strictly model-dependent. A PR1000 update file looks different from a PR1055X file.

• Action: Go strictly to the official Brother Solutions Center.
• Download: Locate your specific model (PR1000e).
• Format: You are looking for a .UPG file (e.g., PR1000E_v414.UPG).

2. The USB Stick Hygiene

Modern USB drives (64GB, 128GB) are often formatted in ways these older industrial machines cannot read (exFAT or NTFS). The PR1000e prefers older, simpler architecture.

• Capacity: Use a stick between 2GB and 8GB.
• Format: Ensure it is formatted to FAT32.
• Content: The drive must be Empty. No design files (.PES), no folders, no photos. Just the single .UPG file.

3. The Physical Environment

Do not update during a thunderstorm. If you have a UPS (Uninterruptible Power Supply), plug the machine into it. If not, tape over the wall switch so nobody walks by and flips the lights (and your outlet) off by accident.

Prep Checklist (Pre-Flight):

• Model verification: Read the sticker on the back. Is it a PR1000 or PR1000e? They use different files.
• The Drive: 2GB-8GB capacity, formatted FAT32.
• The File: Single .UPG file on the root of the drive. No folders.
• The Schedule: You have 30 minutes of uninterrupted time.
• Hidden Consumable: A fresh, quality USB drive dedicated only to firmware (don't mix it with your daily design transfer drive).


Step 1: Establish Your Baseline

You cannot know if you succeeded if you don't know where you started. In the video, the machine begins at Version 4.01.

1. Turn the machine ON.
2. Press the Settings/Page icon (the piece of paper with lines).
3. Use the Right Arrow to navigate to the final page (often Page 6 of 6).
4. Locate the Version line. Write it down.

This number is your receipt. If you ever need to call support, "I updated from 4.01 to 4.14" is infinitely more helpful than "I updated it recently."

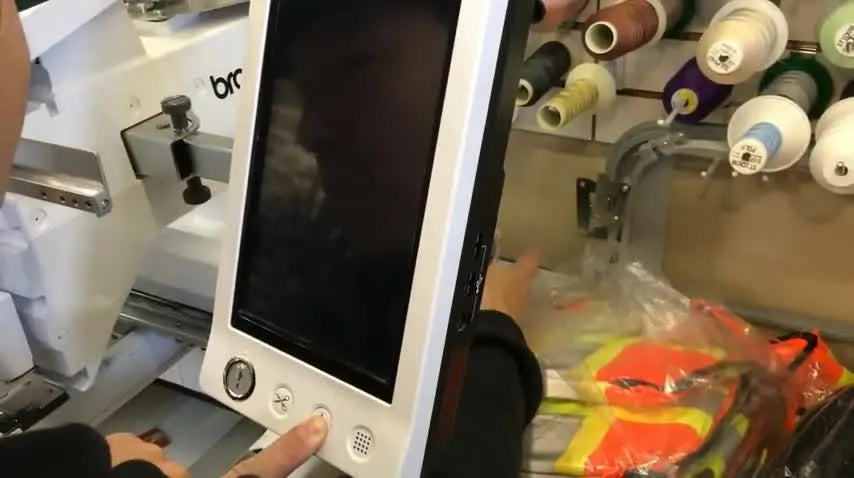

Step 2: The "Two-Hand Boot" (Entering Update Mode)

This step feels like a secret handshake. It involves a physical button combination that bypasses the normal operating system.

The Sequence:

1. Turn the Main Power Switch OFF (on the right side of the machine).
2. Locate the Automatic Needle Threader button. This is the physical button on the bottom-left of the control panel (usually marked with a hook or thread icon).
3. Press and Hold the Needle Threader button with your left hand.
4. While holding it, flip the Main Power Switch ON with your right hand.
5. Sensory Check: Do not let go. You will hear the machine hum to life, but the screen will look different.
6. Wait for the screen to turn white with three large icons. Only then, release the button.

If the machine boots into the normal "Toyota/Brother" start screen, you let go too early. Turn it off and try again.

Step 3: Loading the Brain (USB Interaction)

Now you are in the bios-level menu. It is stark and technical.

1. Tap the large USB icon on the touchscreen (usually the left or center option).
2. Insert the USB flash drive into the machine's primary USB-A port.
   • Tactile Tip: Insert it firmly. You should feel it seat securely. If it wiggles, the connection is poor.
3. The screen will prompt you to "Press LOAD."
4. Press LOAD.

The "File Not Found" Panic: If you immediately get an error saying the machine "Cannot find the right file," do not panic. Your machine is fine. It just means the USB stick is confusing it. (See the Troubleshooting section below).

This moment of downtime—waiting for files to load—is when successful shop owners evaluate their workflow. If you are struggling with standard hoops leaving marks on delicate fabrics or popping open on thick jackets, this is the time to consider how hooping stations combined with better clamping tools can stabilize your production line.

Step 4: The Longest 2 Minutes (000% → 100%)

Once you press LOAD, the critical phase begins. The screen will display a percentage counter.

• 000%: It may sit here for 10-30 seconds. This is normal. The machine is verifying the file integrity.
• The Climb: It will jump to 1%, then likely speed up.
• Sensory Discipline: Put your hands behind your back. Do not touch the screen. Do not wiggle the USB. Do not plug in a phone charger nearby.

The "White Knuckle" Rule: In my shop, we have a rule: "Hands off, Eyes on." Watch the screen until you see the words "Upgrade complete."

Warning (Mechanical Safety): Even though this is a software update, keep hands away from the needle case and pantograph arm. When the machine eventually reboots, it will perform a calibration movement (X-Y axis travel). If your hand is resting on the arm, you risk injury or jamming the motors.

Step 5: The Reboot and Verification

You saw "Upgrade complete." You are 90% done.

1. Turn the Main Power Switch OFF.
2. Remove the USB flash drive. (Do not leave it in, or you might accidentally trigger the update mode again later).
3. Wait 5 seconds to let the capacitors discharge.
4. Turn the Main Power Switch ON normally.
5. Navigate back to Settings/Page → Page 6 of 6.
6. Verify: The version should now read 4.14 (or whatever your target file was).


Troubleshooting Decision Tree: "Cannot Find File"

This is the most common error. Use this logic flow to fix it without guessing.

Symptom: Screen says "Cannot find the right file" or "Insert USB media."

• Check 1: Structure
  • Question: Is the .UPG file inside a folder?
  • Fix: Move file to the main (root) directory.
• Check 2: File Name
  • Question: Did you rename the file? (e.g., PR1000_Update(1).UPG)
  • Fix: Rename it to the original factory name. Limits on character length can confuse the loader.
• Check 3: Media Type
  • Question: Is the USB drive larger than 8GB?
  • Fix: Switch to a generic 2GB or 4GB drive.
• Check 4: Model Mismatch
  • Question: Did you download the PR1050 file for a PR1000e?
  • Fix: Re-download the exact file for your serial number/model.

If you are consistently fighting with equipment—whether it is fickle USB drives or difficult hooping mechanisms—it drains morale. Many shops searching for terms like magnetic embroidery hoop are actually looking for reliability. Just as a good USB drive ensures a smooth update, a good magnetic hoop ensures smooth fabric loading without the struggle.

Post-Update Anomalies: What if Features Disappear?

A common terrifying moment: You reboot, and your camera function is grayed out, or your list of hoop sizes has shrunk.

Why this happens: Firmware updates sometimes reset internal "Mode" flags. The machine might think it has reverted to a factory state where certain accessories aren't detected.

The Fix:

1. Restart: Turn off, wait 30 seconds, turn on.
2. Accessory Check: Unmount and remount your hoop arms.
3. Hoop Selection: Go into the settings and ensure the correct "Hoop Holder" type is selected (if applicable to your version).

Speaking of hoops, if you find that standard hoops are missing from your menu or simply frustrating to use, this is a prime opportunity to standardize. Many professionals transition to magnetic hoops for brother pr1000e specifically because they eliminate the variable of "operator strength." A magnetic snap is consistent; a manual screw depends on how tired your wrists are. Consistency solves phantom software issues and hardware issues.

The "Why" Behind the Rules: Machine Health

The video emphasizes not turning off the power. This isn't superstition; it is engineering.

Flash memory works in blocks. To update, the machine erases a block, then writes new data. If power dies halfway through writing, that block contains garbage data (corrupted binary). When the machine tries to boot, it reads that garbage and freezes.

Sensory Cues of a Healthy Machine:

• Sound: A rhythmic "thump-thump" on startup (the X-Y motors calibrating).
• Visual: The screen backlight comes on immediately, followed by the logo.
• Tactile: The carriage moves smoothly to the center, not jerking.


Setup Habits for the Professional Shop

Don't wait for a crisis to build good habits. Implement these protocols today.

Setup Checklist (The "Clean Bench" Protocol):

• Designated Drive: One USB stick painted red (or marked). It is ONLY for firmware.
• The Logbook: A physical notebook near the machine recording updates, needle changes, and oiling dates.
• The "Hands-Off" Sign: When updating, put a sticky note on the screen: "UPDATING - DO NOT TOUCH."
• UPS Buffer: If your shop has flickering lights when the heat press turns on, buy a UPS (Battery Backup) for your embroidery machine. It is cheaper than a motherboard.


Upgrading the Workflow: Beyond the Firmware

You have successfully updated the software to Version 4.14. Your machine is now running its most efficient code. But is your operator running efficiently?

The number one bottleneck in embroidery isn't the machine's stitch speed (SPM); it is the Downtime between runs. This is usually caused by hooping. Standard friction hoops require adjustment, significant hand strength, and constant re-tightening (the "hoop burn" struggle).

When to Upgrade to Magnetic Hoops:

• Pain: If your wrists hurt after a day of production.
• Quality: If you see "ring marks" on dark polyester or velvet.
• Speed: If hooping a garment takes longer than 45 seconds.

Tools like mighty hoops for brother pr1000e or the brother magnetic hoop systems use magnetic force to clamp fabric instantly. They self-adjust to different thicknesses—from T-shirts to Carhartt jackets—without you touching a thumb screw.

Productivity Calculation: If a magnetic hoop saves you 30 seconds per shirt, and you do 50 shirts a day, you gain back 25 minutes of production time daily. That is an extra run of 3-4 items every single day.

Warning (Magnetic Safety): magnetic embroidery hoops for brother are industrial tools with powerful rare-earth magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
* Medical Safety: Keep them away from pacemakers and insulin pumps.
* Electronics: Keep them at least 6 inches away from the machine's LCD screen and your floppy disks/credit cards.

Final Operational Checklist

You are updated, you are safe, and you are ready to run.

Operation Checklist (Return to Service):

• Version Confirmed: Screen shows v4.14.
• USB Removed: The update stick is stored away.
• Test Sew: Run a standard "H" test pattern on scrap fabric.
  • Sensory Check: Listen for the proper thread cut sound (a sharp "snip-click").
  • Visual Check: Ensure tensions haven't drifted (1/3 bobbin showing on the back).
• Hoop Calibration: If you use brother embroidery machine magnetic hoop accessories, verify the machine recognizes the arm width correctly.

By treating a firmware update as a disciplined maintenance event rather than a frightening gamble, you take control of your equipment. The machine serves you, not the other way around. Now, get back to stitching.

FAQ

• Q: What is the safest way to update firmware on a Brother PR1000e without corrupting the main board?
  A: Treat the Brother PR1000e firmware update like a controlled maintenance event: stable power, correct file, and hands-off during writing.
  • Schedule: Block 30 minutes of uninterrupted time and avoid storms; use a UPS if available.
  • Prepare: Use a dedicated USB stick (2GB–8GB, FAT32) with only the correct PR1000e .UPG file on the root (no folders).
  • Do: Never turn OFF the main power switch during the “Saving/Writing” progress from 0% to 100%, and do not touch the USB once loading starts.
  • Success check: The screen shows “Upgrade complete,” and after reboot the Settings page shows the new version number.
  • If it still fails: Stop and troubleshoot the USB/file structure first rather than retrying repeatedly.
• Q: How do I enter Brother PR1000e firmware update mode using the automatic needle threader button (two-hand boot)?
  A: Use the Brother PR1000e “two-hand boot” by holding the Automatic Needle Threader button while switching main power ON.
  • Power: Turn the main power switch OFF (right side of the machine).
  • Hold: Press and hold the physical Automatic Needle Threader button on the control panel.
  • Switch: While holding the button, turn the main power switch ON and keep holding until the special update screen appears.
  • Success check: The screen turns white with three large icons; releasing too early typically boots to the normal startup screen.
  • If it still fails: Turn the machine OFF and repeat, holding the button longer until the icon screen appears.
• Q: How do I fix “Cannot find the right file” on a Brother PR1000e during a firmware update?
  A: This is common—“Cannot find the right file” on a Brother PR1000e almost always means the USB setup or file placement is wrong, not a damaged machine.
  • Move: Place the .UPG file in the USB root directory (not inside any folder).
  • Restore: Use the original factory file name (avoid renaming like “Update(1).UPG”).
  • Switch: Use a simpler USB stick (2GB–8GB) formatted FAT32, and keep the drive empty except for the single .UPG file.
  • Success check: After pressing LOAD, the percentage progresses beyond 000% instead of immediately erroring out.
  • If it still fails: Re-download the exact Brother PR1000e firmware file (model mismatch is a frequent cause).
• Q: How can I confirm a Brother PR1000e firmware update succeeded after rebooting?
  A: Verification on a Brother PR1000e is done by checking the firmware version in Settings after a normal reboot.
  • Record: Before updating, write down the current Version from Settings/Page (navigate to the last page, often Page 6 of 6).
  • Reboot: After “Upgrade complete,” power OFF, remove the USB, wait about 5 seconds, then power ON normally.
  • Verify: Return to Settings/Page → last page and confirm the Version matches the update target (for example, 4.14 if that was the file used).
  • Success check: The version number changes to the target value and the machine boots normally without freezing.
  • If it still fails: Do not keep power-cycling during update mode—recheck USB/file hygiene and repeat only when corrected.
• Q: What should I do if Brother PR1000e features disappear after a firmware update (camera grayed out or hoop list missing)?
  A: Don’t worry—after a Brother PR1000e firmware update, missing features are often a reset/accessory-detection issue and may come back with basic re-initialization.
  • Restart: Power OFF, wait about 30 seconds, then power ON.
  • Reseat: Unmount and remount the hoop arms/accessories to refresh detection.
  • Re-select: Check machine settings for the correct hoop/holder selection (if applicable to the installed version).
  • Success check: The previously grayed-out function becomes selectable, or the expected hoop options return in the menu.
  • If it still fails: Confirm the firmware version installed correctly, then contact a dealer/tech if accessory recognition will not restore.
• Q: What mechanical safety precautions should be followed during a Brother PR1000e firmware update and reboot calibration movement?
  A: Keep hands clear even though it is a software task—the Brother PR1000e will move the X-Y carriage during reboot and can pinch/jam if obstructed.
  • Clear: Keep hands away from the needle case area and pantograph/X-Y arm during update and first reboot.
  • Freeze: Do not touch the screen or wiggle the USB once the progress starts.
  • Control: Place a visible “DO NOT TOUCH” note on the machine during updating to prevent accidental interference.
  • Success check: On reboot, the carriage calibrates smoothly and the machine makes normal startup movement/sounds without jerking.
  • If it still fails: Power OFF only after the machine is in a safe stopped state (not during writing), then inspect for anything physically blocking movement.
• Q: When should a Brother PR1000e shop upgrade from standard hoops to magnetic hoops to reduce hoop burn and downtime between runs?
  A: Upgrade to magnetic hoops when standard hooping is creating consistent pain, marks, or slow changeovers—this is often the real production bottleneck, not stitch speed.
  • Diagnose: Time hooping; if hooping a garment regularly takes longer than ~45 seconds or requires frequent re-tightening, it is a workflow drag.
  • Identify: Watch for ring marks/hoop burn on delicate or dark fabrics and operator wrist fatigue after a production day.
  • Upgrade: Consider magnetic hoops to get consistent clamping across different thicknesses without relying on screw tension (operator strength).
  • Success check: Hooping becomes repeatable and faster, with fewer ring marks and less rework between runs.
  • If it still fails: Improve Level 1 fundamentals first (consistent hooping process and stable setup), then evaluate tool upgrades; if throughput limits remain, it may be time to consider a capacity upgrade to a multi-needle production setup.
