Brother Luminaire 2 My Design Center Background Quilting: Dial In Echo Stitching, Stippling, and Stitch Order Without Ruining Your Block

If you’ve ever stared at your Brother Luminaire 2 screen thinking, “I know this machine can do it… why can’t I get a clean quilted background without chewing up my motif?”, take a breath. You are experiencing a common gap between owning the technology and feeling the physics of embroidery.

You aren’t behind. You are just missing the sensory connection between what you see on the screen—a perfect digital render—and what happens when a needle creates friction against a quilt sandwich at 800 stitches per minute.

Sue from OML Embroidery provides a foundational demonstration of generating background quilting directly on the Brother Luminaire 2 (Innov-is XP2) using My Design Center. The capability is built-in, but the professional finish depends on three variables you must control: Hoop Limits (Physics), Distance (Safety), and Spacing (Density).

This guide will deconstruct her method and add the "shop floor" safety buffers and sensory checks you need to execute this without fear.

Calm the Panic: Brother Luminaire 2 My Design Center Quilting Is Forgiving—If You Know What to Look At First

The first mental hurdle is paralysis: the fear that choosing the wrong fill will ruin the fabric you just spent $40 on. On the Luminaire 2, the operating logic is non-destructive. You can swap motifs, resize boundaries, and change stitch types instantly before you ever commit a single needle drop.

Sue demonstrates this by cycling through built-in Disney motifs. The machine offers a "sandbox" environment where errors are free.

However, experience dictates a few usage rules:

• The Size Rule: Avoid motifs smaller than 2" x 2". As Sue points out, micro-designs create a visual mess when surrounded by quilting. The "Distance" buffer eats up the design, leaving you with an unrecognizable blob.
• The Patience Rule: When you tap the quilting icon, listen to your machine. It will go silent and the screen may freeze for 5–10 seconds. Do not panic. It is calculating thousands of vector points. A rhythmic silence is normal; frantic tapping causes crashes.


The “Hidden” Prep Pros Do Before Touching the Screen: Quilt Sandwich Control and Hooping Strategy

Background quilting is, by definition, controlled fabric distortion. Your machine is about to drive thousands of stitches into the background area. Each stitch pulls the fabric slightly inward (the "draw-in" effect). If your quilt sandwich isn't secured with absolute rigidity, the fabric will ripple, creating the dreaded "puckered halo" around your center design.

In my workshop, we don't just "hoop fabric"; we engineering a stability system. Here is the prep mindset:

1. The Sandwich: You are managing three layers (Top, Batting, Backing). They slide against each other. Use a temporary spray adhesive (like 505) to fuse them lightly before hooping. This creates a unified substrate.
2. The Tension Check: When hooped, the fabric should sound like a tight drum when tapped—a dull thump, not a loose flap.
3. The Tool Limitation: Traditional inner/outer ring hoops rely on friction. With thick quilt sandwiches, they often fail to grip evenly or, worse, they leave permanent "hoop burn" (crushed fibers) that requires steaming to fix.

If you find yourself wrestling the screw to close the hoop over batting, or if the hoop pops open mid-stitch, this is a hardware trigger. Professional shops mitigate this risk using a magnetic embroidery hoop. These frames use localized magnetic force to clamp thick layers instantly without the "friction drag" that causes hoop burn.

Warning: Needle Zone Safety. When working with thick quilt sandwiches, keep fingers at least 4 inches away from the presser foot. If the bulky fabric lifts the foot, a finger can easily slide underneath. A needle strike at high speed is a medical emergency.

Prep Checklist (Pre-Flight):

• Sandwich Integrity: Have you lightly spray-basted the batting to the fabric?
• Visual Check: Is the fabric taut? Tap it. Thump = Good. Flap = Bad.
• Tool Check: Are you using the correct needle? (Topstitch or Quilting 90/14 recommended for sandwiches).
• Design Choice: Is the motif large enough (strictly >2 inches) to anchor the quilting?
• Hoop Clearance: Does your hoop cam-lock clearly? If you have to force it, the fabric is too thick or the screw is too tight.


Enter the Quilting Generator on Brother Luminaire 2: The One Icon People Miss in Edit Mode

Sue’s workflow is linear, but requires precise button discipline:

1. Load your design in Embroidery Mode.
2. Tap Edit.
3. Locate the Stipple/Quilt Icon. It usually looks like a square with a squiggle inside or a radiating line, depending on your firmware version.

The Sensory Anchor: When you press this, the machine will pause. You might hear the internal processor fan change pitch slightly. This is the sound of boundary mathematics happening. Wait for the screen to refresh fully before tapping anything else.

Stop Letting the Luminaire Default to the Biggest Hoop: Set Hoop Limits (8x8) Before You Judge the Fill

This is the single most common reason why users think the feature is "broken" or "slow."

By default, the Luminaire looks at its maximum potential field (10-5/8" x 16"). It tries to calculate quilting for that entire massive area, even if you are only stitching a small block.

• The Consequence: The preview looks tiny, the processing takes forever, and the fill pattern looks distorted.
• The Fix: Sue explicitly manually changes the hoop size to 8" x 8" (or matches your actual physical hoop) using the left-side menu.

Why this is critical: The software uses the hoop boundary to determine where the quilting stops. If you don't define this, the machine may place stitches right up to the plastic edge of a larger hoop you aren't using, leading to needle breaks if you are actually using a smaller brother 8x8 embroidery hoop.

Setup Checklist (Hoop & Screen Sync):

• Physical Match: Look at the hoop on your table. Look at the hoop size on the screen. Do they match exactly?
• Boundary Check: Do you see the red boundary line (Keep-Out Zone) and the hoop boundary line?
• Recalculation: Did the machine finish its "thinking" pause after you switched hoop sizes?


Make the Background Look Intentional: Tune “Distance” on Stippling So the Quilting Doesn’t Bite Your Motif

"Distance" is not just a setting; it is your Safety Margin. It controls the gap between the edge of your center design (Mickey) and the start of the quilting stitches.

• Sue's Setting: 0.020 inches.
• My "Shop Safe" Recommendation: 0.040" – 0.080".

Why the discrepancy? Sue is an expert looking for a tight, seamless finish. For most home users, a distance of 0.020" is microscopic. If your fabric shifts even a millimeter, the background quilting will crash into your main design, stitching over the satin edges.

The Visual Calibration:

• Too Close (<0.030"): The quilting looks like it is "eating" the design. High risk of thread collision.
• The Sweet Spot (0.040" - 0.080"): Creates a respectful frame. The eye sees the design clearly separated from the texture.
• Too Far (>0.120"): Creates a "halo" or "island" effect. This can look unintentional unless you are specifically aiming for a Trappunto look.

On designs with jagged edges (like text or stars), increase your Distance. The software needs room to navigate those sharp corners without piling up thread.

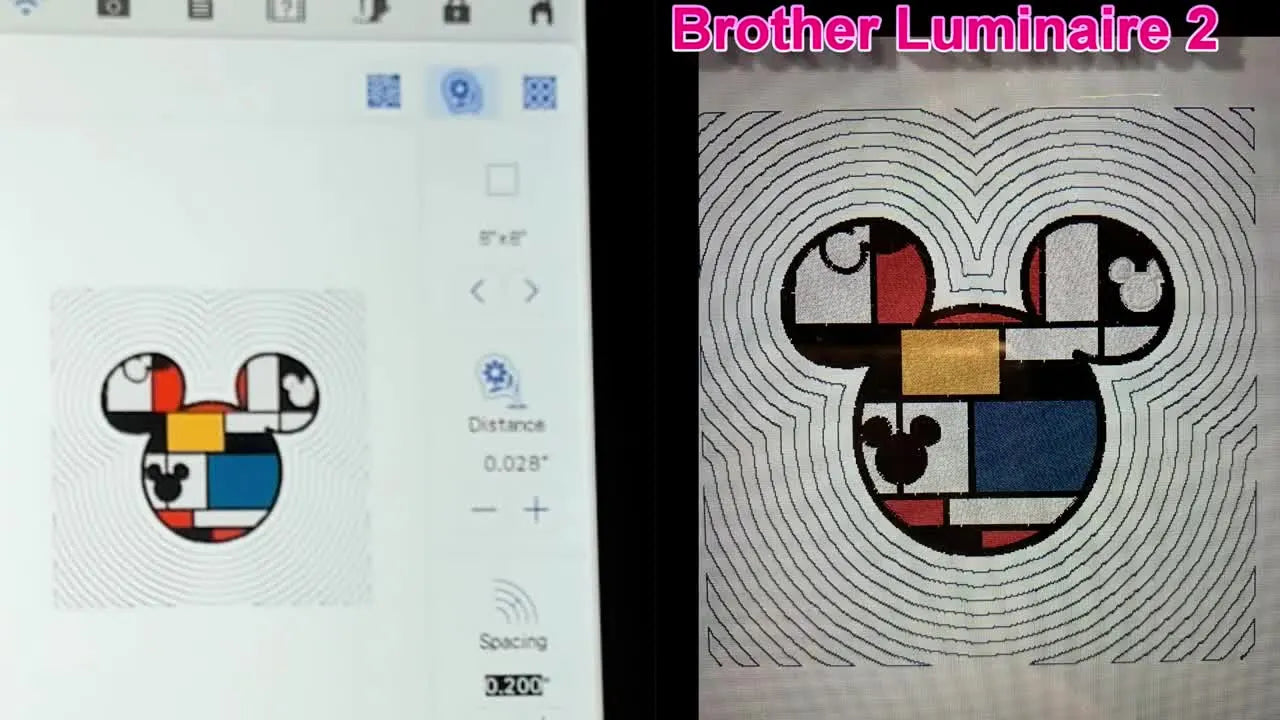

Echo Stitching on Brother Luminaire 2: Use “Spacing” to Control the Ripple Density (and the Time)

Sue switches to Echo Stitching (radiating lines). Here, "Spacing" controls the gap between each ripple.

• Sue's Value: 0.200 inches.
• The Physics: This is approximately 5mm. This is a safe, standard density.

Density = Stiffness. If you reduce Spacing to 0.100" (very dense), you are injecting twice the amount of thread into the background. This will make the quilt block stiff, board-like, and more prone to shrinking (draw-in). If you increase Spacing to 0.500" (loose), the fabric will remain soft and drape well, but the texture will be subtle.

The "Shop Floor" Truth: Spacing also dictates Runtime.

• 0.100" Spacing = 20 minutes execution.
• 0.500" Spacing = 5 minutes execution.

If you are doing a 20-block quilt, that difference is 5 hours of machine time. Choose 0.200" - 0.250" for the best balance of aesthetics and speed.

The Stitch-Order Trick That Saves Quilt Blocks: Move the Blue Background Step to #1 So It Tacks Down First

This simple drag-and-drop action prevents the majority of "puckering" support tickets I receive.

Sue notices the machine places the new background step at the end of the sequence. She moves it to Step #1.

The Mechanical Logic:

1. If you stitch background LAST: The center design stitches first, pulling the fabric in. Then, the background quilting tries to smooth out fabric that has already been distorted. Result: Puckers and ripples near the design.
2. If you stitch background FIRST: The quilting acts as a "Basting Stitch" on steroids. It flattens the batting and fabric, tacking everything down from the outside in (or inside out). When the center design finally stitches, the foundation is rock solid.

Action: Look for the blue box in the stitch order. Use the arrow keys to promote it to the top. Do not skip this.

Built-In vs Imported Designs (DIME Example): Protect Complex Edges with a Slightly Larger Distance

Sue loads an imported "Sueville" house design (DIME). Imported designs often have less perfect digital boundaries than built-in Disney motifs.

• The Adjustment: She increases Distance to 0.036 inches.

This confirms the rule: Complexity requires Clearance. If you are using imported PES files or designs from a USB stick, the machine interprets the edge based on the outermost stitch data. Stray pixels or jump stitches can confuse the boundary calculator.

The Fix: Always give imported designs 15-20% more breathing room (Distance) than built-in designs.

If you are fighting to keep imported designs stable, checking your hardware is also wise. Many users utilizing systems like the dime snap hoop for brother luminaire find that the consistent pressure of a magnetic top frame helps stabilize these complex imported blocks better than standard hoops, allowing for slightly tighter tolerances.

Don’t Guess—Inspect: Use 200% Magnification to Approve the Gap Before You Stitch

Never trust the 100% view. The screen resolution cannot show you a 0.020" gap accurately.

The 200% Rule:

1. Tap the Magnifying Glass icon.
2. Zoom to 200%.
3. Pan (scroll) around the tightest corners of your design.

What you are looking for:

• collisions: Do red lines cross into the design?
• Traps: Are there tiny pockets between letters (like the hole in an 'A' or 'O') where the quilting tries to force a single stitch?
• Action: If you see "traps," increase the Distance or simplify the boundary until they disappear. Small thread nests in tight corners are a nightmare to trim.


“It’s Thinking Forever…” and Other Real-World Snags: What the Video Shows (and What Usually Fixes It)

If the machine hangs, it is rarely broken. It is overwhelmed.

Structured Troubleshooting Guide

Decision Tree: Choose Stippling vs Echo Stitching (and Pick a Stabilizer Strategy That Matches Your Fabric)

Don't just guess. Use this logic flow to determine your settings.

Start: Analyze your Fabric Sandwich.

• Pathway A: The "Puffy" Quilt (High Loft Batting)
  • Goal: Maintain fluffiness.
  • Stitch Choice: Stippling. (Echo compresses too much).
  • Settings: Distance 0.080" (Give it room).
  • Stabilizer: No-Show Mesh (Iron-on) on the back to prevent shredding.
• Pathway B: The "Modern" Block (Cotton + Thin Batting)
  • Goal: Geometric precision.
  • Stitch Choice: Echo Stitching.
  • Settings: Spacing 0.250" for a clean look.
  • Stabilizer: Tear-away is usually sufficient if the cotton is starched.
• Pathway C: The "Production" Run (20+ Identical Blocks)
  • Goal: Speed and consistency.
  • Stitch Choice: Stippling (Faster math, fewer trims).
  • Tooling: This is the trigger point for magnetic hoops for embroidery. The time saved not adjusting screws for 20 blocks pays for the hoop.


The “Upgrade Path” That Actually Makes Sense: When Hooping Speed and Consistency Become the Bottleneck

Once you master the software side (Distance/Spacing), the bottleneck shifts to your hands.

If you are making one pillow, the standard hoop is fine. Stick with it. However, if you are tackling a full king-sized quilt (40+ blocks), the physical strain of hooping thick layers repeatedly creates fatigue. Fatigue leads to crooked blocks.

When to Upgrade:

1. The Wrist Pain Test: If your wrists hurt after 5 blocks, you need a different clamping mechanism.
2. The Burn Test: If you can't remove hoop marks from your specific velvet or satin fabric.
3. The Volume Test: If you plan to sell these blocks.

The Solution Hierarchy:

• Level 1: Use an embroidery hooping station. This ensures every block is centered exactly the same way (essential for joining blocks later).
• Level 2: Switch to magnetic hoops for brother luminaire. These allow you to "slap" the hoop shut on thick batting without unscrewing/tightening. It reduces hooping time by ~40% and eliminates hoop burn.

Warning: Magnetic Handle with Care. These are industrial-strength neodymium magnets. They can pinch skin severely if they snap together unexpectedly. Never place them near pacemakers or magnetic storage media.

Operation Checklist (Final Go/No-Go):

• Hoop Size: Is the screen set to 8x8 (or your actual hoop)?
• Sequence: Is the Blue Background Box at the TOP (Step 1)?
• Distance: Is it at least 0.040" (Safety Zone)?
• Zoom: Did you pass the 200% inspection?
• Physical: Is the hoop attached securely to the carriage?


Final Reality Check: What This Feature Does Better Than Software (and Where You Still Need Judgment)

Sue’s demonstration proves that the Luminaire 2 is capable of "software-grade" quilting without the PC. It shines in adaptability—you can adjust the quilt size to the exact millimeter of your block, something pre-digitized files can't do.

But the machine has no eyes. It doesn't know your batting is extra fluffy or that your fabric is slippery satin.

• The Machine provides the Math.
• You provide the Physics (Stabilizer, Hooping, Tension).

Master the "Distance" setting to save your design. Master the "Stitch Order" to save your fabric. And if the physical struggle of hooping fights you, know that specialized tools exist to solve exactly that problem.

FAQ

• Q: Why does the Brother Luminaire 2 (Innov-is XP2) My Design Center quilting feature “freeze” or think for a long time after tapping the stipple/quilting icon?
  A: This is common—Brother Luminaire 2 usually “thinks” because the hoop limit is set too large, so it is calculating quilting for a huge field.
  • Set: Change the on-screen hoop size to match the real hoop (for many blocks, set 8" x 8") before generating quilting.
  • Wait: Give the machine 5–10 seconds without tapping; repeated taps can cause crashes.
  • Recalculate: After changing hoop size, let the screen fully refresh before touching anything else.
  • Success check: The screen refreshes normally after a short pause and the quilting preview appears at a usable scale.
  • If it still fails… If it exceeds ~2 minutes, reboot and re-open the design with the correct hoop limit set first.
• Q: How do I stop Brother Luminaire 2 background quilting from stitching into the main embroidery design when using My Design Center?
  A: Increase the Brother Luminaire 2 “Distance” setting to create a safer buffer so the quilting cannot bite into satin edges.
  • Set: Use a safe starting point of 0.040"–0.080" Distance for most users (tighter values like 0.020" are high-risk on shifting fabric).
  • Increase: Add extra Distance on jagged edges (text, stars) and on imported designs.
  • Inspect: Zoom to 200% and pan the tight corners to look for collisions and tiny “trap” pockets.
  • Success check: At 200% view, quilting lines stay clearly outside the design edge everywhere (no red line crossings into the motif).
  • If it still fails… Stop the stitch-out early and increase Distance again; verify the quilt sandwich is not slipping in the hoop.
• Q: How can Brother Luminaire 2 users prevent puckering around the motif when adding stippling or echo background quilting?
  A: Move the Brother Luminaire 2 blue background quilting step to Stitch Order Step #1 so the quilting tacks down the sandwich first.
  • Edit: Find the blue background box in the stitch sequence and use the arrows to promote it to the top.
  • Stitch: Run background quilting first, then stitch the center design after the foundation is stabilized.
  • Prep: Lightly spray-baste the quilt sandwich layers before hooping to reduce layer shift.
  • Success check: The block stays flatter near the design edge with fewer ripples after stitching.
  • If it still fails… Recheck hoop tension (drum-tight “thump”), and consider reducing density choices that over-compress the area.
• Q: What are the best Brother Luminaire 2 My Design Center echo stitching “Spacing” settings to balance texture, stiffness, and run time?
  A: Start around 0.200"–0.250" Spacing on Brother Luminaire 2 echo stitching for a practical balance of look and speed.
  • Choose: Use ~0.200" (about 5 mm) as a safe, standard density similar to the demonstrated value.
  • Avoid: Very dense 0.100" can make blocks stiff and increase draw-in; very loose 0.500" stitches faster but looks subtle.
  • Plan: Factor production time—Spacing heavily affects minutes per block when making many blocks.
  • Success check: The quilt block still drapes reasonably while the echo texture reads clearly at arm’s length.
  • If it still fails… If the block feels board-like or shrinks, increase Spacing and confirm the sandwich is stabilized before hooping.
• Q: What Brother Luminaire 2 hooping method and prep checks prevent fabric slip and hoop marks when quilting a thick quilt sandwich?
  A: Treat hooping as a stability system: unify layers with light spray adhesive and confirm drum-tight tension before stitching.
  • Fuse: Lightly spray-baste (e.g., 505) the top/batting/backing so layers behave like one sheet.
  • Tap-test: Hoop so the surface sounds like a dull “thump,” not a loose “flap.”
  • Match: Confirm the on-screen hoop size matches the physical hoop to avoid boundary mistakes near hoop edges.
  • Success check: The hoop stays closed, the fabric does not creep, and the surface remains taut through the stitch-out.
  • If it still fails… If the hoop is hard to close over batting, pops open, or leaves heavy hoop burn, consider switching to a magnetic embroidery hoop for thick sandwiches.
• Q: What needle safety rules should Brother Luminaire 2 users follow when quilting thick layers in the embroidery hoop?
  A: Keep hands well away—thick quilt sandwiches can lift the presser foot and make finger strikes more likely.
  • Keep: Maintain at least 4 inches of clearance from the presser foot/needle area while stitching.
  • Avoid: Do not guide fabric with fingertips near the needle when the sandwich is bulky.
  • Stop: Pause the machine before adjusting anything near the hoop or foot.
  • Success check: Hands never enter the needle zone during motion, and adjustments happen only while the machine is stopped.
  • If it still fails… If control feels unsafe due to bulk or shifting, improve sandwich basting/hooping strategy before restarting.
• Q: What magnetic hoop safety precautions should Brother Luminaire 2 users follow when using magnetic embroidery hoops for thick quilt sandwiches?
  A: Magnetic hoops are fast and consistent, but the magnets can pinch—handle slowly and keep magnets away from sensitive devices.
  • Separate: Place the hoop halves down deliberately; do not let magnets snap together in mid-air.
  • Protect: Keep fingers out of the closing path to prevent skin pinches.
  • Keep-away: Do not use near pacemakers or magnetic storage media.
  • Success check: The hoop closes smoothly without sudden snapping, and the sandwich is clamped evenly without screw forcing.
  • If it still fails… If the frame feels hard to control, slow down the placement technique and consider a hooping station to stabilize alignment.
