ZSK Head Timing at 136.0° (All Heads): The Calm, Precise Fix When Every Take-Up Lever Drops

The ZSK Multi-Head Timing Survival Guide: From Panic to Precision

When a ZSK multi-head machine suddenly looks “wrong” across the entire bank—especially when every take-up lever is dropped down—it triggers a specific kind of operator panic. It looks catastrophic.

Take a breath. In 90% of cases, this is a timing reference problem, not a “dead machine” problem. The brain of the machine (the encoder) and the body (the shaft) have simply lost their handshake.

This guide transforms a complex factory procedure into a clear, linear workflow. We will diagnose whether this is truly a global issue, perform the specific 136.0° calibration, and discuss how to prevent the vibration and stress—often caused by traditional hooping methods—that ruin timing in the first place.

1. Diagnosis: The "Don't Panic" Protocol

Goal: Confirm the symptom matches the cure before grabbing a single tool.

If you describe your problem as "my zsk embroidery machine is acting weird," you aren't ready to fix it. We need specific visual evidence.

The diagnostic trigger is binary:

• Scenario A: Take-up levers are down on ONE head.
  • Action: STOP. Do not use this guide. You have a single-head mechanical failure (broken recruiter, velcro strap issue, or selector).
• Scenario B: Take-up levers are dropped on ALL heads simultaneously.
  • Action: PROCEED. This indicates the main shaft reference has drifted.

Why this matters: Adjusting global timing on a machine with a single-head issue will knock every functioning head out of sync.

2. Preparation: The "Hidden" Pre-Flight Check

Goal: Eliminate variables that cause false readings.

Before you enter the service menu, you must prepare the physical environment. Timing is precision work; a cluttered workspace results in stripped screws and lost references.

Prep Checklist

• Verify Symptom: Confirm all levers are down.
• Clear Access: Ensure you can walk between the console and the rear of the machine freely.
• Tool Audit:
  • Phillips screwdriver.
  • 4mm Allen key.
  • ZSK Timing Pin (SKU 601.005.914) — Crucial: Do not use a random drill bit.
  • Box key (for top shaft cover).
  • Leverage bar (for manual rotation).
  • Flashlight: To see inside the casting.
  • Shop Rag/Grease: While covers are off, check if catch-gears need lubrication.

Warning: Pinch Hazard. Timing adjustments require your hands to be near rotating shafts and belts. Remove jewelry, secure loose sleeves, and never blind-reach into the casting.

3. Visual Confirmation: Reading the Levers

Stand back and scan the machine. You are looking for a uniform error.

• Visual Anchor: Look at the "elbows" of the take-up levers. They should all be submerged in the head.
• Verification: If even one lever is up while the others are down, re-evaluate. This guide applies only to a unanimous failure.


4. Machine Access: Removing Covers

Goal: Expose the timing mechanism without creating vibration rattles later.

1. Remove Right-Side End Cover: Use the Phillips screwdriver. Place screws in a magnetic dish.
2. Remove Left-Side Blue "Racer" Cover: Use the 4mm Allen key.

Expert Tip: While the covers are off, look for "dust bunnies" made of thread lint and oil. These can overheat motors. Wipe them out now.

5. The Service Menu: Digital Positioning

Goal: Ask the motor to move to where it thinks the timing point is.

On the ZSK T8 Console:

1. Press L3 to enter the Service Screen.
2. Select "Test machine attachment" (Ref: R2).
3. Select "Position main shaft" (Ref: L8).
4. Enter Value: 136.
5. Press the Green Start Button.

Sensory Check: You will hear the motor whine and lock.

• Observation: The machine moves to what it believes is 136 degrees.
• Reality: This is an approximation. Do not trust the screen yet.

Professional shops documenting maintenance for a commercial embroidery machine should log this event. Frequent timing loss suggests you are pushing the machine too hard or using improper stabilization methods.

6. The 136.0° Standard: Why Precision Matters

Goal: Understand the target.

• Target: 136.0 degrees exactly.
• Tolerance: +/- 0.0 degrees.

The "Why": The timing pin is your mechanical "truth." The screen is just a report. When the pin slides in and the screen says 136.0, the digital brain and mechanical body are synchronized.

7. The Pin Insertion: Finding "Mechanical Zero"

Goal: Physically locate the correct timing position.

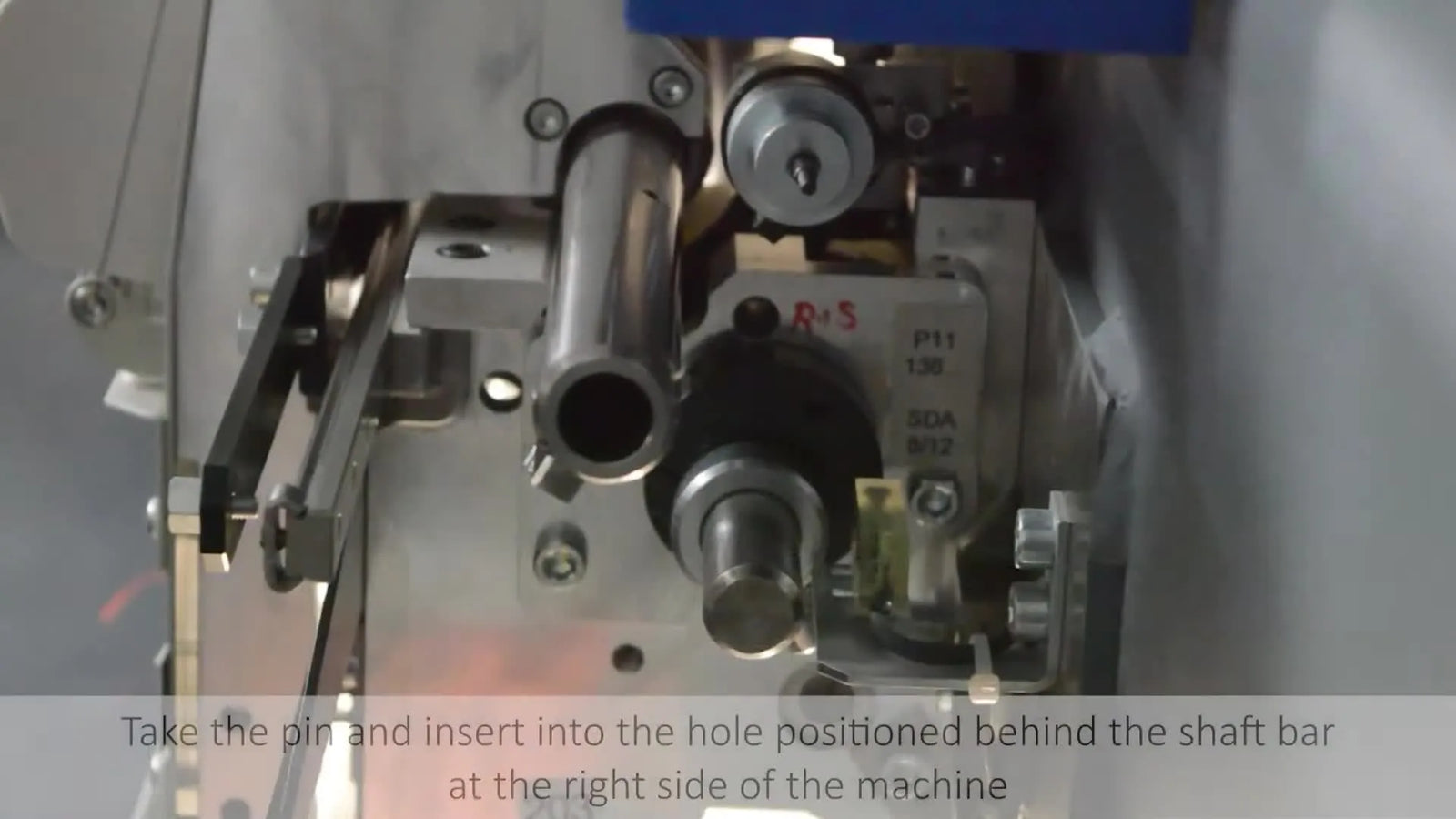

1. Locate the timing hole behind the shaft bar on the right side.
2. Insert the ZSK Timing Pin (601.005.914).
3. Disengage the Brake: On the panel, toggle the brake off (Green light turns OFF). The shaft is now free.
4. Manual Rotation: Using the leverage bar, gently rotate the shaft until the pin falls into the slot.

Sensory Anchor: The Tactile Check. The pin should slide in with a "buttery" feel. If you have to hammer, force, or wiggle it aggressively, you are not aligned. It should feel like a deadbolt sliding home.

If you are researching zsk embroidery machine troubleshooting because your machine is making a grinding noise, stop immediately—you likely have a broken bearing, not a timing issue.

8. Brake Control: The Two-Person Advantage

Goal: Lock the machine without shifting the shaft.

• State A (Adjusting): Brake Released (Green light OFF). Allows you to rotate the shaft to match the pin.
• State B (Locking): Brake Engaged (Green light ON). Freezes the shaft so you can tighten screws.

Pro Tip: This is tricky solo. If possible, have a helper press the brake button the exact second you confirm the pin is seated and the screen reads correctly.

9. The Mechanical Correction: The "Handshake"

Goal: Force the shaft to agree with the computer.

1. Open Top Shaft Cover: Use the box key.
2. Loosen Shaft Collar Screw: Use the red-handled Allen driver.
   • Tactile: Loosen just enough so the shaft can turn independently of the collar—don't unscrew it completely.
3. Fine Tune: Rotate the shaft with the leverage bar until the screen reads EXACTLY 136.0.
4. Lock Calculation:
   • Pin is IN.
   • Screen says 136.0.
   • Action: Re-engage the Brake (Green Light ON).
5. Final Torque: Tighten the collar screw firmly.








10. Verification: The "Expected Outcomes" Protocol

Goal: Confirm success before reassembly.

Before you remove the pin, verify this "Trinity of Timing":

1. Mechanical: The pin flows in and out smoothly (no friction).
2. Digital: The screen reads 136.0 (steady, not flickering).
3. Holding: With the brake on, the numbers don't drift.

Setup Checklist (Pre-Lock)

• Pin 601.005.914 is fully seated.
• Brake was released during the search, now engaged.
• Collar screw is torqued down.
• No tools left inside the casting.


11. Root Cause Analysis: Why Did This Happen?

Goal: Prevent recurrence through workflow upgrades.

Mechanical drift isn't magic; it's physics. It comes from vibration and resistance. If you are constantly re-timing your machine, your workflow is too aggressive.

The "Hooping" Factor

The #1 cause of machine stress is improper hooping. Forcefully snapping frantic plastic hoops onto thick garments sends shockwaves through the pantograph arm into the chassis.

The Solution Ladder:

• Level 1 (Technique): Use the correct stabilizer. Don't force a thick jacket into a standard hoop using "brute strength."
• Level 2 (Tool Upgrade): Switch to Magnetic Hoops (like MaggieFrame).
  • Why: They use magnetic force to clamp, not mechanical leverage. This eliminates the "snap" shock that vibrates the machine. They also hold thick items (Carhartt, leather) without popping, reducing machine drags.
  • Bonus: Reduces operator wrist strain (Carpal Tunnel prevention).

Warning: Magnetic Safety. Industrial magnetic hoops are extremely powerful. Keep them away from pacemakers and implanted devices. Keep fingers clear of the mating surfaces to avoid severe pinching.

If your machine is an older model and the timing slips weekly despite these fixes, the internal cams may be worn. For high-volume shops, this is the metric to start looking at multi needle embroidery machines for sale. Upgrading to a modern SEWTECH unit can often cost less than a year of downtime and repair bills on a dying legacy machine.

12. Reassembly: The Safe Exit

1. Install Left Blue Cover.
2. REMOVE THE TIMING PIN.
   • Critical: If you start the machine with the pin in, you will cause thousands of dollars in damage instantly.
3. Exit Test Mode: Return to the main menu.
4. Install Right-Side Cover.


13. Troubleshooting & Decision Tree

Still not right? Use this logic flow to troubleshoot post-repair issues.

Decision Tree: Troubleshooting Post-Repair

• Symptom: Screen fluctuates (e.g., 135.8 - 136.2).
  • Cause: Brake not fully engaged or collar loose.
  • Fix: Repeat Step 9.
• Symptom: Machine makes a "thump" sound on start.
  • Cause: Timing pin left in OR cover screw loose.
  • Fix: E-STOP immediately. Check pin.
• Symptom: Only ONE head is now off-center.
  • Cause: You applied a global fix to a local problem.
  • Fix: Reverse global setting, use single-head timing procedure.

14. Optimization: The Path to Profitability

Operating an embroidery machine zsk is a balance of precision and production speed.

To maximize ROI:

1. Standardize Consumables: Use high-quality backing to reduce needle drag.
2. Upgrade Hooping: Use Magnetic Frames to reduce load times and machine stress.
3. Scale Correctly: If you are rejecting orders because this machine is too slow or down for maintenance, explore adding a SEWTECH Multi-Head to your line. Calculated redundancy protects your deadlines.


Operation Checklist (The "First Run")

• Machine is in Standard Mode (not Service).
• Timing Pin is in your toolbox, NOT the machine.
• First design run is at low speed (400-600 SPM) to listen for smoothness.
• No "clicking" sounds from the hook area.

Precision is power. You have now reset the heartbeat of your machine. Happy stitching.

FAQ

• Q: How can ZSK multi-head embroidery machine operators confirm the “all take-up levers down” symptom is a global timing reference issue and not a single-head failure?
  A: If take-up levers are dropped on ALL heads at the same time, ZSK multi-head timing reference drift is likely; if it is only ONE head, stop and do not do global timing.
  • Scan: Stand back and verify every take-up lever “elbow” is down uniformly across the entire bank.
  • Stop: If even one lever is up (or only one head looks wrong), treat it as a local mechanical issue (do not proceed with global timing).
  • Proceed: Only continue to service positioning when the failure is unanimous on all heads.
  • Success check: All heads show the same lever-down position with no exceptions.
  • If it still fails: Use a single-head mechanical/timing procedure instead of a main-shaft calibration.
• Q: What tools are required before starting the ZSK T8 console “Position main shaft 136” timing procedure on a ZSK multi-head embroidery machine?
  A: Gather the exact ZSK timing tools first—most failed calibrations happen because access or the correct timing pin is missing.
  • Verify: Use the ZSK Timing Pin (SKU 601.005.914) and do not substitute a drill bit.
  • Prepare: Set up Phillips screwdriver, 4mm Allen key, box key (top shaft cover), leverage bar, flashlight, and a shop rag/grease.
  • Clear: Make sure there is open walking access between the console and the rear of the machine before starting.
  • Success check: The timing pin and leverage bar are in hand and the timing area is clearly visible with a flashlight.
  • If it still fails: Pause and re-check access and tool fit before loosening any shaft collar screw.
• Q: How do ZSK T8 console steps “Test machine attachment” and “Position main shaft 136” relate to the ZSK multi-head 136.0° timing calibration?
  A: The ZSK T8 “Position main shaft 136” command moves the machine to where the control thinks 136° is, but the timing pin is the mechanical truth you must match to 136.0.
  • Enter: Go to Service Screen (L3) → “Test machine attachment” → “Position main shaft” and input 136, then press the green Start button.
  • Confirm: Treat the motor move as an approximation and do not trust the screen alone yet.
  • Align: Use the timing pin procedure to synchronize the digital reading with the mechanical position.
  • Success check: The display reads 136.0 steady after mechanical alignment (not just “close”).
  • If it still fails: Continue to the pin insertion and shaft collar correction steps rather than repeating the menu command.
• Q: How can ZSK technicians insert the ZSK Timing Pin 601.005.914 correctly when calibrating ZSK multi-head timing to 136.0°?
  A: Release the brake, rotate the main shaft gently, and let the ZSK Timing Pin seat naturally—never force the pin.
  • Locate: Find the timing hole behind the shaft bar on the right side and insert the correct timing pin.
  • Release: Toggle the brake off (green light OFF) so the shaft can move freely.
  • Rotate: Use the leverage bar to rotate until the pin “falls in” smoothly.
  • Success check: The pin slides in with a smooth, “buttery” deadbolt feel—no hammering, no aggressive wiggling.
  • If it still fails: Stop forcing alignment; reassess position and rotation—forcing the pin indicates the shaft is not at the correct slot.
• Q: How do ZSK multi-head embroidery machine operators fix a fluctuating main-shaft position display (e.g., 135.8–136.2) after setting ZSK timing to 136.0°?
  A: A fluctuating ZSK shaft position display usually means the brake is not fully engaged or the shaft collar is not locked—repeat the collar lock step.
  • Engage: Confirm the brake is ON (green light ON) to freeze the shaft before tightening.
  • Tighten: Re-check the shaft collar screw is firmly tightened after the screen reads exactly 136.0 with the pin seated.
  • Re-do: Repeat the “loosen collar → fine tune to 136.0 → brake ON → final torque” sequence.
  • Success check: The display holds at 136.0 without drifting when the brake is engaged.
  • If it still fails: Reconfirm the timing pin is fully seated and not binding before locking the collar again.
• Q: What should ZSK operators do if a ZSK multi-head embroidery machine makes a “thump” sound on start after timing work?
  A: E-STOP immediately—ZSK start-up “thump” commonly indicates the timing pin was left in or a cover screw is loose.
  • Stop: Hit E-STOP and do not run the machine again until inspected.
  • Check: Verify the timing pin has been removed from the machine (it must be in the toolbox, not in the casting).
  • Inspect: Confirm covers are installed correctly and no fasteners are left loose.
  • Success check: A low-speed first run sounds smooth with no thump or sudden impact noise.
  • If it still fails: Re-open and visually verify nothing is interfering with rotating components before restarting.
• Q: What safety precautions should be followed during ZSK multi-head timing adjustment when working near rotating shafts, belts, brakes, and the ZSK timing pin?
  A: Treat ZSK timing calibration as a pinch-hazard task—keep hands clear, control the brake state deliberately, and never blind-reach into the casting.
  • Remove: Take off jewelry and secure loose sleeves before starting.
  • Control: Use brake OFF only while searching for pin seating, and brake ON before tightening any collar screw.
  • Avoid: Never reach into the casting without line-of-sight; use a flashlight to confirm placement.
  • Success check: Hands and tools stay outside pinch zones while the shaft is rotated and locked.
  • If it still fails: Stop and get a second person to help with brake timing to avoid accidental shaft shift or finger pinch.
• Q: How can ZSK commercial embroidery shops reduce repeat ZSK multi-head timing drift caused by hooping shock, and when should magnetic hoops or a machine upgrade be considered?
  A: Reduce vibration first with better stabilization and gentler hooping; if timing drift keeps returning, consider magnetic hoops to remove “snap” shock, and evaluate a newer multi-head machine if wear is suspected.
  • Level 1: Use correct stabilizer and stop forcing thick garments into standard hoops with brute strength.
  • Level 2: Switch to industrial magnetic hoops to clamp by magnetic force (reduces the snap/vibration that can stress the pantograph and chassis).
  • Level 3: If older machines slip timing weekly even after workflow fixes, internal wear may be involved—consider production-capacity planning with a newer multi-head unit.
  • Success check: Timing holds longer between calibrations and the machine runs smoothly without frequent re-timing events.
  • If it still fails: Document frequency of timing loss and inspect for signs of wear; repeated drift is a signal to reassess the workflow and equipment condition.
