ZSK 4-Head Racer Embroidery Machine: The Real-World Features That Matter When You’re Producing 50–500 Pieces a Day

If you have ever watched a four-head industrial machine run and thought, “That’s the level I need to hit,” you are not alone. But let me validate a fear you might be suppressing: The jump from a hobbyist single-needle machine to an industrial multi-head beast is not just about size; it looks terrifying.

When you see four heads moving in unison, the stakes feel four times higher. If you make a mistake on a single-head machine, you ruin one shirt. If you make a mistake here, you ruin four.

However, the difference between frustration and profitability isn’t "talent"—it’s repeatable systems. This guide rebuilds the overview of the ZSK 4-Head Racer into a shop-floor "White Paper." We will move beyond the spec sheet and look at the tactile reality: what the machine feels like when it runs right, how to troubleshoot by ear, and how to stabilize your workflow so you can sleep at night.

The Calm-Down Moment: What the ZSK 4-Head Racer Embroidery Machine Is Really Built For

The video frames the ZSK 4-Head Racer as a high-performance solution for speed and precision. But let’s translate "marketing speak" into "production reality."

An industrial 4-head machine is a Force Multiplier.

• The Shift: You are no longer "sewing a shirt." You are managing a manufacturing queue.
• The Gain: Your efficiency explodes on repetitive orders (team uniforms, corporate polos).
• The Trap: If you encounter a thread break, all four heads stop. This means your setup game must be flawless.

If you are searching for a commercial embroidery machine for sale, stop looking at the top speed (Stitches Per Minute). A machine running at 1,000 SPM that stops every 5 minutes for thread breaks is slower than a machine running at 750 SPM that never stops. Stability beats raw speed every time.

The “Hidden” Prep Before You Even Power On the ZSK Multi-Head Embroidery Machine

Amateurs start by turning on the machine. Pros start at the prep table. Multi-head machines punish improvisation.

1. The Consumables (The "Cheap" Stuff that Causes Expensive Problems)

• Thread: You need industrial-grade polyester or rayon.
  • Sensory Check: Pull a yard of thread off the cone. It should curl slightly but not kink. If it snaps with a dry "pop" easily, throw it away.
• Backing (Stabilizer): This is the foundation. A wobbly house needs a strong foundation.
  • Rule of Thumb: If you think one layer of tearaway is enough, check your density. For knits (polos), use Cutaway. Period.
• Hidden Heroes: You need temporary spray adhesive, a disappearing ink pen, and—crucially—fresh needles.
  • Pro Tip: Change needles every 8-10 production hours. A $0.50 needle is cheaper than a ruined jacket.

2. Digital Hygiene

• File Prep: Never guess. Design files (DST, PES, etc.) simply tell the machine X/Y coordinates. They don't know if you are sewing on silk or denim. You must verify the file matches the fabric.

Prep Checklist: The "No-Go" Criteria

• Needle Check: Run your fingernail down the needle tip. If you feel a "catch" (burr), replace it immediately.
• Bobbin Check: holding the bobbin case by the thread, drop it like a yo-yo. It should slide down 1-2 inches and stop. If it slides to the floor, it's too loose. If it doesn't move, it's too tight.
• Blank Staging: Are all shirts stacked in the same size order?
• Thread Path: Are any threads twisted around the thread tree? (A major cause of phantom tension issues).

Warning (Mechanical Safety): Keep long hair tied back and loose jewelry off. Industrial machines have no sensors to stop them if a sleeve or necklace catches in the take-up levers. The machine will win that tug-of-war.

Four-Head Configuration on the ZSK Racer: How to Think in “Batches,” Not “Pieces”

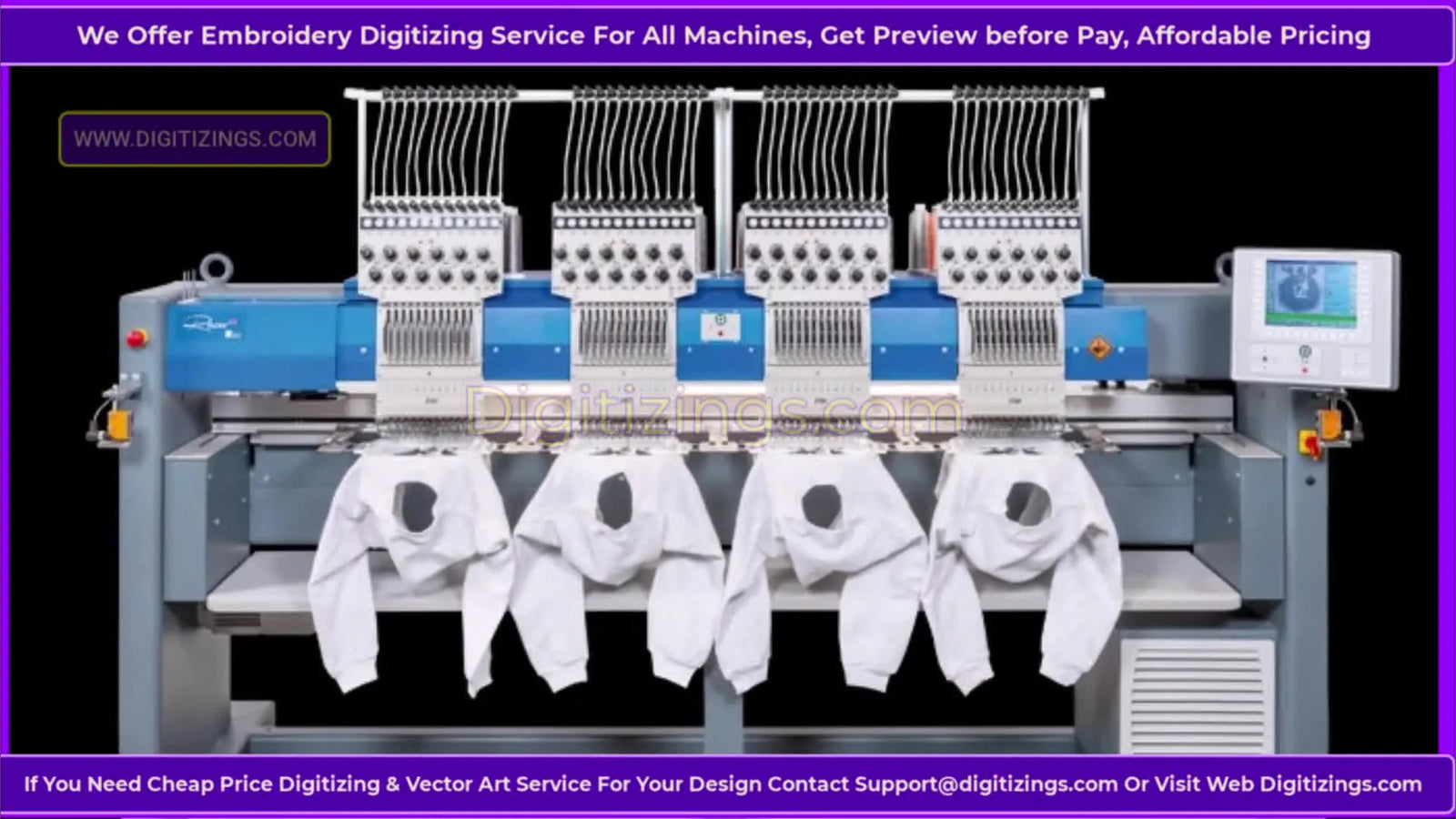

The video shows the defining feature at 00:56: a 4-head configuration stitching multiple items simultaneously.

In a commercial shop, this layout changes your friction points:

1. Hooping is the New Bottleneck: The machine stamps out 4 logos in 10 minutes. Can you hoop 4 new shirts in that time? If not, the machine sits idle. This is where ergonomic tools matter (more on this in the Hooping section).
2. The "Weakest Link" Theory: If Head #3 has a burred needle, the machine stops. Heads #1, #2, and #4 are innocent, but they suffer the downtime too. Maintenance must be uniform.

When evaluating multi needle embroidery machines for sale, look for independent head control (the ability to turn off specific heads). This allows you to salvage a run if one head needs maintenance while the others finish a job.

Touchscreen Control Panel on the ZSK T8-Style Interface: Fast Uploads, Fewer Operator Errors

The video highlights a user-friendly touchscreen interface. For a beginner, a complex dashboard is a source of anxiety.

The "Safe Mode" Mindset

Modern panels like the T8 allow you to preset tension and speed limits.

• Action: If you have junior operators, lock the max speed to 750-800 SPM.
• Why: High speeds increase friction and thread breaks. The gain in time is negligible compared to the risk of re-threading.
• Job Cards: Don't rely on memory. Tape a physical card to the screen listing: Design Name, Orientation (Up/Down), and Hoop Size.

Wide Embroidery Area on the ZSK Racer Series: When Bigger Space Actually Saves Money

The video calls out a wide embroidery area. This isn't just for massive jacket backs; it is for Gang Runs.

The Physics of Large Areas

When you embroider a large area, fabric "Push and Pull" becomes severe.

• Visual Check: Does your circle look like an oval? That is "pull."
• The Fix: You need solid stabilization. A wide area requires a hoop that grips tightly without slipping.
• The Risk: Standard plastic hoops can lose grip on large, heavy items like Carhartt jackets. This is often where a move to upgraded clamping systems runs becomes necessary.

Multi-Needle Head + Tension Knobs: The Part That Makes or Breaks Consistency

The video highlights multi-needle technology and shows the needle bar case with tension knobs. This is the scariest part for new users: Tension.

Let's demystify tension using Sensory Anchors. You don't need a digital gauge; you need your hands and eyes.

How to Diagnose Tension

• The "Floss" Test (Tactile): Pull the thread through the needle eye (presser foot down). It should feel like pulling dental floss through tight teeth—smooth resistance, not a loose flyaway, and not a struggle to pull.
• The "H-Test" (Visual):翻转 Turn your finished embroidery over. You should see the top thread pulled to the back. A perfect column stitch looks like an "H"—1/3 white bobbin thread in the center, flanked by the colored top thread on the sides.
• The "Click" (Auditory): The machine should hum rhythmically. A sharp clack-clack-clack distinct from the other heads usually means the thread has jumped a guide or the bobbin is rattling.

If you are running a zsk embroidery machine, trust your ears. If it sounds angry, it is.

Automatic Thread Trimming on the ZSK 4-Head Racer: Clean Results, Less Handwork—If You Maintain It

The video demonstrates the automatic thread trimming area.

Auto-trimming is great until it isn't. When trimmers get dull or clogged, they create "Birdnests"—a knot of thread under the throat plate that can suck the garment down into the machine.

The Maintenance Loop

• Every 4 Hours: Blow out the bobbin area with compressed air (away from the machine internals).
• The Symptom: If you see "tails" left on top of the design after a trim, your Velcro picker or knife is dull.
• The Fix: Don't just increase tension. Check for lint buildup first. Lint is the enemy of sharp cuts.

Durable Construction + Modular Design: Why Industrial Build Quality Matters After Month 6

The video emphasizes durable construction. Why should you care about heavy steel?

Vibration Absorption. Lighter machines "walk" or vibrate at high speeds. Vibration causes:

1. Screws to loosen over time.
2. Registration errors (where the outline doesn't match the fill).
3. Micro-blurring of the needle entry point.


A heavy chassis anchors the needle bar. When checking the modularity, look for standard attachment points that accept aftermarket upgrades (like magnetic frames or specialty clamps) without voiding warranties.

Customizable Settings (Speed, Tension, Patterns): The Safe Way to Adjust Without Chasing Your Tail

The video explains that settings like speed can be tailored.

Just because the speedometer says 1200, doesn't mean you drive 1200.

The "Sweet Spot" Calibration (Beginner Safe Zone)

• Caps: Max 600-700 SPM. (The cap driver moves differently; speed kills registration here.)
• Detailed Small Text: 650 SPM.
• Large Fill Areas (Jackets): 850-950 SPM.
• Metallic Thread: < 600 SPM. (Metallic thread heats up and shreds at high friction).

Setup Checklist: The "Pre-Flight"

• Design Orientation: Is the design right-side up relative to the hoop bracket? (Classic mistake: sewing a logo upside down).
• Trace Function: ALWAYS run the "Trace" or "Contour" button. Watch the needle position to ensure it doesn't hit the plastic hoop ring. If the needle hits the hoop, you break the machine.
• Bobbin Supply: Do you have enough bobbin thread for the full run? Changing bobbins mid-run on 4 heads disrupts the rhythm.

Connectivity (USB/Network) + Software Workflow: Where Production Shops Lose Time Without Noticing

The video mentions connectivity.

In a multi-head environment, using a USB stick is "Sneaker-Net" (running back and forth). Network connectivity is superior.

File Management Rule: Never name a file "Logo_Final.dst". Name it: ClientName_LogoDesc_Width_Fabric_Date.dst Example: Nike_Swoosh_3in_PiqueKnit_Oct2025.dst

This prevents the disaster of running a file digitized for a hat on a stretchy polo shirt. Professionals running multi hooping machine embroidery workflows know that data organization saves as much time as stitching speed.

The Price Range ($35,000–$50,000): How to Think About ROI Without Fooling Yourself

The video gives a price range of $35,000 to $50,000.

How to justify this cost? The ROI comes from Throughput.

• Single Needle: 1 shirt / 10 mins = 6 shirts/hr.
• 4-Head: 4 shirts / 10 mins = 24 shirts/hr.

The Hidden Cost of Labor: If you are spending 5 minutes hooping a shirt because you are fighting with screw-tension hoops, your machine is dead money for those 5 minutes. You must invest in the ecosystem around the machine to make the $40k investment work.

If you are browsing a commercial embroidery machine for sale, budget an extra $1,000 - $2,000 for upgraded hooping systems and stabilizing inventory.

The Hooping Reality on Tubular Systems: Prevent Puckering, Hoop Burn, and “Head-to-Head” Variation

The video shows shirts mounted on a tubular system. This is where 90% of quality issues happen: Bad Hooping.

The Pain Point: "Hoop Burn" and Wrist Pain

Traditional tubular hoops require you to manually screw the ring tight.

1. Wrist Strain: Doing this 100 times a day causes repetitive stress injury.
2. Hoop Burn: The friction leaves a shiny ring on delicate fabrics that won't iron out.
3. Slippage: If not tight enough, the fabric creates a "wave" inside the design.

The Solution Hierarchy

• Level 1 (Technique): Use "Hoop Shield" tape or water-soluble stabilizer on top to reduce burn.
• Level 2 (Tool Upgrade): Switch to Magnetic Hoops (e.g., MaggieFrame/SEWTECH).
  • Why? They clamp instantly using magnetic force. No screwing. No friction burn. They self-adjust to thick fabrics (like Carhartt jackets) that traditional hoops can't clamp.
  • ROI: You hoop 30% faster.
  • Many shops searching for magnetic embroidery hoops do so specifically to solve the "hoop burn" crisis on dark polyester performance shirts.
  • Using a magnetic hooping station ensures the logo is straight every single time, removing the "eyeballing it" error.

Decision Tree: Which Stabilizer?

• Does the fabric stretch? (T-shirt, Polo, Knit) -> CUTAWAY (Absolute requirement).
• Is the fabric stable? (Denim, Canvas, Towel) -> TEARAWAY.
• Is there pile/fuzz? (Fleece, Towel) -> Add WATER SOLUBLE TOPPING (prevents stitches continuously sinking).

Warning (Magnet Safety): Industrial magnetic hoops use ultra-strong Neodymium magnets. They can pinch fingers severely. IMPORTANT: Keep away from anyone with a pacemaker, as the strong magnetic field can interfere with medical devices.

Caps, Add-Ons, and the “Don’t Buy It Yet” Moment: Choosing Attachments Based on Orders

The video notes varying pricing for add-ons.

Caps are a different beast. They require a "Cap Driver" that spins the hat.

• Reality Check: Caps are difficult. The sewing field is curved, and registration is unforgiving.
• If you buy a cap hoop for embroidery machine, commit to learning the "flagging" issue (where the hat bounces). You will need specialized "Cap Backing" (heavy tearaway).

Advice: Don't buy the sequin or cording or boring device unless you have a signed contract for 500 units requiring it. Start with standard flat and cap embroidery.

The Upgrade Path That Actually Improves Output: Consumables + Hoops + Machine Strategy

The video focuses on ZSK features; but a machine is only a tool.

Your Commercial Upgrade Logic:

1. Start: Good machine + Standard Hoops.
   • Pain: Slow hooping, sore wrists, hoop marks.
2. Upgrade 1: Magnetic Hoops (MaggieFrame).
   • Gain: Speed, consistency, fabric safety. Most users searching for machine embroidery hoops upgrades end here and see massive efficiency gains.
3. Upgrade 2: Multi-Head Machine (SEWTECH/ZSK).
   • Gain: Volume scale.


Operation Checklist: What to Watch During the First 10 Minutes of Any Production Run

The machine is prepped. The file is loaded. You pressed Start. Do not walk away.

• The "Birdnest" Watch: Listen for the first 30 seconds. A "crunching" sound means a birdnest is forming. Stop immediately.
• Registration Check: After the underlay (the first structural stitches) finishes, check the alignment. Is it centered?
• Fabric Creep: Is the fabric pulling out of the hoop? (If using magnetic hoops, this is rare, but check anyway).
• Vibration: Place your hand gently on the table. Is it shaking violently? If so, lower the speed.


Final Thoughts

The ZSK 4-Head is a powerhouse, but it is an amplifier. It amplifies your skills, and it amplifies your mistakes. By standardizing your inputs (quality thread, correct stabilizer, magnetic hooping systems) and following a strict prep protocol, you turn that fear of the "big machine" into the satisfaction of a profitable production floor.

FAQ

• Q: What pre-flight checks should operators do before starting a 4-head industrial embroidery run on a ZSK 4-Head Racer to prevent downtime?
  A: Run a strict needle–bobbin–thread-path check before powering on, because one weak head stops all four heads.
  • Replace needles immediately if a fingernail “catch” (burr) is felt on the tip; plan needle changes every 8–10 production hours.
  • Perform the bobbin-case “yo-yo drop” test: the case should slide down about 1–2 inches and stop.
  • Inspect the full thread path for twists around the thread tree and missed guides before loading garments.
  • Success check: the machine runs with a steady hum (not an irregular clack) and completes the first minute without thread breaks.
  • If it still fails: slow the max speed to a safer limit (about 750–800 SPM for new operators) and re-check for lint or a thread jump at one head.
• Q: How can operators diagnose embroidery thread tension on a ZSK multi-needle head using the “H-test” and “floss test”?
  A: Use tactile + visual anchors to set “smooth resistance” tension, not guesswork.
  • Pull top thread with the presser foot down and aim for “dental floss through tight teeth” resistance (smooth, not loose and not jerky).
  • Flip the sample and verify the “H” look: about 1/3 bobbin thread centered with top thread showing on both sides of a satin/column stitch.
  • Listen for a clean rhythmic hum; a sharp clack-clack often means thread jumped a guide or the bobbin is rattling.
  • Success check: the underside shows a stable “H” pattern and the machine sound matches the other heads.
  • If it still fails: re-thread that head from the cone to the needle and re-check the bobbin-case drop test before changing settings again.
• Q: What should a shop do when a ZSK 4-head embroidery machine starts leaving long thread “tails” after automatic trimming?
  A: Treat leftover tails as a trimmer cleanliness/sharpness issue first, not a tension problem.
  • Stop and inspect the trimming area for lint buildup and thread fragments.
  • Blow out the bobbin area with compressed air on a regular cycle (about every 4 hours), directing air away from internal machine components.
  • Confirm the trimming components (picker/knife area) are not dull or clogged before increasing tension.
  • Success check: trims leave clean ends with no visible tails on top after a cut.
  • If it still fails: check for a developing birdnest under the throat plate and clear debris before resuming production.
• Q: What is the fastest way to prevent birdnesting on a ZSK 4-Head Racer during the first 30 seconds of a production run?
  A: Do not walk away—stop immediately at the first “crunching” sound and clear the problem before it pulls a garment into the throat plate.
  • Start the run and monitor sound closely for the first 30 seconds; react fast to any crunching/dragging noise.
  • Pause and check under/around the needle plate area for thread buildup and the start-point trim area for clogs.
  • Re-check that the thread path is correctly seated (no skipped guides) and that the bobbin tension passes the drop test.
  • Success check: the first minute stitches cleanly with no crunching sounds and no thread wad forming beneath the design.
  • If it still fails: reduce speed and run a short test sew before restarting the full 4-piece batch.
• Q: How can operators prevent hoop burn and fabric slippage on tubular hooping systems for polos and performance shirts on multi-head machines?
  A: Reduce friction and increase stabilization—most hoop burn and puckering comes from hooping pressure + wrong backing on stretchy fabric.
  • Apply hoop-shield tape or a water-soluble topping layer to reduce shiny ring marks on delicate/dark performance fabrics.
  • Use cutaway backing for knits (polos, T-shirts); do not rely on a single tearaway layer when density is high.
  • Stage blanks consistently (same sizes/order) to avoid rushed hooping and uneven clamp pressure across heads.
  • Success check: the fabric stays flat in the hoop with no “wave,” and the finished design does not show shiny hoop rings that won’t relax out.
  • If it still fails: move to a tool upgrade such as magnetic hoops to clamp without screw friction and reduce hooping variability.
• Q: What safety rules should operators follow around the take-up levers and moving parts on an industrial multi-head embroidery machine like a ZSK 4-Head Racer?
  A: Treat the machine like unguarded machinery—secure anything that can snag because the machine will not “lose” that pull.
  • Tie back long hair and remove loose jewelry before operating.
  • Keep sleeves, lanyards, and bracelets away from take-up levers and thread paths while running.
  • Use a disciplined start procedure (stand clear, then start) to avoid leaning into moving head areas.
  • Success check: operators can run a full start/stop cycle without any clothing or accessories entering the head area.
  • If it still fails: stop assigning untrained operators to high-speed runs and lock a lower maximum speed until safe habits are consistent.
• Q: What magnetic hoop safety precautions should operators follow when using industrial magnetic embroidery hoops on multi-head machines?
  A: Handle magnetic hoops like pinch-hazard tools—neodymium magnets can clamp suddenly and with enough force to injure fingers.
  • Keep fingers out of the closing zone and set the hoop down flat before bringing magnets together.
  • Keep magnetic hoops away from anyone with a pacemaker or similar medical devices.
  • Train operators to clamp in a controlled motion—do not “snap” magnets together near the garment.
  • Success check: hooping is fast and consistent with no finger-pinches and no shifting after clamping.
  • If it still fails: pause production and re-train hoop handling technique before increasing output speed.
