YunFu + Dahao Thread Trimmer Not Cutting? The Marker-Pen Friction Test That Saves You a Service Call

The "Invisible Friction" Fix: Solving Thread Trimmer Failures on Dahao-Controlled Machines

When your industrial machine finishes a design and you hear the trimmer actuate—clack-clack—but the thread remains uncut, your heart sinks. You know what comes next: lost time manually snipping tails, unsightly backings, and the dread of a "bird's nest" tangle when the next needle tries to start.

On import multi-needle machines (specifically those running the Dahao control system, common in YunFu and similar brands), this is rarely a computer glitch. It is almost always a mechanical friction issue.

As an embroidery educator, I see shop owners replace expensive solenoids when all they needed was a $0.00 adjustment. This guide is your "field manual" to the Marker Pen Diagnostic—a technique that uses simple friction to prove whether your moving knife is actually doing its job.

The Diagnosis: Why "Moving" Doesn't Mean "Cutting"

Embroidery trimmers work like scissors: two blades must pass each other with contact pressure. If the moving knife slides past the fixed knife with a gap—even a microscopic one—the thread will simply bend between them instead of shearing.

If you can hear the mechanism cycle but the thread stays whole, you have a Gap Problem, not a Motor Problem.

Warning: Mechanical Safety
Before removing the needle plate or placing your hands near the hook assembly, power down the machine or engage the Emergency Stop when using tools. The trimmer knives are razor-sharp and actuated by strong solenoids. A slip here can result in severe finger injury or dropped screws that jam the rotary hook.

Phase 1: The "Surgical" Prep

Don't start unscrewing things randomly. We are going to perform a targeted intervention. You need specific tools and, more importantly, visibility.

The Toolkit

• Phillips Screwdriver: For the needle plate.
• Flathead Screwdriver: For the hook cover.
• 1.5 mm Hex Key (Allen Wrench): The "magic wand" for this adjustment.
• Black Permanent Marker: Using a chaotic ink allows us to see friction.
• Headlamp or Task Light: You cannot adjust what you cannot see.
• Contrast Thread: A bright color (like neon yellow) to test the cut.


Pre-Flight Checklist

• Lighting is positioned to shine directly into the rotary hook area.
• Needle plate is removed clearly (screws placed in a magnetic bowl/tray).
• Rotary hook cover/finger guard is removed to expose the trimmer linkage.
• You have identified the Trimmer Driving Lever (the part that moves when the solenoid fires).
• You have verified you have the correct size hex key (1.5mm) by fitting it into the screw head gently.

Phase 2: Accessing the Mechanics

The goal here is exposure. We need to see the "Selector Collar"—the component that translates the solenoid's push into the knife's rotation.

Action: Remove the two screws holding the needle plate. Sensory Check: As you lift the plate, check the underside for "fuzz." Compressed lint here can sometimes block the knife path. Clean it now.

Phase 3: The Dahao "Bypass" (Debug Mode)

We need to fire the trimmer without running the machine. The Dahao computer has a hidden menu for this.

Sequence:

1. Tap the Components/Finger Icon.
2. Select Debug.
3. Enter Password: 823456 (This is the industry-standard technician code).
4. Locate "Trimming Electromagnet And Motor".

You are now in manual control.

Warning: Digital Safety
The Debug menu allows you to fire motors out of sequence. Do not touch options like "Main Axis" or "X/Y Motor" while your hands are inside the machine. Only press the specific Trimmer Test button shown in the guide.

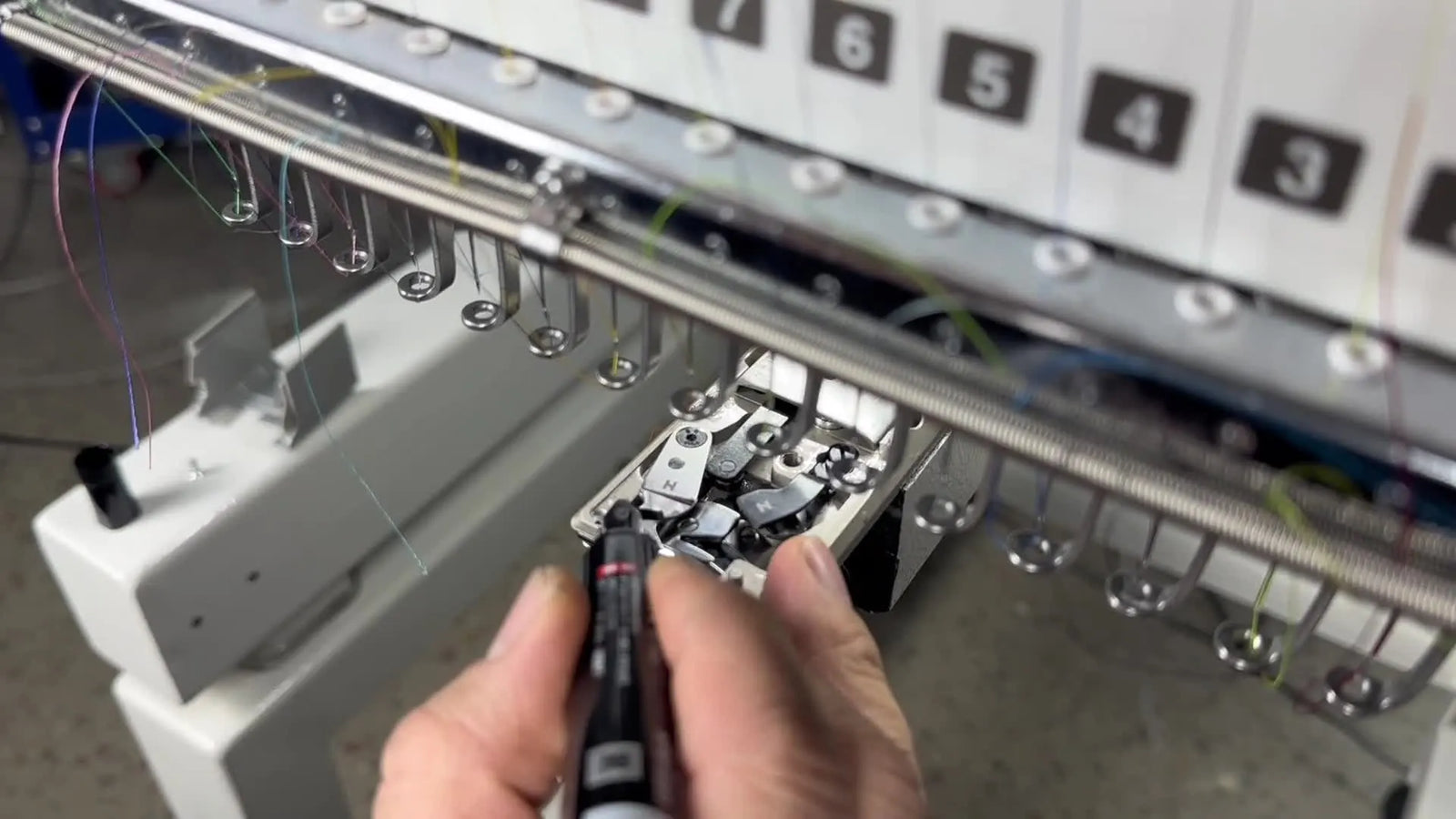

Phase 4: The "Marker Pen" Friction Test

This is the core of the strategy. We need to visualize the invisible gap.

1. Paint it Black: Take your permanent marker and color the flat top surface of the Moving Knife. Cover the area where it slides under the fixed knife.
2. Cycle the Trimmer: Press the test button on the screen.
   • Action: Trimmer Opens (Click).
   • Action: Trimmer Closes (Clack).
3. Inspect the Ink: Look closely at the blade.

The Verdict:

• Ink is untouched: The knives are floating apart. Result: No Cut.
• Ink is scratched/scraped: The knives are rubbing. Result: Potential Cut.




If your ink is untouched, no amount of prayer will make that machine cut thread. You must adjust the engagement.

Phase 5: The Adjustment (The 1.5mm Turn)

This is typically done on the collar located on the trimmer shaft, accessed from under the arm or through the side, depending on your specific head casting.

The Mechanics: The collar has a "cam" effect. By rotating the collar slightly relative to the shaft, we force the knife to engage earlier or harder.

The Sequence (Follow Strictly):

1. Locate the Locking Screws: Usually two small screws at the bottom of the collar.
   • Action: Loosen them slightly. Do not remove them. Just enough so the collar can move if forced, but isn't floppy.
2. Locate the Adjustment Screw: Usually a single screw at the top or side.
   • Action: Tighten this screw.
   • Sensory Check: As you tighten the top screw, it pushes against the shaft, rotating the collar. You are effectively "advancing" the knife pressure.
3. Lock it Down: Re-tighten the bottom locking screws.




Pro Tip: This is a game of millimeters. Turn the adjustment screw 1/4 turn, then test. Over-tightening will cause the knife to bind and the stepper motor to error out.

Phase 6: Verification Loop

Do not close the machine yet. We must verify success.

1. Re-Apply Ink: Cover the scratch marks with fresh ink.
2. Cycle: Open/Close via screen.
3. Look: Do you see a fresh heavy scratch?
   • Yes: Proceed to Thread Test.
   • No: Repeat Phase 5 (Tighten top screw slightly more).

The Thread Test: Hold a piece of thread in the path of the knife. Cycle the trimmer.

• Success Metric: The thread should "pop" cleanly. No fraying, no bending.






Troubleshooting Checklist (Post-Adjustment)

• Symptom: Knife binds or moves slowly.
  • Fix: You over-tightened the adjustment. Back it off slightly. Friction should be firm, not locked.
• Symptom: Ink scrapes, but thread just bends.
  • Fix: Your fixed knife might be dull or nicked. Run your fingernail along the edge (carefully). If you feel a catch, replace the knife. In high-volume setups running commercial embroidery machines, knives are consumables, not permanent fixtures.
• Symptom: "Abnormal Communication" error on screen.
  • Fix: This is a sensor/cable issue, unrelated to the mechanical screw adjustment. Check your cable harness.

Beyond the Fix: Optimizing Your "embroidery Economy"

Congratulations. You’ve fixed the machine. But let’s look at the bigger picture. If you are reading this, you are likely in a production environment where seconds matter.

Fixing the trimmer saves you 10 seconds per run. But where are you losing the minutes?

Level 1: The "Hoop Burn" Bottleneck

If you are struggling with traditional plastic hoops leaving shiny pressure marks (hoop burn) on delicate fabrics, no trimmer fix will save that garment. This is a clamping issue.

• The Upgrade: Many professionals switch to magnetic embroidery hoops.
• Why: These frames use magnetic force rather than friction rings to hold fabric. This eliminates hoop burn and drastically speeds up the hooping process for items like thick jackets or delicate polos.

Warning: Magnetic Safety
If you upgrade to magnetic frames, be aware they use neodymium magnets. They can pinch fingers severely and are dangerous for operators with pacemakers. Handle with respect.

Level 2: The Standardization Bottleneck

Are you eyeing a tajima embroidery machine purely because you think it will "fix" your workflow? Often, the machine isn't the issue—it's the lack of repeatable processes.

• The Upgrade: Standardize your stabilizers and needles. Use the same backing for the same fabric every time.
• The Concept: High-end shops don't guess. They have a recipe.

Level 3: The Capacity Bottleneck

Fixing a trimmer on a single head embroidery machine gets you back to zero, but it doesn't get you ahead. If you are consistently booked 2 weeks out, you have a capacity problem.

• The Decision: When looking at multi needle embroidery machines for sale, look for "Scale-ability."
• Comparison: Whether you are looking at brother multi needle embroidery machines for a home-business hybrid or full industrial towers, ensure the supplier provides the kind of technical transparency we just sat through. Can you get parts? Can you get into the Debug menu?

Decision Tree: What is your next investment?

Final Thoughts

A machine that doesn't trim is a broken tool. A machine that trims but requires 5 minutes of hooping per shirt is a slow tool.

By mastering the Marker Pen Diagnostic, you have taken ownership of your maintenance. You are no longer waiting on a technician. Now, take that same critical eye to the rest of your workflow. Eliminate the friction—whether it's inside the trimmer or at the hooping station. That is how you turn a hobby into a manufacturing business.

FAQ

• Q: On Dahao-controlled multi-needle embroidery machines, why does the thread trimmer make a “clack-clack” sound but the thread remains uncut?
  A: This is usually a knife contact-pressure (gap) problem, not a solenoid/motor problem.
  • Enter the Dahao Debug menu and fire only the trimmer test to observe the mechanism cycling.
  • Perform the marker-pen friction test by coloring the moving knife surface and cycling open/close.
  • Adjust the trimmer collar so the moving knife engages the fixed knife with firm rubbing contact.
  • Success check: the marker ink shows clear scraping, and a test thread “pops” cleanly instead of bending.
  • If it still fails… inspect the fixed knife for dull/nicked edges and replace if needed.
• Q: How do Dahao embroidery control panels access the Debug menu to test “Trimming Electromagnet And Motor” without running a design?
  A: Use the Dahao built-in Debug path and only trigger the trimmer test while hands are clear of moving parts.
  • Tap the Components/Finger icon, choose Debug, and enter password 823456.
  • Select “Trimming Electromagnet And Motor” and press the trimmer test button to cycle open/close.
  • Keep away from options like Main Axis or X/Y Motor while working in the hook area.
  • Success check: the trimmer cycles consistently on command (open click / close clack) without running the machine.
  • If it still fails… treat it as an electrical/sensor issue (cable harness, communication) rather than a mechanical adjustment.
• Q: What is the “marker pen diagnostic” for thread trimmer failures on Dahao-controlled industrial embroidery machines, and what result proves a true knife gap?
  A: The marker-pen diagnostic proves whether the moving knife is actually rubbing the fixed knife with enough contact to shear thread.
  • Color the flat top surface of the moving knife where it slides under the fixed knife using a black permanent marker.
  • Cycle the trimmer from the Dahao Debug test (open/close) and then inspect the inked area closely.
  • Interpret results: untouched ink = knives are floating apart (gap); scratched ink = knives are rubbing (engagement).
  • Success check: fresh scrape marks appear after each cycle, not just one old scratch.
  • If it still fails… proceed to collar adjustment in small steps and re-test after each change.
• Q: How do Dahao trimmer collar adjustments work on import multi-needle embroidery machines, and what is a safe way to avoid binding the knife?
  A: Make tiny collar adjustments and test frequently—over-tightening can bind the knife and trigger errors.
  • Loosen the two small locking screws on the collar slightly (do not remove them).
  • Tighten the single adjustment screw to advance knife engagement, then re-tighten the locking screws.
  • Repeat in small increments (about a quarter-turn per test) rather than forcing a big change.
  • Success check: the knife rub is firm (marker scrapes) but the motion is not sluggish or stuck.
  • If it still fails… back off slightly if binding occurs, or replace a dull/nicked fixed knife if thread still bends.
• Q: What safety steps should operators follow before removing the needle plate and working near the rotary hook and trimmer knives on industrial embroidery machines?
  A: Power down or use Emergency Stop before hands enter the hook area—trimmer knives are razor-sharp and solenoids fire with force.
  • Turn off power (or engage Emergency Stop) before removing the needle plate or hook cover/finger guard.
  • Use proper lighting and keep screws controlled (a magnetic tray helps prevent dropped screws into the hook).
  • Keep fingers clear when cycling any test in Debug mode; only use the trimmer test function.
  • Success check: the machine cannot unexpectedly actuate while hands/tools are inside the hook area.
  • If it still fails… stop and reset the workflow; accidental actuation risks injury and hook jams from dropped hardware.
• Q: If magnetic embroidery hoops are used to reduce hoop burn, what magnetic safety risks should embroidery shop operators know about?
  A: Magnetic hoops can pinch severely and may be unsafe for people with pacemakers—treat them like powerful tools.
  • Keep fingers out of closing points when bringing magnet rings together.
  • Train operators to separate magnets with control (not snapping) and store frames so magnets cannot jump together.
  • Restrict use for anyone with pacemakers or similar medical devices per safety guidance.
  • Success check: hooping is faster with no shiny pressure marks (hoop burn) and no pinched fingers during normal operation.
  • If it still fails… revert to safer handling practices or alternative hooping methods for the operator/fabric type.
• Q: In commercial embroidery production, how should a shop decide between Level 1 process tweaks, Level 2 magnetic hoops, and Level 3 upgrading to a multi-needle embroidery machine when time losses persist?
  A: Diagnose the bottleneck first, then upgrade in layers—fix seconds with adjustments, minutes with workholding, and weeks with capacity.
  • Level 1 (technique): remove friction points like trimmer misadjustment, lint/fuzz under the needle plate, and inconsistent procedures.
  • Level 2 (tooling): use magnetic hoops when hoop burn or slow/strain-heavy hooping is the real limiter.
  • Level 3 (capacity): move to higher-needle-count or scalable setups when the shop is consistently booked out and color changes/throughput are the constraint.
  • Success check: the chosen change removes the specific bottleneck (clean trims, faster hooping, or higher daily output), not just “feels newer.”
  • If it still fails… re-label the pain point (clamping vs alignment vs capacity) and standardize a repeatable “recipe” for stabilizers/needles per fabric.
