YUEMEI Big Sash Frame Setup That Actually Runs Smooth: Clamp, Threading, Table Install, and Control Panel Settings

Setup is the silent killer of embroidery profitability. In my 20 years on the shop floor, I’ve seen seasoned operators lose hours fighting a machine that was simply initialized in the wrong order. A 1,000 stitches-per-minute (SPM) industrial beast like the YUEMEI is designed for speed, but it demands respect before you hit "Start."

If you are transitioning from a domestic single-needle machine, the sheer number of tension knobs and the size of the sash frame can trigger immediate anxiety. This is normal. The machine looks complex, but it operates on simple physical principles.

This guide deconstructs the YUEMEI setup video into a sensory-based workflow. We aren't just connecting cables; we are building a reliable ecosystem. By the end, you won't just hope it works—you will know it works.

The "Zero-State" Philosophy: Why We Calibrate Before We Stitch

When you approach a mixed-function industrial head, you are managing three layers of stability. If any layer is weak, you will see it in the final product (gaps, loops, or broken needles).

1. The Electronic Handshake: The towel cable clamp and wiring ensure the brain (software) talks to the muscle (heads) without static.
2. The Physical Foundation: The extension table and sash frame provide a vibration-free stage.
3. The Material Lock: Stabilizer and fabric are held under tension to resist the push-pull physics of the needle.

In this tutorial, we are setting up design *015 (Panda) using the Big Sash Frame.

1. Hardware: Installing the Towel Cable Clamp

The video begins with the installation of the white towel cable clamp on the side of the head. This isn't just a holder; it's strain relief.

The Action:

• Align the white towel cable clamp unit flush against the machine body.
• Insert the screws by hand first to ensure threads are caught, then tighten firmly with a Phillips screwdriver.

The Sensory Check:

• Touch: Run your finger along the seam between the clamp and the machine head. It should feel seamless. If there is a gap, vibration will eventually rattle the screws loose.
• Sight: The unit should be perfectly vertical, not leaning.

Warning: Mechanical Safety. Never use high-torque power drills to tighten these chassis screws. You risk stripping the aluminum casting of the machine head. Hand-tighten continuously until resistance stops. Always power down the machine before working near the needle bar area.

2. Wiring: The "Click" of Confidence

Loose connections cause "ghost" errors—sensors that trip intermittently. We need a solid connection.

The Action:

• Take the connector from the clamp you just installed.
• Locate the port under the machine head.
• Insert the plug straight up. Do not angle it.

The Sensory Check:

• Tactile: You should feel a distinct resistance followed by a seating sensation. Some connectors have a locking tab; listen for the click.
• Visual: Look at the cable loop. It should hang naturally (a "service loop"), not be pulled tight like a guitar string.


3. Threading: The Veins of the Machine

This is where 80% of beginners fail. They miss one guide, and the tension goes haywire.

The Path (Refined):

1. The Sky Guide: From the thread cone, pass through the upper tension guide holes.
2. The Gatekeepers: Down through the sub-tension disks.
3. The Watchdog: Straight down through the thread break sensors (the wheels or levers that detect movement).
4. The Needle: Use tweezers to guide the thread through the needle eye (front to back).




The Sensory Check (The Floss Test):

• Before you thread the needle, pull the thread through the tension disks. It should feel like flossing your teeth—a smooth, consistent drag.
• If the thread pulls freely with zero resistance, it has slipped out of the disks.
• If it snags or jerks, the path is twisted.

Pro Tip on Workflow: If you are managing multiple colors, organize your workspace. Many shops use a dedicated hooping station for embroidery machine setup not just for hoops, but to stage thread cones in the verified order (1, 2, 3...) so you don't cross-thread the wrong needles during this step.

4. Software Initialization: Syncing Brain and Muscle

Before mounting the giant frame, we need the machine to "home" itself.

The Action:

• On the touchscreen, tap “Back to threading point.”
• Select “One-click hook” (often under Maintenance/Test).
• Press “Trim”.


Why we do this: You are mechanically aligning the rotary hook and the trimmer knife. If you mount the frame before doing this, and the machine tries to do a violent reset move, the needle could strike the frame bar.

The Sensory Check:

• Sound: You should hear the sharp clack-whirrr of the trimmer knives engaging and retracting. It should sound decisive, not sluggish.

5. The Extension Table: Building the Stage

The Big Sash Frame is heavy. Without the extension table, it acts like a lever, twisting the pantograph.

The Action:

1. Place black rubber gaskets on the stand posts (dampens vibration).
2. Slide the large extension table onto the chassis.
3. Lock it from underneath using the red locking levers.
4. Adjust the feet until they touch the floor firmly.






The Stability Check:

• Leon on the table corners with your body weight. Does it rock? If yes, adjust the feet. A rocking table equals distorted embroidery.

Prep Checklist: The "Pre-Flight" Inspection

• Power: Machine is on, screen is responsive.
• Fluidity: Thread pulls smoothly through the entire path (The Floss Test).
• Mechanics: Hook and Trimmer rolled over via "One-Click Hook."
• Foundation: Extension table is level; red levers are locked.
• Safety: No loose screws or tools left on the table surface.

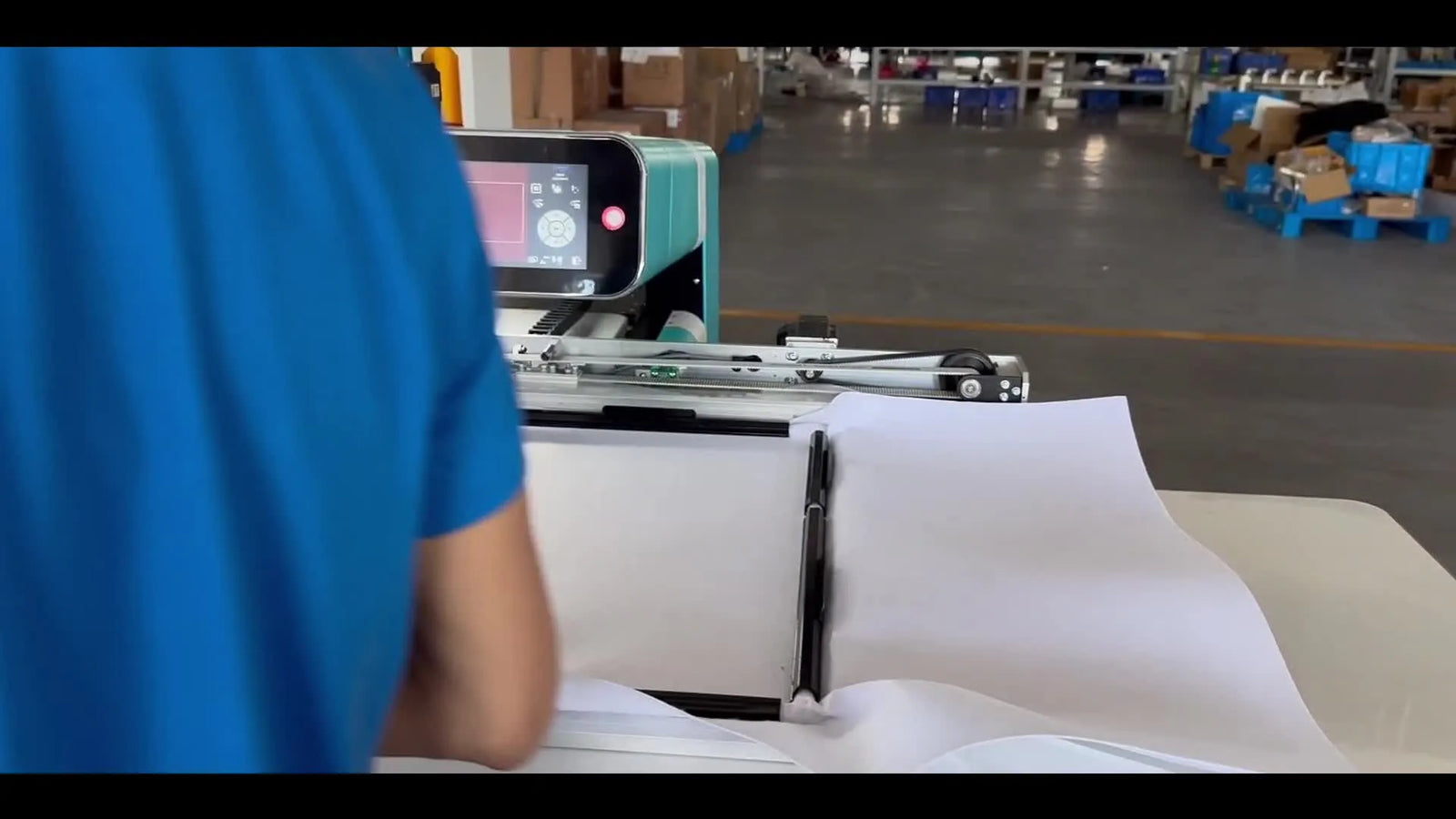

6. Mounting the Big Sash Frame & Material Prep

This is the physical interface between your design and reality.

The Action:

• Slide the aluminum border frame onto the pantograph rails.
• Tighten the thumb screws/bolts. Crucial: Tighten them evenly. Don't crank one side 100% then the other. Go 50% left, 50% right, then 100%.


The Clamping Strategy (The Art of Tension)

The video uses long plastic clips. This is standard, but it requires technique to avoid "Hoop Burn" or slippage.

1. Lay the stabilizer (backing) across the frame first. Clip it lightly.
2. Lay the fabric on top.
3. The "Compass" Pull: Secure the top clip. Then pull the fabric toward the bottom and clip. Then pull Left. Then Right.


The Sensory Check:

• Sound: Drum your fingers on the fabric. It should sound like a drum—thump, thump.
• Sight: The weave of the fabric should be straight, not bowed like a banana.

The "Pain Point" & The Upgrade: Clip systems are slow. If you are doing production runs (e.g., 50 towels), the constant clipping/unclipping causes hand fatigue and inconsistent tension.

• Level 1 Fix: Use a "cheater sheet" of masking tape to mark alignment on the frame.
• Level 2 Upgrade: For flat goods, professionals often switch to a magnetic embroidery frame. Large magnetic sash frames clamp instantly, hold thick fabrics (like the towel in the video) without crushing the pile, and reduce load time by 30%.

Warning: Magnetic Field Safety. If you upgrade to magnetic embroidery hoops, be aware they use N52 Neodymium magnets. They are incredibly powerful. Keep them away from pacemakers. Do not let two magnets snap together without a separator—they can pinch skin severely.

Decision Tree: Fabric vs. Stabilizer

Do not guess. Use this logic.

7. Programming the "Brain"

Now we tell the machine exactly what we built physically.

The Sequence:

1. File: Select *015 (Panda).
   • Check: Size is Y=385.1, X=336.5. This fits inside our Sash Frame.
2. Head Mode: Set to “Flat” (Head 1 indicator turns green).
   • Why: "Flat" mode tells the pantograph it can move freely. If you leave it in "Cap" mode, it will restrict the Y-axis.
3. Color Order: Program the needles (e.g., 11, 3, 2, 4).
   • Tip: Write this on a sticky note and put it on the machine screen.
4. Frame Definition: Select “Big sash frame”.
   • Crucial: If you skip this, the machine might slam the frame into the side of the chassis.








Setup Checklist: The "Go/No-Go" Decision

• Design: *015 Panda loaded.
• Mode: Flat Head type active.
• Colors: Needle sequence matches the thread cones on top.
• Frame: "Big sash frame" selected in software.
• Speed: Set to a "Beginner Sweet Spot" of 600-700 SPM. (Video shows 750, max is 1000. Do not run max speed on your first try).

8. The First Run

Press Start. But don't walk away.

The 30-Second Rule: Stand by the machine with your hand near the Emergency Stop.

• Listen: Is the sound rhythmic (chug-chug-chug)? Or is there a metallic slapping sound? Slapping usually means the thread is too loose (whipping against the plastic).
• Watch: Is the bobbin thread coming up to the top? If you see white dots on top, your top tension is too tight.

Operation Checklist

• Fabric is not "flagging" (bouncing up and down with the needle).
• No birdnesting (bunching thread) under the throat plate.
• Machine trims threads cleanly between color changes.

Troubleshooting: Structured Diagnostics

Don't guess. Follow the path of least resistance (and lowest cost).

The "Hidden" Consumables List

Beginners buy thread and backing. Experts buy these to survive the week:

1. Spray Adhesive (Temporary): Essential for keeping backing stuck to slippery fabrics before clamping.
2. Silicone Spray: To lubricate thread paths for metallic or old threads.
3. Canned Air: To blow lint out of the bobbin case every single morning.
4. Spare Bobbin Case: If you drop one, it bends. Have a backup.

Scaling Up: When to Upgrade Your Tools

Mastering the YUEMEI is about rhythm. But as your business grows, you will hit limits—not of the machine, but of your hands.

If you find yourself dreading the "clamping" step, or if your wrists hurt after a day of production, that is your trigger to look at embroidery hoops for embroidery machines that offer magnetic latching.

If you are spending more time changing thread colors than stitching, that is your trigger to look at multi-head solutions or higher-needle-count machines from SEWTECH.

Start slow, listen to the machine, and verify every step. Precision is a habit, not a setting.

Terms like hoop master embroidery hooping station are often searched by professionals looking to standardize their placement, but the principles of alignment remain the same regardless of the tool.

For those seeking specific parts, searches for embroidery machine hoops often lead to both replacement standard frames and upgraded magnetic options.

FAQ

• Q: How do I install the YUEMEI towel cable clamp unit without stripping the machine head screws?
  A: Hand-start the screws and tighten with a Phillips screwdriver only—never use a power drill on the YUEMEI head casting.
  • Align the white towel cable clamp unit flush to the machine body before inserting screws.
  • Start both screws by hand to catch the threads, then tighten until firm resistance stops.
  • Power down the YUEMEI machine before working near the needle bar area.
  • Success check: Run a finger along the clamp seam—there should be no gap and the clamp should look perfectly vertical.
  • If it still fails: Remove and re-seat the clamp; if threads feel damaged or screws won’t bite, stop and follow the machine service guidance to avoid damaging the casting.
• Q: How do I prevent “ghost” sensor errors on a YUEMEI embroidery machine caused by loose wiring connectors?
  A: Reseat the connector straight into the port until it fully seats (and locks if there is a tab), and leave a relaxed service loop.
  • Insert the plug straight up—do not angle the connector during insertion.
  • Check that the cable is not pulled tight; let it hang naturally in a gentle loop.
  • Inspect for intermittent tugging points around the clamp path.
  • Success check: Feel a distinct “seat” (and often hear/feel a click) and see the cable loop hanging without tension.
  • If it still fails: Power off and re-check both ends, then clean around the connection area; intermittent stops can also be triggered by dirty sensors.
• Q: How do I thread a YUEMEI multi-needle embroidery machine correctly when top tension goes “haywire” from missing one thread guide?
  A: Re-thread from the cone through every guide in order and use the “Floss Test” at the tension disks before threading the needle.
  • Route thread from the cone through the upper guide holes, then down through the sub-tension disks.
  • Pass straight through the thread break sensors (wheels/levers) and continue to the needle.
  • Pull the thread through the tension disks before the needle to confirm consistent drag.
  • Success check: The Floss Test feels like flossing teeth—smooth, consistent resistance (not free-sliding and not jerky).
  • If it still fails: Do not tie knots and pull through; fully unthread and start over because one missed guide can mimic a tension problem.
• Q: When should I use “One-click hook” and “Trim” on the YUEMEI touchscreen to avoid the needle striking a Big Sash Frame during initialization?
  A: Run “Back to threading point,” then “One-click hook,” then “Trim” before mounting the Big Sash Frame so the hook and trimmer align safely.
  • Tap “Back to threading point” to bring the machine to a safe position.
  • Select “One-click hook” (often under Maintenance/Test) to align the rotary hook system.
  • Press “Trim” to cycle the trimmer knives before any large frame is installed.
  • Success check: Hear a sharp, decisive “clack-whirrr” as the trimmer engages and retracts (not sluggish or strained).
  • If it still fails: Stop and do not mount the frame—re-run the sequence and verify the machine is homed correctly before any pantograph movement.
• Q: How do I stop a YUEMEI Big Sash Frame setup from shifting designs or creating gaps due to fabric slippage in a clip-based frame?
  A: Clamp stabilizer first, then fabric, and tension evenly using a “compass pull” so the material is tight without distortion.
  • Clip stabilizer across the frame first, then place fabric on top before final tightening.
  • Pull and clip in a compass order: top → bottom → left → right to equalize tension.
  • Tighten frame thumb screws/bolts evenly (50% left, 50% right, then 100%) to avoid twisting.
  • Success check: Drum the fabric— it should sound like a drum, and the fabric weave should look straight (not bowed).
  • If it still fails: Clean frame bars (lint/oil can cause slip) and consider a magnetic frame upgrade for faster, more consistent holding on production runs.
• Q: How do I diagnose YUEMEI thread breaks that look shredded vs. clean-cut during the first run?
  A: Use the break type to choose the fix: shredded usually points to needle/thread condition, clean-cut usually points to threading path or too-tight tension.
  • Replace the needle if breaks look shredded; the guide notes size 75/11 as a standard starting point.
  • Re-thread from scratch and re-check tension disk engagement with the Floss Test if breaks look clean-cut.
  • Avoid tying knots and pulling thread through the path; that can snag and create false tension.
  • Success check: The machine runs the first 30 seconds with a steady rhythmic sound and no sudden snaps at the needle.
  • If it still fails: Inspect the needle tip for burrs and verify the thread is correctly passing through the thread break sensor path.
• Q: What safety precautions should operators follow when using N52 neodymium magnetic embroidery hoops to reduce hoop burn on flat goods?
  A: Treat N52 magnetic hoops as high-force tools—keep them away from pacemakers and prevent magnets from snapping together.
  • Keep magnetic hoops away from anyone with a pacemaker and away from sensitive medical devices.
  • Use a separator/controlled placement so two magnets do not slam together unexpectedly.
  • Keep fingers clear of the closing path to avoid severe pinching.
  • Success check: The hoop closes smoothly under control with no “snap” impact and no skin pinch risk.
  • If it still fails: Stop using the hoop until safe handling technique is established; uncontrolled snapping is a handling issue, not a stitching setting.
