Your Viking/Pfaff Hoop “Exploded”? Rebuild the Quick-Release Latch in 5 Minutes (and Stop It From Happening Again)

You’re not the first person to end up holding a handful of hoop parts thinking, “Well… I guess I just broke my expensive embroidery hoop.” I have watched that exact panic happen in real time for over 20 years on shop floors—especially with the specific spring-loaded latch mechanisms found on Husqvarna Viking and Pfaff quick-release hoops.

Here is the reality validation: when the latch falls apart in your hand, it is usually not “broken” in the permanent sense. It is just disassembled by physics. And if you rebuild it in the specific order detailed below (there is one critical step 90% of beginners miss), you will be back to stitching in under 5 minutes.

The Calm-Down Moment: When a Viking/Pfaff Quick-Release Hoop Falls Apart, It’s Usually Fixable

First, stop looking for superglue. When the latch mechanism explodes into components, it typically happens for one of two specific reasons, and knowing which one dictates your next move:

1. The "Over-Loocening" Event: You unscrewed the long tension screw so far that it reached the end of its travel threads and mechanically released the internal parts (spring, nut, and lever). This is annoying, but purely a reassembly job.
2. The "Force-Close" Fracture: The latch was forced closed against a thick fabric without loosening the screw first. This stresses the plastic clip until the pivot arm snaps.

If you are in the first camp, take a breath—we will fix this shortly.

If you are in the second camp and the plastic clip is physically snapped or cracked, that specific plastic arm must be replaced. No amount of epoxy will hold against the torque required for embroidery hooping.

The Expert Mindset Shift: To stop this from happening again, treat your hoop like a precision clamping system, not a leverage tool. The screw sets the tension; the latch only locks that tension in place. If you have to use white-knuckle force to close the latch, your screw is too tight, and your hoop is screaming for mercy.

The “Hidden” Prep Pros Do First: Control the Tiny Parts Before They Control You

Before you start the repair, you must control your environment. The compression spring in these hoops is small, cylindrical, and incredibly bouncy. If it drops onto carpet, it is gone.

The "Safe Zone" Setup:

• Work over a tray with a lip, a dark box lid, or spread out a light-colored towel. The towel texture prevents the spring from rolling.
• Clear the bed of your machine. Do not attempt this repair while the hoop unit is attached to the embroidery arm.

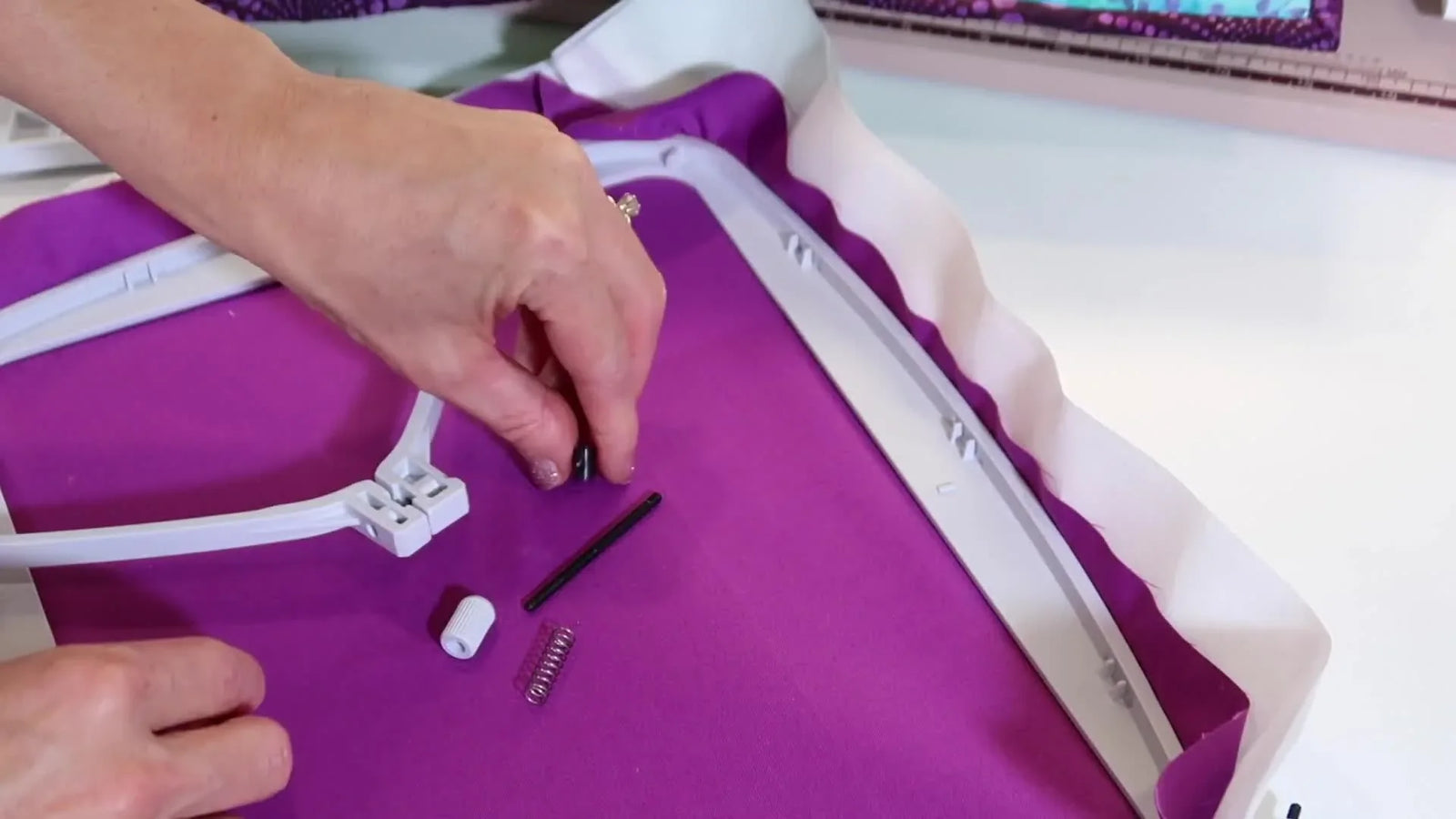

Inventory Focus: Check your parts pile. You should have four distinct components:

1. Plastic Latch Arm: The lever you flip.
2. Long Tension Screw: Usually black or silver, threaded its entire length.
3. Compression Spring: The chaos element.
4. Barrel Nut ("Drum"): A tiny cylinder with a threaded hole through the center. Do not lose this.

If you only own one hoop, I strongly recommend buying a spare inner/outer ring set. In a commercial environment, a $5 plastic part failure should not stop a $5,000 production day. If you are building a more efficient setup long-term, this mechanical fragility is exactly why many shops move away from spring-latches and toward machine embroidery hoops that rely on magnetic force to reduce these mechanical failure points.

Prep Checklist (Verify BEFORE touching the screw):

• Safety Surface: Confirm you are working over a towel or tray to catch the spring.
• Parts Count: Locate all 4 loose components (Latch, Screw, Spring, Barrel Nut).
• Visual Inspection: Check the plastic latch arm for white stress marks or cracks near the hinge.
• Lighting: Turn on a bright task light; the barrel nut hole is tiny and hard to align in shadow.
• Tool Check: Have a magnetic screwdriver or tweezers handy? They help position the barrel nut without frustrated fumbling.


Warning: Keep fingers clear of the pinch zone when flipping the latch closed during testing. The snap action can be surprisingly strong. Never force the latch against resistance—if it hurts your thumb, you are breaking the hoop.

Know Your Parts Like a Tech: Anatomy of the Husqvarna Viking/Pfaff Hoop Latch Mechanism

To fix it, you must understand the physics. This latch system is simple, but it is "order-dependent."

• Outer Hoop Frame: The chassis. It holds the "housing" slots.
• Plastic Latch Arm: This acts as a cam. When flipped, it pulls the screw head, shortening the distance and tightening the hoop.
• Long Tension Screw: This travels through the latch, through the spring, and anchors into the barrel nut.
• Compression Spring: This provides the "push-back." It keeps tension on the nut so the hoop doesn't rattle loosen when the latch is open.
• Barrel Nut / “Drum”: The anchor. It sits in the outer hoop frame and pulls the two ends of the hoop together.

Expert Note: That little black “drum” is the part most people lose. If it falls out, the screw has nothing to grab, and the hoop is useless.

The Safe Disassembly Move: Unscrew the Long Tension Screw Without Losing the “Drum”

If your hoop is currently jamming or stiff and you are intentionally taking it apart to clean out lint or adhesive spray buildup:

1. Isolate: Separate the inner and outer rings. You only want the outer hoop.
2. Unscrew: Loosen the long tension screw completely until it disengages from the barrel nut.
3. Capture: Immediately flip the hoop over and catch the small black barrel nut (“drum”) as it slides out of its housing.
4. Store: Place it in your tray.

This disassembly usually happens unintentionally when users try to hoop a thick item (like a hoodie) and keep loosening the screw to make it fit. The screw travels so far it exits the nut, and—ping—the spring launches across the room.

The Rebuild Order That Actually Works: Drum → Latch → Screw Halfway → Spring → Tighten

This is the specific sequence I teach technicians. If you engage the screw too early or too late, the spring will fight you.

1) Seat the barrel nut (“drum”) back into the outer hoop frame

Press the small black barrel nut into its molded circular slot on the outer hoop frame.

• Sensory Check: It should sit flush. If you shake the hoop gently, it might fall out, so keep a finger over it or keep the hoop tilted slightly up.


2) Snap the plastic latch arm into its pivot point

Take the plastic lever and snap it into the U-shaped opening on the hoop frame.

• Sensory Check: You should feel a distinct mechanical "click" or snap as the hinge pins seat. The lever should pivot freely up and down.


3) Start the long screw—but STOP HALFWAY (The Critical Step)

Insert the long screw through the hole in the plastic latch arm. Push it through the plastic, but stop before the tip crosses the gap to the hoop frame.

• Visual Check: The tip of the screw should be sticking out of the plastic arm by about 5mm (1/4 inch), exposing just enough metal to hold the spring.


4) Place the spring onto the exposed screw tip

With the screw only halfway through, manually slide the compression spring onto the exposed screw tip. In the video, notice how the spring is now "captured" on the screw shaft.

• Why we do this: If you pushed the screw all the way through in Step 3, you wouldn't be able to squeeze the spring into the tiny gap.


5) Push the screw the rest of the way through and align it to the barrel nut

Now, push the screw firmly so it travels through the spring and hits the barrel nut on the other side.

• Tactile Check: You will feel the spring compressing slightly. You need to align the screw tip with the threaded hole in the barrel nut.


6) Catch the threads and tighten until the latch flips closed with tension

Rotate the screw clockwise. You may need to wiggle the latch arm slightly to help the threads catch.

• Sensory Check: You will feel the screw "bite" into the threads. Once engaged, tighten it until the mechanism holds itself together. Flip the latch closed to test.


The “Why It Failed” Lesson: Physics of Hooping Tension (and Why Forcing the Latch Breaks Clips)

Embroidery requires fabric to be "drum tight," but mechanics have limits. A quick-release hoop is a clamp. The screw determines the gap; the latch closes that gap.

The Physics of Failure: When you try to hoop a thick towel, and you force the latch closed without loosening the screw first, you are forcing the plastic lever to stretch the metal screw or compress the fabric instantly. Plastic always loses that battle. This causes "fatigue cracking" at the latch hinge.

Conversely, when you over-loosen the screw to remove fabric, you run the risk of unthreading the barrel nut entirely, leading to the "explosion" of parts.

The Stability Solution: You want controlled tension. The goal is to hold the fabric fibers still, not to crush them. If you constantly struggle with hoop burn (shiny marks left on fabric) or broken latches, this is a hardware signal. This friction is why many professional embroiderers eventually invest in a magnetic hoop for husqvarna viking. These tools use strong magnets to clamp fabric automatically, removing the need for a mechanical latch or screw adjustment entirely, which saves significant time on projects like towels or heavy fleece.

The One Habit That Extends Hoop Life: Loosen First, Then Open (Never “Yank the Fabric Out”)

If you want your repaired hoop to last 5 years instead of 5 months, adopt this workflow change immediately.

The Golden Rule of Un-Hooping:

1. Loosen the screw 3-4 full turns. (Listen for the tension releasing).
2. Then open the latch.
3. Then pop the inner ring out.

Most users flip the latch open while the screw is still tight. This sends a massive shockwave of force through the plastic housing. Over time, this snaps the housing.

• Expected Outcome: The latch should feel loose and easy to open. If you have to pry it, you haven't loosened the screw enough.


Setup Choices That Prevent Wrinkles and Rehooping: Stabilizer + Fabric Tension Decision Tree

Even with a perfectly repaired latch, poor stabilization logic will force you to over-tighten the hoop to compensate for shifting fabric. This abuse breaks latches.

Use this decision tree to stop fighting your materials (and your equipment).

Decision Tree: Fabric Behavior → Stabilizer Strategy → Hooping Tension

1. Is the fabric stable and non-stretch (e.g., Quilted Cotton, Denim)?
   • Yes: Use a medium-weight tearaway or cutaway. Hoop with firm, hand-tight tension.
   • No: Go to step 2.
2. Does the fabric stretch or feel “bouncy” (e.g., T-shirt, Jersey Knit)?
   • Yes: DO NOT just tighten the hoop harder. You must use a Fusible Poly-Mesh (No Show Mesh) or a sticky stabilizer to adhere the fabric to the backing. Hoop gently; let the stabilizer do the work.
   • No: Go to step 3.
3. Is the fabric thick, lofty, or textured (e.g., Terry Cloth, Fleece)?
   • Yes: The physical height of the fabric fights the latch. Loosen the screw significantly. Consider "floating" the fabric (hooping only the stabilizer) or using a magnetic frame to avoid crushing the nap.
   • No: Standard hooping tension applies.

Setup Checklist (Execute before the first stitch):

• Barrel Nut Seating: Look closely—is the "drum" centered? If it is tilted, the screw will cross-thread.
• Action Test: Flip the latch open/closed 3 times. It should be smooth, not gritty.
• Tension Dial: Tighten until the latch closes with firm resistance, but not so tight that your hand shakes.
• Spare Parts: Do you have a magnetic screwdriver nearby for the next adjustment?
• Consumables: Check regarding temporary spray adhesive—overspray on the screw threads can cause binding. Clean threads with rubbing alcohol if sticky.

Comment-Driven Fixes: Where to Buy Springs and Screws (and What to Check Before You Order)

Based on years of community feedback, here is how to source replacements effectively:

“I lost the spring—where can I buy another one?”

The video example uses a generic spring, but hoops are precise. I recommend buying the specific spring through an authorized Husqvarna Viking or Pfaff dealer parts counter.

• Pro Tip: Take a photo of your specific hoop model number (usually embossed on the plastic). Springs vary in length by millimeters, and the wrong length will make the latch impossible to close.

“Where can I buy replacement screws?”

Go to the dealer. Hardware store screws often have different thread pitches (metric vs. imperial) or head shapes. A generic screw might fit but strip the soft metal of the barrel nut.

• Emergency Hack: If you are desperate, bring the barrel nut to the hardware store to test the thread fit gently by hand before buying a screw.

Troubleshooting Like a Shop Tech: Symptom → Cause → Fix

Don't guess. Diagnose.

Warning: regarding Magnetic Hoops: If you choose to upgrade to magnetic frames, be aware they use powerful neodymium magnets. Keep them away from pacemakers and implanted medical devices. Keep fingers clear of the snapping zone to avoid painful blood blisters.

The Upgrade Path When You’re Tired of Hoop Downtime: From “One-Off Fix” to Production Reliability

If you embroider once a month, repairing the mechanical latch is a rite of passage. Keep a spare spring and screw, and you are fine.

However, if you run a small business or embroider weekly, mechanical downtime is a profit killer. Every time a hoop explodes, you lose 15 minutes of focus.

• Level 1 (Ergonomics): If you are staying on a single-needle machine but hate the wrist strain of tightening screws, a hooping station can hold the outer frame for you, ensuring consistent placement and reducing the "fumble factor."
• Level 2 (Tooling): If your primary frustration involves "hoop burn" or the inability to hoop thick items like Carhartt jackets or thick towels, the mechanical latch is the bottleneck. A magnetic hoop for husqvarna viking solves this by clamping from the top down, eliminating the need to shove an inner ring inside an outer ring.
• Level 3 (Scale): If you are consistently doing runs of 10, 20, or 50 shirts, the single-needle hoop mechanism (and the machine speed) becomes your prison. This is usually the tipping point where users transition to SEWTECH multi-needle machines and industrial-style magnetic frames—not just for speed, but because the equipment is designed for repetitive, heavy-duty clamping without plastic fatigue.

Operation Checklist (Post-Repair & Production Ready):

• Dry Run: Test the latch mechanism 3-5 times without fabric to ensure the spring is seated.
• Tension Sensation: Memorize the "feel" of correct tension—tight like a drum, but not warped.
• Exit Strategy: Commit to the "Loosen -> Open -> Remove" habit to save your plastic latch.
• Emergency Kit: Tape a spare screw and spring (in a small baggie) to the side of your machine table.
• Workflow Upgrade: If you are struggling with alignment, consider a hoop master embroidery hooping station to standardise your placement, reducing the need to constantly re-hoop and stress the latch.

By respecting the physics of the barrel nut and spring, your plastic hoops can last for years. But remember: the moment the tool starts fighting you, it is usually time to check your technique—or upgrade your tool.

FAQ

• Q: How do I reassemble a Husqvarna Viking or Pfaff quick-release embroidery hoop latch after the spring, screw, and barrel nut fall out?
  A: Rebuild the latch in the exact order: barrel nut (“drum”) → latch arm → screw halfway → spring → screw through → tighten.
  • Seat the barrel nut flush in the outer hoop frame slot and keep a finger over it so it can’t drop out.
  • Snap the plastic latch arm into the pivot until it clicks and pivots freely.
  • Start the long screw through the latch arm but stop with ~5 mm (1/4") sticking out, then slide the spring onto the exposed tip.
  • Push the screw the rest of the way, align to the barrel nut, and tighten clockwise until it bites.
  • Success check: the latch flips open/closed smoothly and closes with firm resistance (no gritty feel, no “free-spin” screw).
  • If it still fails: check that the barrel nut is present and centered; if the screw spins without tightening, the nut may be missing or cross-threaded.
• Q: What is the critical “halfway screw” step for rebuilding a Husqvarna Viking/Pfaff quick-release hoop latch, and why does skipping it make the spring impossible to install?
  A: Stop the long tension screw halfway through the latch arm so the spring can be captured on the exposed screw tip before alignment.
  • Insert the screw through the plastic latch arm and stop before the tip crosses the gap to the hoop frame.
  • Slide the compression spring onto the exposed screw tip while you still have space to work.
  • Push the screw through the spring and into the barrel nut, then tighten to engage the threads.
  • Success check: the spring stays “captured” on the screw shaft and does not pop out when you move the latch.
  • If it still fails: reset and try again—most reassembly problems come from pushing the screw fully through before the spring is on.
• Q: How can I tell if a Husqvarna Viking/Pfaff quick-release hoop latch is truly broken versus just disassembled after an over-loosening event?
  A: If the plastic latch arm shows cracks/white stress marks at the hinge, it’s a fracture; if parts are intact, it’s usually just disassembled and rebuildable.
  • Inspect the plastic latch arm closely near the hinge for cracks, chips, or whitening.
  • Confirm all four parts are present: latch arm, long screw, compression spring, and barrel nut (“drum”).
  • Reassemble once; do not force the latch during testing.
  • Success check: an intact latch arm pivots normally and locks without “white-knuckle” force.
  • If it still fails: replace the snapped/cracked plastic latch arm—glue/epoxy typically will not hold against hooping torque.
• Q: What is the safest way to disassemble a Husqvarna Viking/Pfaff quick-release embroidery hoop to avoid losing the barrel nut (“drum”) and spring?
  A: Separate the rings, fully unthread the screw, then immediately flip and capture the barrel nut into a tray/towel “safe zone.”
  • Work over a towel or a tray with a lip so the spring cannot bounce away.
  • Remove the inner ring so only the outer hoop is in your hands.
  • Unscrew the long tension screw until it disengages, then flip the hoop and catch the barrel nut as it slides out.
  • Store the barrel nut and spring in the tray before continuing cleaning.
  • Success check: all small parts are contained in the tray before you move the hoop back to the machine.
  • If it still fails: stop and search for the barrel nut first—without the “drum,” the screw has nothing to grab.
• Q: How do I set correct hoop tension on a Husqvarna Viking/Pfaff quick-release hoop so the latch closes without breaking and without causing hoop burn?
  A: Use the screw to set the gap and let the latch only “lock”—if the latch hurts your thumb, the screw is too tight.
  • Loosen the screw enough that the latch closes without forcing, then tighten gradually to reach firm hold.
  • Flip the latch open/closed 3 times to confirm smooth action before stitching.
  • Adjust stabilizer strategy instead of over-tightening when fabric shifts (especially knits and lofty fabrics).
  • Success check: the latch closes with firm resistance but not struggle, and fabric is held stable without shiny clamp marks.
  • If it still fails: reduce hoop pressure and change stabilization (fusible poly-mesh/sticky backing, or float fabric on thick/lofty items).
• Q: What should I do if a Husqvarna Viking/Pfaff quick-release hoop screw spins but won’t tighten during hooping?
  A: The barrel nut (“drum”) is missing, tilted, cross-threaded, or stripped—start by locating and reseating the nut.
  • Remove the screw and confirm the barrel nut is actually present in its housing.
  • Reseat the barrel nut so it sits centered and flush before trying to catch threads again.
  • Wiggle the latch arm slightly while turning clockwise to help the threads bite.
  • Success check: you feel the screw “bite” and pull the hoop ends together instead of free-spinning.
  • If it still fails: inspect the barrel nut threads for stripping; replacement parts from an authorized dealer may be required.
• Q: What are the key safety warnings when testing a Husqvarna Viking/Pfaff quick-release hoop latch and when upgrading to magnetic embroidery hoops?
  A: Keep fingers out of pinch zones, never force a latch against resistance, and treat magnetic hoops as high-force clamps.
  • Keep fingers clear when snapping the latch closed; the snap action can pinch hard.
  • Stop immediately if closing the latch requires painful force—loosen the screw first to avoid breaking the plastic clip.
  • Keep powerful magnetic hoops away from pacemakers and implanted medical devices, and keep fingertips out of the “snap” area.
  • Success check: your hand can close the latch (or magnetic frame) with controlled pressure and no sudden “slam” on fingers.
  • If it still fails: step back and reduce tension—forcing any clamping system is the fastest path to broken parts and injuries.
• Q: When Husqvarna Viking/Pfaff quick-release hoops keep exploding, cracking, or causing hoop burn on thick towels and fleece, what is the practical upgrade path?
  A: Start with technique and stabilization, then consider magnetic hoops for clamping reliability, and move to multi-needle production gear only when volume demands it.
  • Level 1: Change habit—loosen the screw 3–4 turns before opening the latch, and stop over-tightening to compensate for poor stabilization.
  • Level 1: For thick/lofty fabric, float fabric (hoop stabilizer only) or loosen significantly so the latch is not forced.
  • Level 2: If thick items and hoop burn are routine, magnetic hoops often reduce pressure points and eliminate latch/screw fatigue.
  • Level 3: If repeated hoop downtime is hurting weekly production, moving to a multi-needle workflow may be the long-term reliability step.
  • Success check: hooping becomes repeatable without latch “explosions,” cracked arms, or constant rehooping.
  • If it still fails: document the failure mode (crack vs. disassembly vs. thread slip) and replace the specific damaged part before upgrading again.
