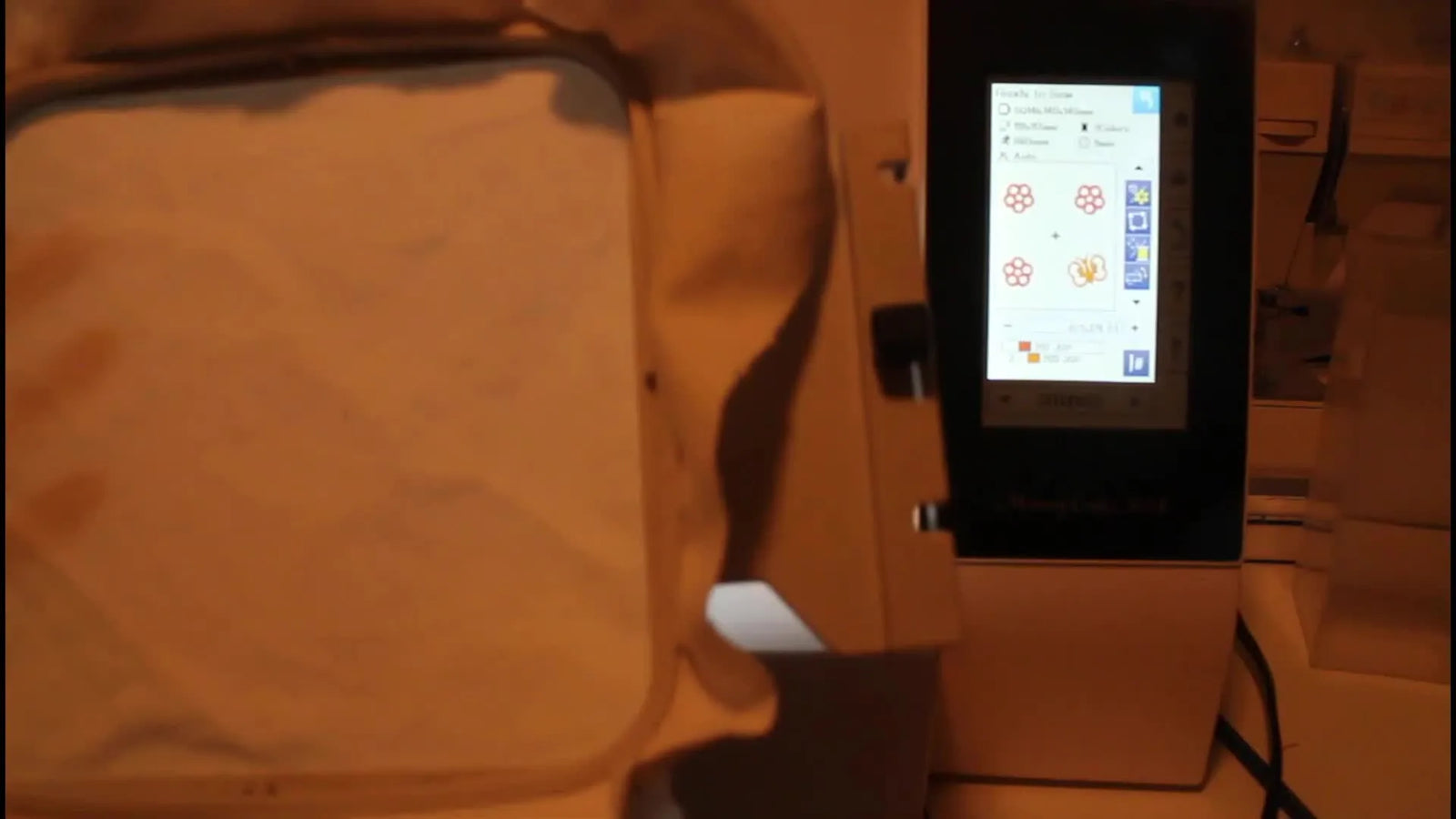

Your First Stitch on the Janome Memory Craft 500E: Hoop SQ14b Without the Fight, Then Mirror a Clean 4-Flower Layout

Mastering the Janome 500E: From "First-Stitch Panic" to Production Confidence

Unboxing a new embroidery machine is a paradox. It is thrilling—right up until the first time a hoop fights back, the fabric ripples like a topographical map, and you start wondering if you’ve made a terrible mistake.

Let me be clear: You are not doing it wrong. You are just inexperienced.

Machine embroidery is 20% software and 80% physics. It is about tension, stabilization, and material handling. The Janome Memory Craft 500E is a workhorse, but it requires a pilot.

This guide is not just a walkthrough; it is a calibration of your workflow. We will move from "hoping it works" to "knowing it will work," using a simple project—one stable fabric, one hoop, one design—to build your confidence.

1. The "First-Project Panic" is Normal—Here is the Calm Way Through

If you just unboxed your machine, your goal isn't "Instagram Perfection." Your goal is Control. You want the hoop to mount correctly, the design to land where you aimed, and the machine to sound happy.

Here is the reality based on 20 years of shop floor experience:

• The "Clearer than the Manual" Effect: Manuals tell you button functions; workflows tell you the order of operations. Context is everything.
• Reliability Reality: Users report the 500E is a tank. Owners frequently run it for 4+ hours a day without mechanical failure.
• The Real Cost: The main complaint isn't the stitching quality; it is the time. Single-needle machines require you to stop and change threads manually. This is normal.

Psychological Anchor: If you hear a rhythmic thump-thump-thump, you are winning. If you hear a grinding or a sharp snap, stop immediately.

2. The "Hidden" Prep: Physics Before Art

Before you even touch the screen, we must address the "Hidden Prep." This is where 90% of beginners fail. The video uses cotton canvas. This is deliberate. Canvas is stable; it doesn't fight the needle.

The "Hidden Consumables" checklist

Beyond the machine, you need these on your desk right now:

• New Needles: Janome Purple Tip (fluted to prevent skipped stitches) or Red Tip.
• Temporary Spray Adhesive (e.g., 505): Vital for floating fabric or securing difficult stabilizers.
• Precision Snips: For trimming jump threads closely.

The Stabilizer Decision Tree

Do not guess. Use this logic gate to determine your "sandwich."

Decision Tree: Fabric $\to$ Stabilizer Choice

1. Is the fabric stretchy? (T-shirts, Jersey, Spandex, Rib-knit)
   • YES $\to$ STOP. You must use Cutaway stabilizer. (Video uses tear-away because canvas doesn't stretch). Pro-Tip: If it stretches in two directions, use two layers of mesh cutaway.
   • NO $\to$ Go to step 2.
2. Is the fabric a stable woven? (Canvas, Denim, Quilting Cotton)
   • YES $\to$ Tear-away is acceptable for light designs.
   • NO $\to$ If it has a pile (like towels), use Tear-away + Water Soluble Topper.
3. Is this a "Keeper" or Commercial Item?
   • YES $\to$ Cutaway almost always feels higher quality and lasts longer through wash cycles, even on stable fabrics.

Prep Checklist (The "Go/No-Go" Flight Check)

• Fabric: Cut a piece of cotton canvas (or stable scrap) 2 inches larger than the hoop on all sides.
• Stabilizer: Cut tear-away slightly larger than the fabric.
• Hoop: Disassemble the SQ14b (140x140mm) hoop. Loosen the screw until the inner ring feels loose inside the outer ring.
• Needle: Insert a fresh needle. Ensure the flat side faces back and push it up until it hits the stop bar. Tighten firmly with a screwdriver, not just fingers.
• Surface: Clear a flat table. Gravity is your enemy during hooping; a flat surface is your friend.

3. Win the "Press-In" Battle: Hooping without Tears

This is the physical friction point. Traditional "screw and press" hoops rely on friction. If you do this wrong, you get "hoop burn" (permanent white rings on fabric) or "trampolining" (loose fabric).

The Physics of the "Sandwich"

1. Outer Hoop: Place on a flat, hard surface.
2. Stabilizer: Lay over the outer hoop.
3. Fabric: Lay centered on top.
4. Inner Hoop: Align appropriately.
5. The Press: Push the inner hoop strictly vertical. Do not angle it in.


Sensory Check: The "Drum Skin" Test

Once hooped and tightened:

• Touch: Tap the fabric. It should sound taut, like a drum.
• Sight: Look at the grid lines of the fabric. Are they straight? If they wave like a snake, you pulled too hard during tightening.
• Feel: Run your finger along the back. If you feel a "bubble" of air between stabilizer and fabric, re-hoop. That bubble causes thread nests.

The Production Upgrade Path (Pain $\to$ Solution)

If you are doing one shirt, a traditional hoop is fine. However, if you are doing 50 shirts, your wrists will scream, and you may damage delicate garments with "hoop burn."

• Trigger: Wrists ache from tightening screws, or fabric shows shiny rings after embroidery.
• Solution Level 1 (Technique): Use a hooping station for embroidery to stabilize the hoop while you press.
• Solution Level 2 (Tool): Upgrade to a Magnetic Hoop.
  • Many professionals switch to a magnetic hoop for janome 500e. Why? Instead of forcing rings together, magnets snap the fabric securely without "rubbing" the fibers. This eliminates hoop burn and ensures identical tension every single time. Search for terms like janome magnetic embroidery hoops to find compatible sizes for the SQ14b.

Warning (Safety): Magnetic hoops use industrial neodymium magnets. They are incredibly strong. Keep them away from pacemakers, mechanical watches, and fingers. Do not let them "snap" together uncontrolled; slide them on.

4. Threading: The "1-5 Path" and Needle Deflection

Threading is not just putting string through holes. It is about applying tension.

The Action-First Workflow

1. Presser Foot UP: This opens the tension discs. If you thread with the foot down, the thread sits on top of the discs, zero tension is applied, and you get a massive bird's nest instantly.
2. Thread Path: Follow numbers 1 through 5.
3. The "Flanking" Move: When passing through the take-up lever (the metal arm that goes up and down), pull the thread firmly to ensure it slips into the eyelet.
4. Needle Eye: Thread front to back.


Why the Needle Matters

At 600 stitches per minute (SPM), a dull needle deflects. It hits the bobbin case instead of grabbing the bobbin thread.

• Rule: Change your needle every 8 hours of stitching or at the start of a critical project.


5. Drop-In Bobbin: The "Hands-Off" System

The Janome 500E uses a "drop-in" system. It is designed to be low maintenance.

• Visual Check: Drop the bobbin in so it looks like the letter "P" (thread coming off the left side).
• The Cutter: Follow the arrows to the built-in cutter. This leaves the "tail" at the perfect length.
• Do Not Adjust: Unless you are an expert using specialty thick thread, do not touch the bobbin tension screw. It is factory set for 60wt bobbin thread.

6. Screen Setup: Matching Physics to Digital

The machine has no eyes. It does not know what hoop you attached. You must tell it.

The Safety Protocol

1. Attach Hoop: Slide the hoop onto the carriage arm.
2. Sensory Check: Listen for the Click. Wiggle it. If it rattles, it is not locked.
3. Screen Select: Go to the Hoop Menu. Select SQ14b.
4. Verification: Ensure the screen grid matches your physical reality.

Warning (Mechanical): Never change the hoop size on the screen after you have attached a smaller hoop physically. The machine might travel outside the safe zone and slam the needle bar into the plastic hoop frame, breaking the machine or the hoop.

7. Design & Layout: Thinking Like a Factory

The video shows selecting a flower and using the "Mirror" (Heart) function to create a 4-quadrant design.

The "Stitch Order" Trap

When you add four separate flowers, the machine treats them as distinct objects.

• Object 1: Stitch Red $\to$ Cut.
• Object 2: Stitch Red $\to$ Cut.
• Object 3: Stitch Red $\to$ Cut.

This means you are waiting for trims. In production software (like Wilcom or Hatch) or even on-screen editing, try to "Color Sort" so it stitches all the Red at once.

Production Insight

If you find yourself spending 50% of your time changing thread colors, you have outgrown the single-needle workflow.

• Scenario: You need to embroider 20 polos with a 3-color logo.
• Pain: You have to sit by the machine to swap threads 60 times.
• Solution Level 3 (Machine): This is the trigger to look at Multi-Needle Machines (like SEWTECH models). They hold all 12-15 colors at once. You press "Start" and walk away.

However, for now, if you are sticking with the 500E, optimizing your janome 500e hoops workflow with magnetic options is the most cost-effective speed boost.

8. The Stitch-Out: Reading the Data

You added a butterfly. The screen says:

• Speed: 600 SPM
• Time: 9 min
• Stitches: 5376




Reality Check: That "9 minutes" is pure run time. It does not account for the 2 minutes you spend threading, the 1 minute you spend trimming, or the 3 minutes you spend hooping.

• Expectation: A "9-minute" design actually takes 15-20 minutes total turnaround time per cycle.


Operation Checklist

• Hoop Locked? Give it a gentle tug.
• Presser Foot Down? The button should turn Green.
• Speed Set? For your first run, slide the speed slider to Medium. Don't race yet.
• Clearance? Ensure no extra fabric is tucked under the hoop.

9. Stitching & Troubleshooting

Press the Green Button.

If the machine stops or makes a noise, use this Structured Troubleshooting Map:

10. The Path to Mastery

Once the machine finishes, you will see the "Finish" screen. Don't just rip the hoop off.

1. Press the lever to release.
2. Slide the hoop off gently.
3. Remove from inner hoop.
4. tear away the stabilizer (support the stitches with your thumb so you don't distort them).

You have just completed a safe, verified cycle.

When to Upgrade?

You don't need to buy everything today. upgrade based on Bottlenecks:

1. Hoop Marks/Wrist Pain? $\to$ Buy a magnetic hoop for janome 500e.
2. Fabric Slipping? $\to$ Buy better stabilizers (Cutaway/Fusible).
3. Too Many Color Changes? $\to$ Look at SEWTECH Multi-Needle Machines.

Start with the canvas. Master the physics. Then, move to the art. Welcome to the guild.

FAQ

• Q: On the Janome Memory Craft 500E, what stabilizer should be used for stretchy T-shirts (jersey/spandex) to prevent puckering and distortion?
  A: Use cutaway stabilizer for any stretchy fabric; tear-away is a common cause of puckering on knits.
  • Stop and classify the fabric: if the fabric stretches, choose cutaway immediately.
  • Add support: if the fabric stretches in two directions, use two layers of mesh cutaway as a safe starting point.
  • Hoop correctly: keep the fabric and stabilizer flat (no bubbles) before tightening.
  • Success check: after stitching, the design area stays flat and does not “wave” or ripple around the embroidery.
  • If it still fails… reduce stretching during hoop tightening and consider a stronger cutaway or improved hooping method per the machine manual.
• Q: How can Janome Memory Craft 500E users hoop fabric in the SQ14b (140×140 mm) hoop without getting hoop burn (white rings) or “trampolining” (loose fabric)?
  A: Press the inner ring straight down on a flat surface, then tighten only after the hoop is fully seated to avoid rubbing fibers and uneven tension.
  • Place the outer hoop on a hard, flat table before layering stabilizer and fabric.
  • Press the inner hoop strictly vertical (do not angle it), then tighten the screw after insertion.
  • Re-hoop if there is any air “bubble” between fabric and stabilizer.
  • Success check: the fabric taps like a drum and the fabric grain/grid lines stay straight (not wavy).
  • If it still fails… use a hooping station to stabilize the hoop during pressing, or switch to a magnetic hoop to reduce hoop burn on delicate fabrics.
• Q: On the Janome Memory Craft 500E, how do you prevent an instant bird’s nest (thread ball under the fabric) during the first stitches?
  A: Rethread the top thread with the presser foot UP, because threading with the presser foot DOWN often leaves the thread outside the tension discs.
  • Raise the presser foot fully before threading to open the tension discs.
  • Follow the 1–5 thread path and make sure the thread is seated in the take-up lever eyelet.
  • Thread the needle front-to-back and start with a clean, properly inserted bobbin.
  • Success check: the first stitches form cleanly with no looping or thread pile-up on the underside.
  • If it still fails… cut the nest carefully, rethread again, and inspect for missed guides or incorrect take-up lever seating.
• Q: For the Janome Memory Craft 500E drop-in bobbin, what is the correct bobbin direction (“P” shape) to avoid white bobbin thread showing on top?
  A: Insert the bobbin so it looks like the letter “P” (thread coming off the left side) and route it through the built-in cutter path.
  • Remove lint if needed, then drop the bobbin in with the thread orientation matching the “P” shape.
  • Pull the thread along the marked arrows to the cutter so the tail length is correct.
  • Avoid adjusting the bobbin tension screw unless using specialty thread and you know the impact.
  • Success check: the top surface shows mostly top thread (not bobbin thread) and tension looks balanced.
  • If it still fails… rethread the top thread (top tension too tight is common) and confirm the bobbin thread is actually in the tension spring path.
• Q: On the Janome Memory Craft 500E, why is changing the hoop size on the screen after attaching a smaller physical hoop a mechanical risk?
  A: Do not change the on-screen hoop selection to a larger hoop when a smaller hoop is mounted, because the carriage may travel outside the safe zone and strike the hoop.
  • Attach the hoop and confirm it locks with a clear click (no rattle or looseness).
  • Select the correct hoop in the Hoop Menu (for example, SQ14b when using the SQ14b hoop).
  • Verify the screen grid matches the physical hoop you installed before pressing Start.
  • Success check: the needle path stays within the hoop opening and nothing contacts the hoop frame during movement.
  • If it still fails… stop immediately and re-check hoop lock-in and hoop selection before restarting.
• Q: What needle handling steps on the Janome Memory Craft 500E reduce skipped stitches caused by needle deflection at 600 SPM?
  A: Install a fresh needle correctly (flat side facing back, pushed to the stop bar, tightened with a screwdriver) and replace needles regularly as a safe starting point.
  • Power down or pause safely, then insert the needle with the flat side facing back.
  • Push the needle up until it hits the stop bar and tighten firmly with a screwdriver (not just fingers).
  • Replace the needle at the start of a critical project or after extended stitching time.
  • Success check: the machine runs with a steady rhythm and stitches form consistently without sudden skipping.
  • If it still fails… slow to a medium speed for testing and re-check threading and stabilization before assuming a machine issue.
• Q: For Janome Memory Craft 500E owners embroidering multi-color logos, what is the practical upgrade path when manual thread changes dominate production time?
  A: Optimize workflow first, then upgrade tools if needed: improve color order where possible, consider magnetic hoops for faster consistent hooping, and move to a multi-needle machine when thread-change downtime becomes the bottleneck.
  • Diagnose the bottleneck: track whether hooping time, trimming, or thread changes consume most of the cycle.
  • Reduce stops: use color sorting in software or on-screen editing when possible to stitch the same color in fewer interruptions.
  • Speed hooping: adopt a hooping station or magnetic hoop to reduce re-hooping and hoop burn on repeat jobs.
  • Success check: total turnaround time drops (not just “run time”), and the operator spends less time hovering for trims and thread swaps.
  • If it still fails… when 50%+ of the job is waiting for manual thread changes (for example, many polos with a 3-color logo), a multi-needle machine is often the next logical step for production consistency.
