Your First Machine Embroidery Wins (and the Two Mistakes That Make Beginners Want to Quit): Registration Gaps, Tension, and Smarter Hooping

The "Experience Science" of Machine Embroidery: Mastering the Curve from Day One

If you are brand-new to machine embroidery, let me validate your feelings: the first few projects often feel like a mechanical roller coaster. One minute you are thrilled the machine is stitching, and the next you are staring at a gap, a wobble, or a bird’s nest of thread, thinking, “Did I buy the wrong machine?”

You didn't. You just haven't learned the language of the machine yet.

DeeAnn’s first projects (shared by Donnett at Embroidery.com) are exactly the kind of real-world diagnostics I wish every new stitcher could see. They highlight the two "Great Filters" that stop beginners:

1. Registration Drift: Outlines that don’t line up with fills.
2. Tension Trauma: Loops and bobbin showing on top that screen settings won't fix.

The good news: Machine embroidery is physics, not magic. Both problems are fixable. Once you understand why they happen, you stop guessing and start engineering consistent results.

Meet DeeAnn (and Borrow Her Courage): Why Your First Embroidery Samples Are Supposed to Look “A Little Off”

DeeAnn is a complete novice to machine embroidery, and that’s what makes this case study valuable. She didn’t “ease in” with simple alphabets; she turned the machine on and hit the same walls most beginners hit.

One viewer summed up the vibe perfectly: the enthusiasm is contagious. But from an educational perspective, her errors are gold mines.

Here is the mindset shift I need you to adopt immediately: Your first samples are not failures—they are data points.

• A gap = Material movement data.
• A loop = Path resistance data.
• A broken needle = Density or deflection data.

When you treat these as diagnostics rather than personal failings, the frustration evaporates.

The Elephant Test: Fixing Outline/FIll Misalignment When Embroidery Registration Slips

DeeAnn’s early elephant samples are cute, but Donnett points out the classic "Beginner's Gap": a visible white space where the black outline stitch and the grey fill stitch should meet, especially near the feet.

The Physics: Why "Pull Compensation" Matters

In plain English: Stitches pull. When a machine lays down thousands of stitches to create a fill, it acts like a microscopic cinch, pulling the fabric inward.

• The Symptom: The fabric shrinks inward during the fill. Then, the machine sews the outline exactly where it was programmed to go—but the fabric has moved. Result: Gap.
• The Fix (Software): Digitizers add "Pull Compensation" (making the fill slightly wider to account for shrinkage).
• The Fix (Hardware - Your Job): You must stabilize the fabric so it resists that pull.

The "Drift" Diagnostic Check

If you see gaps, run this mental check before changing the file:

1. Stabilizer Weight: Did you use a flimsy tearaway on a dense design? (Switch to Cutaway).
2. Hooping Tension: Is the fabric "drum tight"?
   • Sensory Anchor: Tap the hooped fabric. It should sound like a dull thump, not a paper crisp, and it should certainly not be saggy.
3. Hoop Grip: Is the fabric slipping during the stitch?

Pro tip: Test the design, not your patience

Before stitching on a $20 shirt, run a test on scrap fabric (similar weight) with the same stabilizer. If the outline still misses on a perfectly stabilized scrap, it is a bad file. If it looks perfect on the scrap, your hooping on the real garment was too loose.

The Tension Mystery That Screen Settings Can’t Fix: Swap the Sewing Bobbin Case for the Embroidery Bobbin Case

DeeAnn describes a moment every shop owner recognizes: she knew it was tension, she dialed the tension numbers up and down on the screen, and nothing changed.

The Reality Check: The fix wasn't software. It was hardware.

Donnett explains that many dual-function machines (Sewing + Embroidery) come with two distinct bobbin cases:

1. Standard Case (often Green dot/screw): Lower tension for sewing stitches.
2. Embroidery Case (often Pink/Red dot or specialized mark): Higher tension (approx. 22g-25g pull) to pull the top thread down tightly.

DeeAnn swapped to the dedicated embroidery bobbin case, and the stitch quality improved instantly.

Why this works

Embroidery runs at 400–1000 stitches per minute (SPM). At that speed, the bobbin thread needs more drag (resistance) to prevent the top thread from looping. If you use the loose sewing case, the top thread wins the tug-of-war, creating loose loops on top of your design.

Warning: Mechanical Safety
Before swapping bobbin cases or adjusting tension screws, stop the machine and remove the hoop. Dropping a screw into the race hook area can destroy the timing of your machine. Never adjust the screw on the bobbin case unless you have a tension gauge (tow gauge). Blind adjustments are the fastest way to ruin a bobbin case.

Quick Sensory Check: The "Floss" Test

If you don't have a tension gauge, pull the bobbin thread through the case. It should feel like pulling dental floss through tight teeth—smooth, consistent resistance. If it falls out of your hand, it's too loose.

The Kimberbell Pillow Runner Reality Check: Rickrack, Freestanding Pieces, and Quilting-in-the-Hoop Without Tears

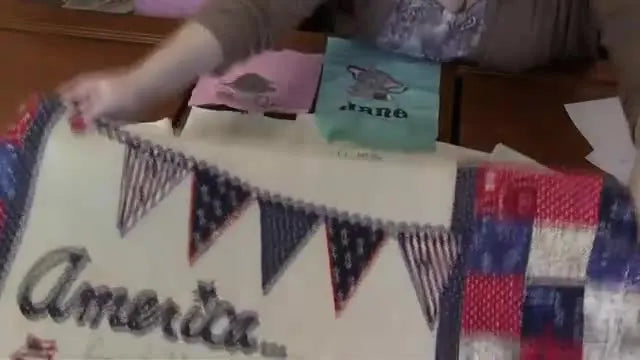

DeeAnn’s project “America Land that I Love” illustrates the complexity of modern embroidery. It involves:

1. Placement Stitches: Showing you where to lay fabric.
2. Tack-down Stitches: Holding items in place.
3. Appliqué: Trimming fabric mid-project.


The "Step-by-Step" Discipline

Multi-component projects punish skipped steps. From an operations standpoint, these projects teach Sequencing Discipline. You cannot auto-pilot this. You must stop, read, execute, and verify.

The Hidden Pain: Hooping Fatigue

When quilting in the hoop, you are re-hooping heavy layers multiple times. Any slack in the hoop results in misaligned blocks.

This is where beginners physically struggle. Traditional inner/outer ring hoops require significant hand strength to close over batting and fabric without causing "hoop burn" (friction marks).

If you find yourself fighting the equipment, this is a Scene Trigger.

• Pain Point: Wrists hurt, fabric won't stay tight, hoop marks on delicate velvet/quilts.
• The Solution: This is why professionals switch to magnetic frames. Learning proper techniques for hooping for embroidery machine usage minimizes physical strain, but sometimes the tool is the bottleneck. A magnetic setup clamps straight down, eliminating the friction and "wrestling" match.

Deco Film on Kitchen Towels: Getting a Smooth Appliqué Finish Without Chewing Up the Fabric

DeeAnn used Deco Film (a vinyl-like appliqué) on flour sack towels. The result is shiny and smooth, but towels are notoriously difficult for beginners.

Material Science: The "Nap" Factor

Towels have loops (pile/nap). If you stitch directly onto them:

1. The stitches sink into the loops and disappear.
2. The machine foot gets caught in the loops.

The "Hidden Consumable" You Need

You must use a Water Soluble Topping (Solvy). This looks like plastic wrap. It sits on top of the towel, preventing the stitches from sinking. It washes away later.

The Towel Formula:

• Bottom: Tearaway (for light towels) or Cutaway (for heavy use).
• Top: Water Soluble Topping.
• Adhesion: Temporary adhesive spray (505 spray) to prevent shifting.

If you plan to sell these, speed becomes an issue. Loading towels straight is hard. This is where tools like hooping stations become relevant. They aren't just for fancy shops; they provide a grid to ensure your design isn't crooked, which is critical when working with geometric towel textures.

The “Separate Pieces, Then Assemble in the Hoop” Moment: Why Multi-Part ITH Projects Feel Hard (Until They Click)

DeeAnn’s "PJ Designs Star-Spangled Greeter" required making separate pieces and then attaching them in a final hoop run.

The Challenge: "Blind" Alignment

You have to trust the machine's placement stitch. If your hooping is off by 2mm, your final assembly will be crooked.

Visual Check: Before running the tack-down stitch for an assembled part, lower the needle manually (using the handwheel) to see exactly where it will land. Do not guess.

To master this, your setup must be rigid. Many production shops use a machine embroidery hooping station to ensure that every layer sits in the exact same coordinate relative to the hoop bracket. Precision at the loading stage saves heartbreak at the stitching stage.

The “Hidden” Prep Pros Do Before They Stitch: Stabilizer, Thread Path, and a 60-Second Hardware Check

Beginners just press "Go." Pros run a pre-flight check. This is standard operating procedure.

Prep Checklist (The "Save Your Sanity" List)

1. Needle Check: Is the needle fresh? (Replace every 8 hours of run time). Is it the right type? (Ballpoint for knits, Sharp for wovens).
2. Bobbin Check: Do you have enough thread to finish the color block? Is it the Embroidery bobbin case?
3. Path Check: Unthread and rethread the top. Ensure the thread is seated deeply in the tension disks.
4. Clearance: Does the hoop have full range of motion? (Move coffee cups and scissors away!).

If you are scaling up, consistent placement becomes the enemy. Using a dedicated hoop master embroidery hooping station allows you to align the logo on the "Left Chest" location exactly the same way for 50 shirts in a row, removing the "eyeball" variance.

Setup That Stops 80% of Beginner Problems: Hooping Tension, Stabilizer Choices, and When Magnetic Hoops Are the Right Move

Most "machine problems" are actually "setup problems."

The Beginner's Decision Tree: Fabric → Stabilizer

Do not guess. Follow these laws of physics:

• Is it Stretchy (T-shirt/Performance Wear)?
  • Rule: Use Cutaway. No exceptions. Tearaway will eventually distort.
  • Technique: Don't stretch the shirt! Hoop the stabilizer tight, then use spray or a magnetic frame to hold the shirt relaxed.
• Is it Stable (Canvas/Denim)?
  • Rule: Tearaway is fine.
• Is it "See-Through" or Delicate?
  • Rule: No-Show Mesh (PolyMesh) Cutaway.

The Upgrade Path: Solving the "Hoop Burn"

Hoop burn—the ring mark left by traditional hoops—is a nightmare on velvet or performance wear.

• Trigger: You are spending 10 minutes ironing out ring marks, or you can't hoop a thick hoodie.
• Option: Magnetic frames. They hold fabric by downward pressure rather than friction.
• Compatibility: If you are a home user, search specifically for magnetic hoops for babylock embroidery machines (or your specific brand Brother/Janome) to ensure the brackets fit. They are a game-changer for speed and fabric safety.

Warning: Magnetic Safety
Pinch Hazard: Magnetic hoops for embroidery are industrial tools. They snap shut with immense force.
* Keep fingers clear of the edge.
* Do not rest them near pacemakers or magnetic storage media.
* Sliding them apart is easier than prying them apart.

Operation: The “Checkpoints” That Keep You Calm Mid-Stitch (So You Don’t Waste a Whole Project)

Don't walk away to simulate a "set it and forget it" lifestyle. Not yet.

Operation Checklist: The First 60 Seconds

1. The Sound: precise Click-Click-Click (Good) vs. Thud-Thud-Clunk (Bad - Stop immediately, check needle).
2. The Fabric: Is it "flagging" (bouncing up and down with the needle)? If yes, your hooping is too loose.
3. The Thread: Do you see the bobbin thread pulling up to the top? Stop and check tension/threading.

If you are doing production runs (e.g., 20+ items), relying on manual alignment is risky. A hoopmaster station acts as a physical jig, guaranteeing that the logo is 4 inches down from the collar every single time. It professionalizes your output instantly.

The “Why” Behind DeeAnn’s Two Biggest Lessons: Pull Compensation, Stabilization, and Hardware Reality

Let's synthesize DeeAnn's struggle into your strategy.

1. Registration Gaps = Stabilization Failure.
   Don't blame the digitizer until you have proven your stabilization (Cutaway + Spray + Tight Hoop). If the fabric moves 1mm, the gap will be visible.
2. Tension Issues = Hardware Mismatch.
   If you are using a standard sewing bobbin case for high-speed embroidery, you are fighting physics. Ensure you have the high-tension case designated for embroidery.

IQ Designer and Built-In Digitizing: The Fastest Way to Get Overwhelmed (and How to Learn It Anyway)

DeeAnn took a class on IQ Designer (on-screen digitizing). She admits she forgot half of it. This is normal.

Cognitive Load Management: Don't try to learn "Digitizing" on the same day you learn "Hooping." It is too much. Master the physical act of embroidery first. Once you can hoop and stitch a purchased design perfectly 10 times in a row, then start playing with IQ Designer.

Troubleshooting Map: Symptom → Likely Cause → Fix (So You Don’t Spiral)

Use this table before you post in a Facebook group.

The Upgrade That Actually Matters: Consistency and Throughput (Not “More Stuff”)

DeeAnn’s journey shows the reality: You improve by doing, failing, analyzing, and fixing.

However, there comes a point where your equipment limits you.

• Limit: Single-needle machines require you to stop and change thread 15 times for one design.
• Limit: Traditional hoops leave marks and cause wrist pain.
• Limit: You can't take an order for 50 caps because hoop-loading is too slow.

This is the "Commercial Pivot."

• Workflow Upgrade: magnetic embroidery hoops remove the friction of loading.
• Capacity Upgrade: Moving to a multi-needle machine (like SEWTECH models) allows you to set up 15 colors, press go, and walk away.

Don't upgrade to look cool. Upgrade to remove the bottleneck that is costing you time.

One Last Calm Reminder: Your Enthusiasm Is a Tool—Use It Like DeeAnn Did

The most valuable asset DeeAnn had wasn't her expensive machine—it was her willingness to be bad at it for a few days.

When you hit your first birds nest, simple stop. Cut it out. Check your bobbin case. Check your stabilizer.

Embroidery is a game of variables. Control the variables (Stabilizer, Thread, Hardware), and you will control the outcome.

FAQ

• Q: How do I fix outline and fill misalignment (registration drift gaps) on a machine embroidery elephant design when the outline leaves a visible white gap?
  A: Start by treating the gap as fabric movement and fix stabilization/hooping before blaming the file.
  • Switch stabilizer: Replace a flimsy tearaway with cutaway for dense designs.
  • Re-hoop correctly: Hoop fabric “drum tight” without slack and confirm the hoop is gripping (no slipping during stitch-out).
  • Test on scrap first: Stitch the same design on similar scrap fabric with the same stabilizer before risking a garment.
  • Success check: The outline lands cleanly against the fill with no consistent white channel, especially on small areas like feet.
  • If it still fails: If the design stitches perfectly on stabilized scrap but not on the garment, the garment hooping was too loose; if it fails on scrap too, the file likely needs pull compensation adjustments.
• Q: Why do on-screen tension changes not fix top thread loops on a dual-function sewing + embroidery machine, and how does swapping to the embroidery bobbin case solve it?
  A: If a sewing bobbin case is installed, screen tension changes may not overcome the hardware mismatch—install the dedicated embroidery bobbin case.
  • Stop safely: Stop the machine and remove the hoop before touching the bobbin area.
  • Swap cases: Replace the standard (often green-marked) sewing bobbin case with the embroidery bobbin case (often pink/red-marked).
  • Do not “blind adjust”: Avoid turning the bobbin-case tension screw unless a tension gauge is available.
  • Success check: The stitch balance improves immediately—fewer/zero loose loops on top and the top thread is pulled down cleanly at embroidery speed.
  • If it still fails: Fully rethread the top thread with presser foot up and confirm the thread is seated in the tension disks.
• Q: How can a beginner do a quick “floss test” to judge embroidery bobbin case tension without a tension gauge?
  A: Use the floss test as a quick sanity check—bobbin thread should pull with smooth, consistent resistance.
  • Pull by hand: Draw bobbin thread through the bobbin case steadily (do not jerk).
  • Compare feel: Aim for “dental floss through tight teeth”—controlled resistance, not free-falling.
  • Avoid random screw turns: If the feel is wildly loose/tight, verify the correct embroidery bobbin case first before adjusting anything.
  • Success check: The pull feels consistent and controlled, and the machine stops making loose top loops caused by low bobbin drag.
  • If it still fails: Confirm correct threading path on top and consider professional guidance before changing bobbin-case settings.
• Q: What is the fastest pre-flight checklist to prevent bird’s nests, needle breaks, and wasted stitch-outs before pressing Start on a machine embroidery job?
  A: Run a 60-second pre-flight check every time—most “machine problems” are setup problems.
  • Replace/check needle: Install a fresh needle (and match needle type to fabric: ballpoint for knits, sharp for wovens).
  • Verify bobbin setup: Confirm enough bobbin thread to finish the color block and confirm the embroidery bobbin case is installed.
  • Rethread top thread: Unthread and rethread with presser foot up so the thread seats in the tension disks.
  • Clear hoop travel: Move cups/scissors away and confirm the hoop can move freely without hitting anything.
  • Success check: The first stitches sound like a clean, consistent “click-click-click,” not clunks, and the fabric does not bounce (flag) under the needle.
  • If it still fails: Stop immediately and re-check threading and hoop clearance before continuing.
• Q: How do I stop bird’s nesting (tangle under the throat plate) on a machine embroidery design when the underside turns into a thread wad?
  A: Treat bird’s nesting as a top-threading issue first—rethread the top thread correctly.
  • Stop and cut: Stop the machine, cut the tangled thread, and remove the hoop if needed to prevent further jams.
  • Rethread properly: Rethread the TOP thread with the presser foot UP to seat the thread in the tension disks.
  • Restart and watch: Run the first stitches while watching the thread path for snags.
  • Success check: The underside returns to normal stitch formation (no growing “thread wad” under the plate) within the first few seconds.
  • If it still fails: Confirm the correct bobbin case for embroidery is installed and the bobbin is inserted correctly for that case.
• Q: What is the safest way to swap a bobbin case or handle tension hardware on a sewing/embroidery machine without damaging the hook area?
  A: Stop the machine and remove the hoop before any bobbin-case work—loose parts can damage timing if dropped into the hook race.
  • Power down/stop: Stop the machine completely before opening the bobbin/hook area.
  • Remove the hoop first: Take the hoop off to prevent accidental movement and to improve access.
  • Keep screws controlled: Never loosen/adjust the bobbin-case tension screw without a tension gauge; do not let screws fall into the race hook area.
  • Success check: The bobbin case seats securely, nothing rattles, and the machine runs without sudden clunks or thread shredding.
  • If it still fails: Do not keep turning screws—revert to the original setting if possible and consult the machine manual or a qualified technician.
• Q: When hooping thick quilts, towels, velvet, or hoodies causes hoop burn, wrist pain, or fabric slipping, what is the step-by-step upgrade path from technique fixes to magnetic hoops to multi-needle capacity?
  A: Fix technique first, then upgrade the clamping method, then upgrade capacity only if throughput is the bottleneck.
  • Level 1 (Technique): Hoop properly (firm and even), choose the right stabilizer (often cutaway for demanding jobs), and add spray/topping as needed to prevent shifting.
  • Level 2 (Tool): Switch to a magnetic embroidery hoop/frame to clamp straight down and reduce friction-based hoop burn and hand strain.
  • Level 3 (Capacity): If thread changes and slow loading are limiting orders, consider moving from single-needle workflow to a multi-needle setup for consistent throughput.
  • Success check: Hooping becomes repeatable without slipping, hoop marks reduce, and alignment stays consistent across repeats.
  • If it still fails: Re-test on scrap with the exact fabric/stabilizer stack—if scrap is perfect but garments fail, the loading/alignment method needs improvement.
• Q: What magnetic hoop safety rules prevent finger pinch injuries and equipment hazards when using magnetic embroidery frames?
  A: Magnetic hoops snap shut with strong force—treat them as industrial tools and keep hands out of the closing edge.
  • Keep fingers clear: Hold magnets from safe grip points and never place fingertips near the closing seam.
  • Separate by sliding: Slide magnetic parts apart rather than prying straight up to reduce sudden snap-back.
  • Protect sensitive items: Keep magnetic hoops away from pacemakers and magnetic storage media.
  • Success check: The magnetic frame closes in a controlled way without sudden pinches, and the fabric is held firmly without “wrestling” the hoop.
  • If it still fails: Stop using the frame until handling feels fully controlled, and review the frame’s handling guidance for your specific setup.
